mp-1228342/Ba2ScO3F/anharm

Space group: I4mm (107)
Link: Materials Project
Download: mp-1228342.tar.gz

Harmonic properties

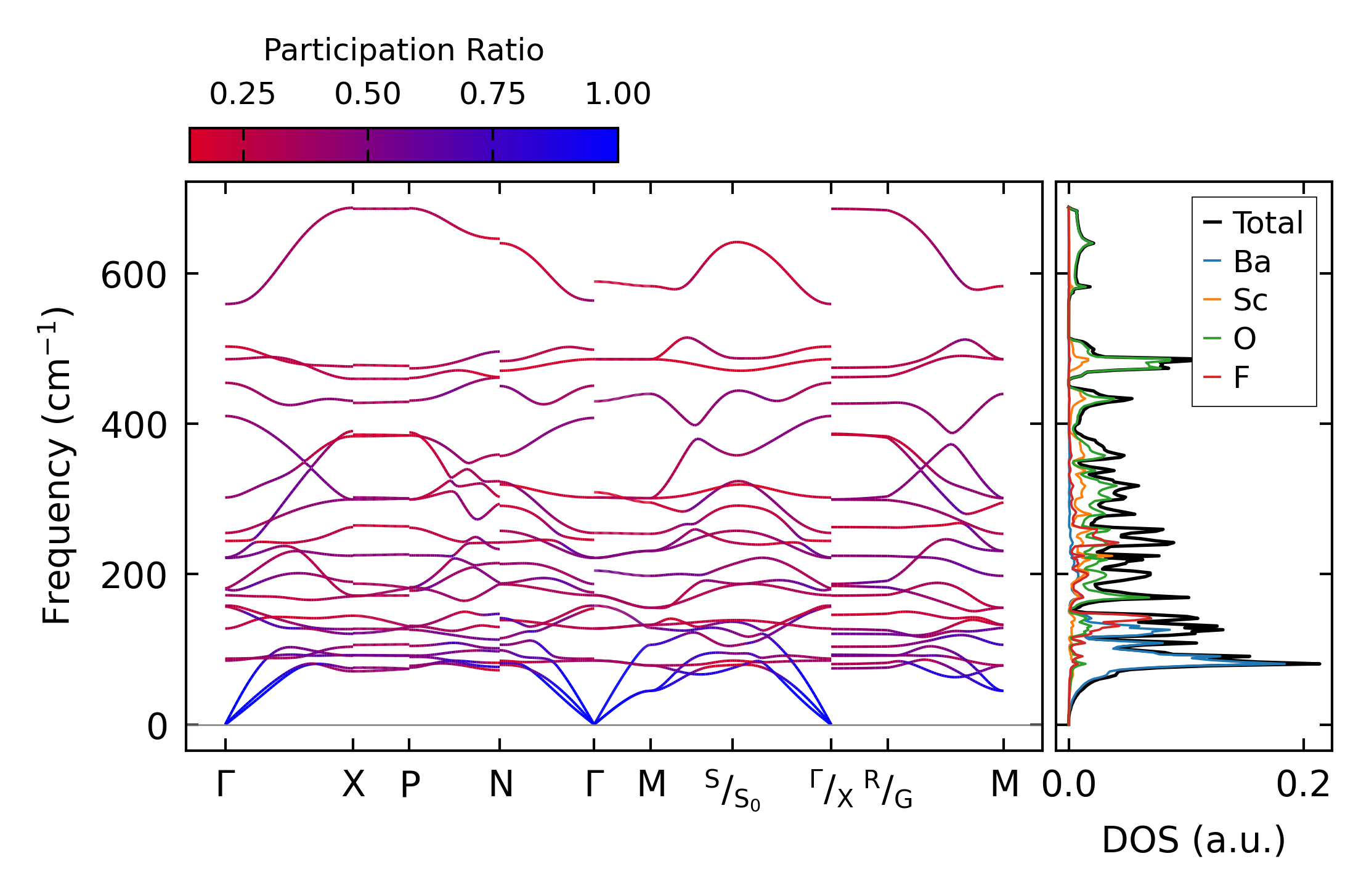

../../_images/fig_bandos_pr15141.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo15140.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all6499.png — (a) Grüneisen parameters

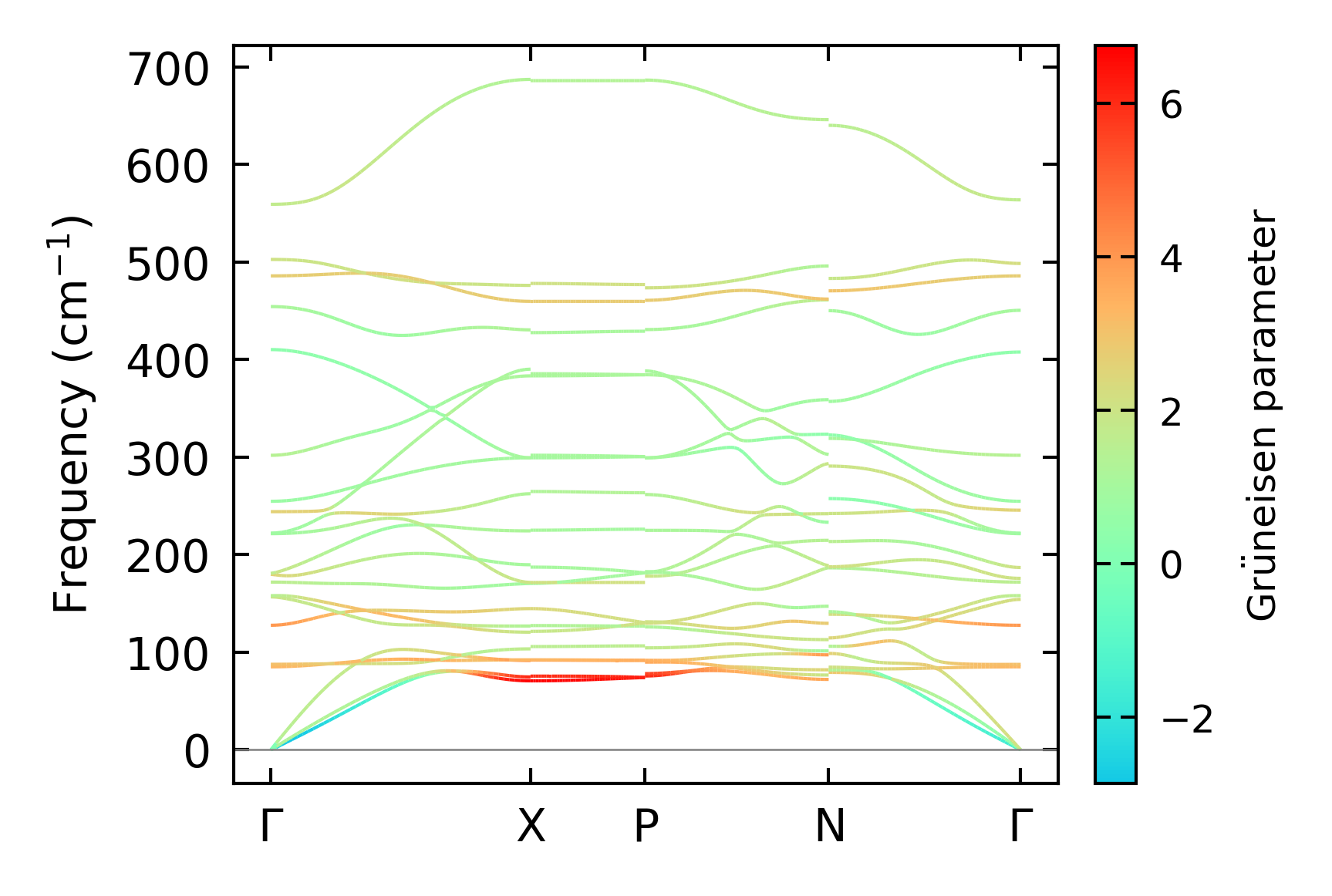

../../_images/fig_gruneisen6499.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x14x14, supercell: 3x3x1

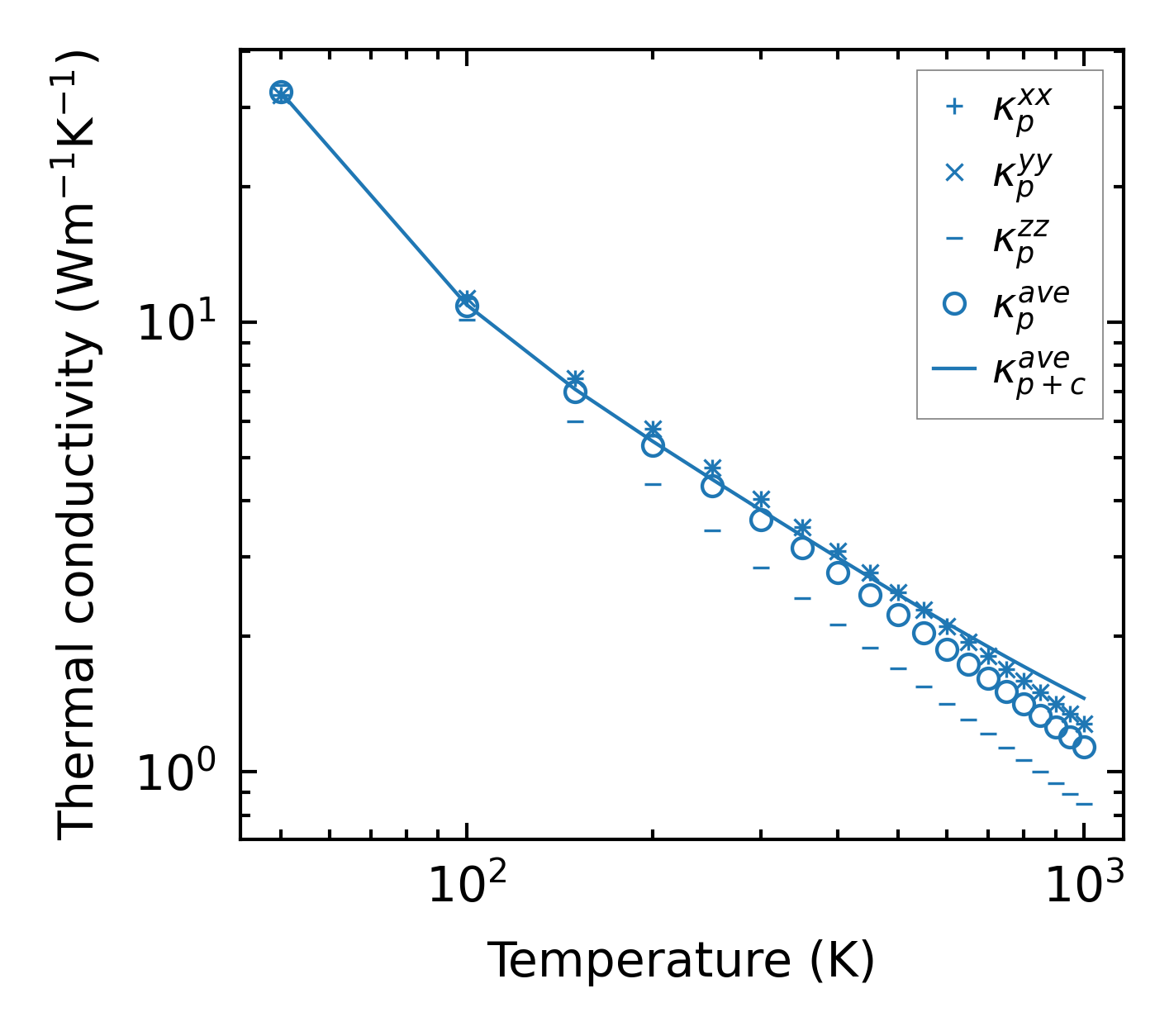

../../_images/fig_kappa12228.png — (a) Temperature-dependent lattice thermal conductivity

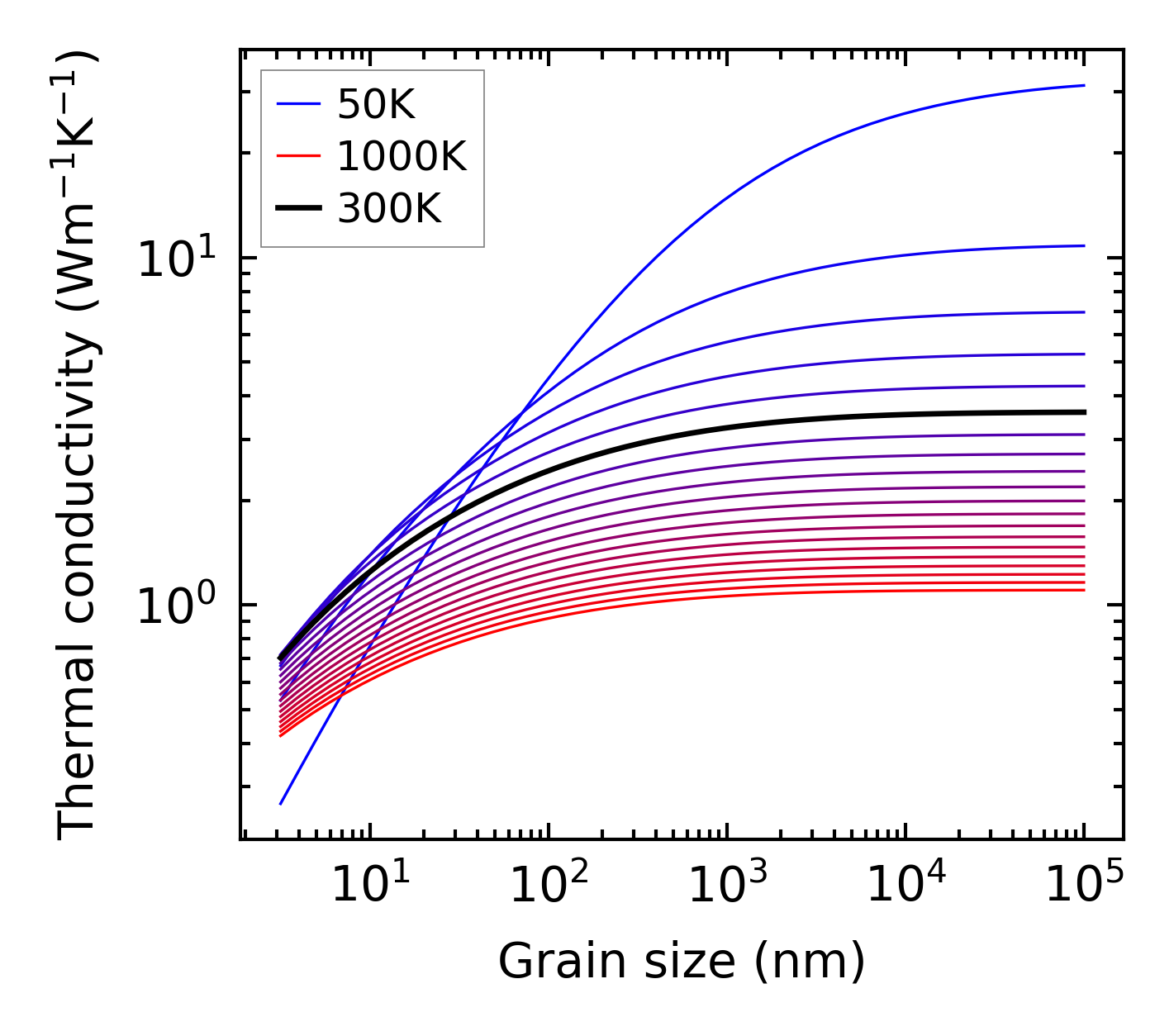

../../_images/fig_kappa_vs_grain_size6576.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

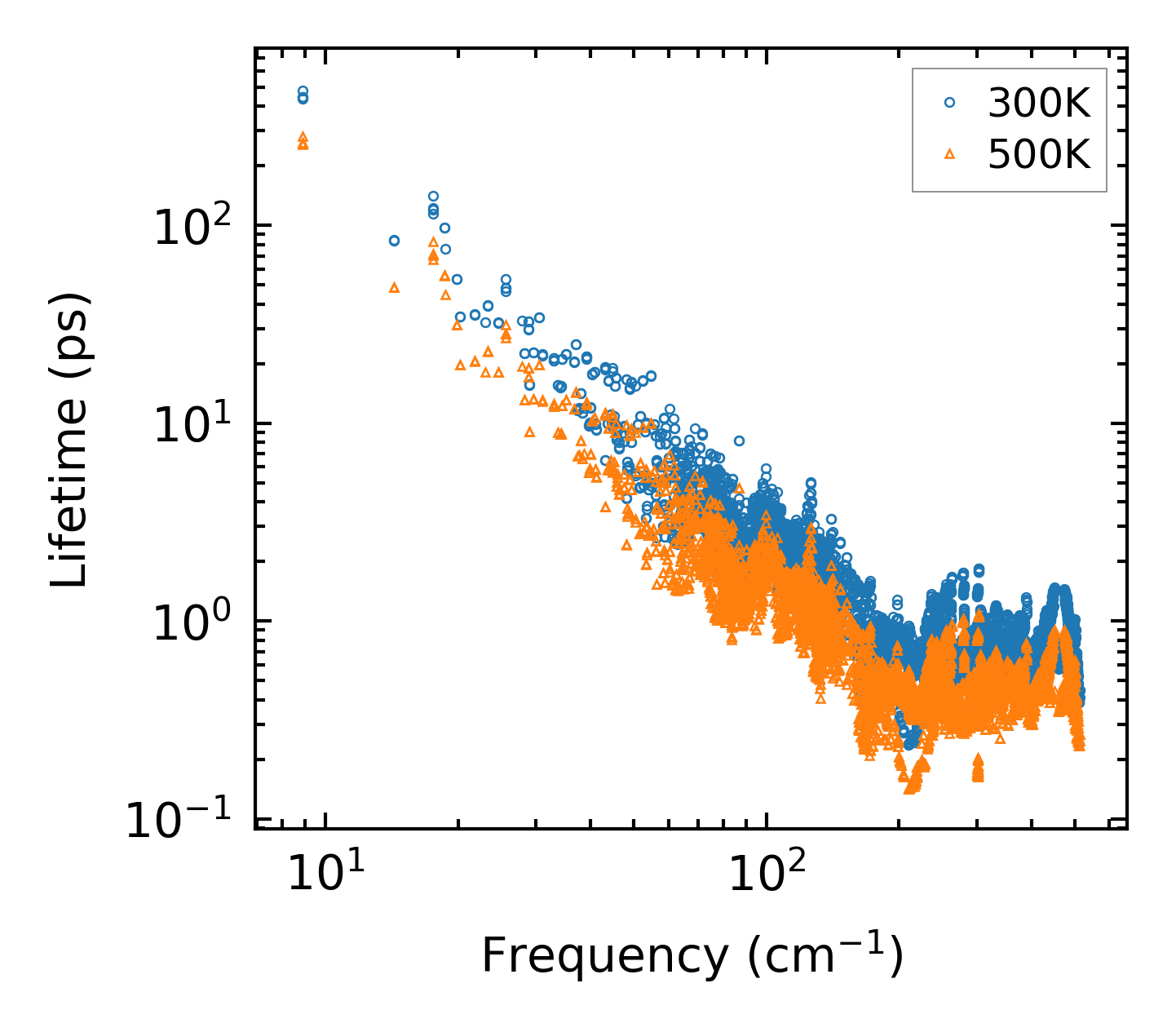

../../_images/fig_lifetime6433.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates6432.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency6433.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

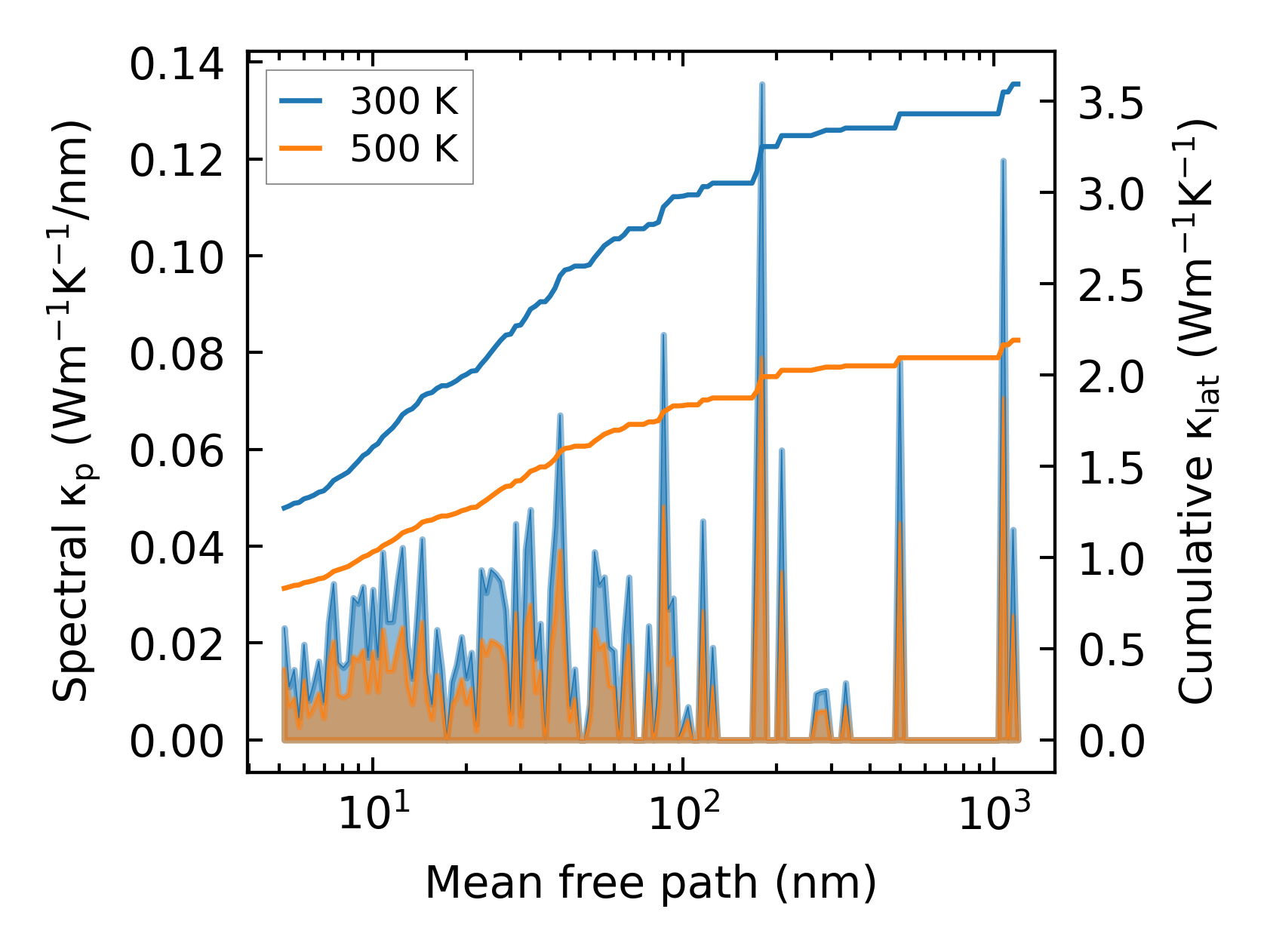

../../_images/fig_cumu_mfp6432.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

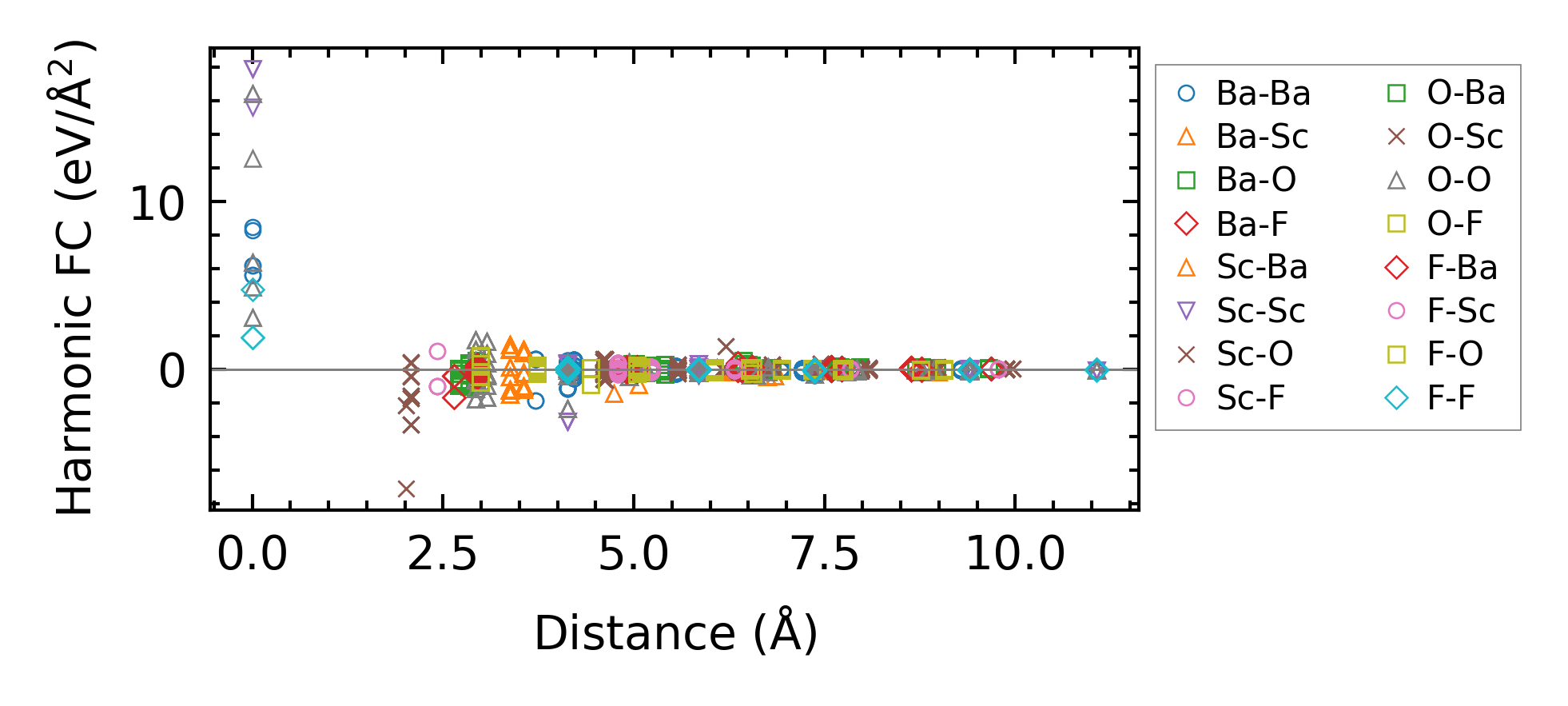

../../_images/fig_fc214756.png — (a) Force constants w.r.t atomic distance

Summary

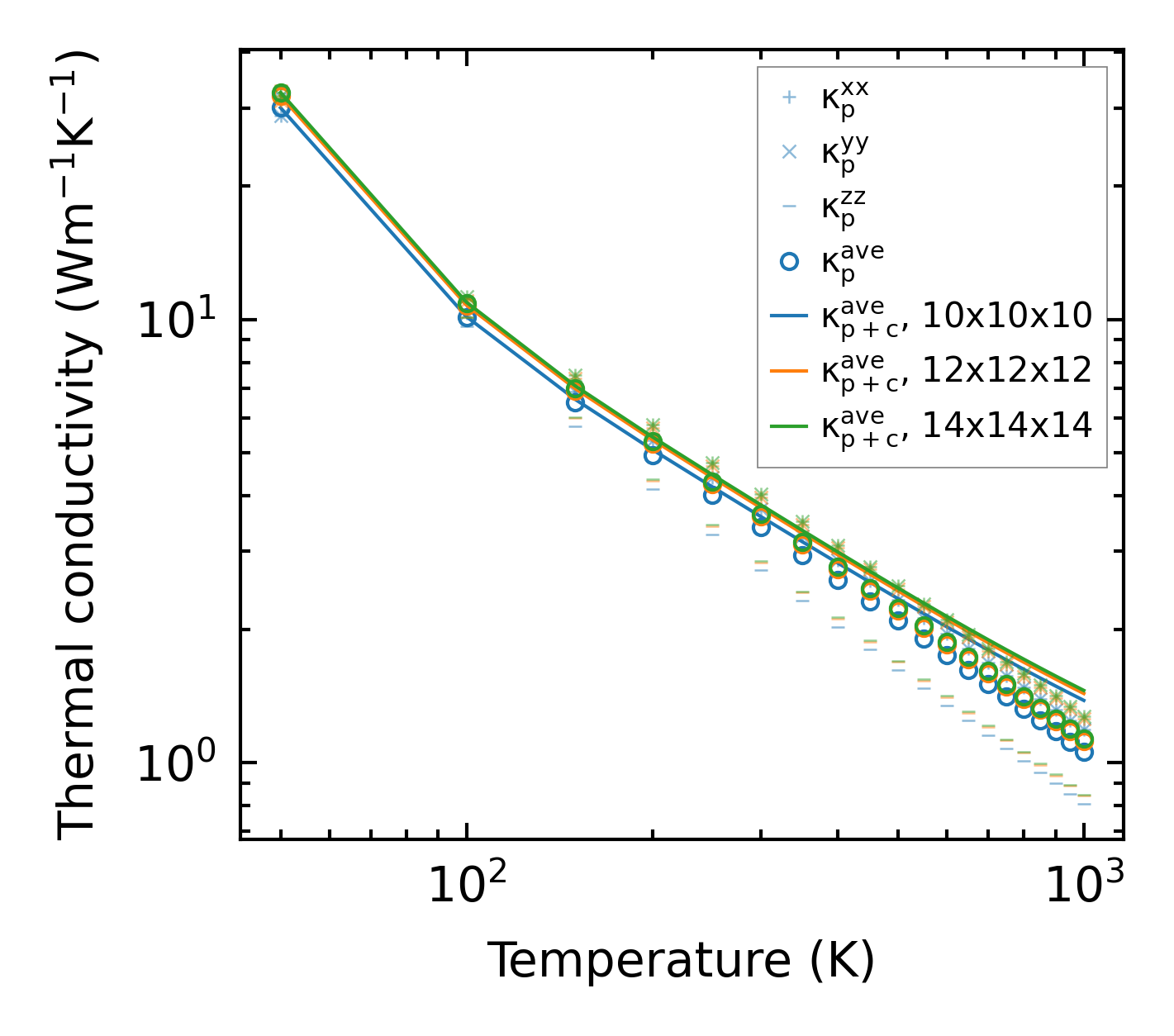

../../_images/fig_kappa12229.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times25056.png — (b) Computation time
