mp-1047866/BaMgCoF7/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-1047866.tar.gz

Harmonic properties

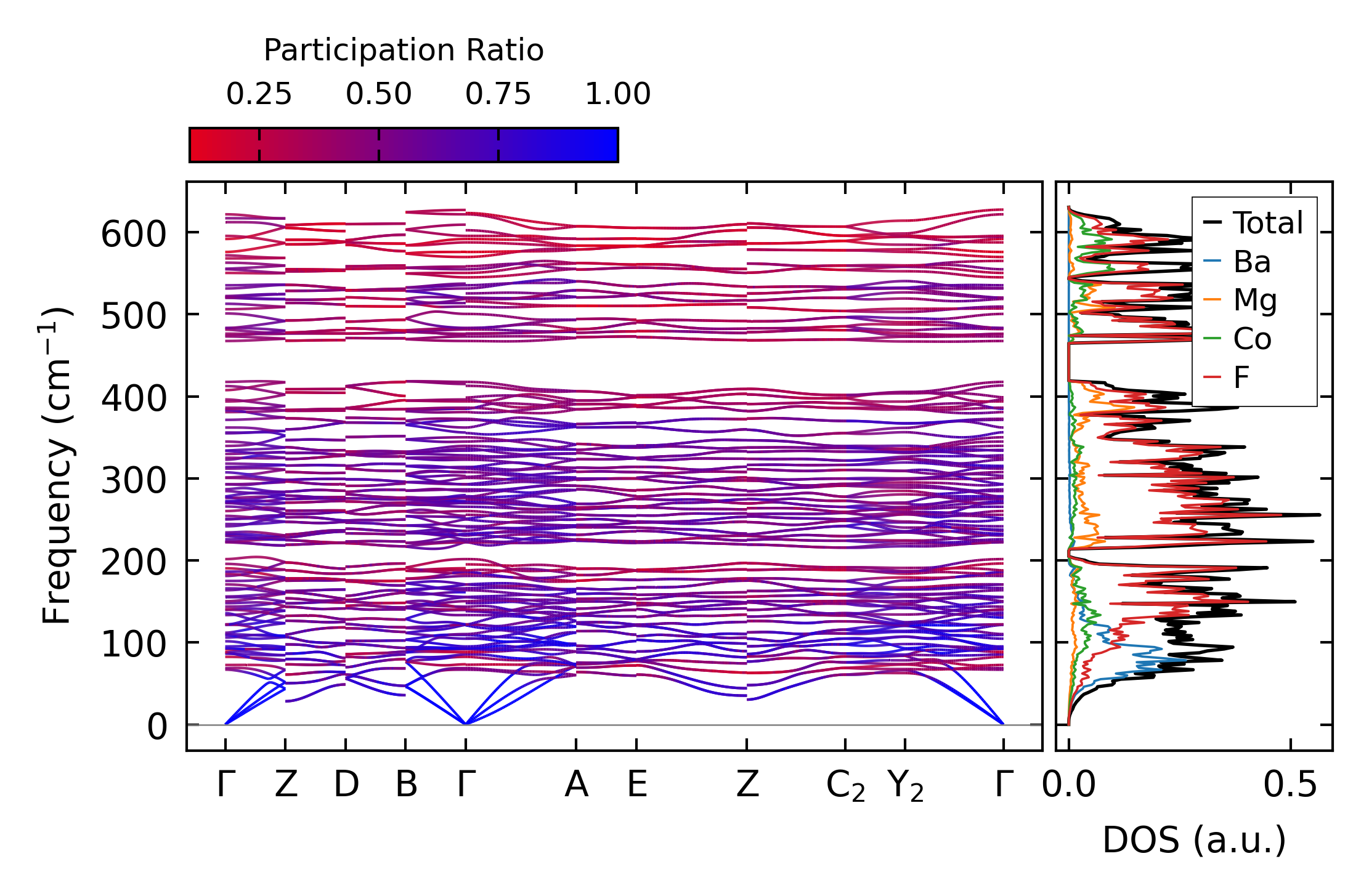

../../_images/fig_bandos_pr17099.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo17098.png — (b) Thermodynamic properties

Grüneisen parameters

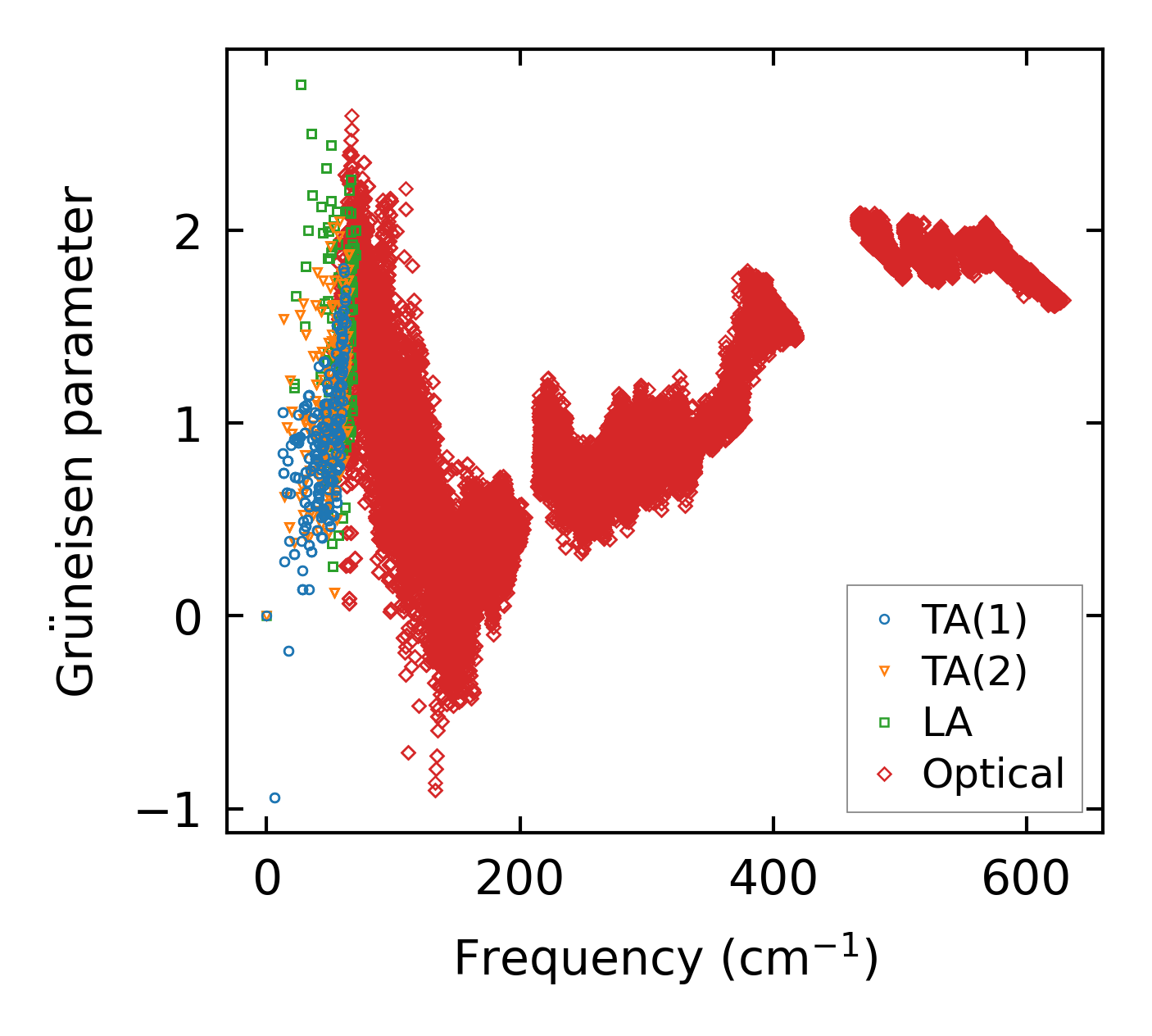

../../_images/fig_gru_all7469.png — (a) Grüneisen parameters

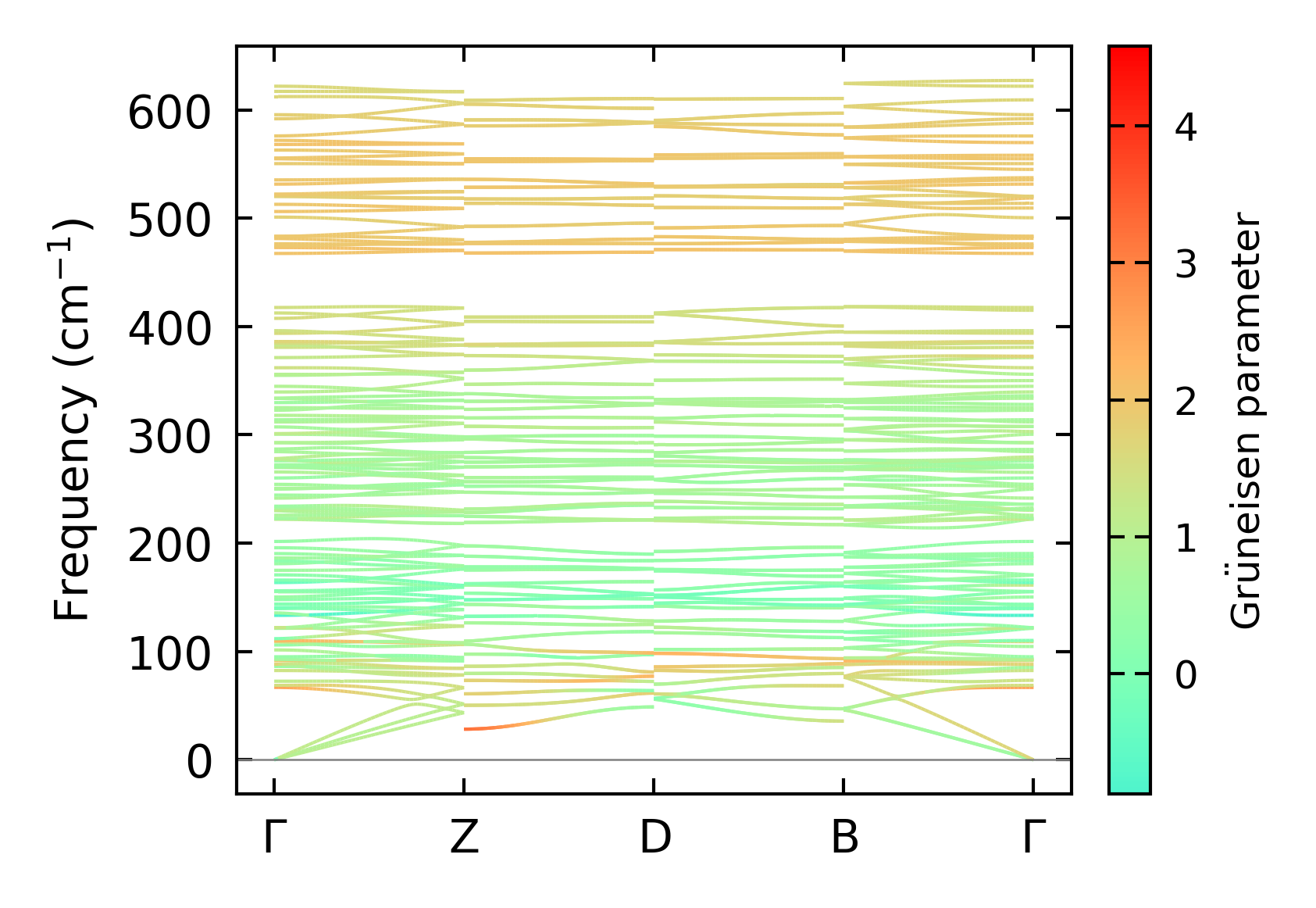

../../_images/fig_gruneisen7469.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x7x7, supercell: 2x1x1

../../_images/fig_kappa14088.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size7557.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime7402.png — (a) Phonon lifetime due to phonon-phonon scattering

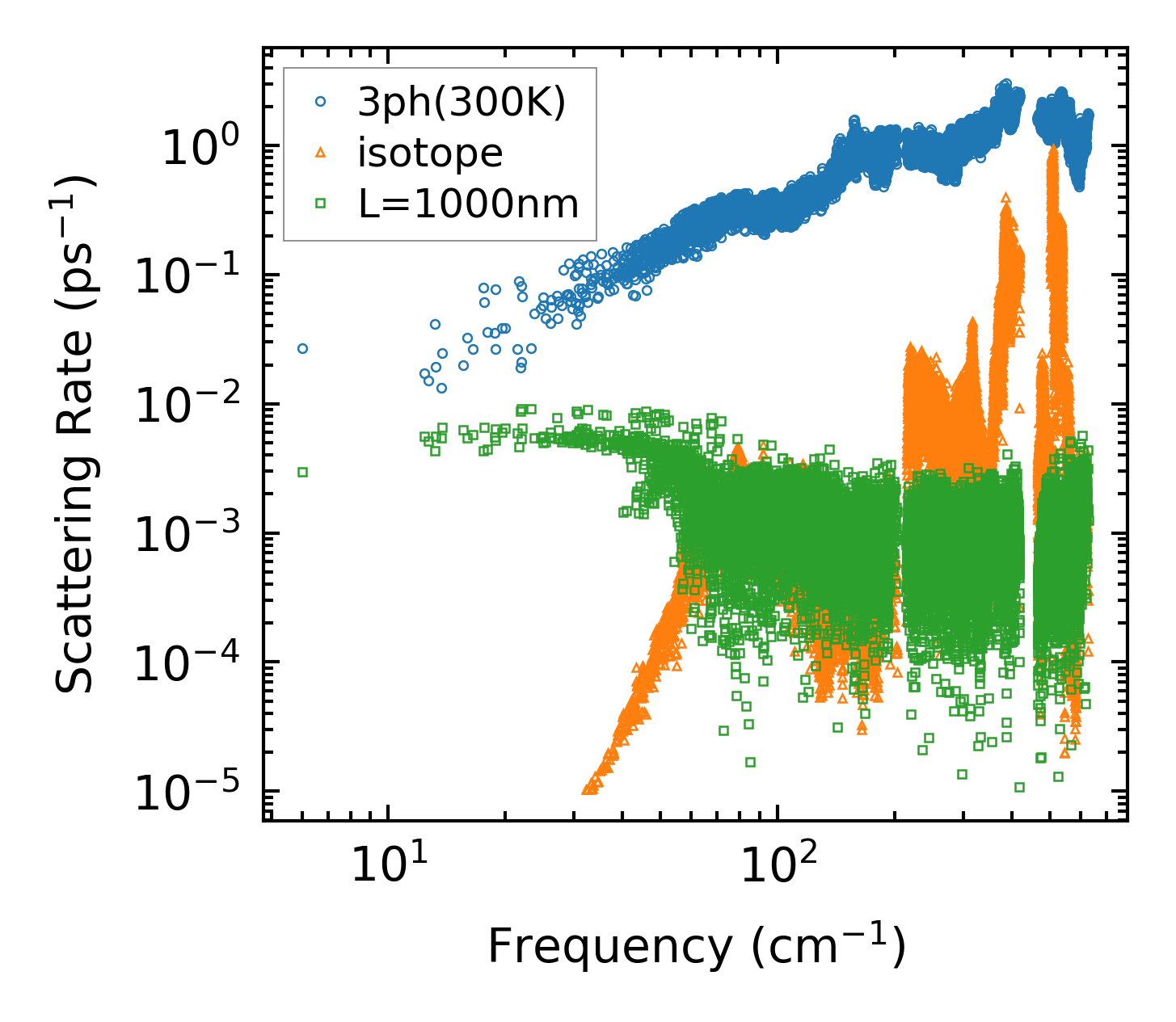

../../_images/fig_scat_rates7401.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency7402.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

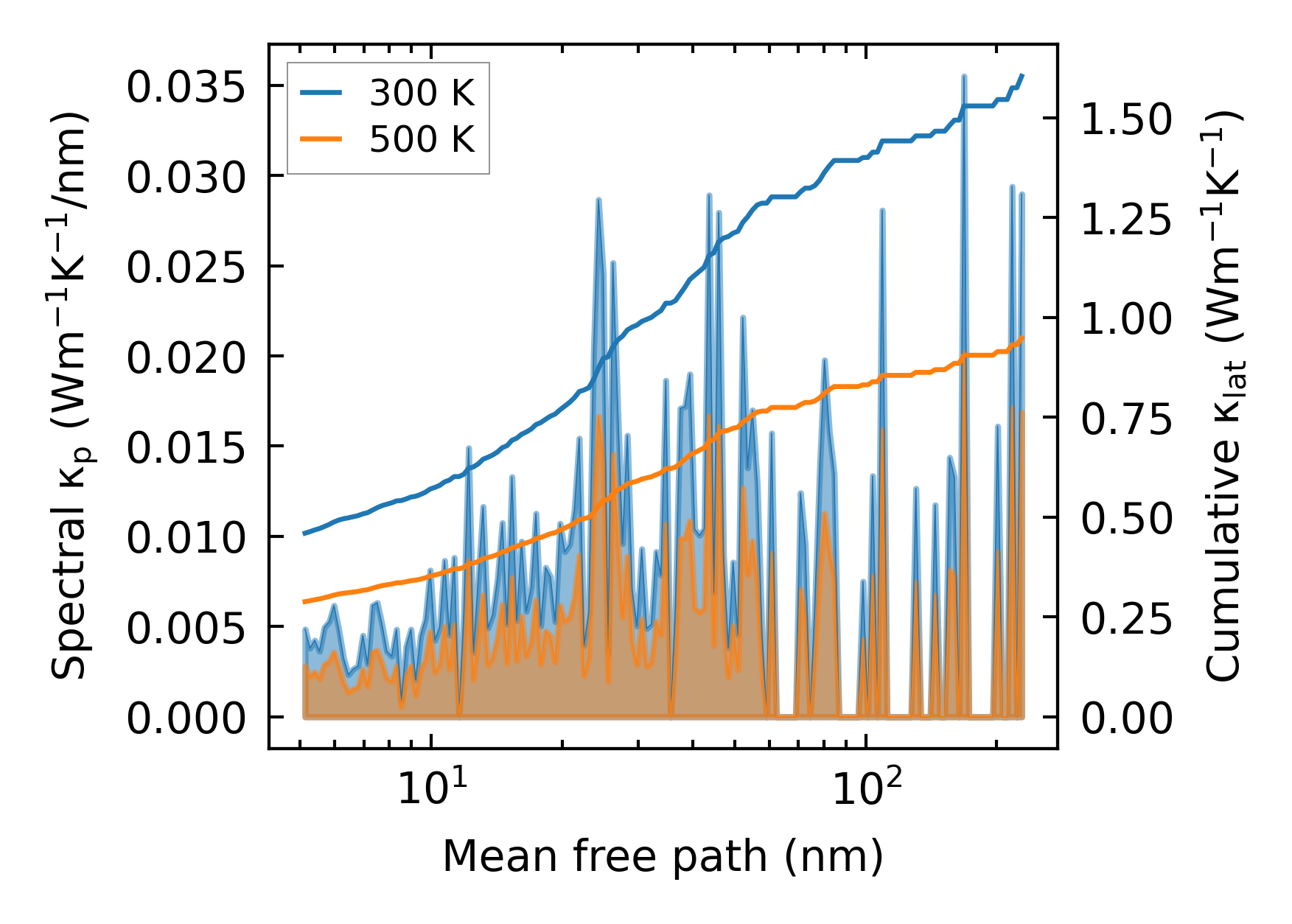

../../_images/fig_cumu_mfp7401.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

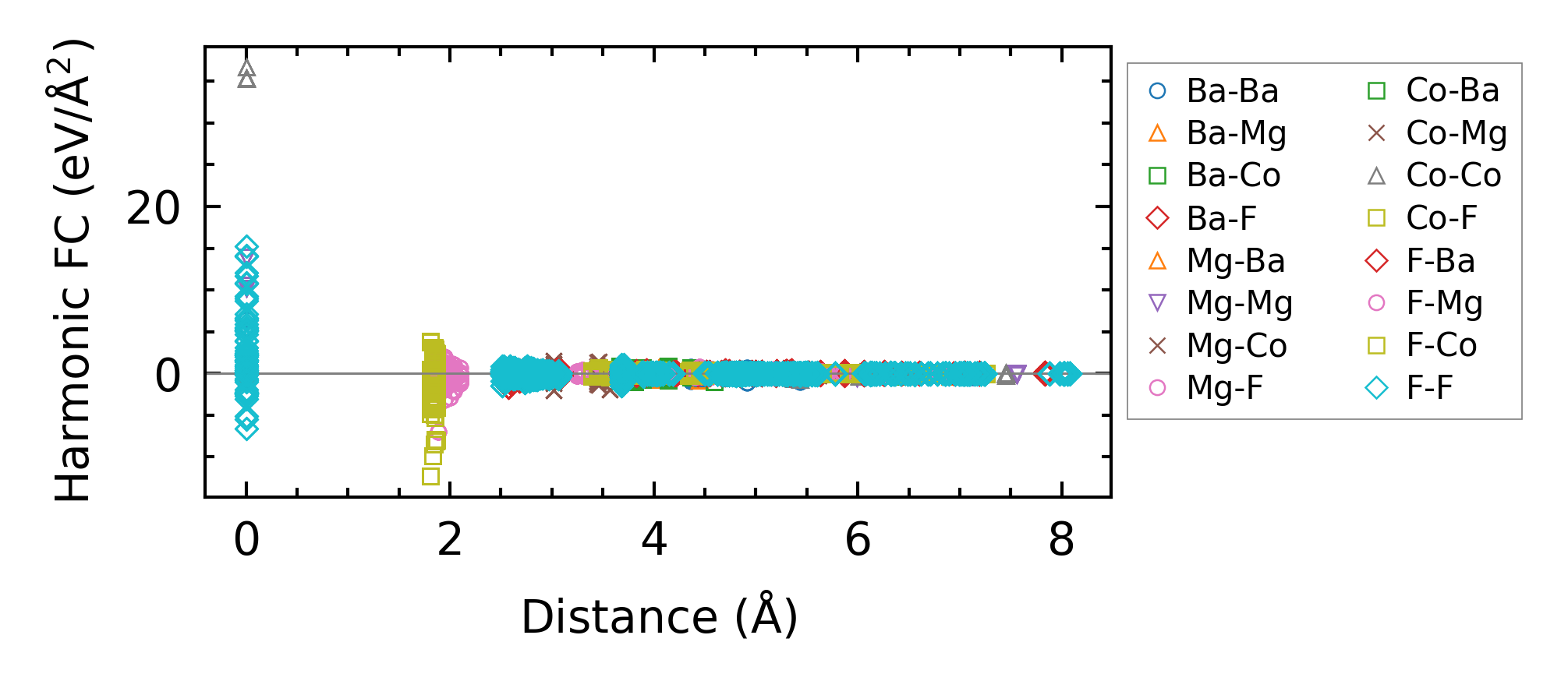

../../_images/fig_fc216651.png — (a) Force constants w.r.t atomic distance

Summary

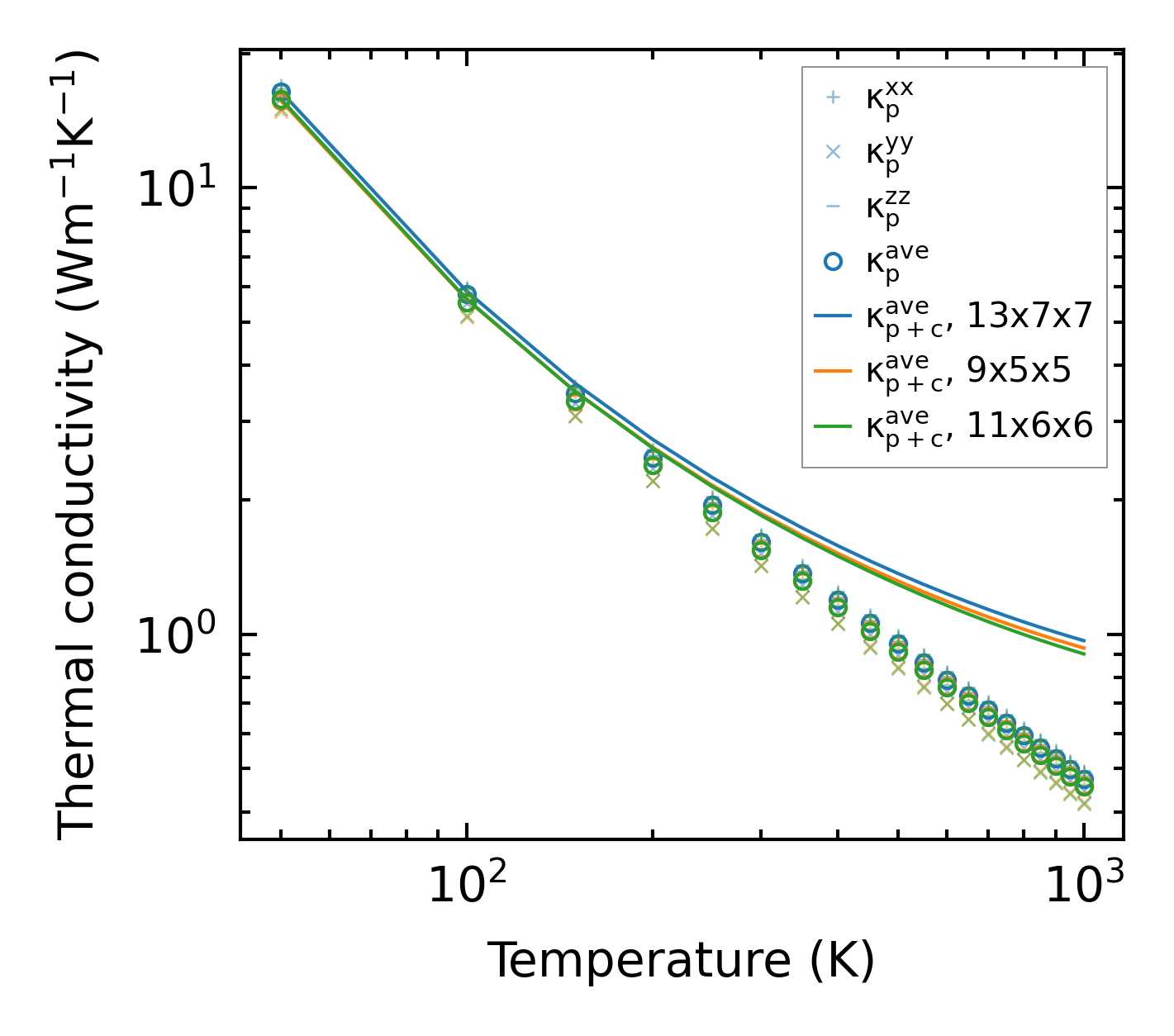

../../_images/fig_kappa14089.png — (a) Temperature-dependent lattice thermal conductivity

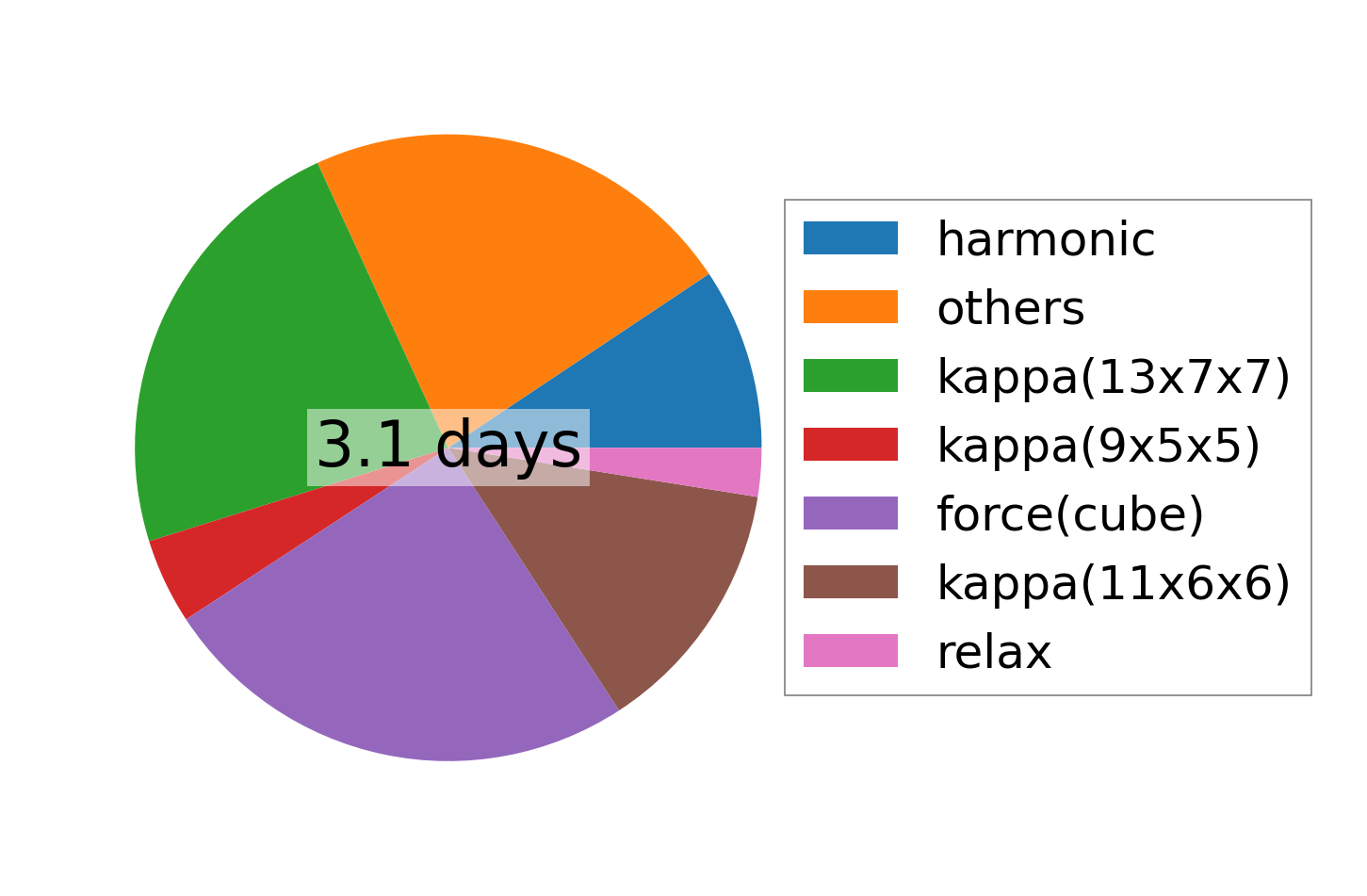

../../_images/fig_times27887.png — (b) Computation time
