mp-1047156/ZnCu2O4/anharm

Space group: I4_1/amd (141)
Link: Materials Project
Download: mp-1047156.tar.gz

Harmonic properties

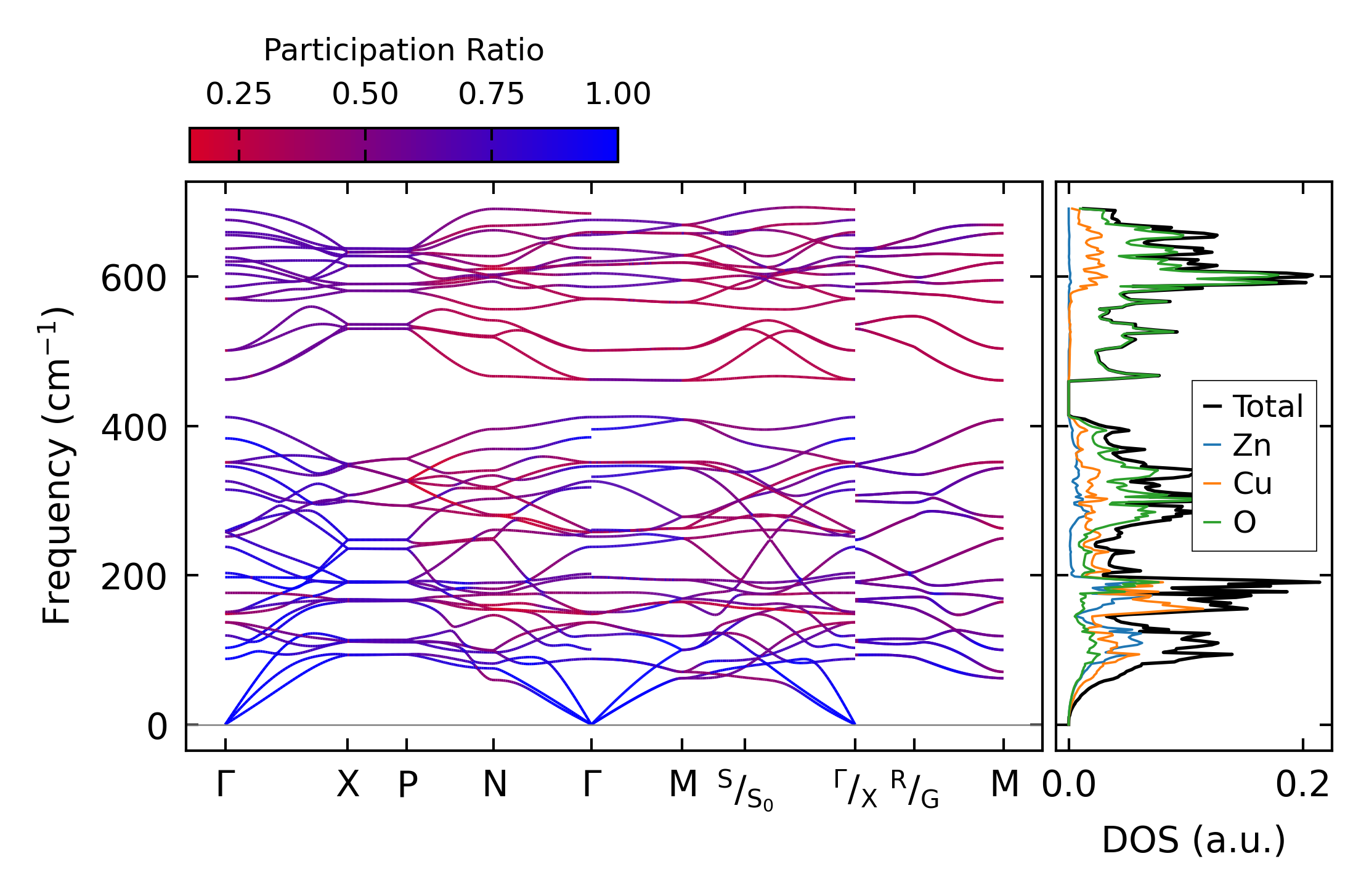

../../_images/fig_bandos_pr17081.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo17080.png — (b) Thermodynamic properties

Grüneisen parameters

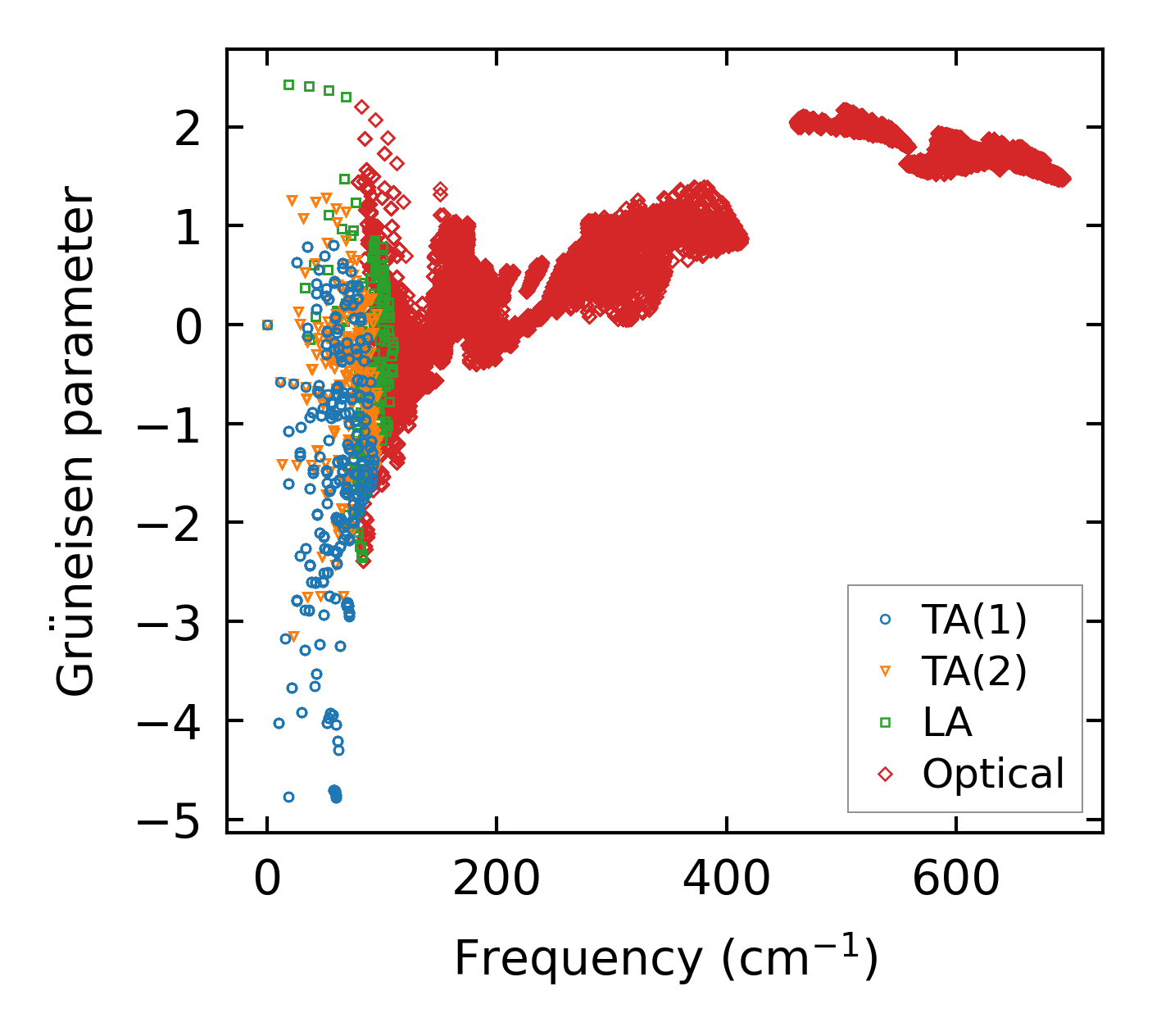

../../_images/fig_gru_all7463.png — (a) Grüneisen parameters

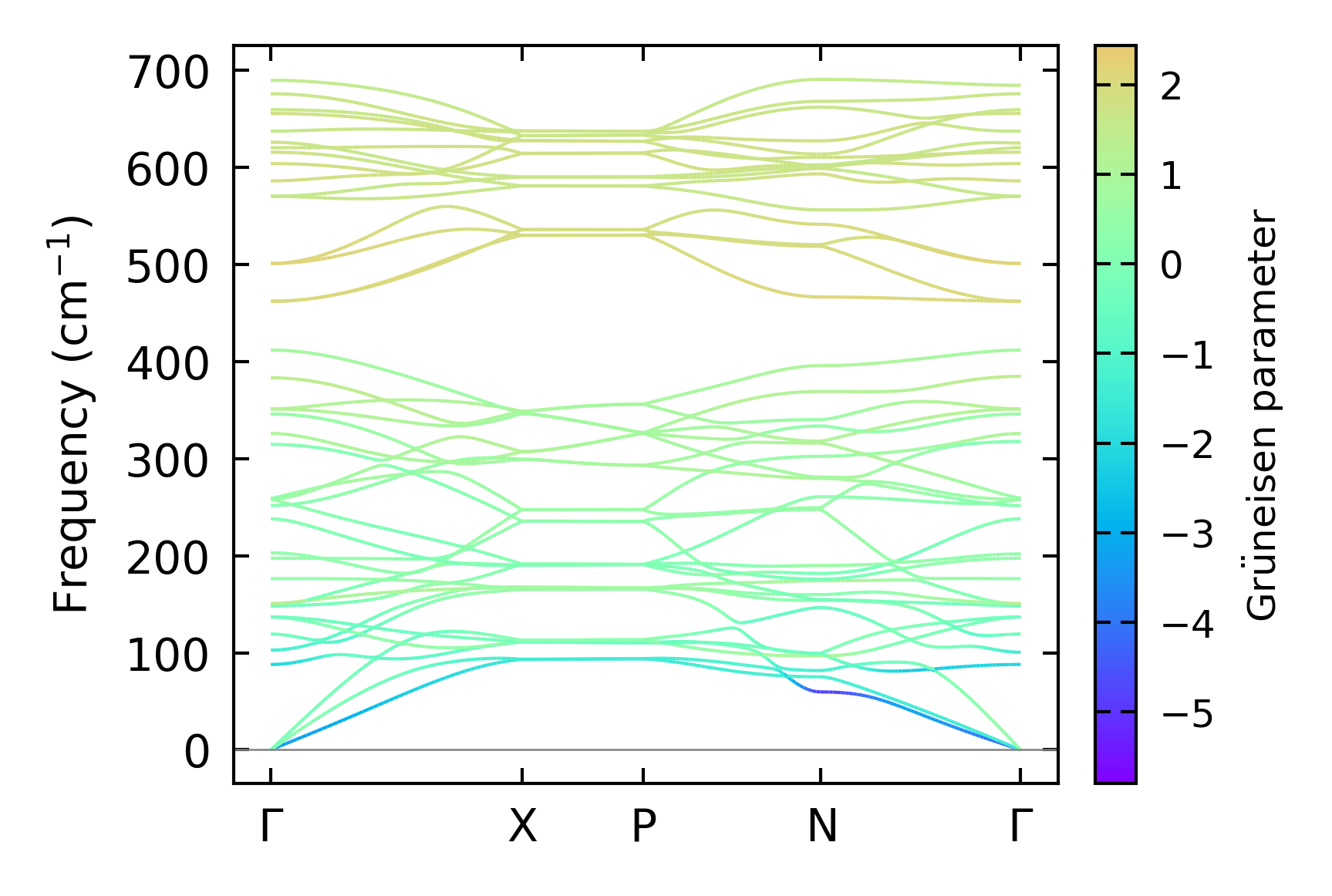

../../_images/fig_gruneisen7463.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x13x13, supercell: 2x2x1

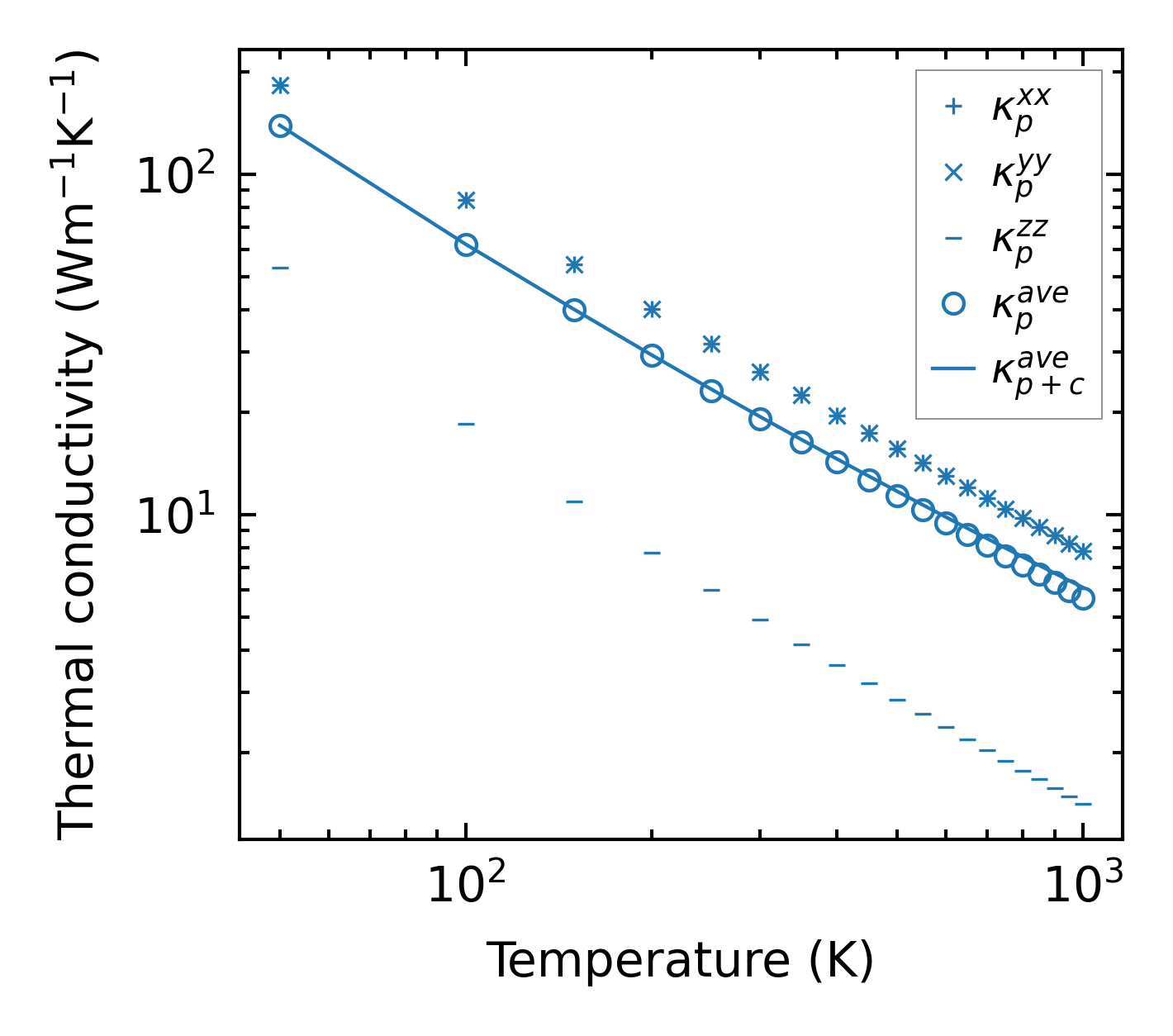

../../_images/fig_kappa14076.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size7551.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime7396.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates7395.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency7396.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

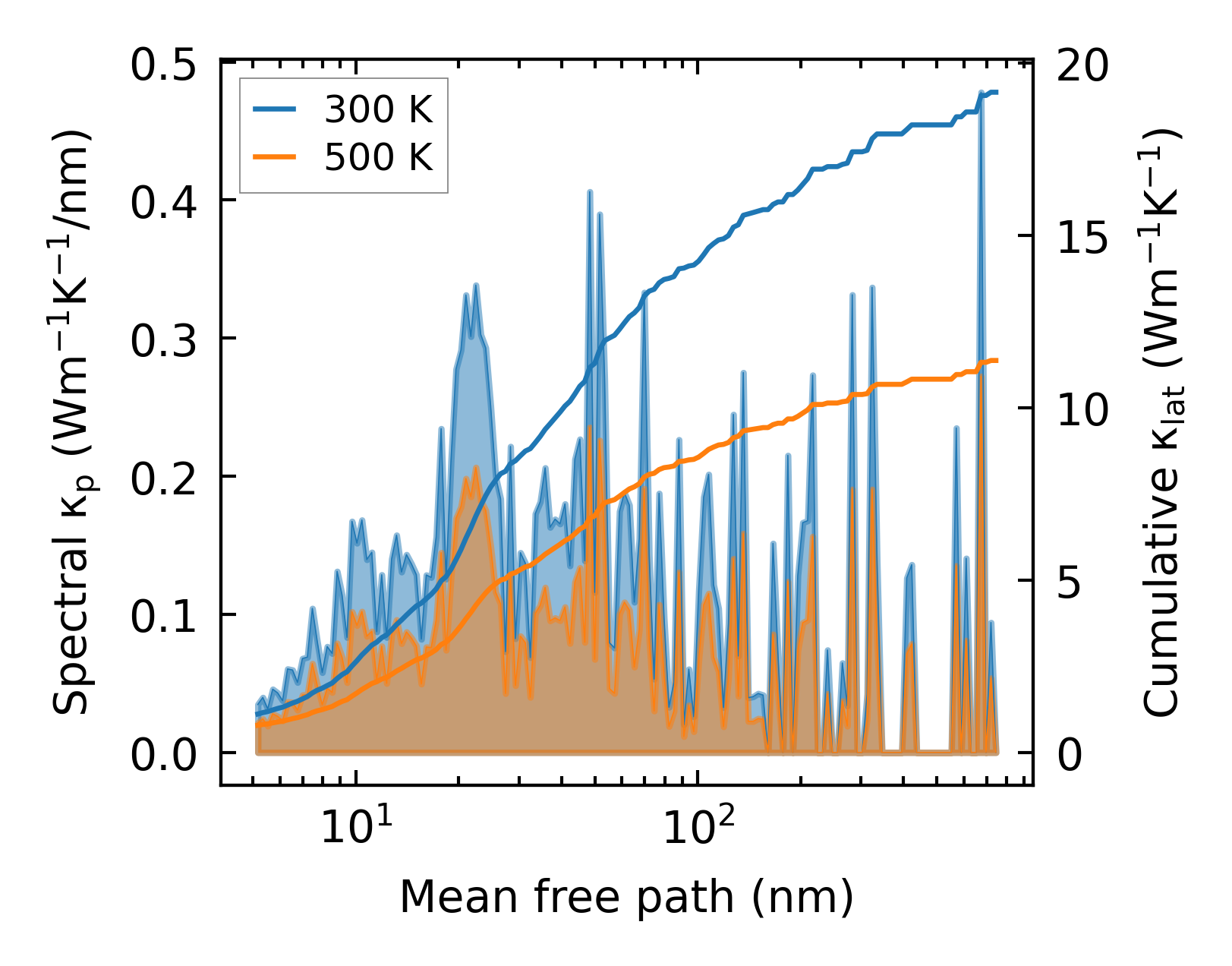

../../_images/fig_cumu_mfp7395.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

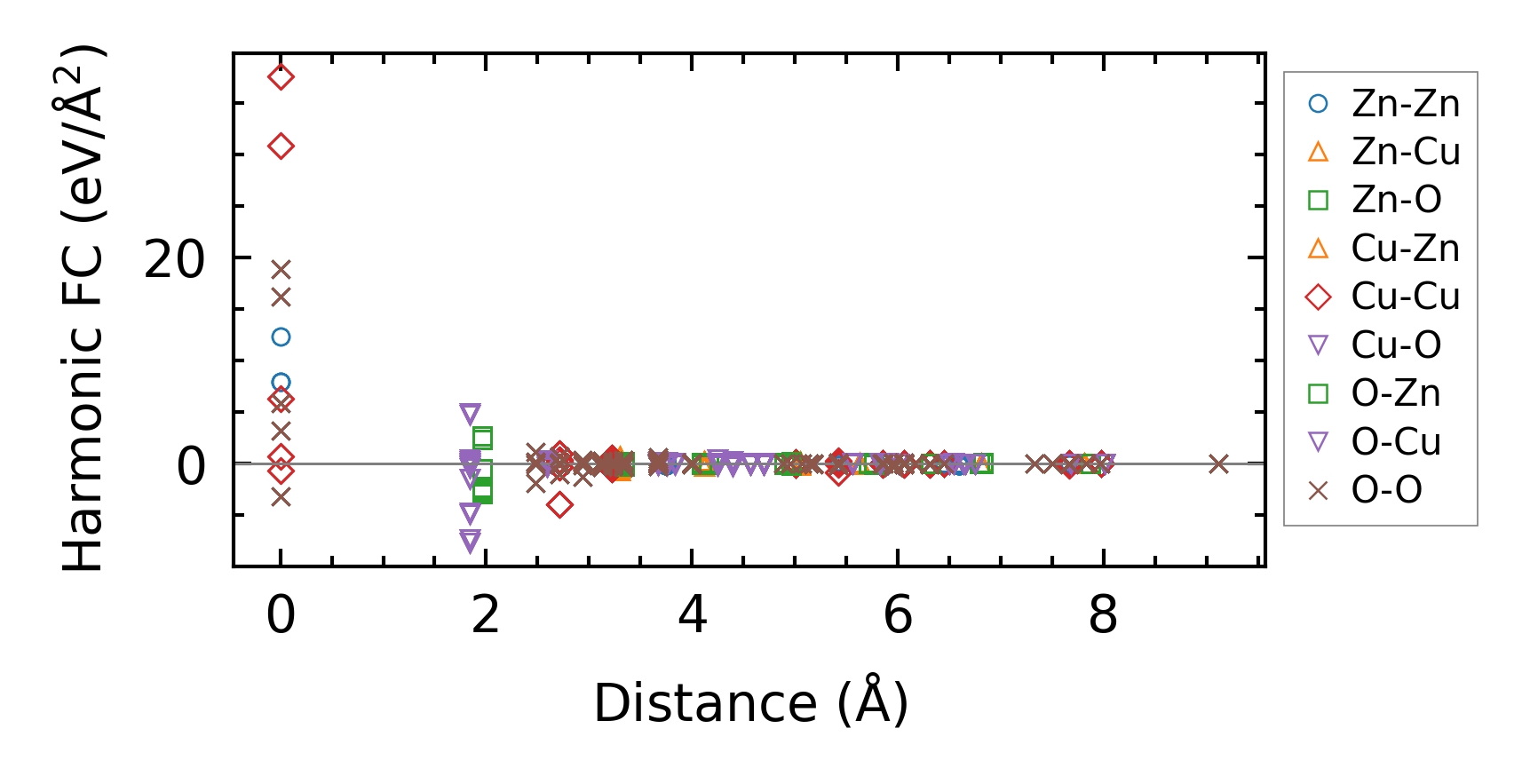

../../_images/fig_fc216633.png — (a) Force constants w.r.t atomic distance

Summary

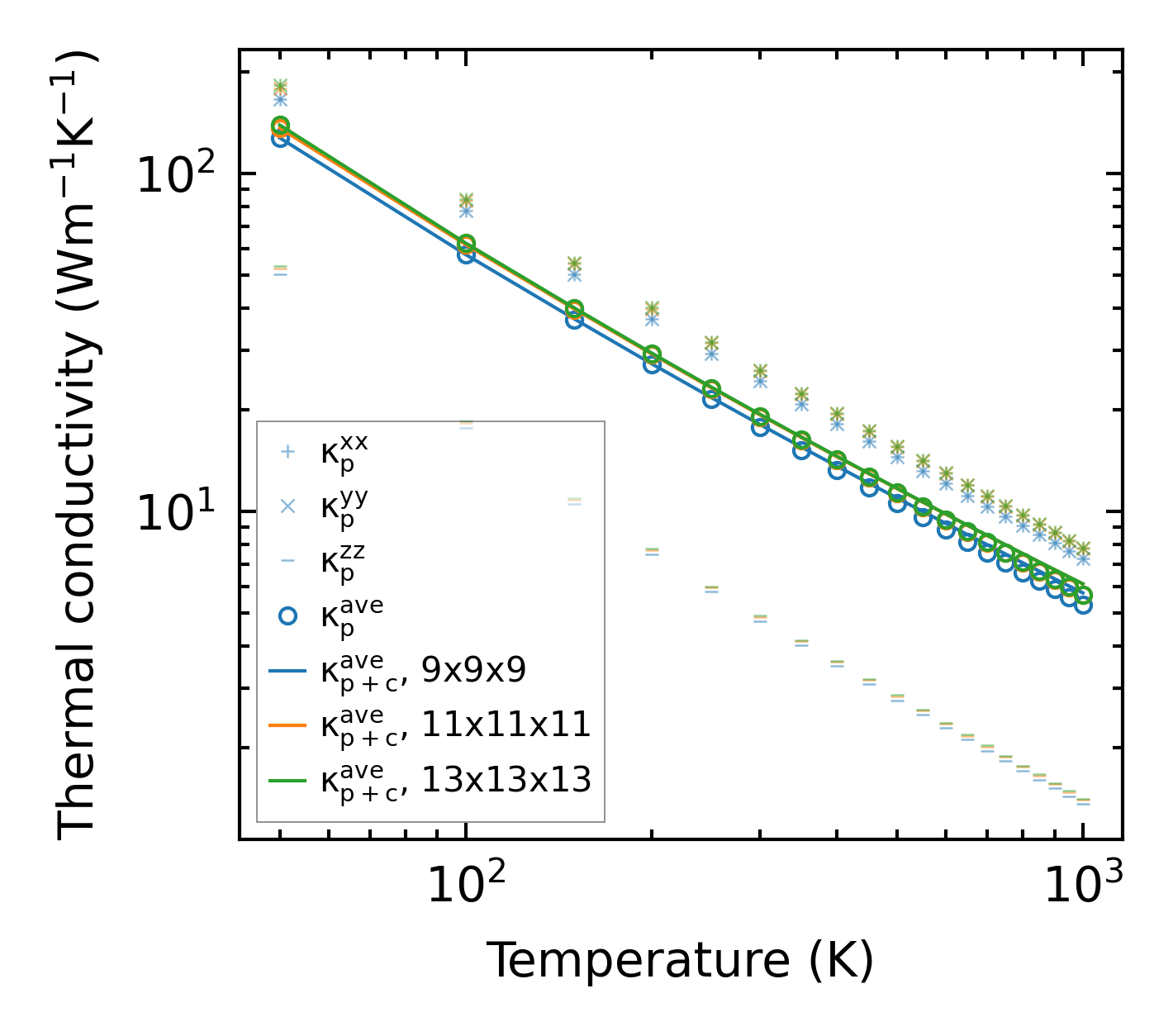

../../_images/fig_kappa14077.png — (a) Temperature-dependent lattice thermal conductivity

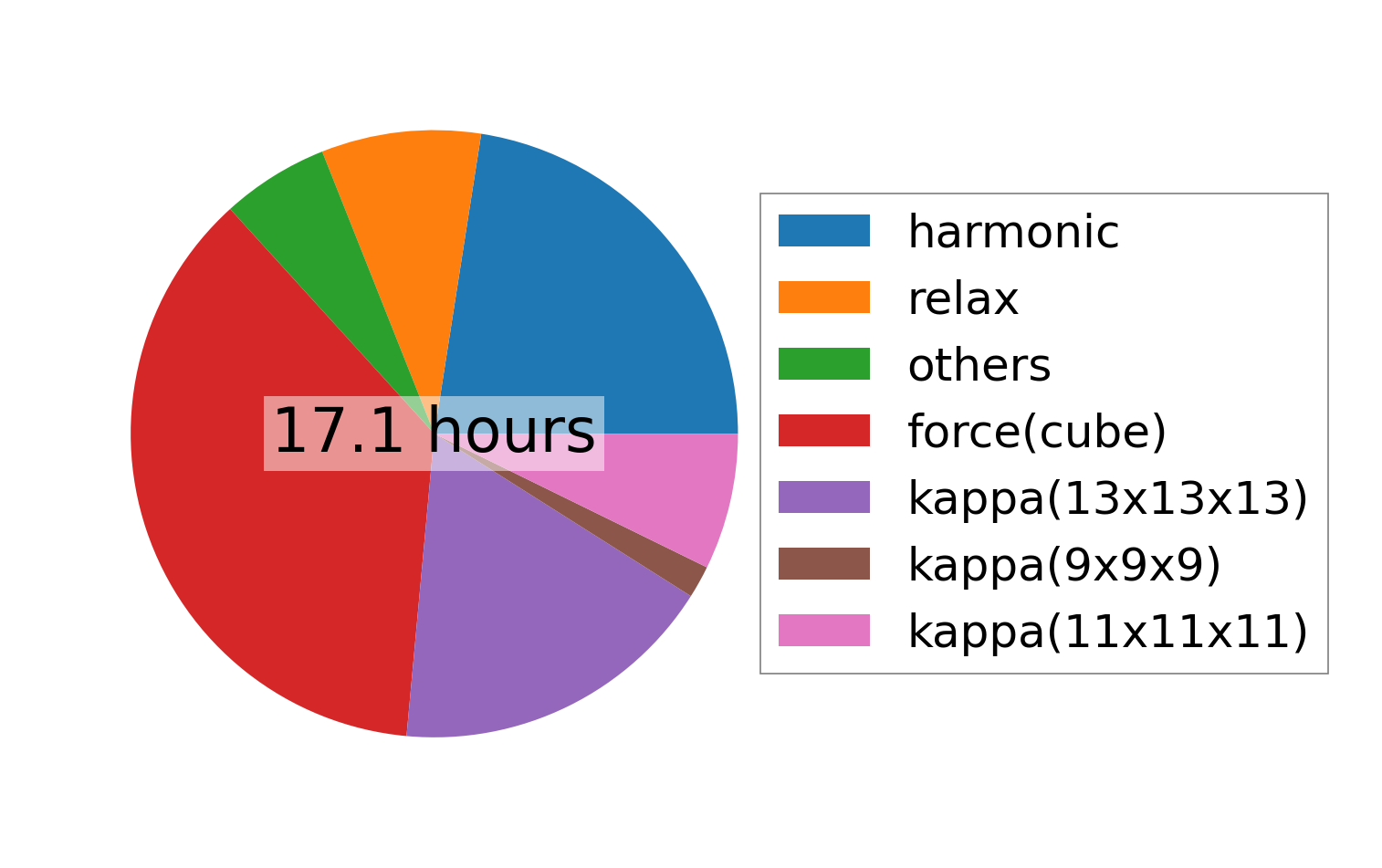

../../_images/fig_times27849.png — (b) Computation time
