mp-998917/K2O2/anharm

Space group: P-62m (189)
Link: Materials Project
Download: mp-998917.tar.gz

Harmonic properties

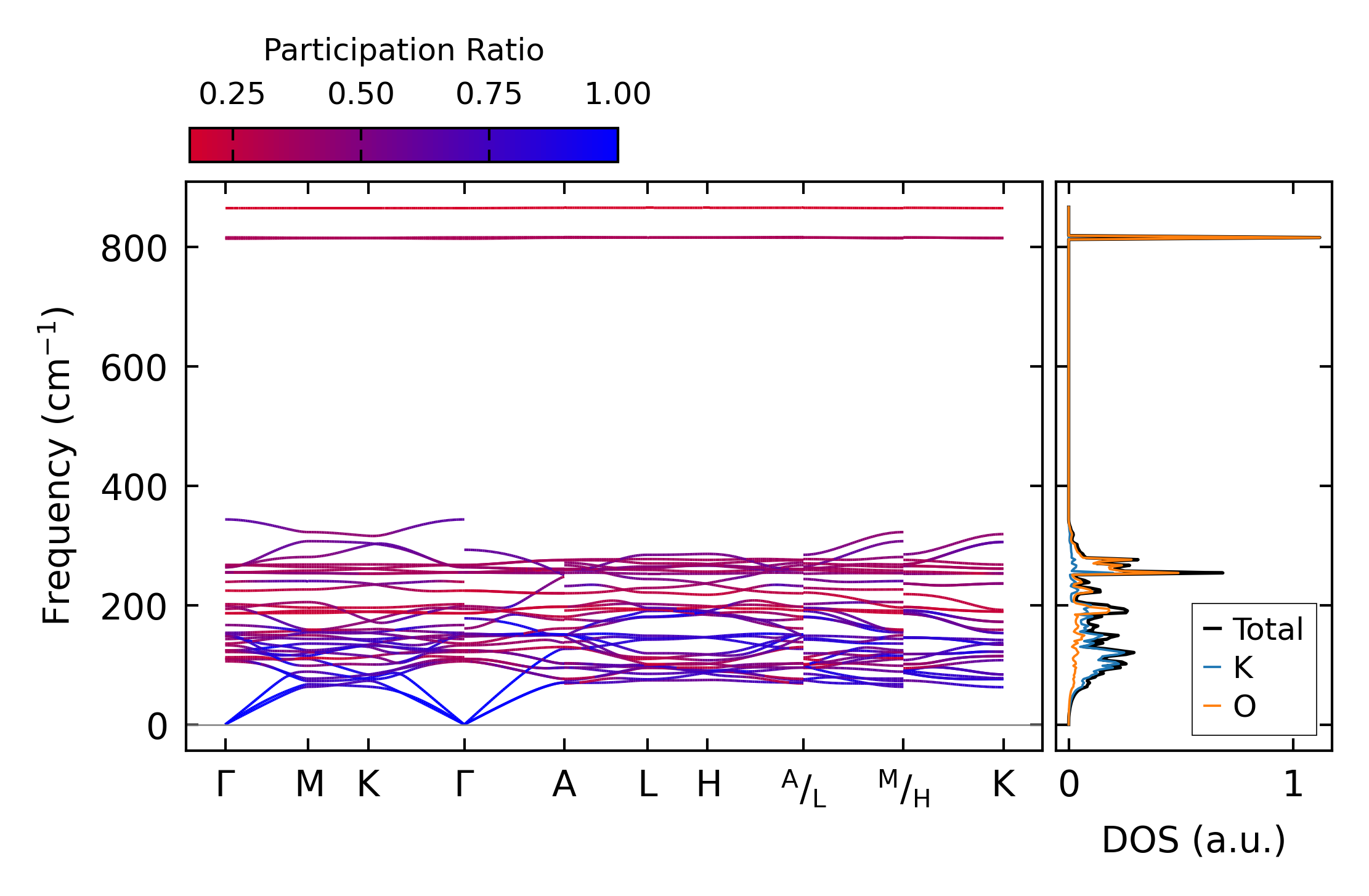

../../_images/fig_bandos_pr750.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo750.png — (b) Thermodynamic properties

Grüneisen parameters

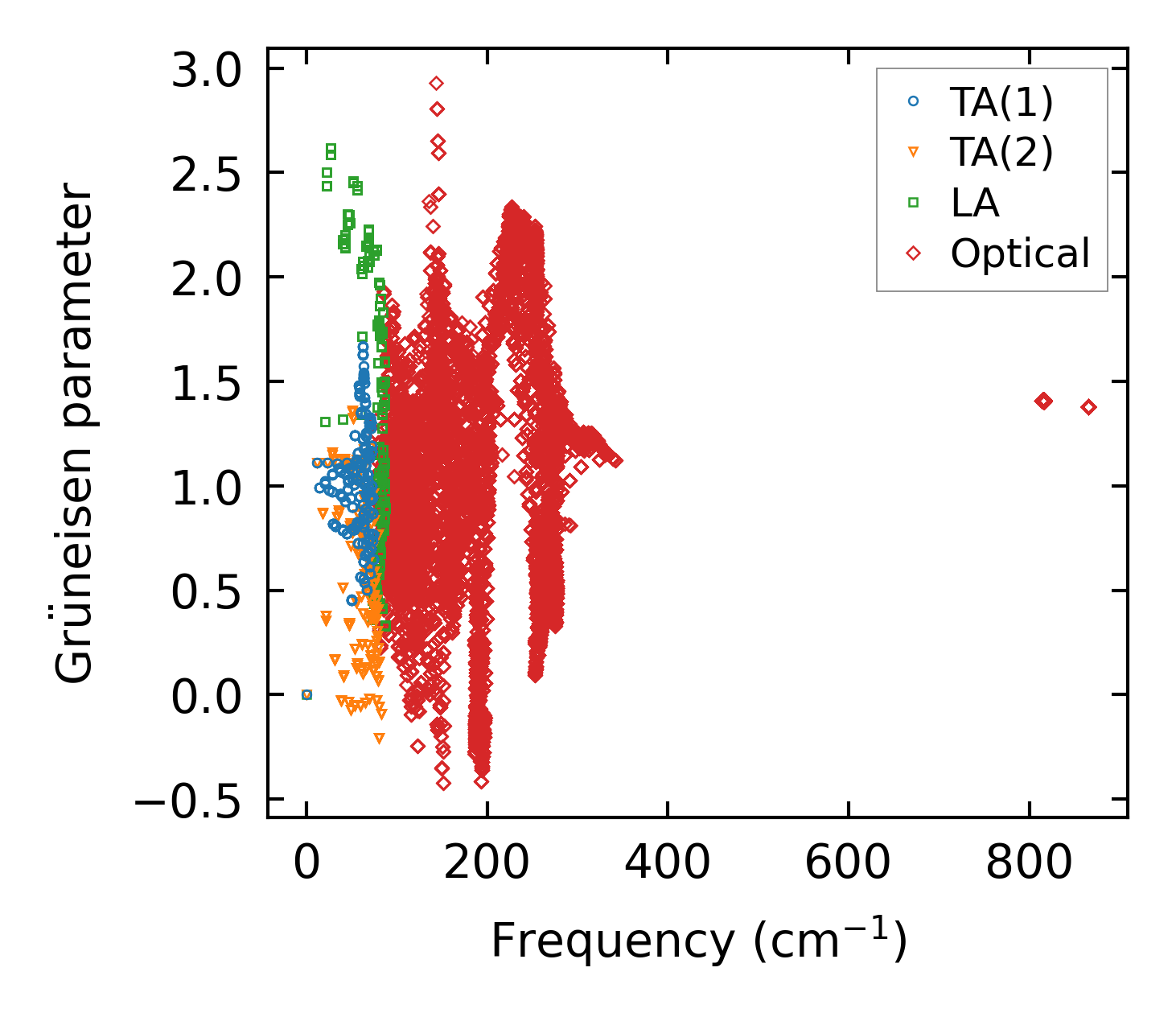

../../_images/fig_gru_all505.png — (a) Grüneisen parameters

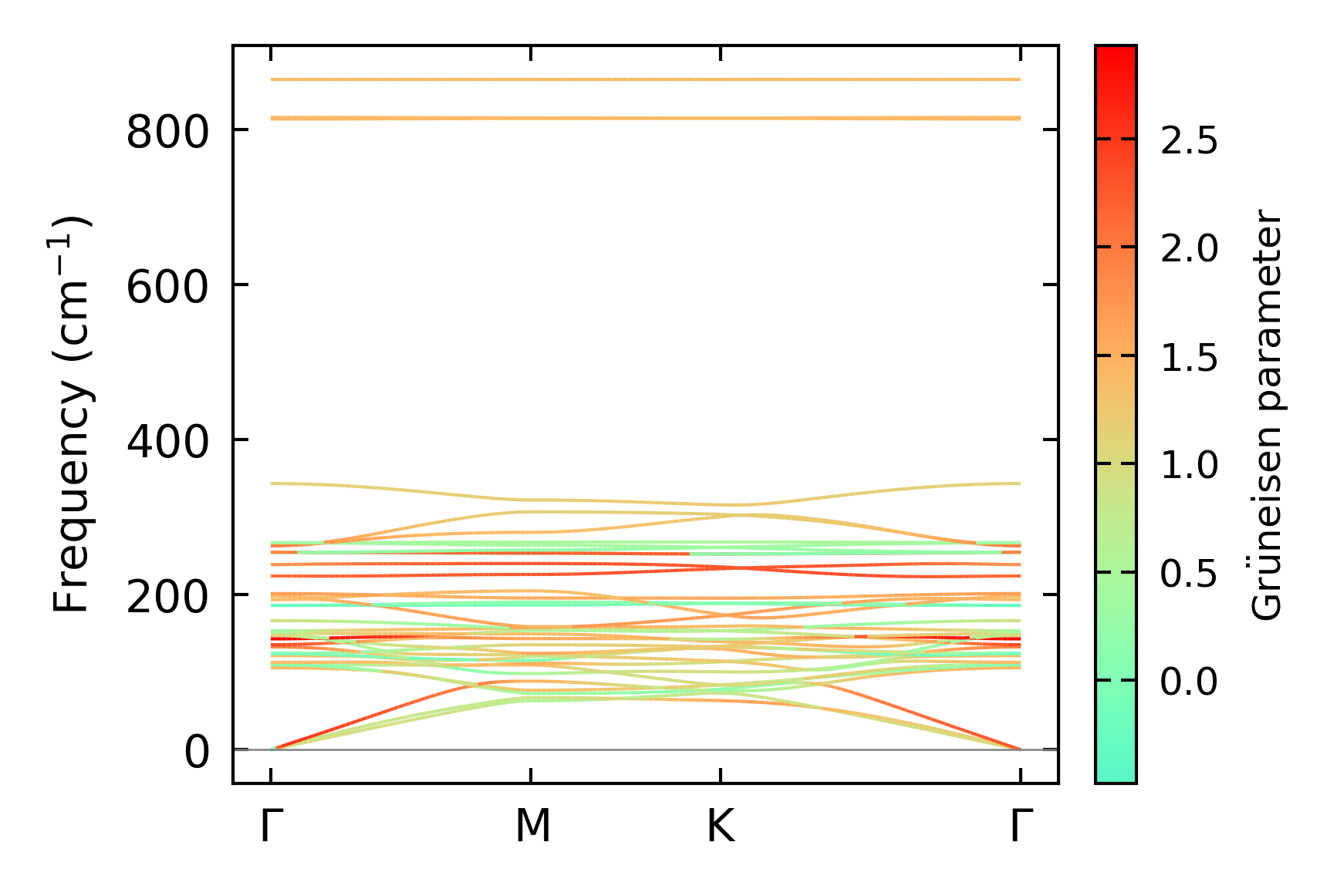

../../_images/fig_gruneisen505.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x15, supercell: 2x2x3

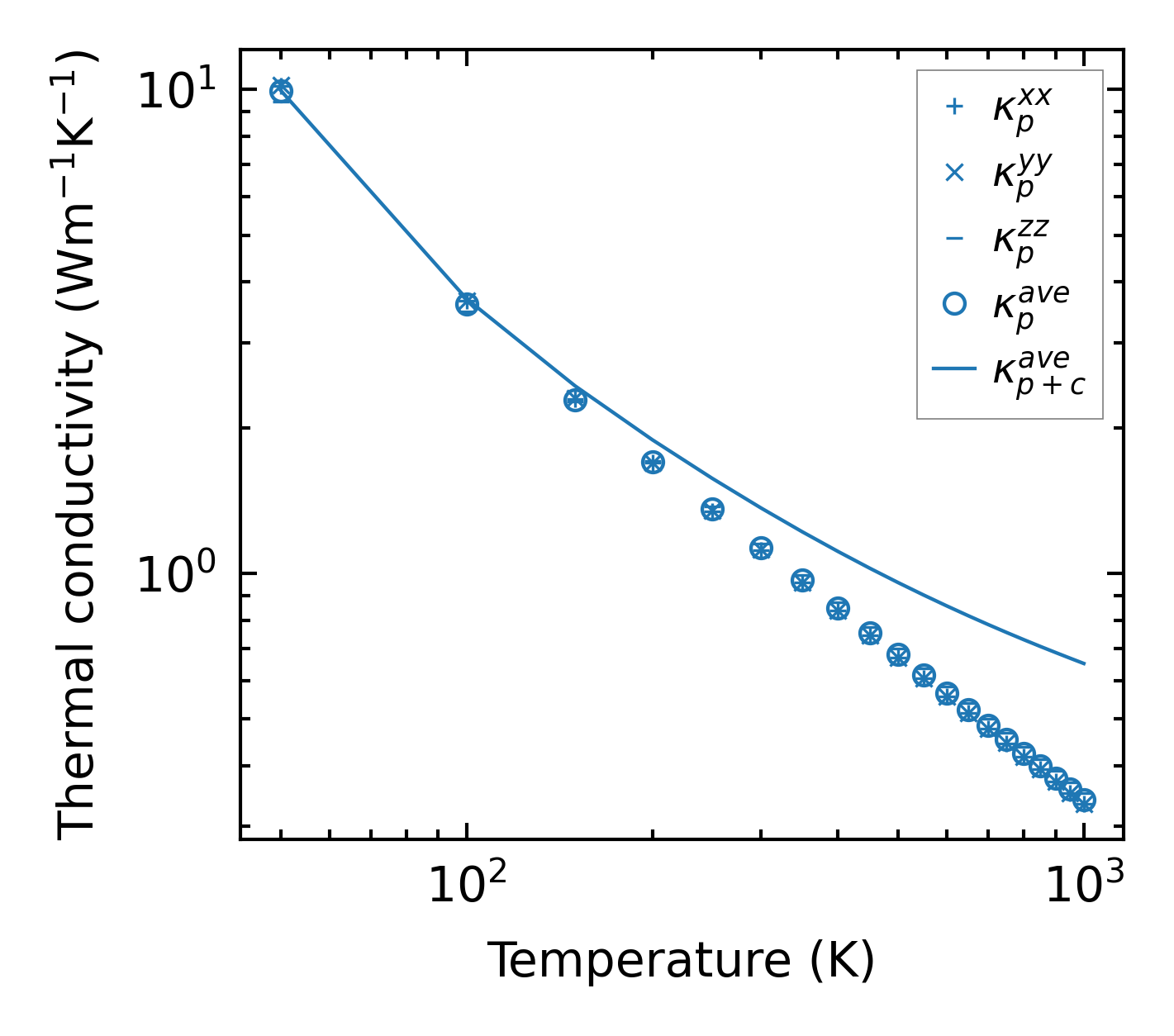

../../_images/fig_kappa983.png — (a) Temperature-dependent lattice thermal conductivity

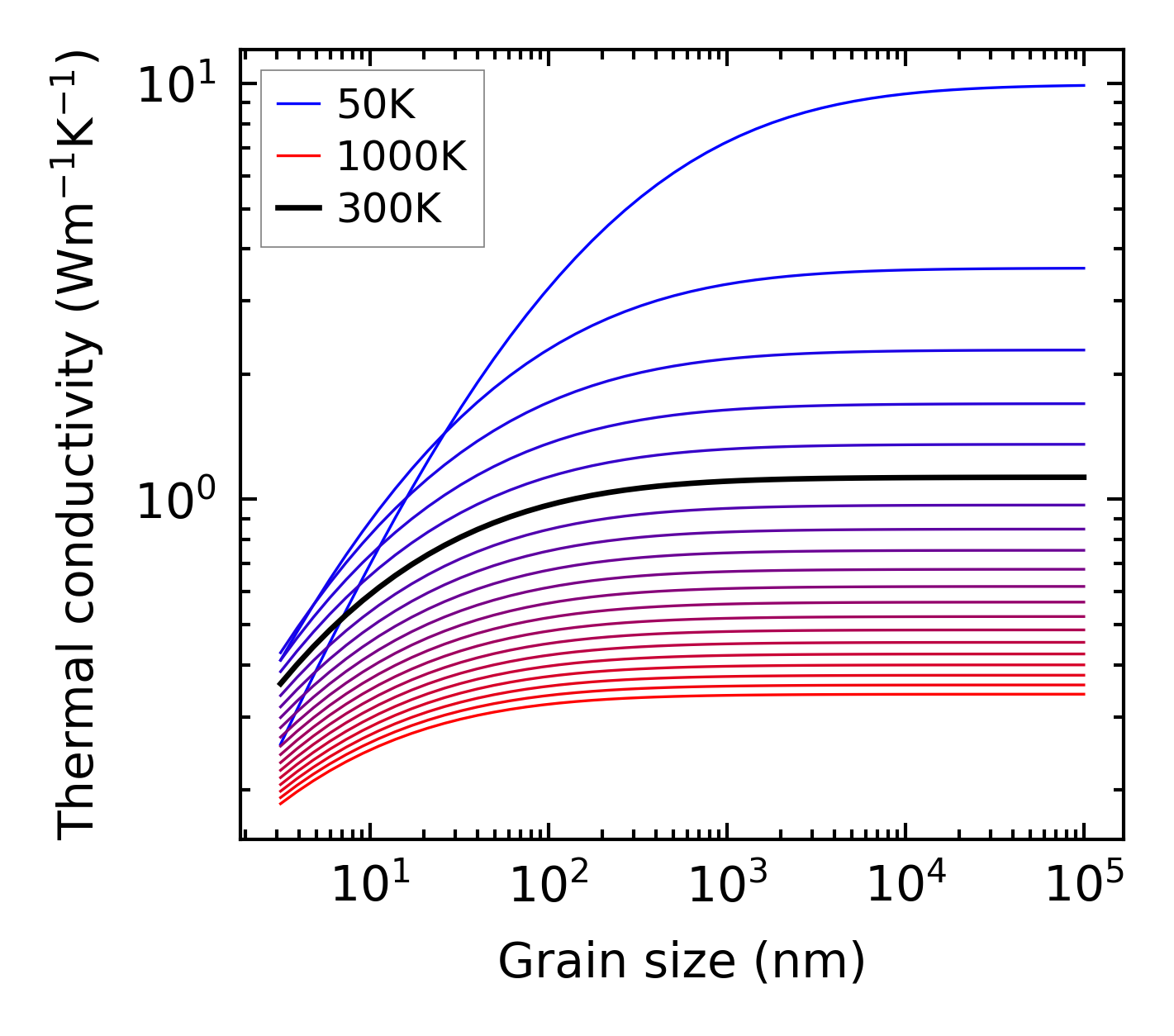

../../_images/fig_kappa_vs_grain_size512.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

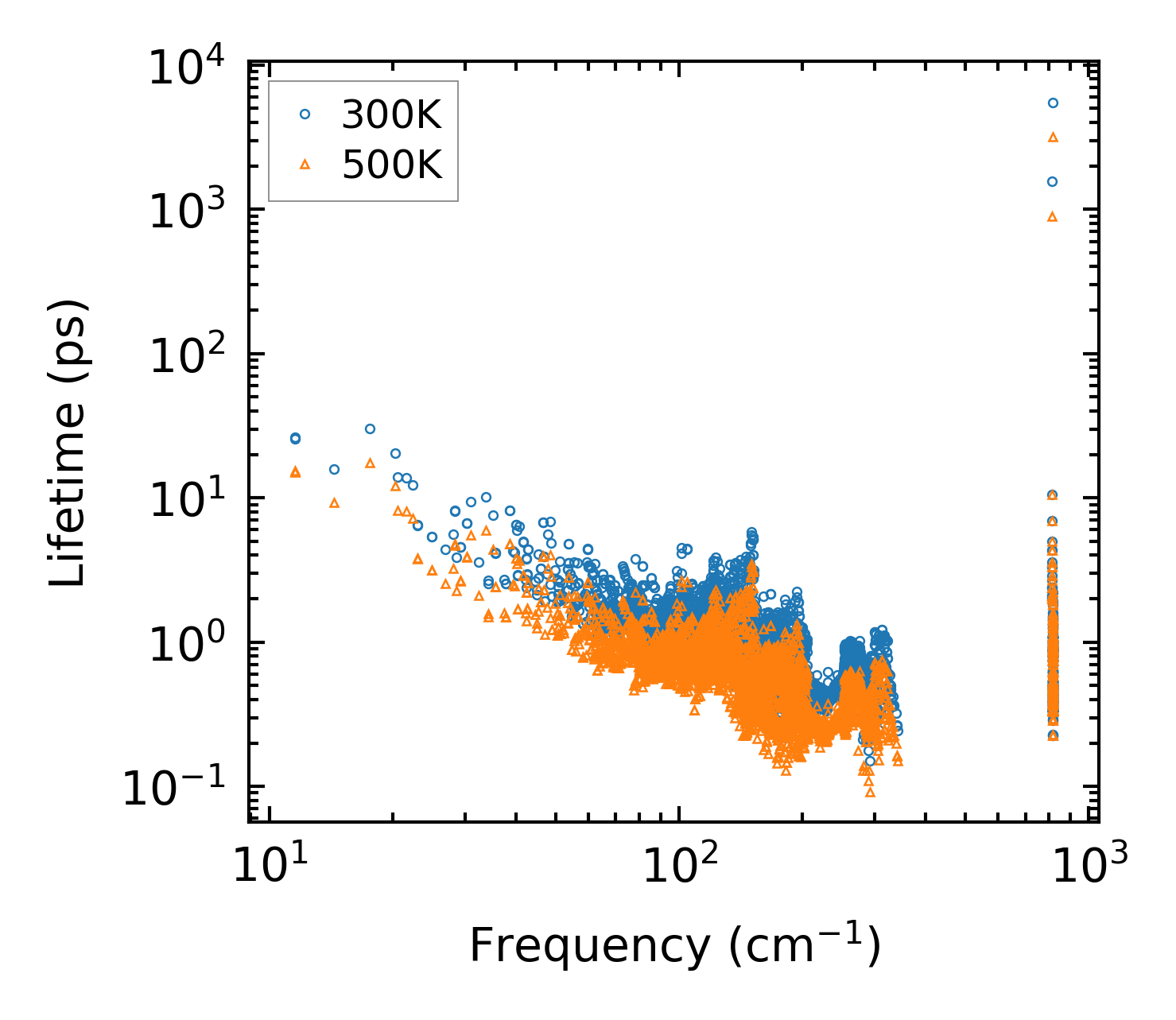

../../_images/fig_lifetime503.png — (a) Phonon lifetime due to phonon-phonon scattering

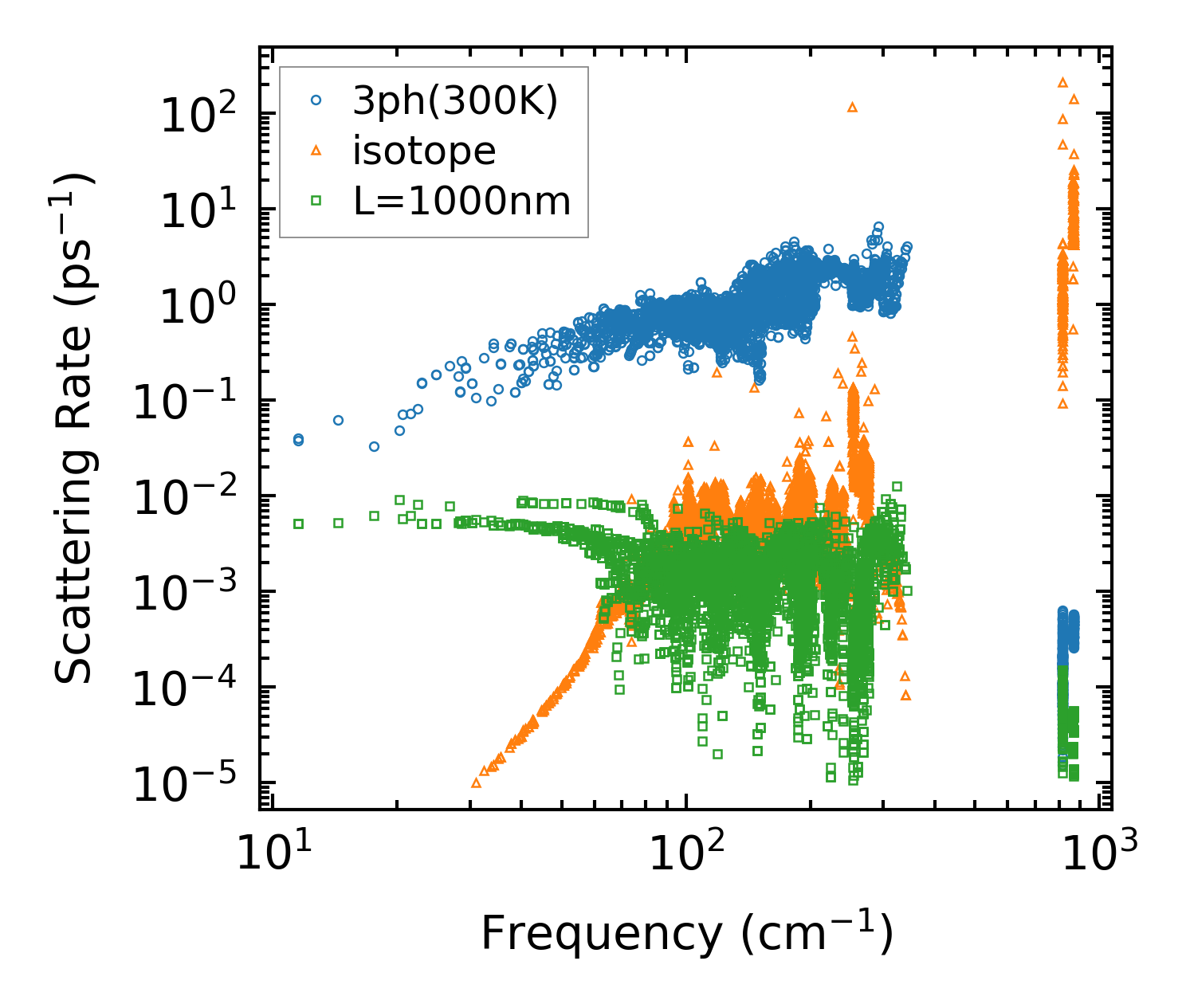

../../_images/fig_scat_rates502.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

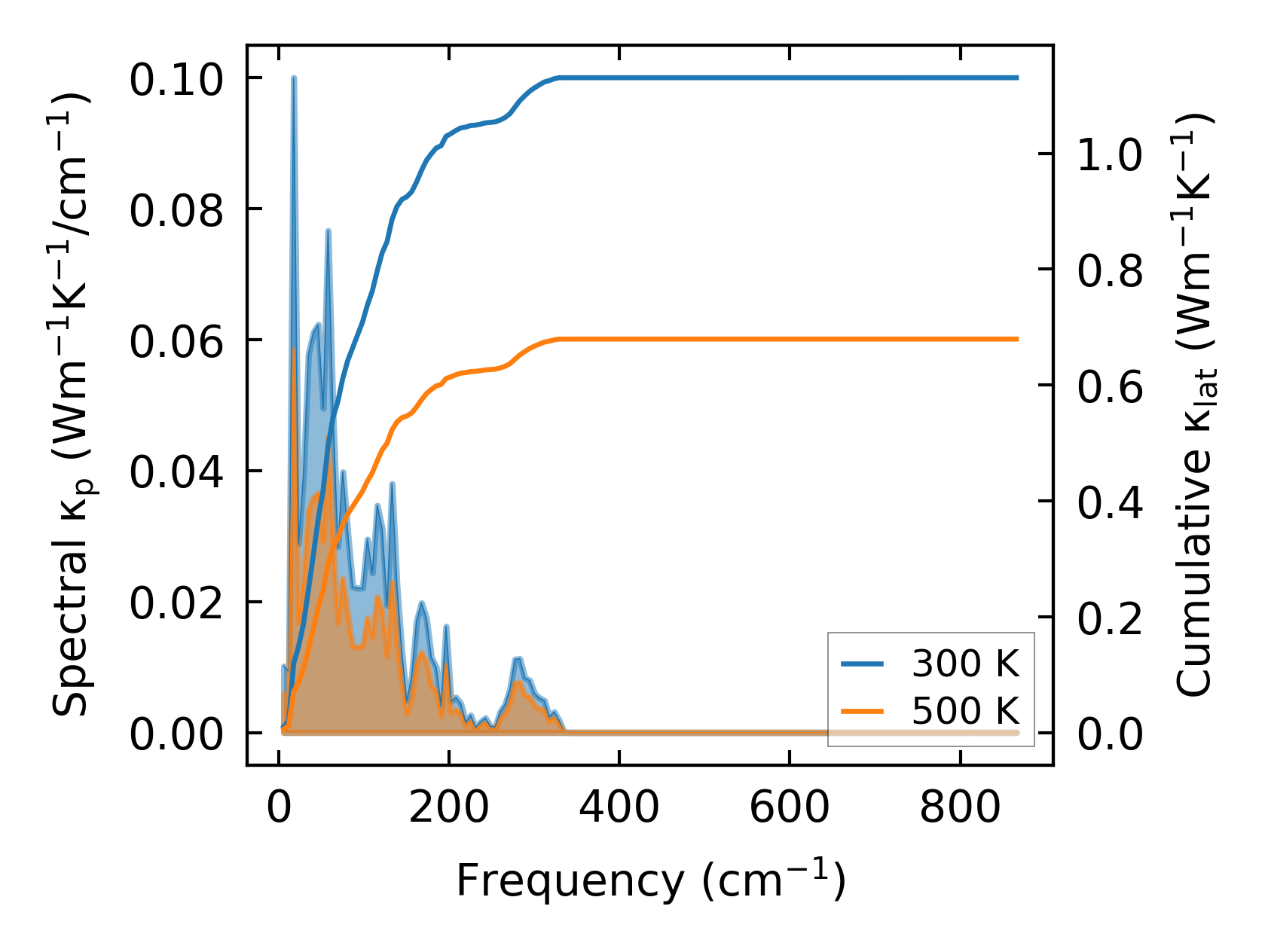

../../_images/fig_cumu_frequency503.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

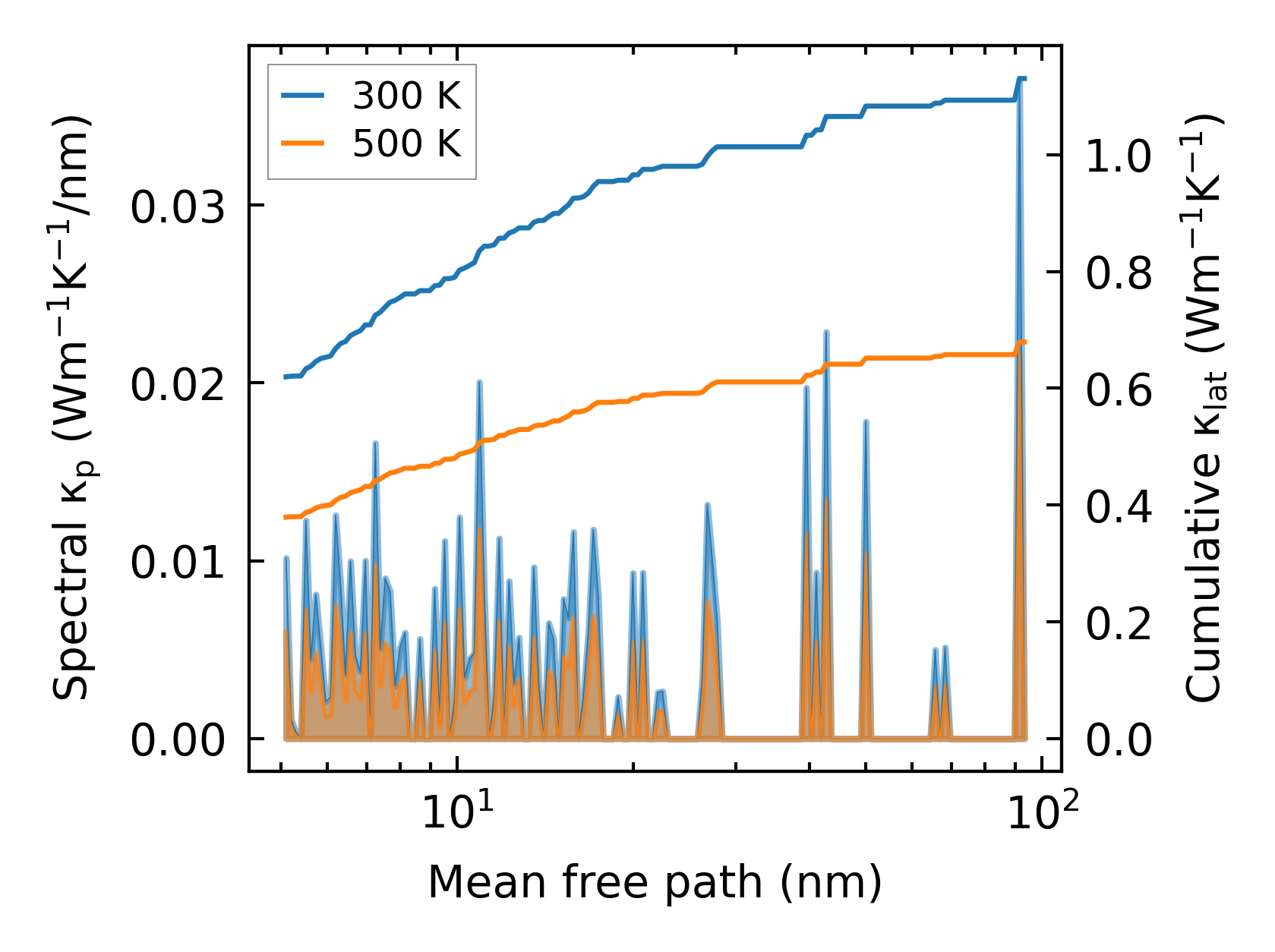

../../_images/fig_cumu_mfp503.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

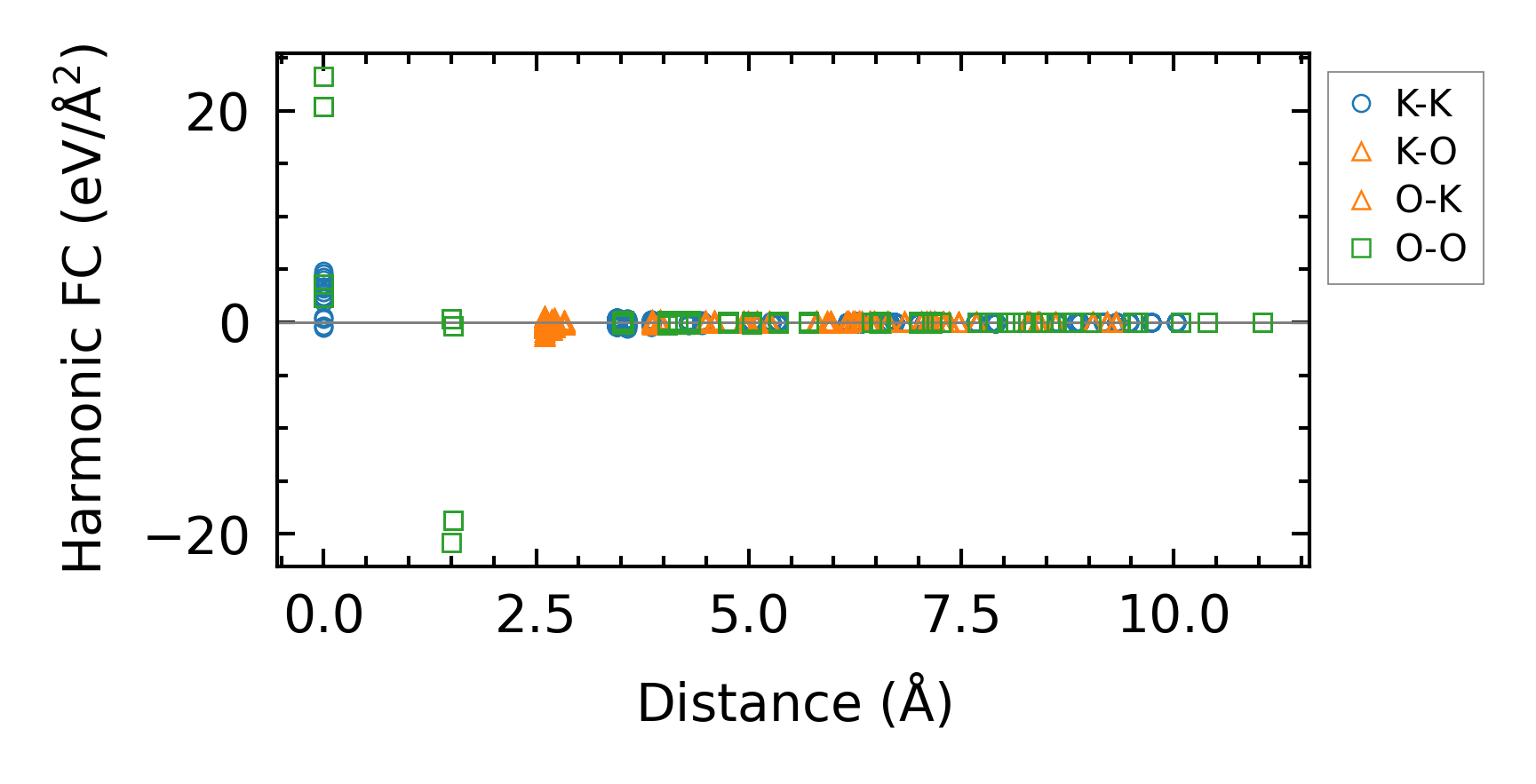

../../_images/fig_fc2653.png — (a) Force constants w.r.t atomic distance

Summary

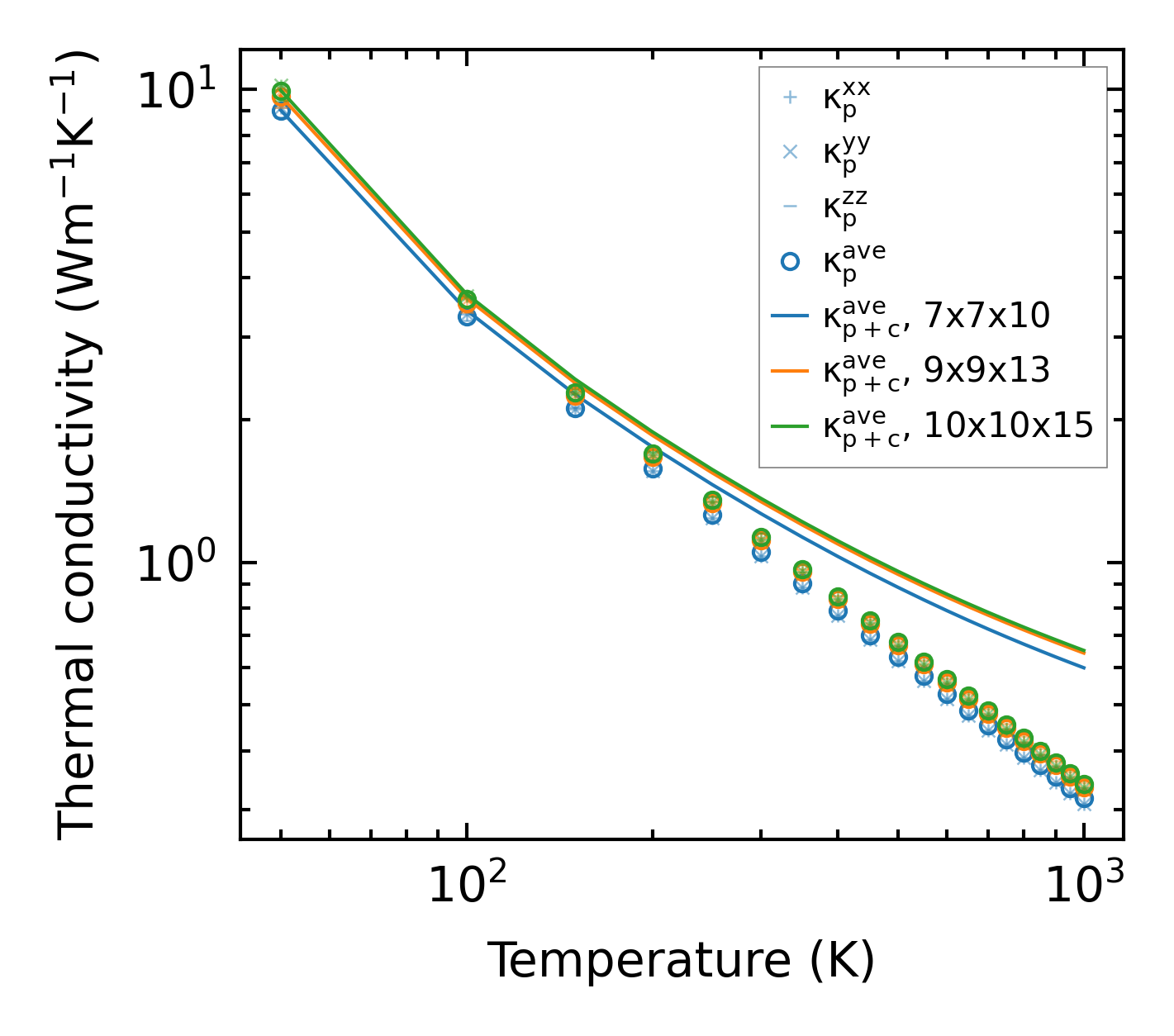

../../_images/fig_kappa984.png — (a) Temperature-dependent lattice thermal conductivity

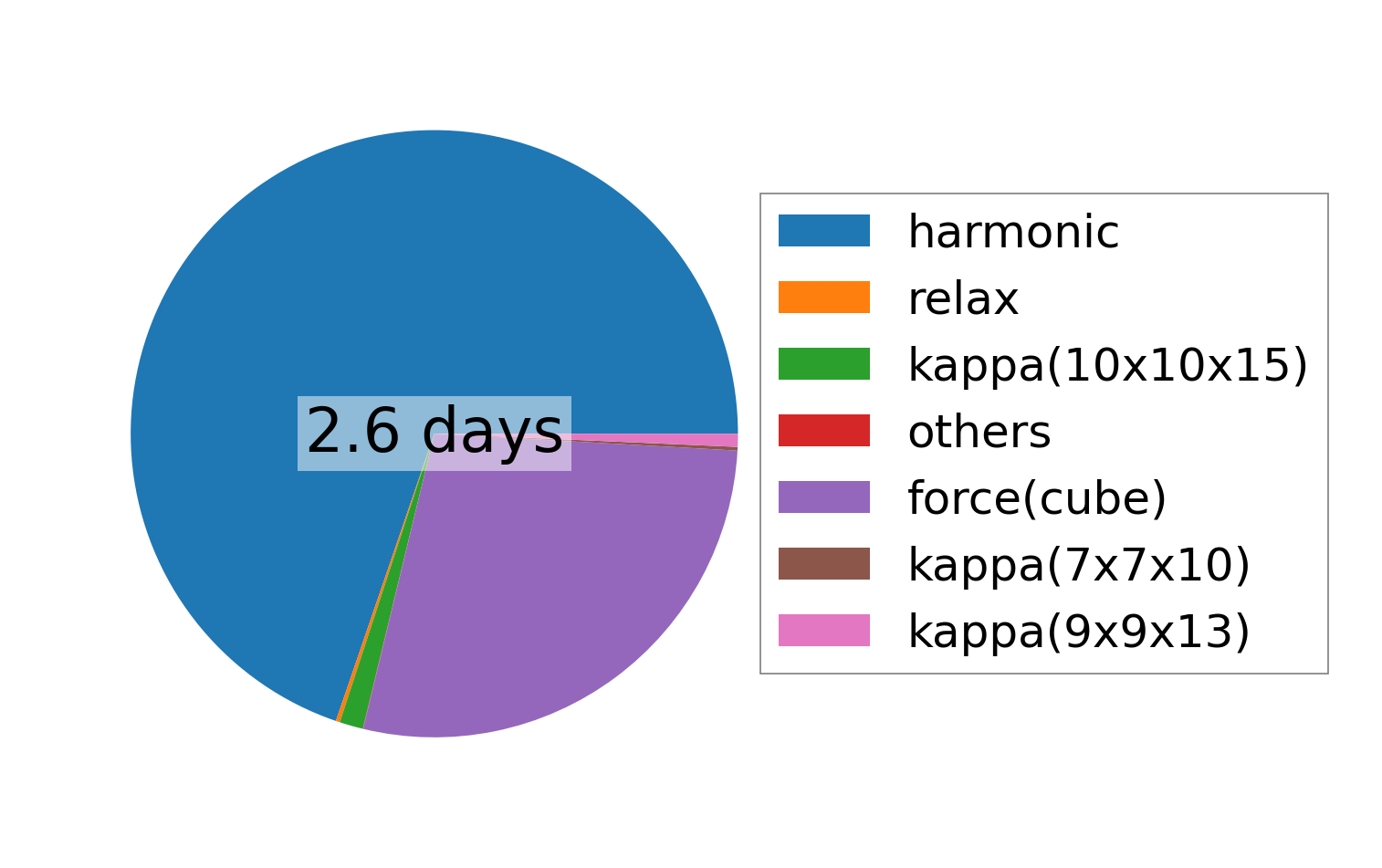

../../_images/fig_times1137.png — (b) Computation time
