mp-998745-2/TlZnF3/anharm

Space group: Pm-3m (221)
Link: Materials Project
Download: mp-998745-2.tar.gz

Harmonic properties

../../_images/fig_bandos_pr747.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo747.png — (b) Thermodynamic properties

Grüneisen parameters

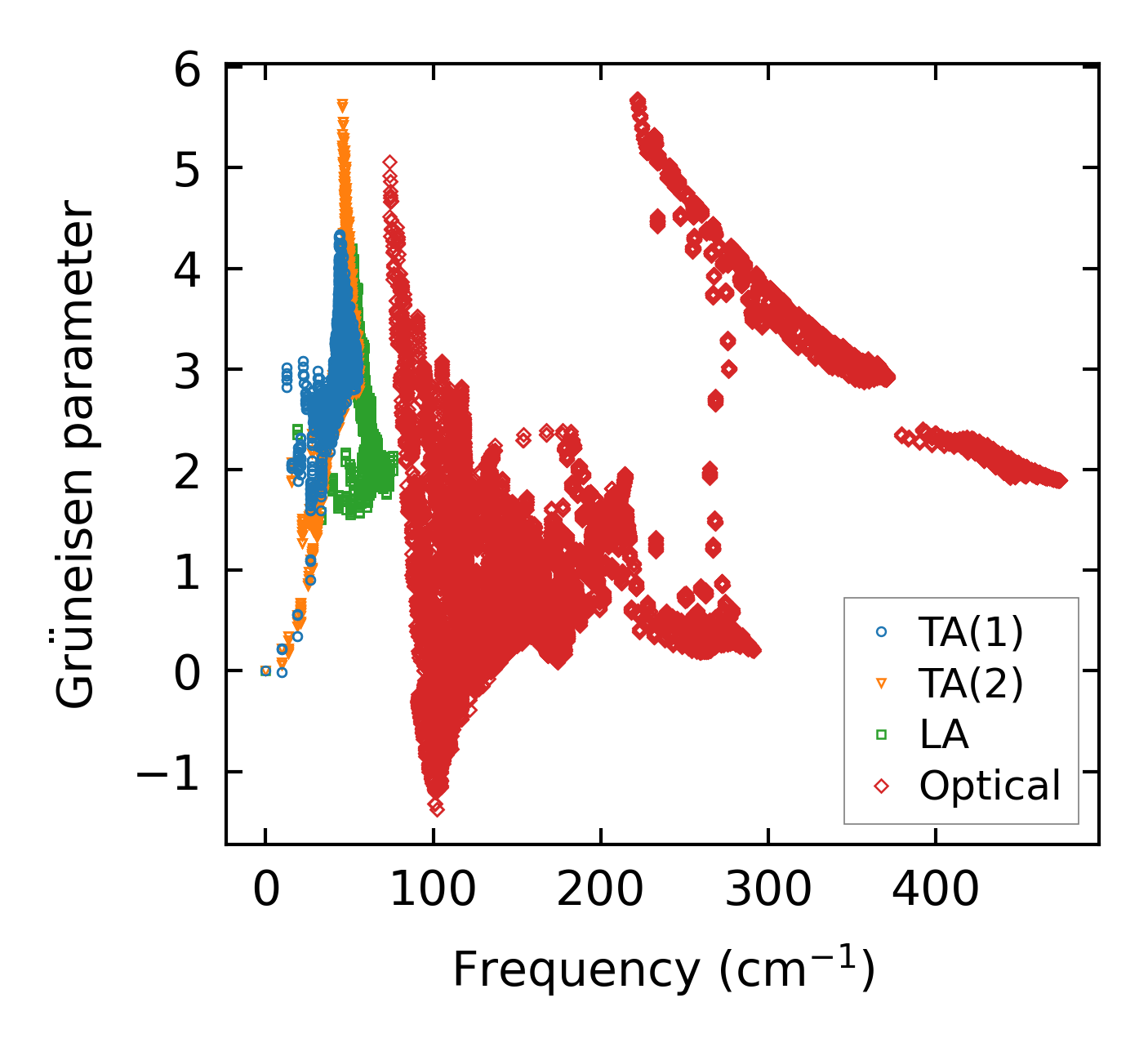

../../_images/fig_gru_all502.png — (a) Grüneisen parameters

../../_images/fig_gruneisen502.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 17x17x17, supercell: 3x3x3

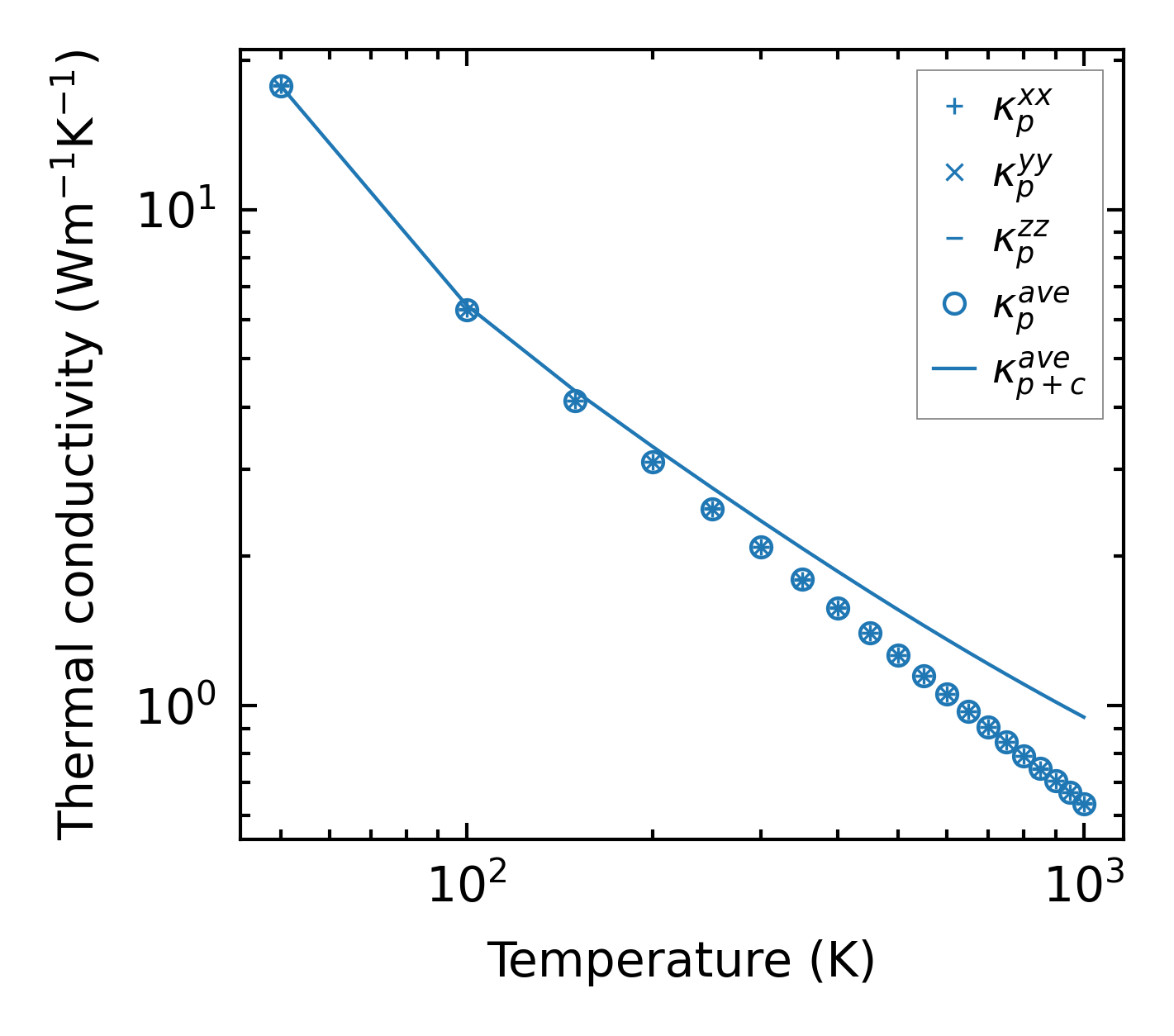

../../_images/fig_kappa977.png — (a) Temperature-dependent lattice thermal conductivity

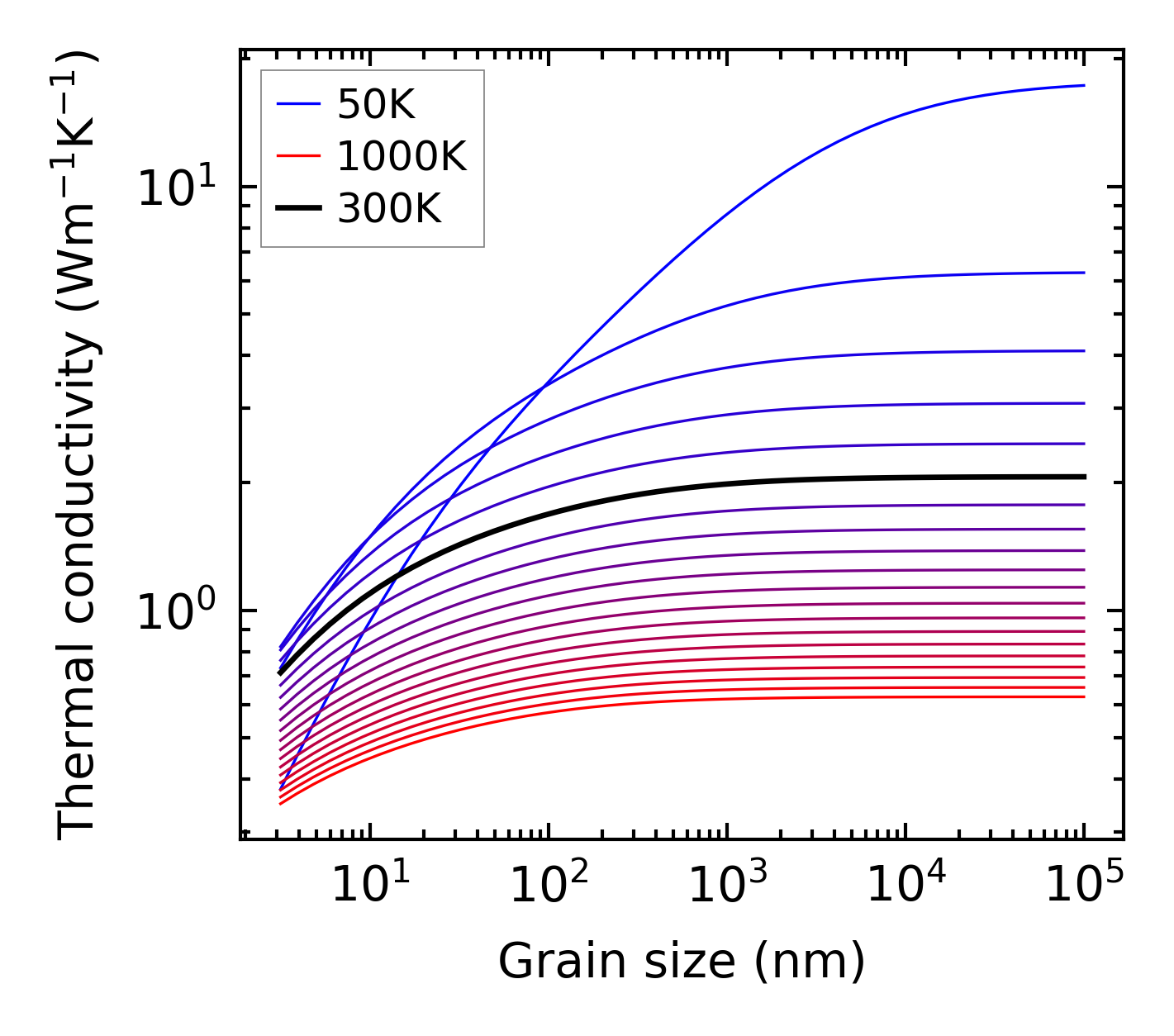

../../_images/fig_kappa_vs_grain_size509.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

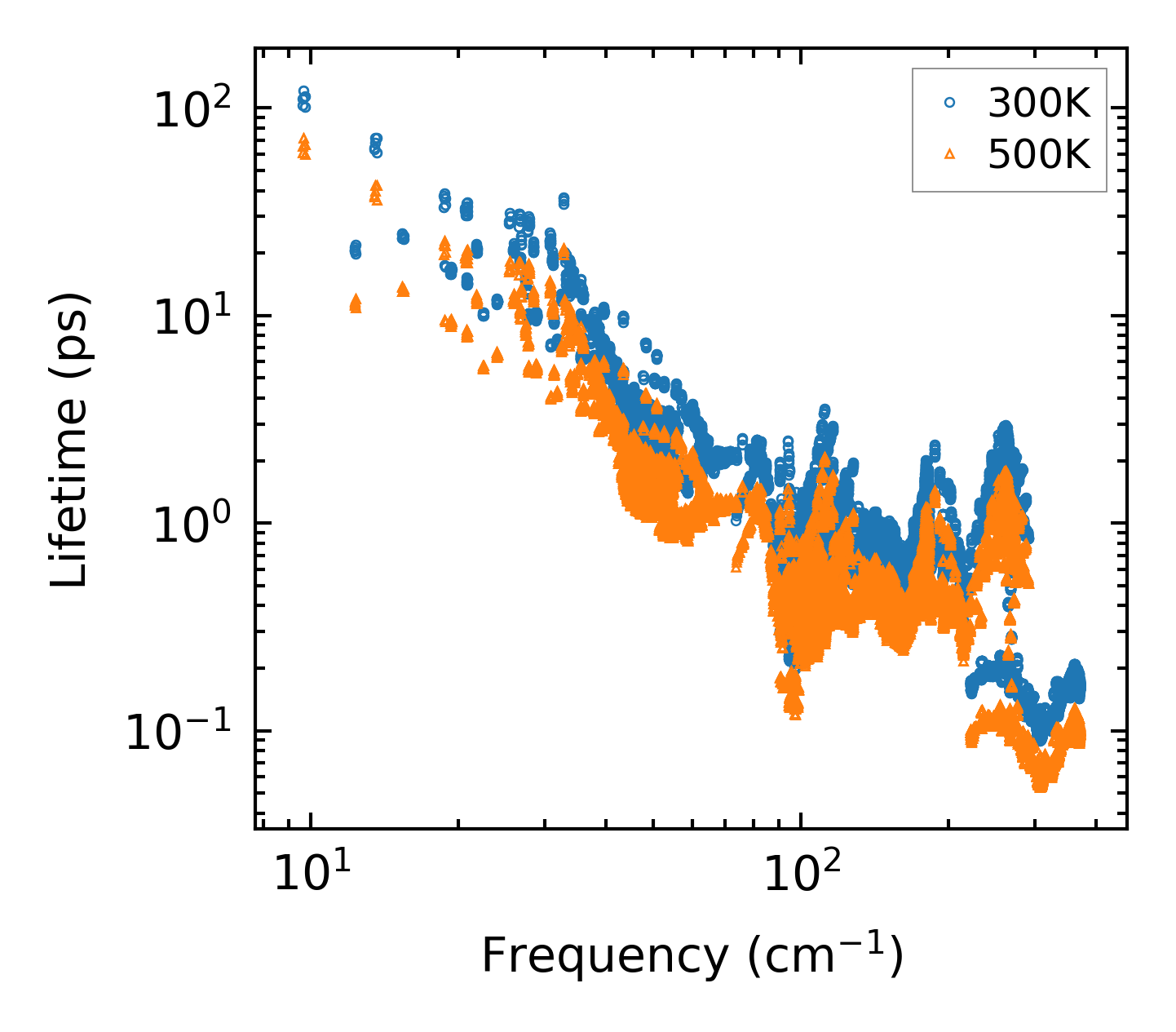

../../_images/fig_lifetime500.png — (a) Phonon lifetime due to phonon-phonon scattering

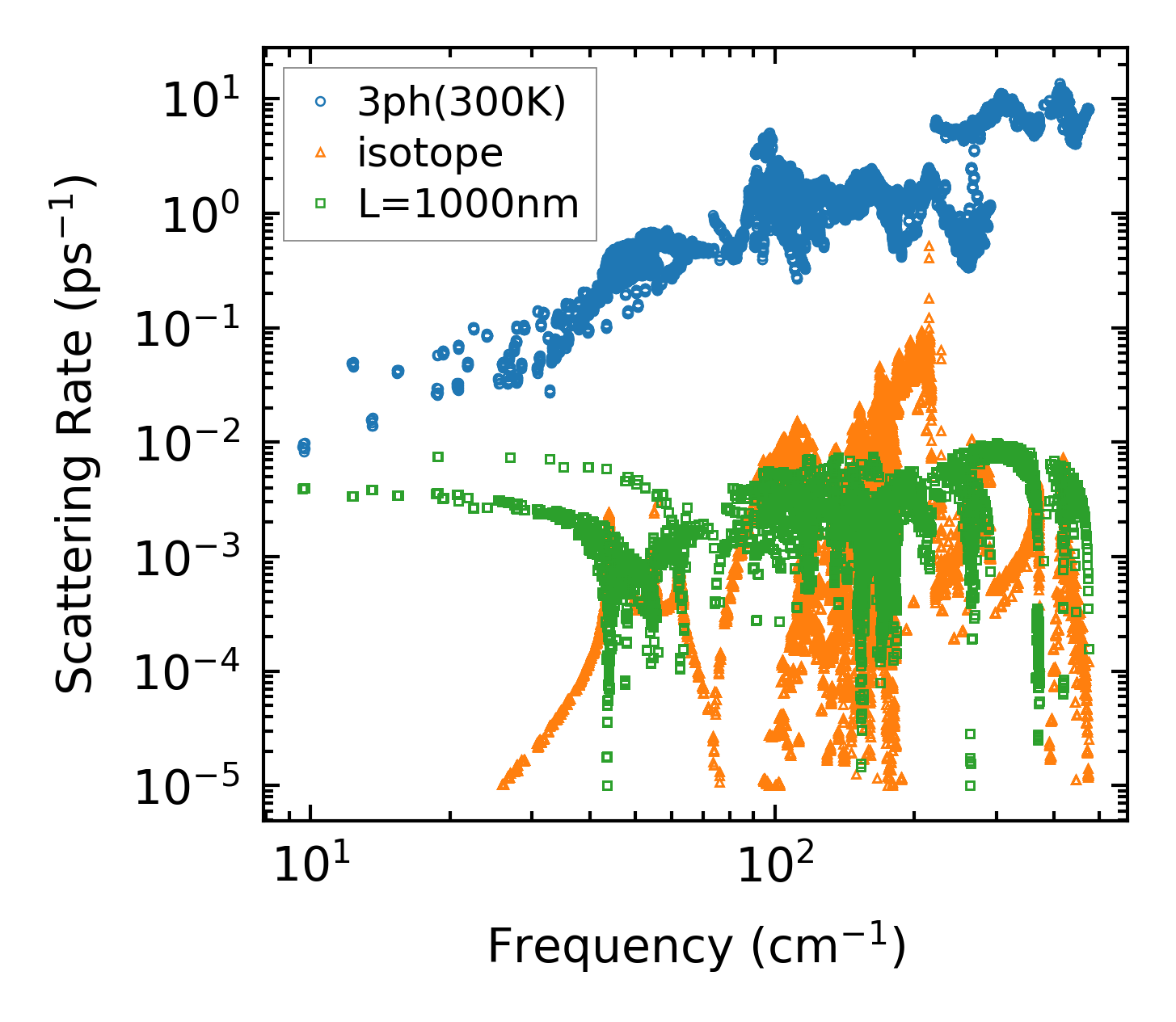

../../_images/fig_scat_rates499.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

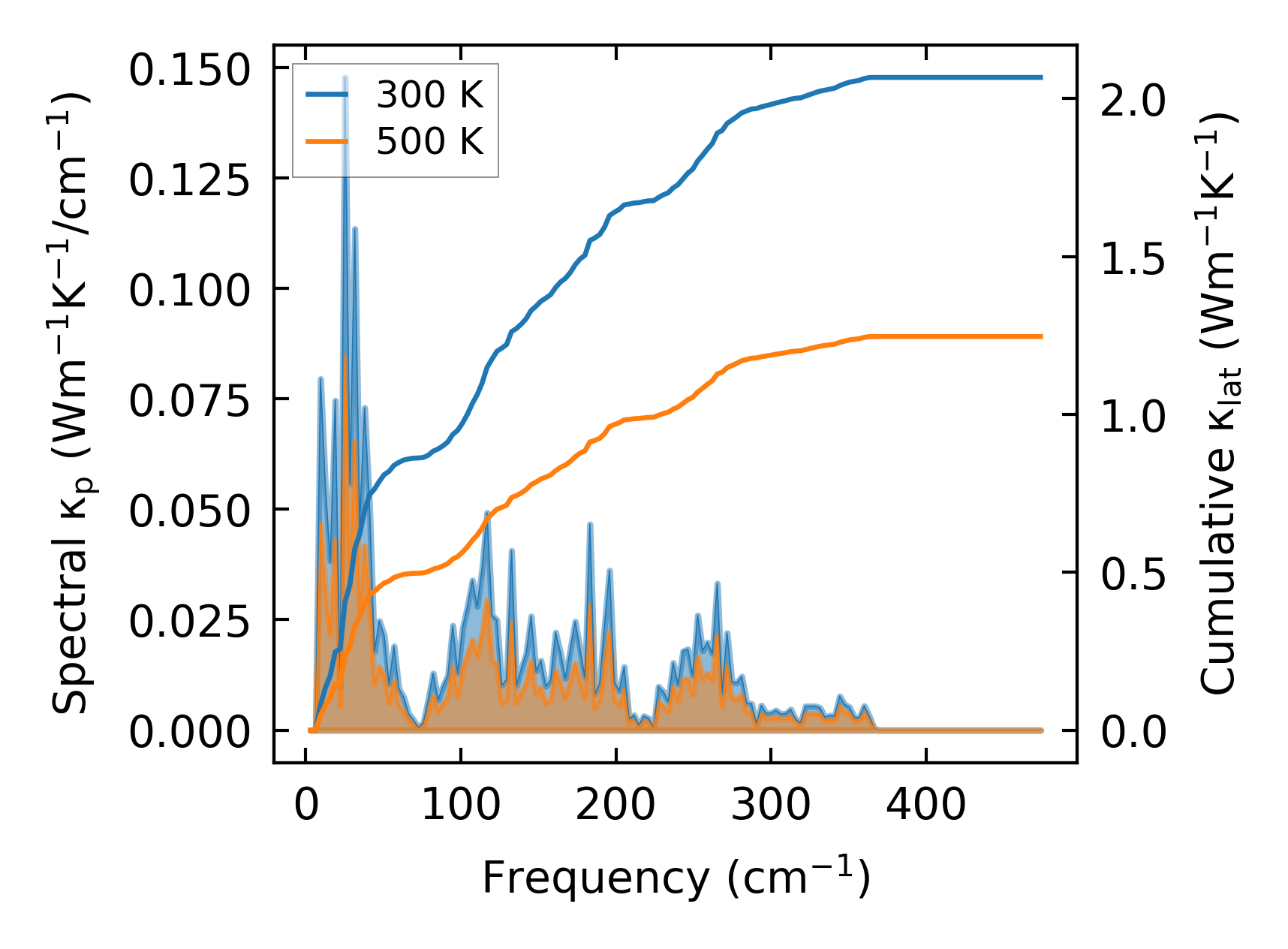

../../_images/fig_cumu_frequency500.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp500.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc2650.png — (a) Force constants w.r.t atomic distance

Summary

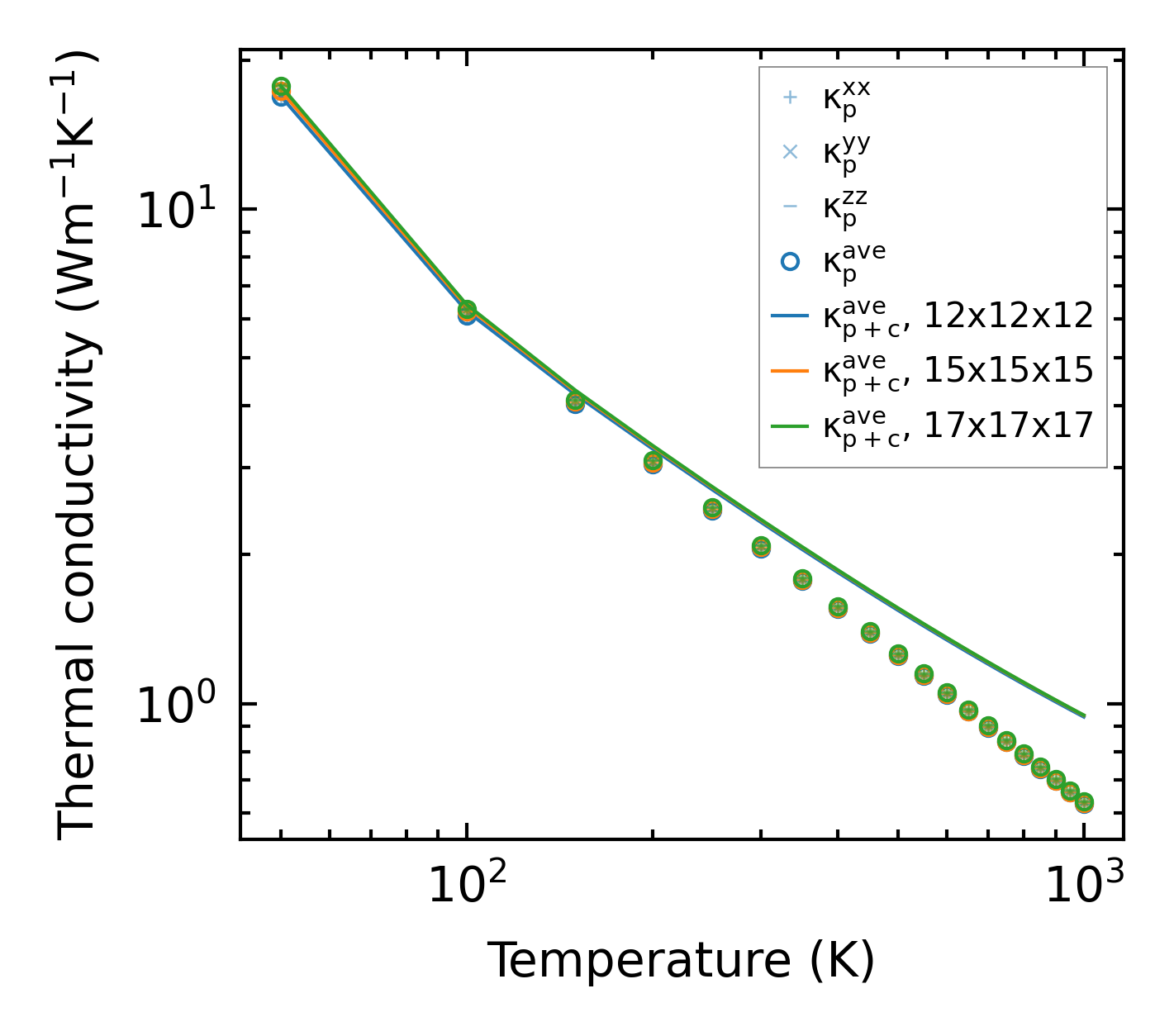

../../_images/fig_kappa978.png — (a) Temperature-dependent lattice thermal conductivity

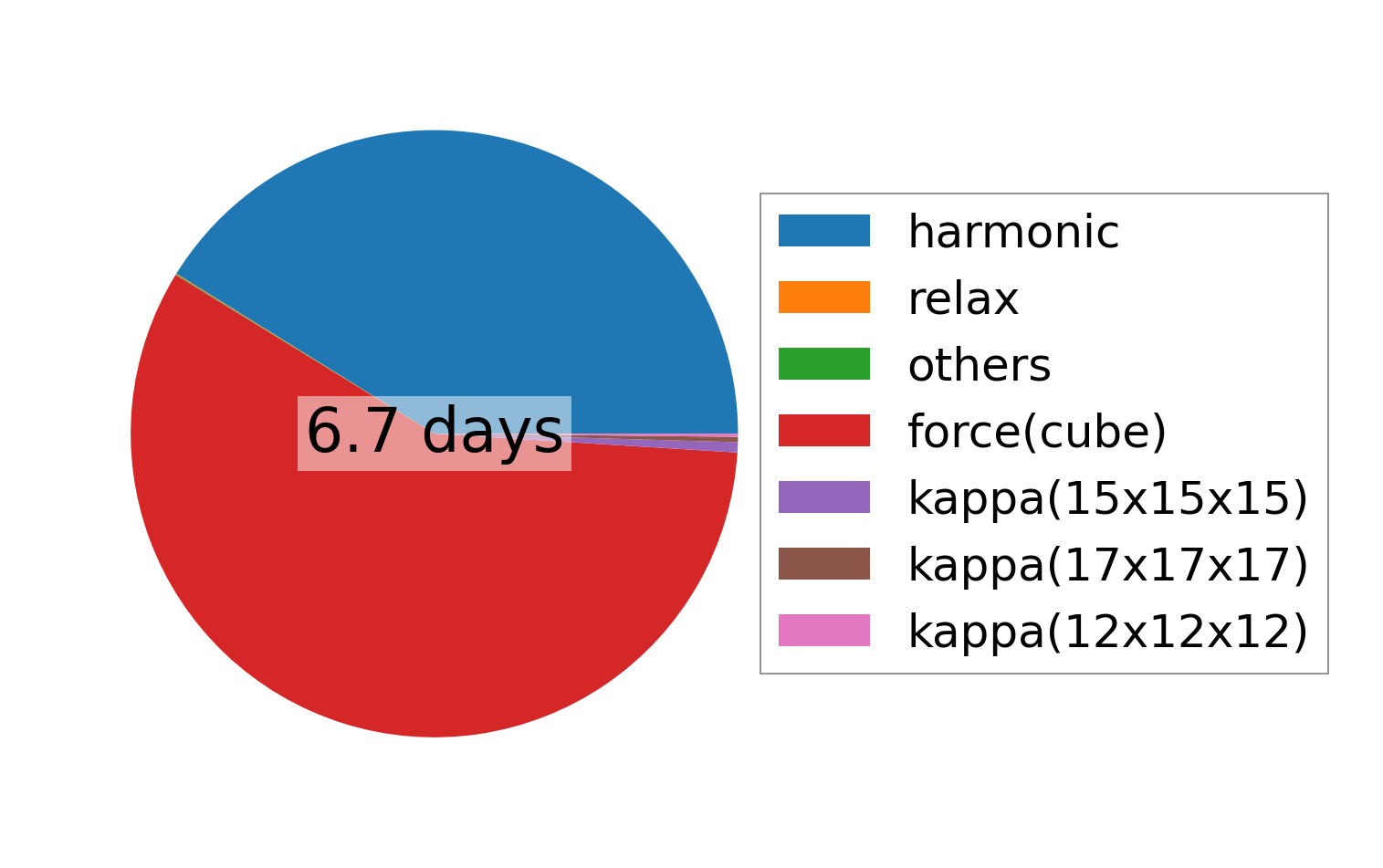

../../_images/fig_times1121.png — (b) Computation time
