mp-998604/RbPbCl3/anharm

Space group: Cmcm (63)
Link: Materials Project
Download: mp-998604.tar.gz

Harmonic properties

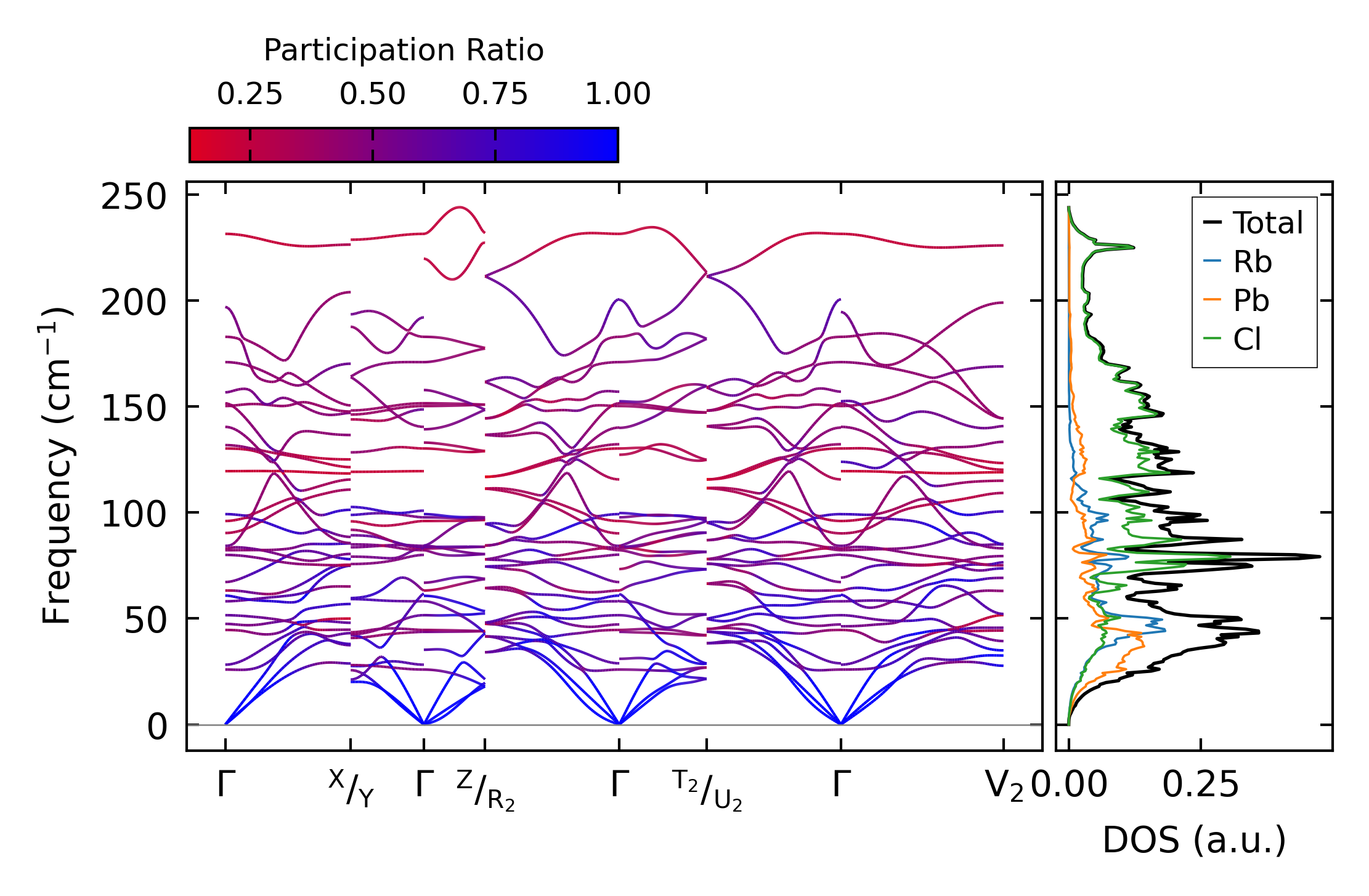

../../_images/fig_bandos_pr745.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo745.png — (b) Thermodynamic properties

Grüneisen parameters

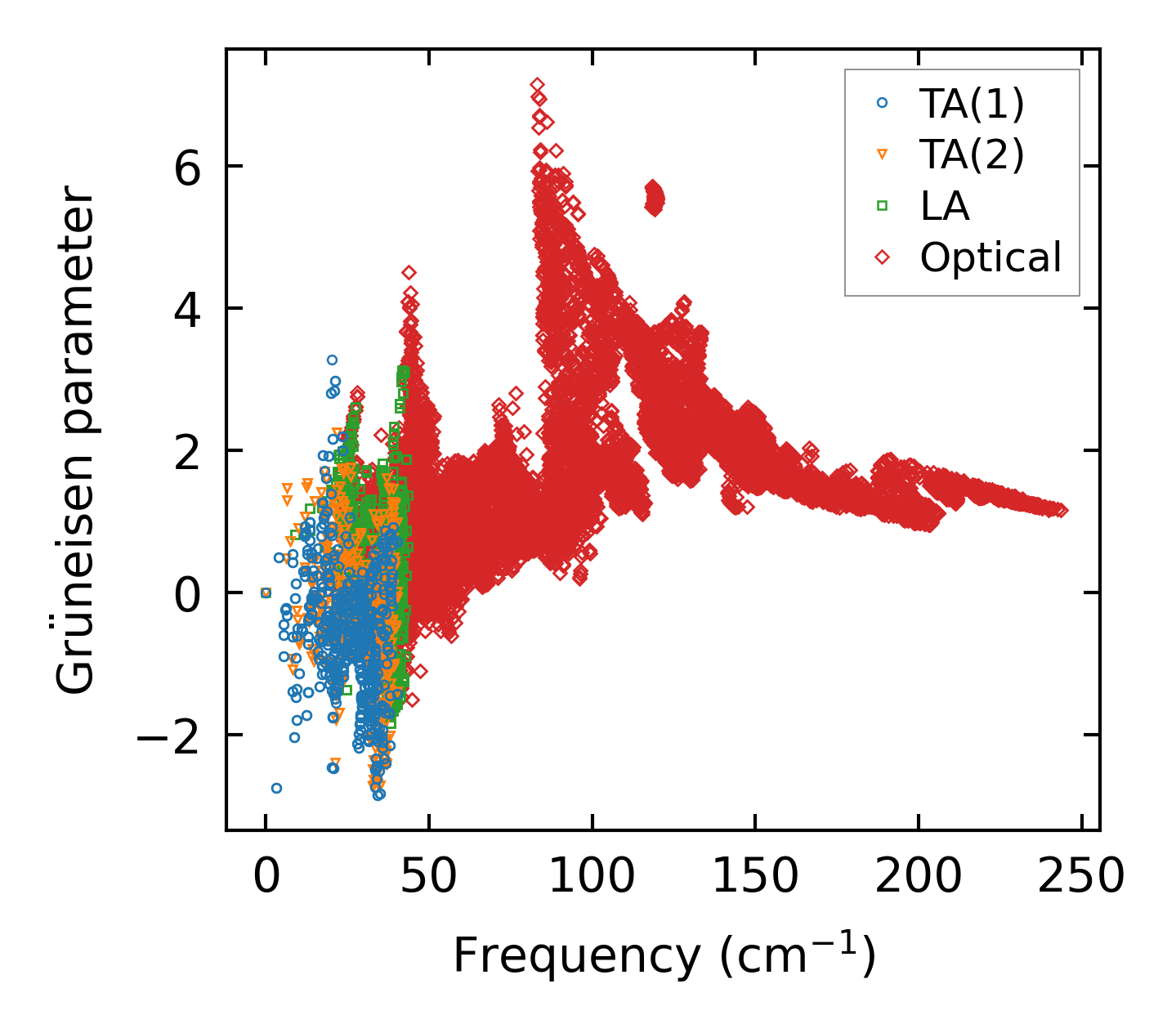

../../_images/fig_gru_all500.png — (a) Grüneisen parameters

../../_images/fig_gruneisen500.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 17x10x6, supercell: 3x2x2

../../_images/fig_kappa973.png — (a) Temperature-dependent lattice thermal conductivity

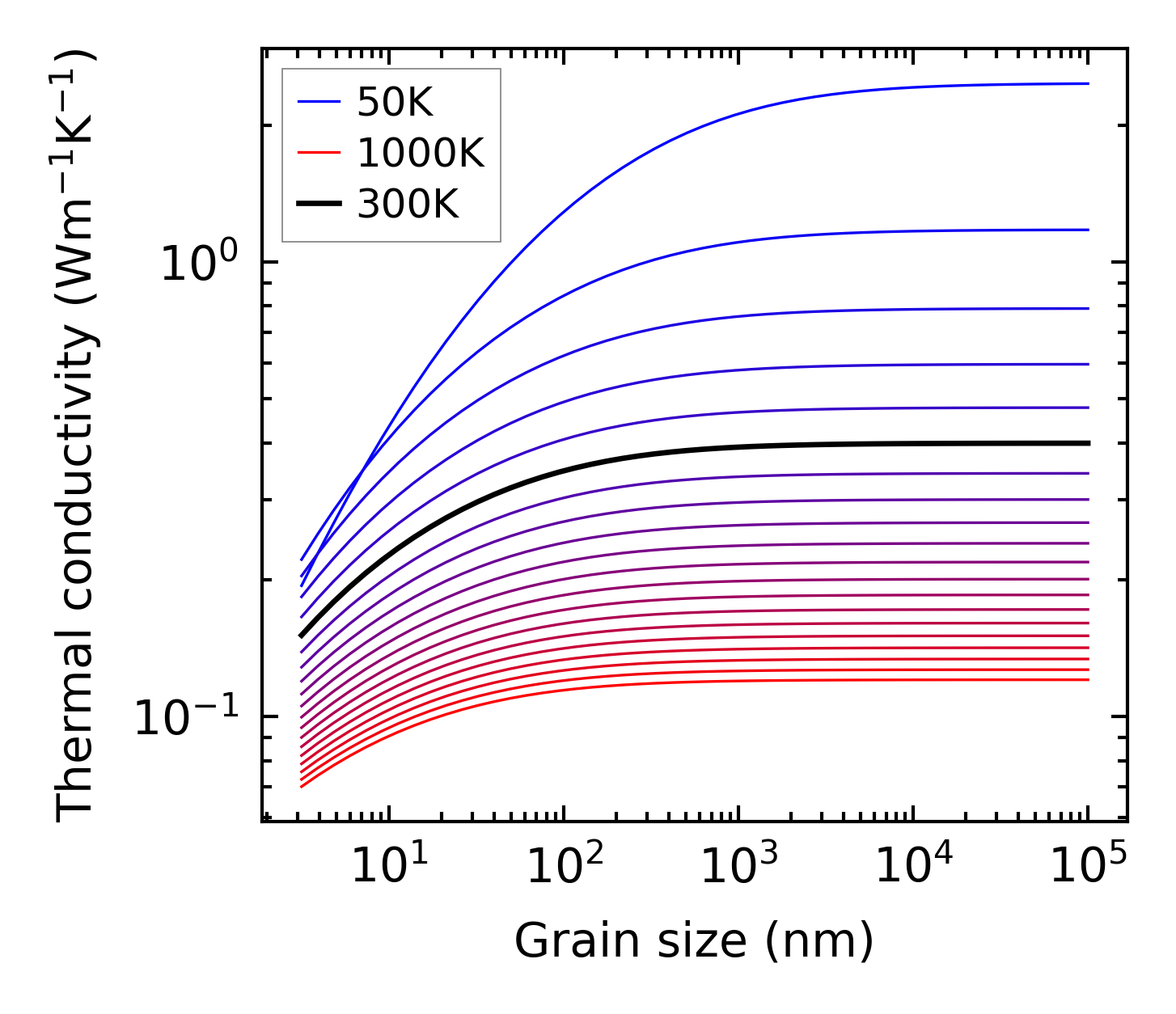

../../_images/fig_kappa_vs_grain_size507.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

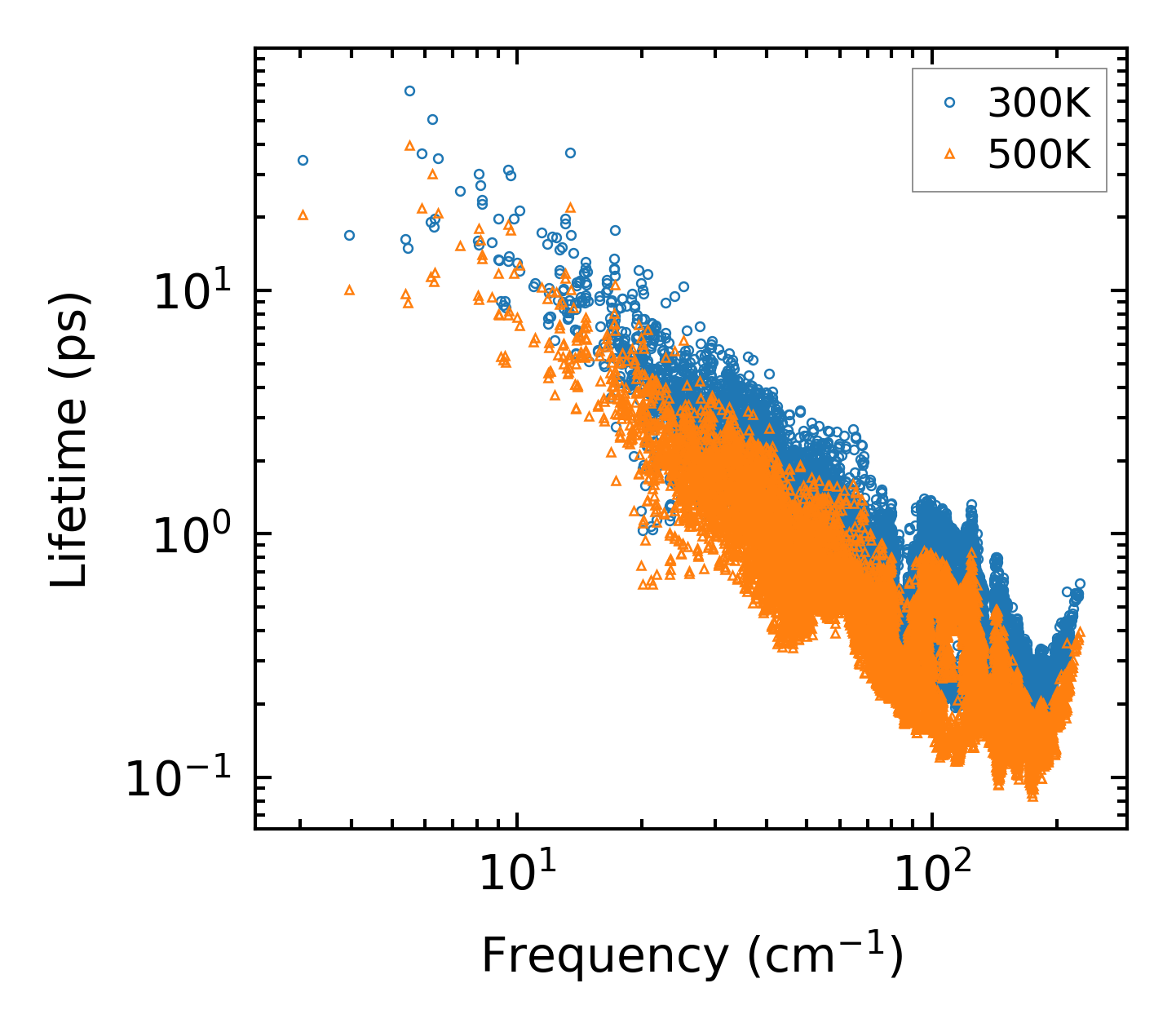

../../_images/fig_lifetime498.png — (a) Phonon lifetime due to phonon-phonon scattering

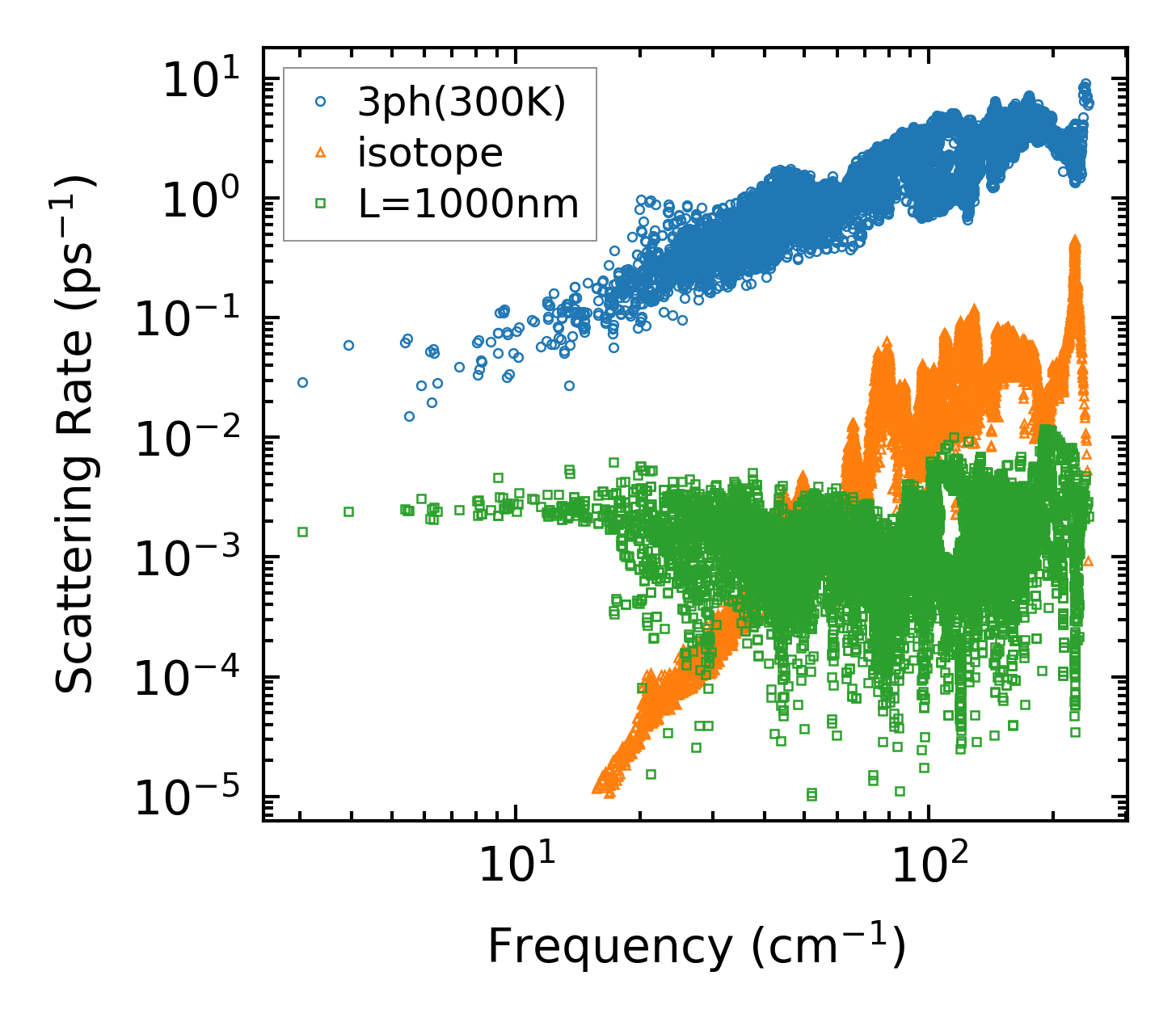

../../_images/fig_scat_rates497.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency498.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

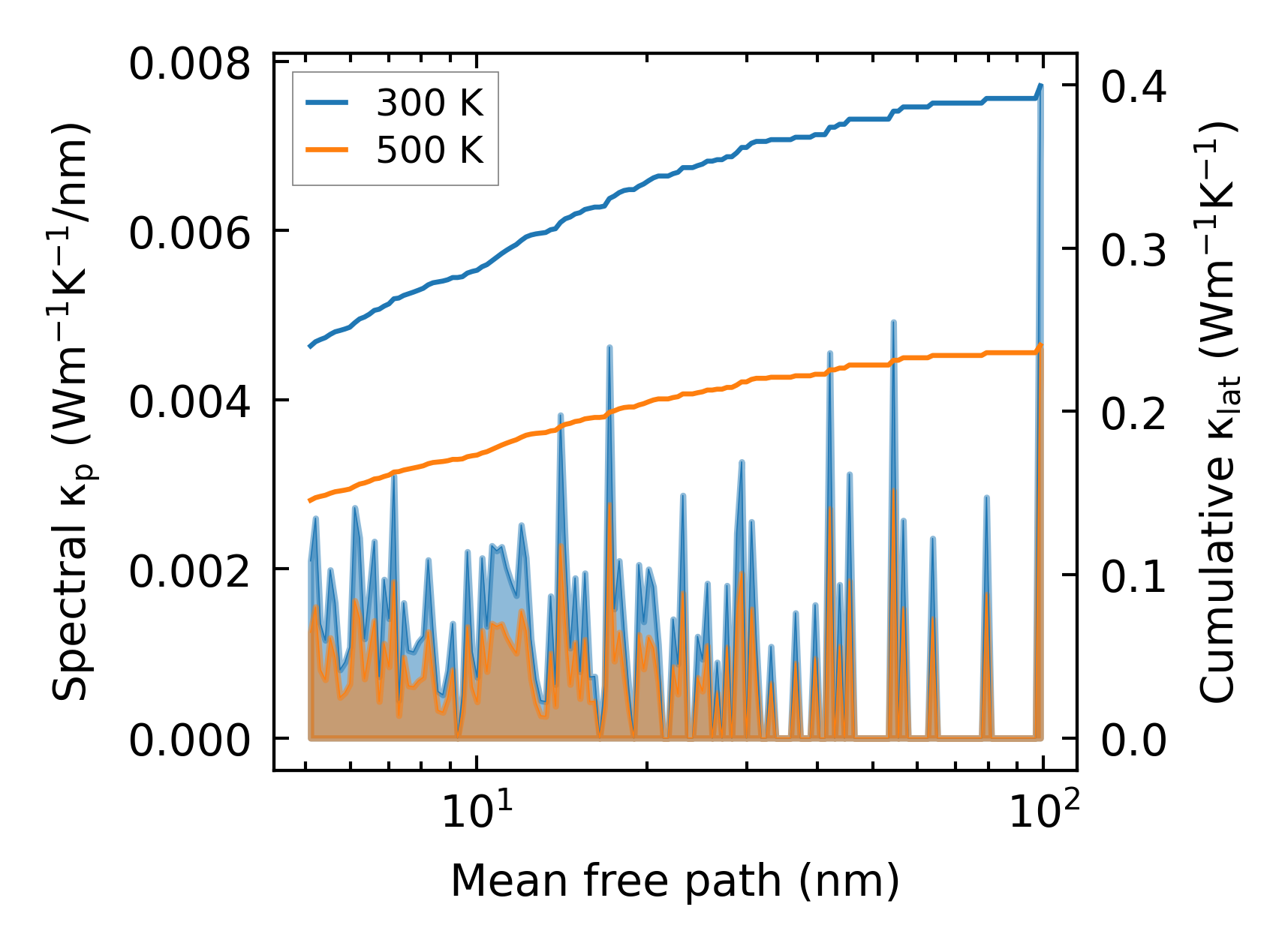

../../_images/fig_cumu_mfp498.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc2648.png — (a) Force constants w.r.t atomic distance

Summary

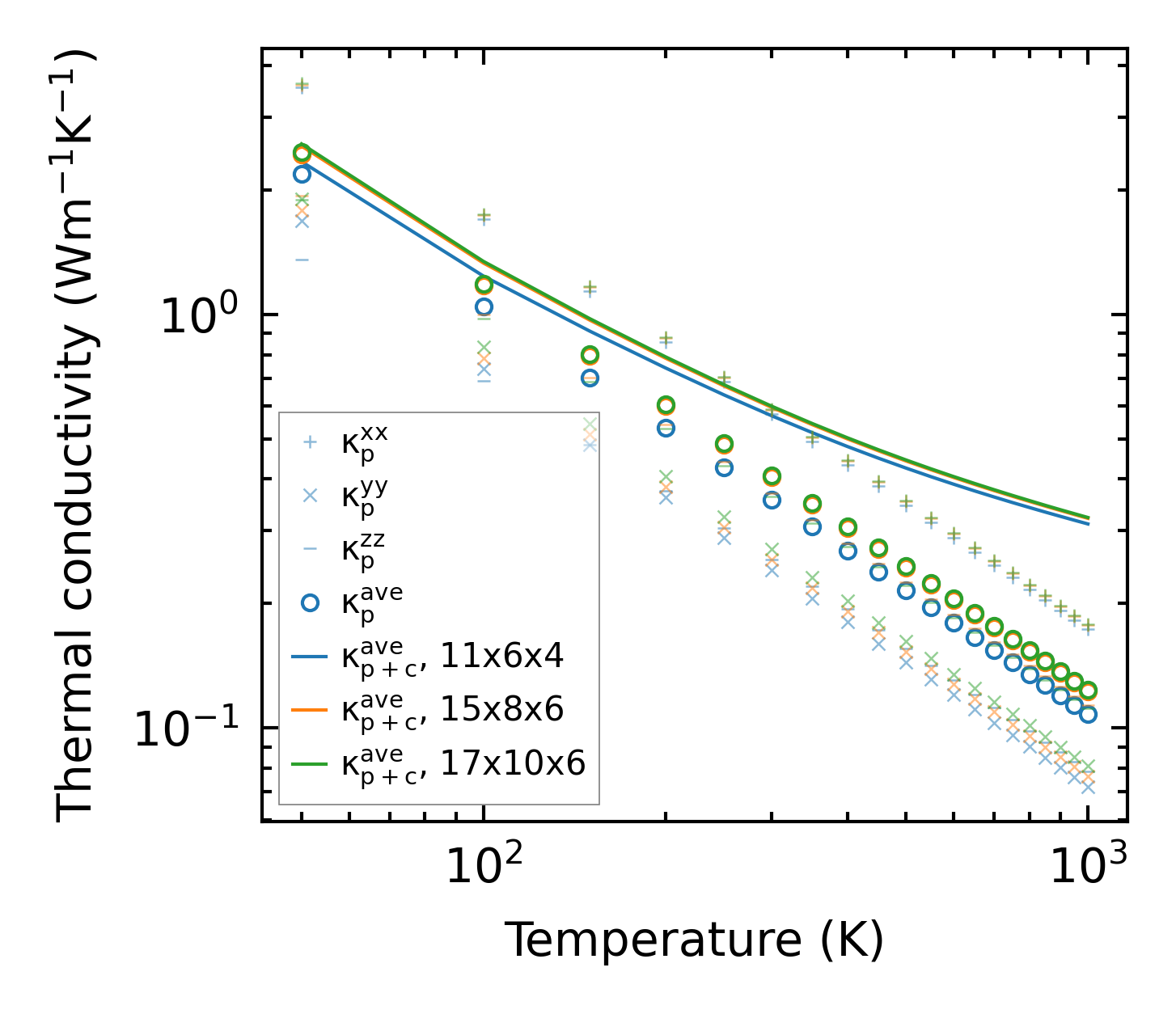

../../_images/fig_kappa974.png — (a) Temperature-dependent lattice thermal conductivity

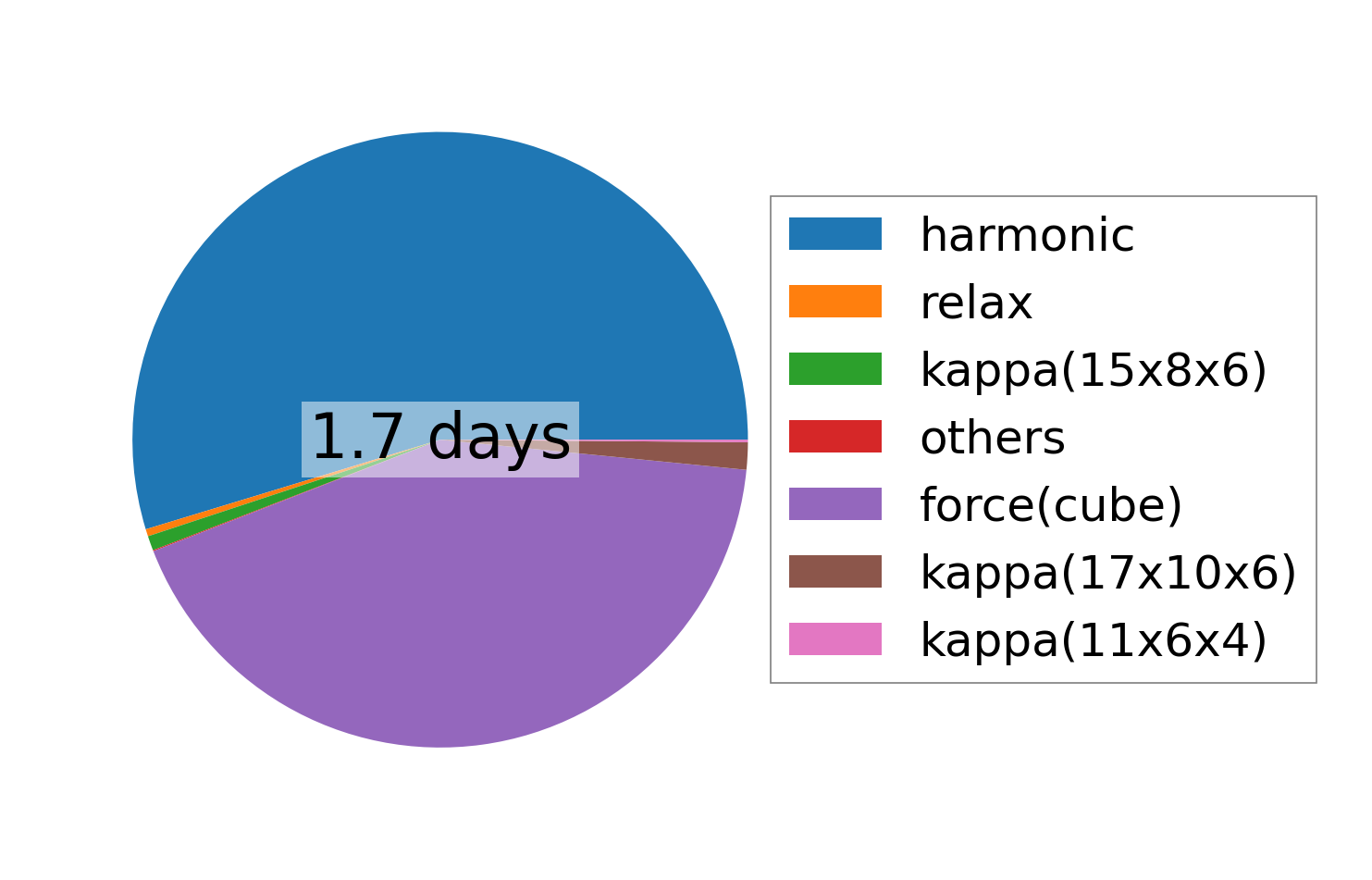

../../_images/fig_times1107.png — (b) Computation time
