mp-998419/BaHfS3/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-998419.tar.gz

Harmonic properties

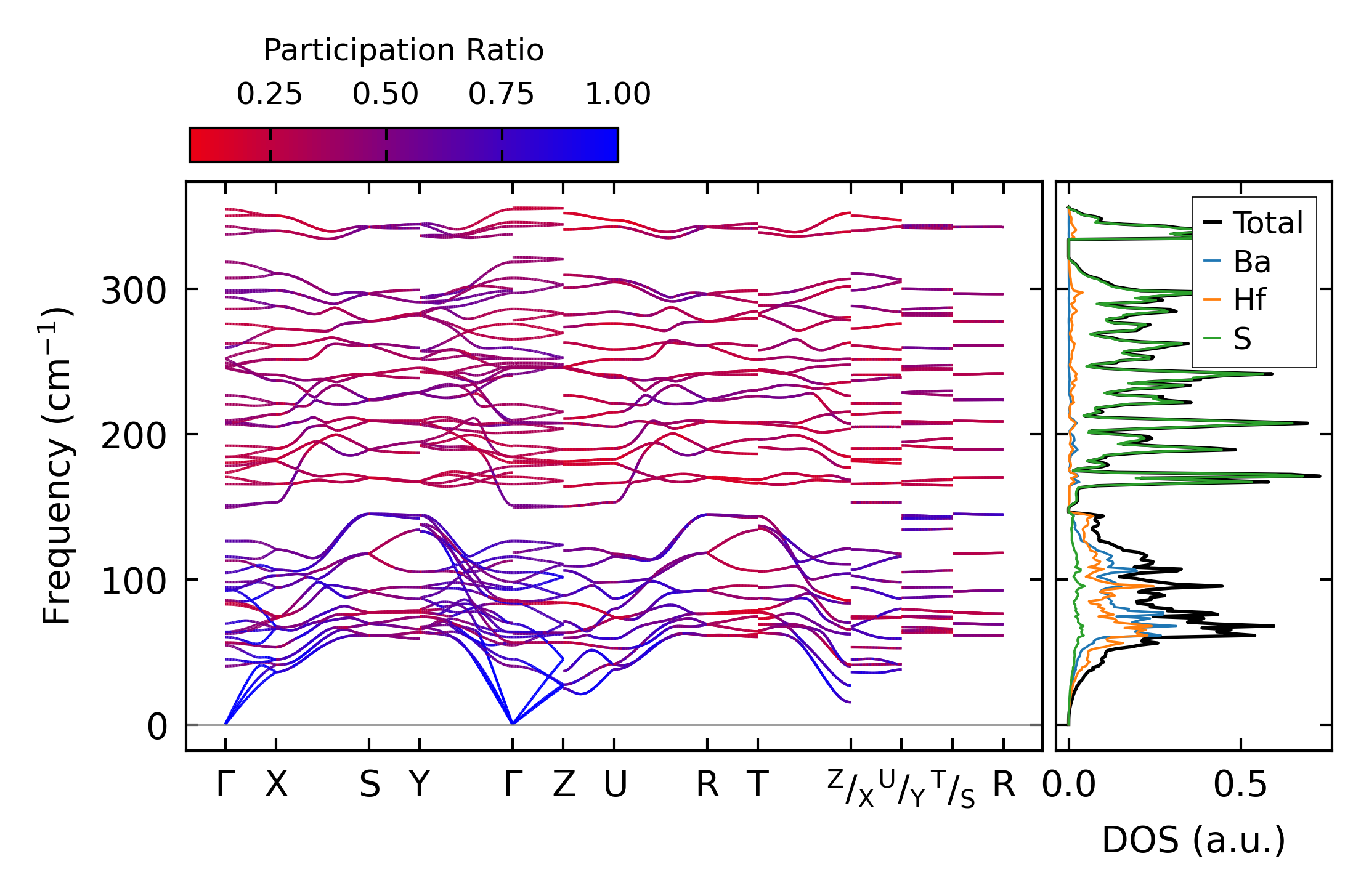

../../_images/fig_bandos_pr737.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo737.png — (b) Thermodynamic properties

Grüneisen parameters

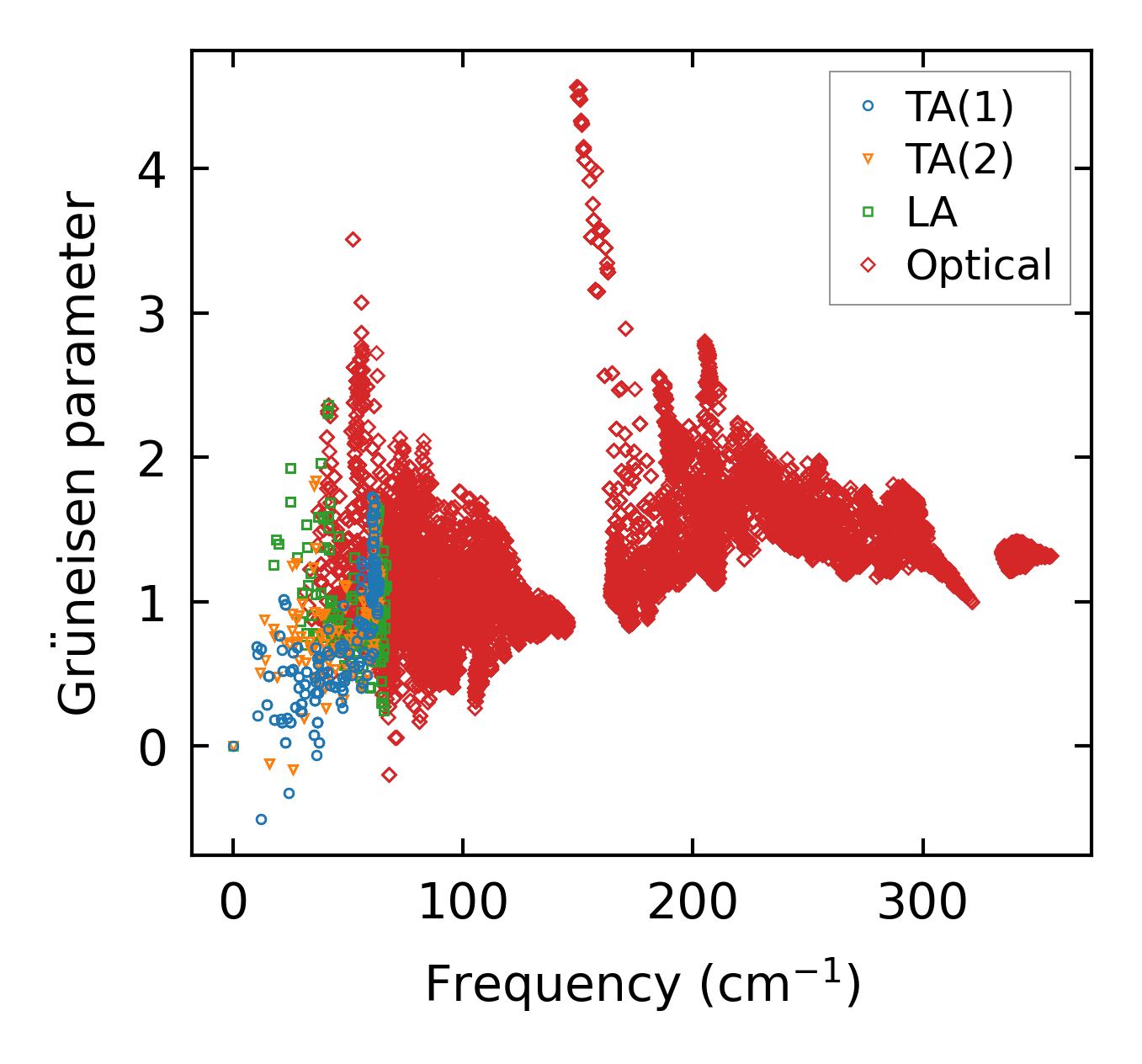

../../_images/fig_gru_all492.png — (a) Grüneisen parameters

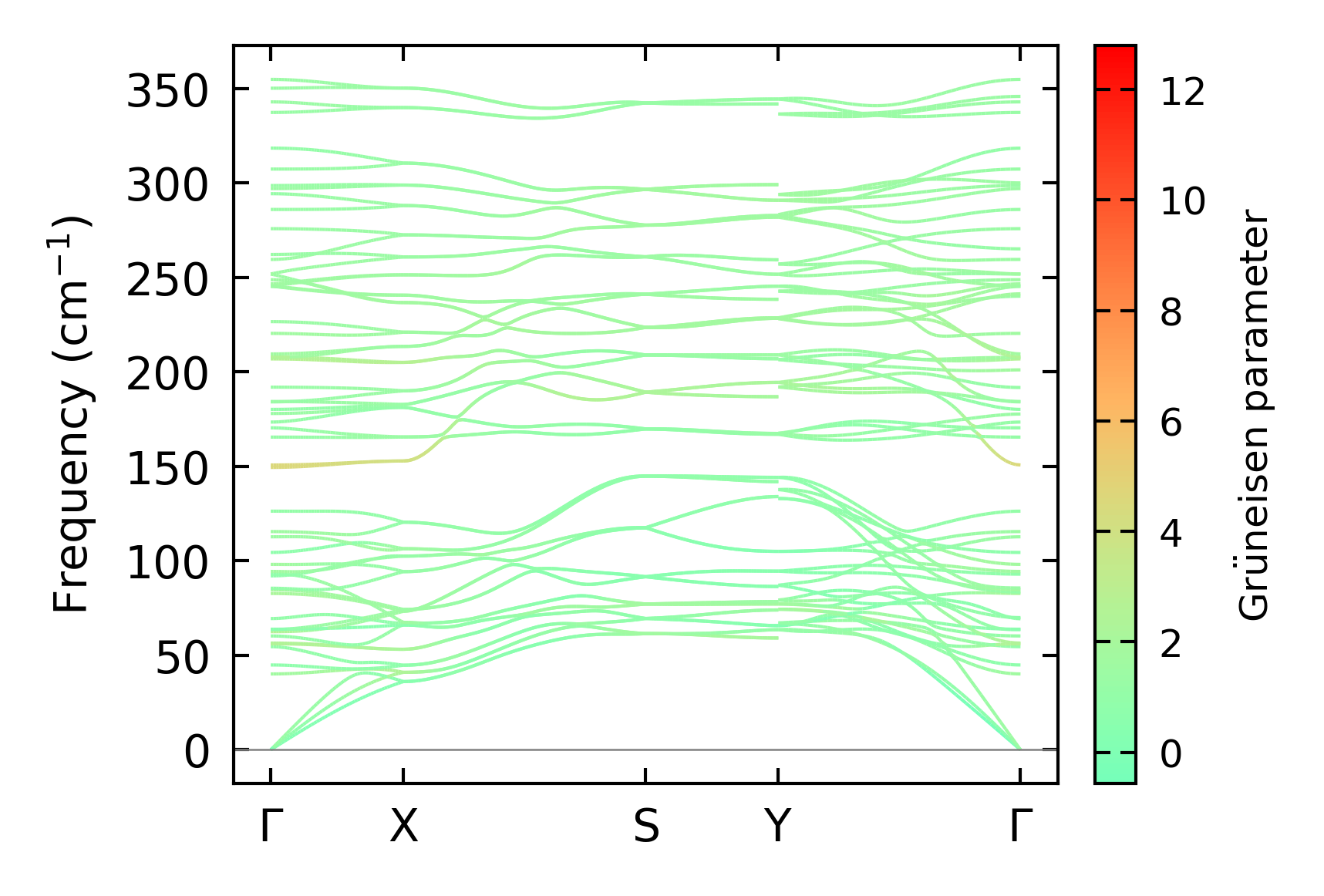

../../_images/fig_gruneisen492.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x18x5, supercell: 2x3x1

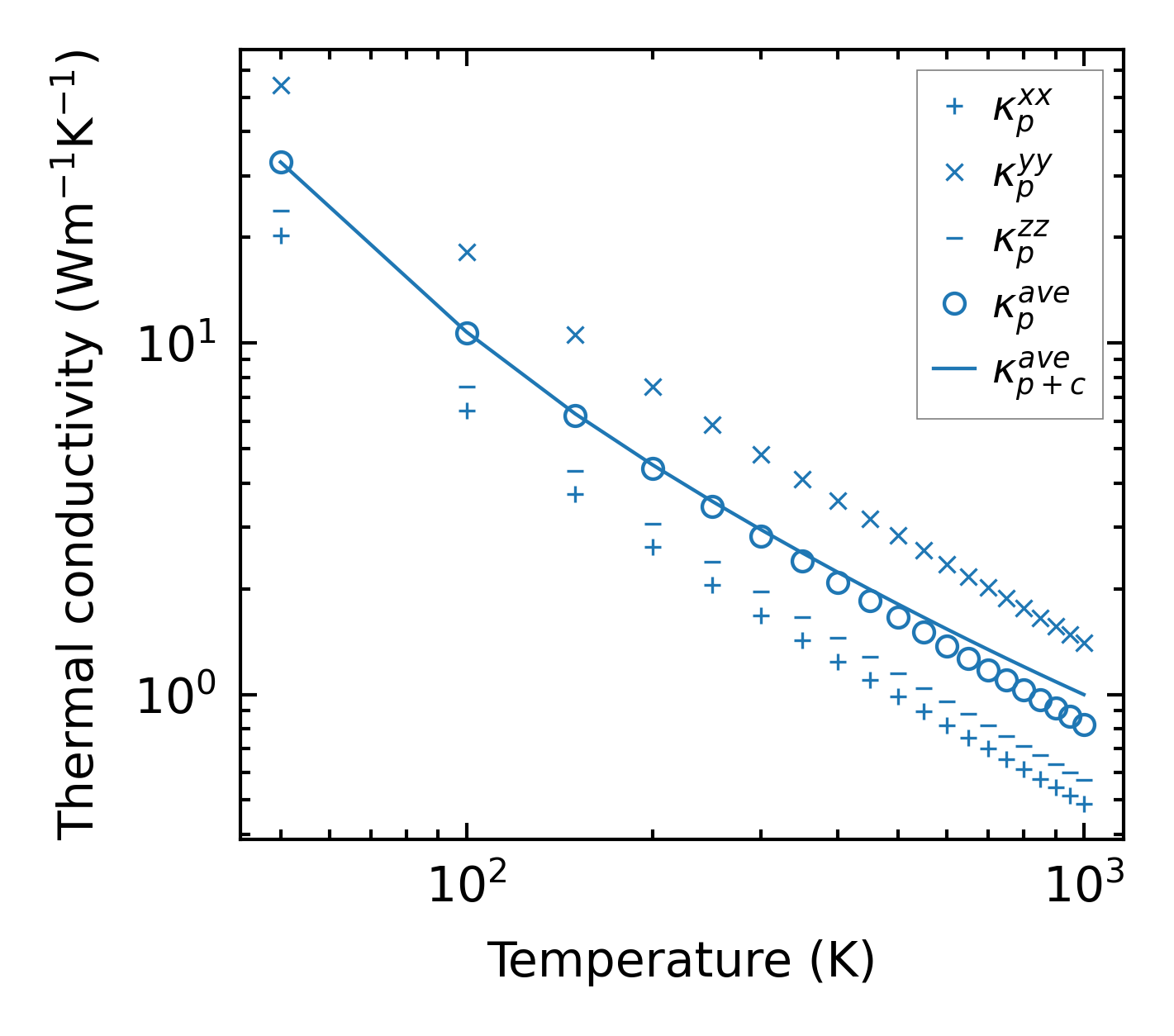

../../_images/fig_kappa957.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size499.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

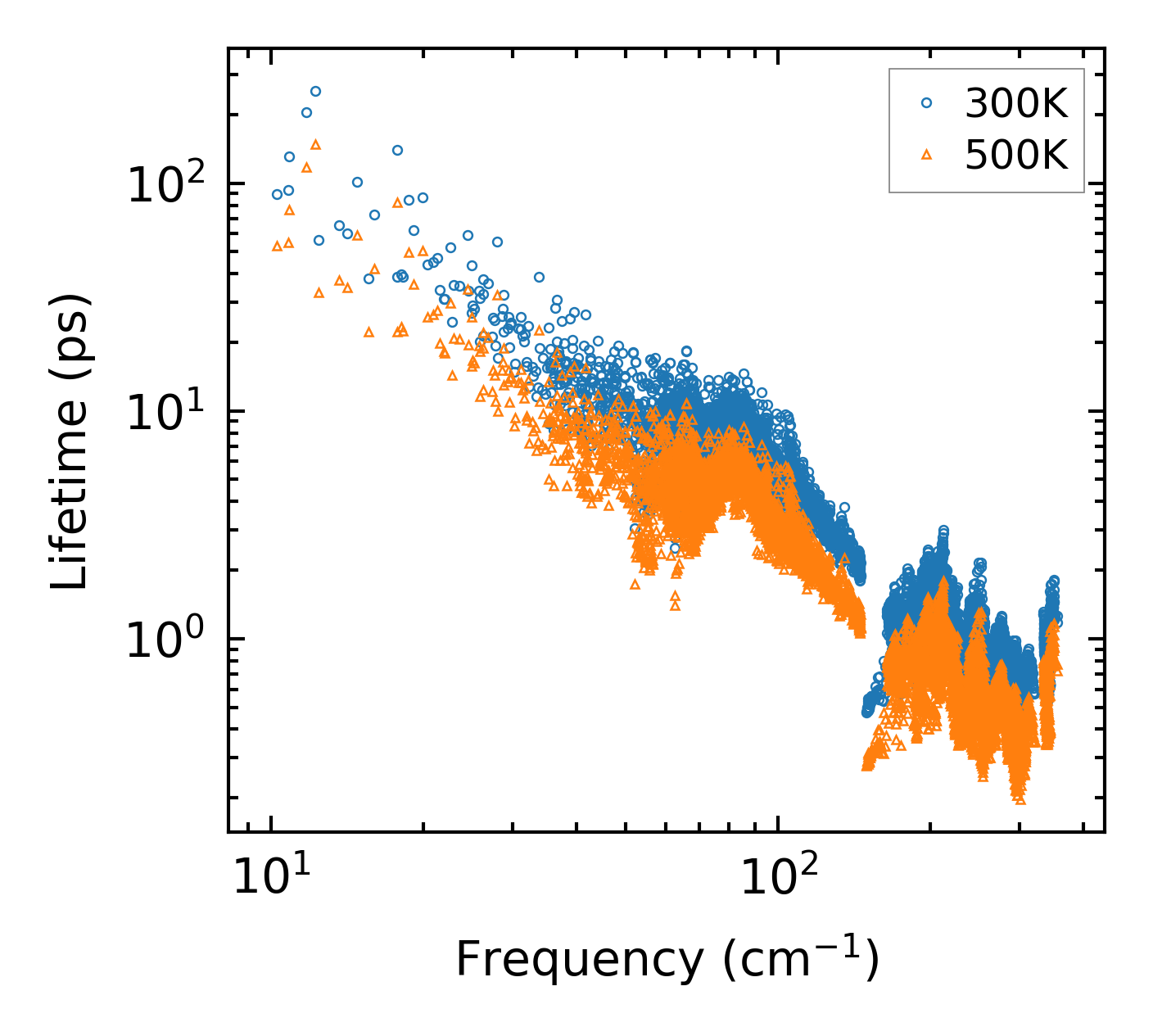

../../_images/fig_lifetime490.png — (a) Phonon lifetime due to phonon-phonon scattering

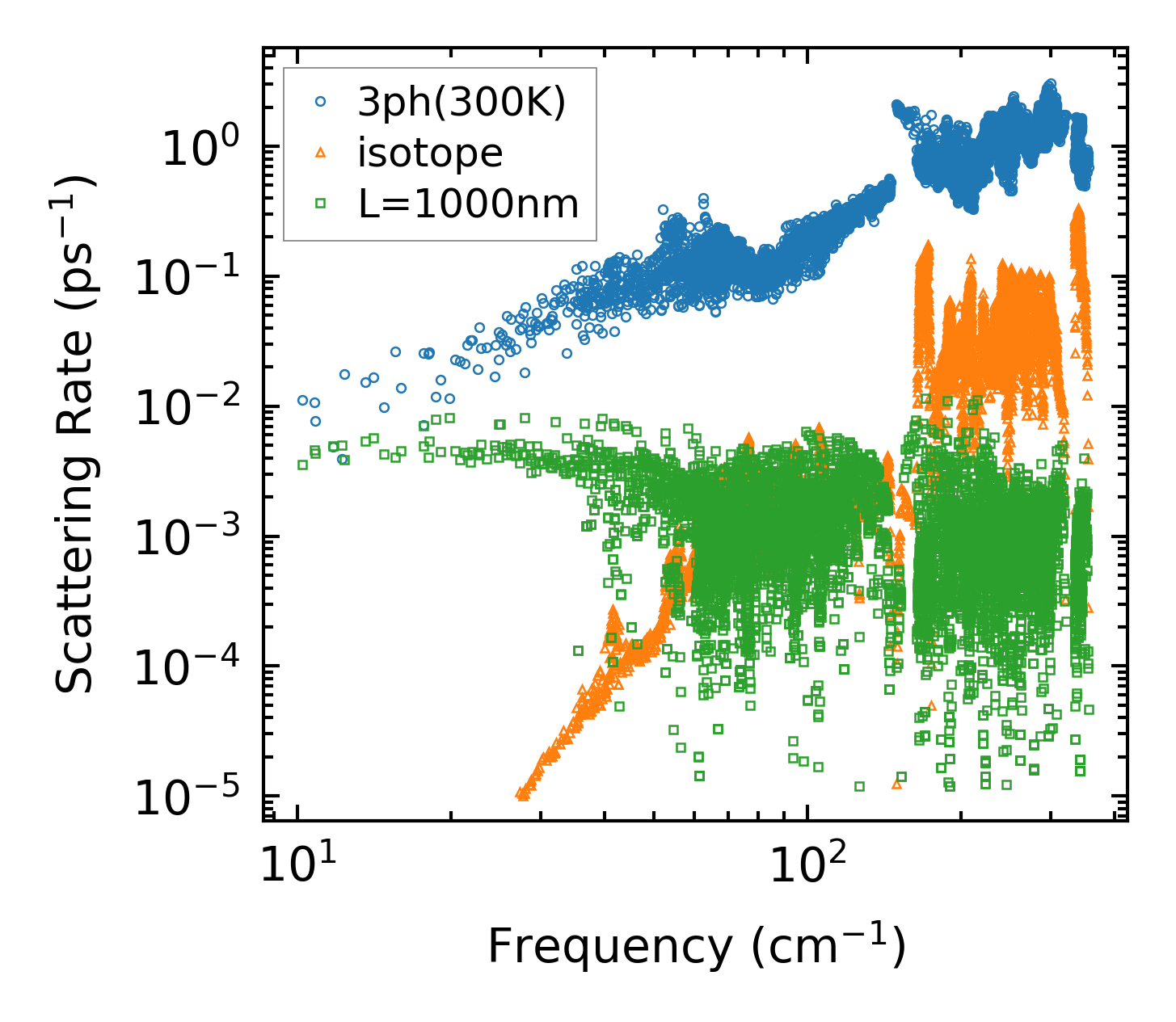

../../_images/fig_scat_rates489.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

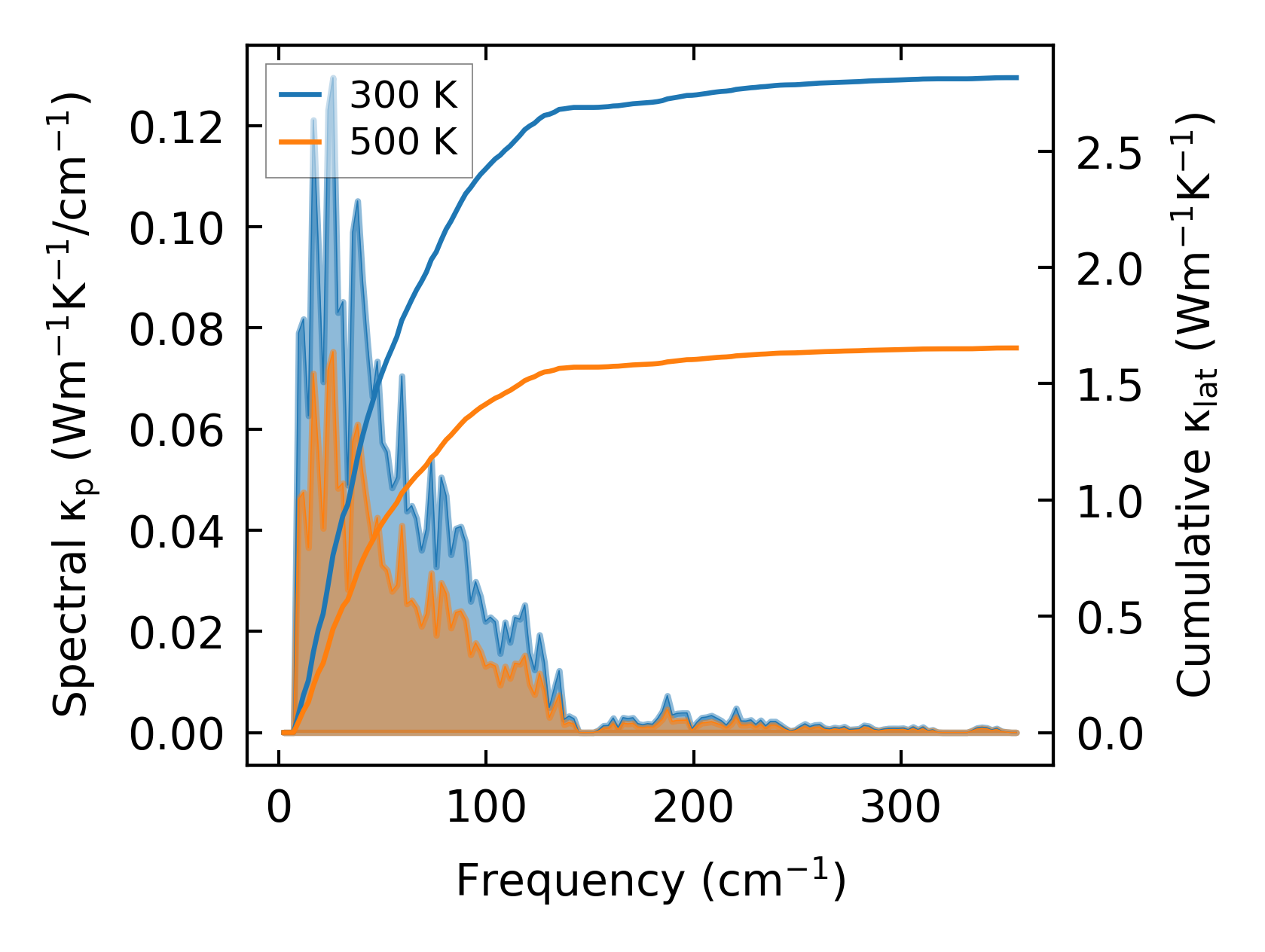

../../_images/fig_cumu_frequency490.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

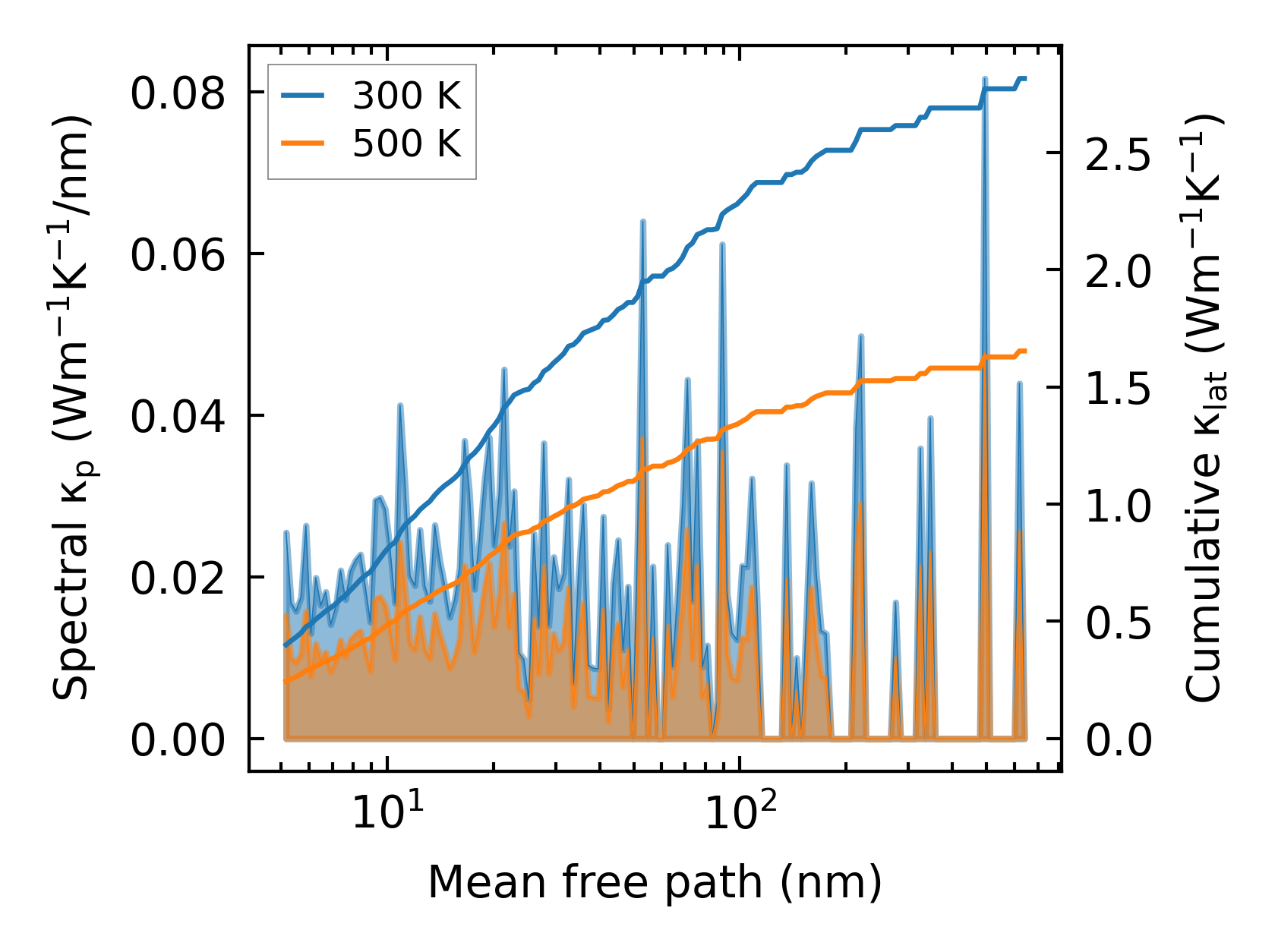

../../_images/fig_cumu_mfp490.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

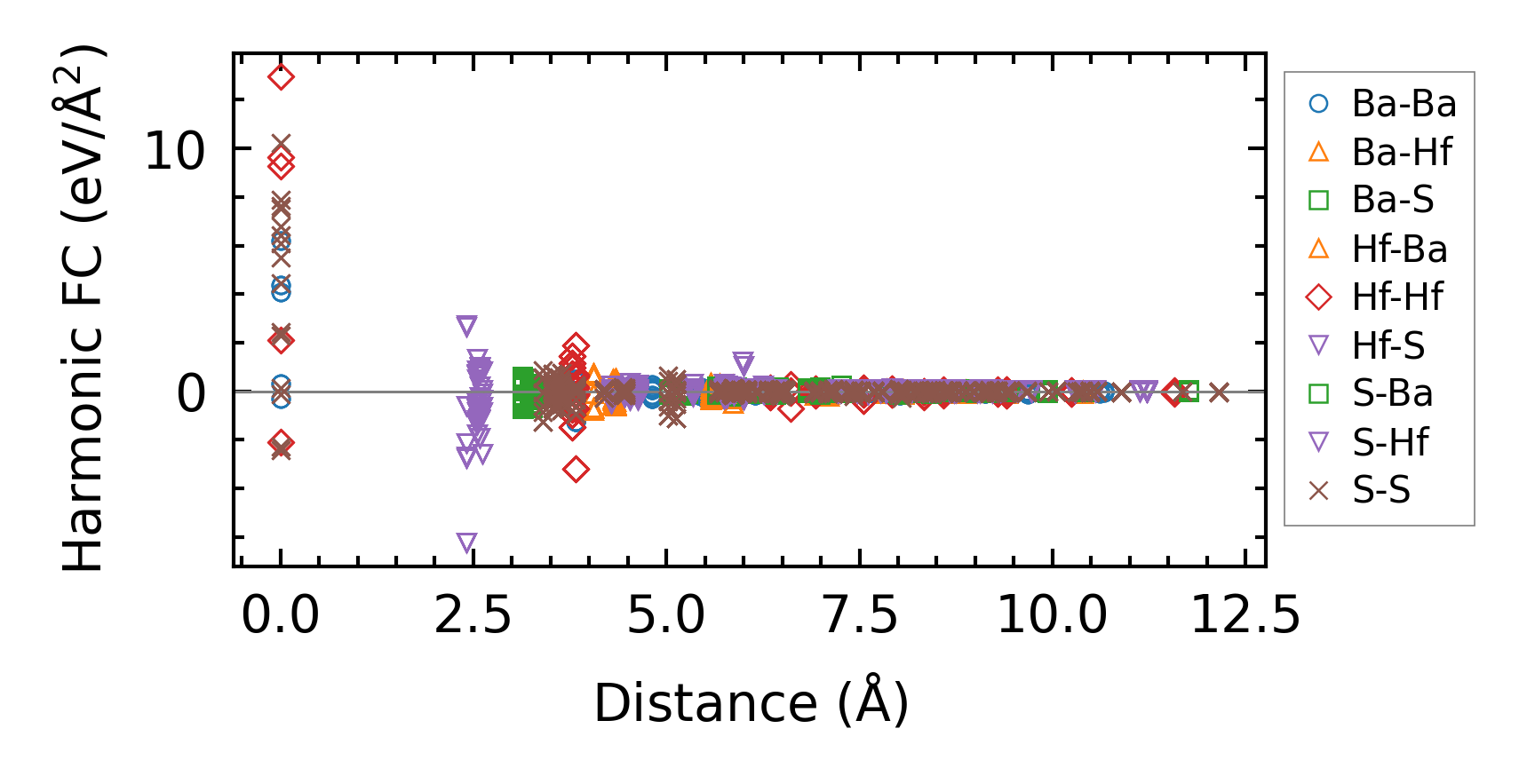

../../_images/fig_fc2640.png — (a) Force constants w.r.t atomic distance

Summary

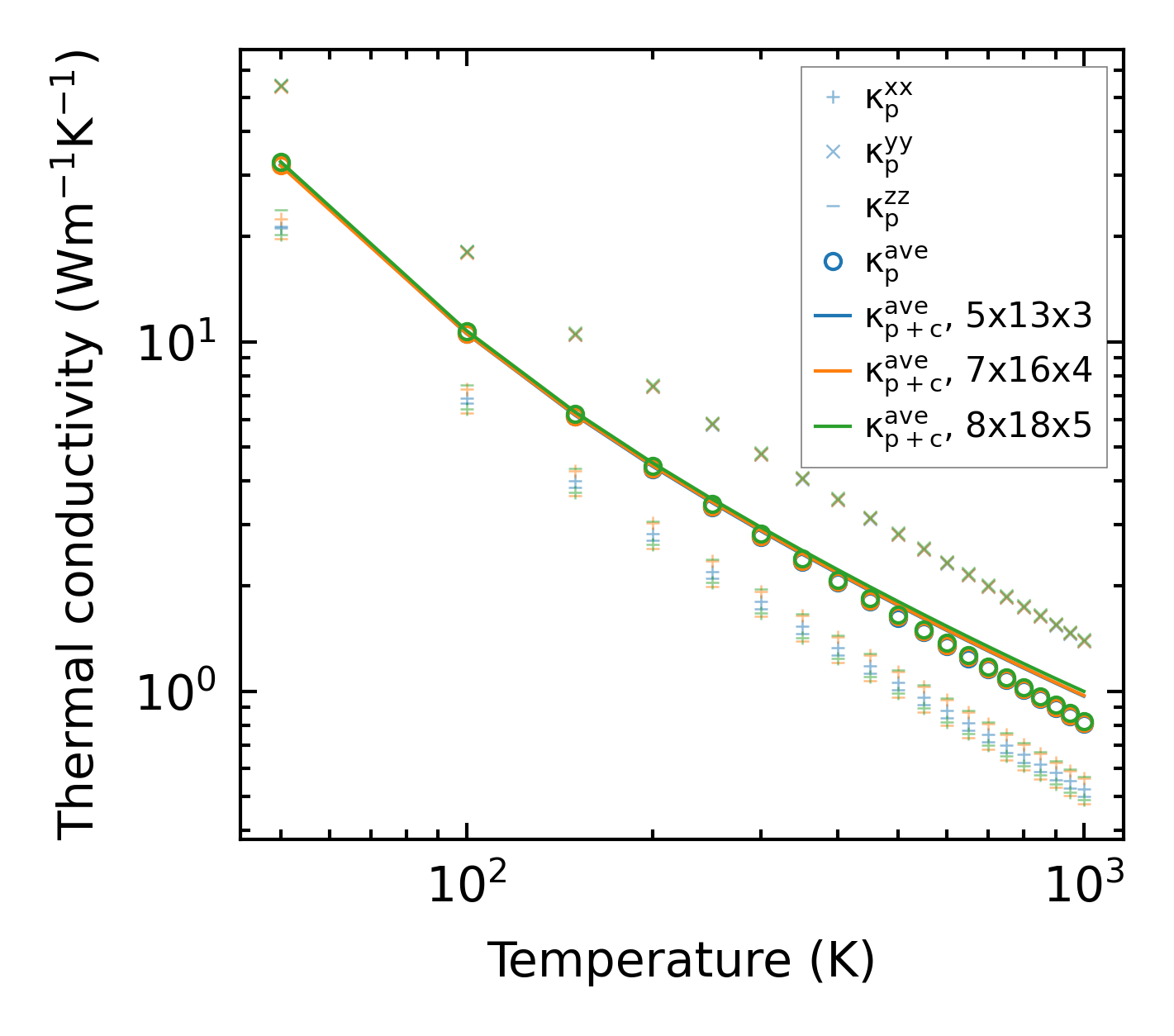

../../_images/fig_kappa958.png — (a) Temperature-dependent lattice thermal conductivity

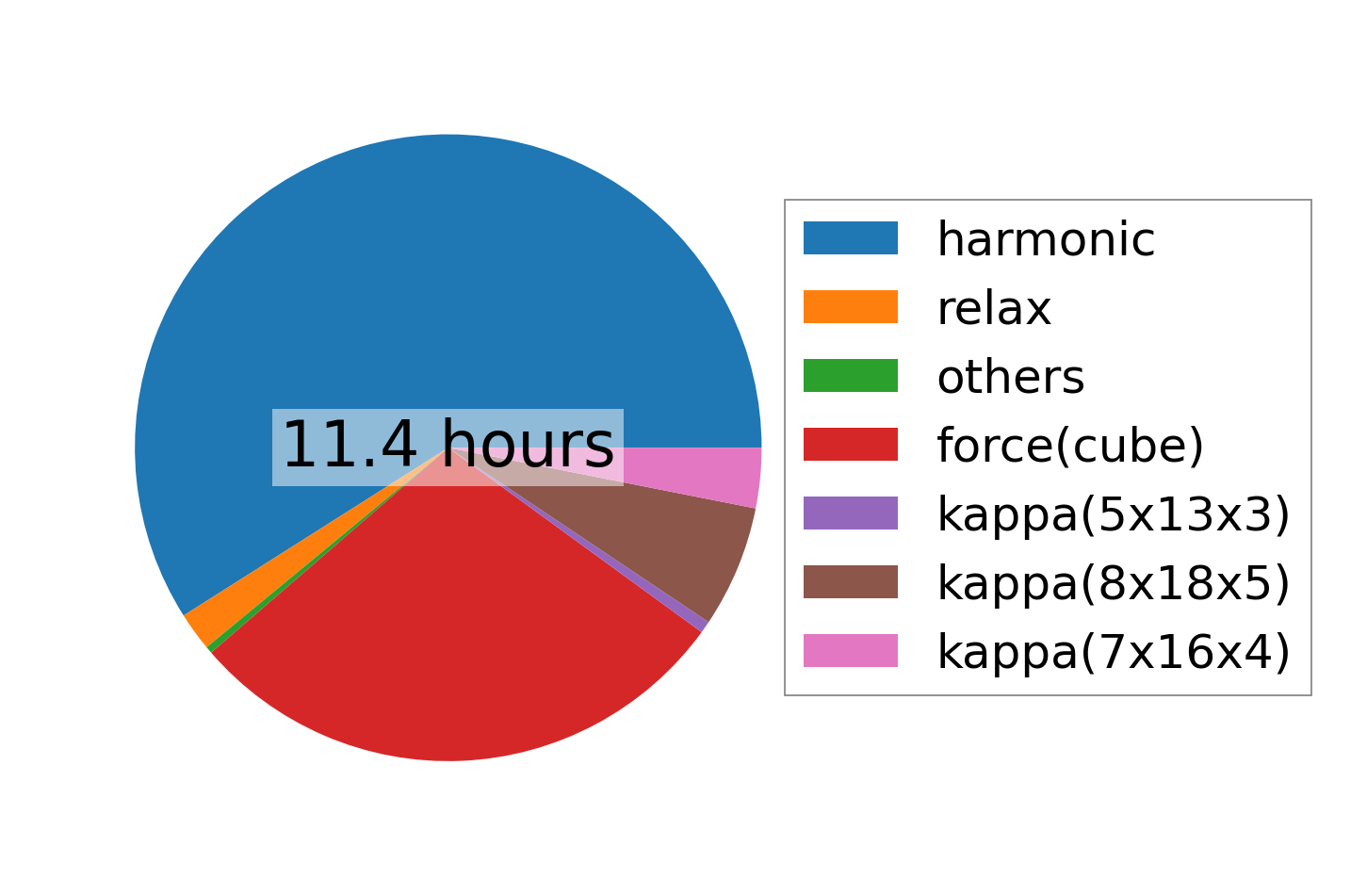

../../_images/fig_times1091.png — (b) Computation time
