mp-978489/SiPbO3/anharm

Space group: Pm-3m (221)
Link: Materials Project
Download: mp-978489.tar.gz

Harmonic properties

../../_images/fig_bandos_pr1060.png — (a) Phonon dispersion with participation ratio and DOS

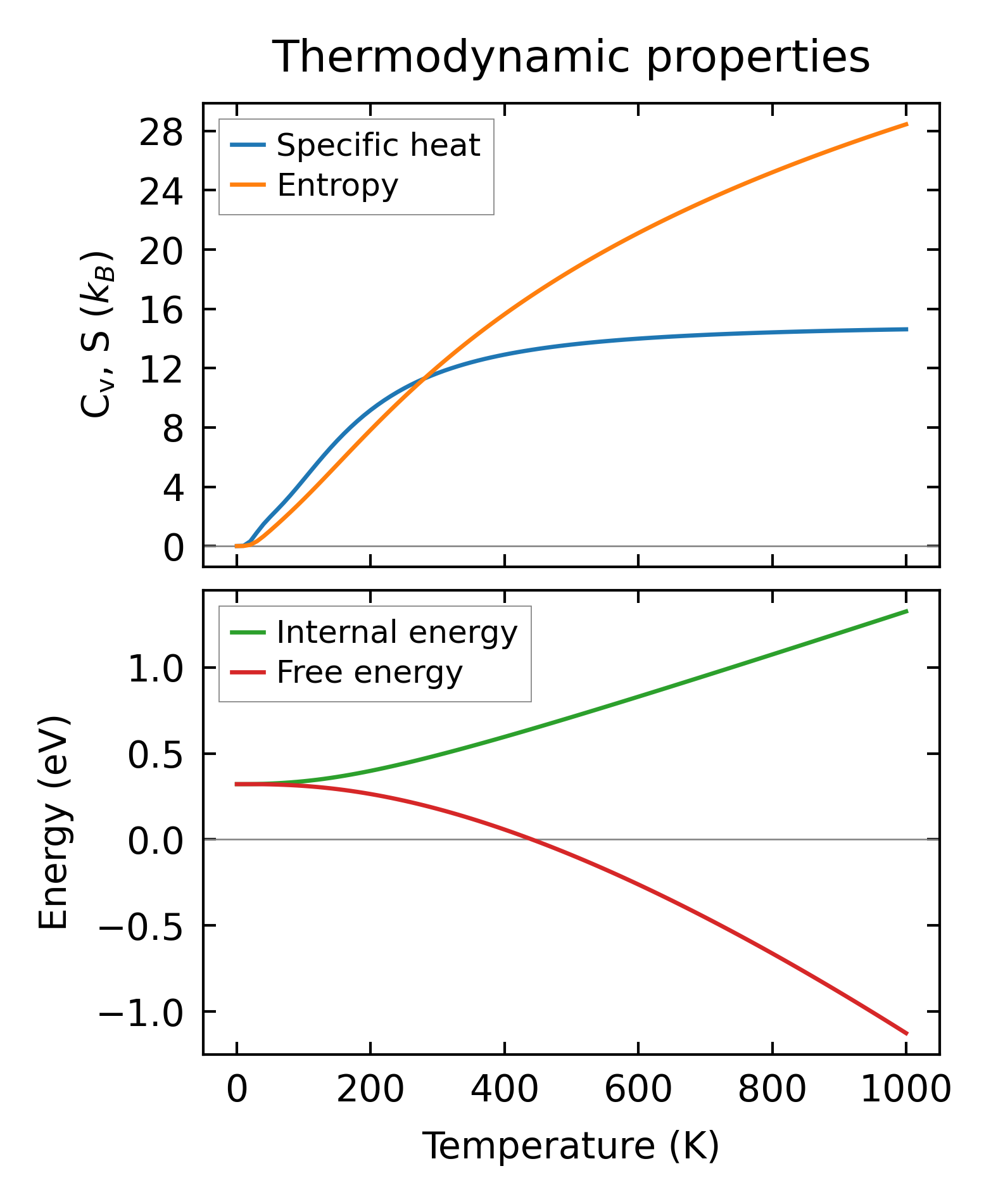

../../_images/fig_thermo1060.png — (b) Thermodynamic properties

Grüneisen parameters

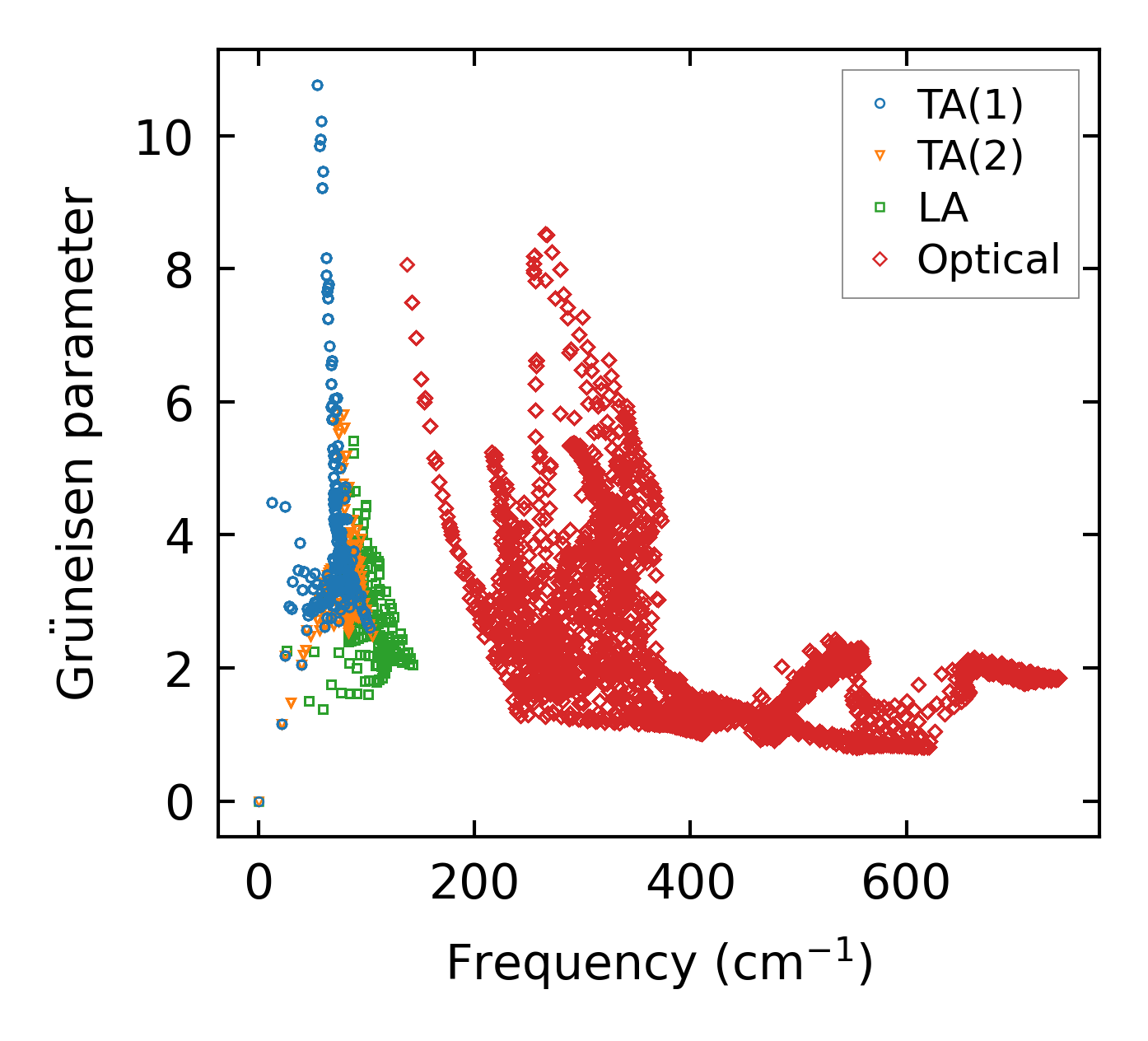

../../_images/fig_gru_all648.png — (a) Grüneisen parameters

../../_images/fig_gruneisen648.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 19x19x19, supercell: 3x3x3

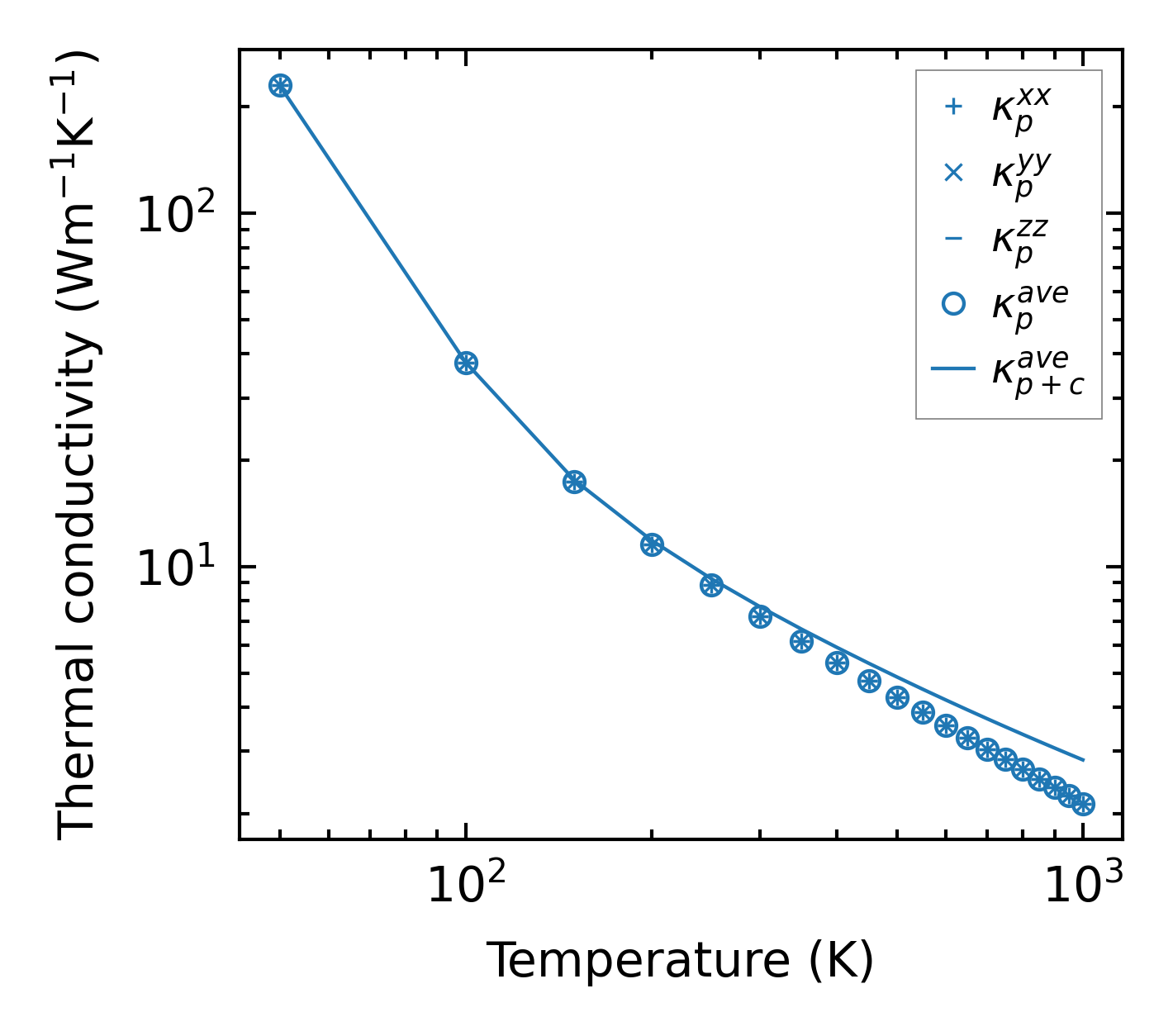

../../_images/fig_kappa1262.png — (a) Temperature-dependent lattice thermal conductivity

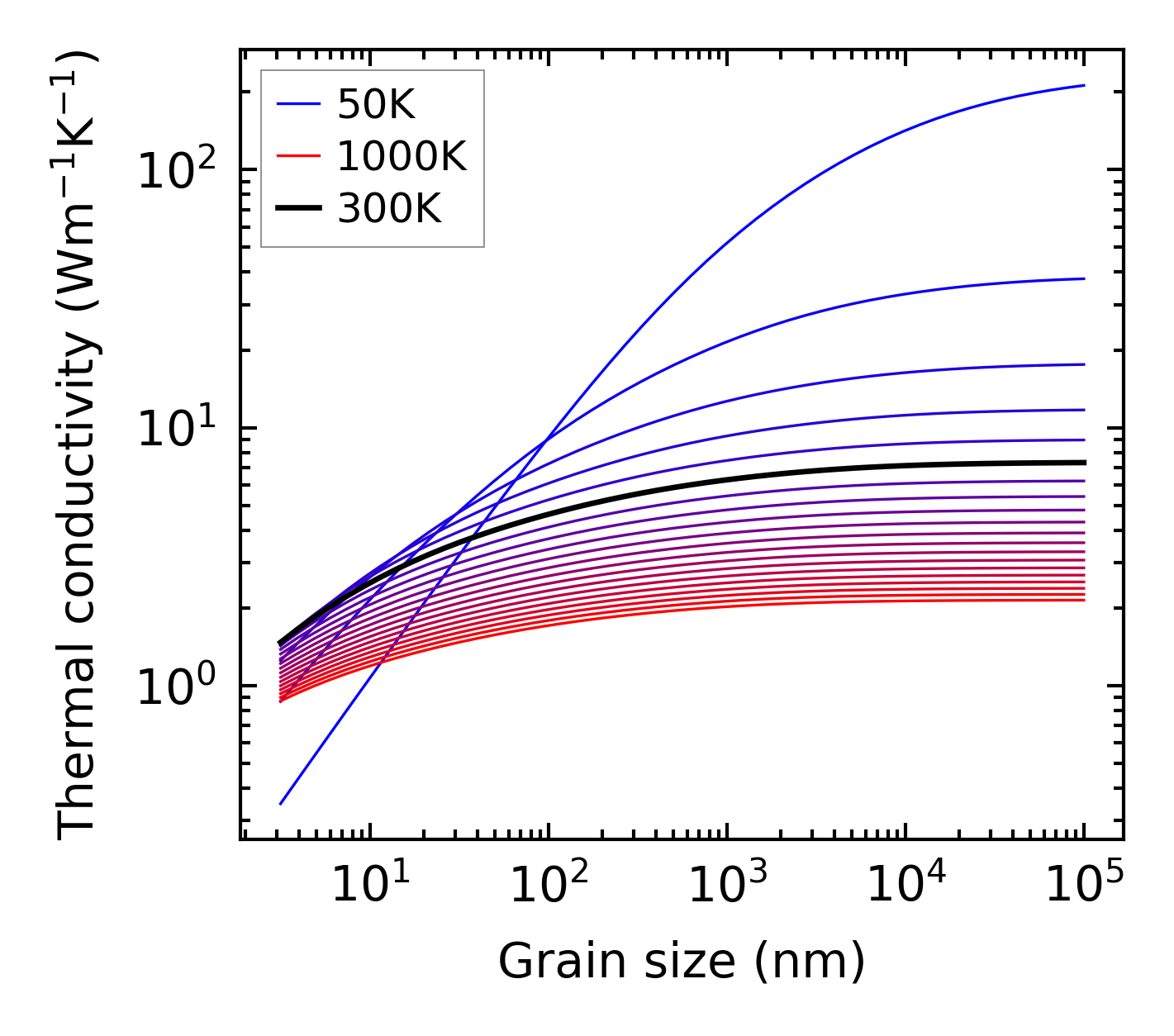

../../_images/fig_kappa_vs_grain_size656.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

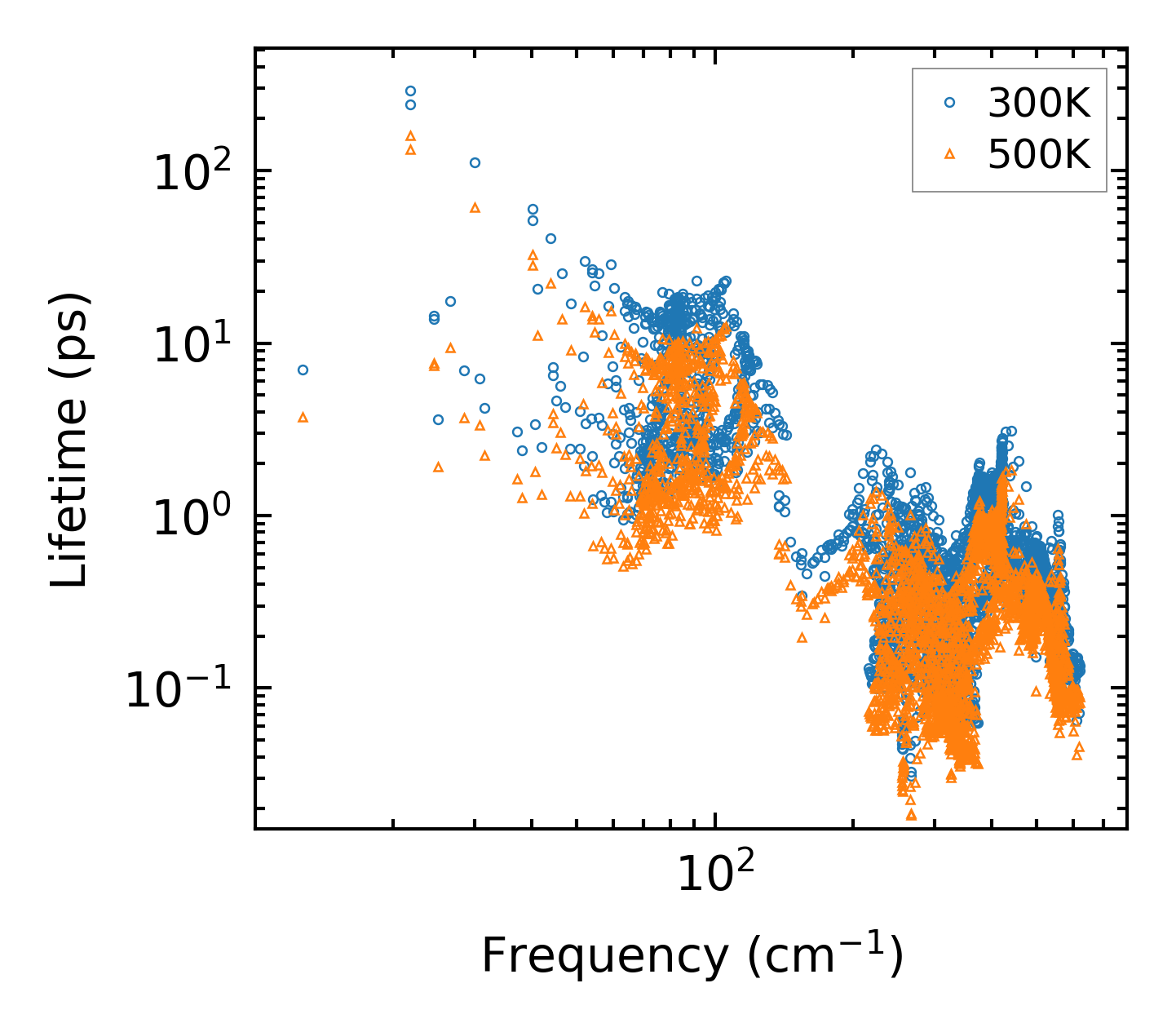

../../_images/fig_lifetime646.png — (a) Phonon lifetime due to phonon-phonon scattering

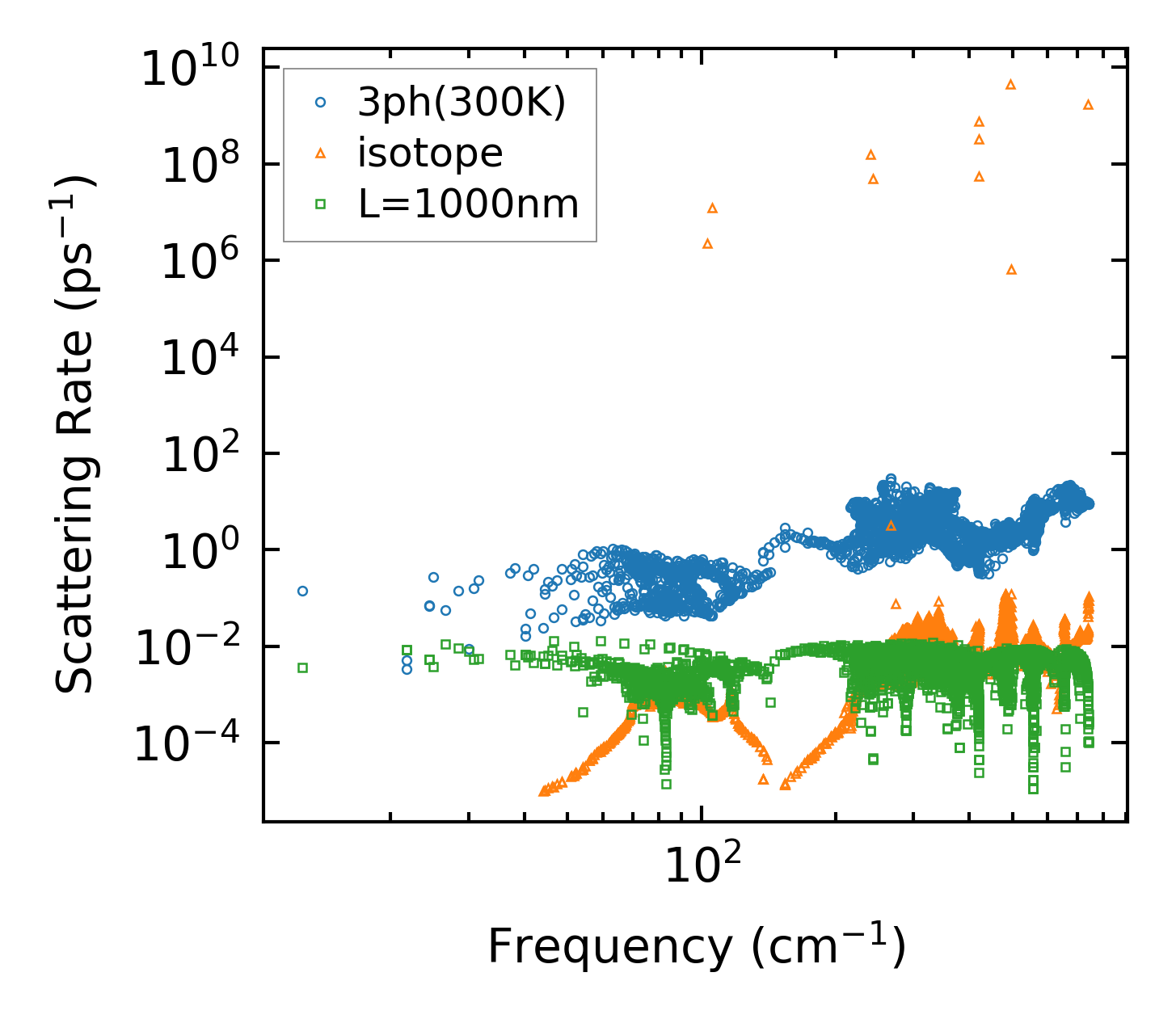

../../_images/fig_scat_rates645.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency646.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp646.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc2928.png — (a) Force constants w.r.t atomic distance

Summary

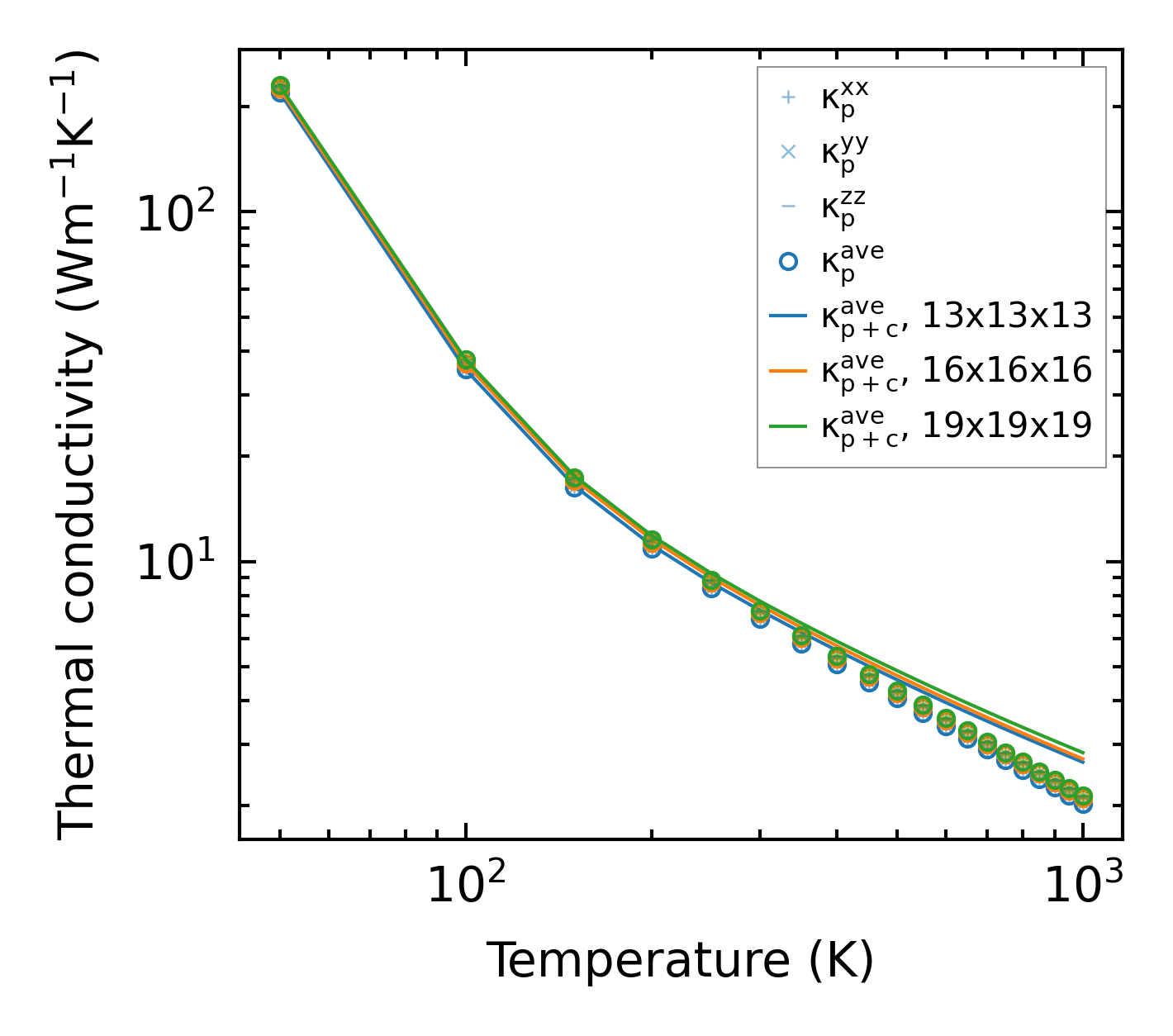

../../_images/fig_kappa1263.png — (a) Temperature-dependent lattice thermal conductivity

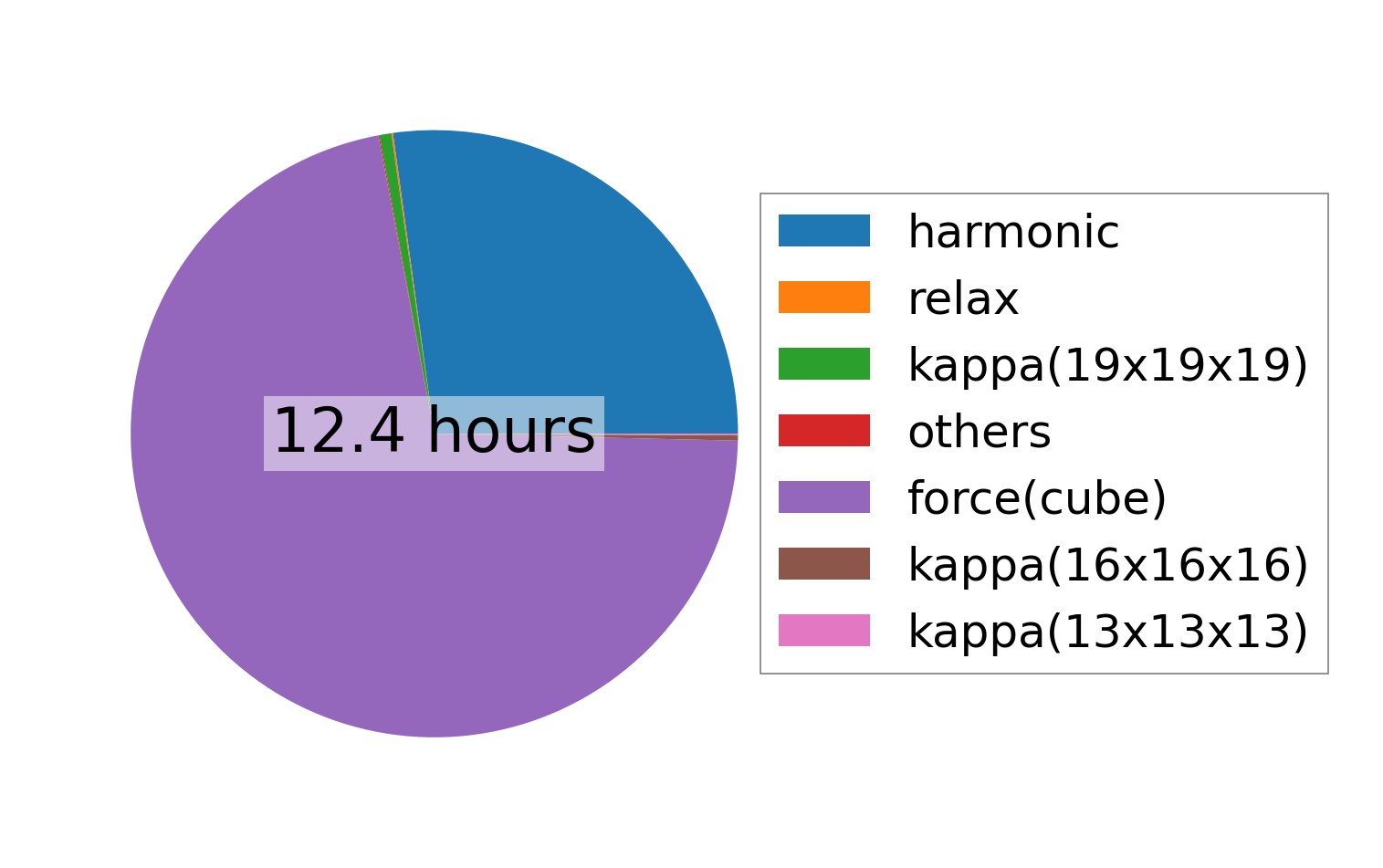

../../_images/fig_times1586.png — (b) Computation time
