mp-867335/K2SbAu/anharm

Space group: Cmcm (63)
Link: Materials Project
Download: mp-867335.tar.gz

Harmonic properties

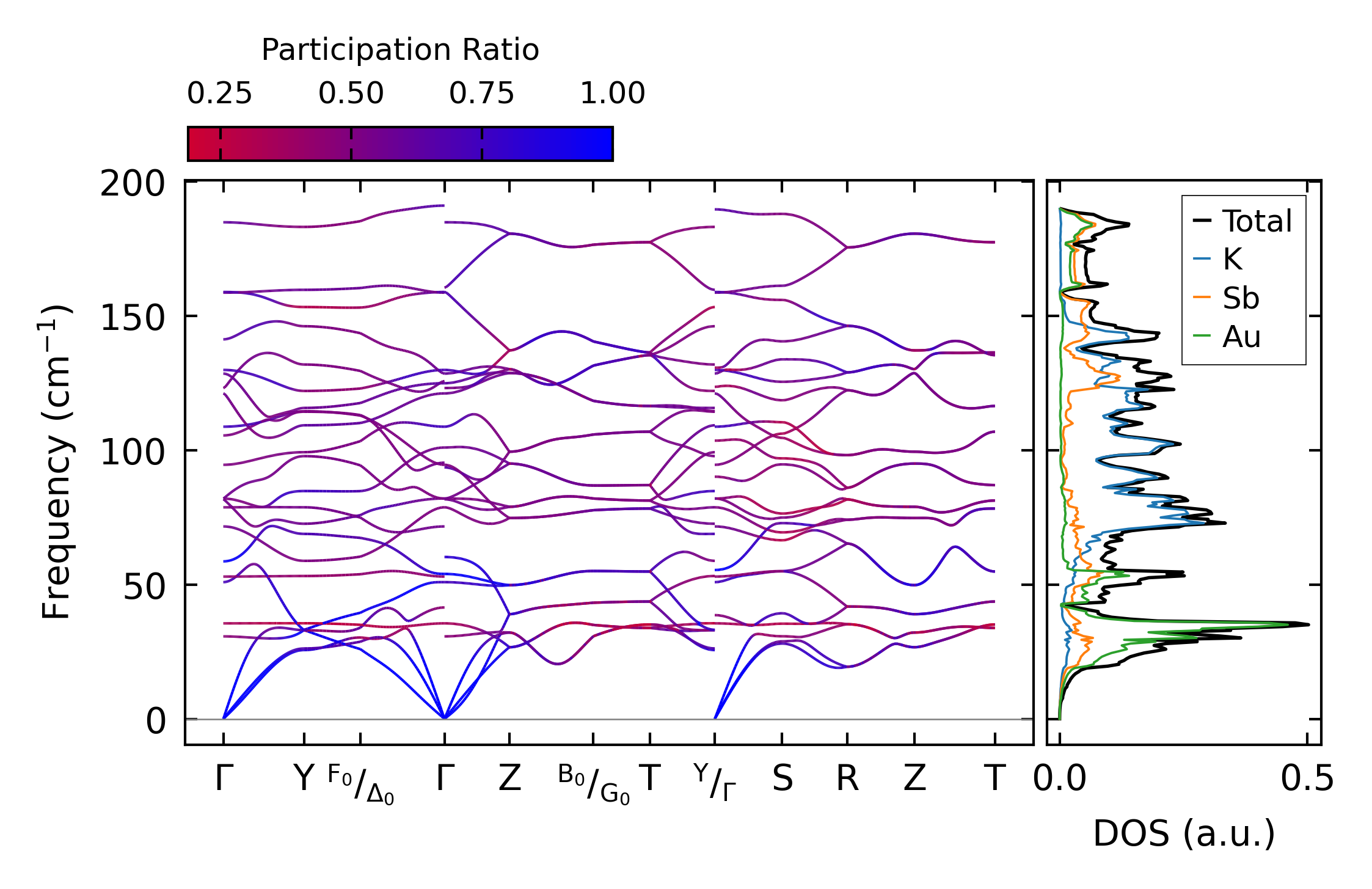

../../_images/fig_bandos_pr1321.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo1321.png — (b) Thermodynamic properties

Grüneisen parameters

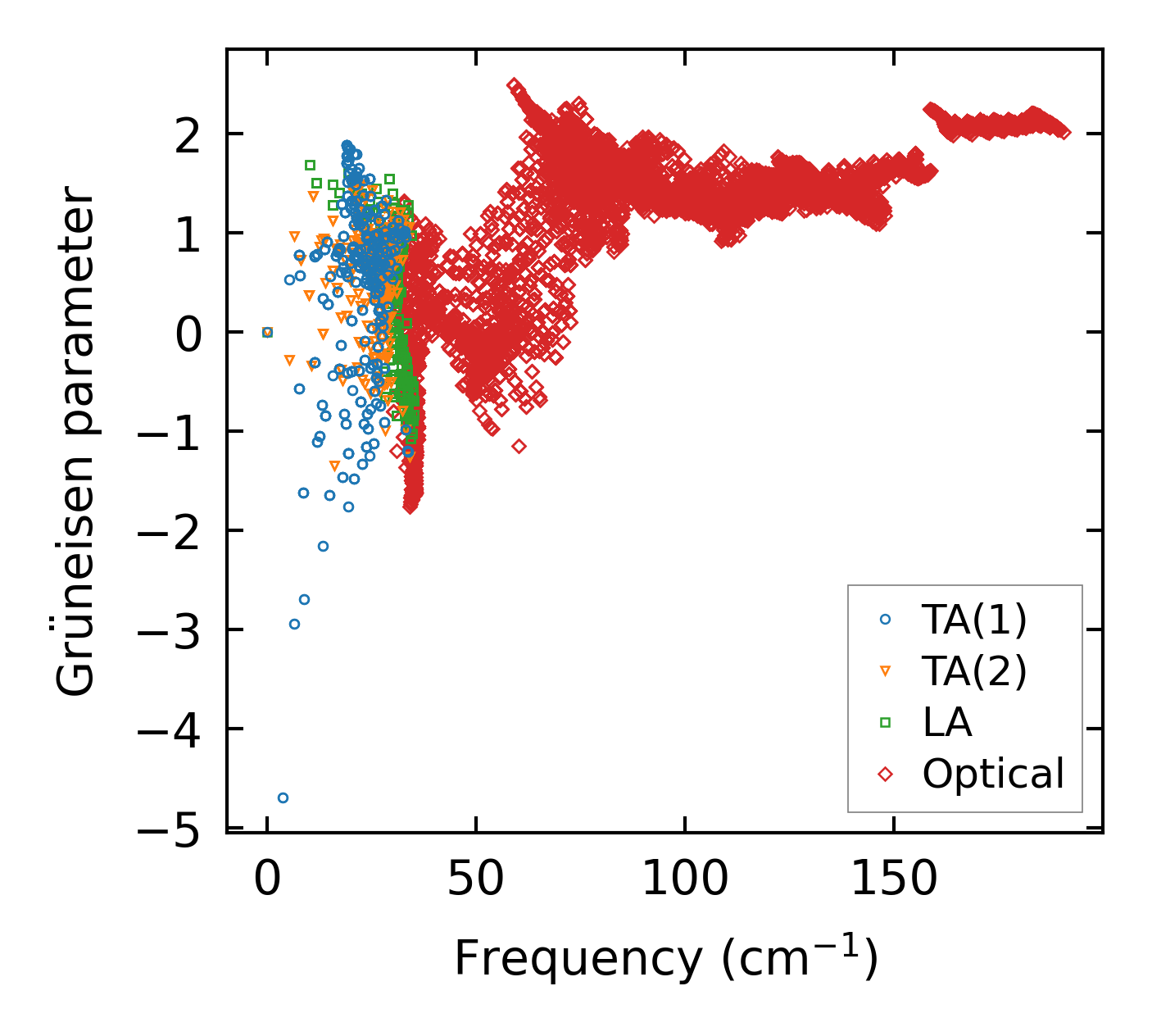

../../_images/fig_gru_all816.png — (a) Grüneisen parameters

../../_images/fig_gruneisen816.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x11x11, supercell: 2x2x2

../../_images/fig_kappa1583.png — (a) Temperature-dependent lattice thermal conductivity

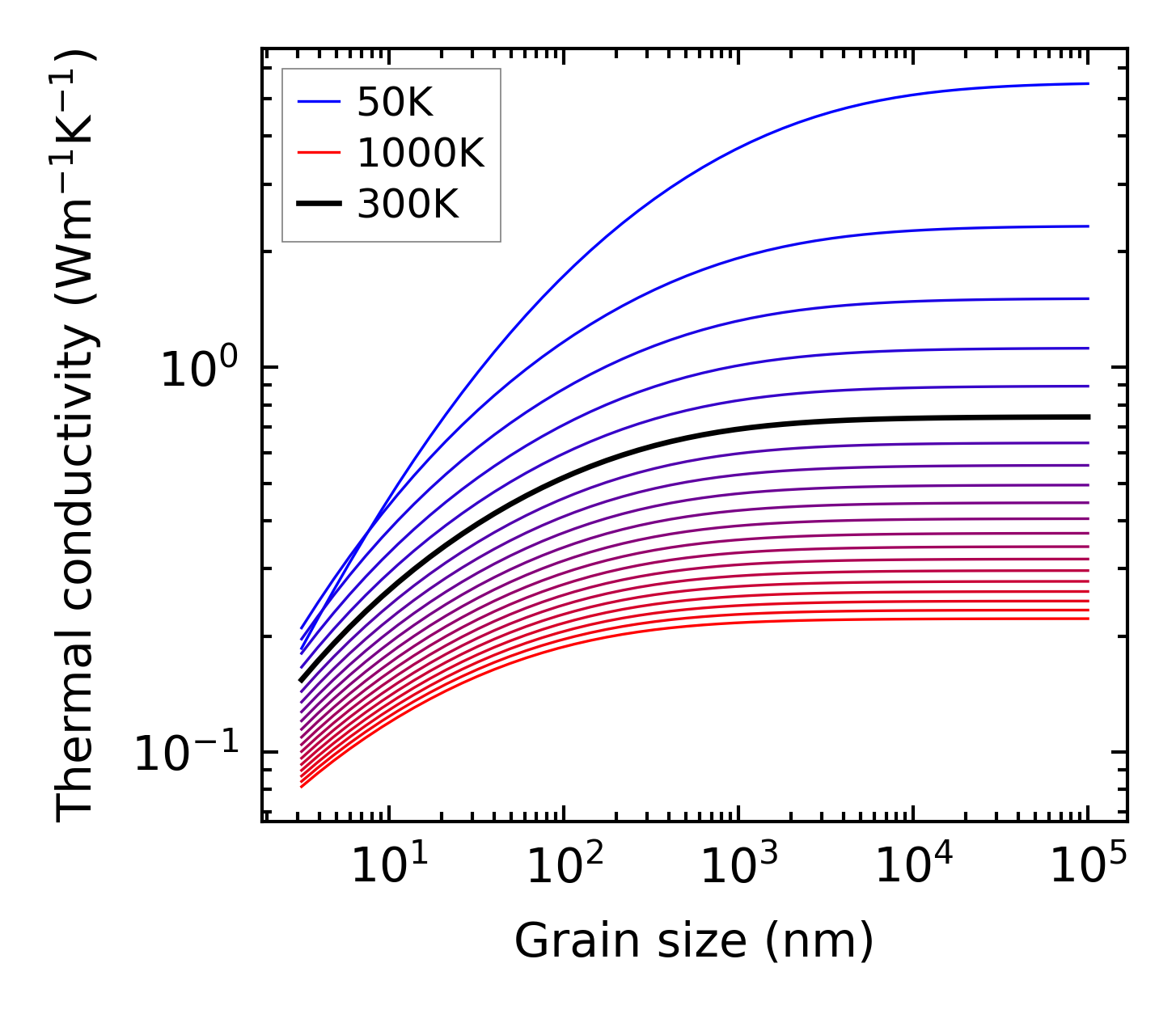

../../_images/fig_kappa_vs_grain_size825.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

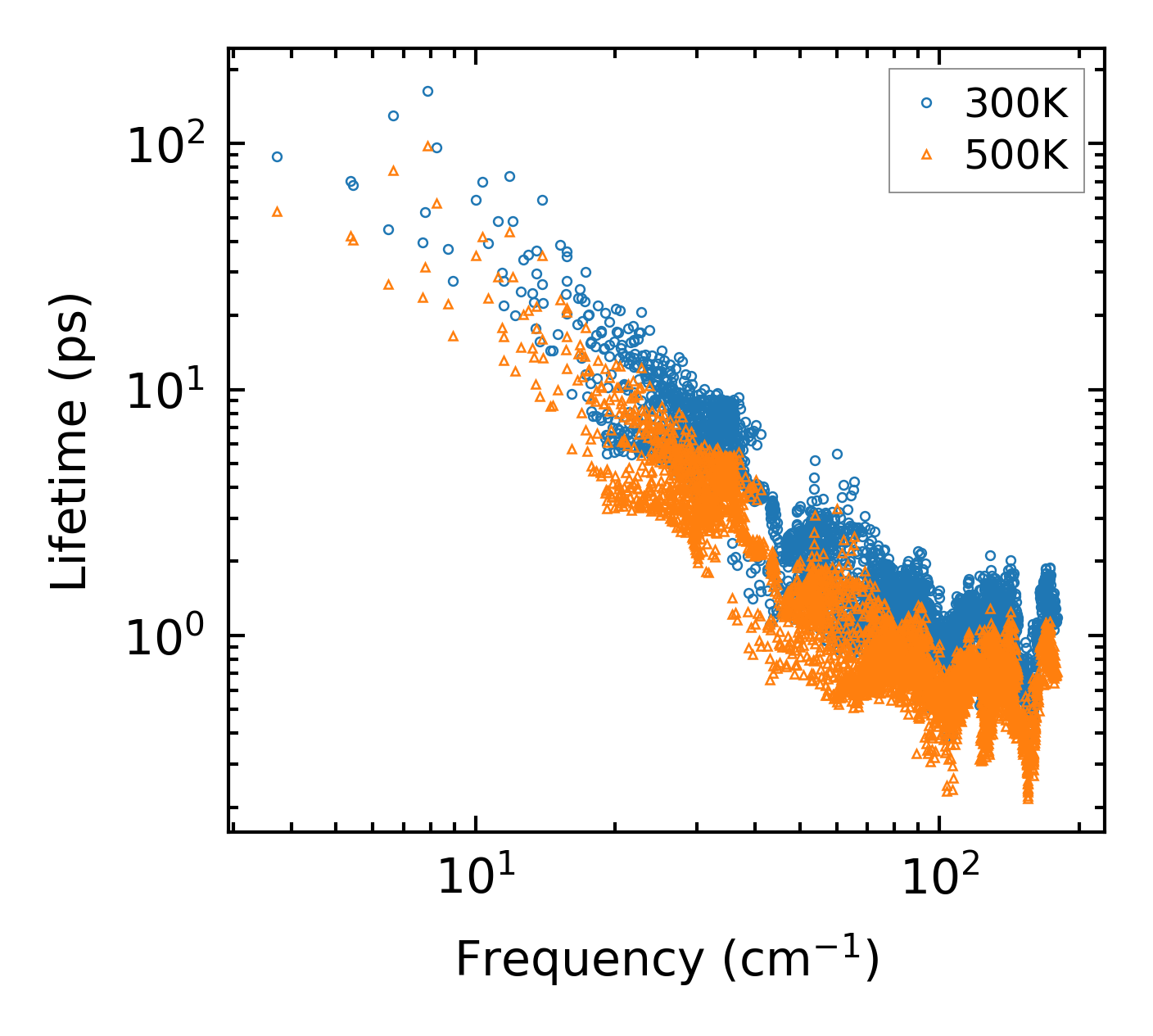

../../_images/fig_lifetime810.png — (a) Phonon lifetime due to phonon-phonon scattering

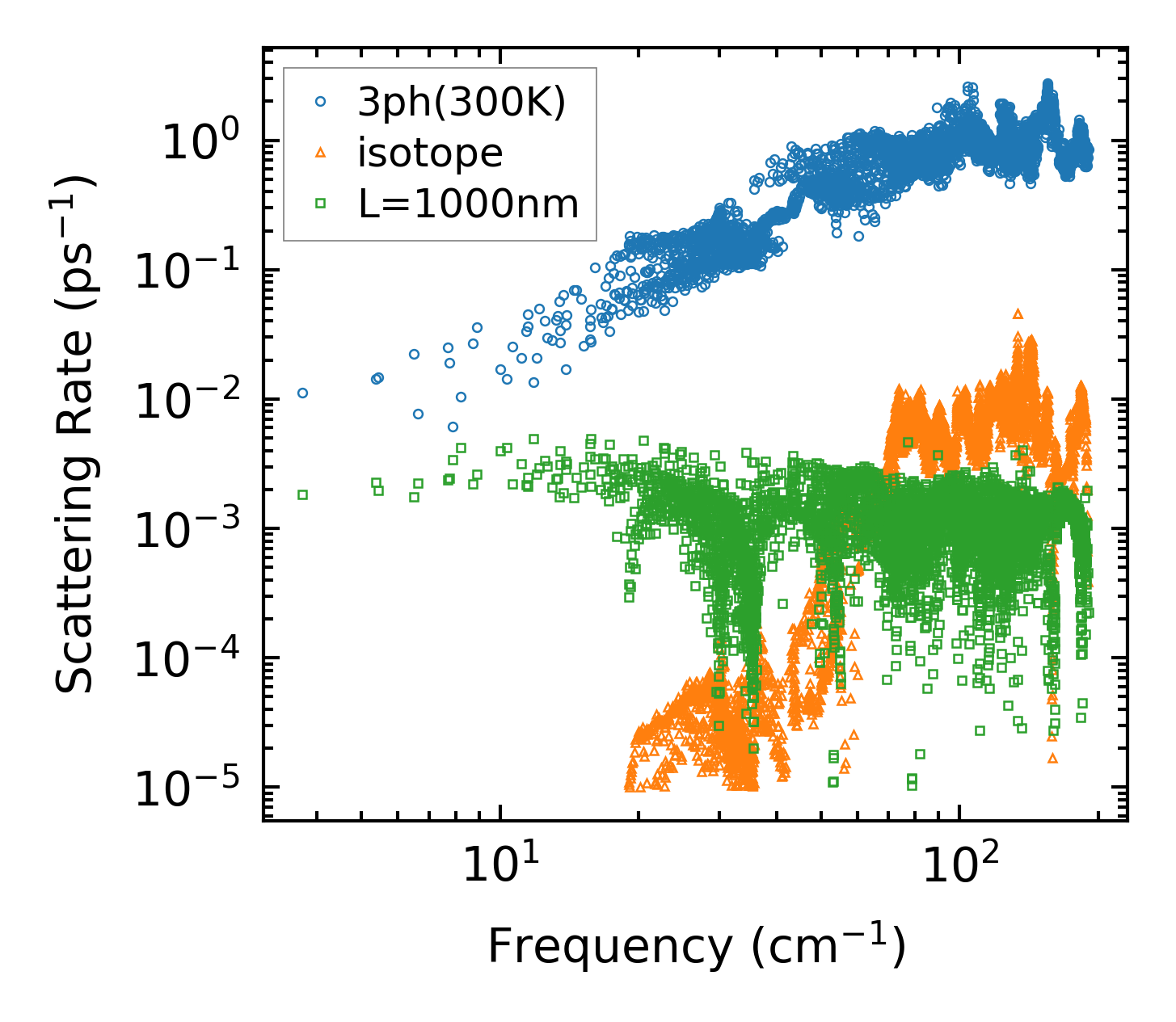

../../_images/fig_scat_rates809.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

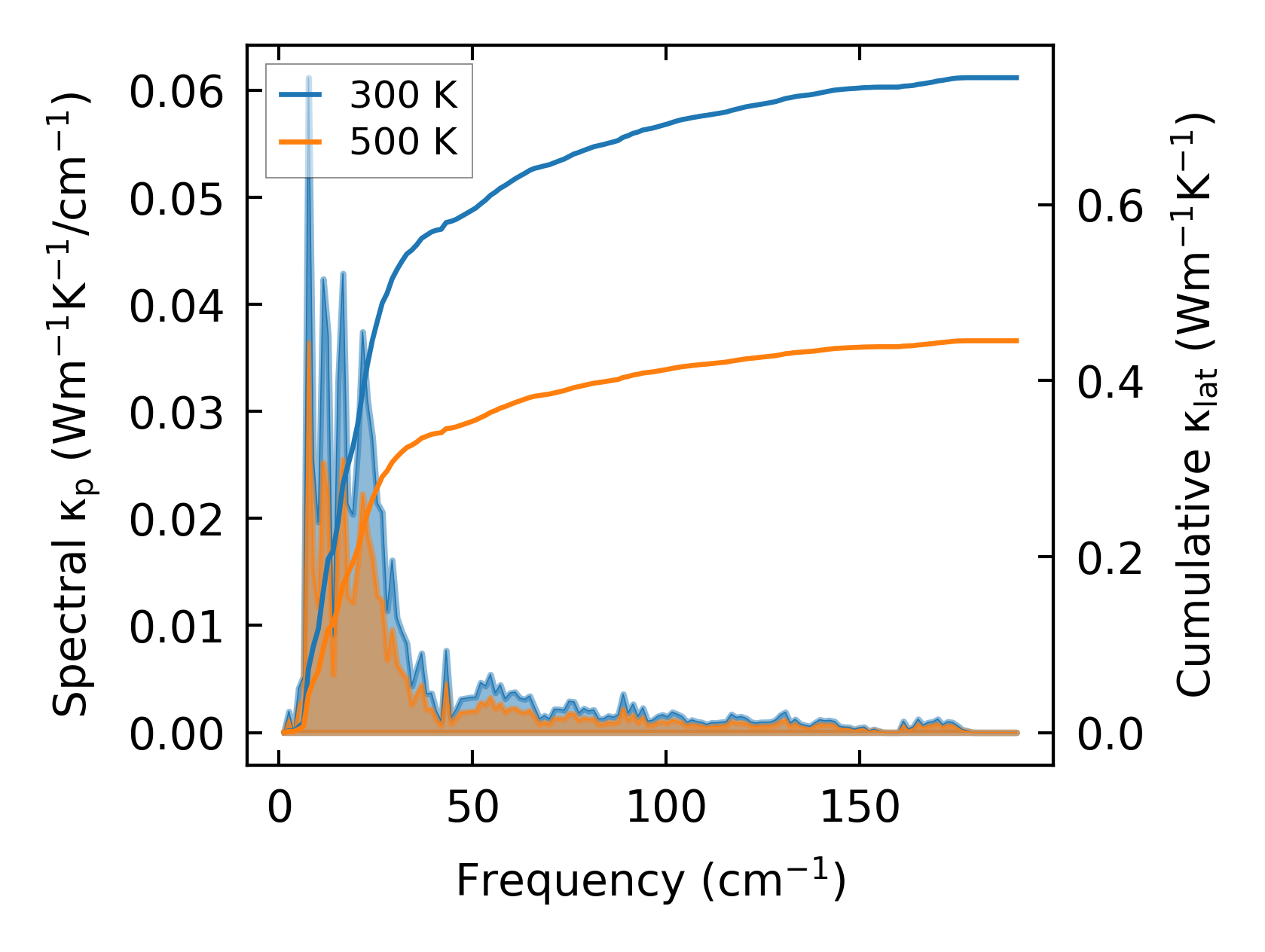

../../_images/fig_cumu_frequency810.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

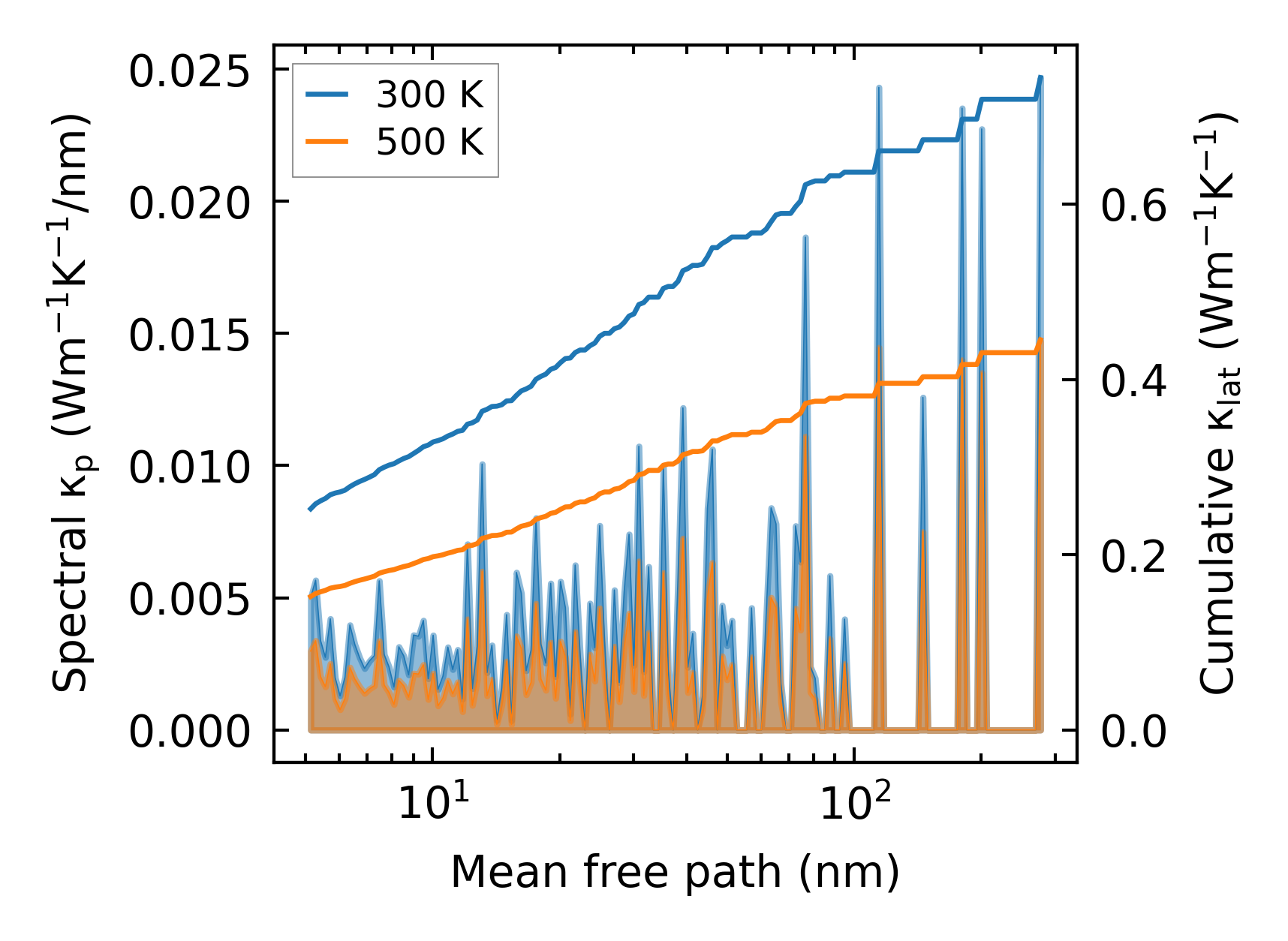

../../_images/fig_cumu_mfp810.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc21177.png — (a) Force constants w.r.t atomic distance

Summary

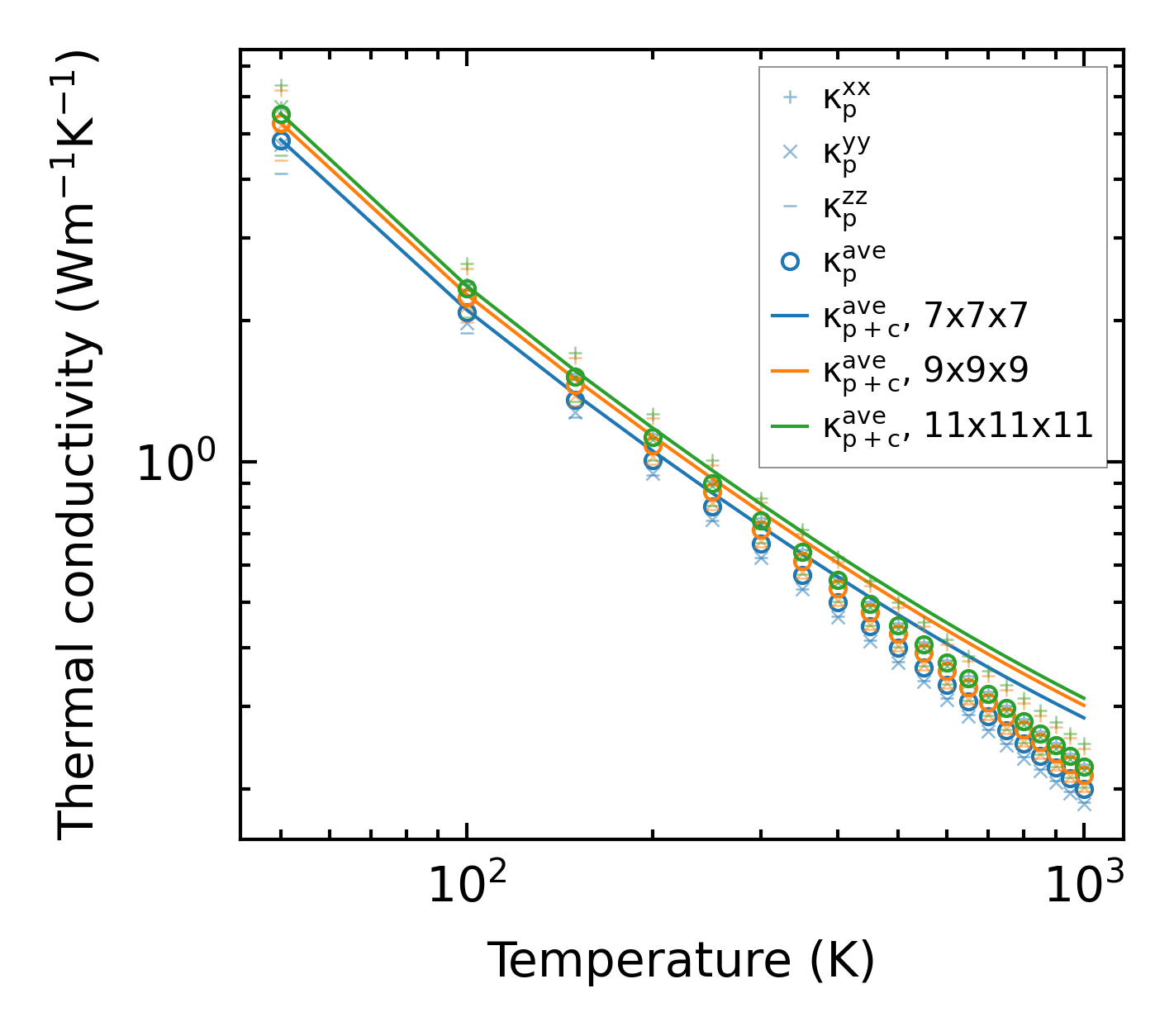

../../_images/fig_kappa1584.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times1985.png — (b) Computation time
