mp-867219/Sr2GaGeN/anharm

Space group: P2_1/m (11)
Link: Materials Project
Download: mp-867219.tar.gz

Harmonic properties

../../_images/fig_bandos_pr1313.png — (a) Phonon dispersion with participation ratio and DOS

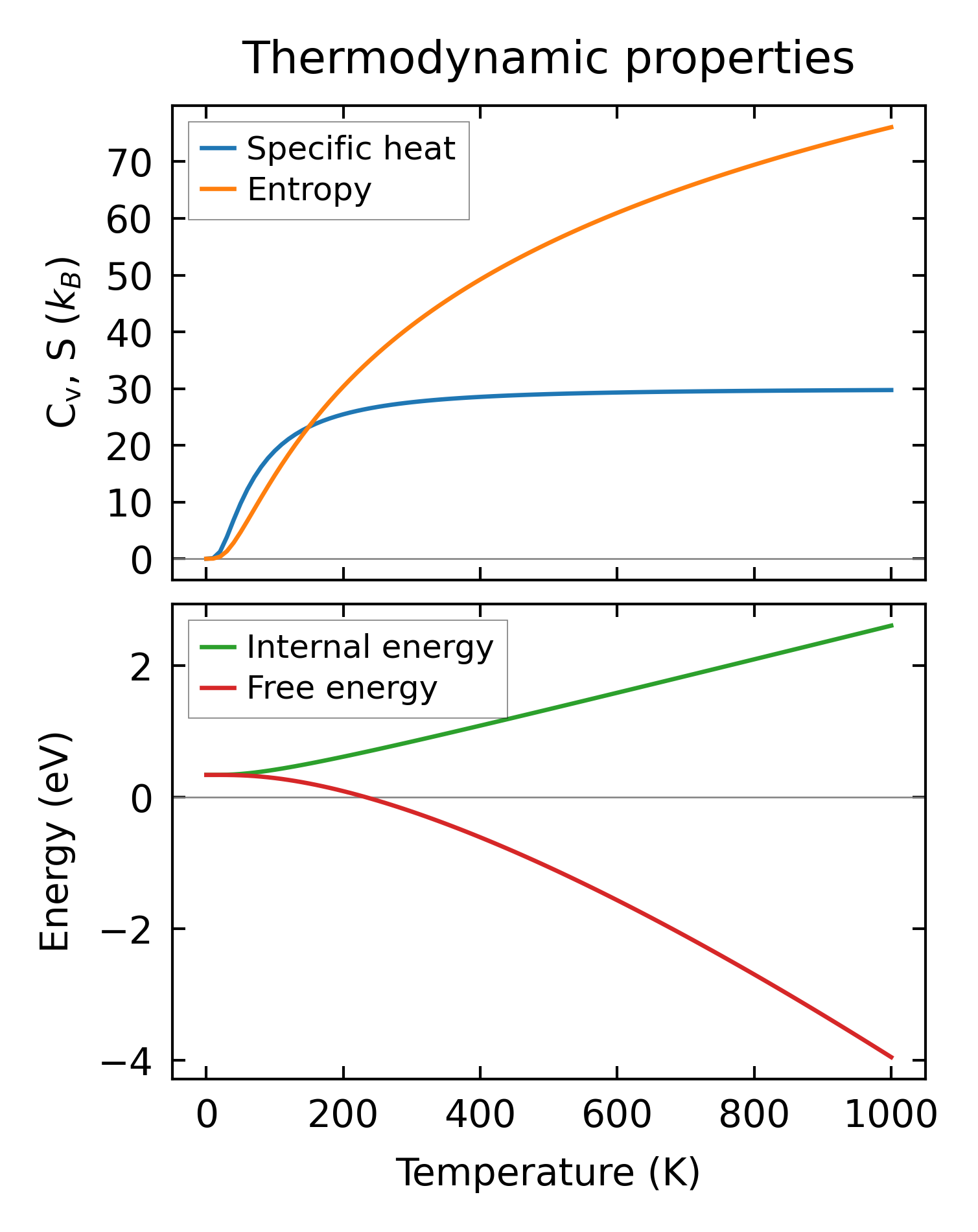

../../_images/fig_thermo1313.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all813.png — (a) Grüneisen parameters

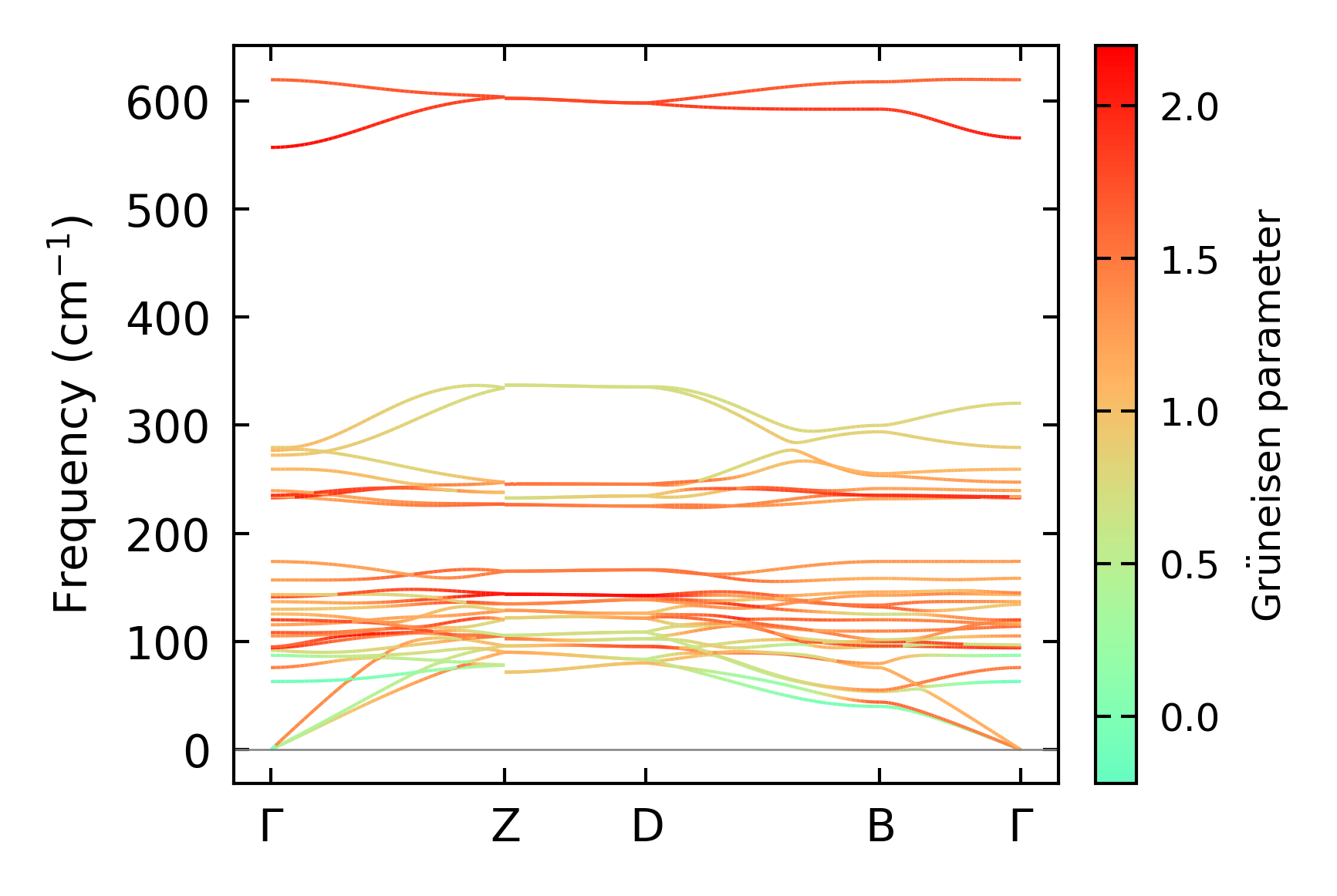

../../_images/fig_gruneisen813.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x18x8, supercell: 2x3x2

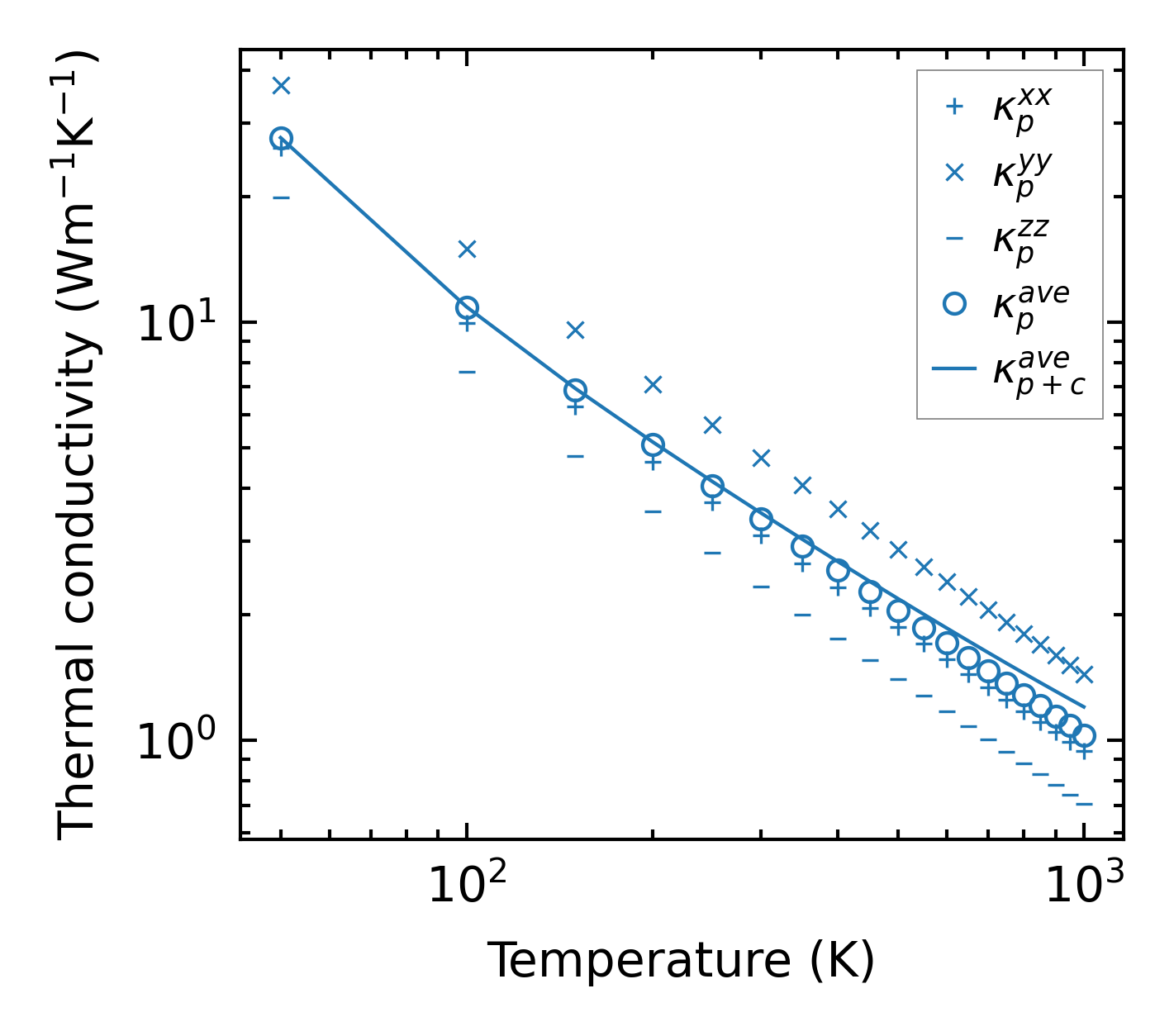

../../_images/fig_kappa1577.png — (a) Temperature-dependent lattice thermal conductivity

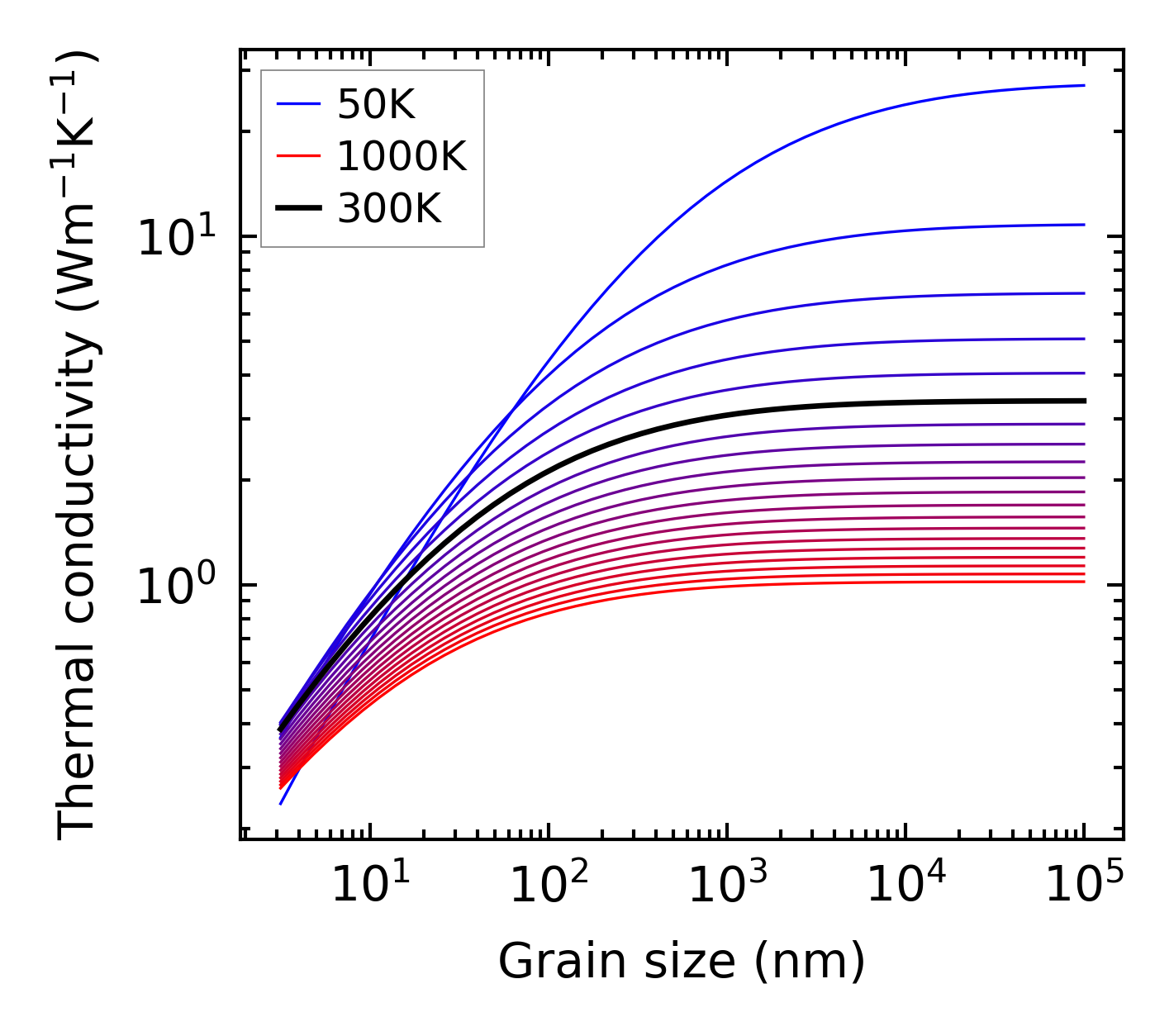

../../_images/fig_kappa_vs_grain_size822.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime807.png — (a) Phonon lifetime due to phonon-phonon scattering

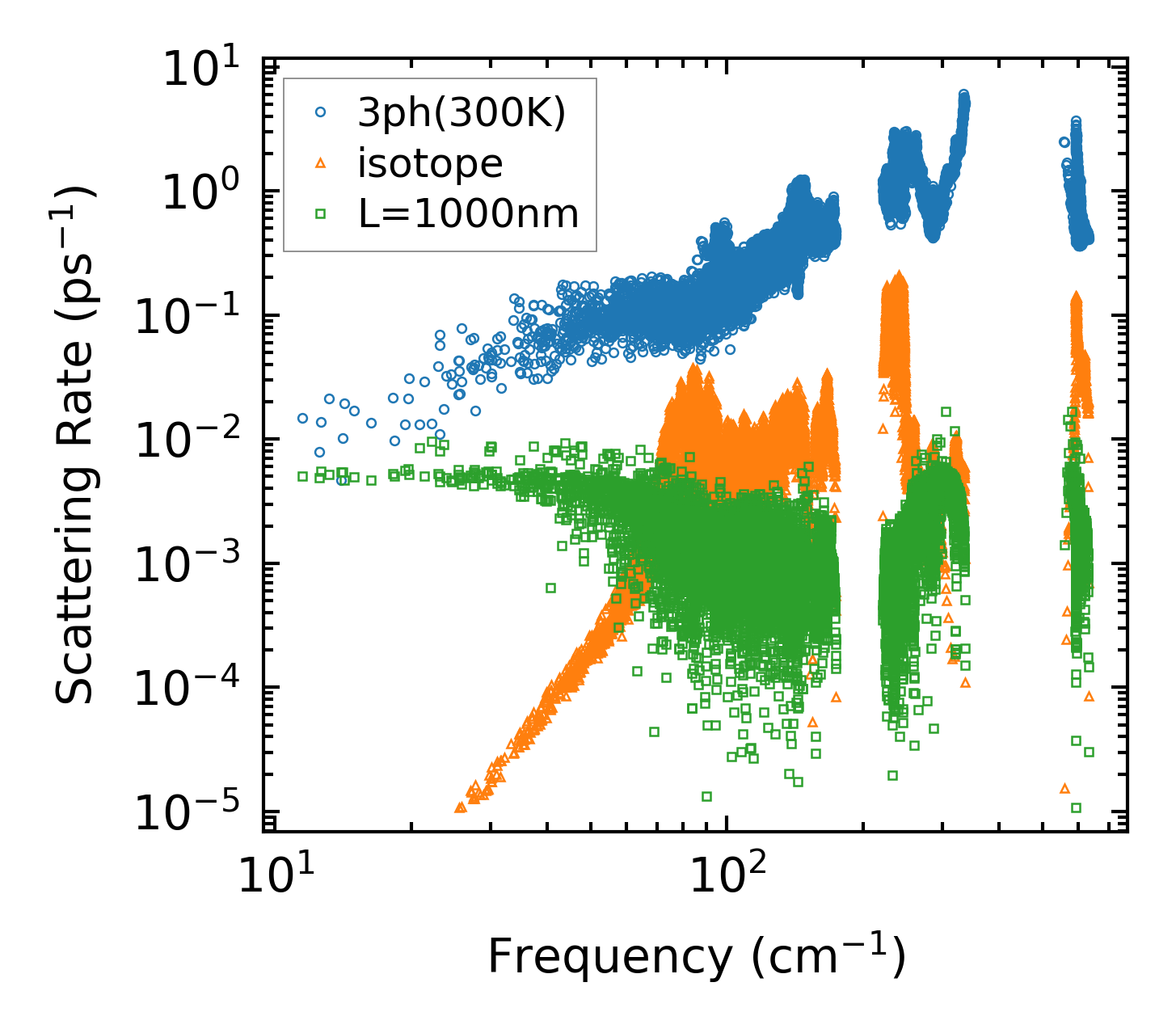

../../_images/fig_scat_rates806.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency807.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

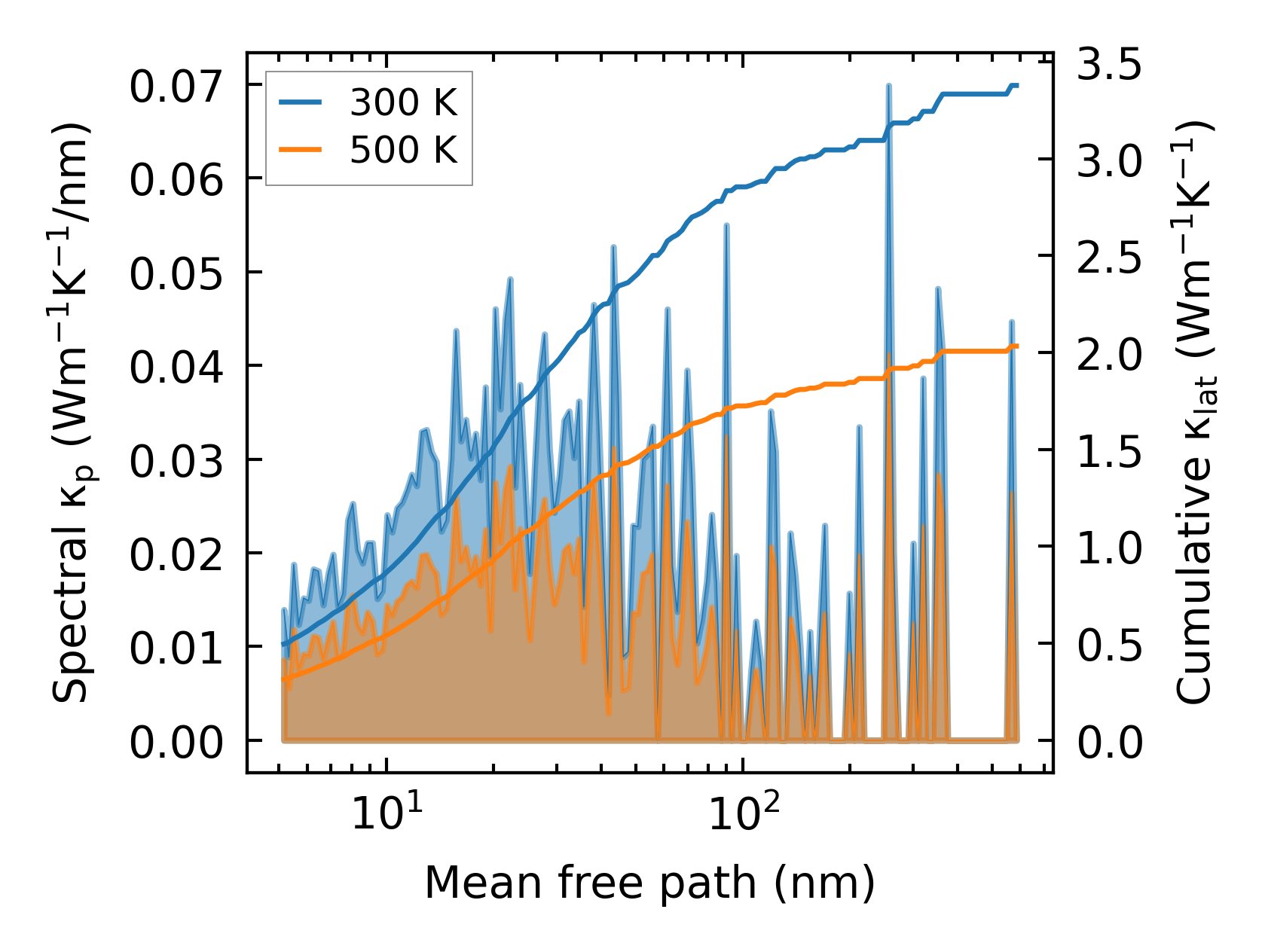

../../_images/fig_cumu_mfp807.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc21170.png — (a) Force constants w.r.t atomic distance

Summary

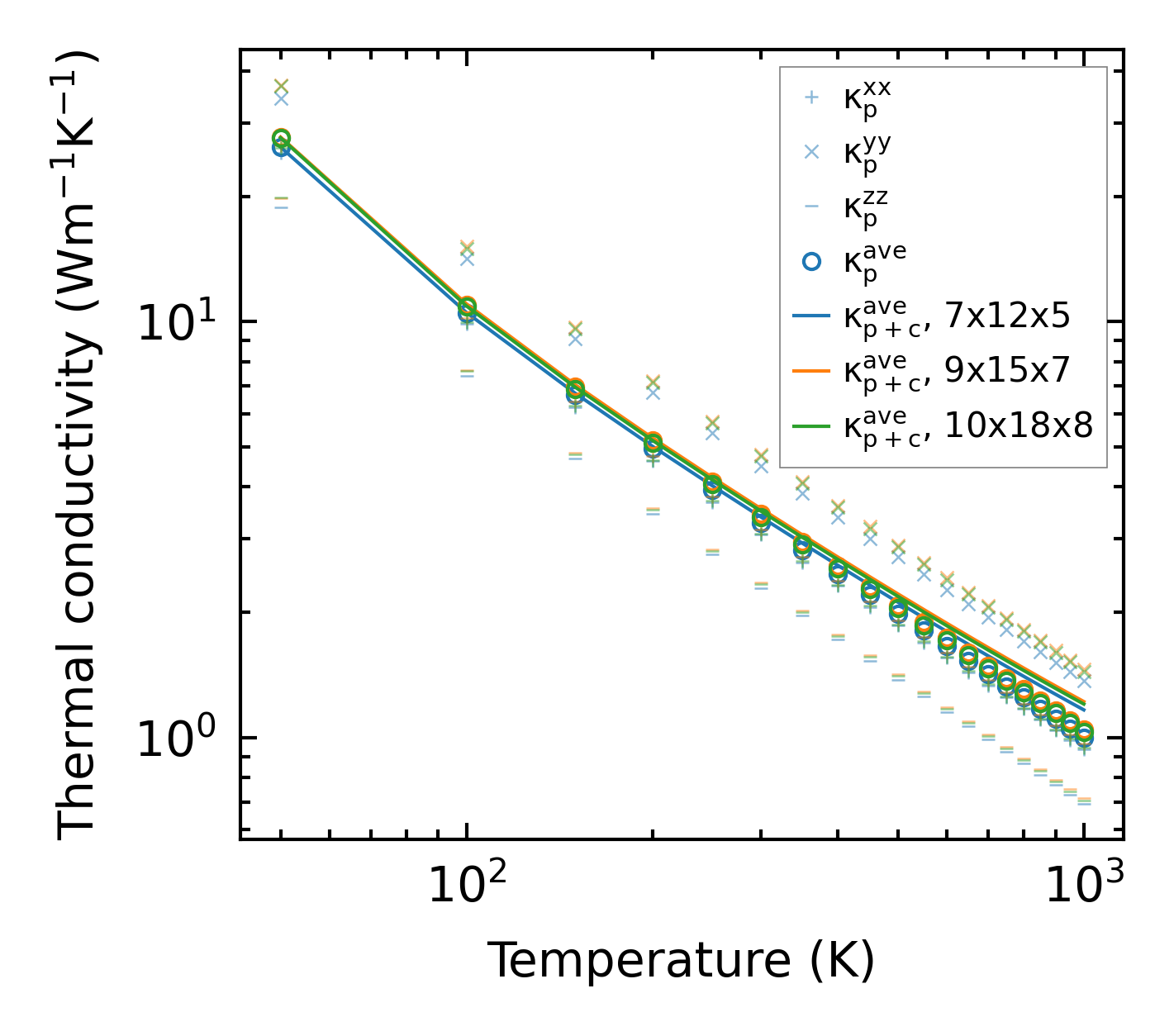

../../_images/fig_kappa1578.png — (a) Temperature-dependent lattice thermal conductivity

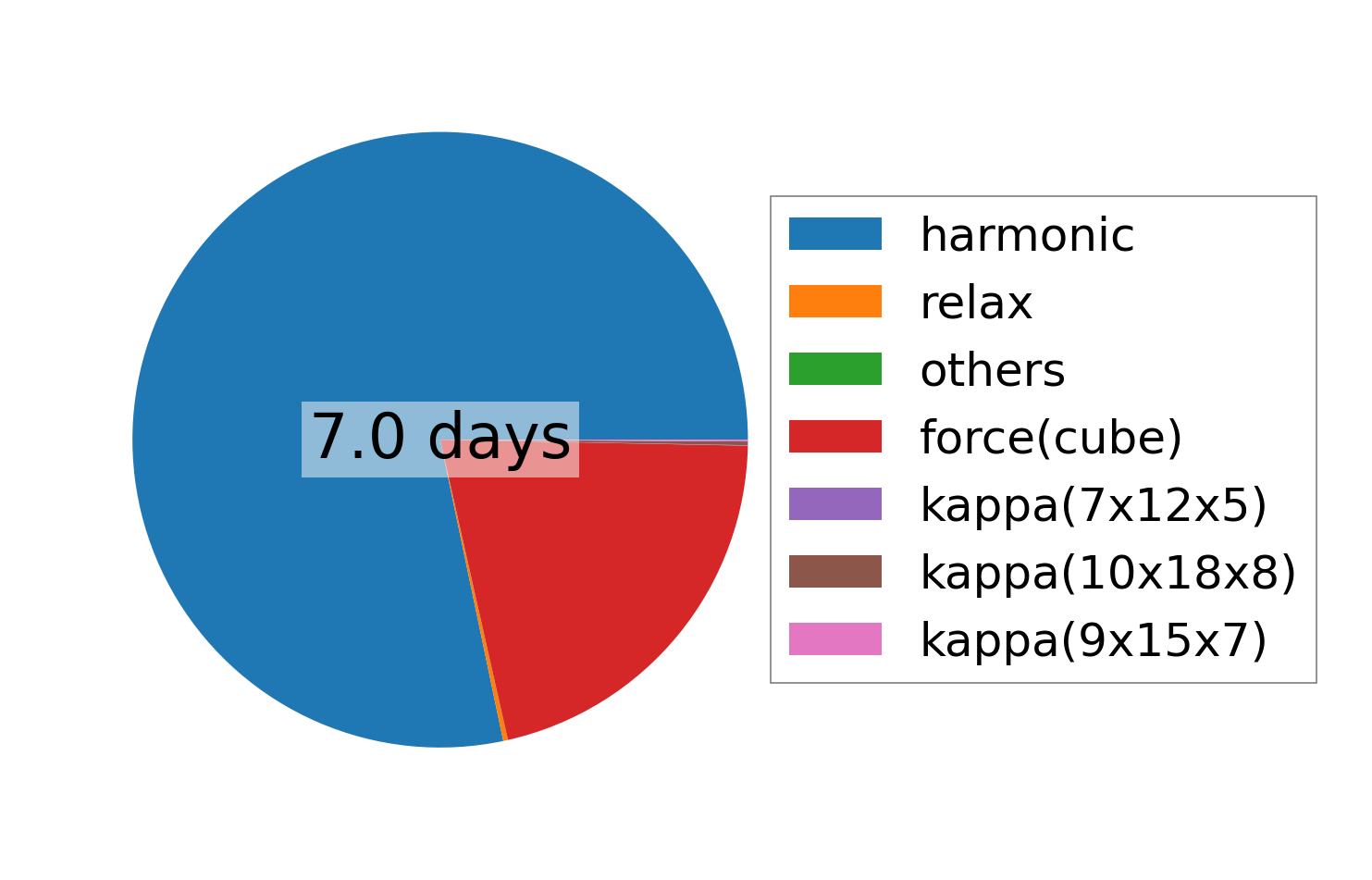

../../_images/fig_times1974.png — (b) Computation time
