mp-779519/Ba4Hf3O10/anharm

Space group: I4/mmm (139)
Link: Materials Project
Download: mp-779519.tar.gz

Harmonic properties

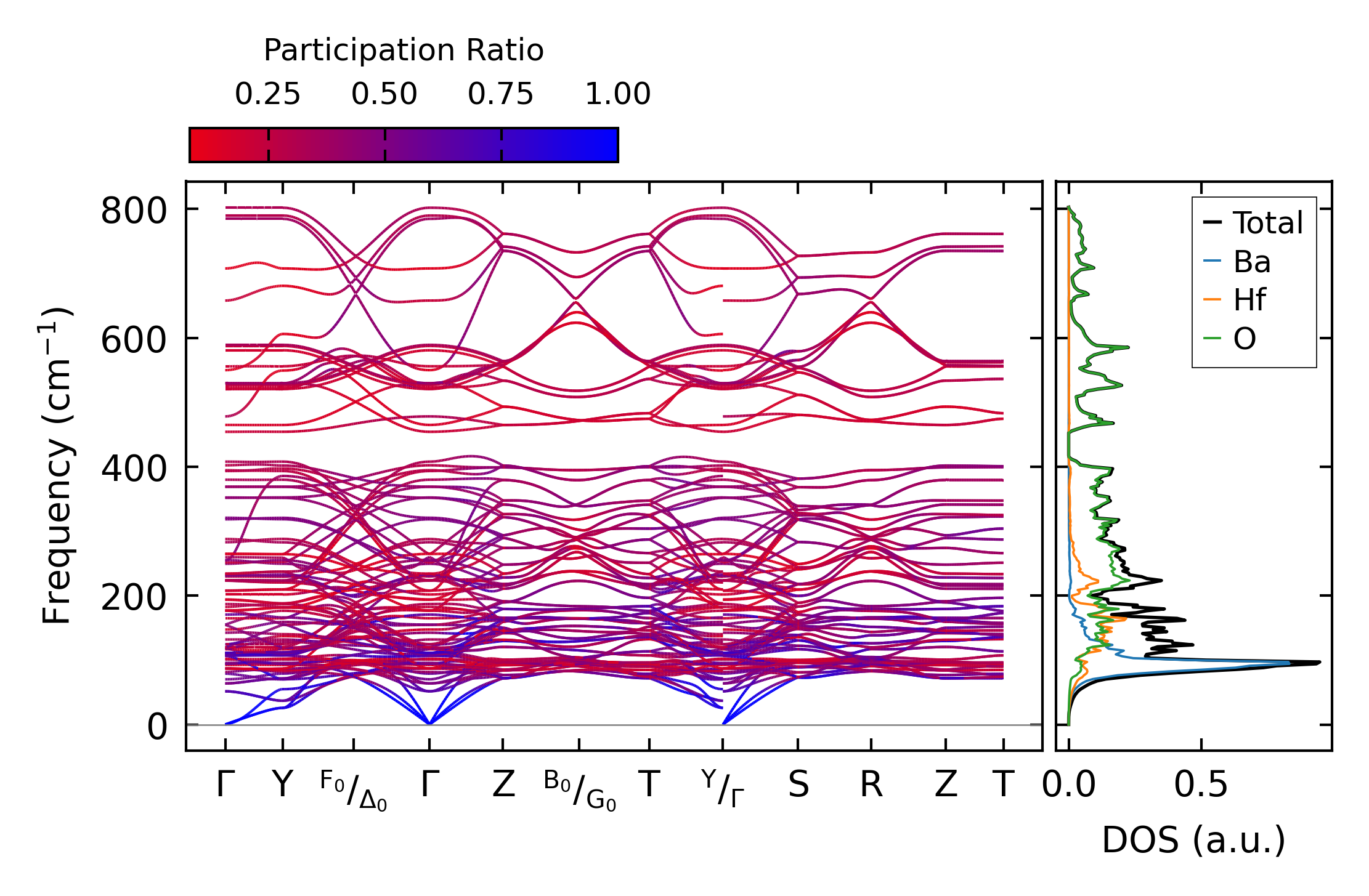

../../_images/fig_bandos_pr2207.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo2207.png — (b) Thermodynamic properties

Grüneisen parameters

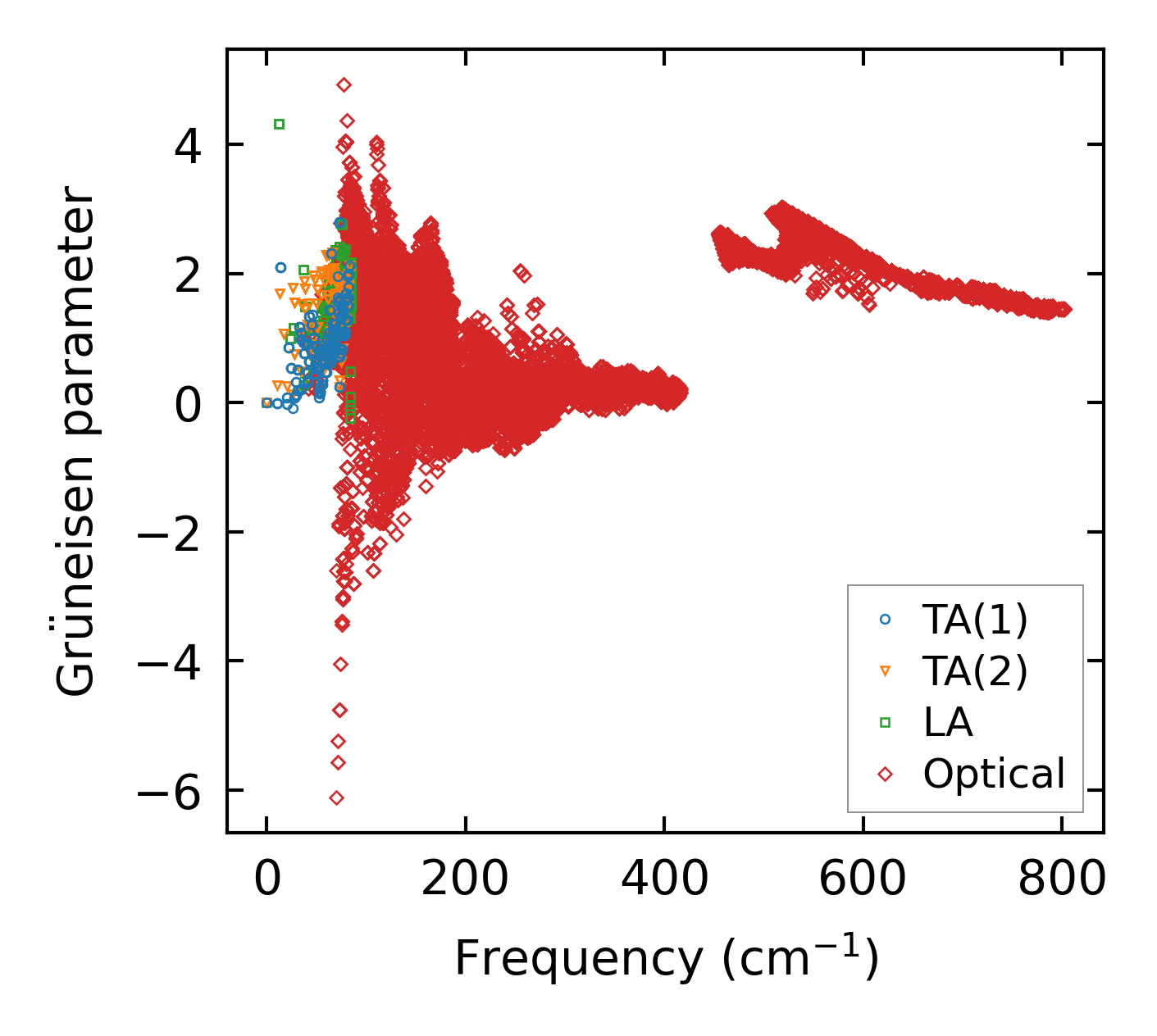

../../_images/fig_gru_all1240.png — (a) Grüneisen parameters

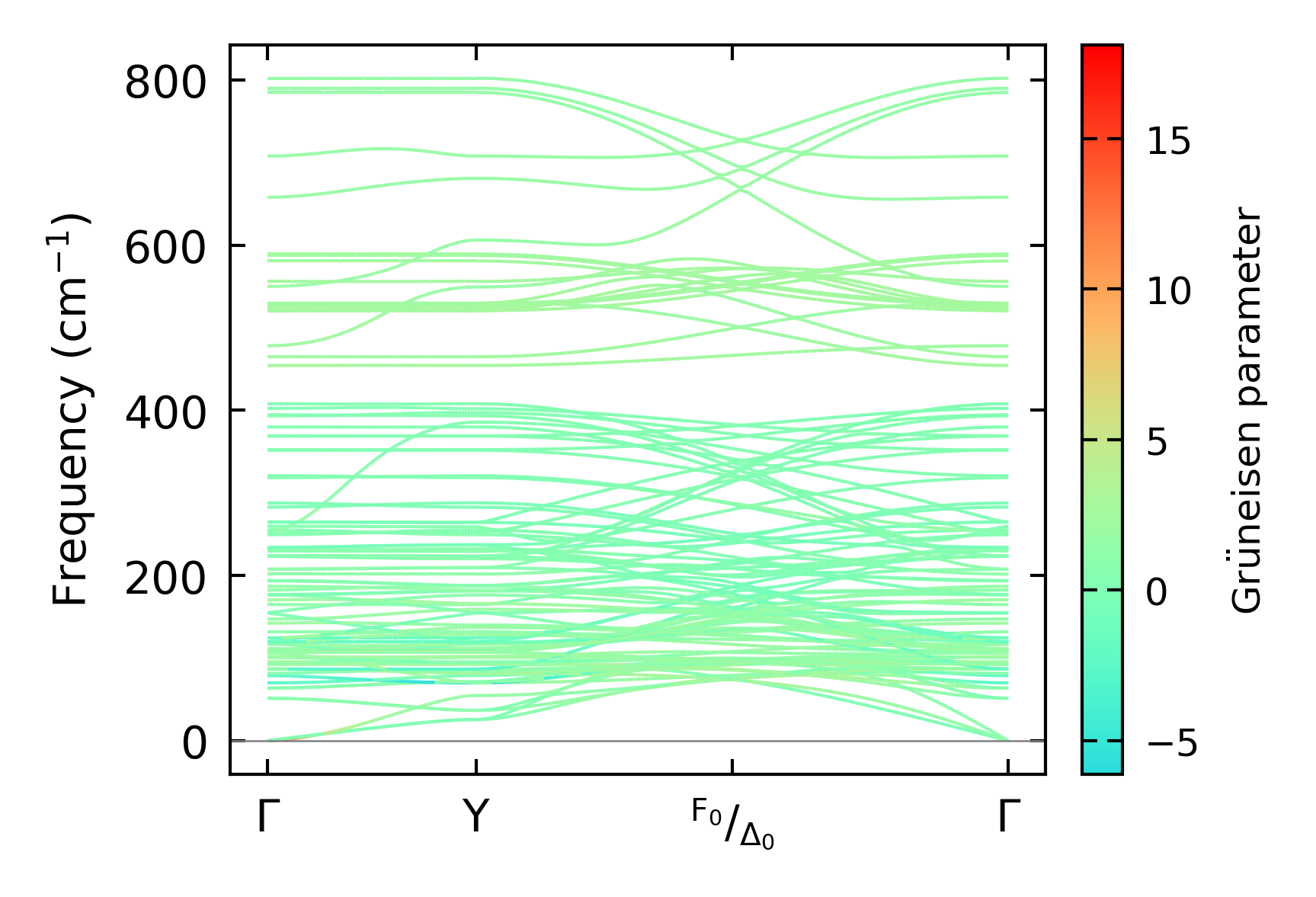

../../_images/fig_gruneisen1240.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 6x6x16, supercell: 1x1x2

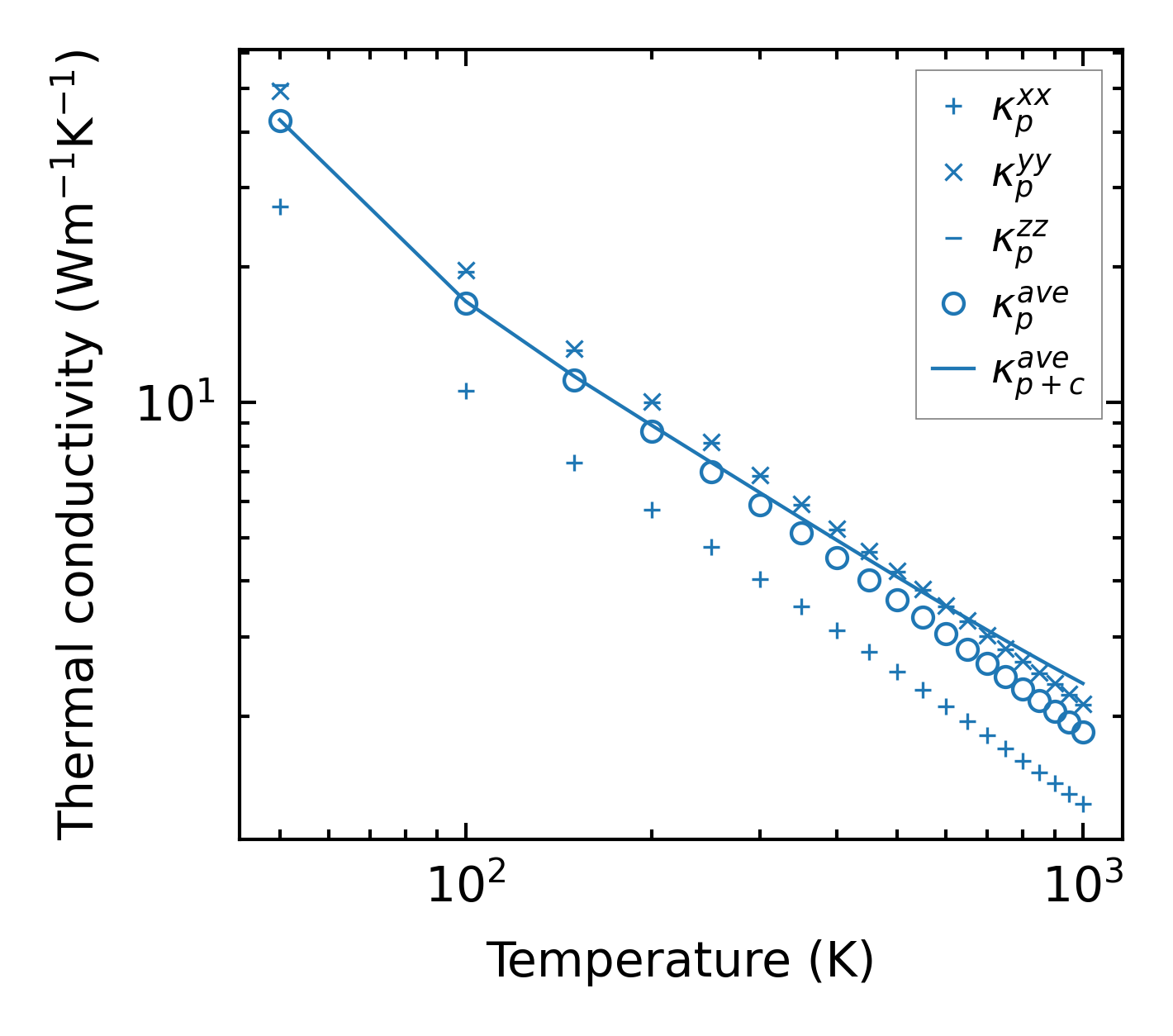

../../_images/fig_kappa2388.png — (a) Temperature-dependent lattice thermal conductivity

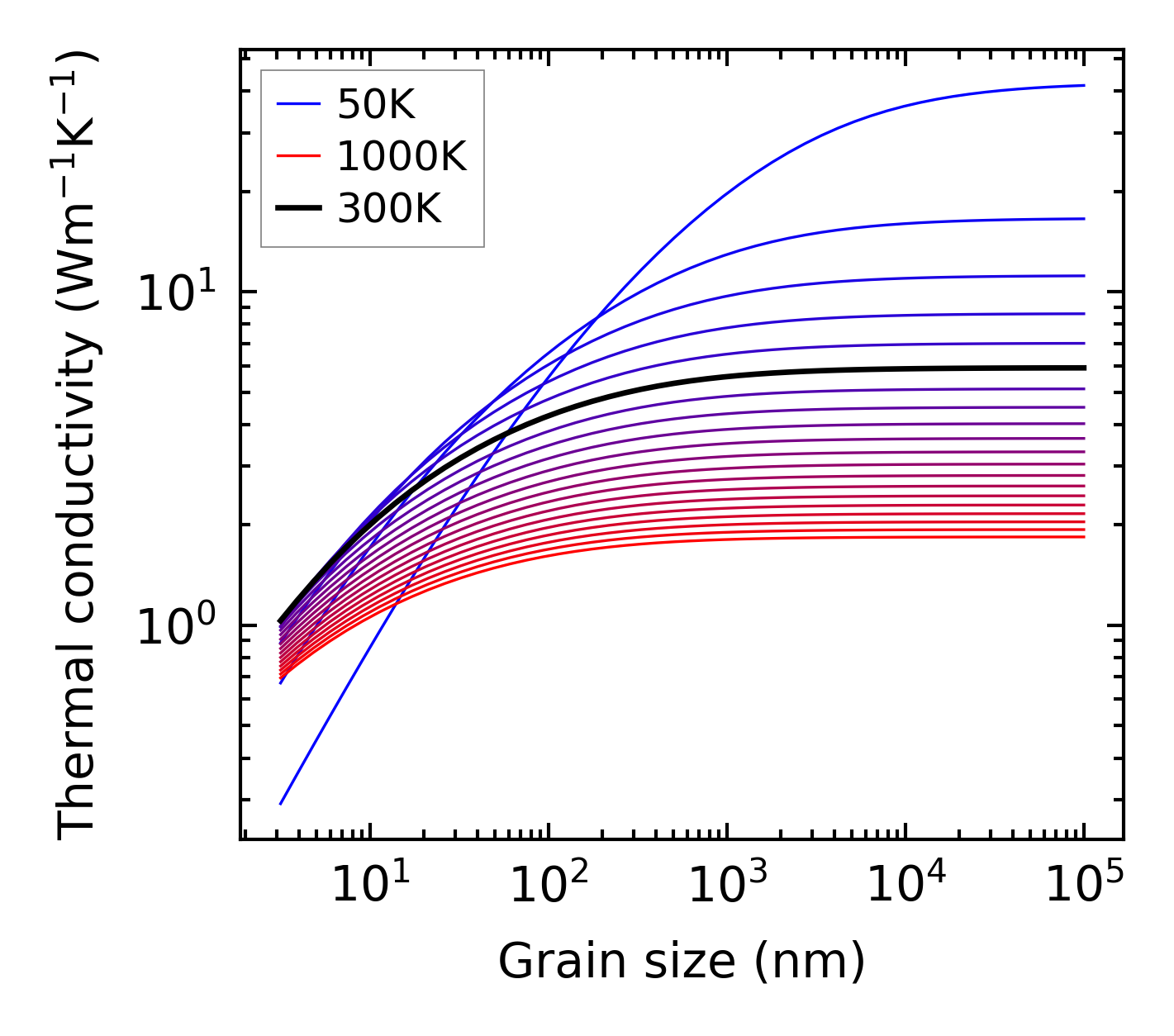

../../_images/fig_kappa_vs_grain_size1255.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

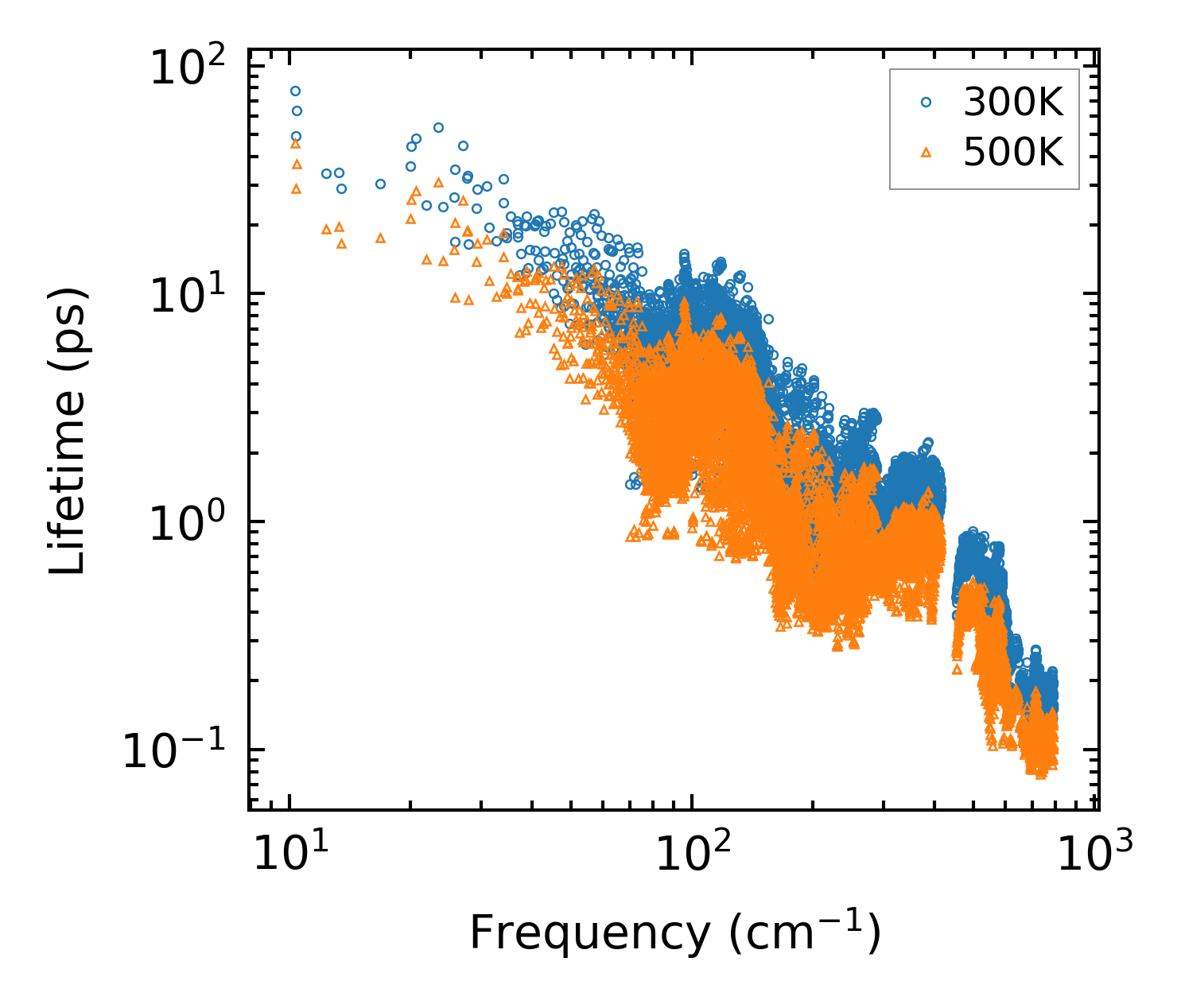

../../_images/fig_lifetime1230.png — (a) Phonon lifetime due to phonon-phonon scattering

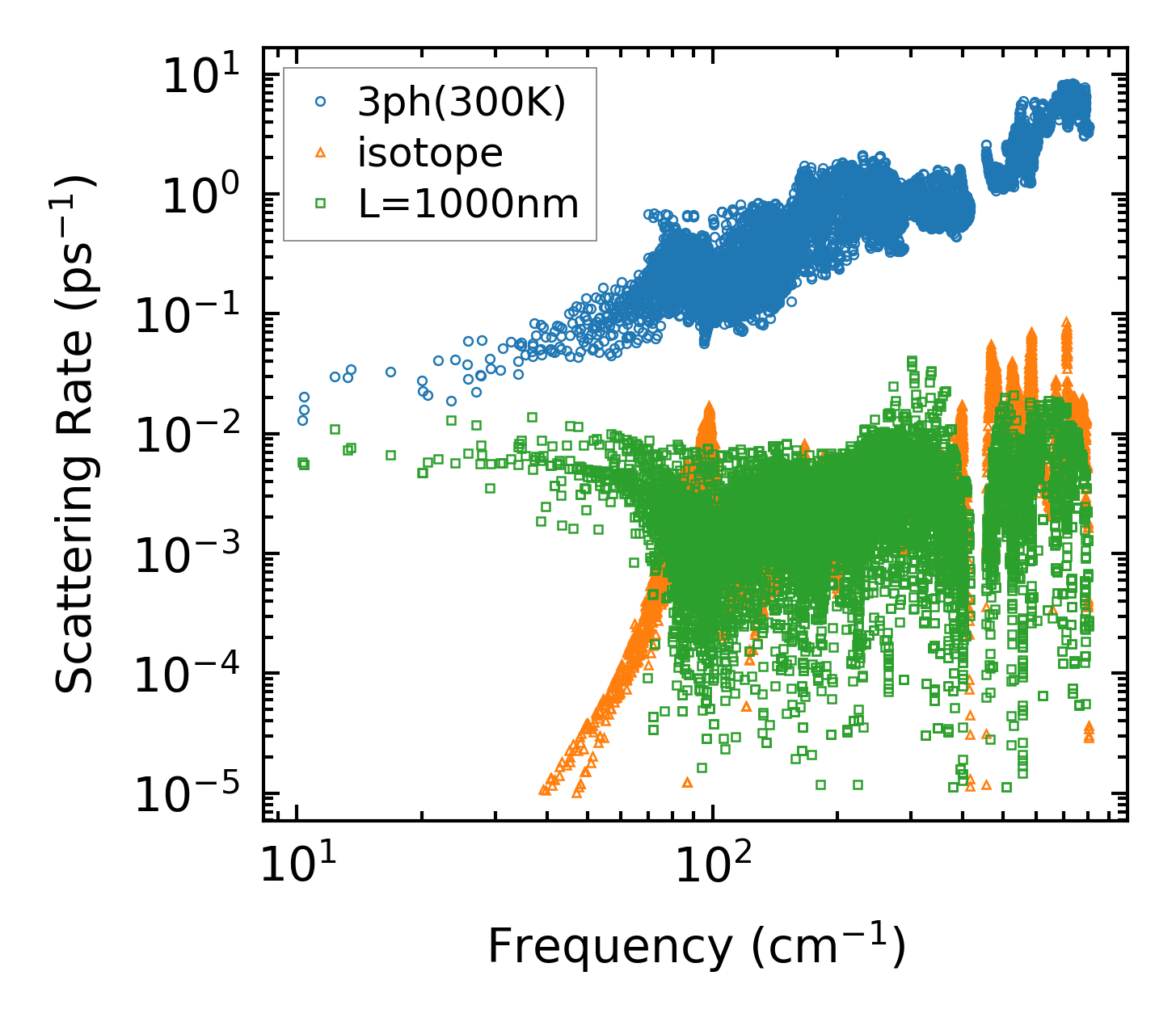

../../_images/fig_scat_rates1229.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

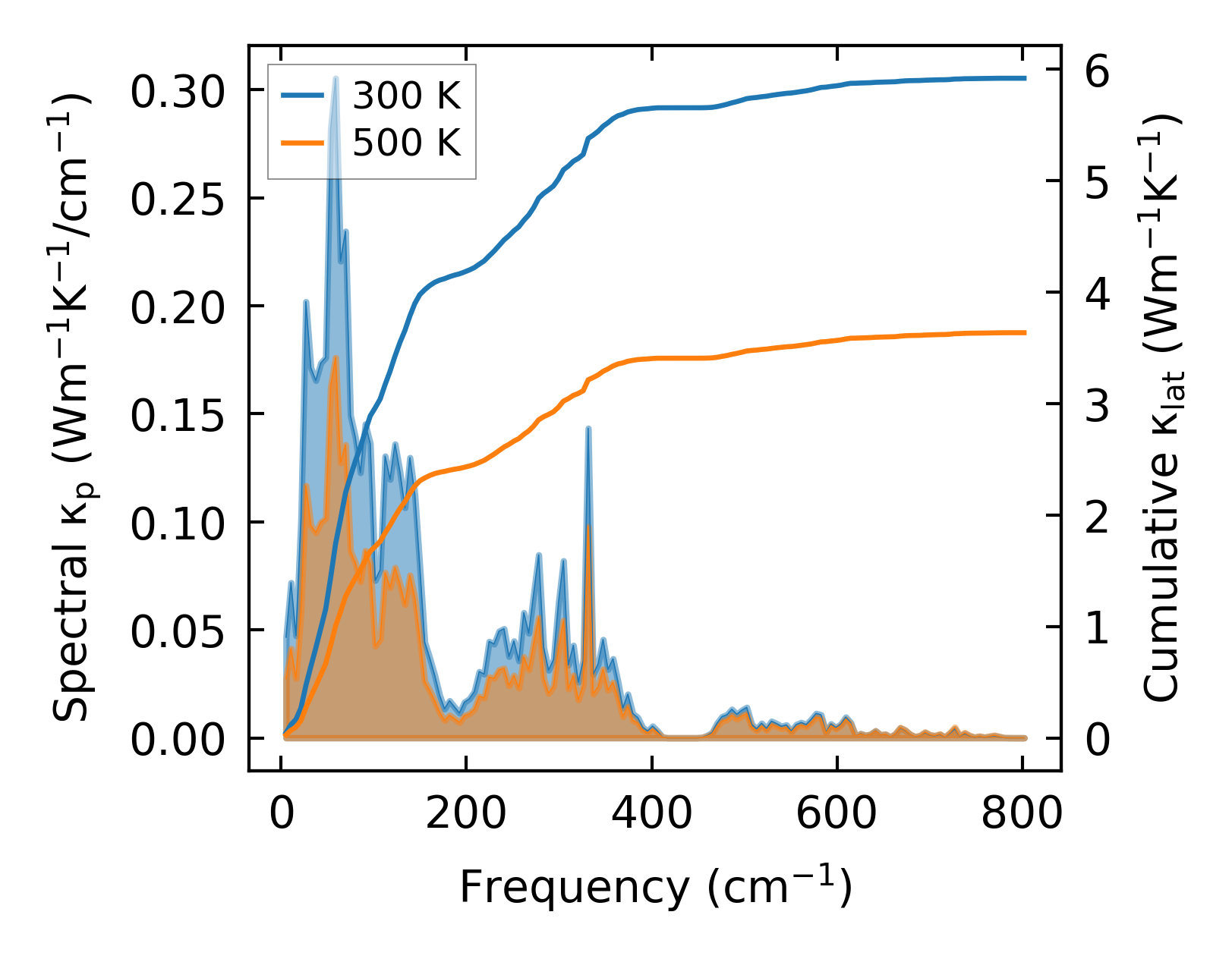

../../_images/fig_cumu_frequency1230.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

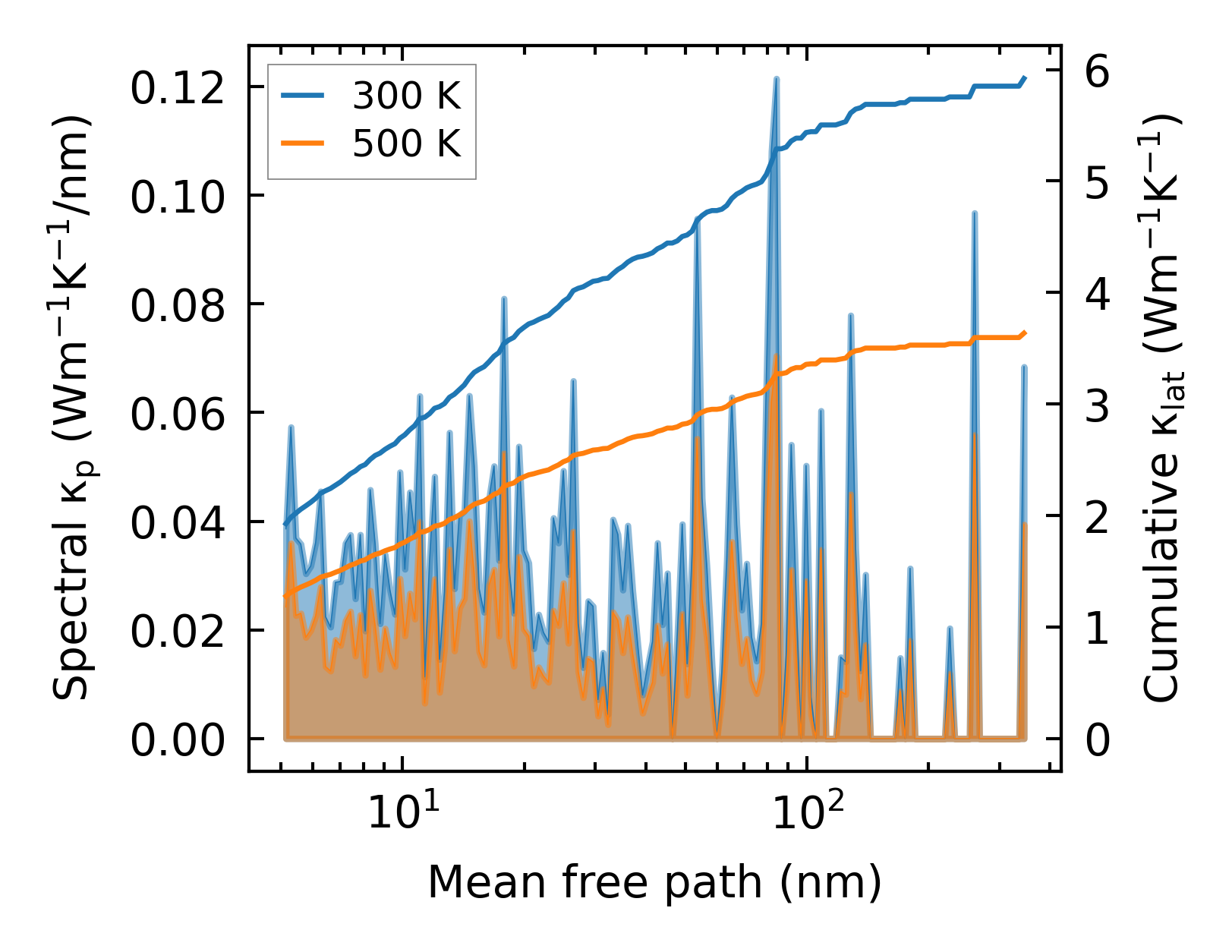

../../_images/fig_cumu_mfp1230.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

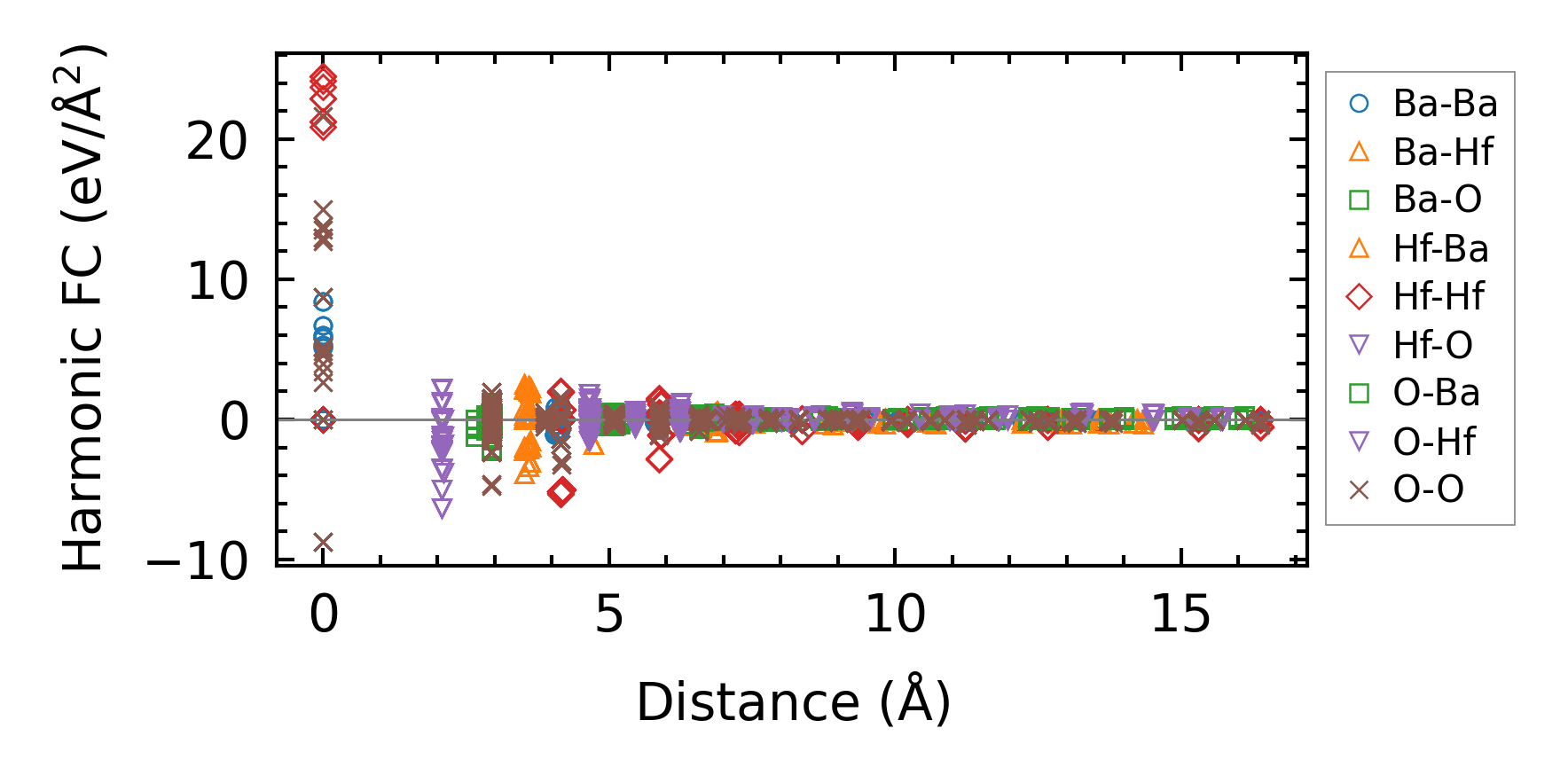

../../_images/fig_fc22028.png — (a) Force constants w.r.t atomic distance

Summary

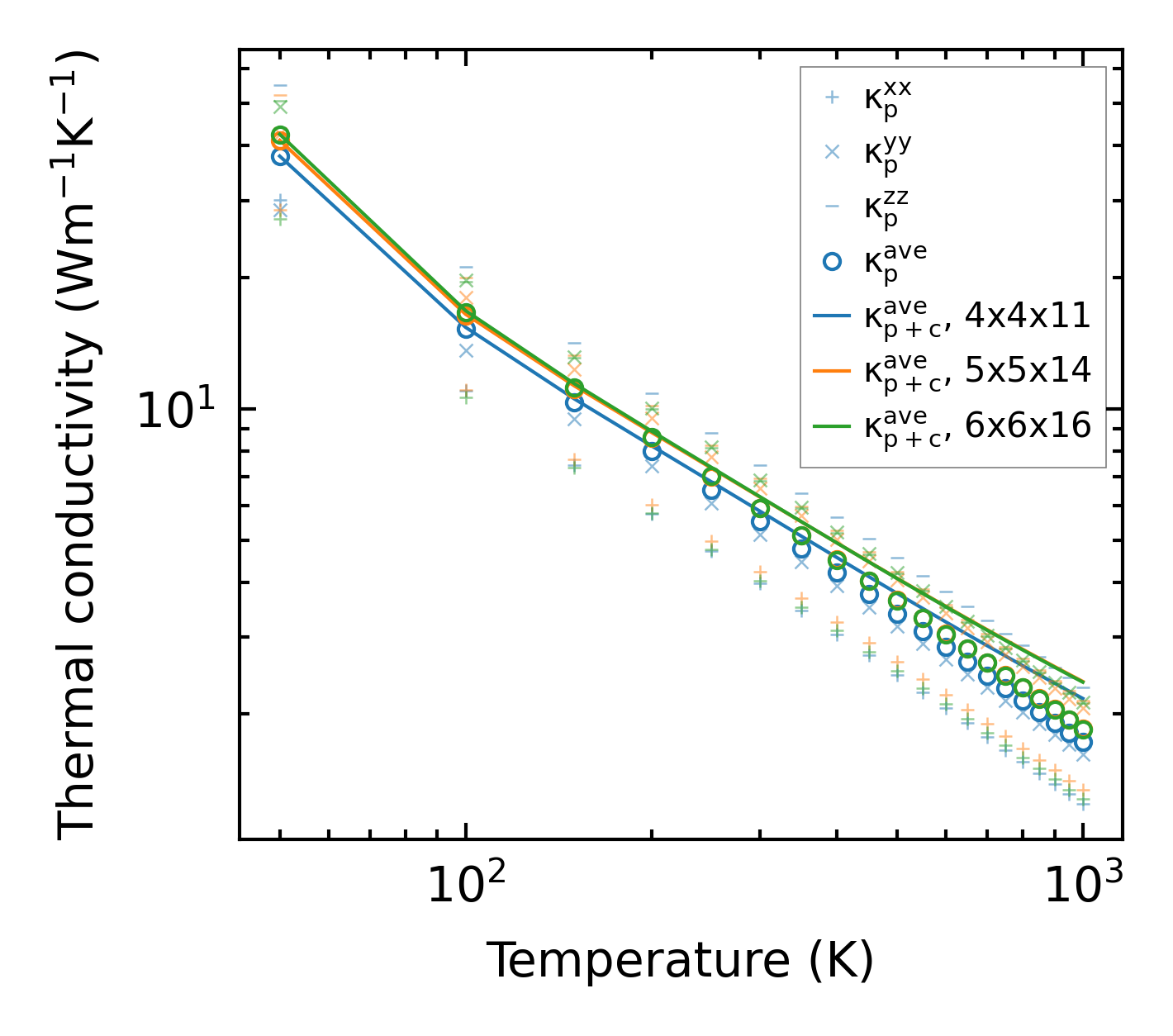

../../_images/fig_kappa2389.png — (a) Temperature-dependent lattice thermal conductivity

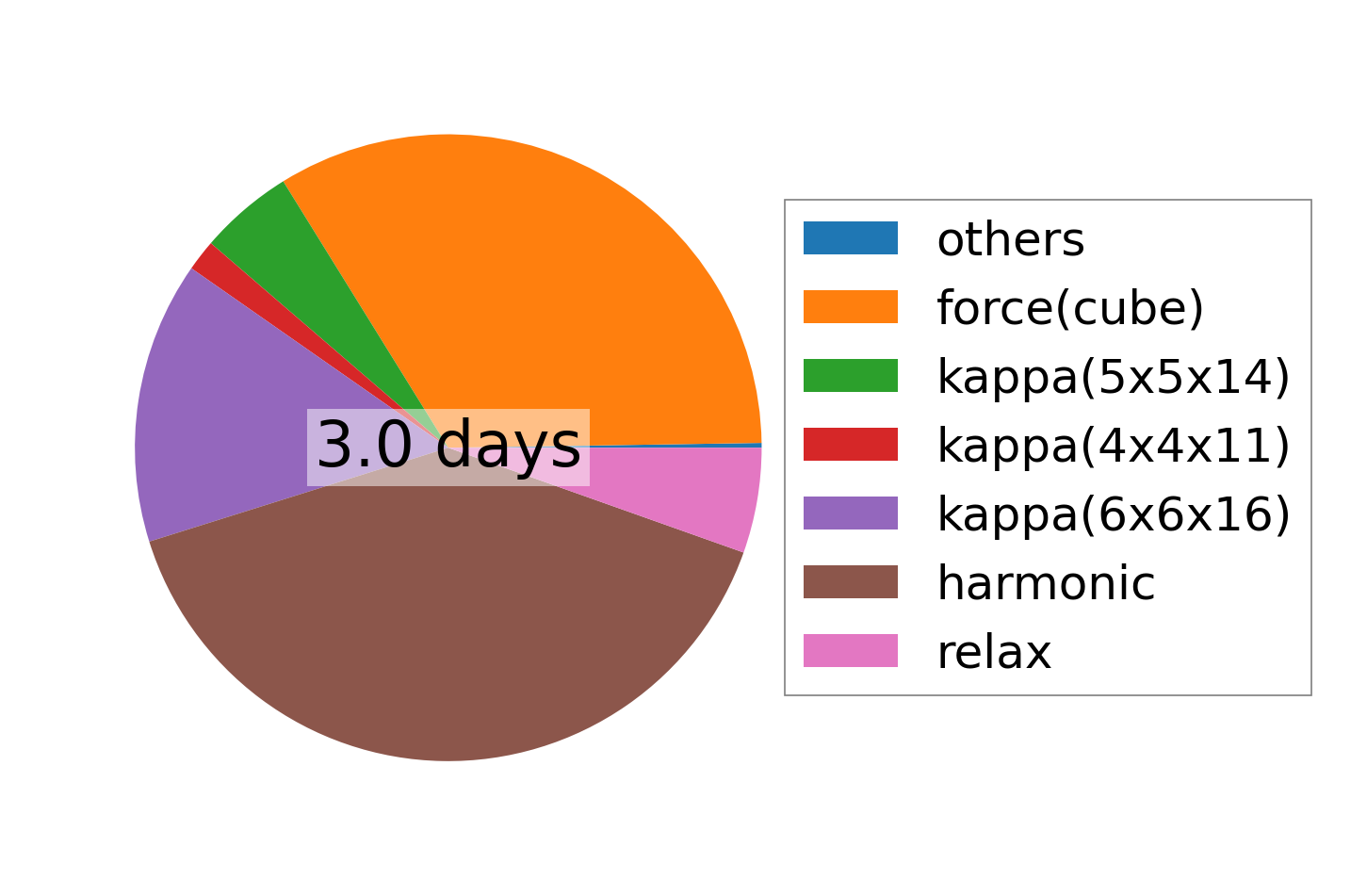

../../_images/fig_times3437.png — (b) Computation time
