mp-775980-2/ZrO2/anharm

Space group: Pbcn (60)
Link: Materials Project
Download: mp-775980-2.tar.gz

Harmonic properties

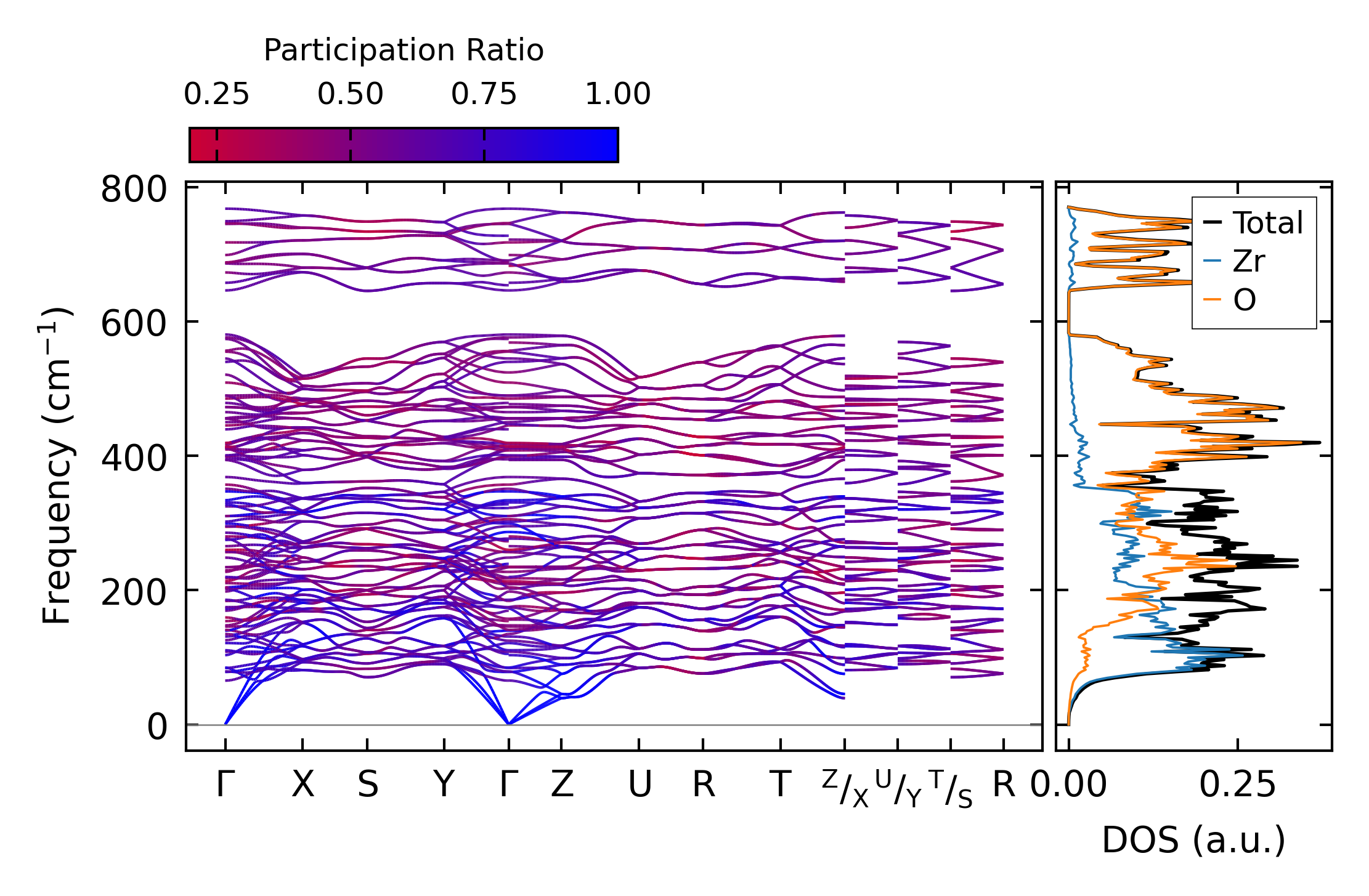

../../_images/fig_bandos_pr2248.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo2248.png — (b) Thermodynamic properties

Grüneisen parameters

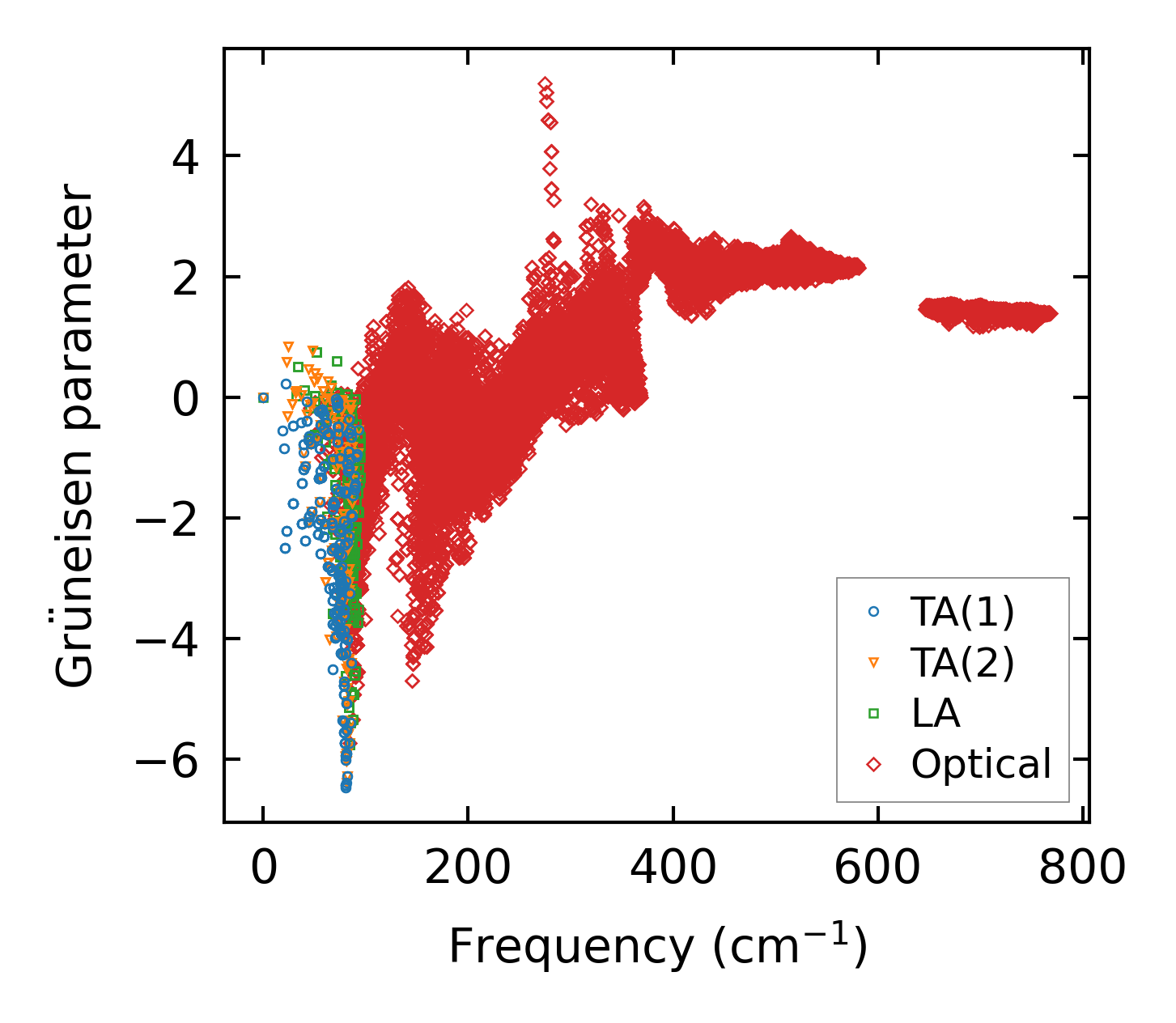

../../_images/fig_gru_all1247.png — (a) Grüneisen parameters

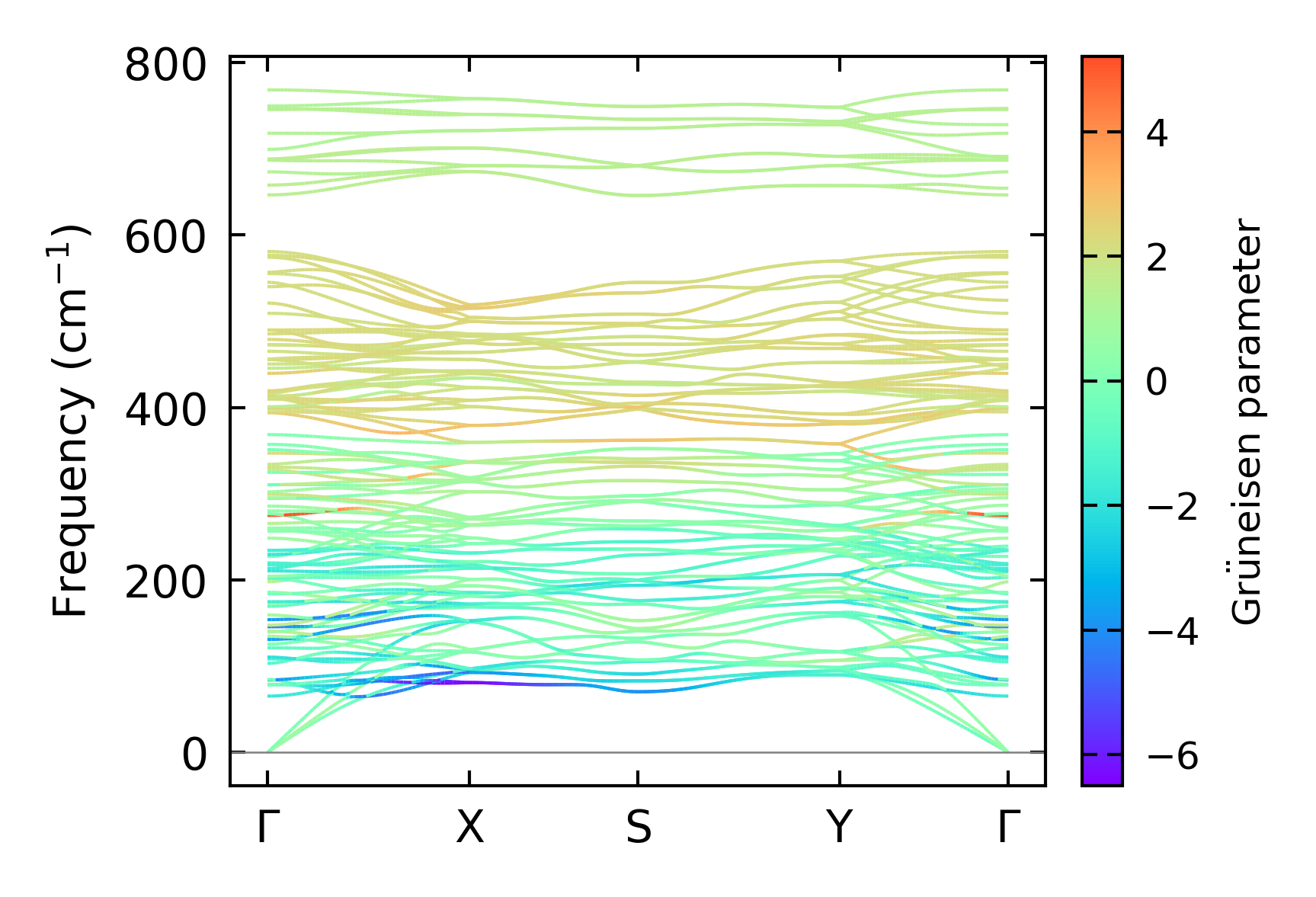

../../_images/fig_gruneisen1247.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x12x4, supercell: 2x2x1

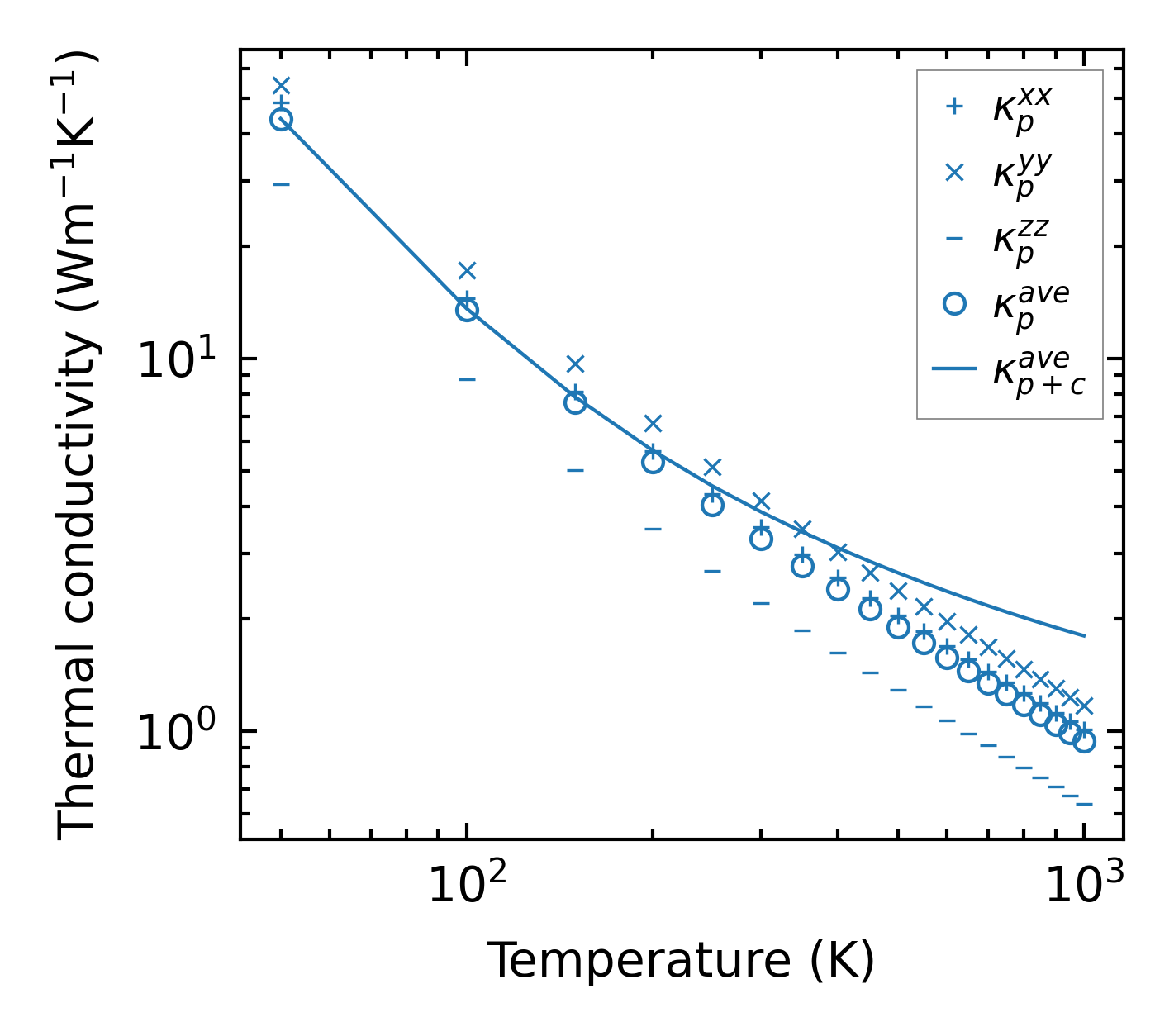

../../_images/fig_kappa2399.png — (a) Temperature-dependent lattice thermal conductivity

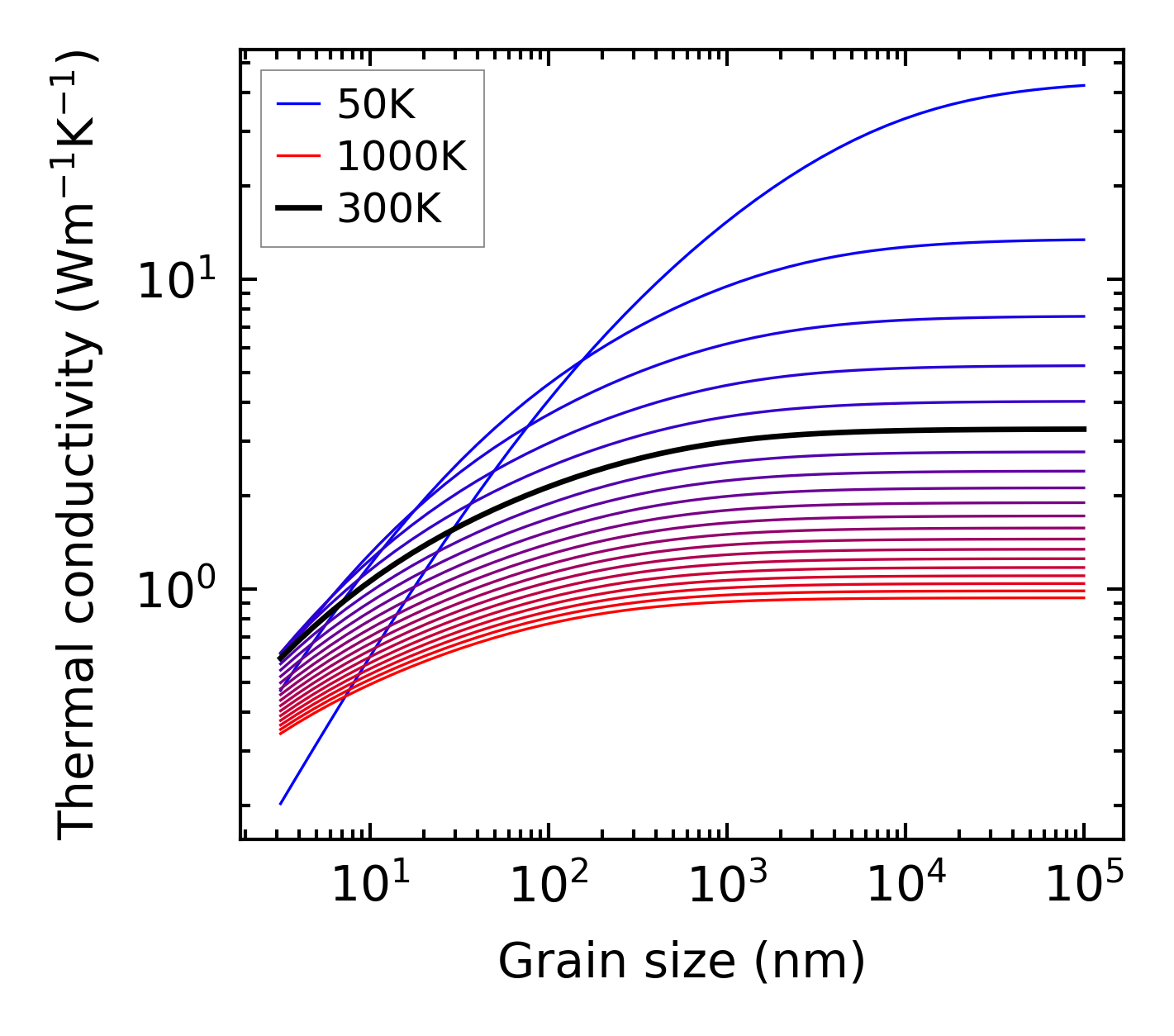

../../_images/fig_kappa_vs_grain_size1262.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

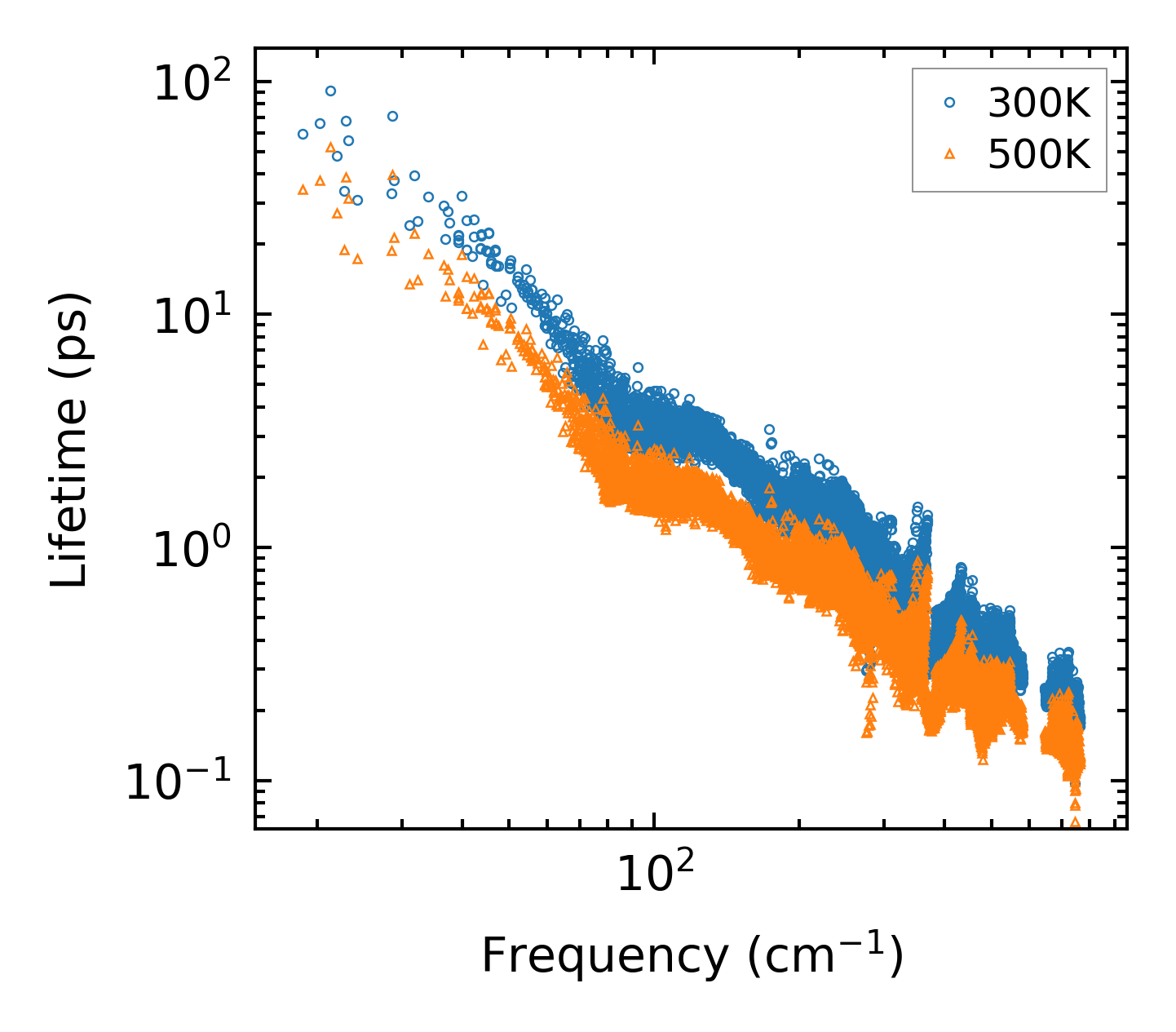

../../_images/fig_lifetime1237.png — (a) Phonon lifetime due to phonon-phonon scattering

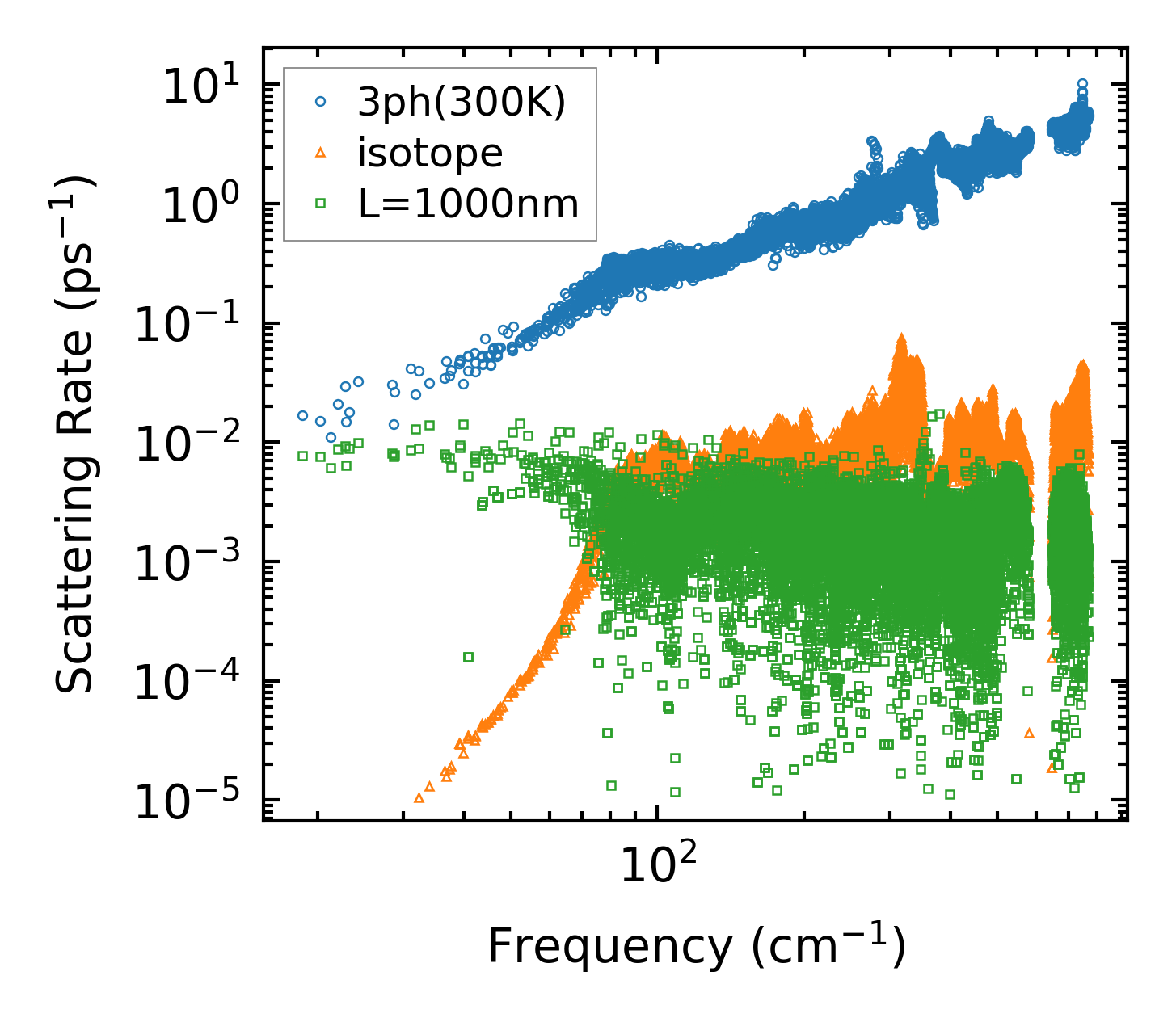

../../_images/fig_scat_rates1236.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

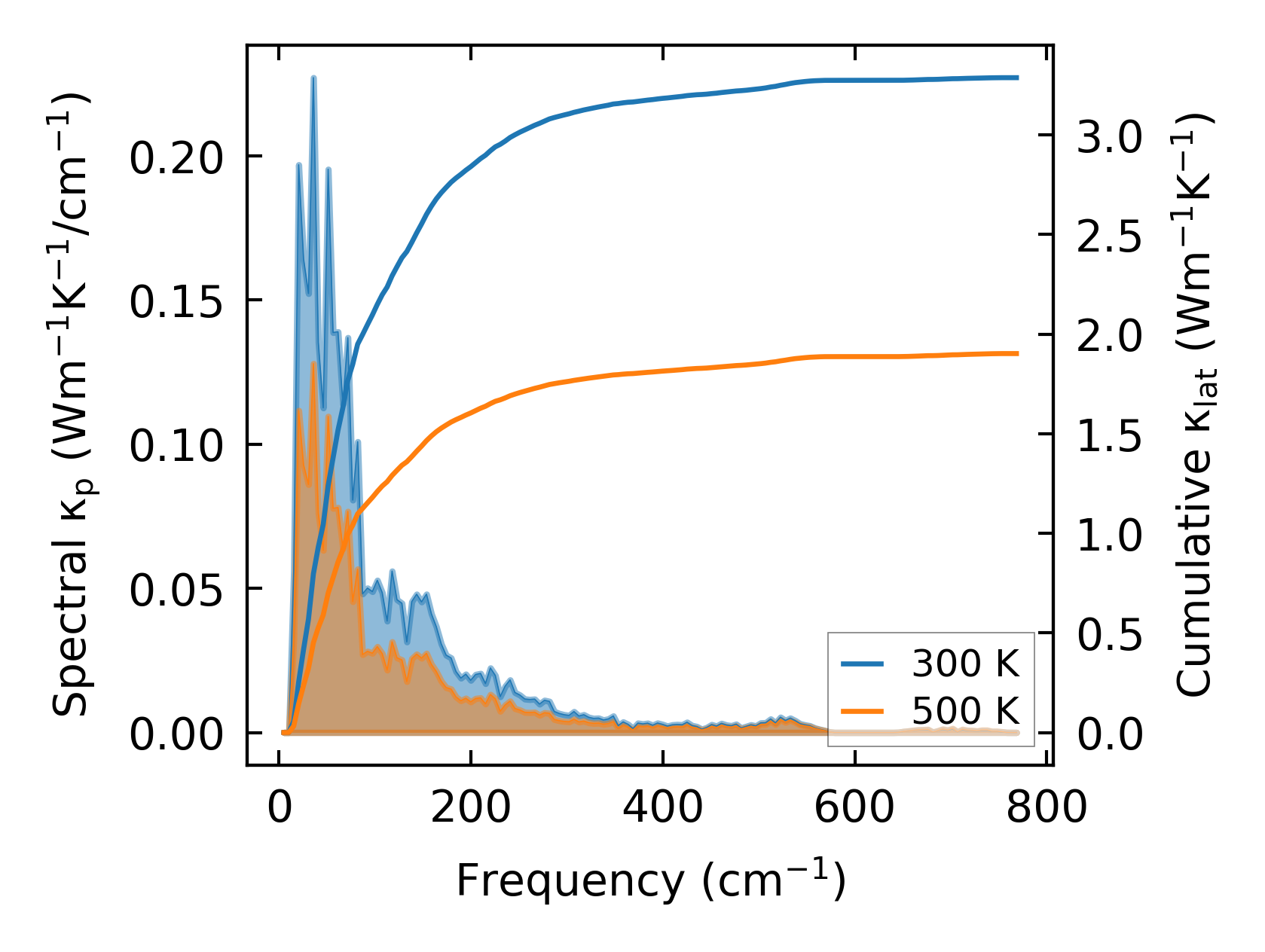

../../_images/fig_cumu_frequency1237.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

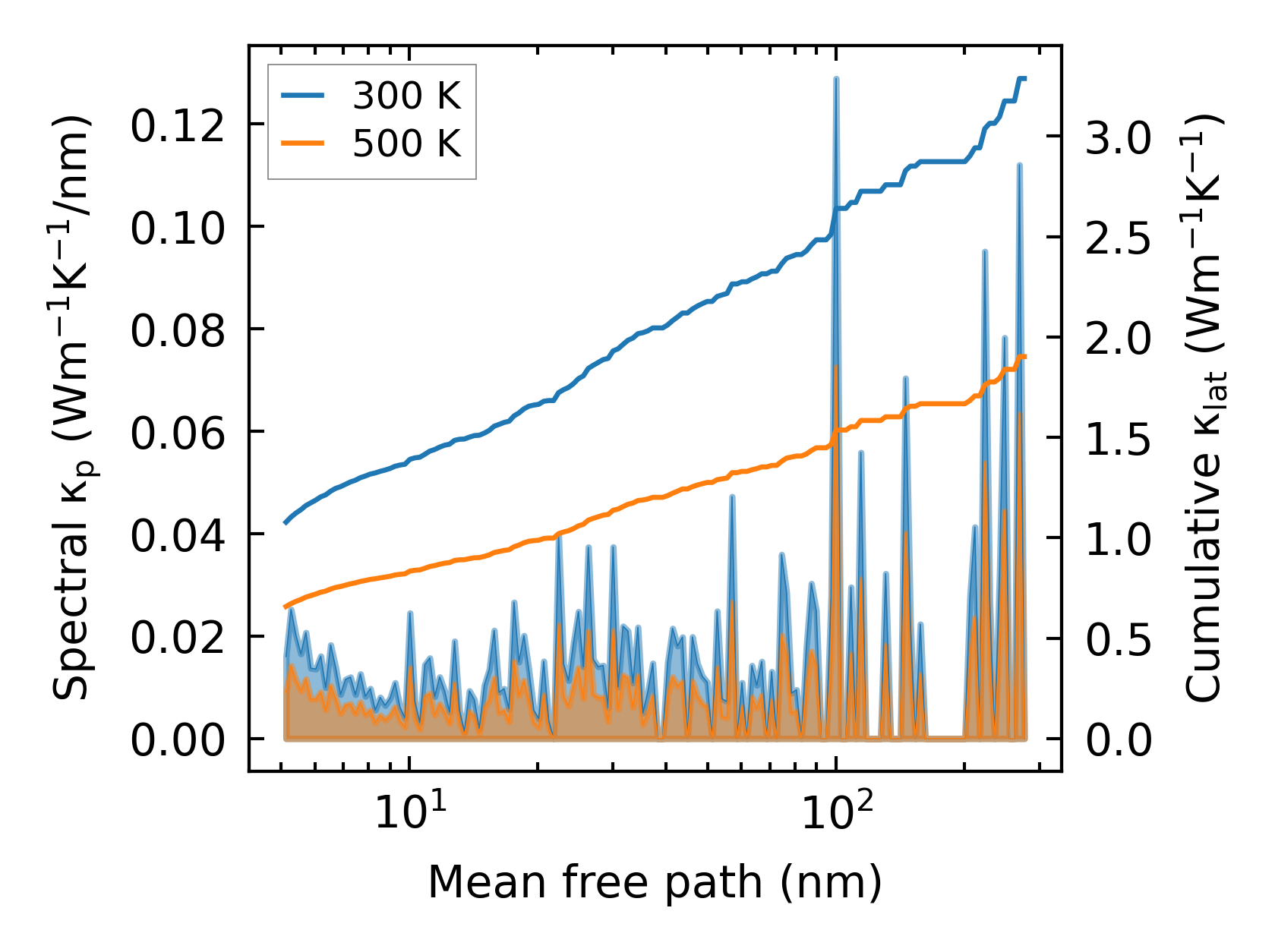

../../_images/fig_cumu_mfp1237.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

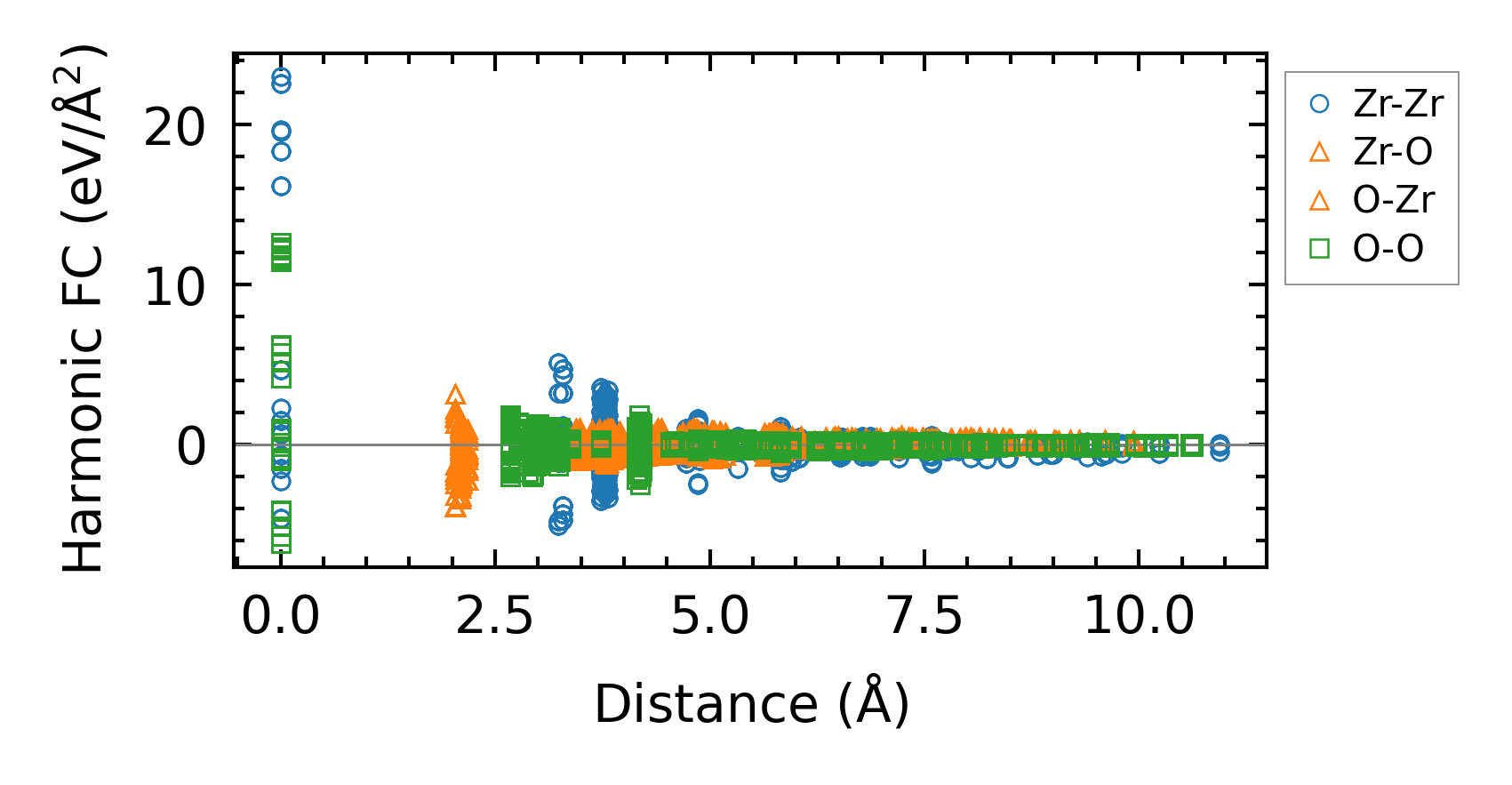

../../_images/fig_fc22069.png — (a) Force constants w.r.t atomic distance

Summary

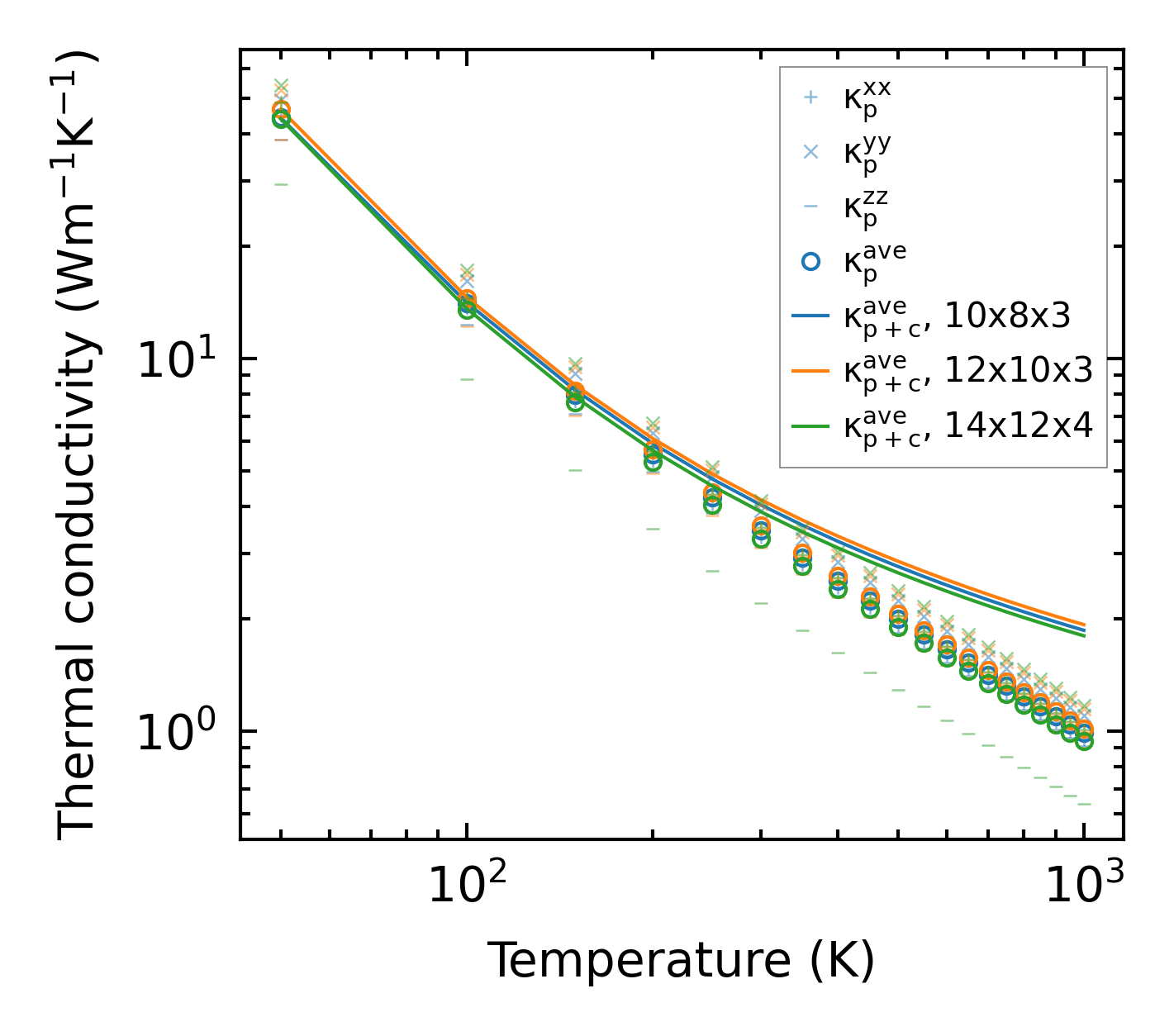

../../_images/fig_kappa2400.png — (a) Temperature-dependent lattice thermal conductivity

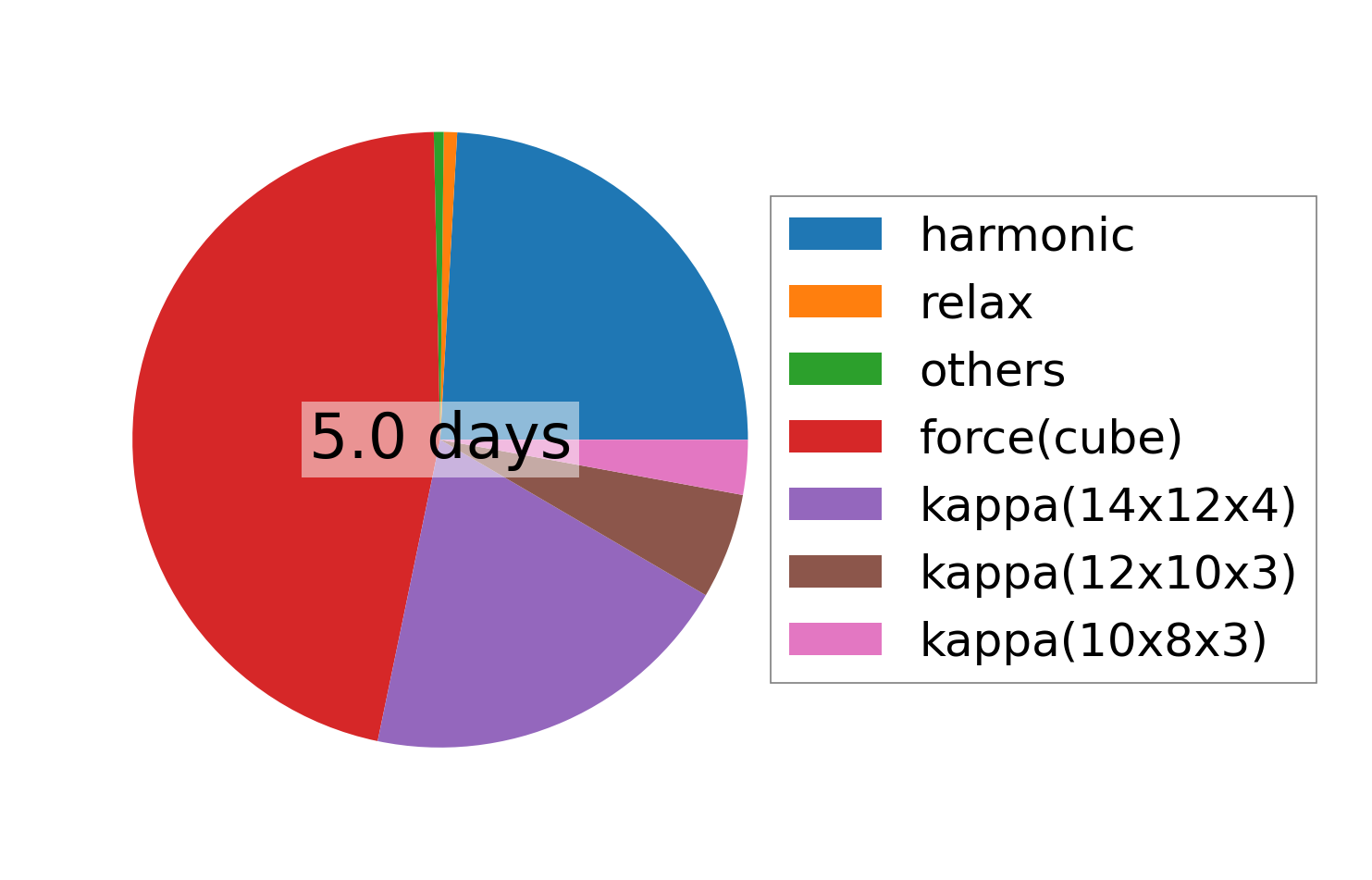

../../_images/fig_times3592.png — (b) Computation time
