mp-676360/NaNdS2/anharm

Space group: I4_1/amd (141)
Link: Materials Project
Download: mp-676360.tar.gz

Harmonic properties

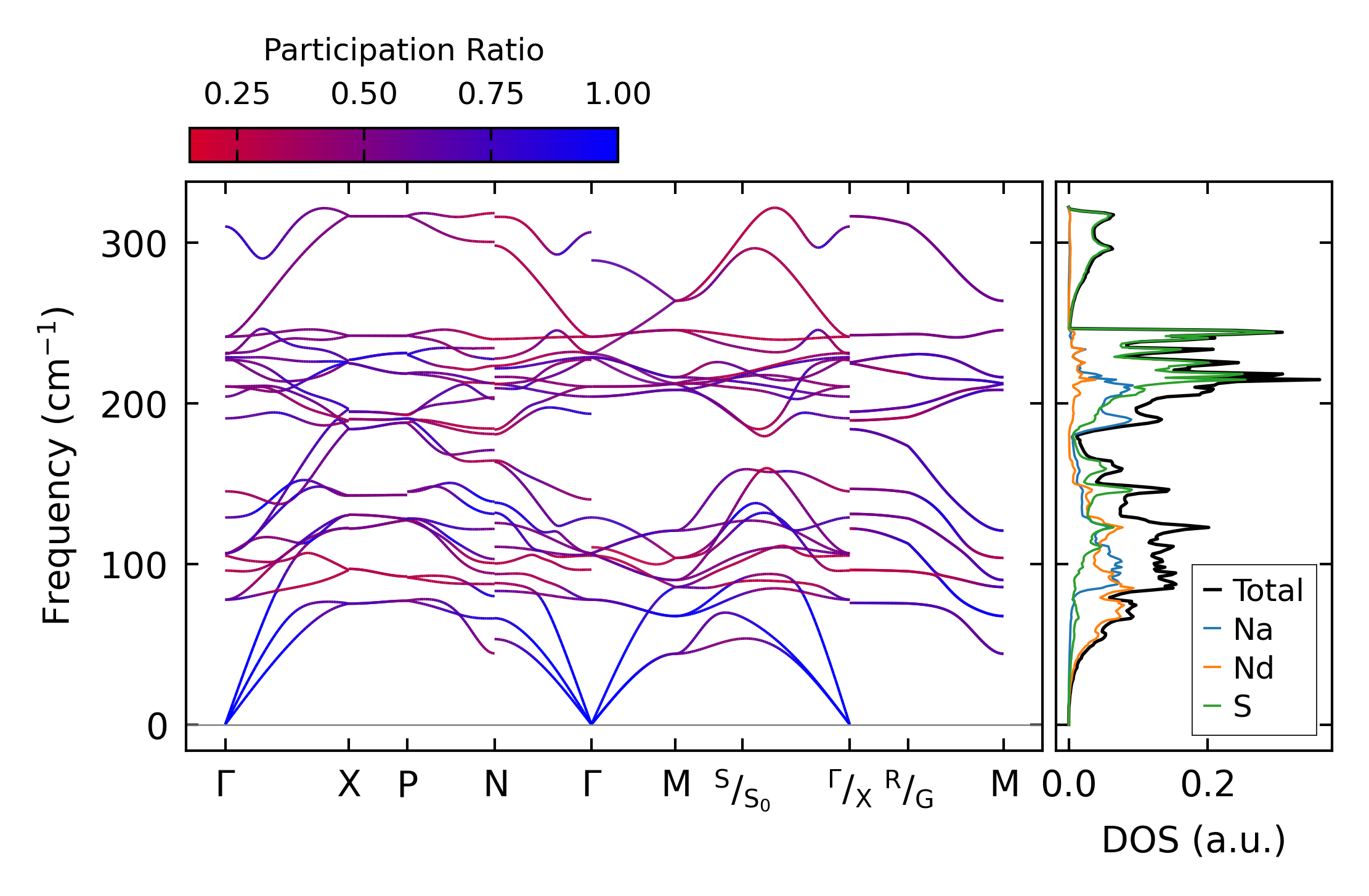

../../_images/fig_bandos_pr5301.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo5301.png — (b) Thermodynamic properties

Grüneisen parameters

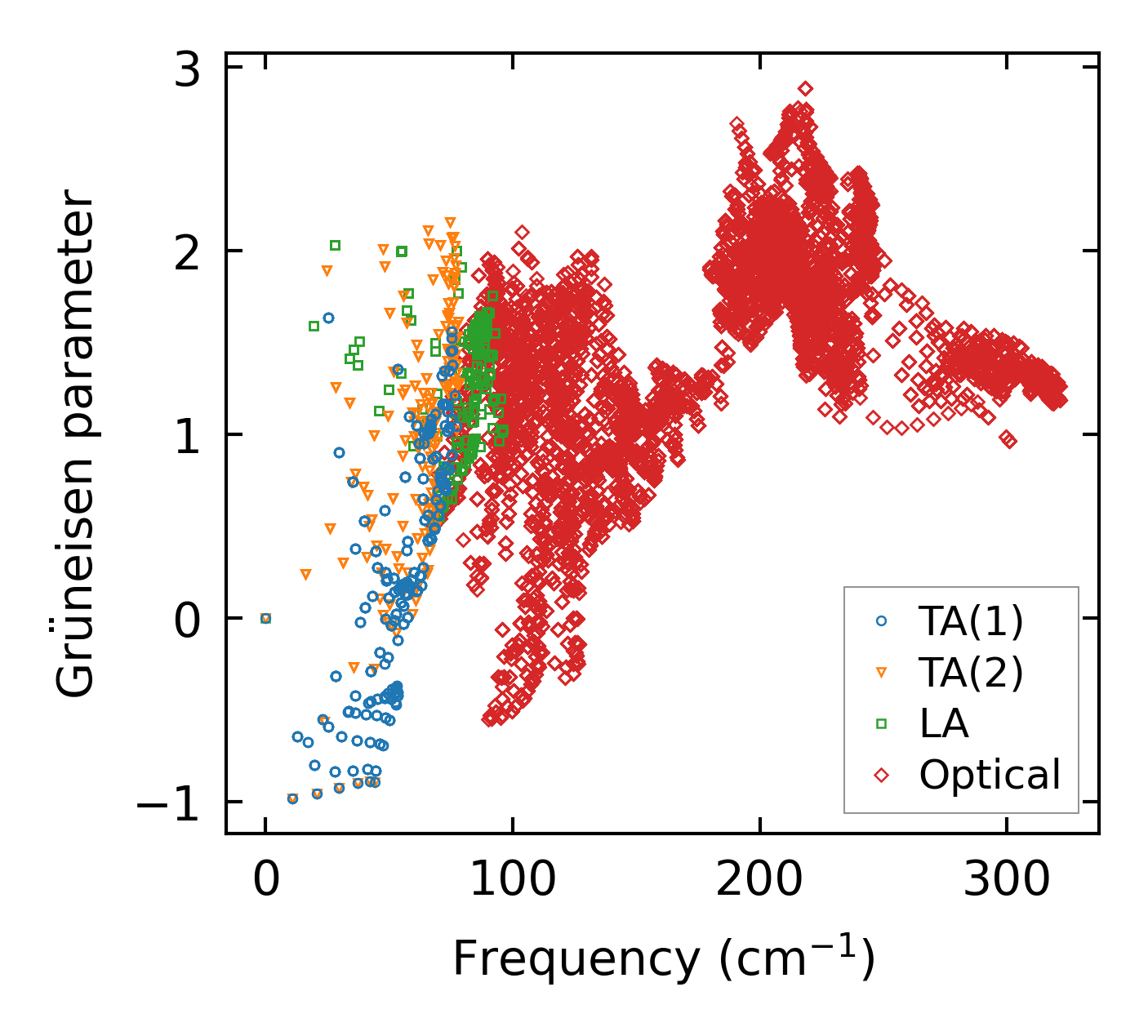

../../_images/fig_gru_all2215.png — (a) Grüneisen parameters

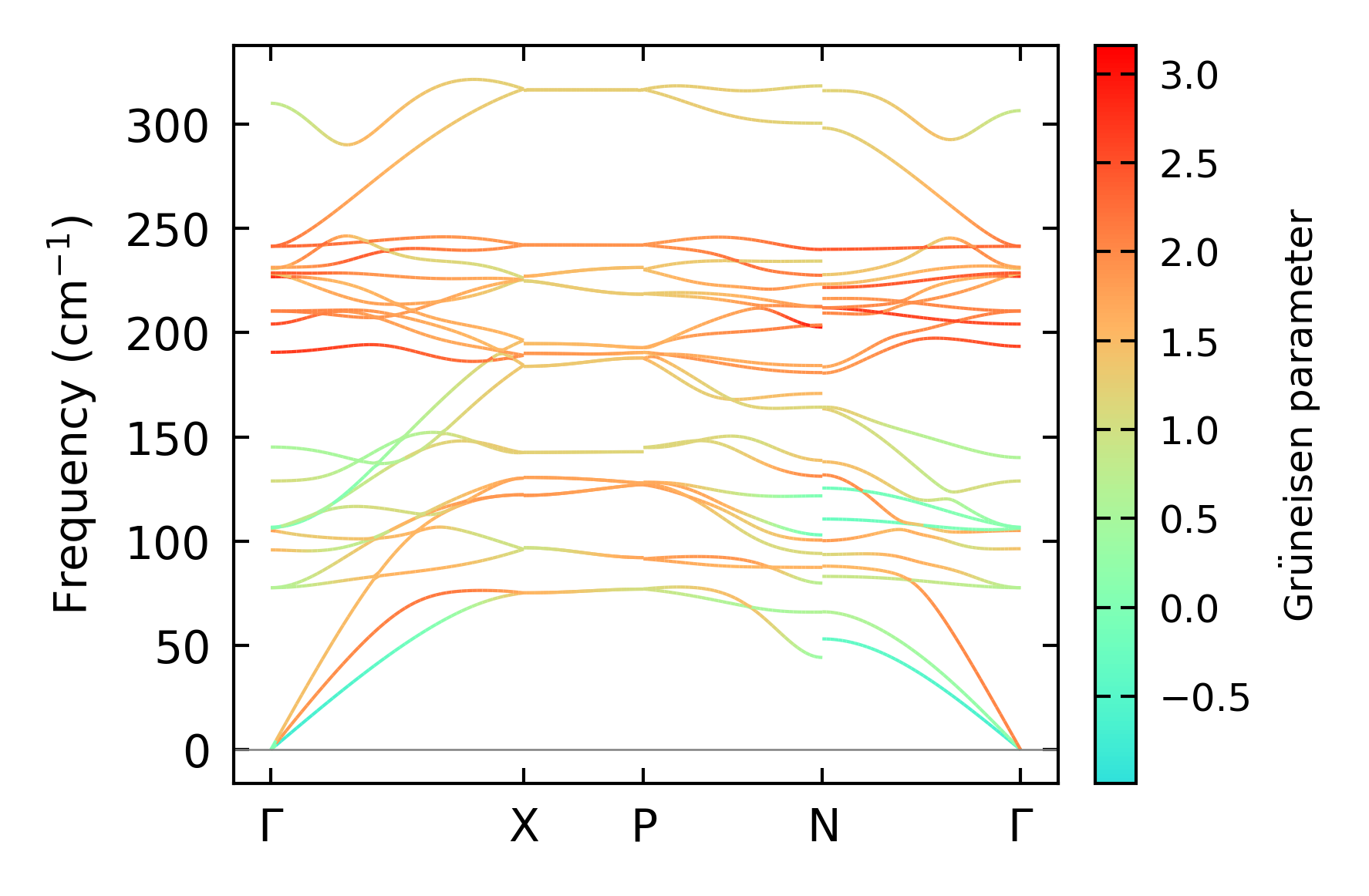

../../_images/fig_gruneisen2215.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x12, supercell: 3x3x1

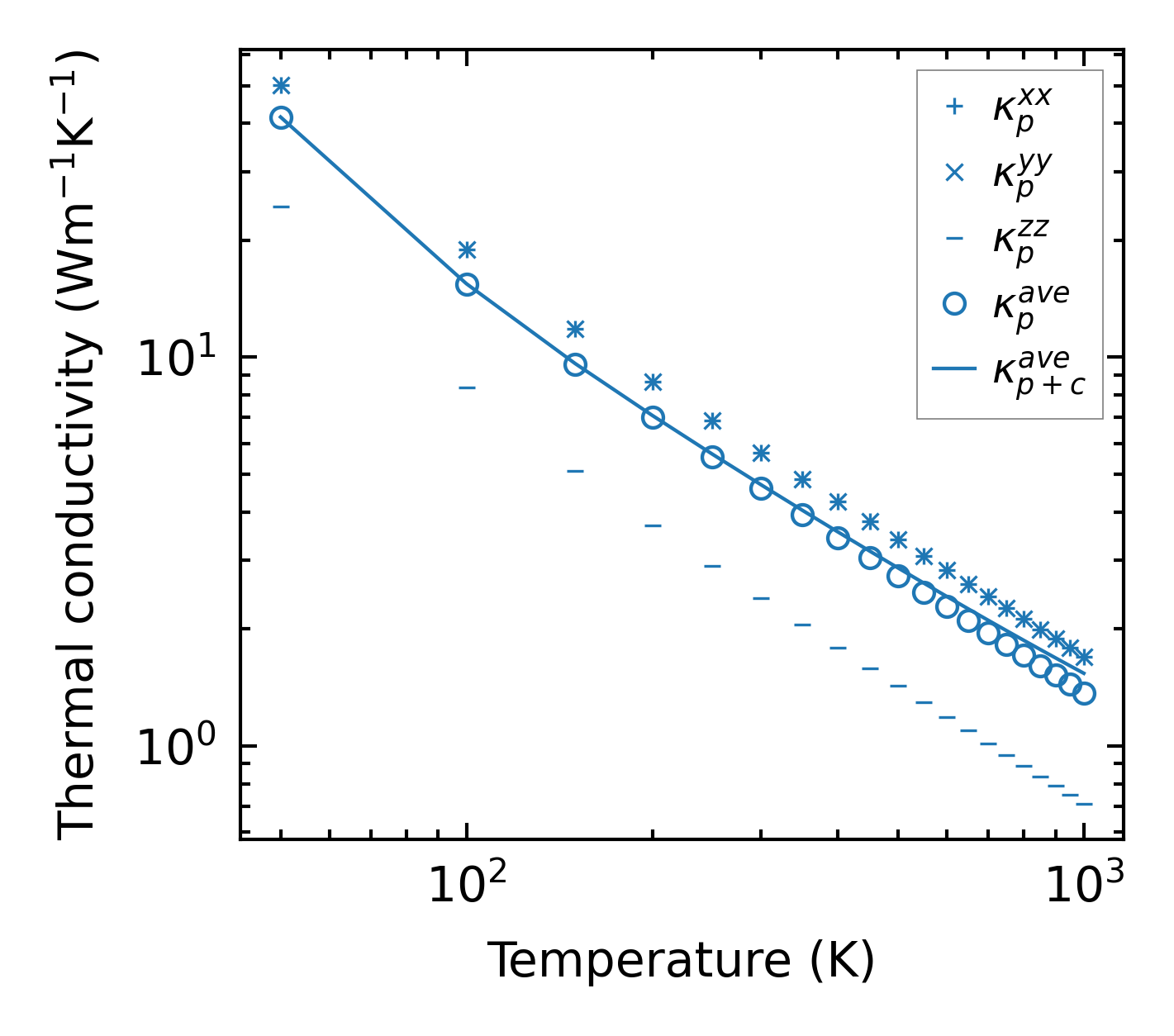

../../_images/fig_kappa4239.png — (a) Temperature-dependent lattice thermal conductivity

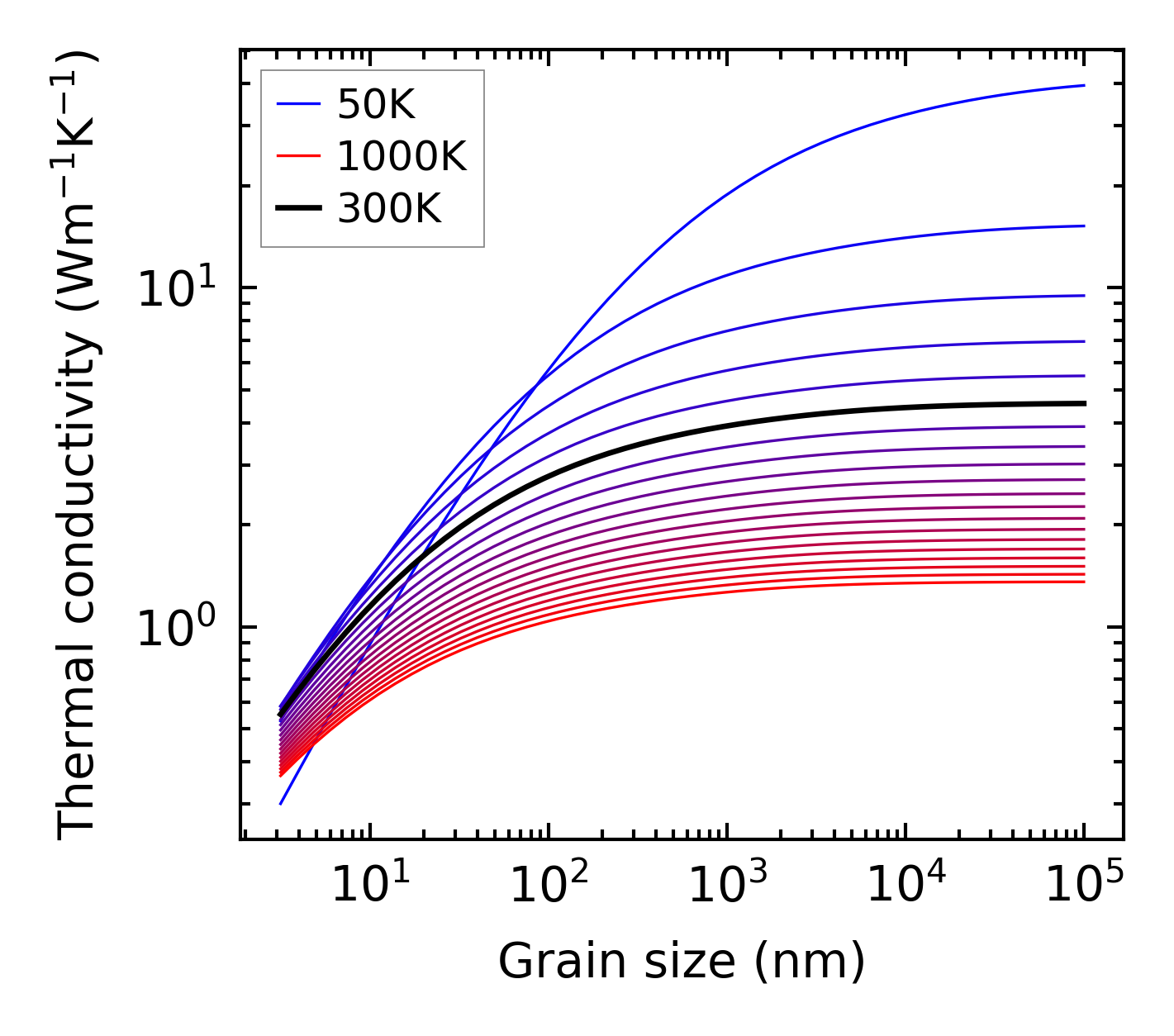

../../_images/fig_kappa_vs_grain_size2246.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

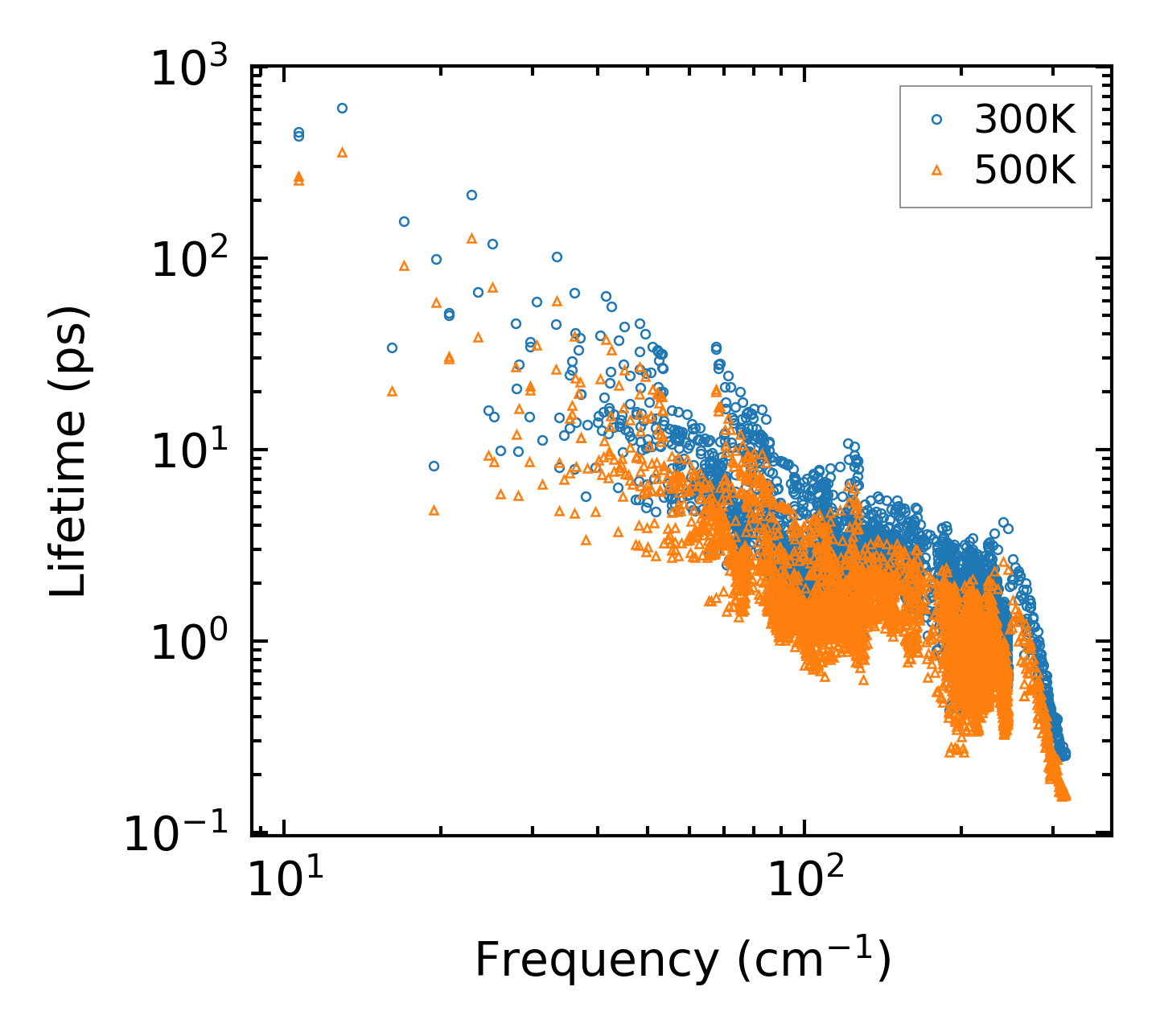

../../_images/fig_lifetime2201.png — (a) Phonon lifetime due to phonon-phonon scattering

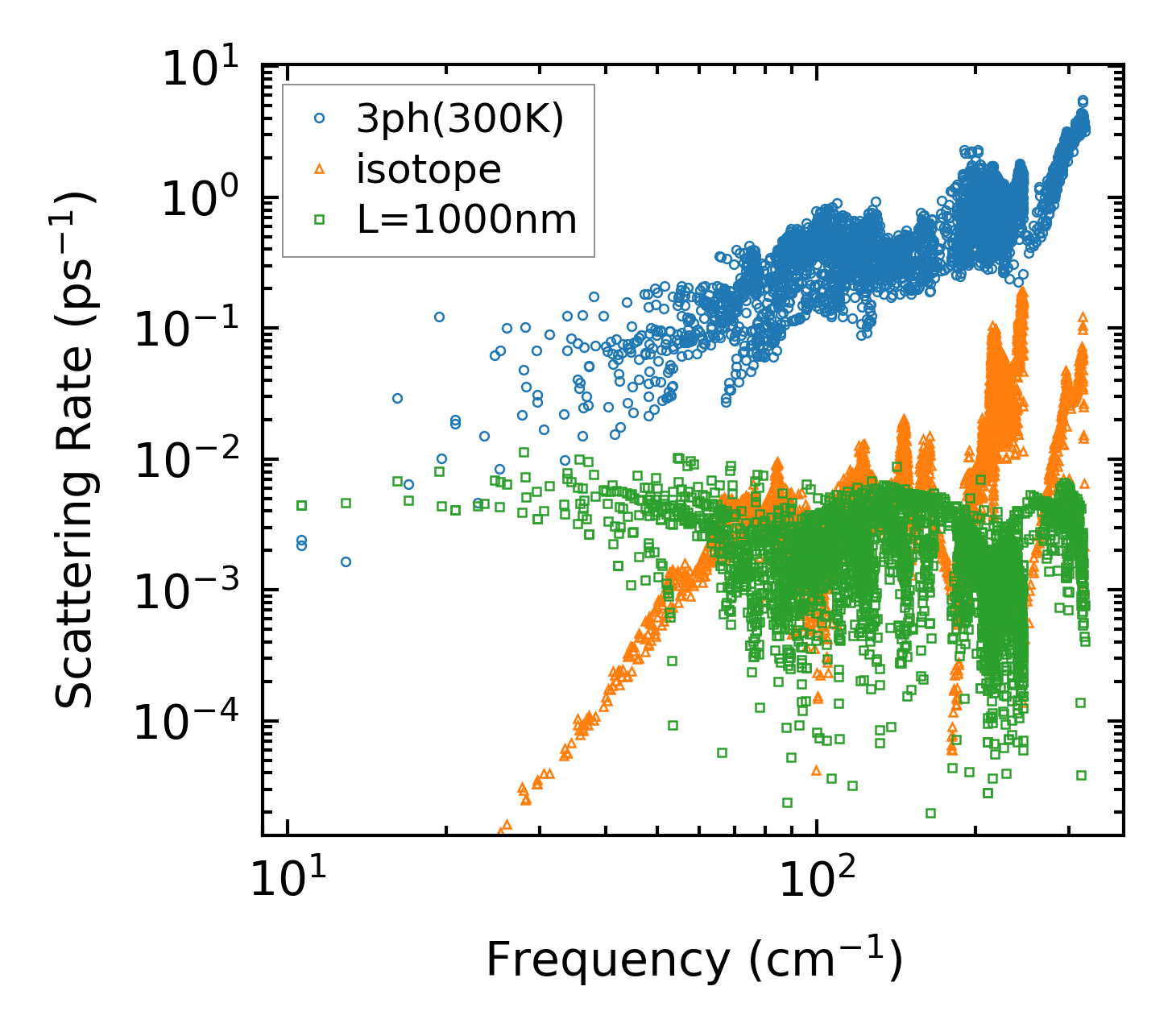

../../_images/fig_scat_rates2200.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

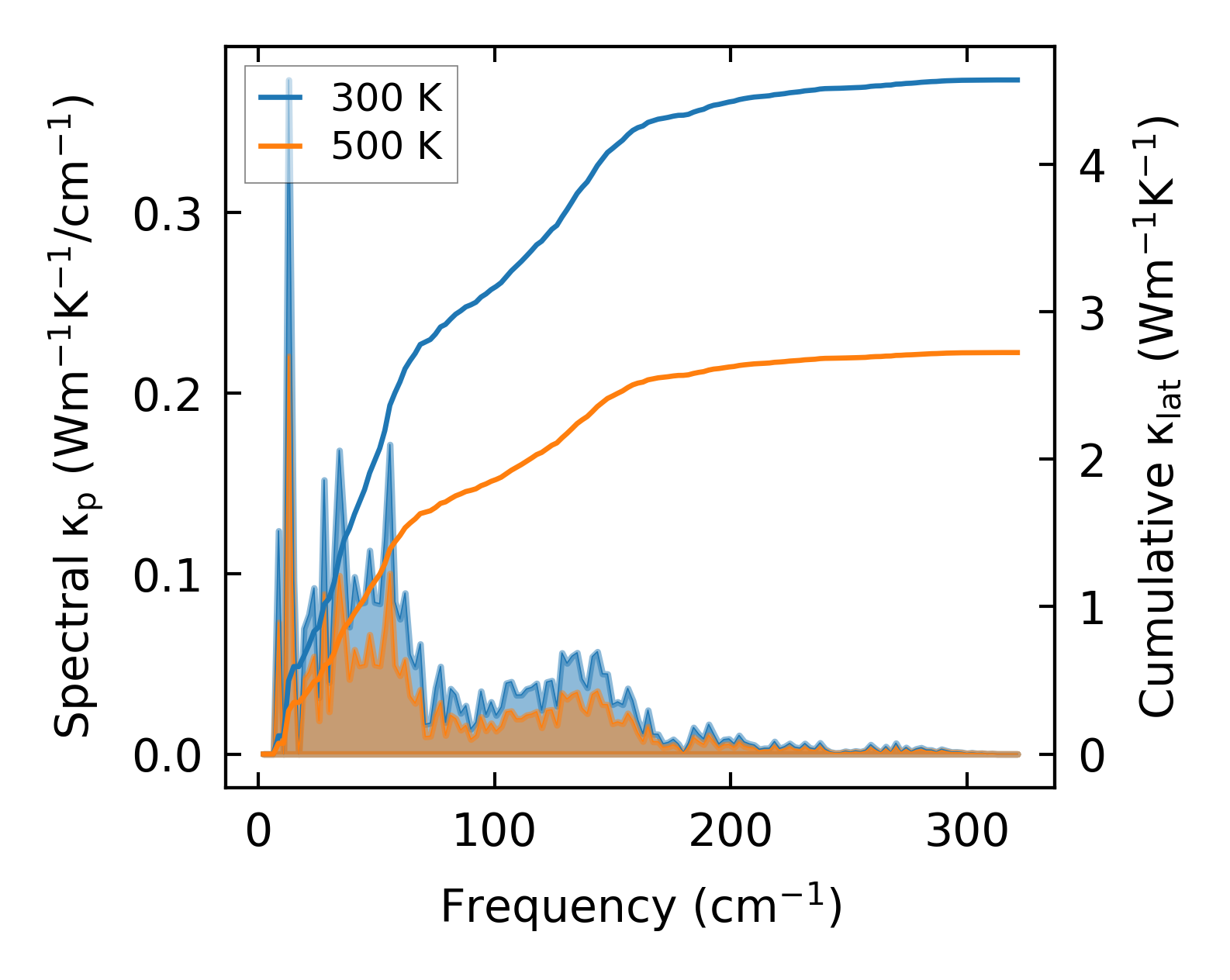

../../_images/fig_cumu_frequency2201.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

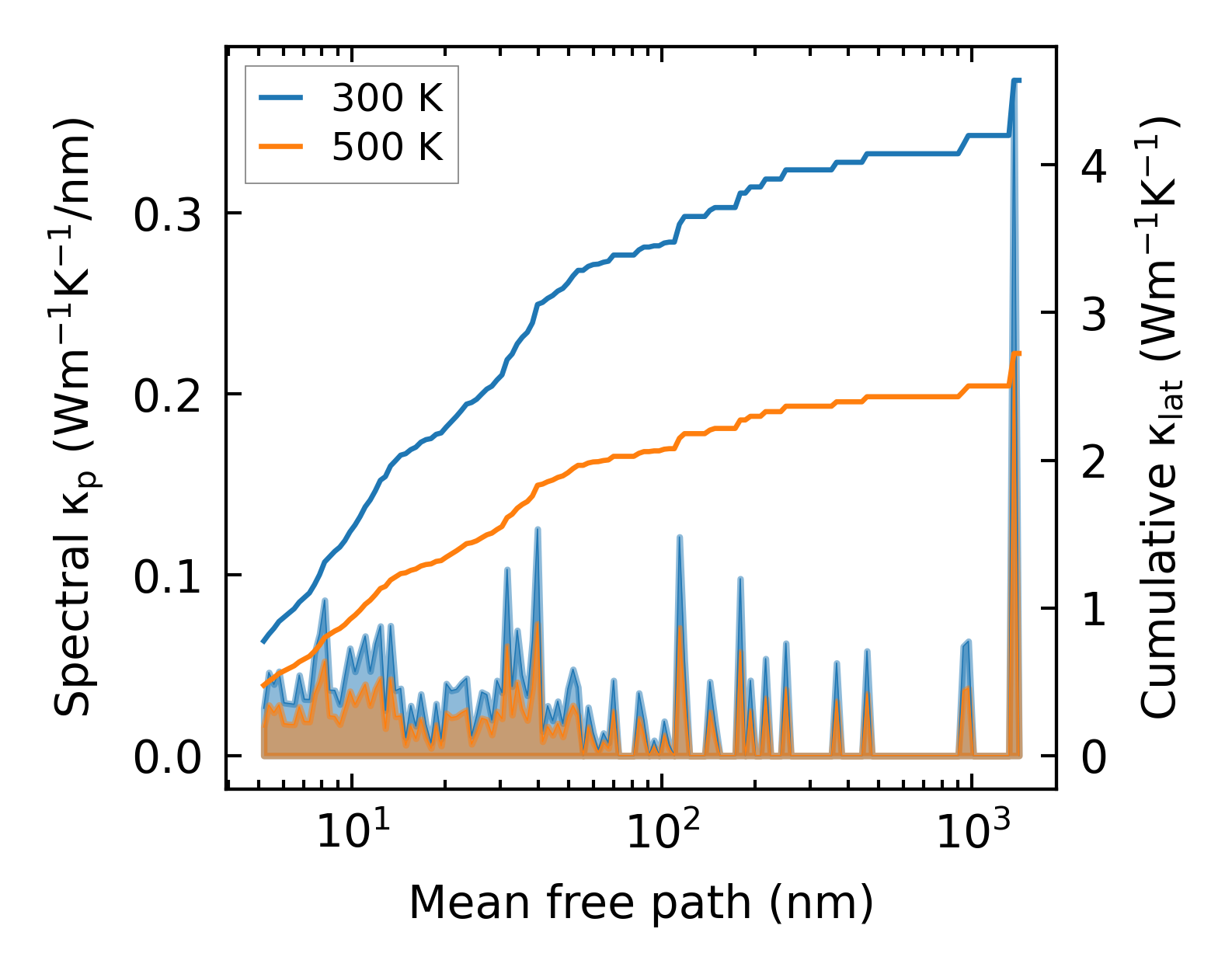

../../_images/fig_cumu_mfp2201.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc25106.png — (a) Force constants w.r.t atomic distance

Summary

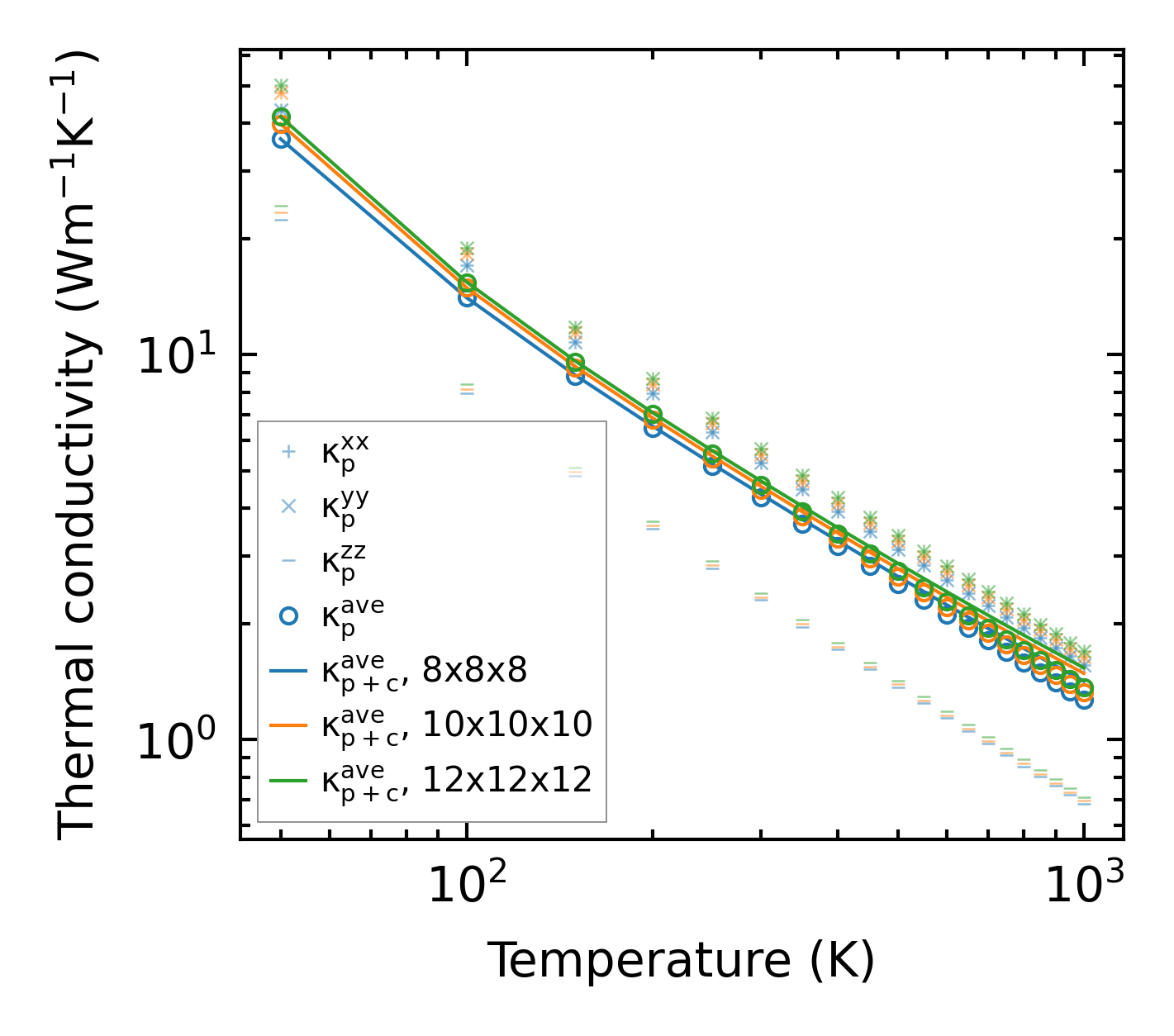

../../_images/fig_kappa4240.png — (a) Temperature-dependent lattice thermal conductivity

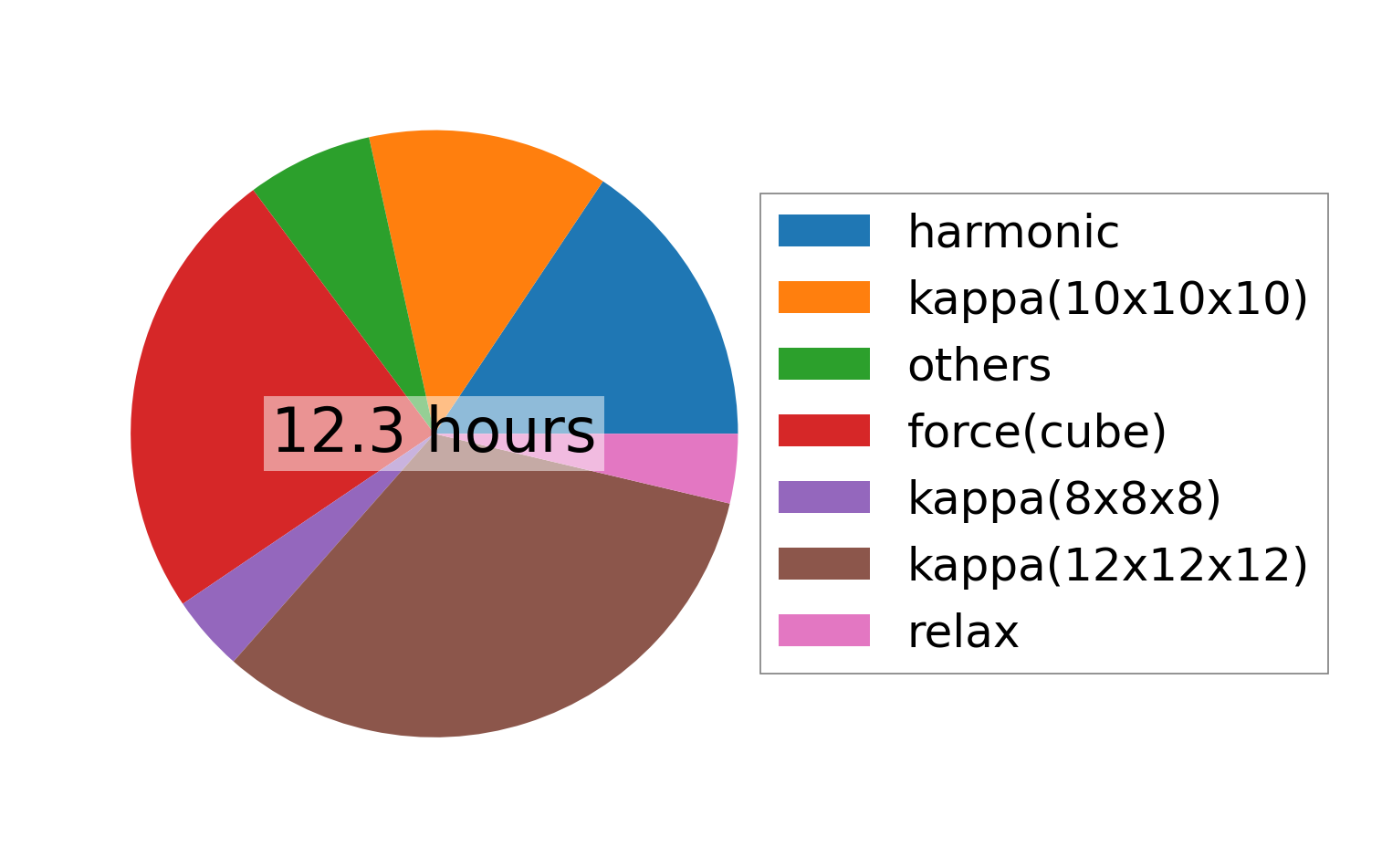

../../_images/fig_times9551.png — (b) Computation time
