mp-549589/LaZnAsO/anharm

Space group: P4/nmm (129)
Link: Materials Project
Download: mp-549589.tar.gz

Harmonic properties

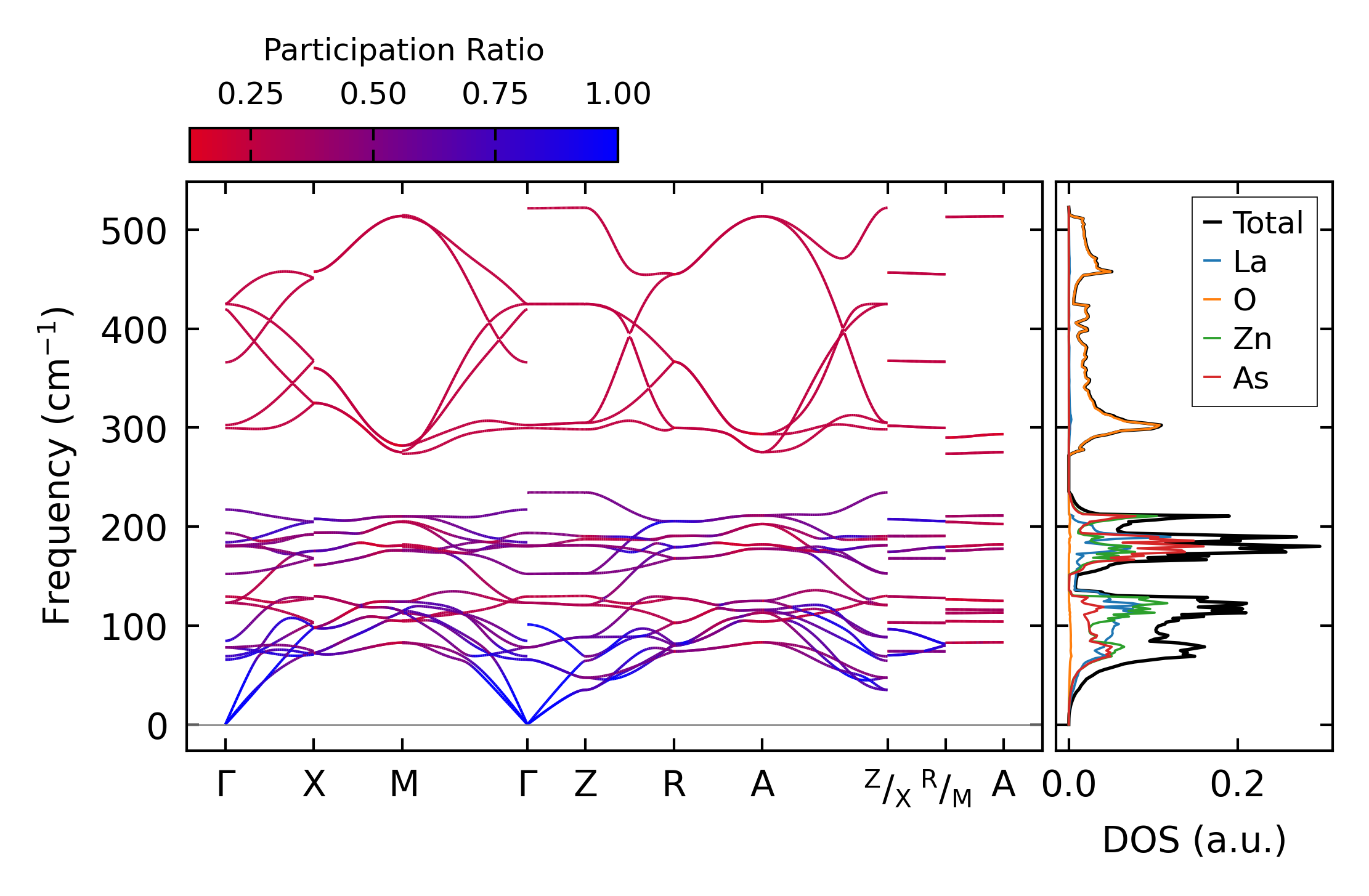

../../_images/fig_bandos_pr9092.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo9092.png — (b) Thermodynamic properties

Grüneisen parameters

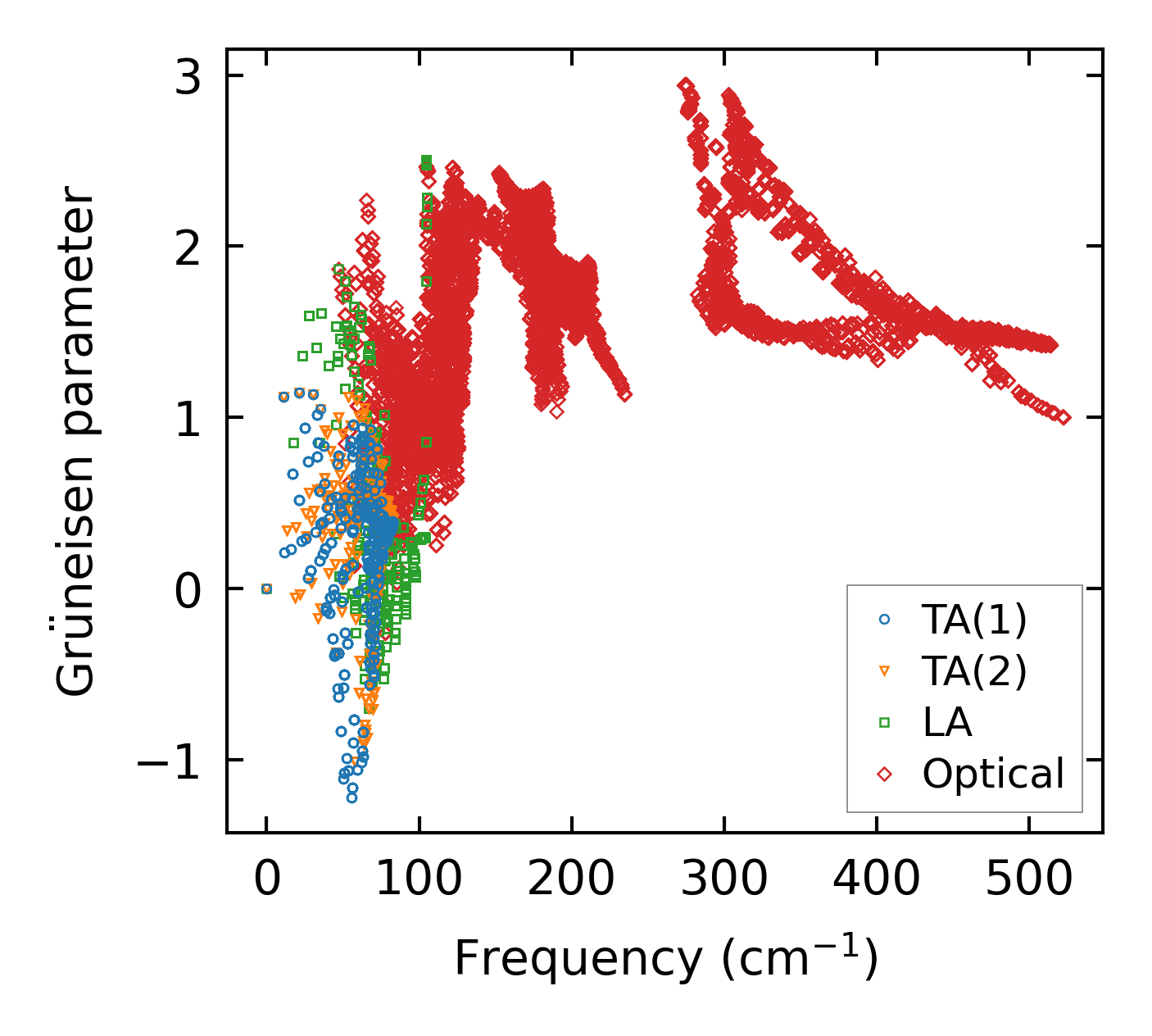

../../_images/fig_gru_all3620.png — (a) Grüneisen parameters

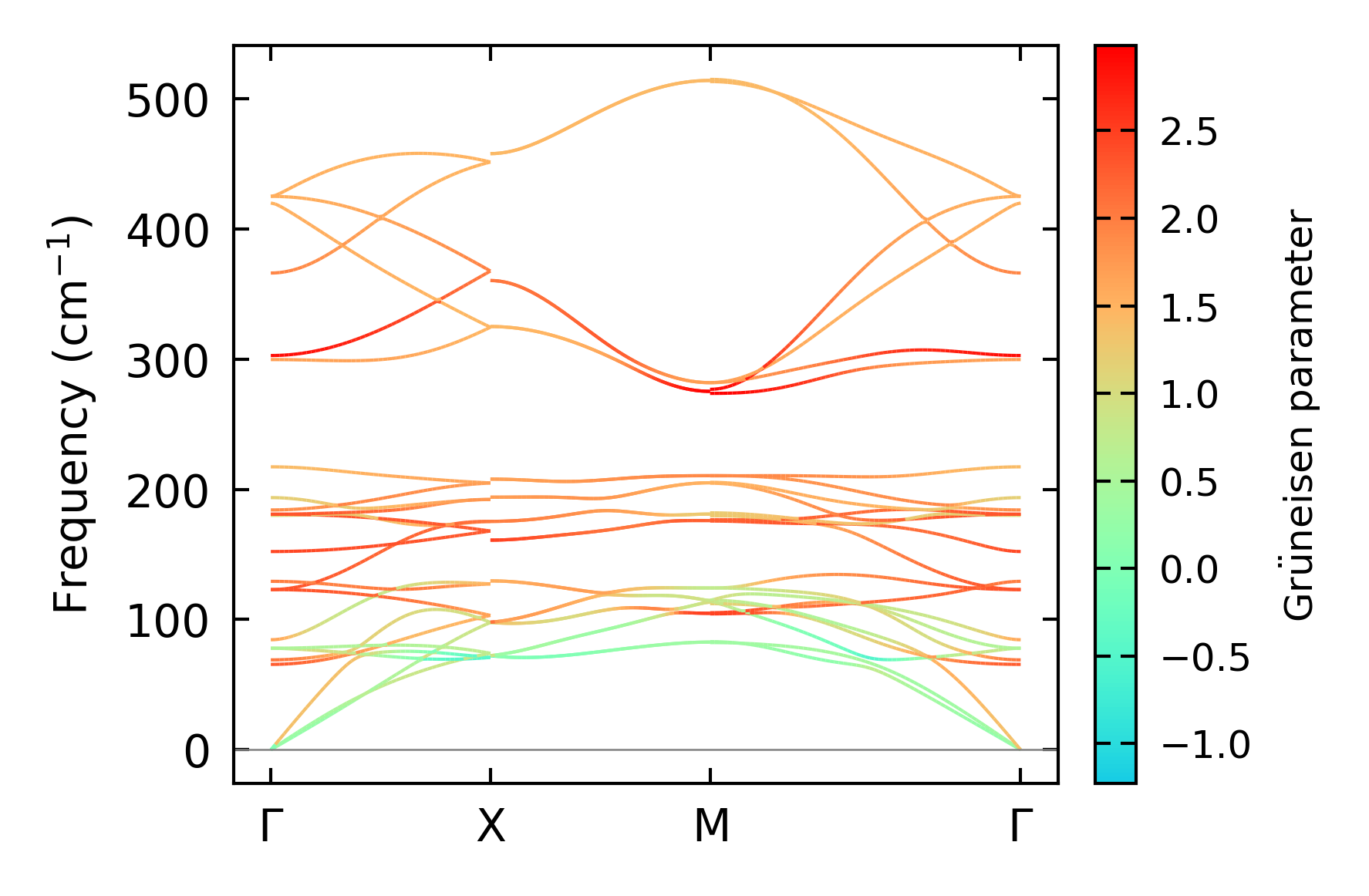

../../_images/fig_gruneisen3620.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 17x17x8, supercell: 3x3x2

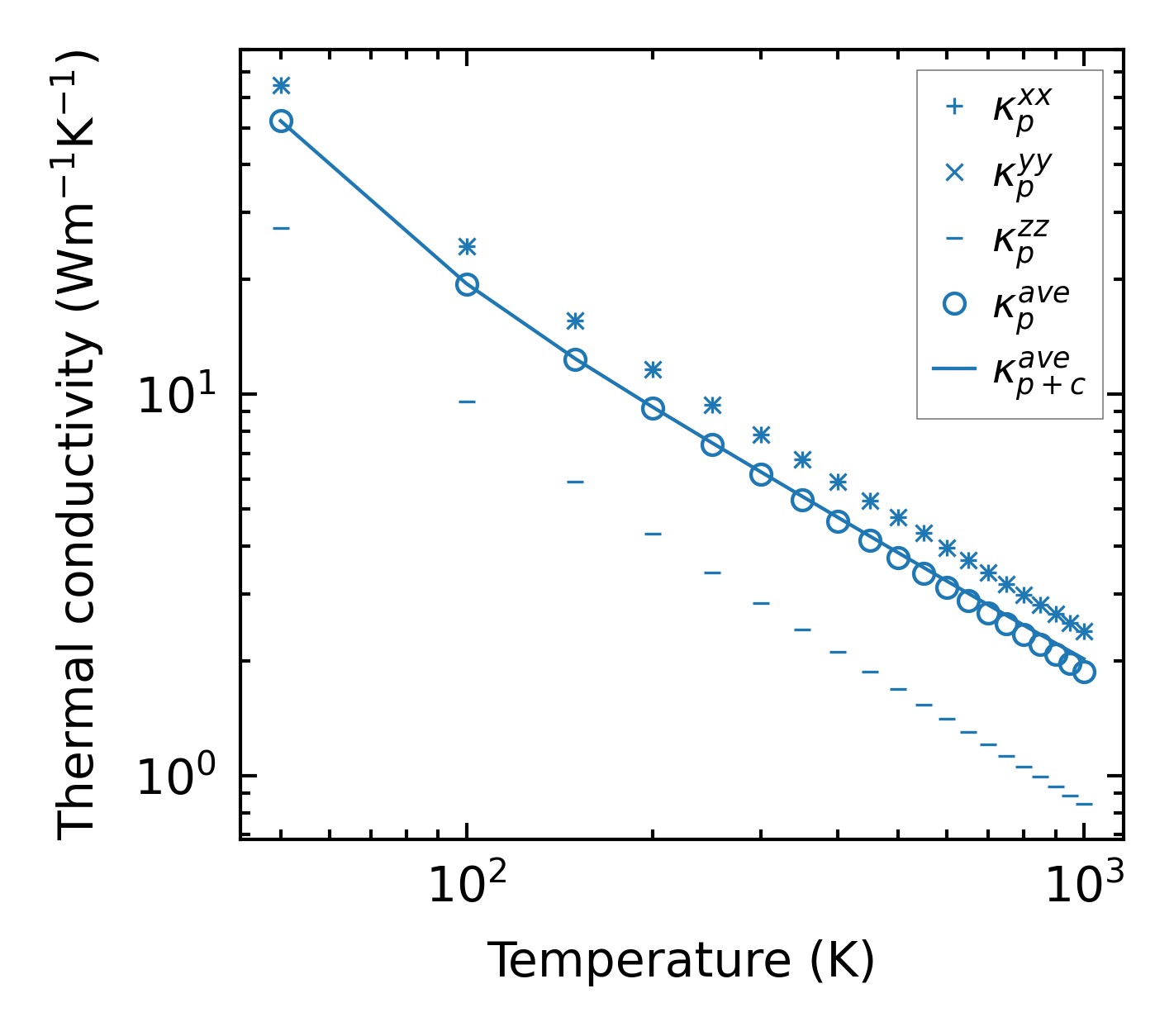

../../_images/fig_kappa6836.png — (a) Temperature-dependent lattice thermal conductivity

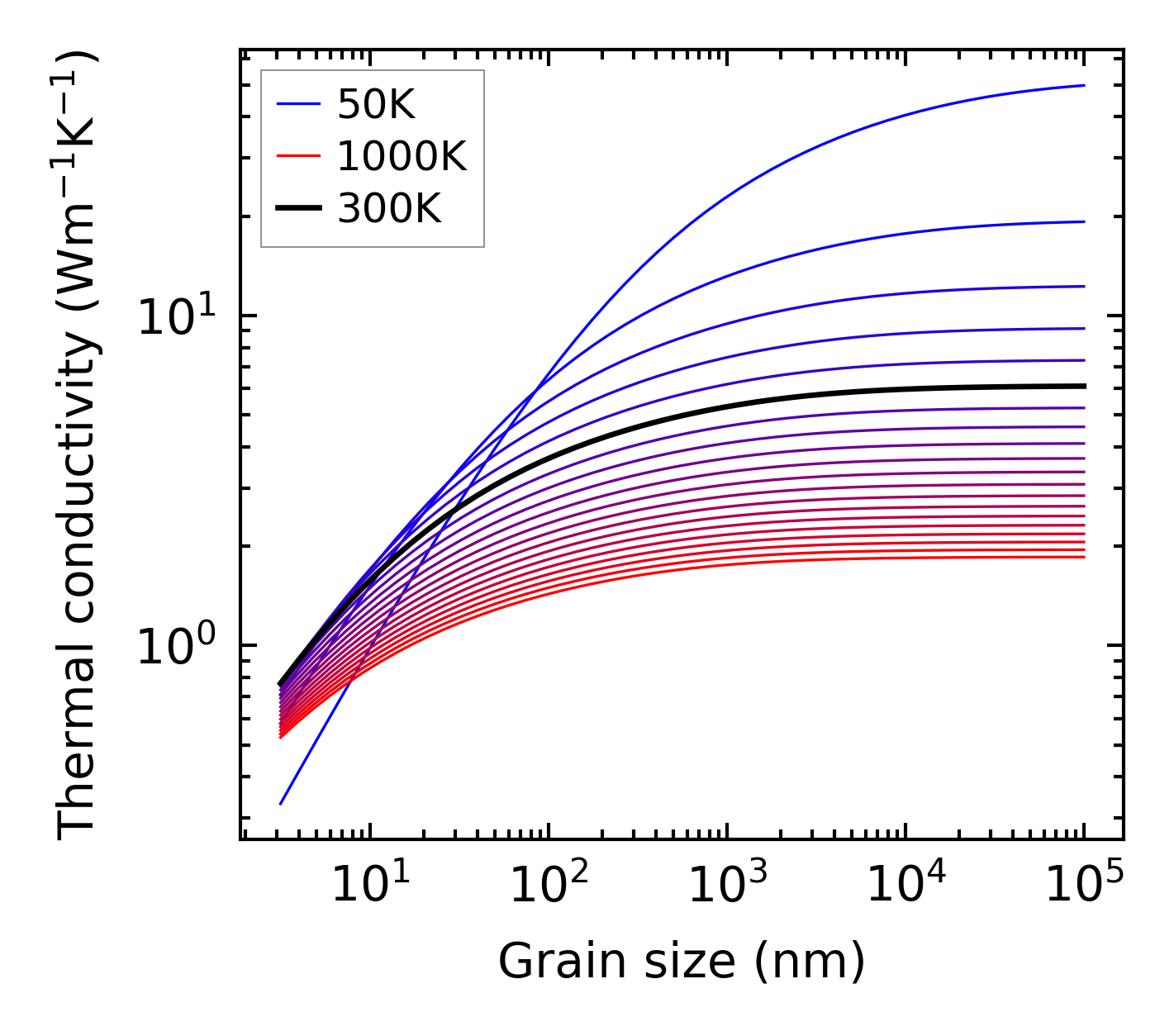

../../_images/fig_kappa_vs_grain_size3668.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

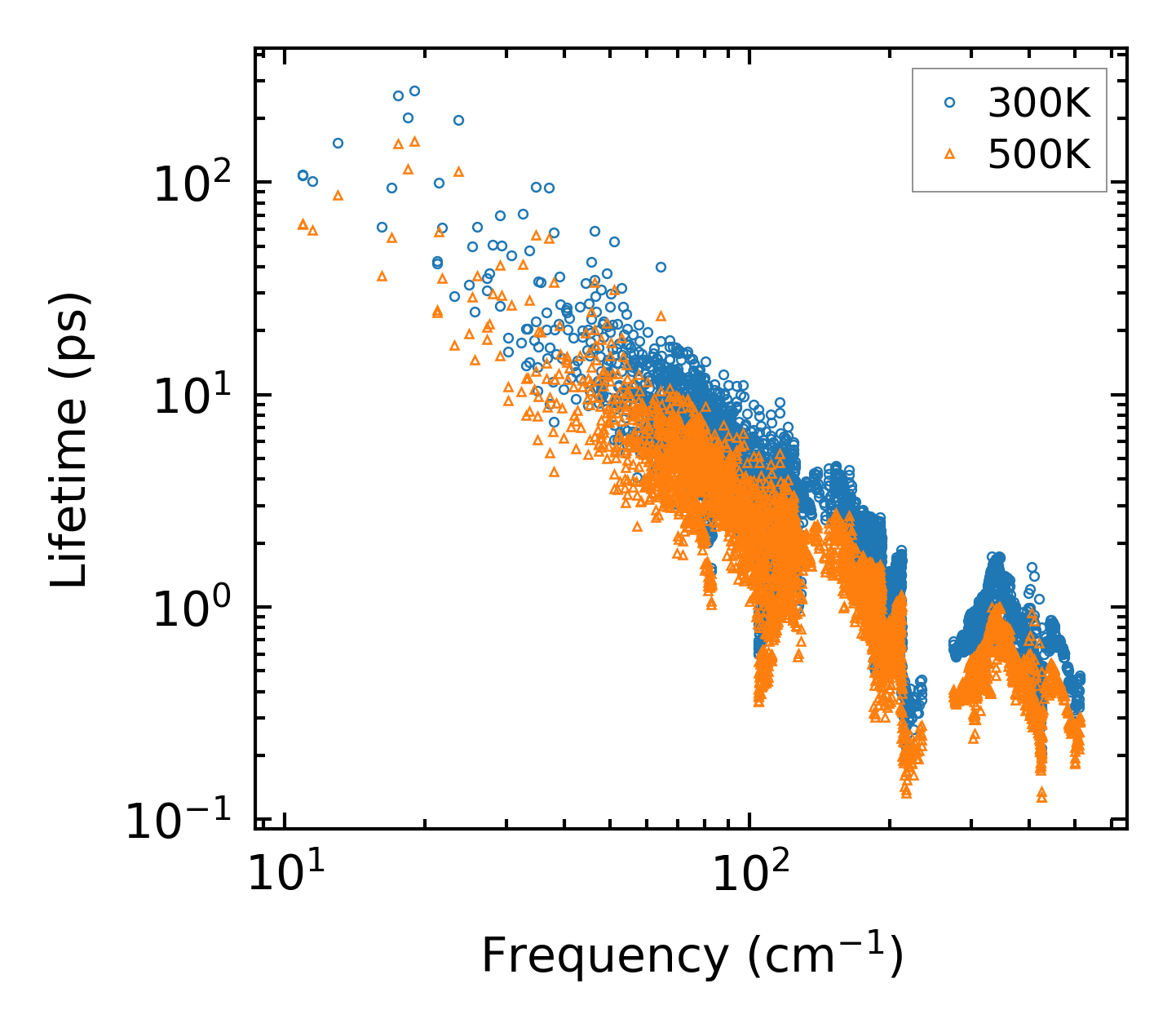

../../_images/fig_lifetime3586.png — (a) Phonon lifetime due to phonon-phonon scattering

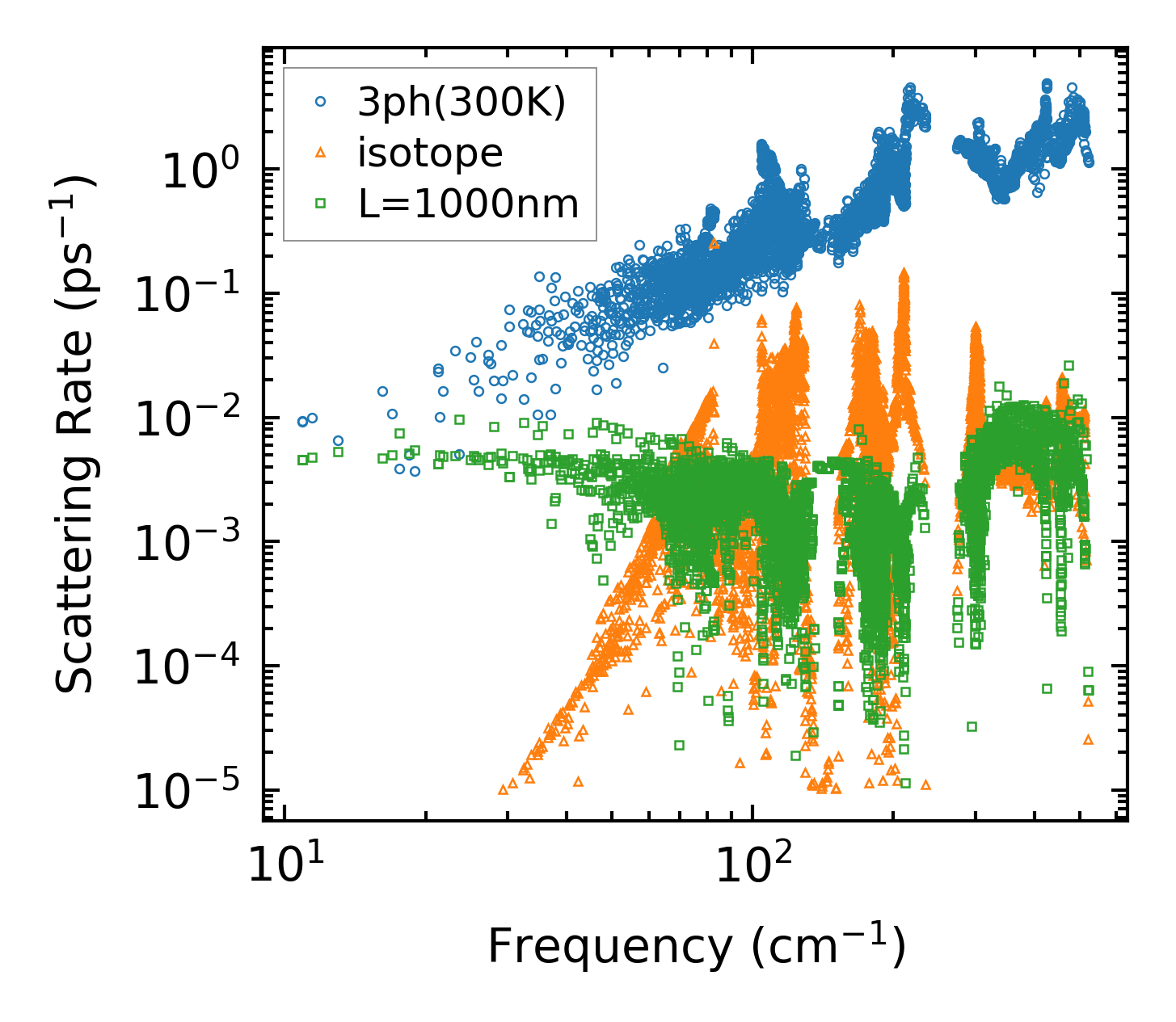

../../_images/fig_scat_rates3585.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

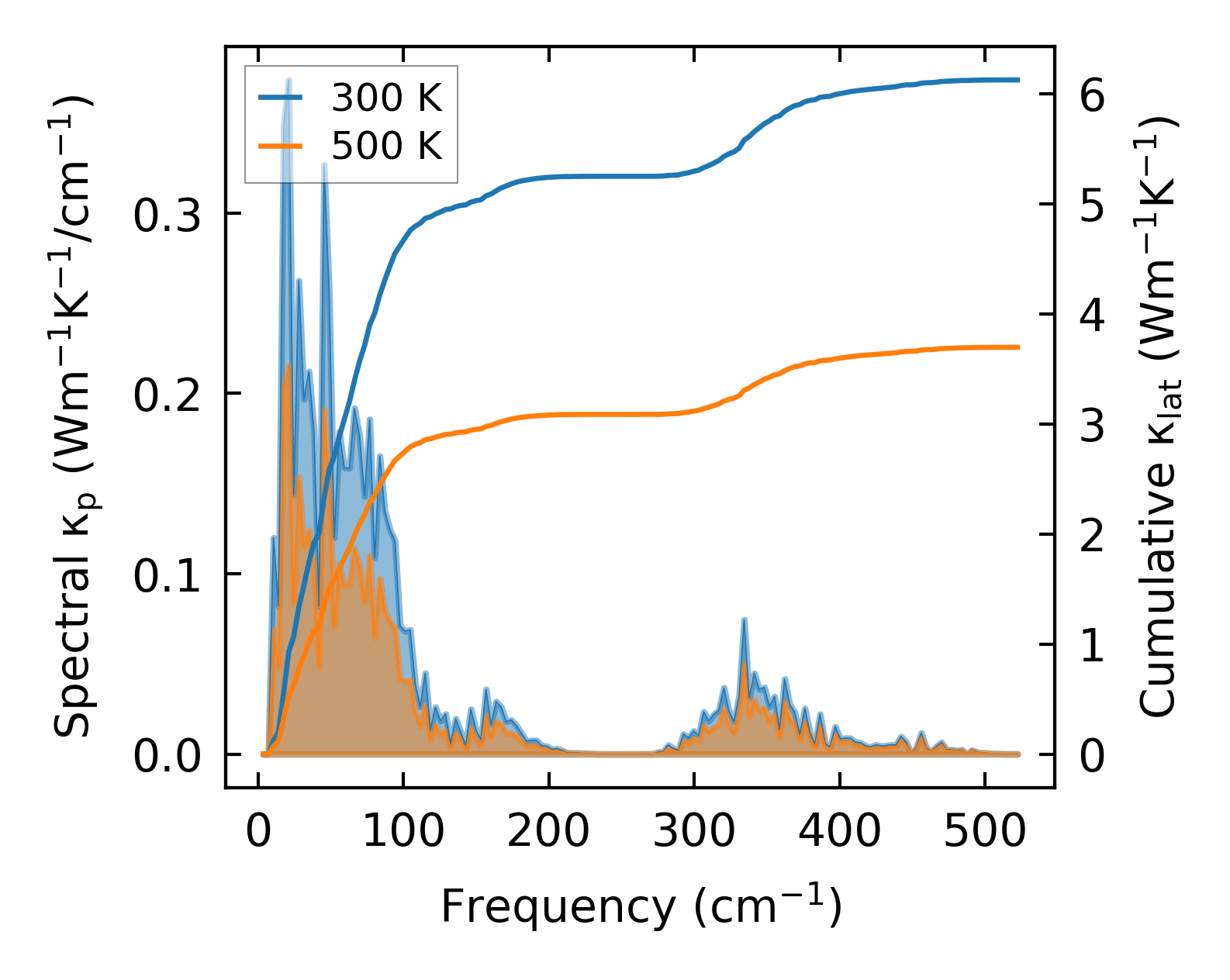

../../_images/fig_cumu_frequency3586.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

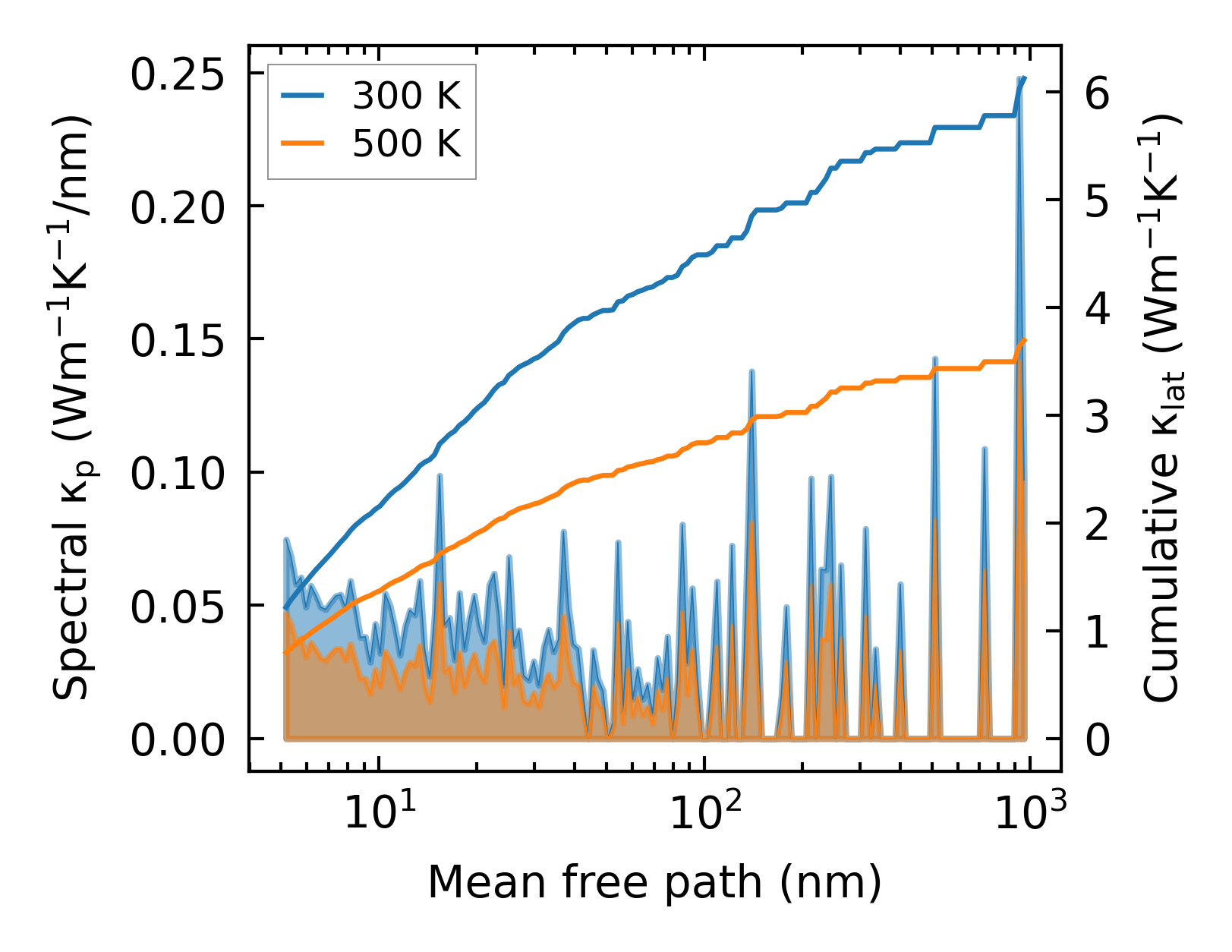

../../_images/fig_cumu_mfp3585.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

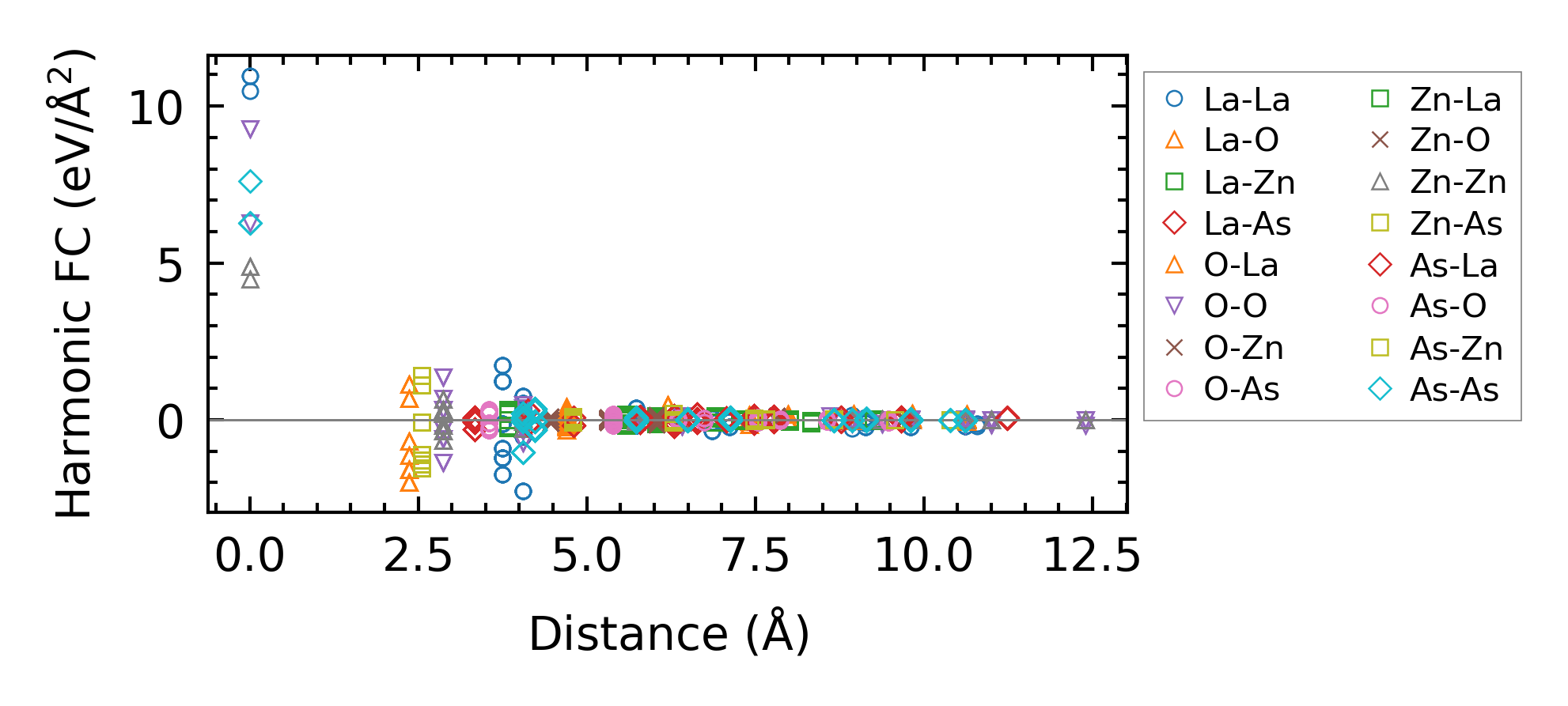

../../_images/fig_fc28854.png — (a) Force constants w.r.t atomic distance

Summary

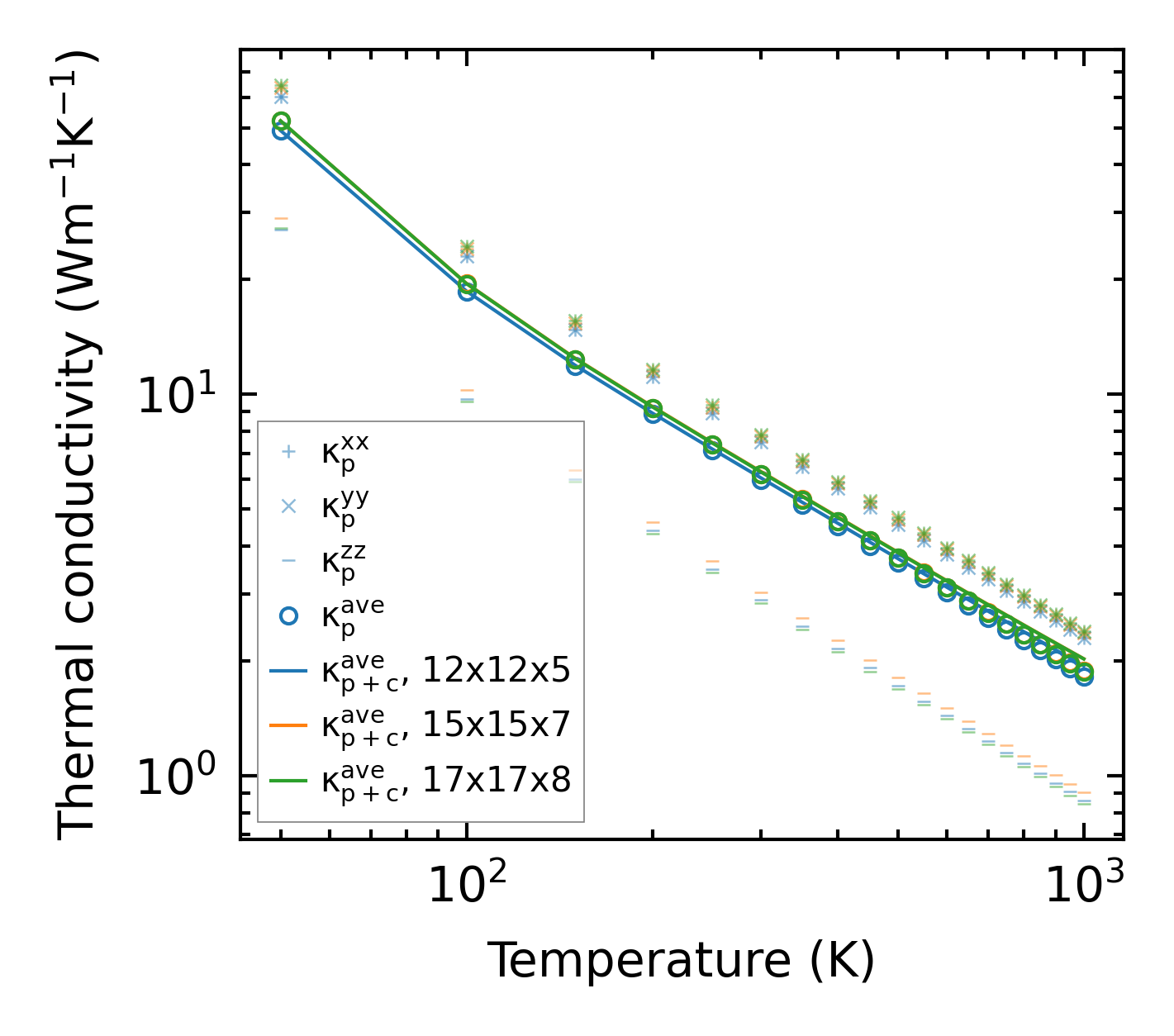

../../_images/fig_kappa6837.png — (a) Temperature-dependent lattice thermal conductivity

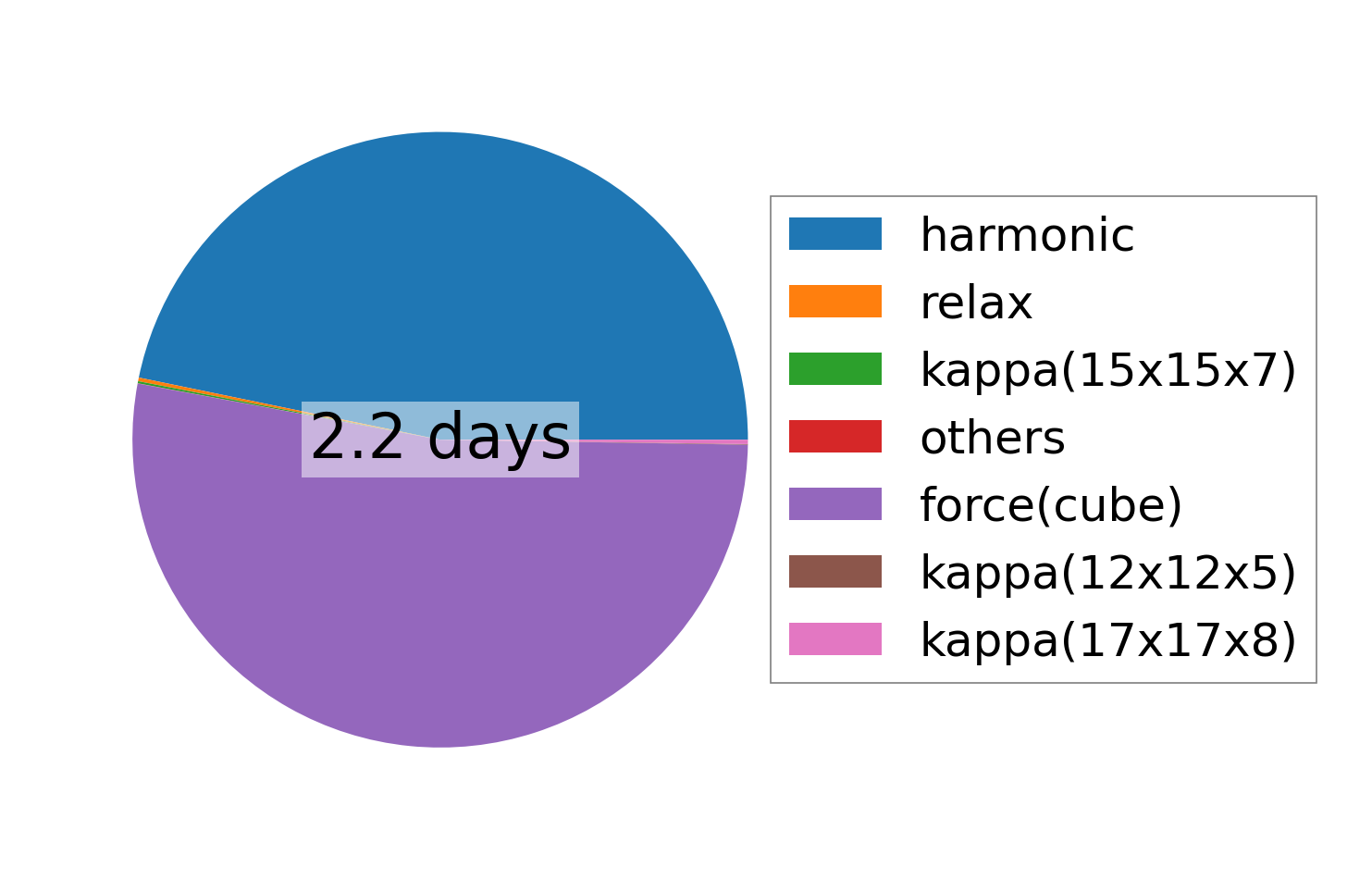

../../_images/fig_times15906.png — (b) Computation time
