mp-504810/Rb2Li14Pb3O14/anharm

Space group: Immm (71)
Link: Materials Project
Download: mp-504810.tar.gz

Harmonic properties

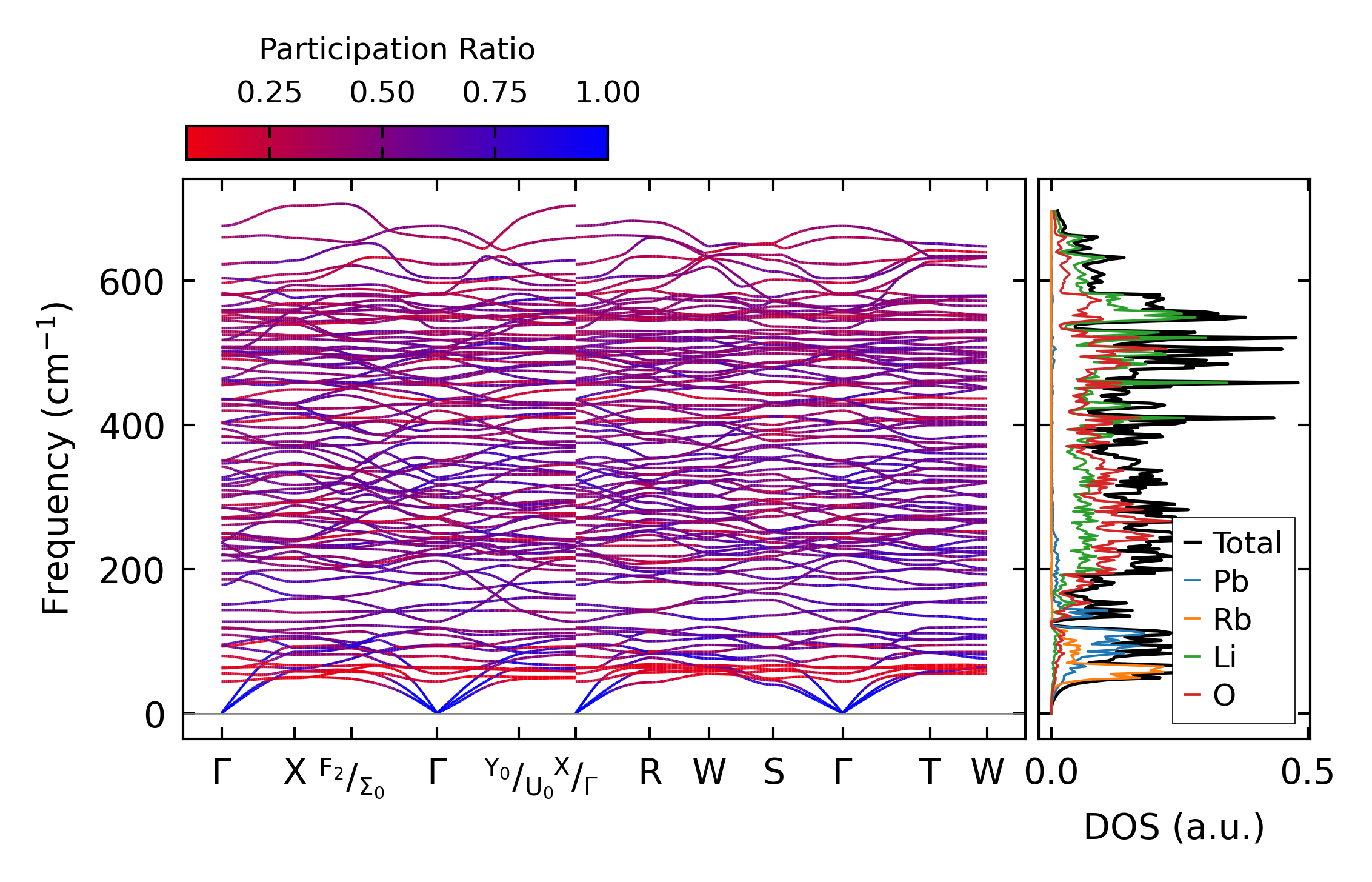

../../_images/fig_bandos_pr9816.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo9816.png — (b) Thermodynamic properties

Grüneisen parameters

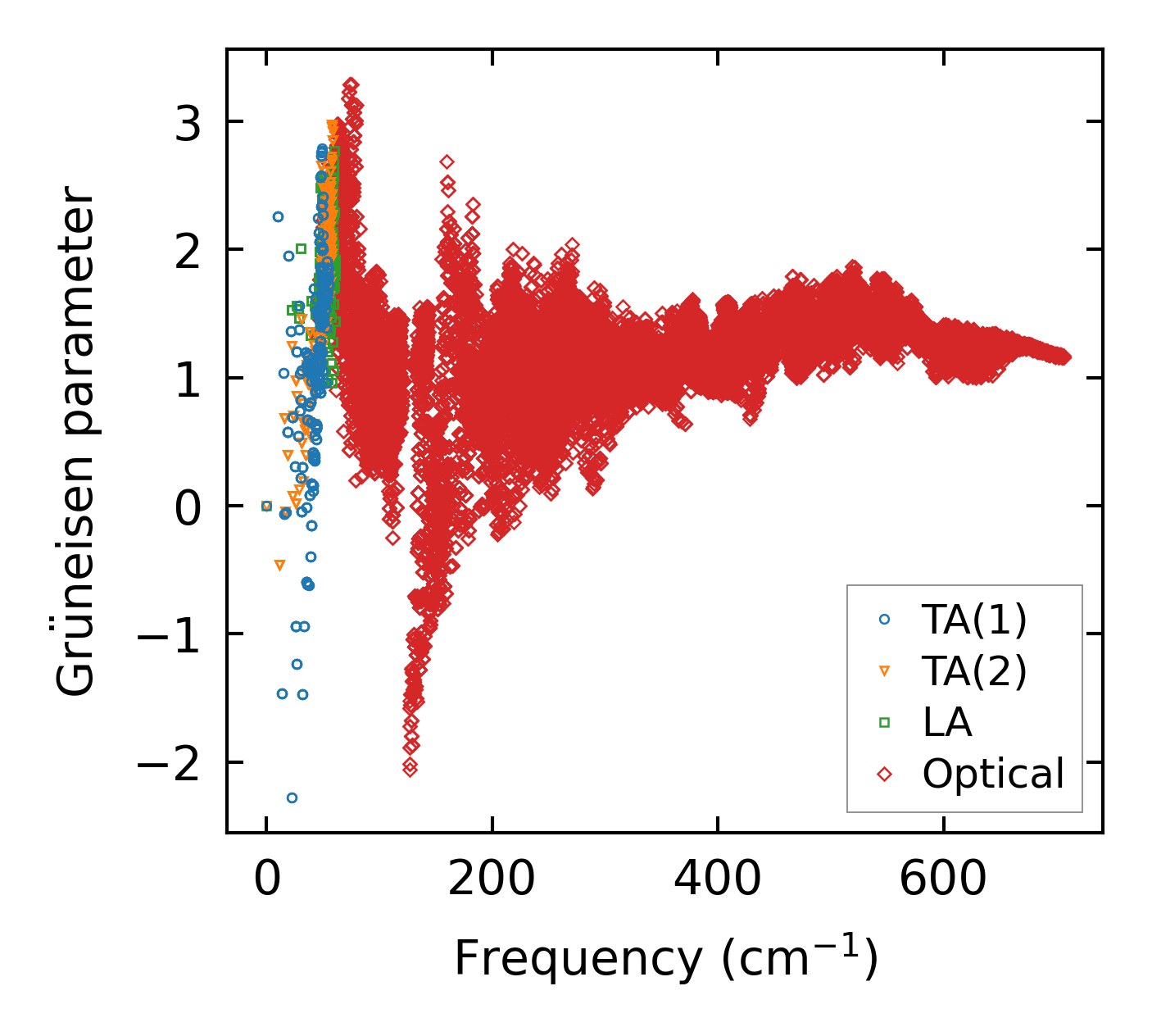

../../_images/fig_gru_all3926.png — (a) Grüneisen parameters

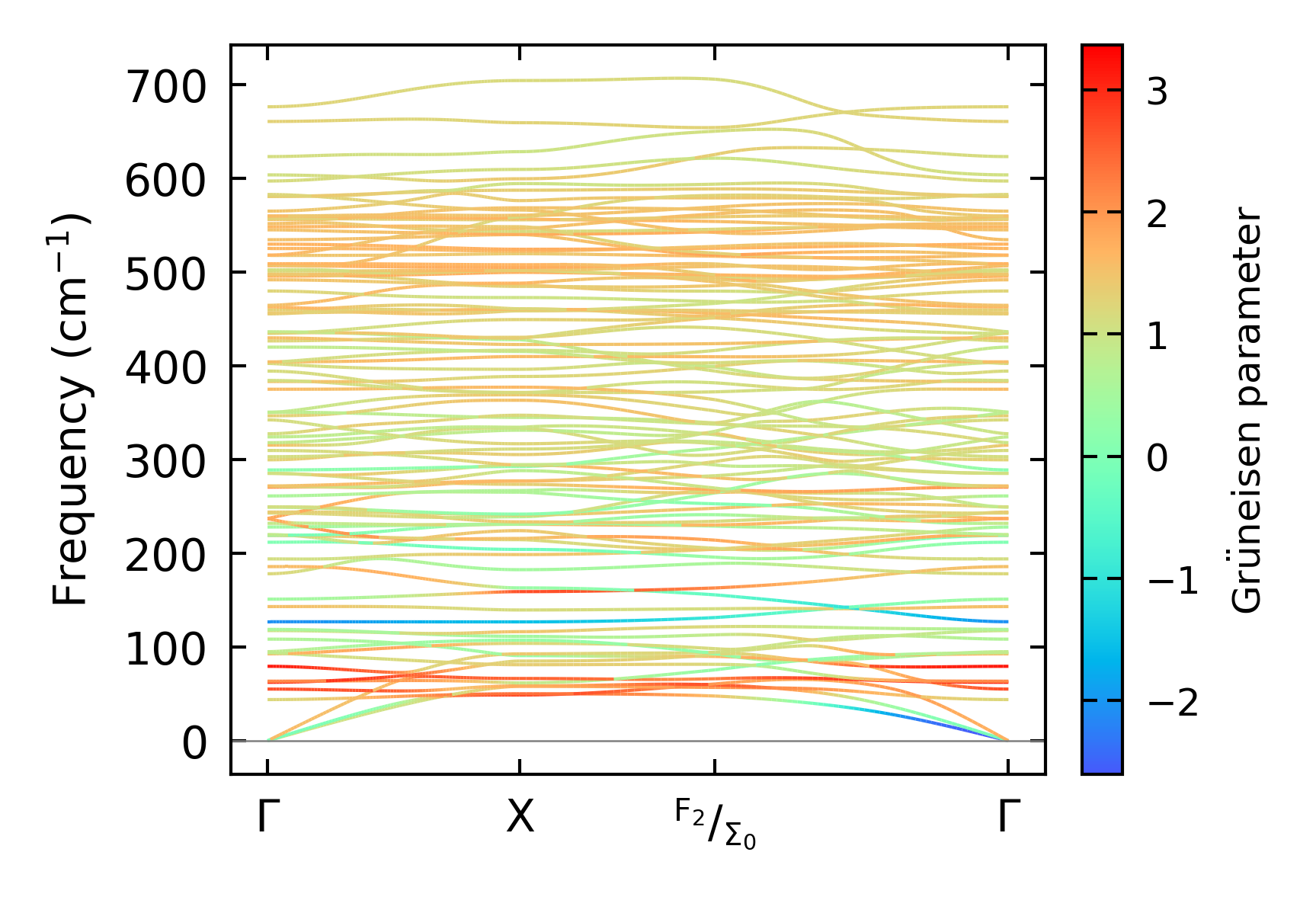

../../_images/fig_gruneisen3926.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x10, supercell: 2x1x1

../../_images/fig_kappa7403.png — (a) Temperature-dependent lattice thermal conductivity

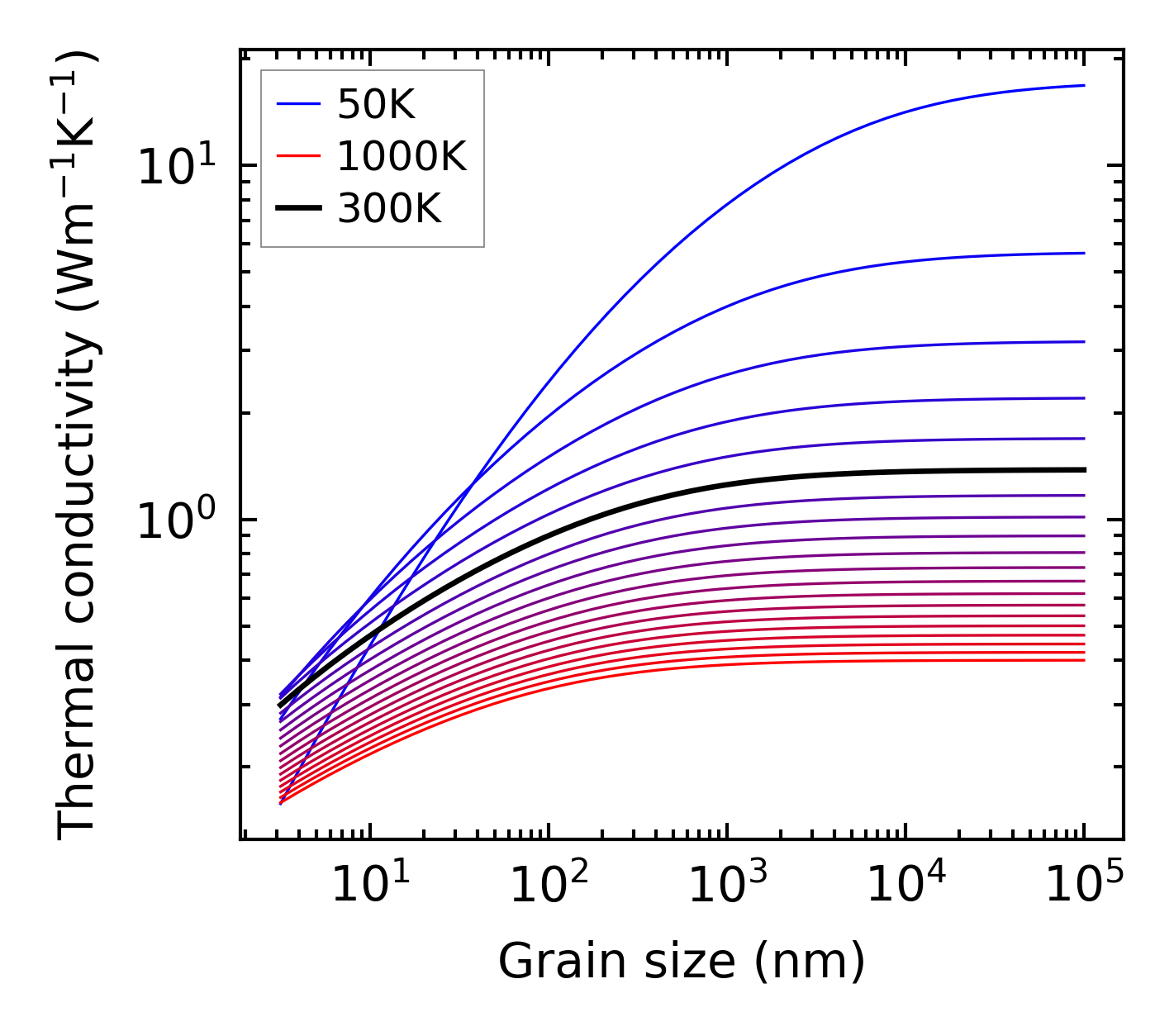

../../_images/fig_kappa_vs_grain_size3977.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime3889.png — (a) Phonon lifetime due to phonon-phonon scattering

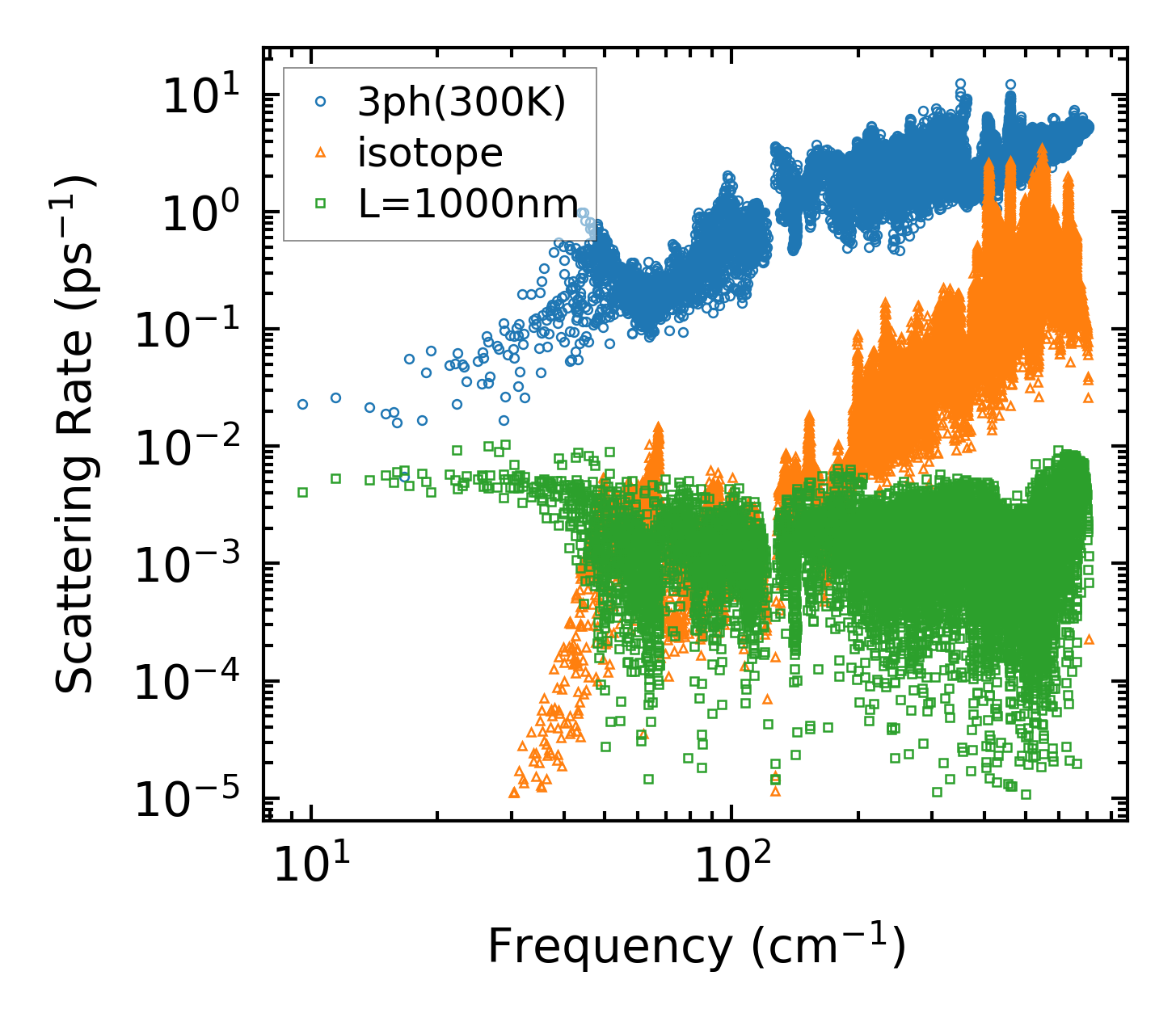

../../_images/fig_scat_rates3888.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency3889.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

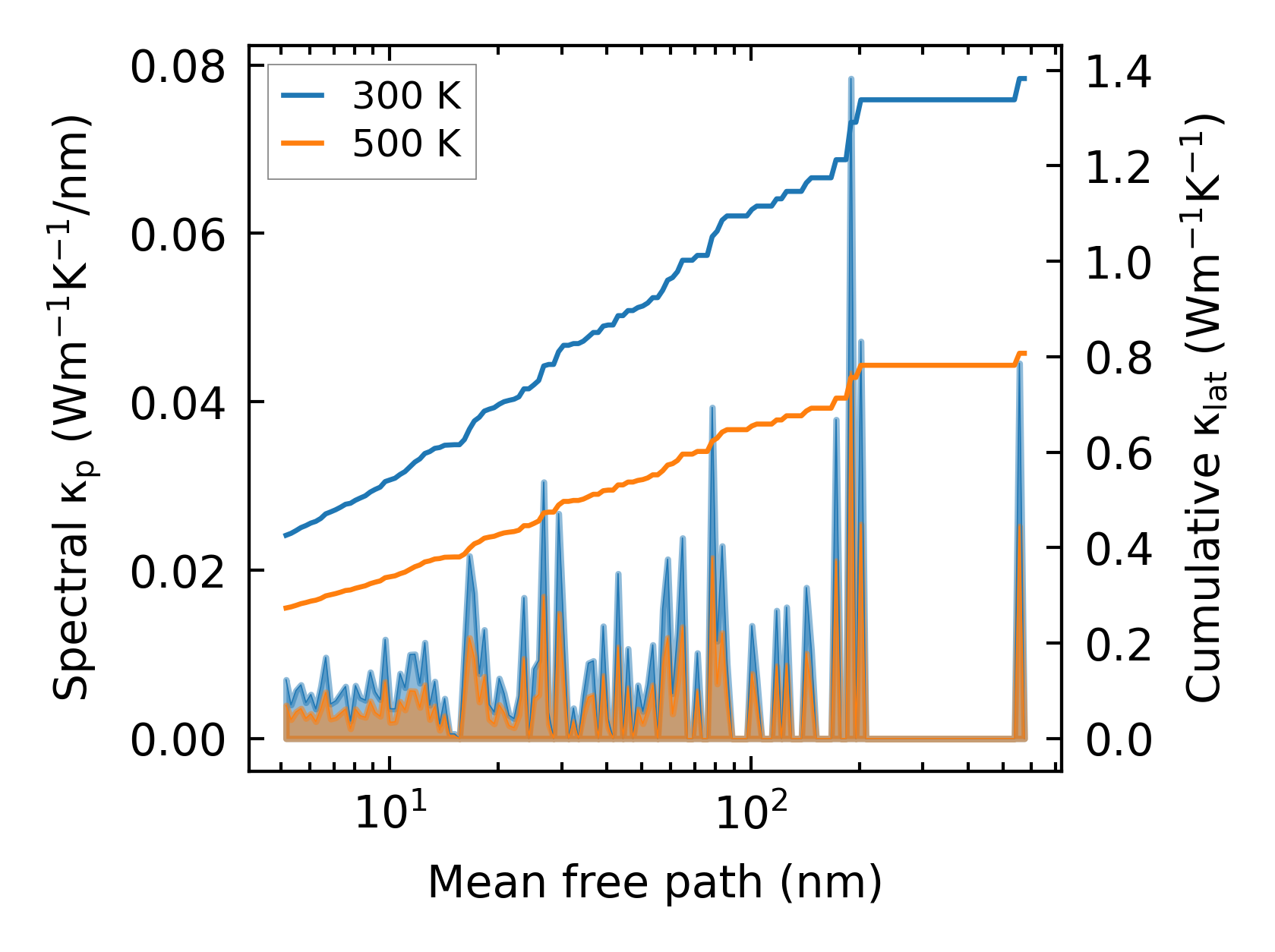

../../_images/fig_cumu_mfp3888.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc29571.png — (a) Force constants w.r.t atomic distance

Summary

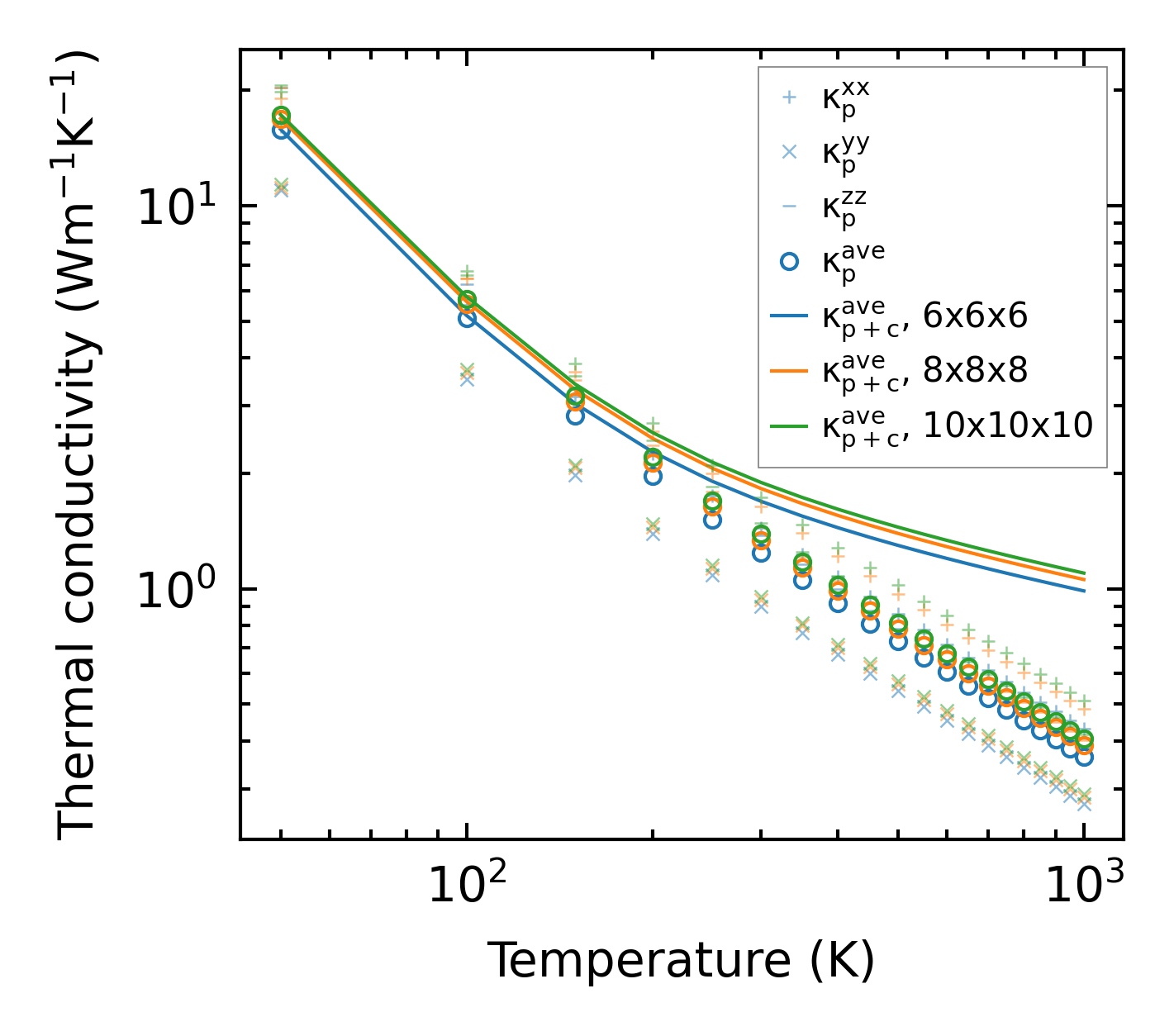

../../_images/fig_kappa7404.png — (a) Temperature-dependent lattice thermal conductivity

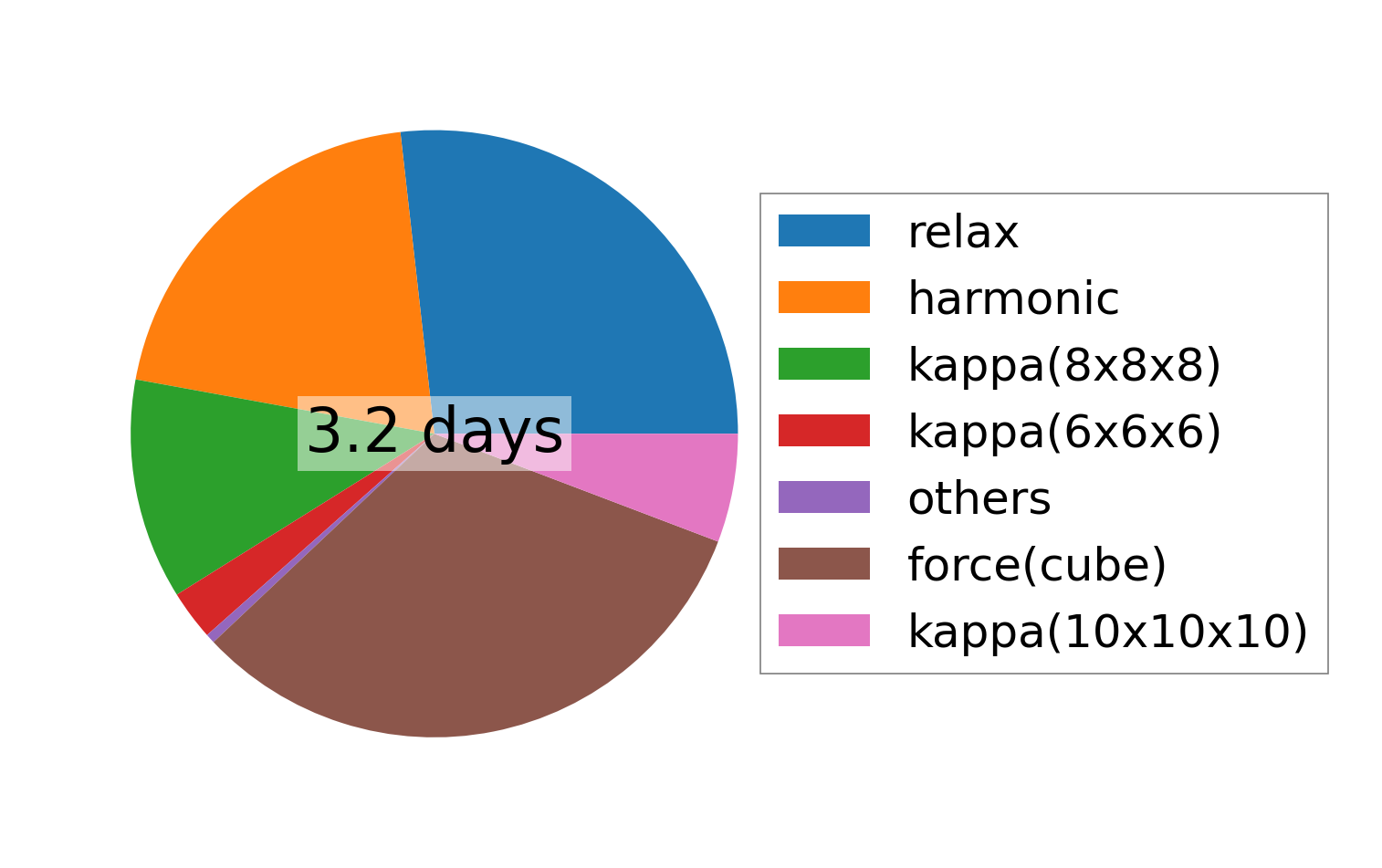

../../_images/fig_times17065.png — (b) Computation time
