mp-504554/Ba5Ta4O15/anharm

Space group: P-3m1 (164)
Link: Materials Project
Download: mp-504554.tar.gz

Harmonic properties

../../_images/fig_bandos_pr9800.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo9800.png — (b) Thermodynamic properties

Grüneisen parameters

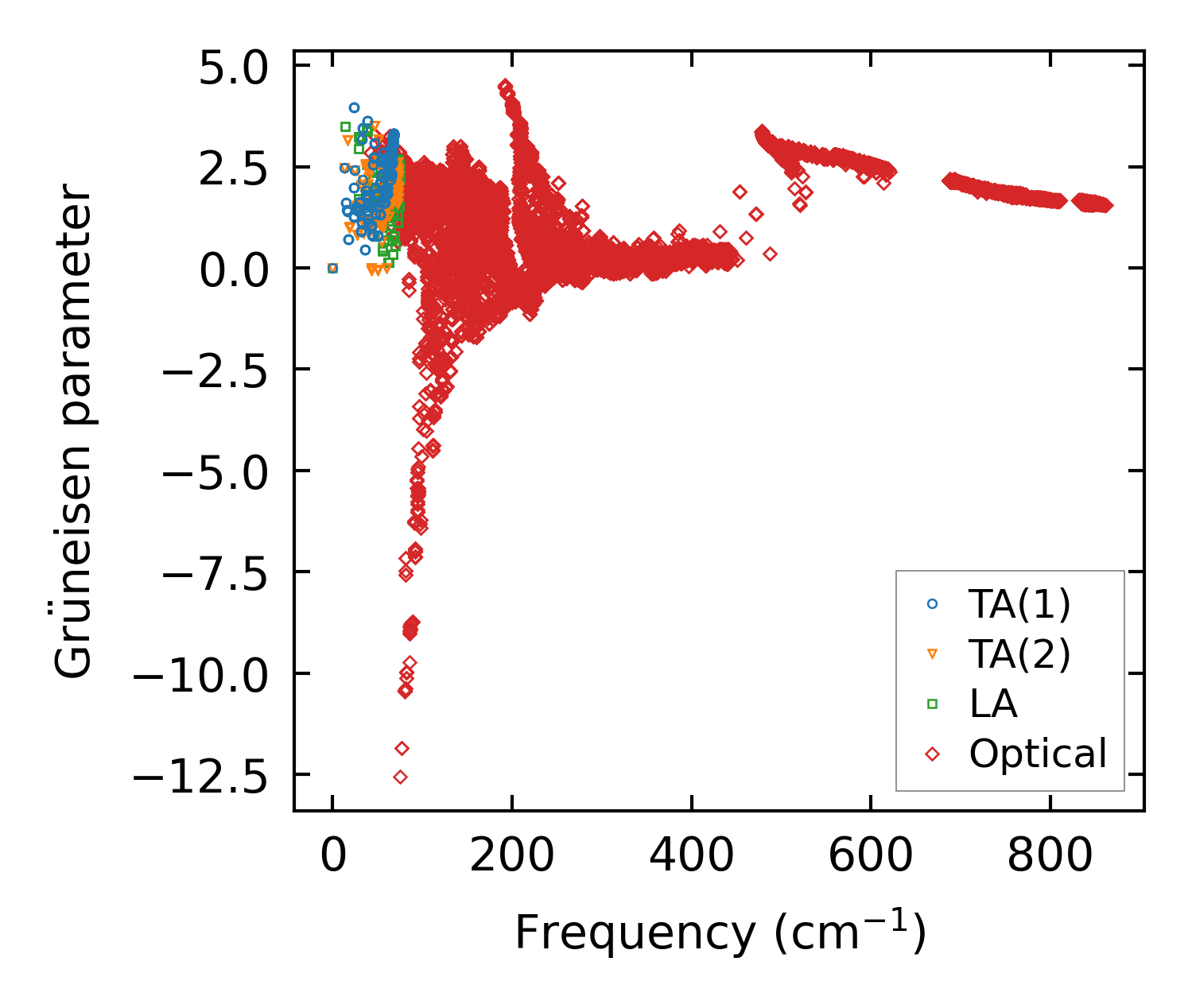

../../_images/fig_gru_all3920.png — (a) Grüneisen parameters

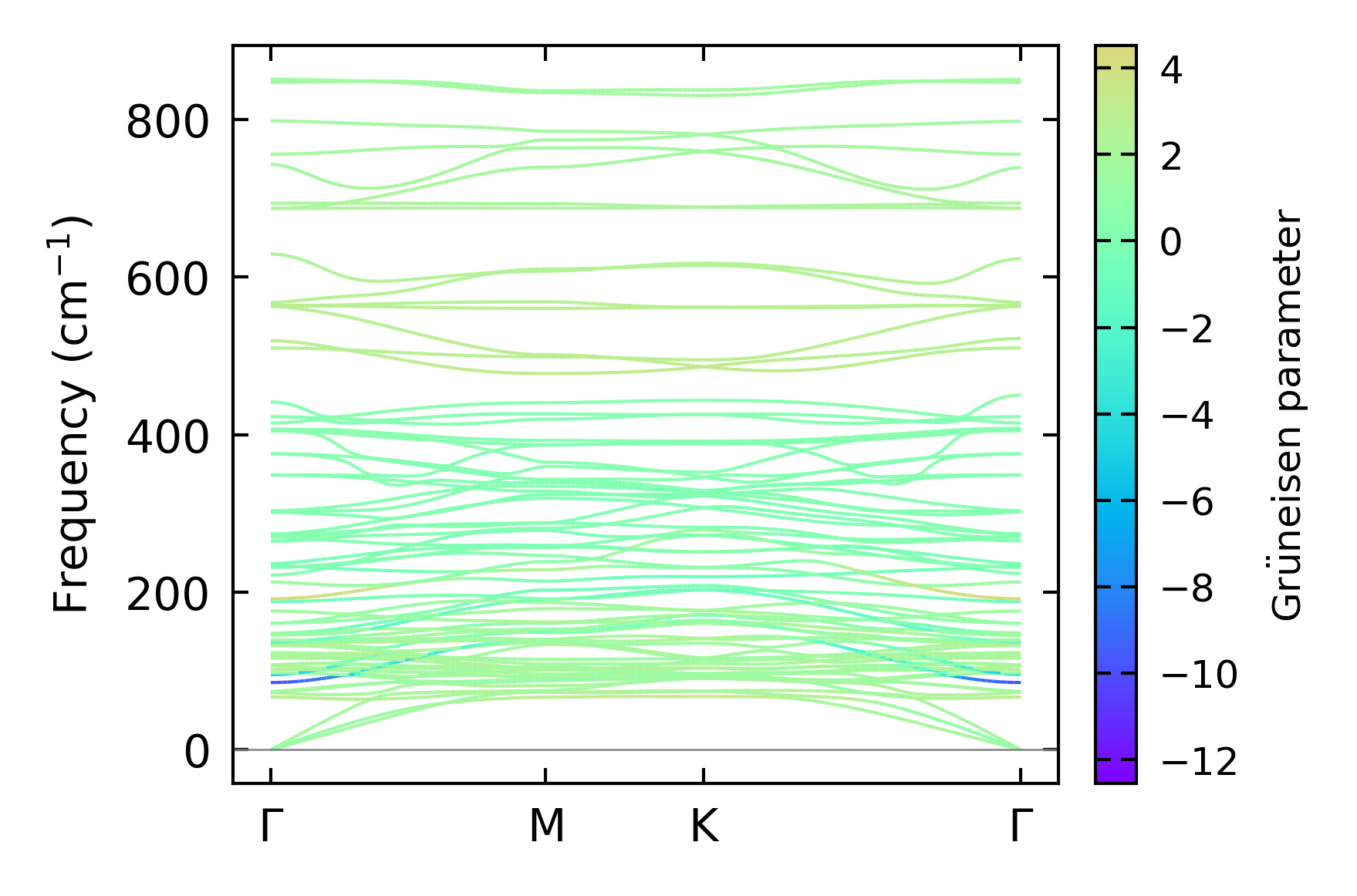

../../_images/fig_gruneisen3920.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x13x6, supercell: 2x2x1

../../_images/fig_kappa7392.png — (a) Temperature-dependent lattice thermal conductivity

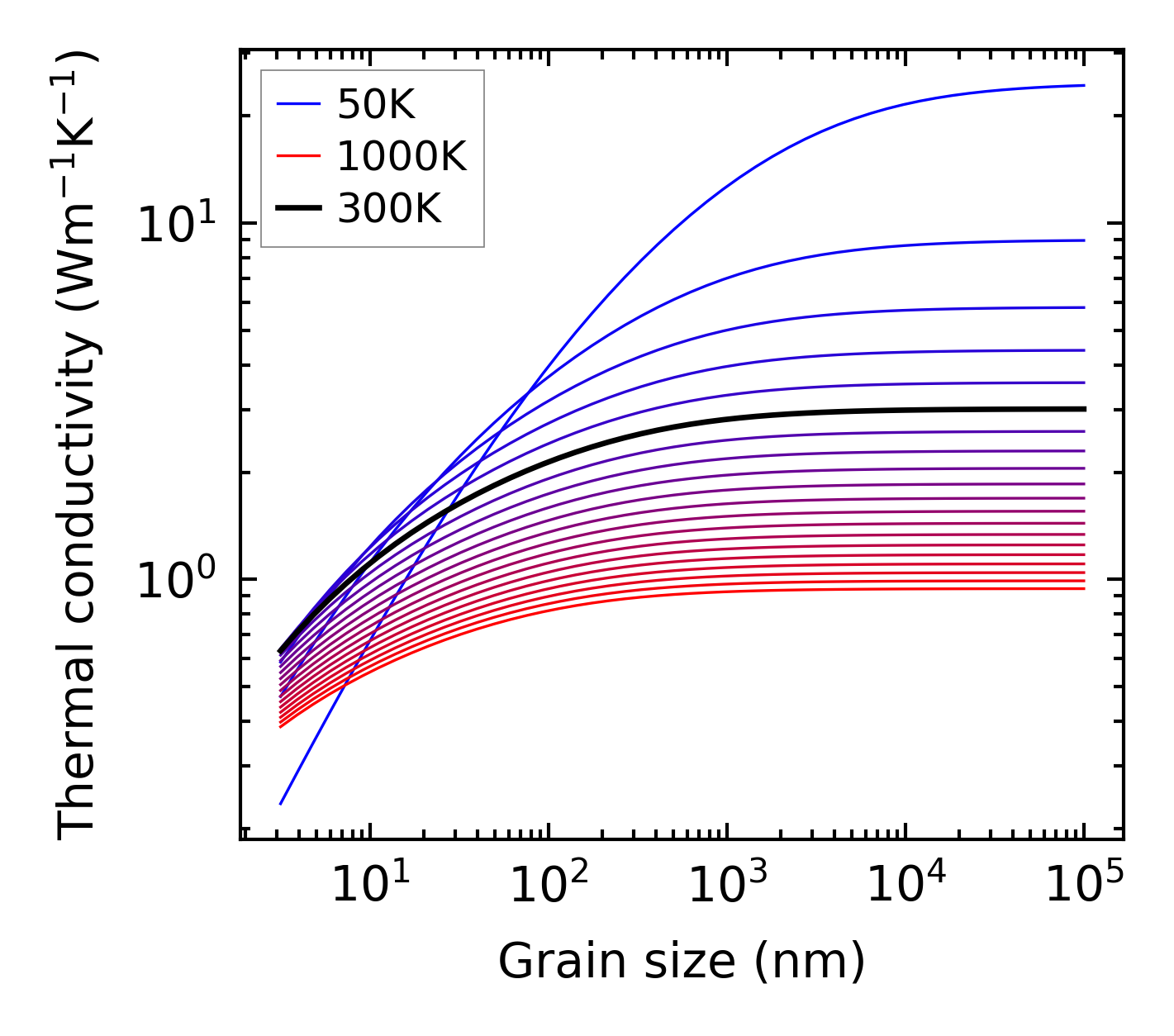

../../_images/fig_kappa_vs_grain_size3971.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

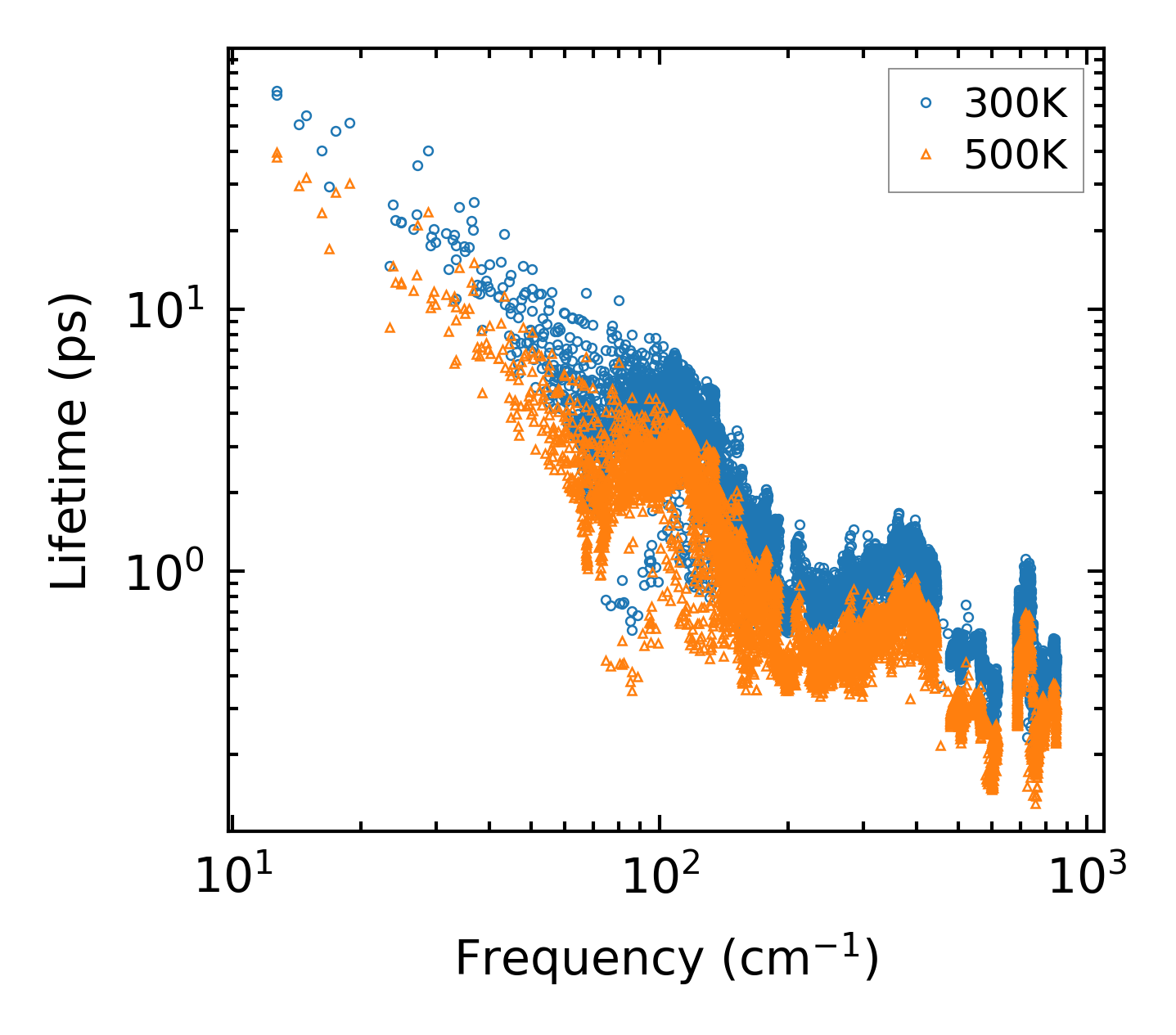

../../_images/fig_lifetime3883.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates3882.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

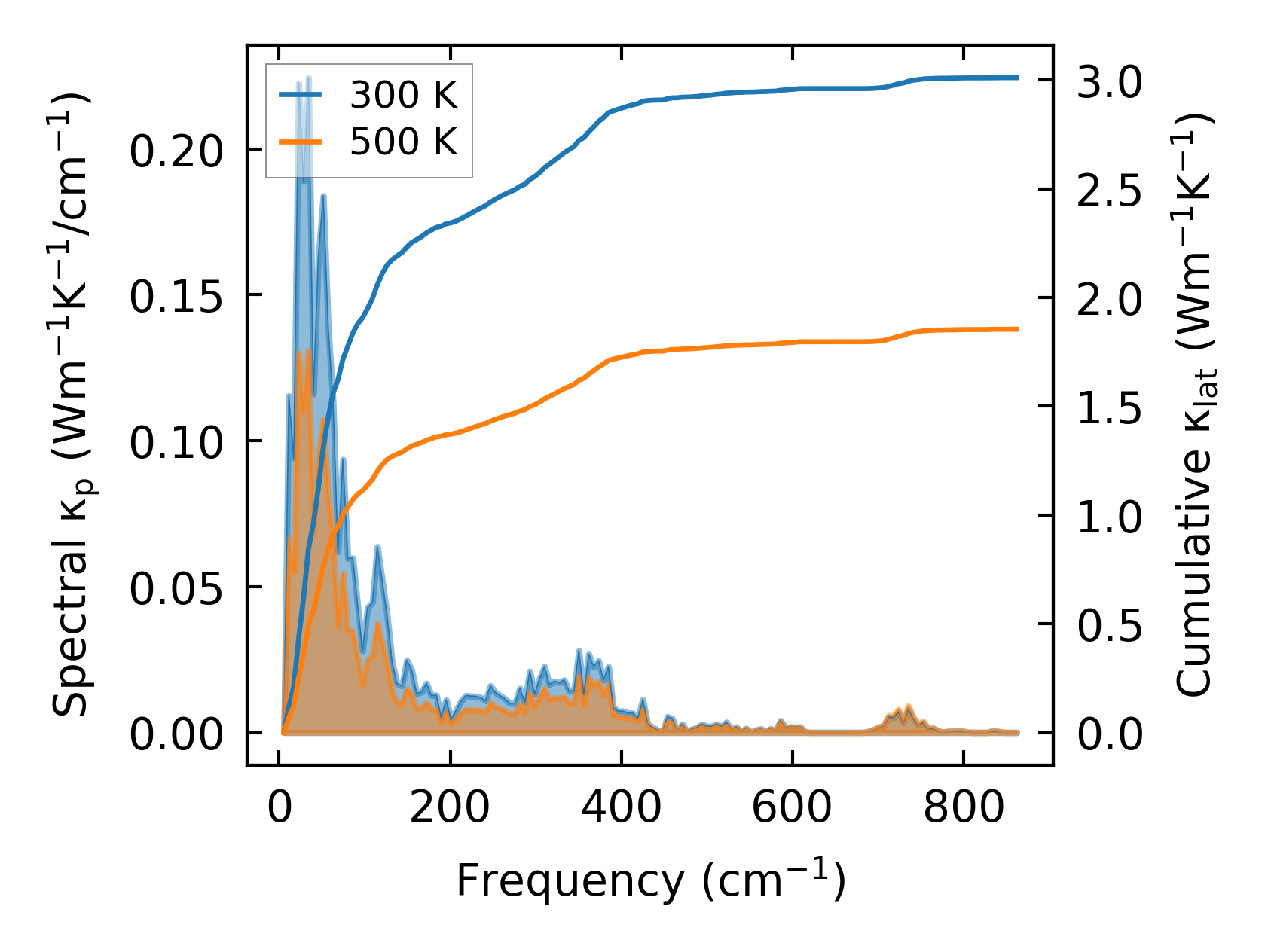

../../_images/fig_cumu_frequency3883.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

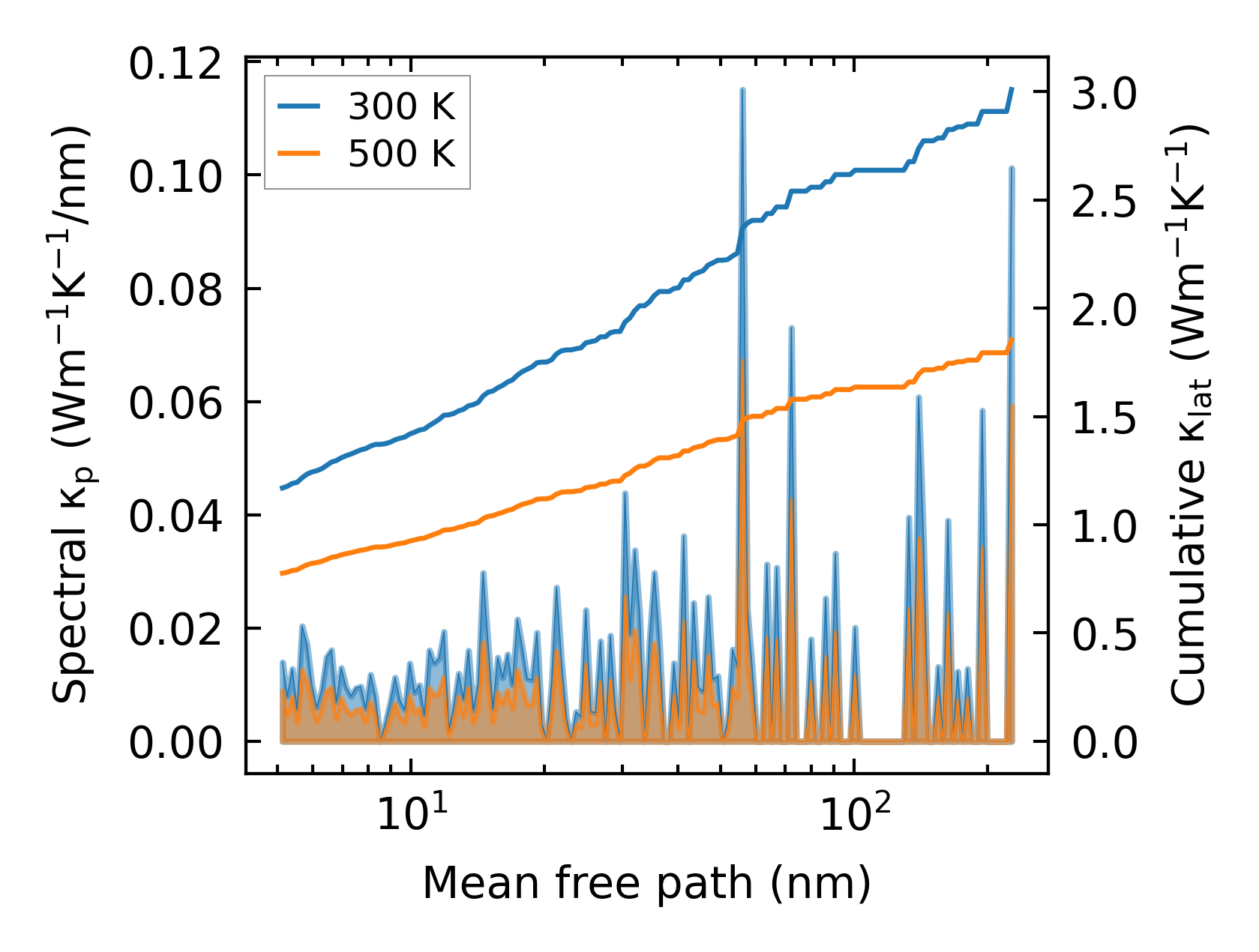

../../_images/fig_cumu_mfp3882.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

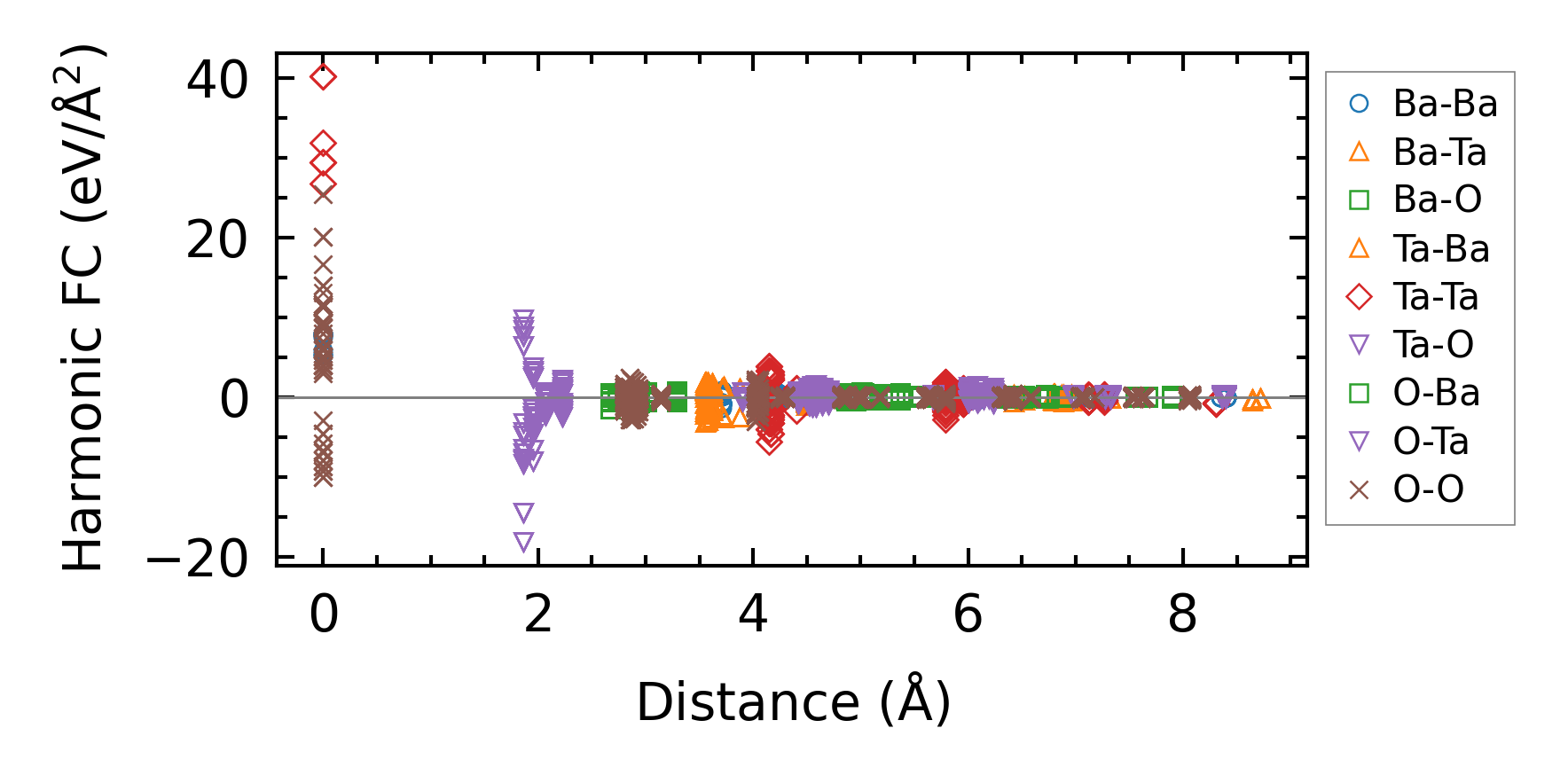

../../_images/fig_fc29556.png — (a) Force constants w.r.t atomic distance

Summary

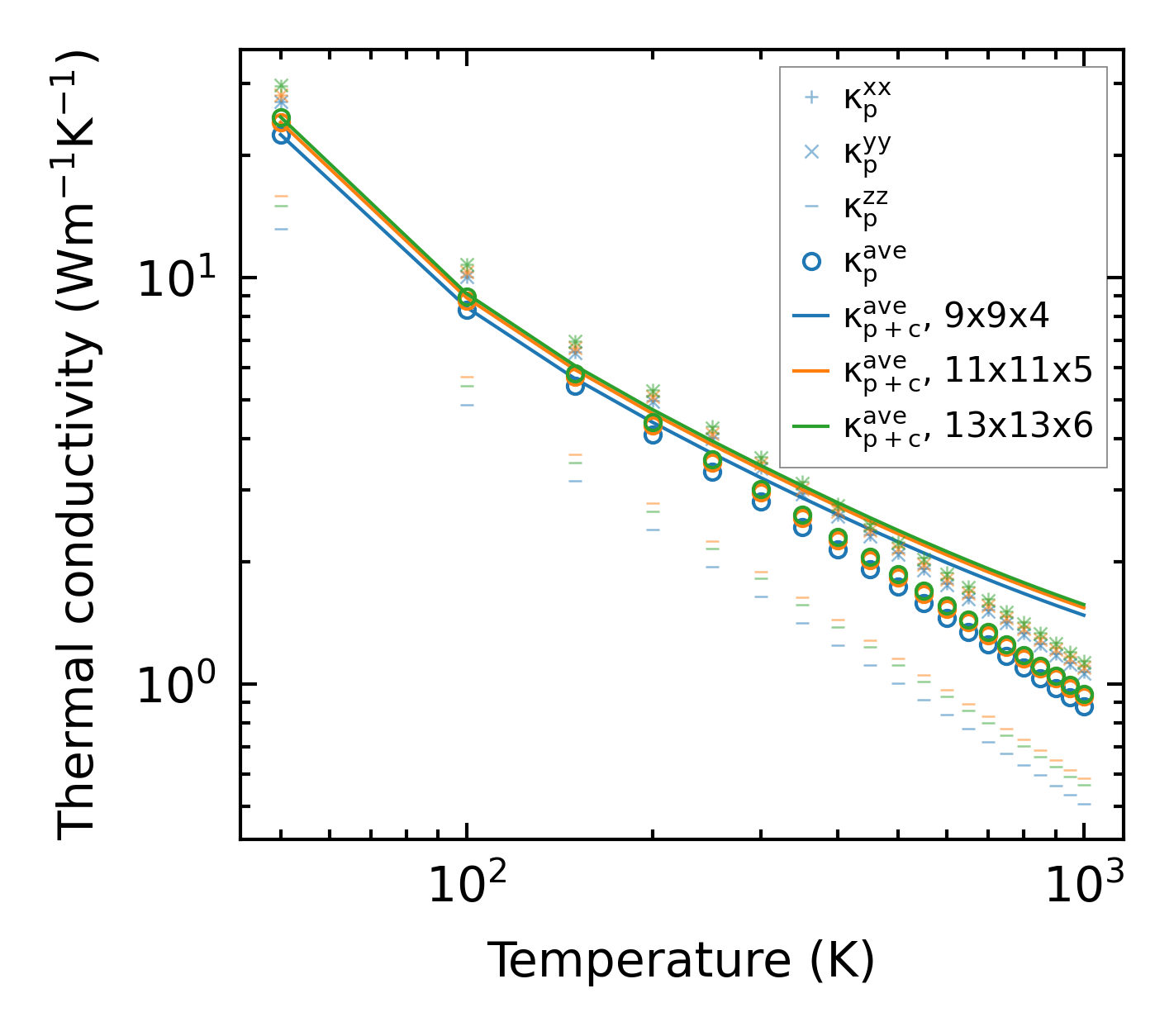

../../_images/fig_kappa7393.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times17030.png — (b) Computation time
