mp-38951/MgGa2O4/anharm

Space group: Imma (74)
Link: Materials Project
Download: mp-38951.tar.gz

Harmonic properties

../../_images/fig_bandos_pr10269.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo10269.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all4146.png — (a) Grüneisen parameters

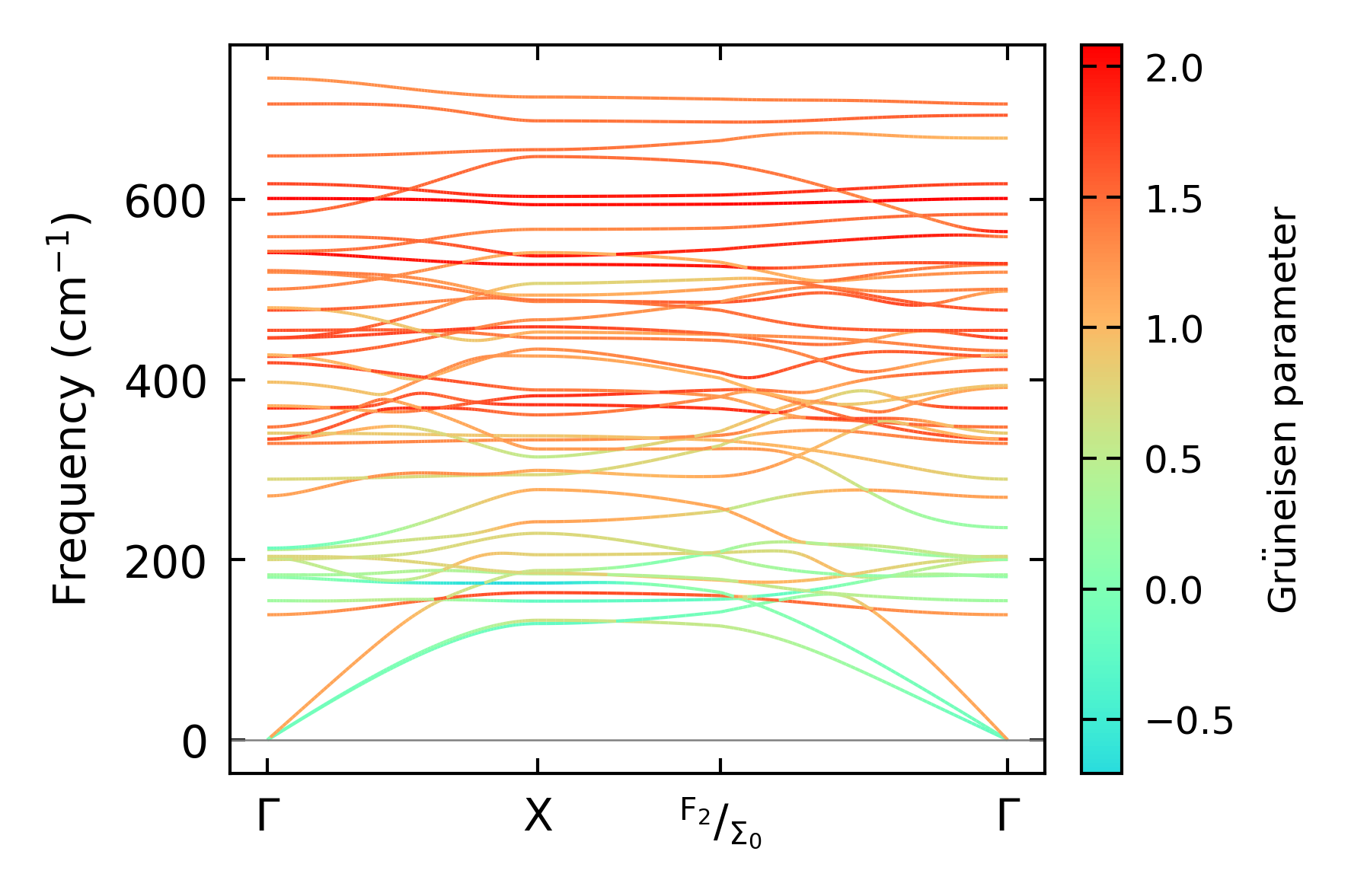

../../_images/fig_gruneisen4146.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x13x13, supercell: 2x2x1

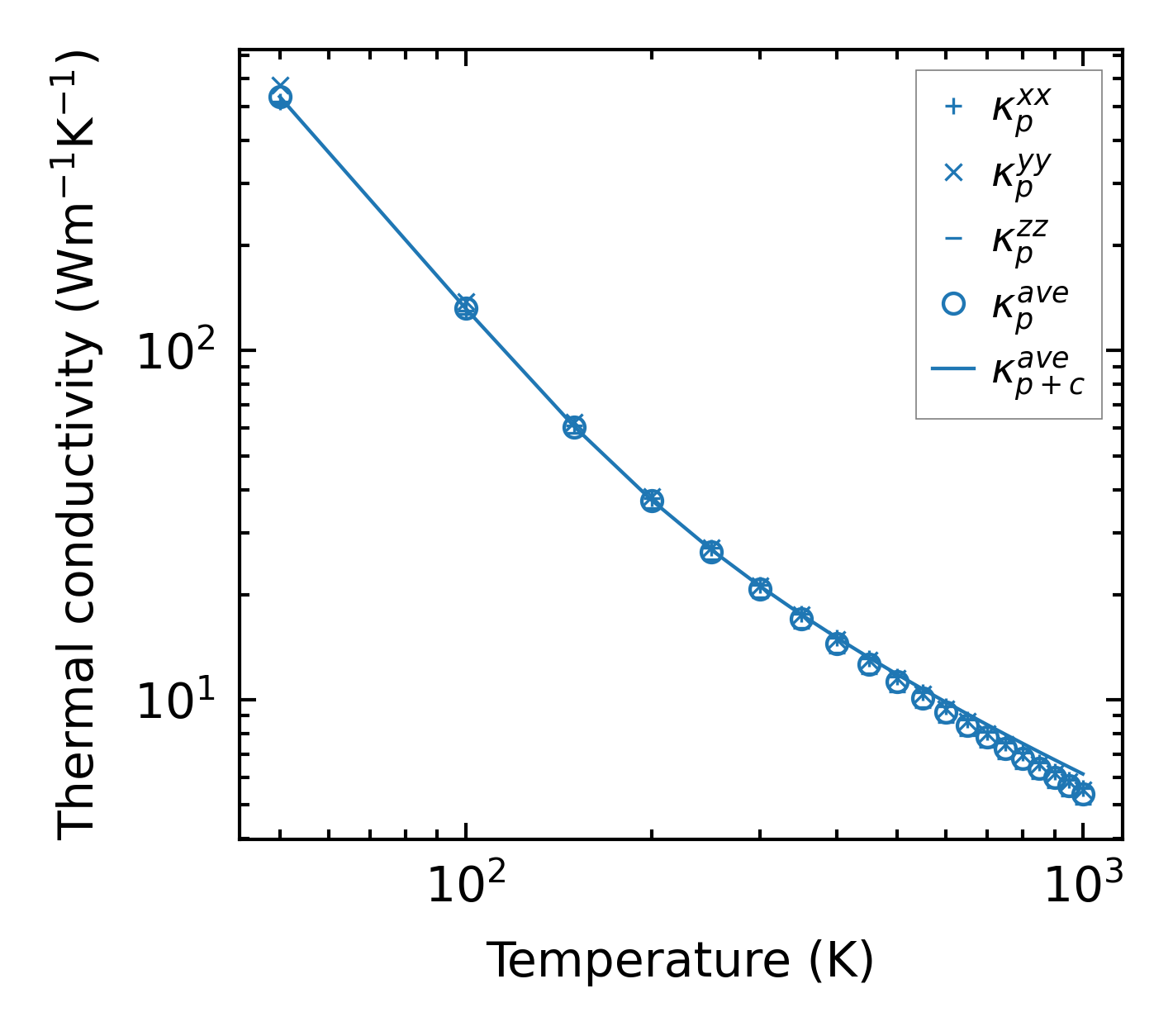

../../_images/fig_kappa7818.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size4201.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

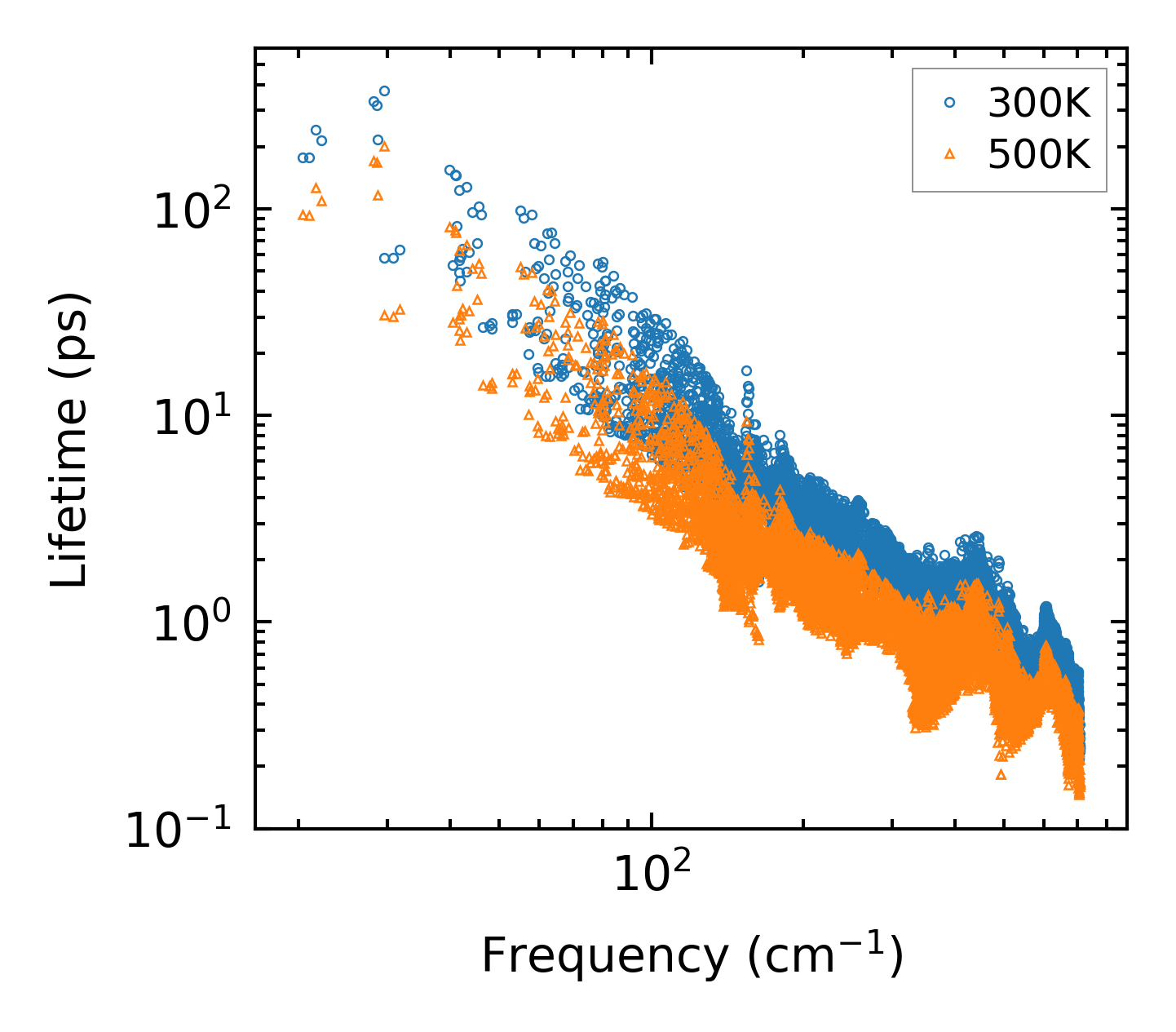

../../_images/fig_lifetime4108.png — (a) Phonon lifetime due to phonon-phonon scattering

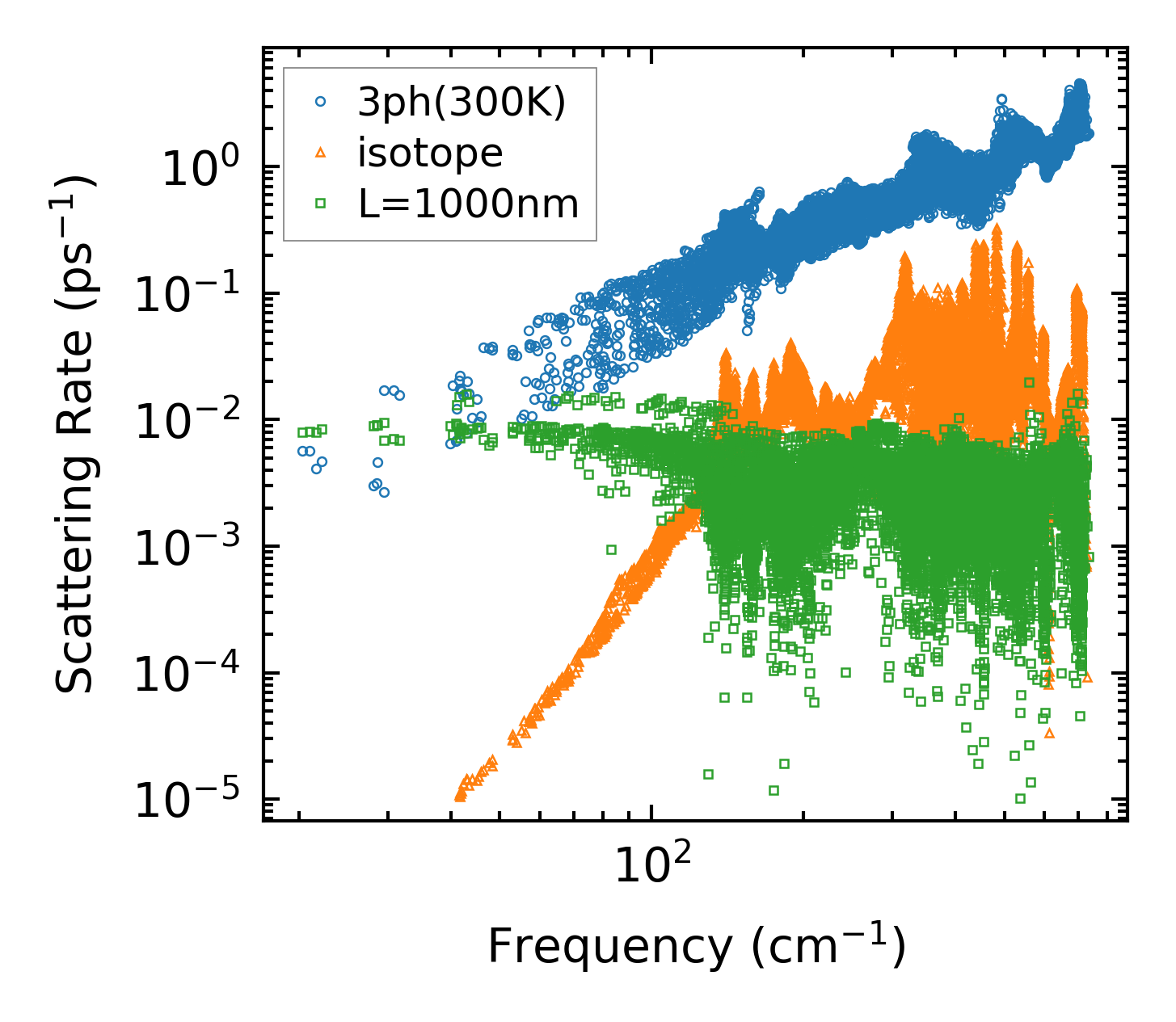

../../_images/fig_scat_rates4107.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency4108.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

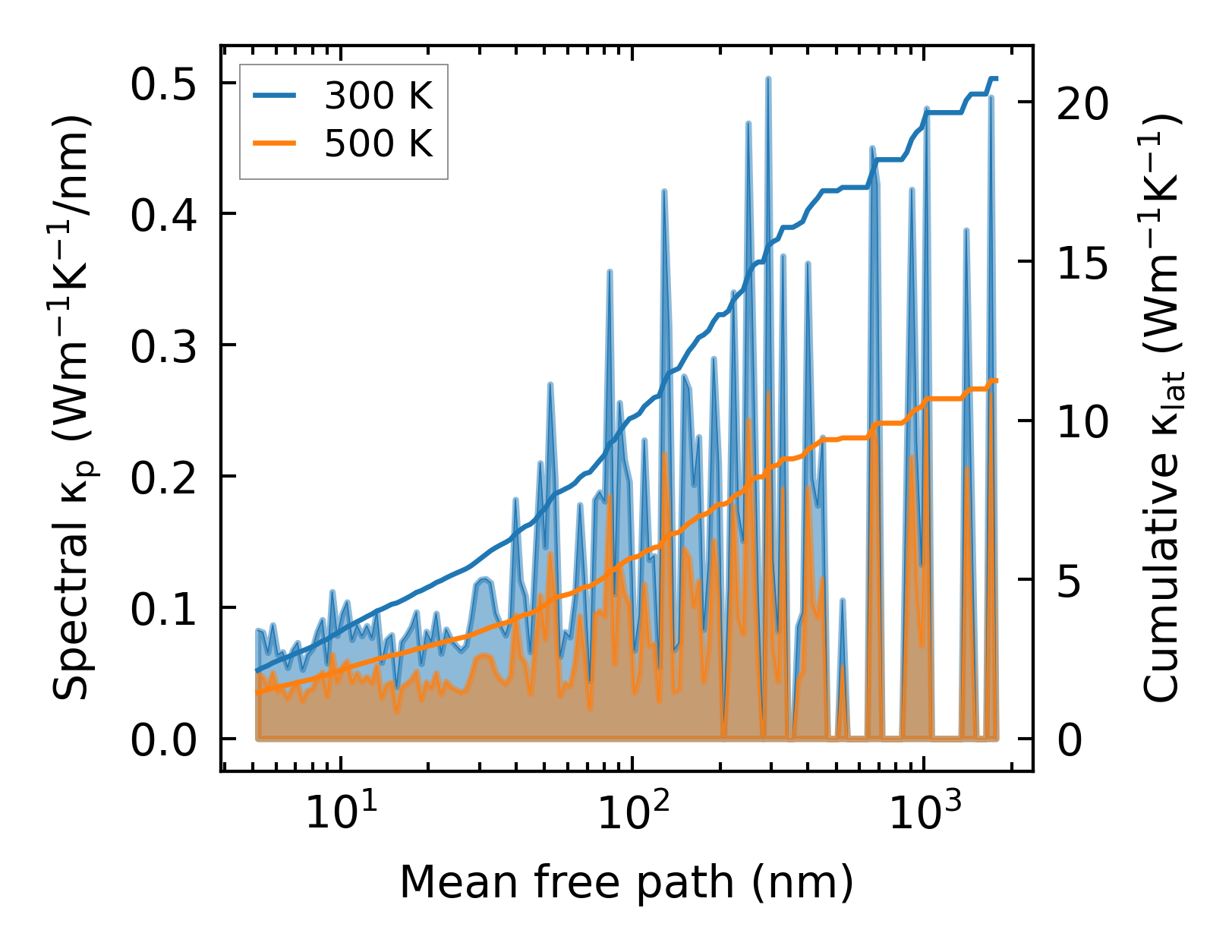

../../_images/fig_cumu_mfp4107.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

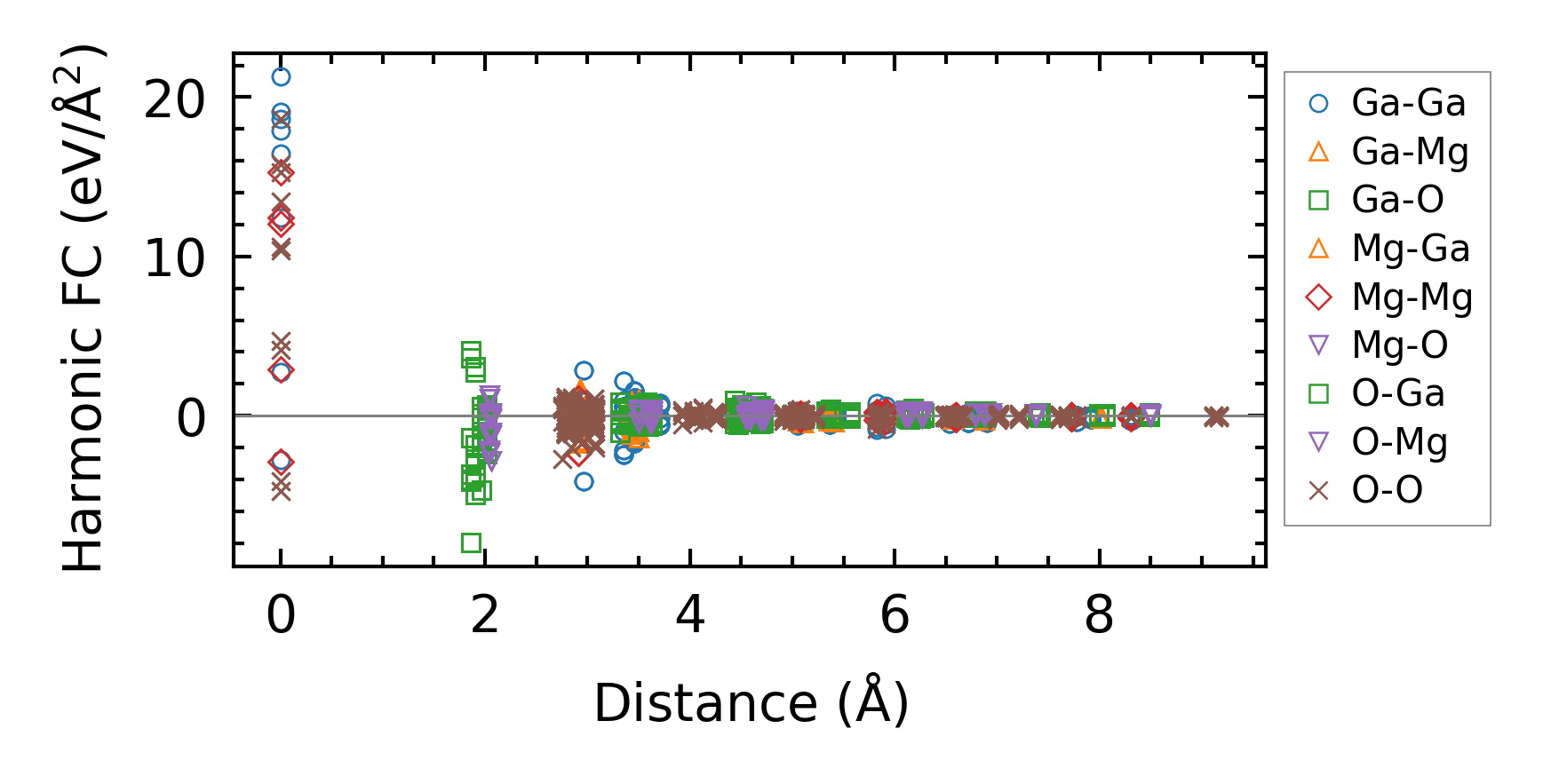

../../_images/fig_fc210019.png — (a) Force constants w.r.t atomic distance

Summary

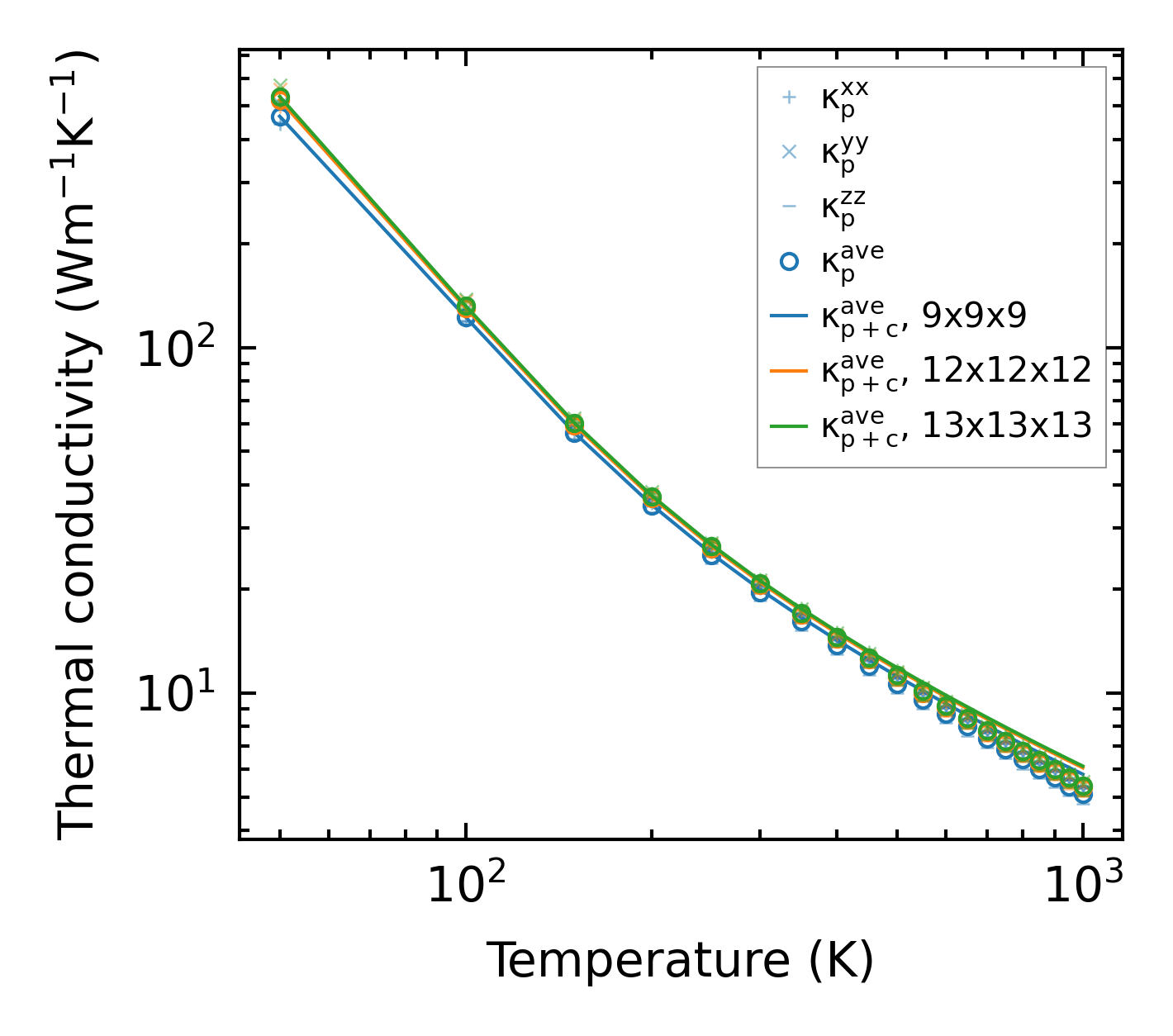

../../_images/fig_kappa7819.png — (a) Temperature-dependent lattice thermal conductivity

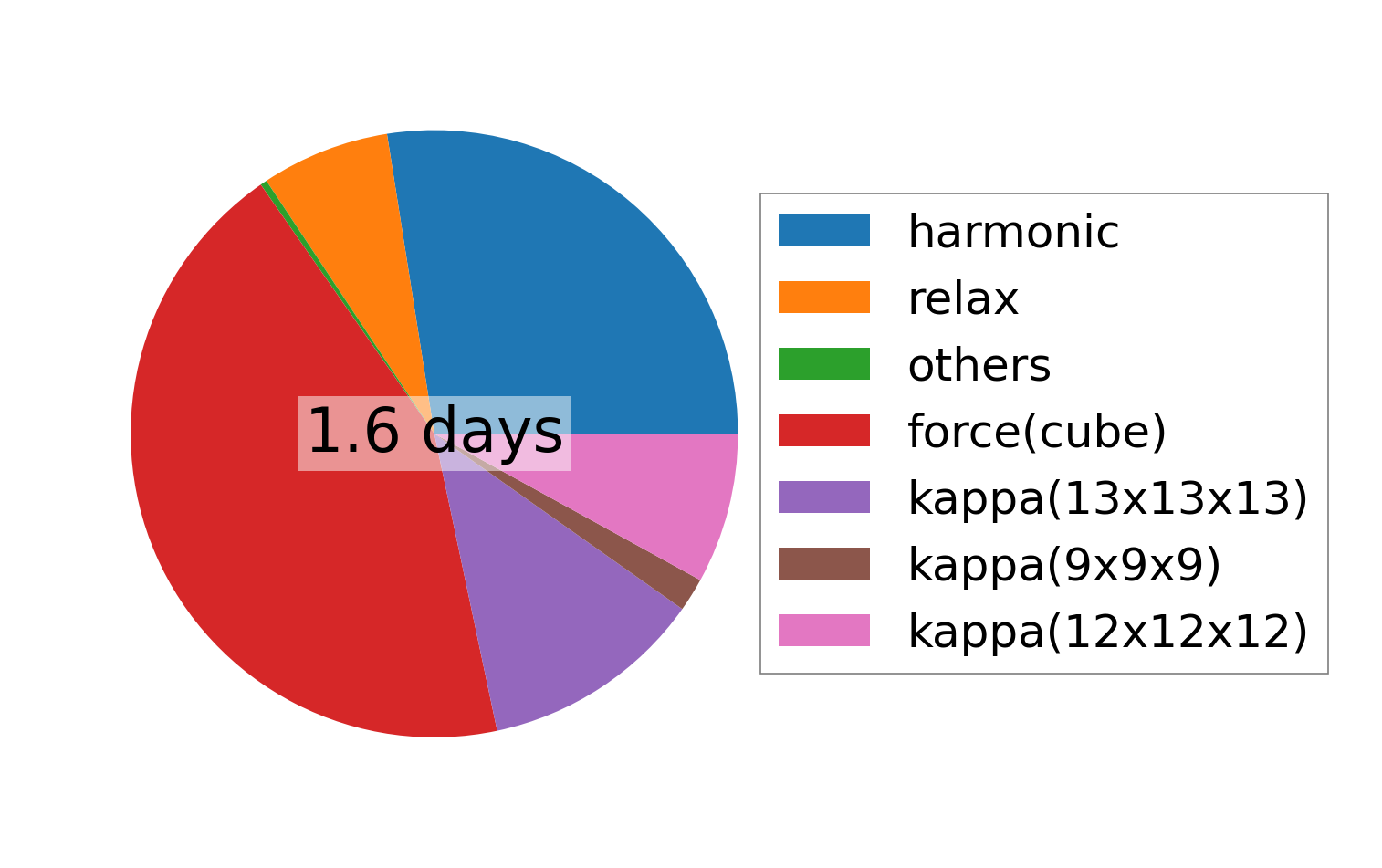

../../_images/fig_times17746.png — (b) Computation time
