mp-36821-2/Nd2CdSe4/harm

Equation of state

../../_images/fig_bm5254.png

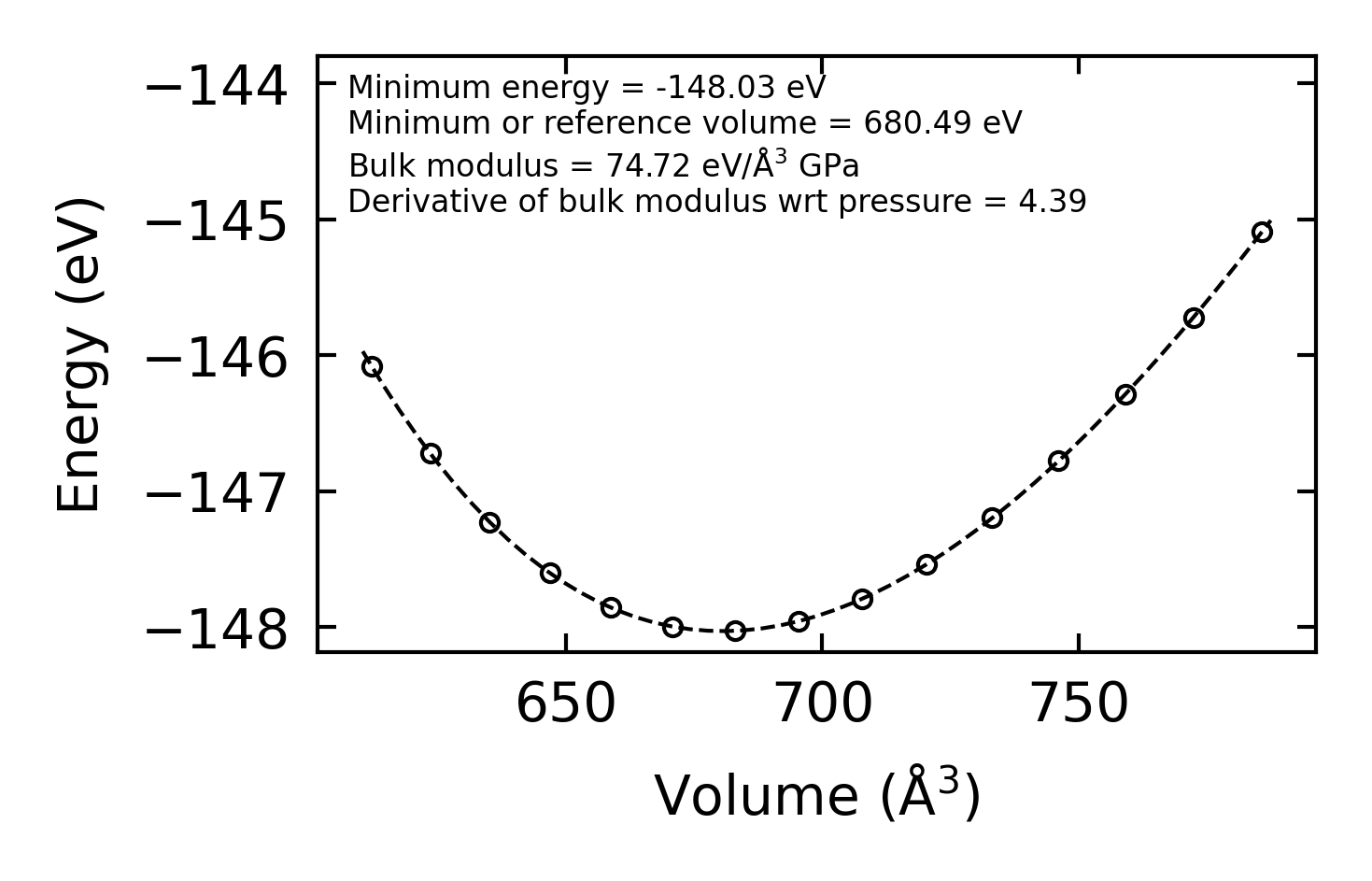

(a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr10568.png

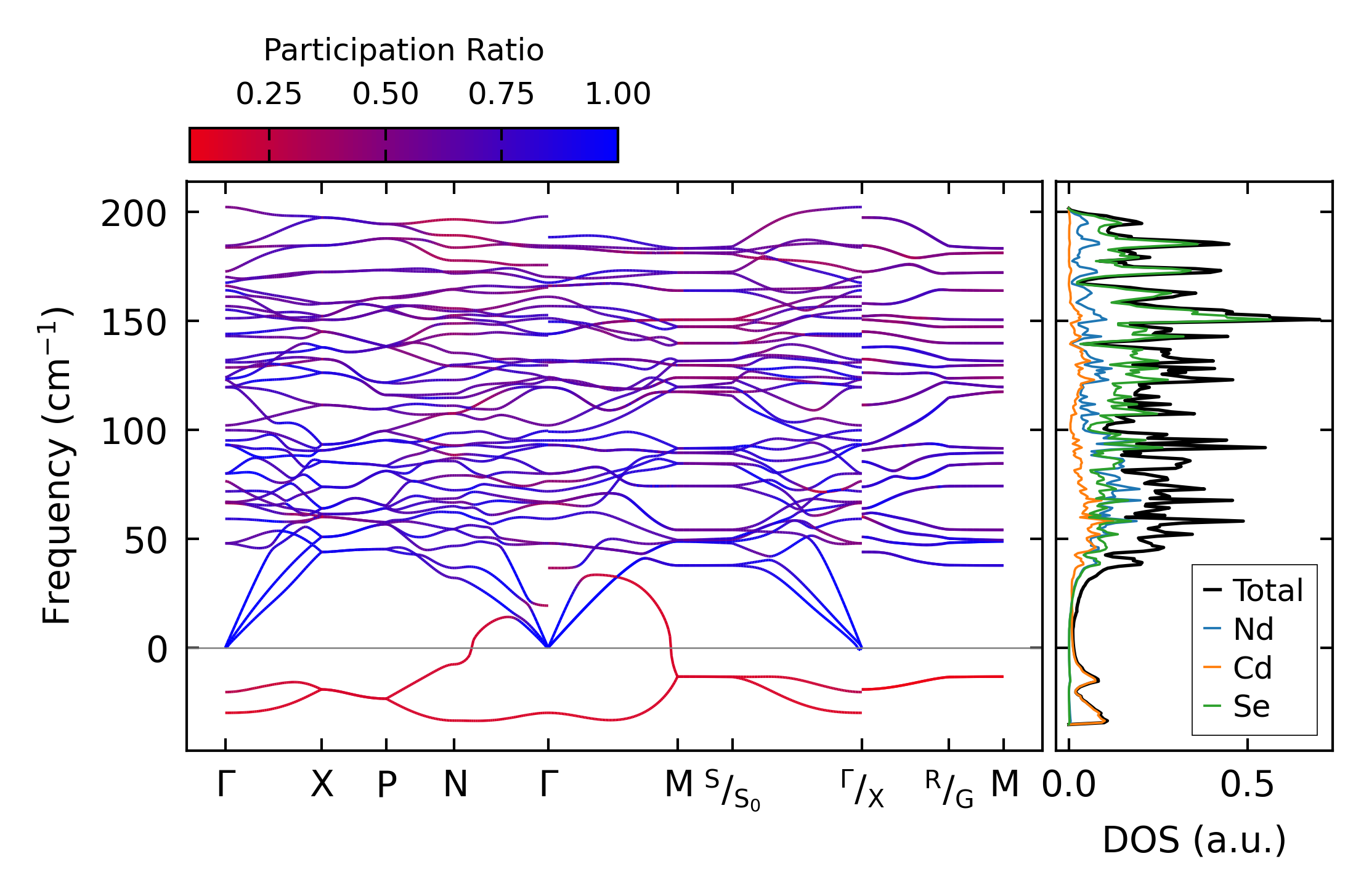

(a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos14488.png

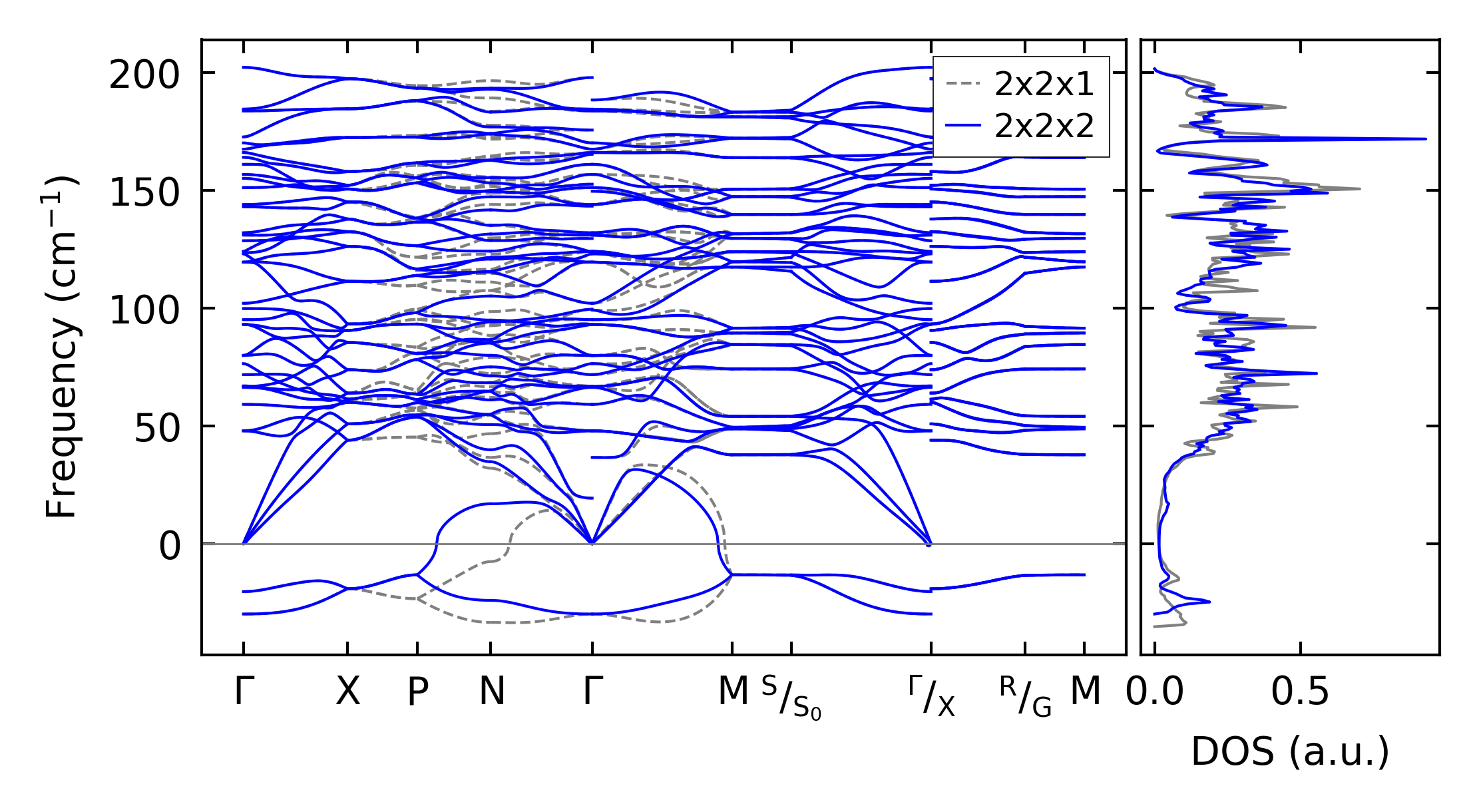

(b) Phonon dispersion and DOS

../../_images/fig_thermo10568.png

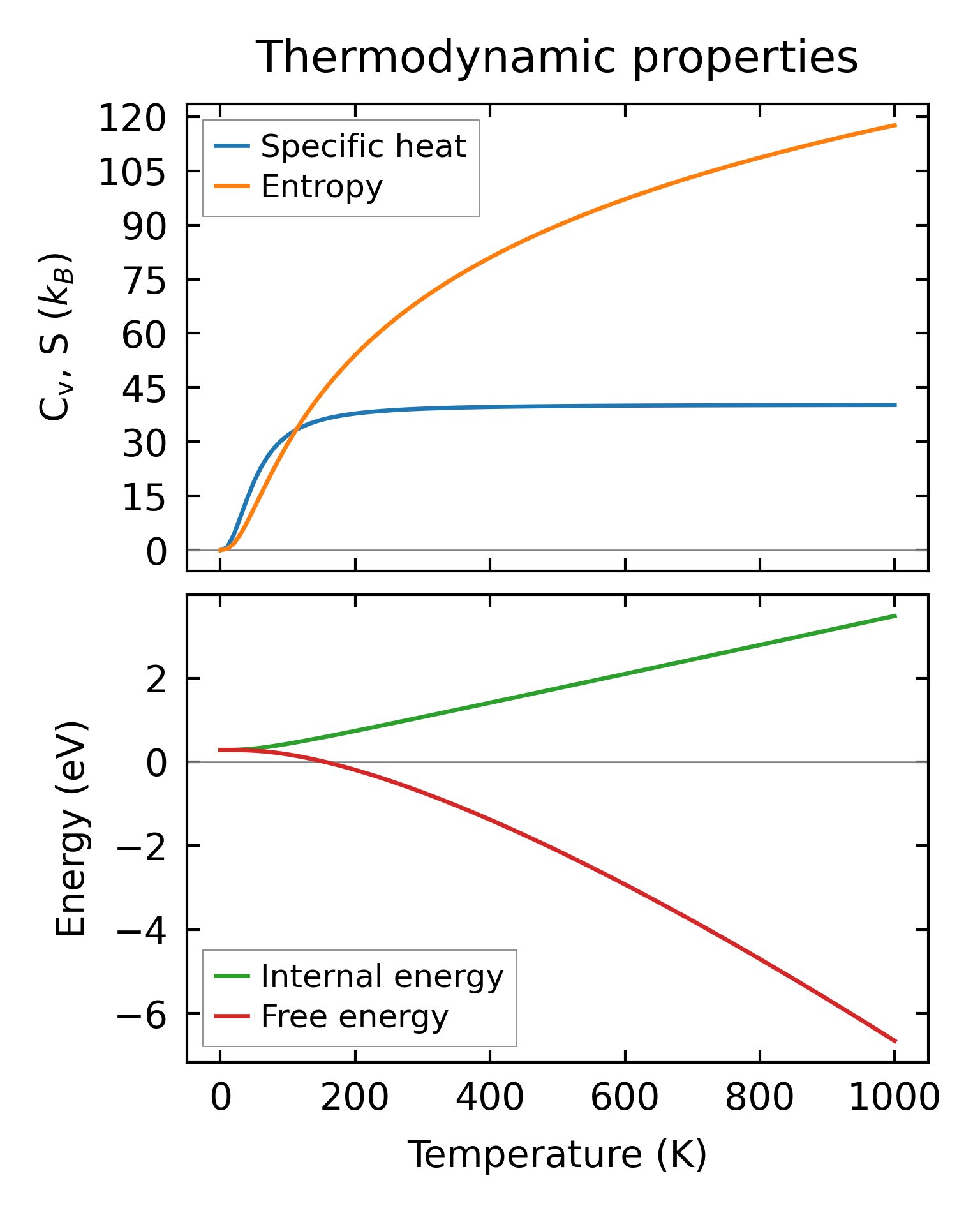

(c) Thermodynamic properties

Force constants

../../_images/fig_fc210304.png

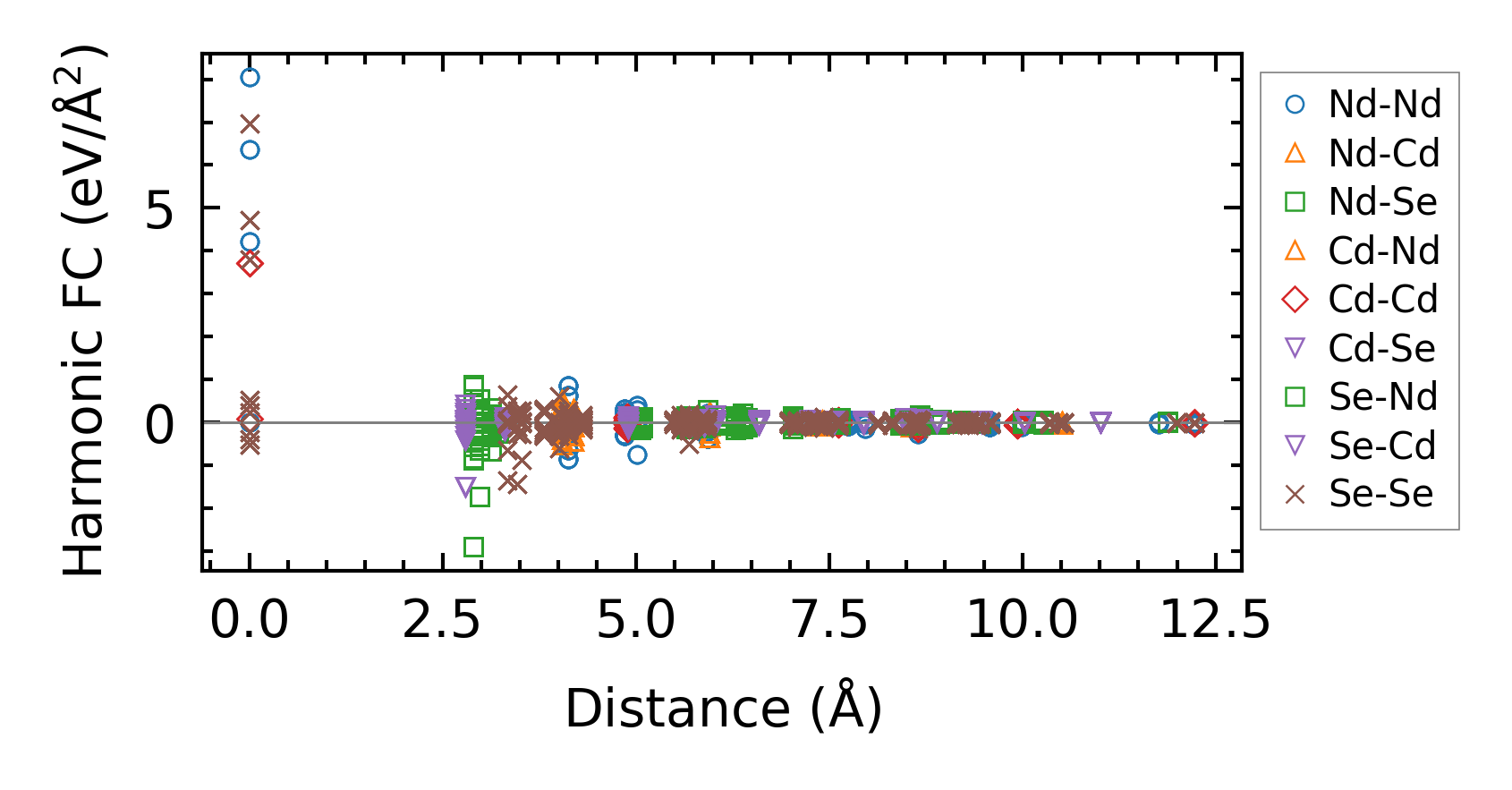

(a) Force constants w.r.t atomic distance

Summary

../../_images/fig_times18169.png

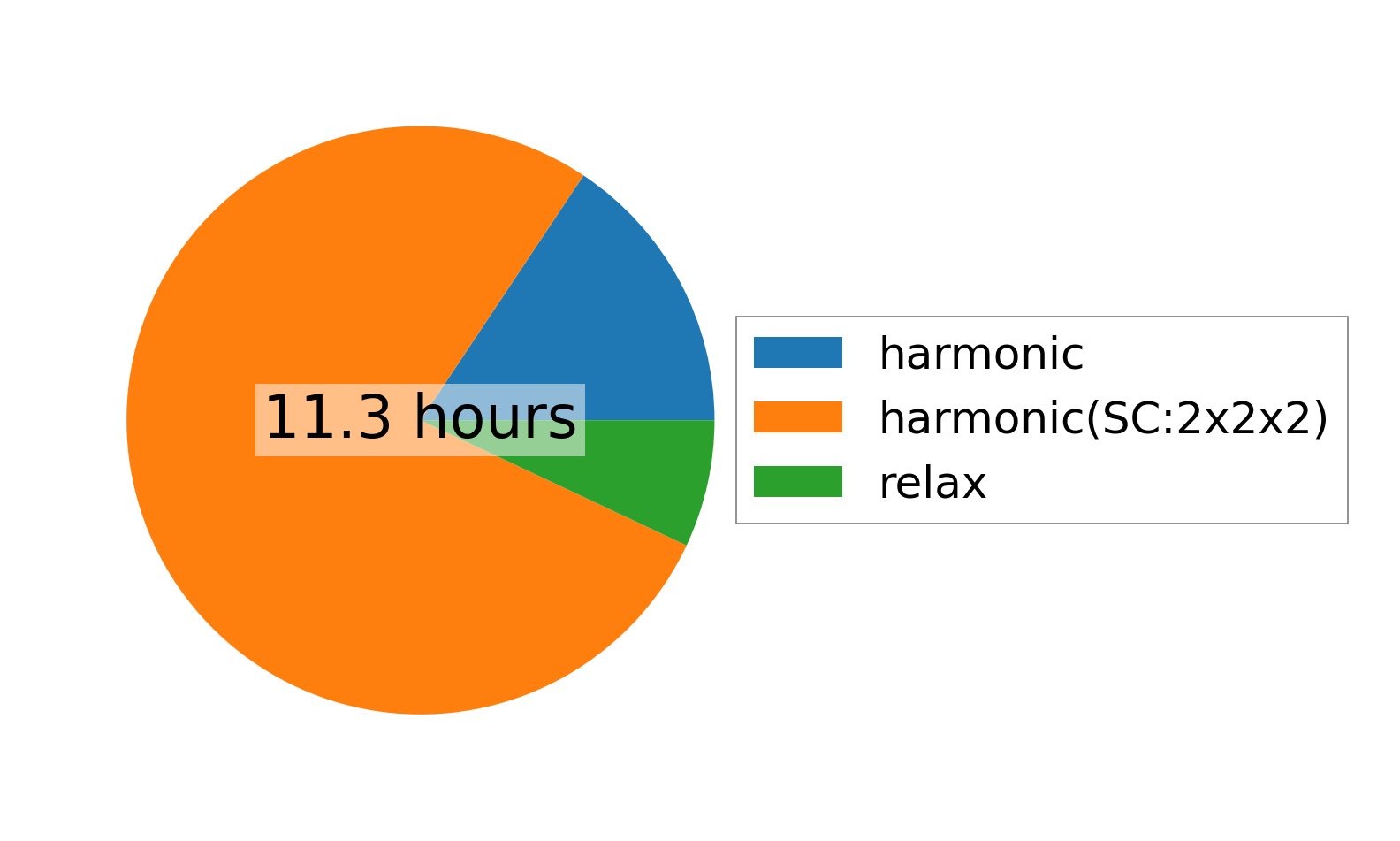

(a) Computation time
