mp-36733-2/La2CdSe4/harm

Equation of state

../../_images/fig_bm5251.png

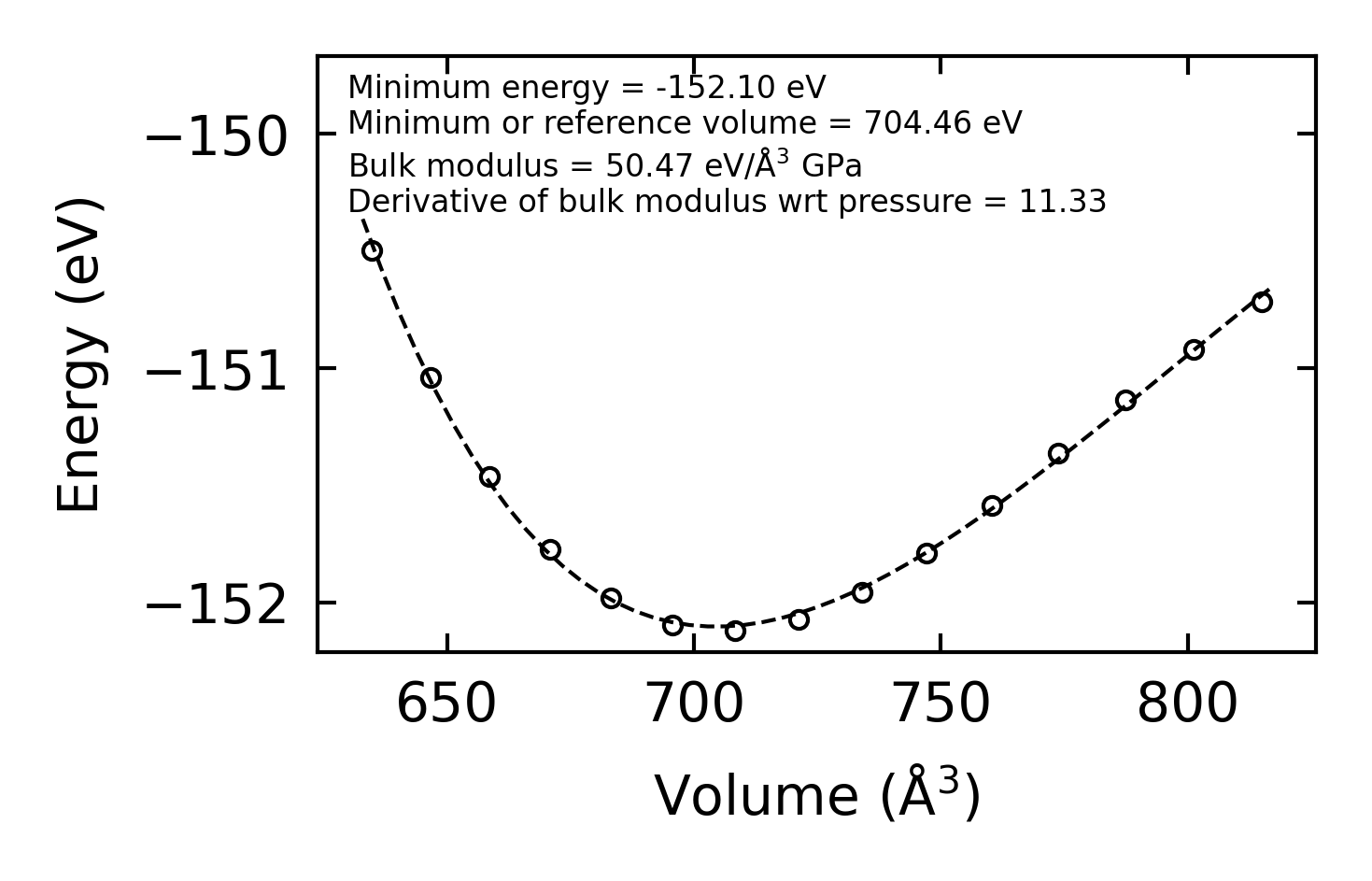

(a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr10563.png

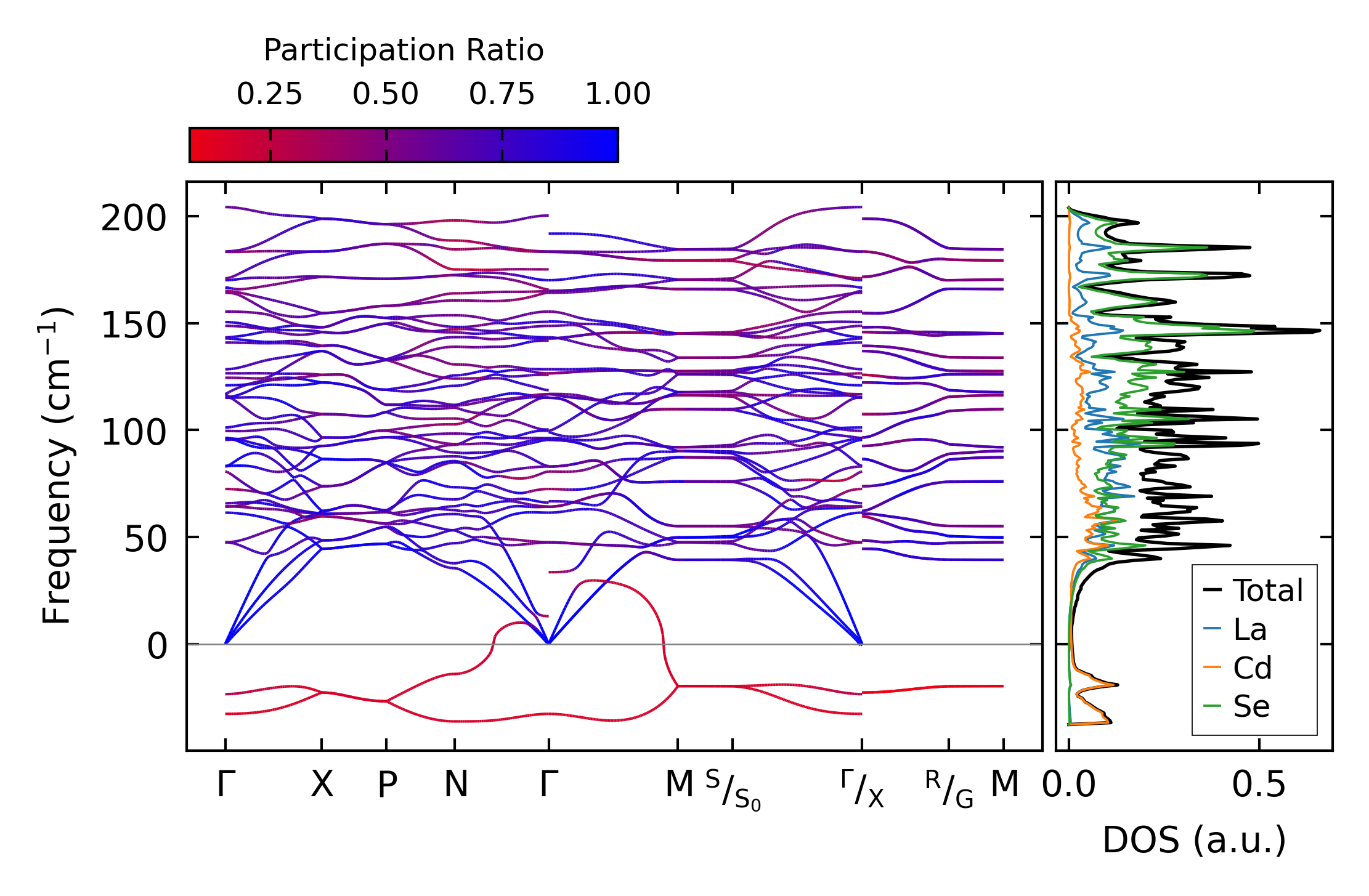

(a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos14482.png

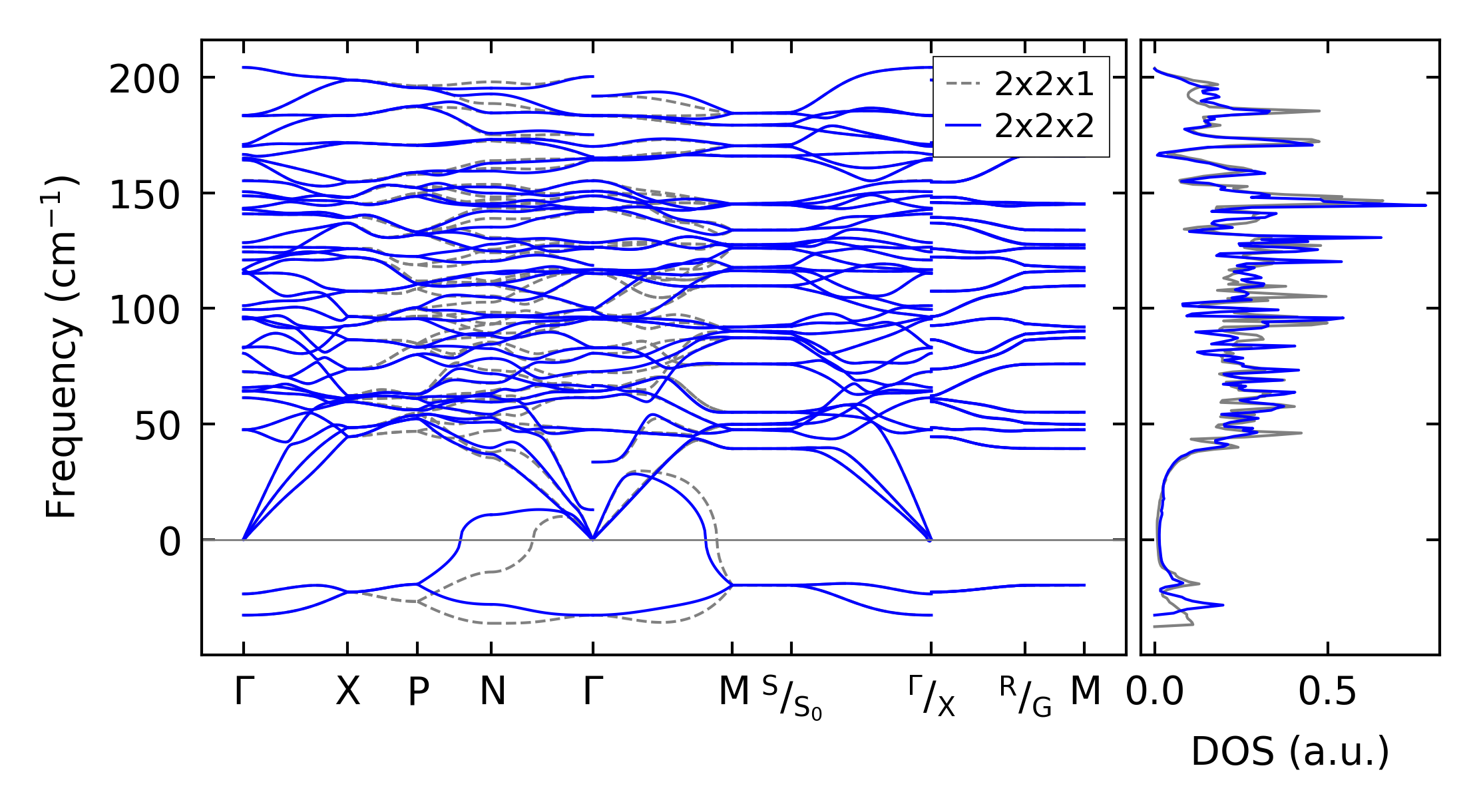

(b) Phonon dispersion and DOS

../../_images/fig_thermo10563.png

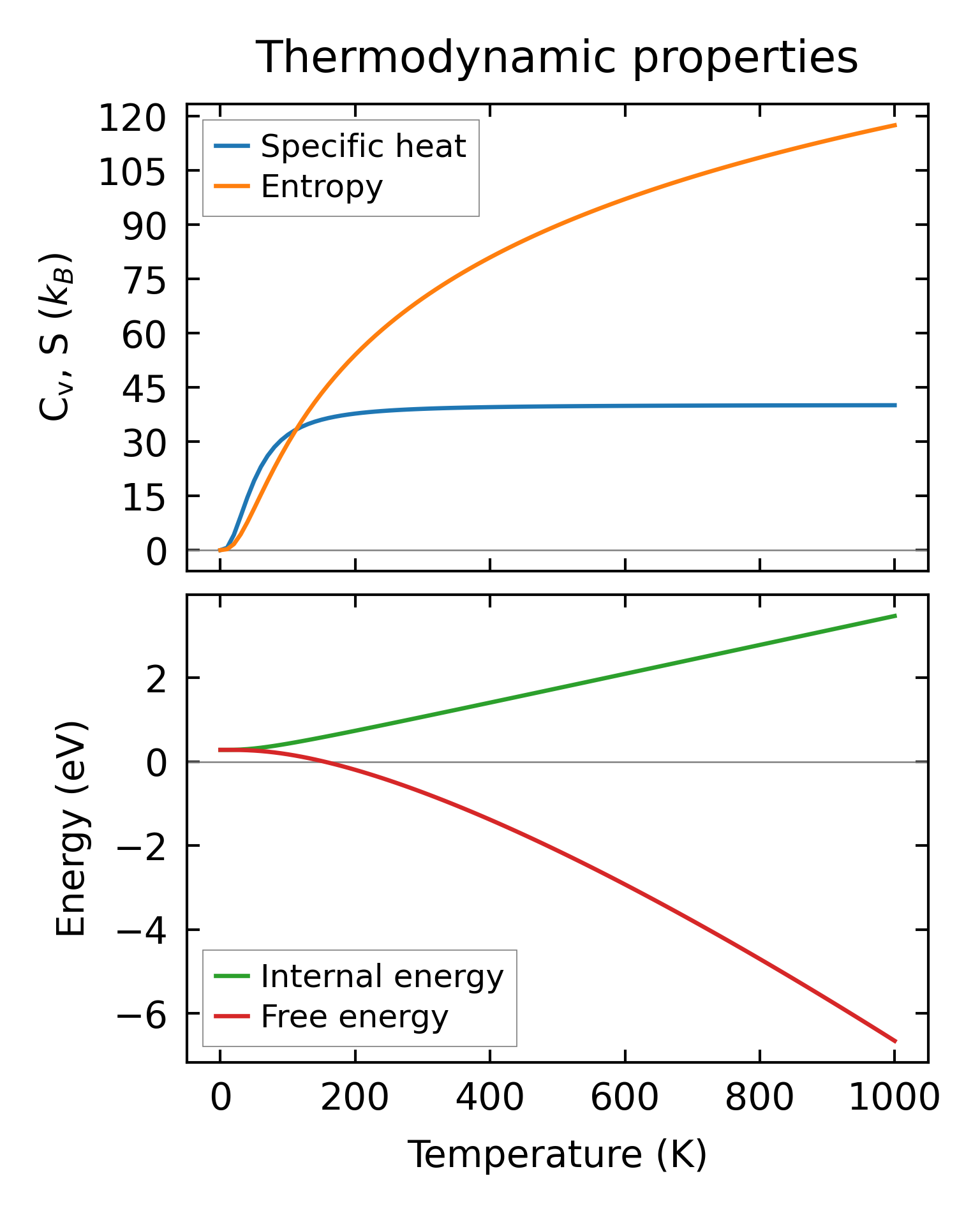

(c) Thermodynamic properties

Force constants

../../_images/fig_fc210299.png

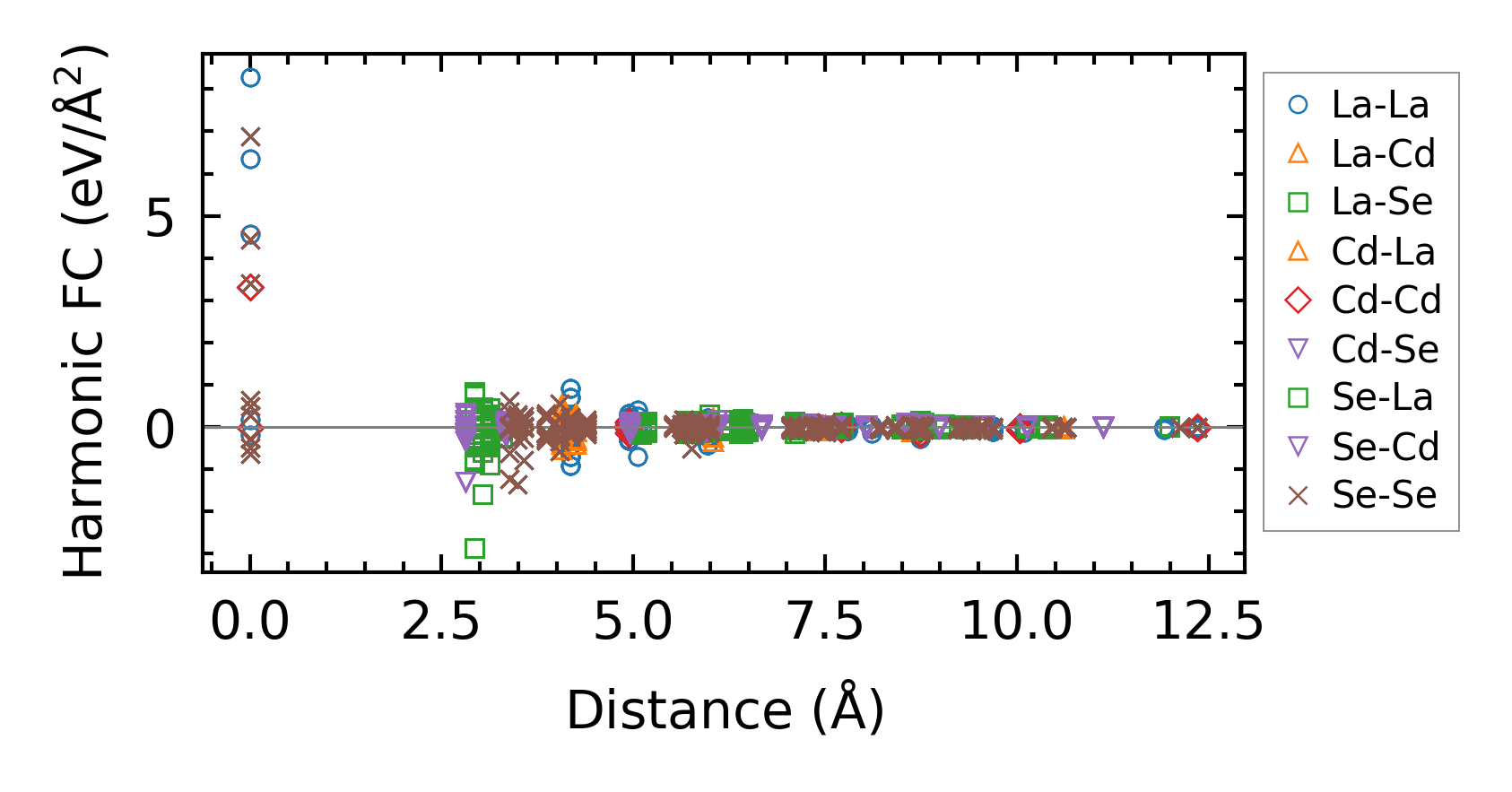

(a) Force constants w.r.t atomic distance

Summary

../../_images/fig_times18162.png

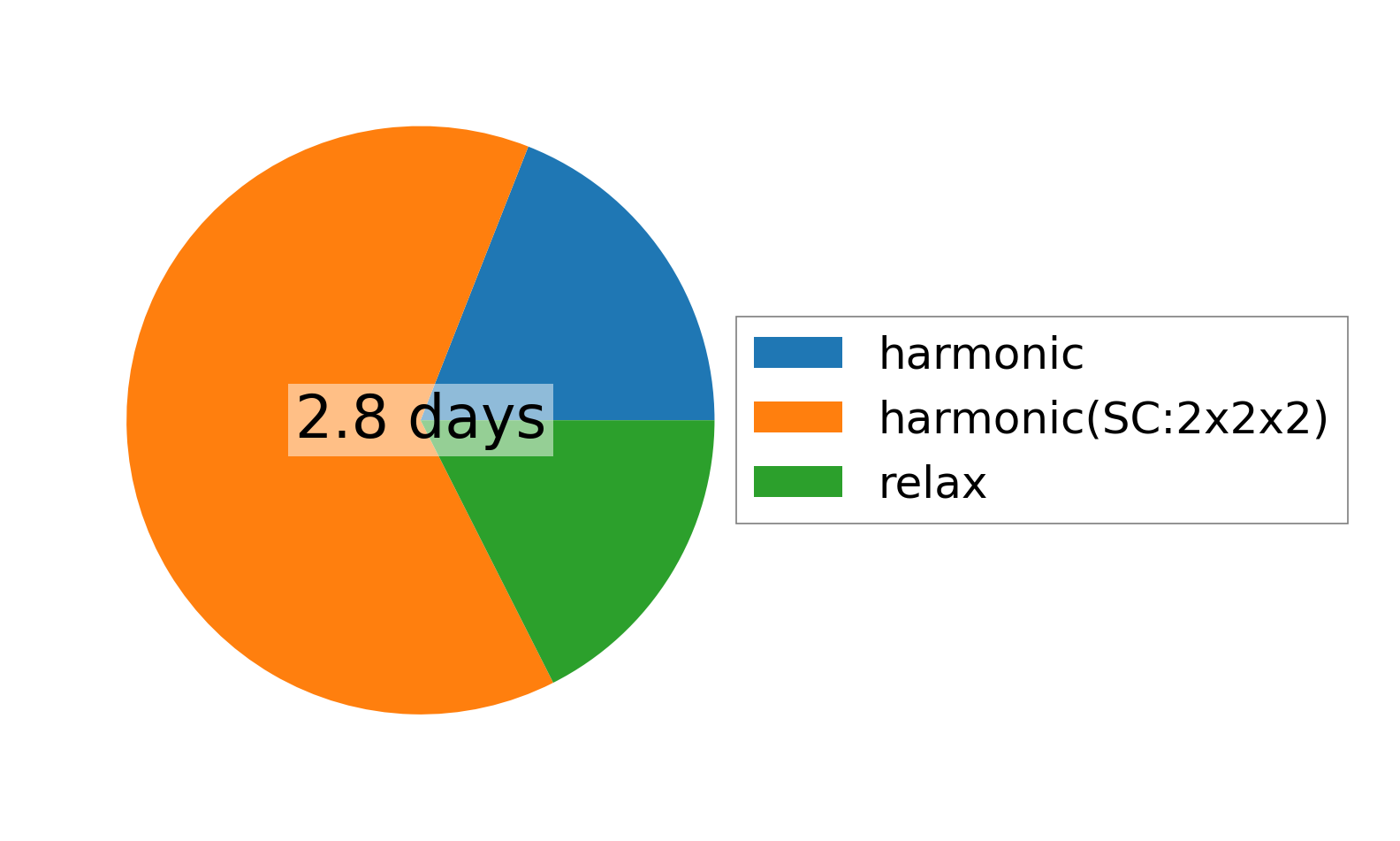

(a) Computation time
