mp-35907/La5TlTe8/anharm

Space group: I-4 (82)
Link: Materials Project
Download: mp-35907.tar.gz

Harmonic properties

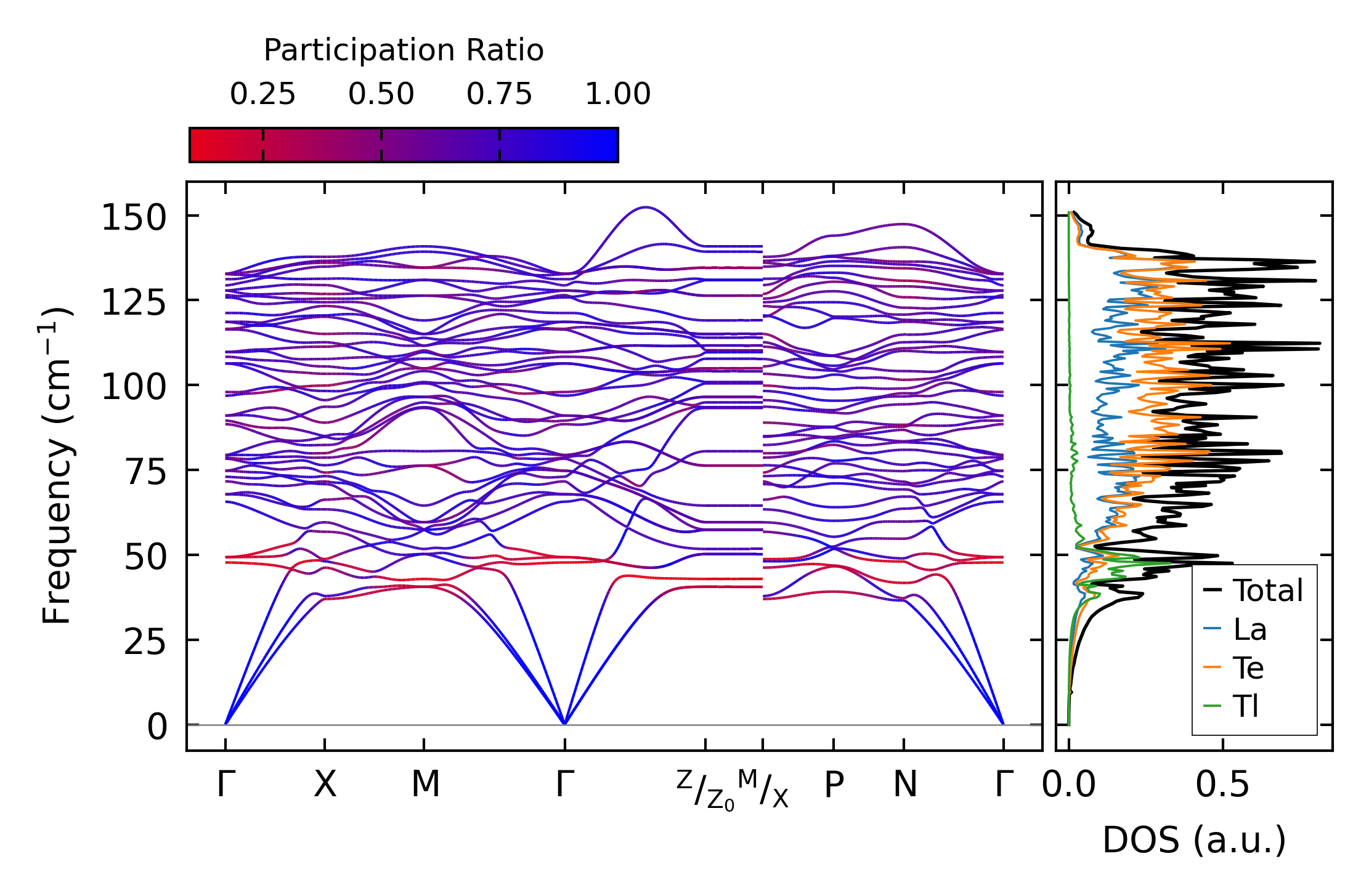

../../_images/fig_bandos_pr10533.png — (a) Phonon dispersion with participation ratio and DOS

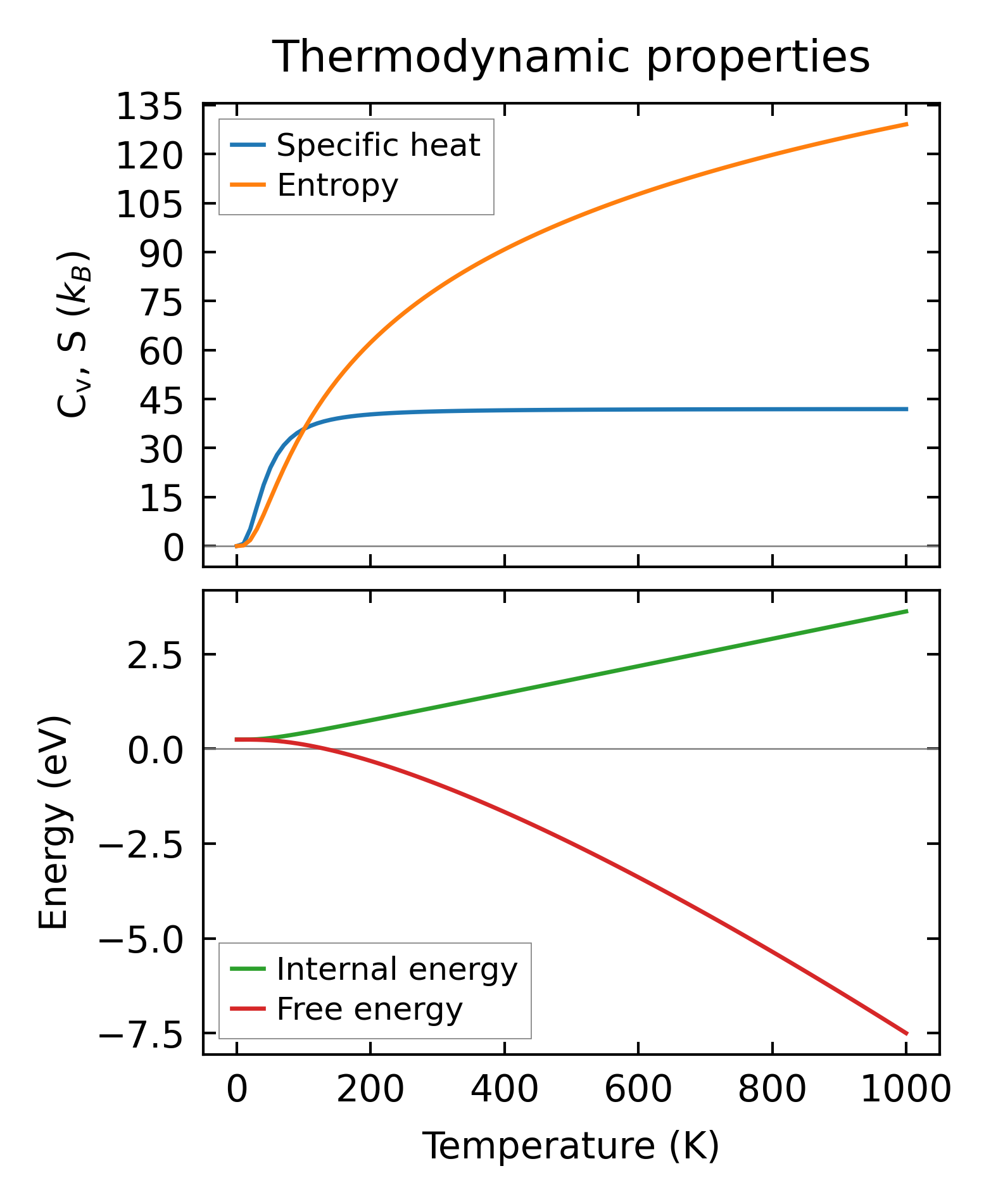

../../_images/fig_thermo10533.png — (b) Thermodynamic properties

Grüneisen parameters

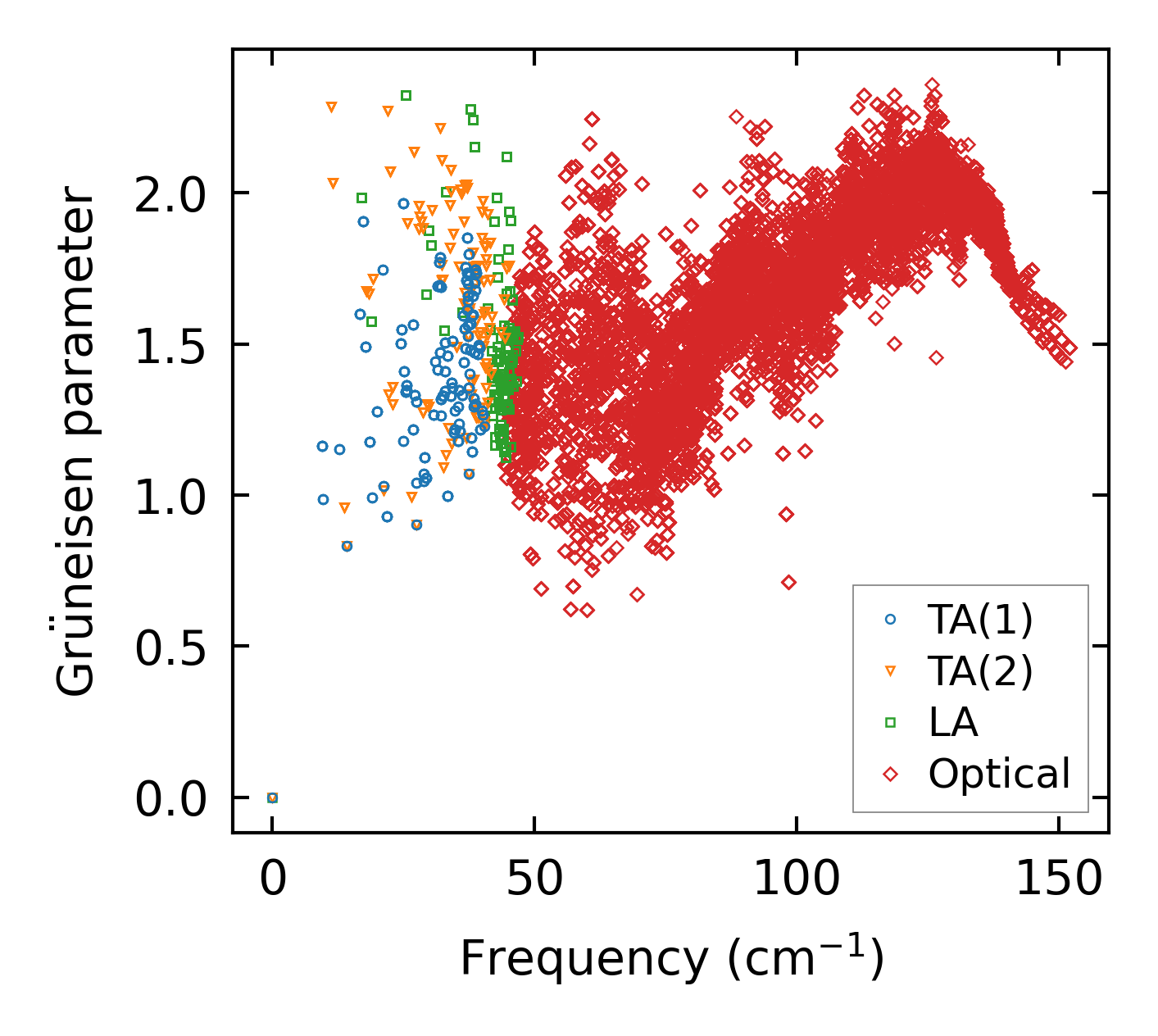

../../_images/fig_gru_all4279.png — (a) Grüneisen parameters

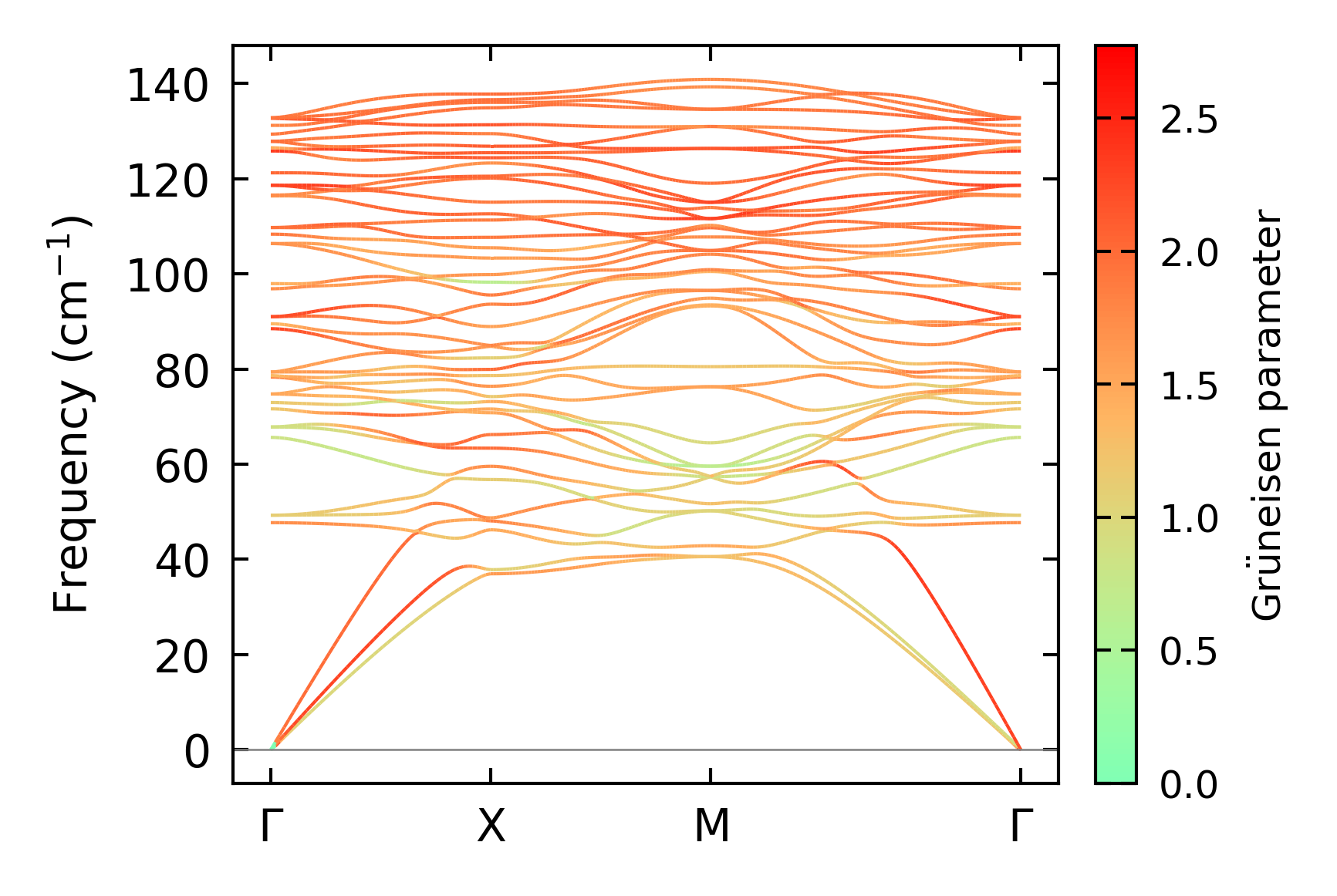

../../_images/fig_gruneisen4279.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 9x9x9, supercell: 1x1x2

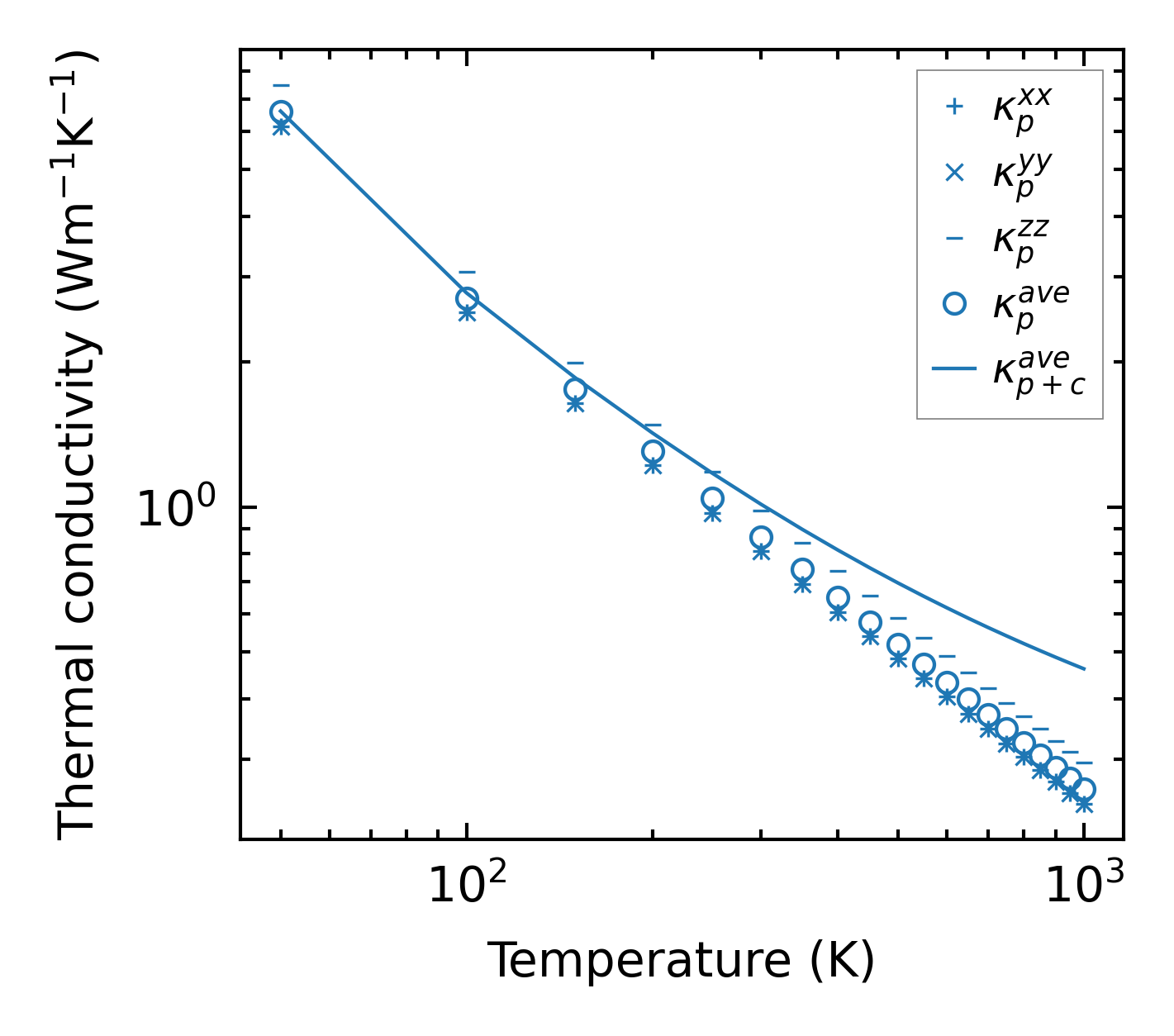

../../_images/fig_kappa8068.png — (a) Temperature-dependent lattice thermal conductivity

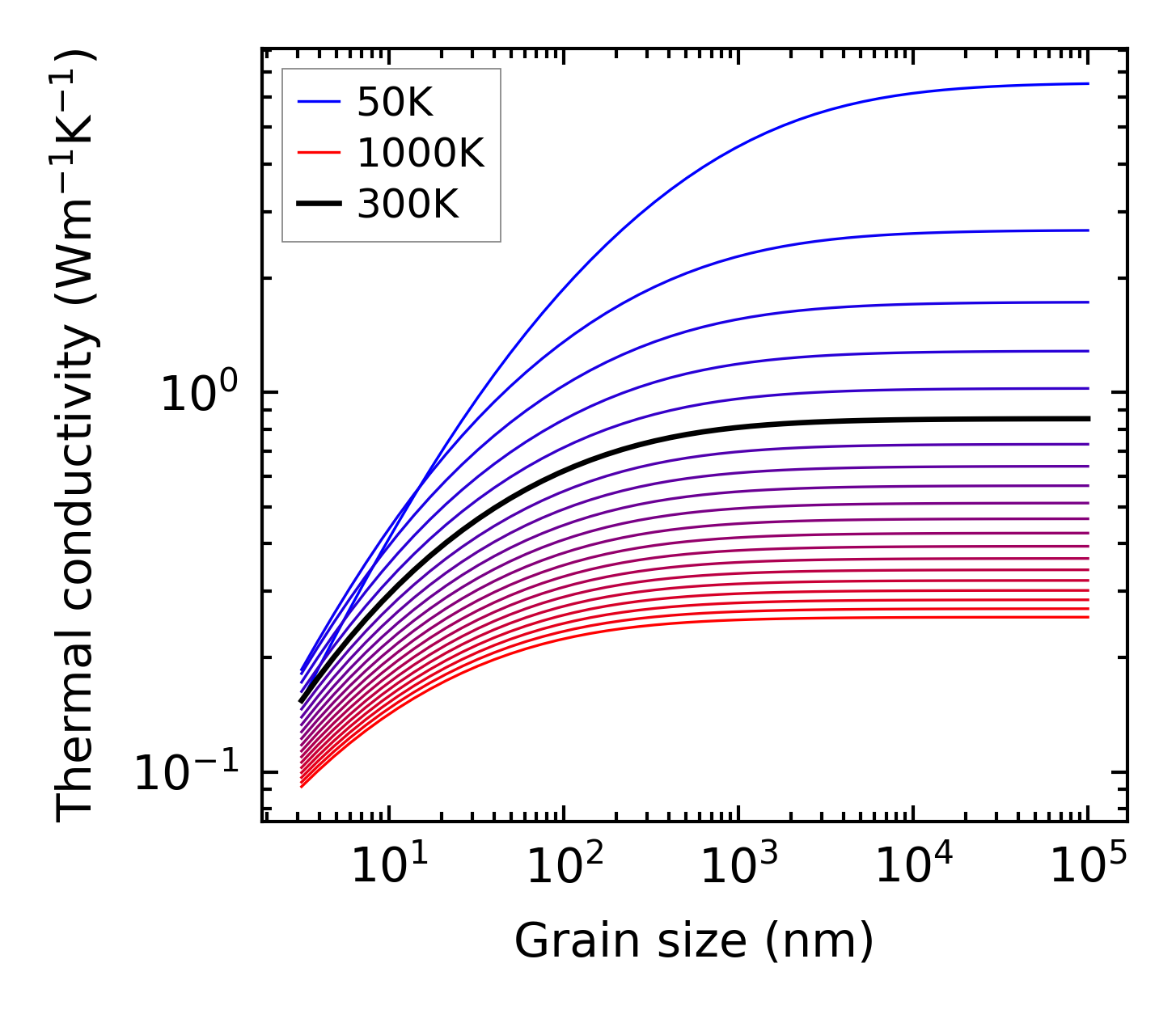

../../_images/fig_kappa_vs_grain_size4331.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

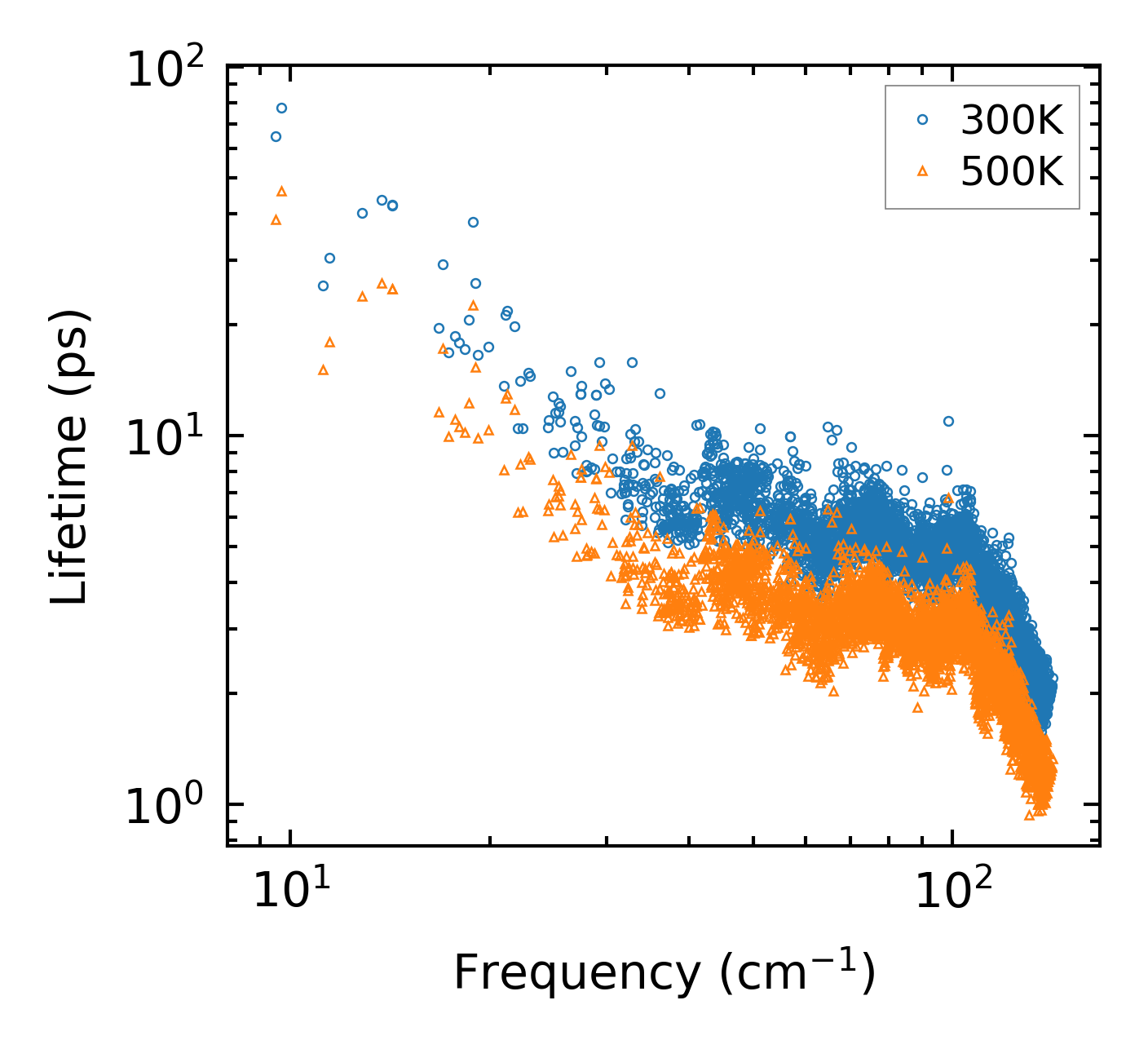

../../_images/fig_lifetime4237.png — (a) Phonon lifetime due to phonon-phonon scattering

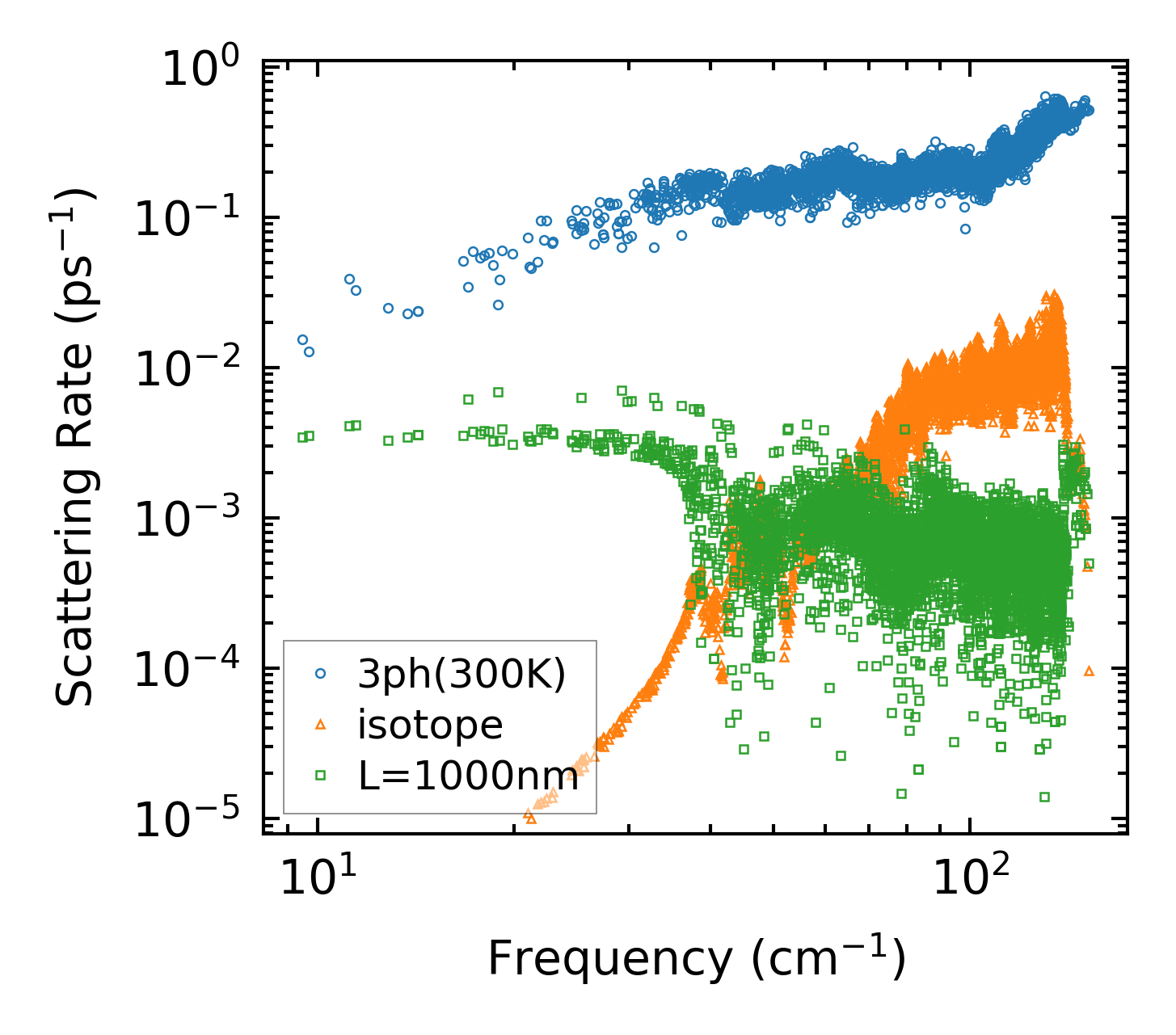

../../_images/fig_scat_rates4236.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

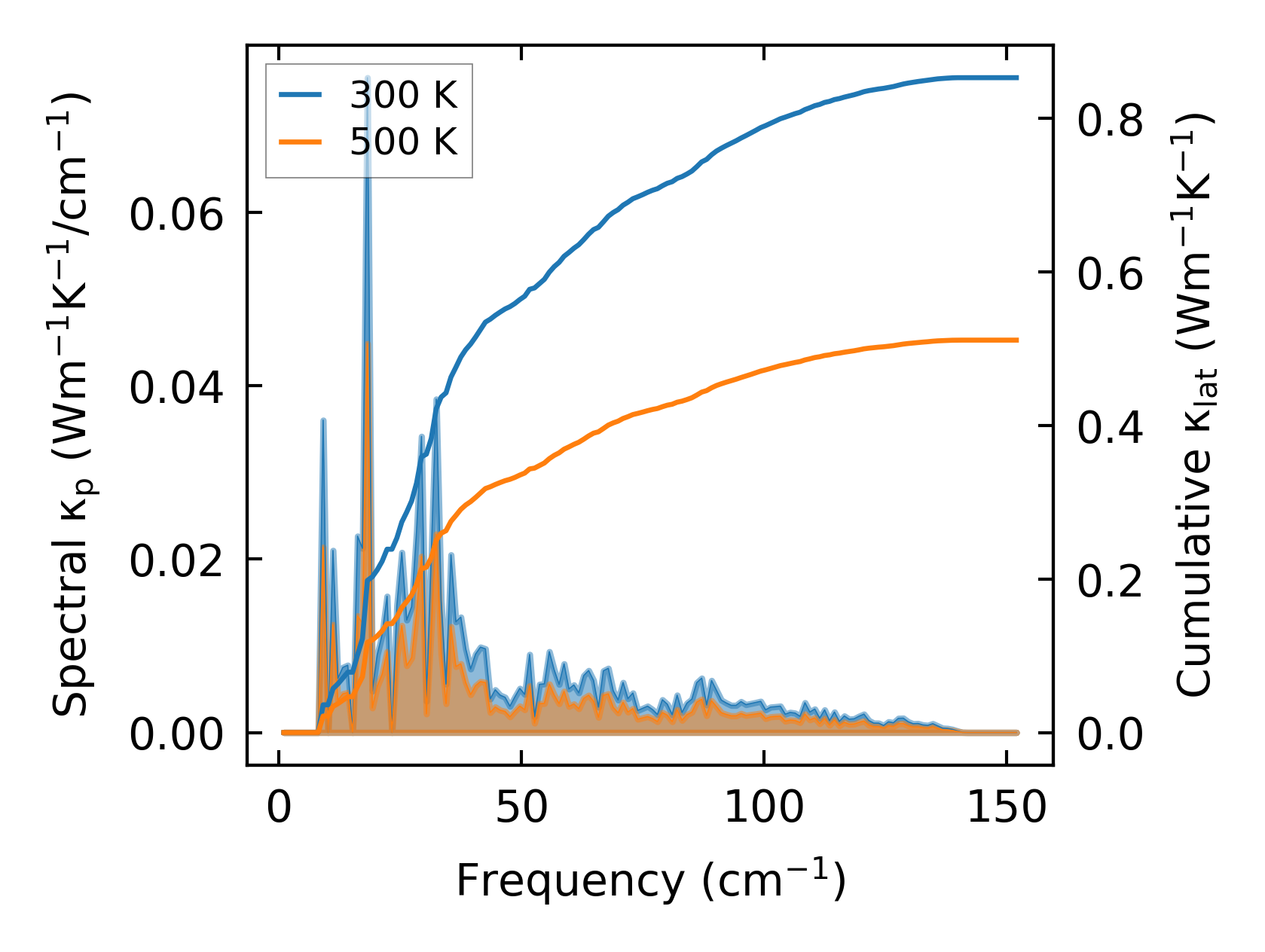

../../_images/fig_cumu_frequency4237.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

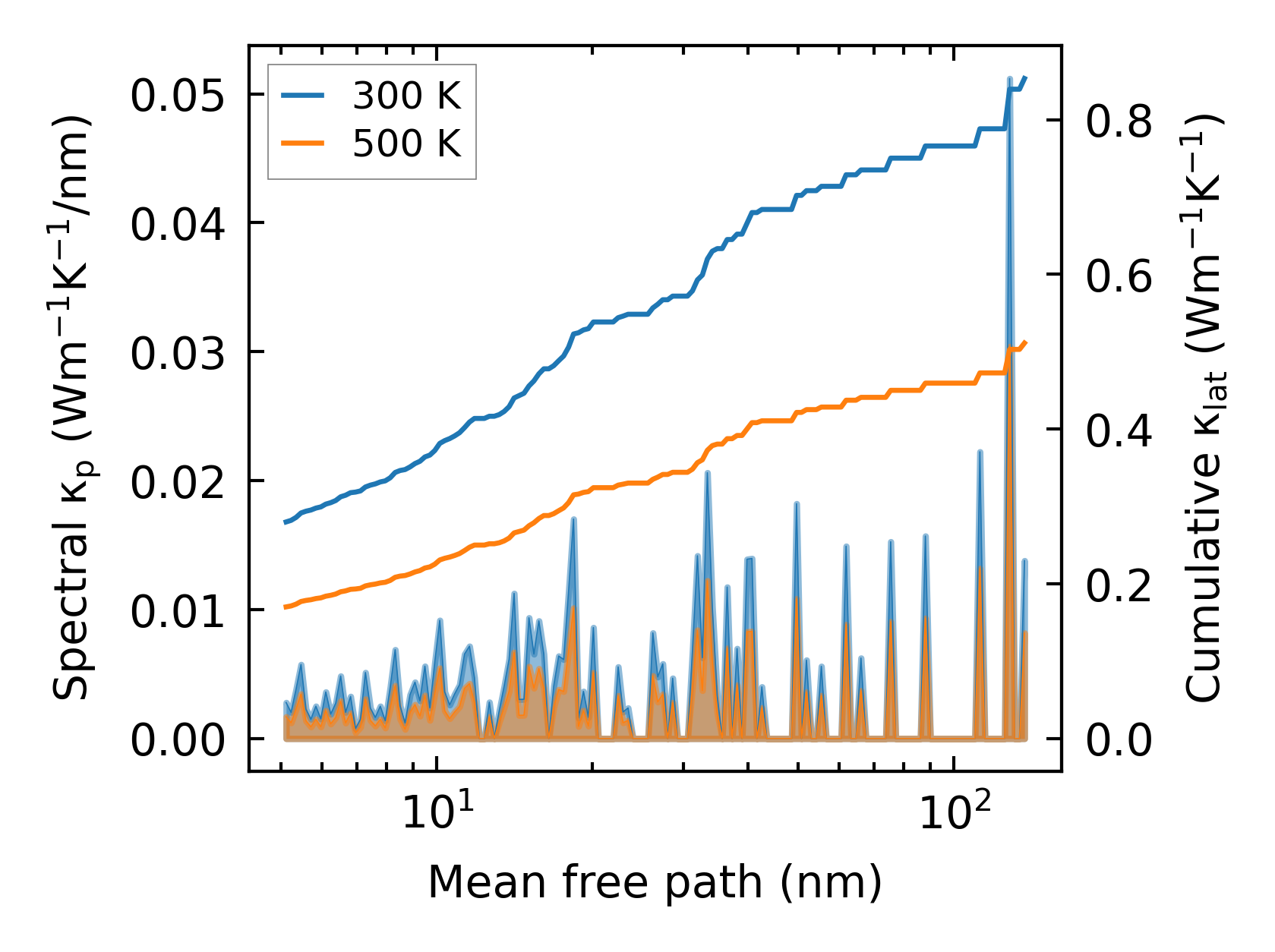

../../_images/fig_cumu_mfp4236.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

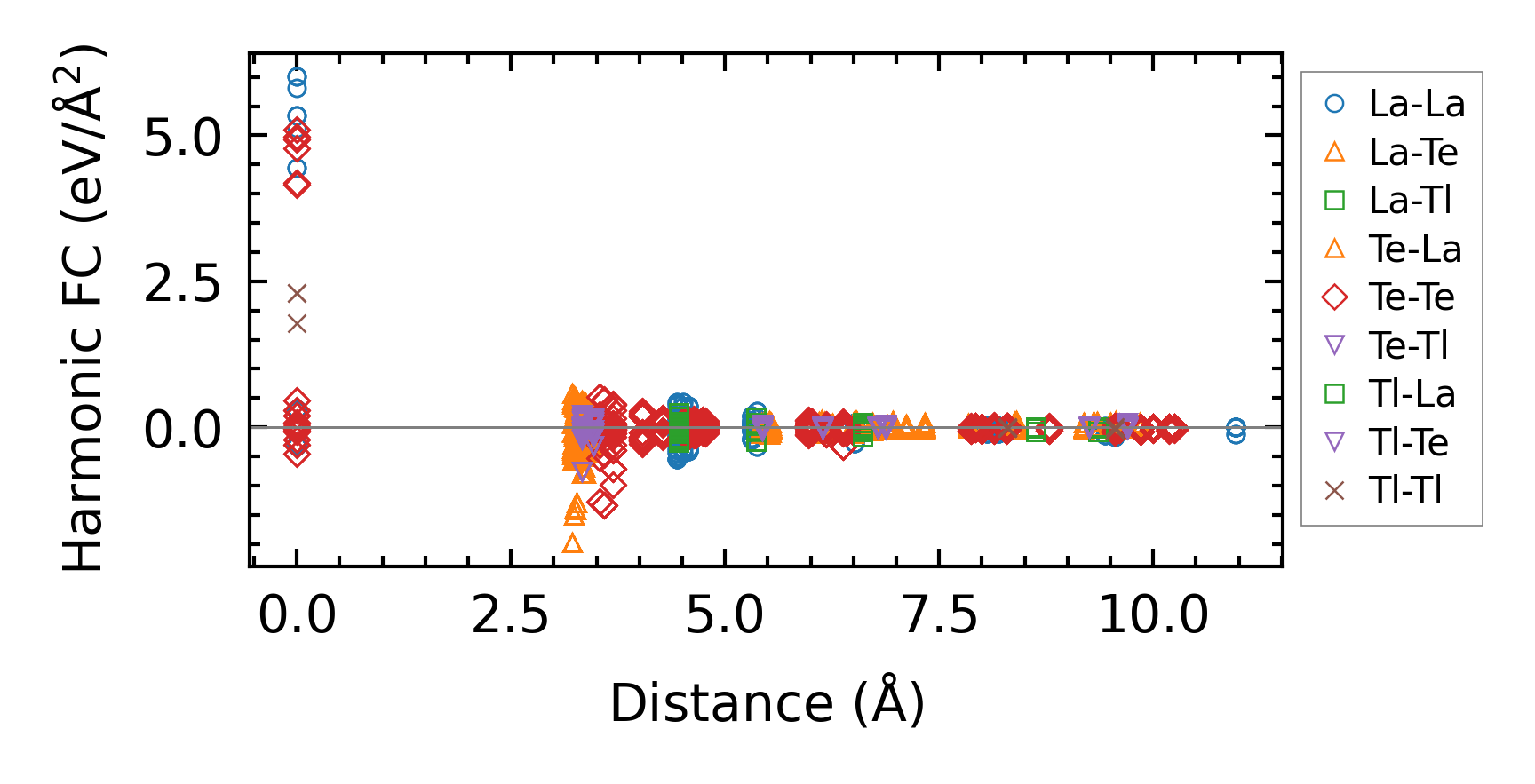

../../_images/fig_fc210272.png — (a) Force constants w.r.t atomic distance

Summary

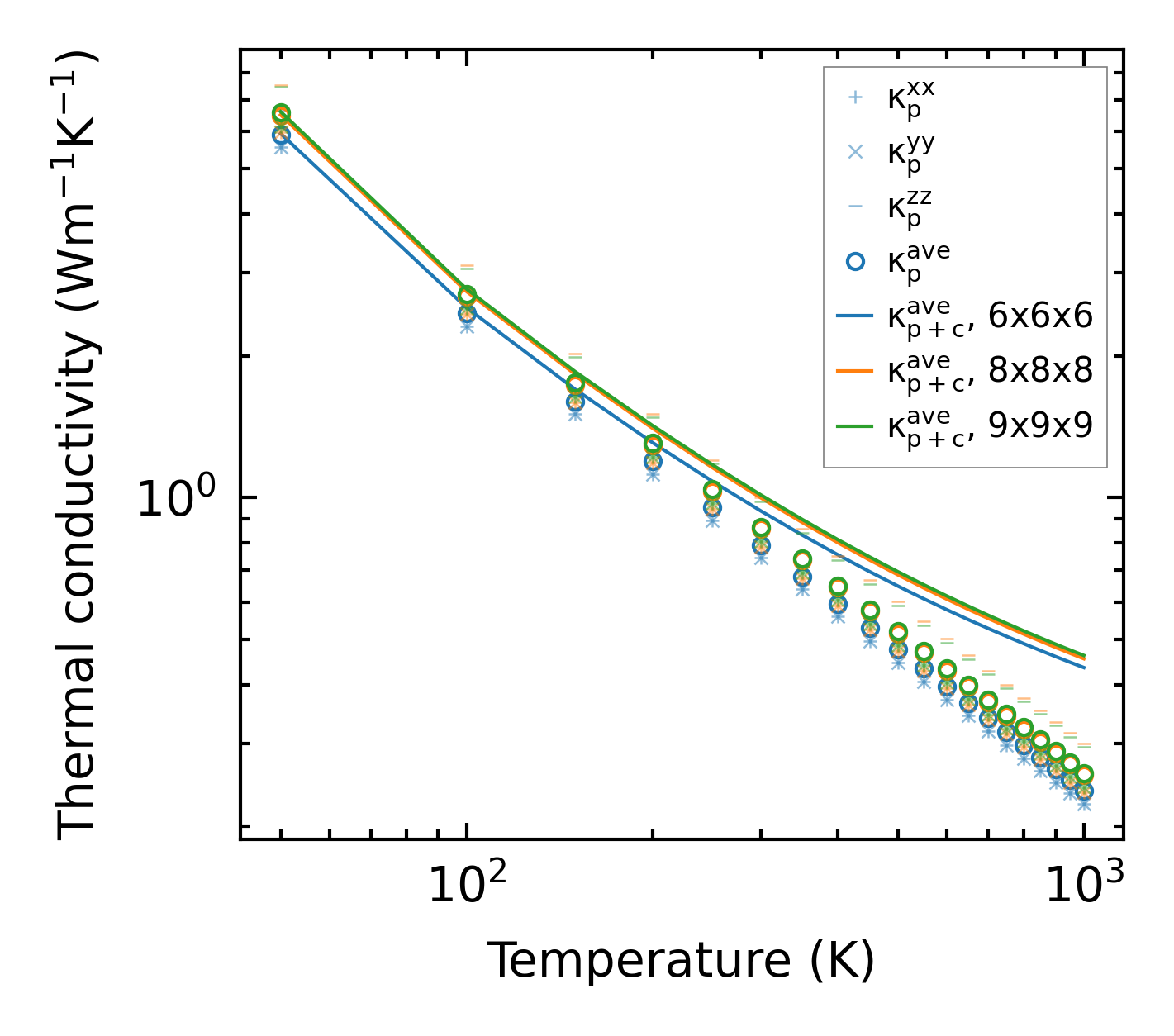

../../_images/fig_kappa8069.png — (a) Temperature-dependent lattice thermal conductivity

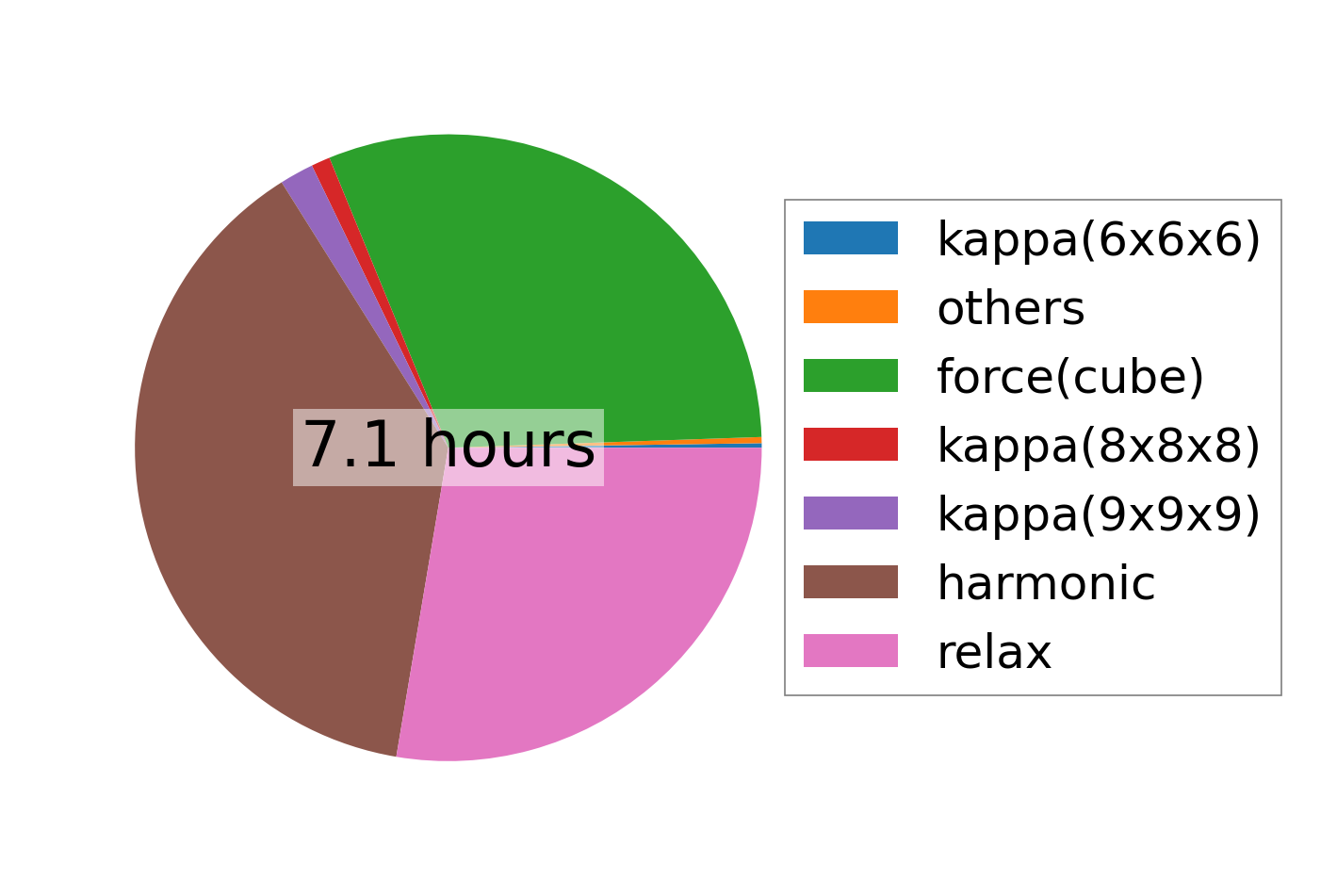

../../_images/fig_times18121.png — (b) Computation time
