mp-35327/AlC3N3/anharm

Space group: P-42_1m (113)
Link: Materials Project
Download: mp-35327.tar.gz

Harmonic properties

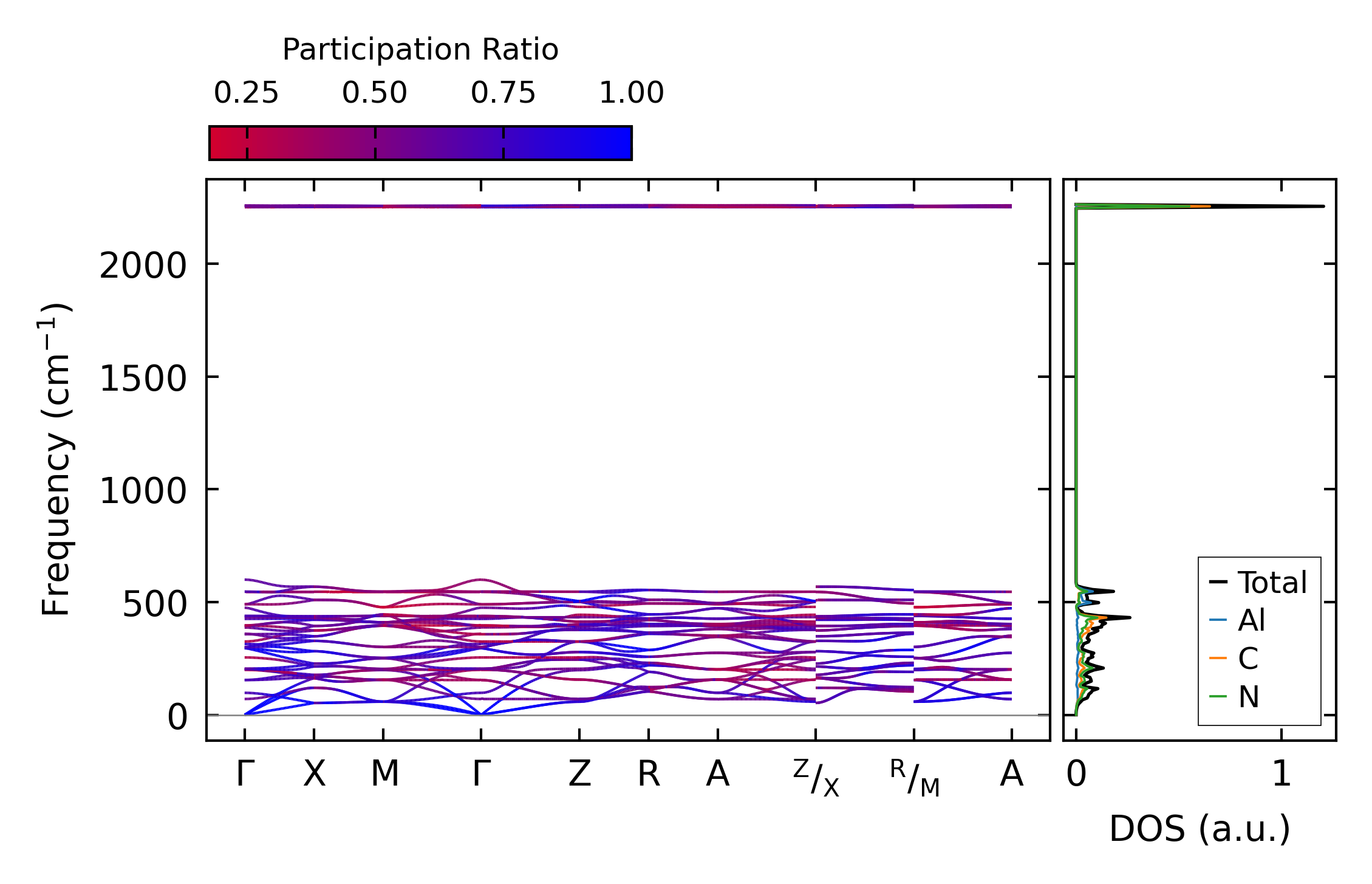

../../_images/fig_bandos_pr10510.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo10510.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all4264.png — (a) Grüneisen parameters

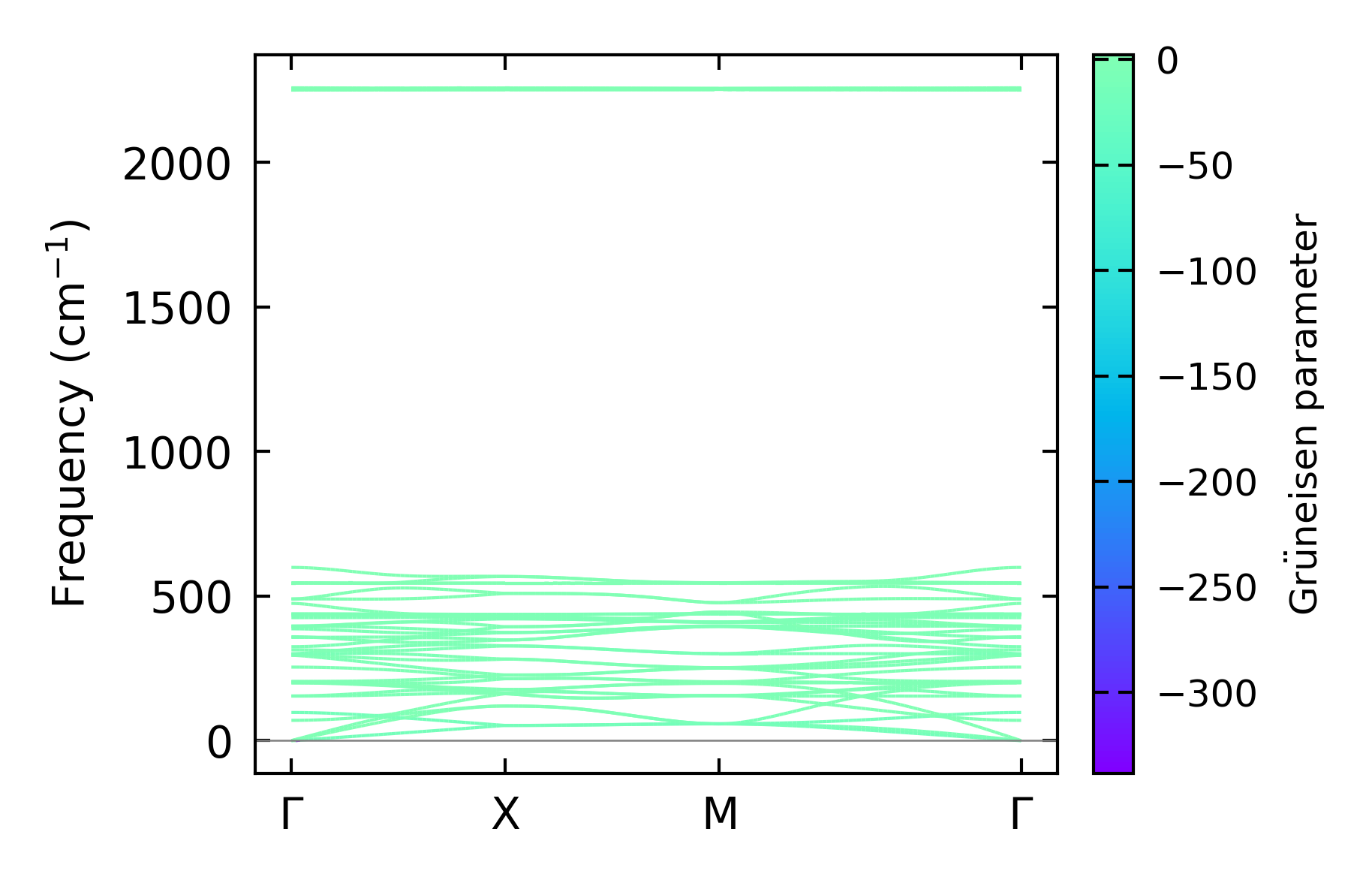

../../_images/fig_gruneisen4264.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 9x9x13, supercell: 2x2x2

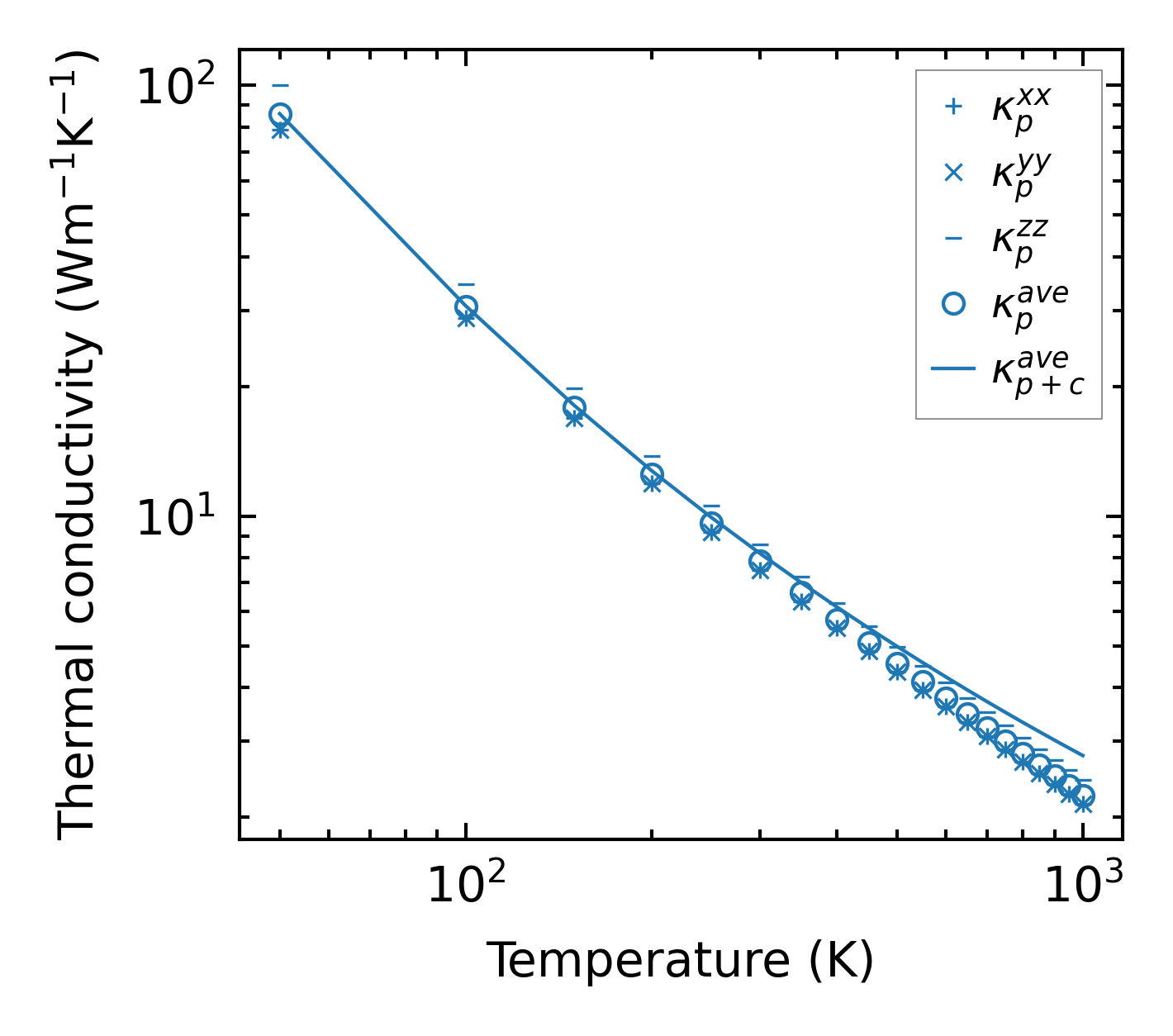

../../_images/fig_kappa8040.png — (a) Temperature-dependent lattice thermal conductivity

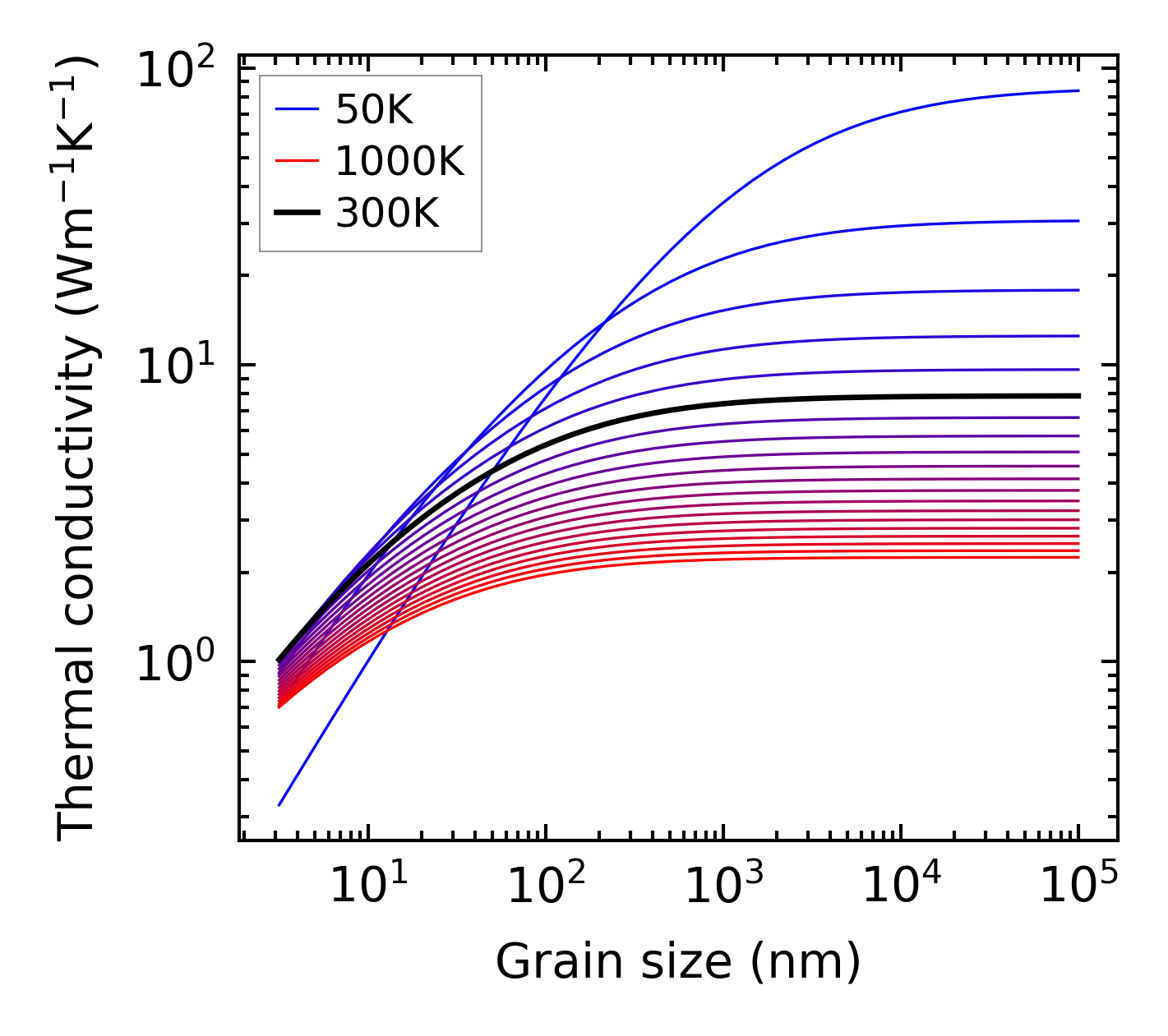

../../_images/fig_kappa_vs_grain_size4317.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

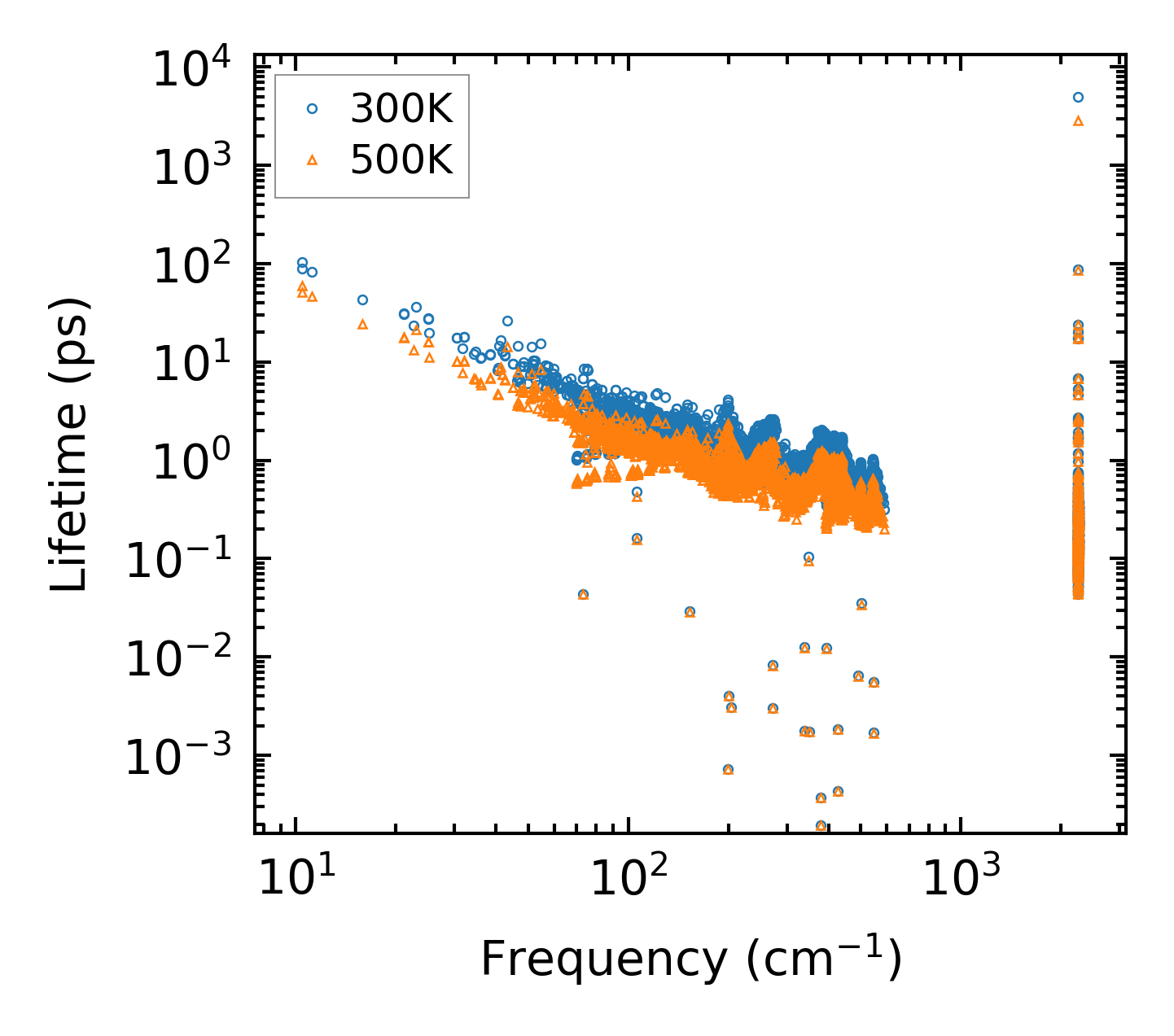

../../_images/fig_lifetime4223.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates4222.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

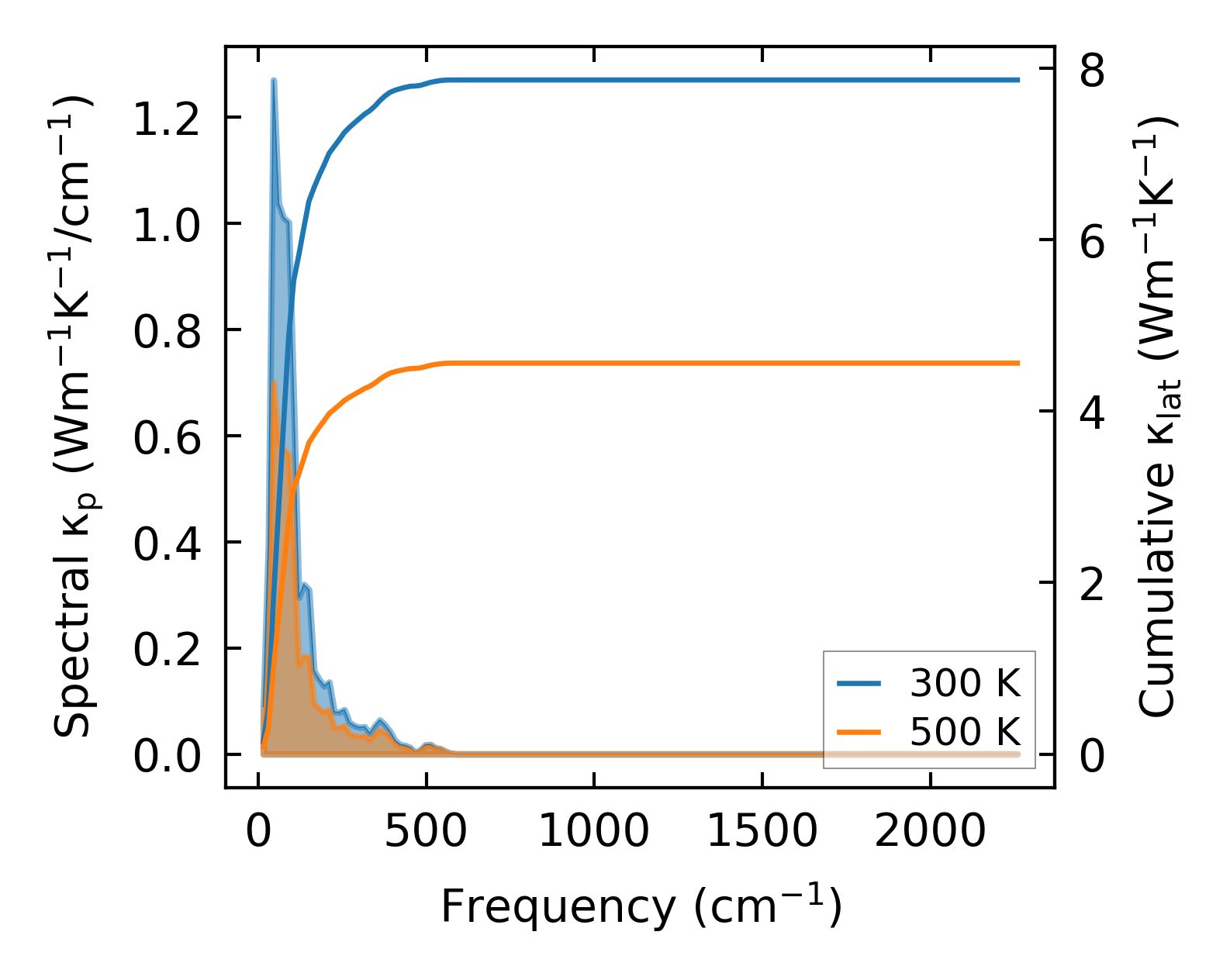

../../_images/fig_cumu_frequency4223.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

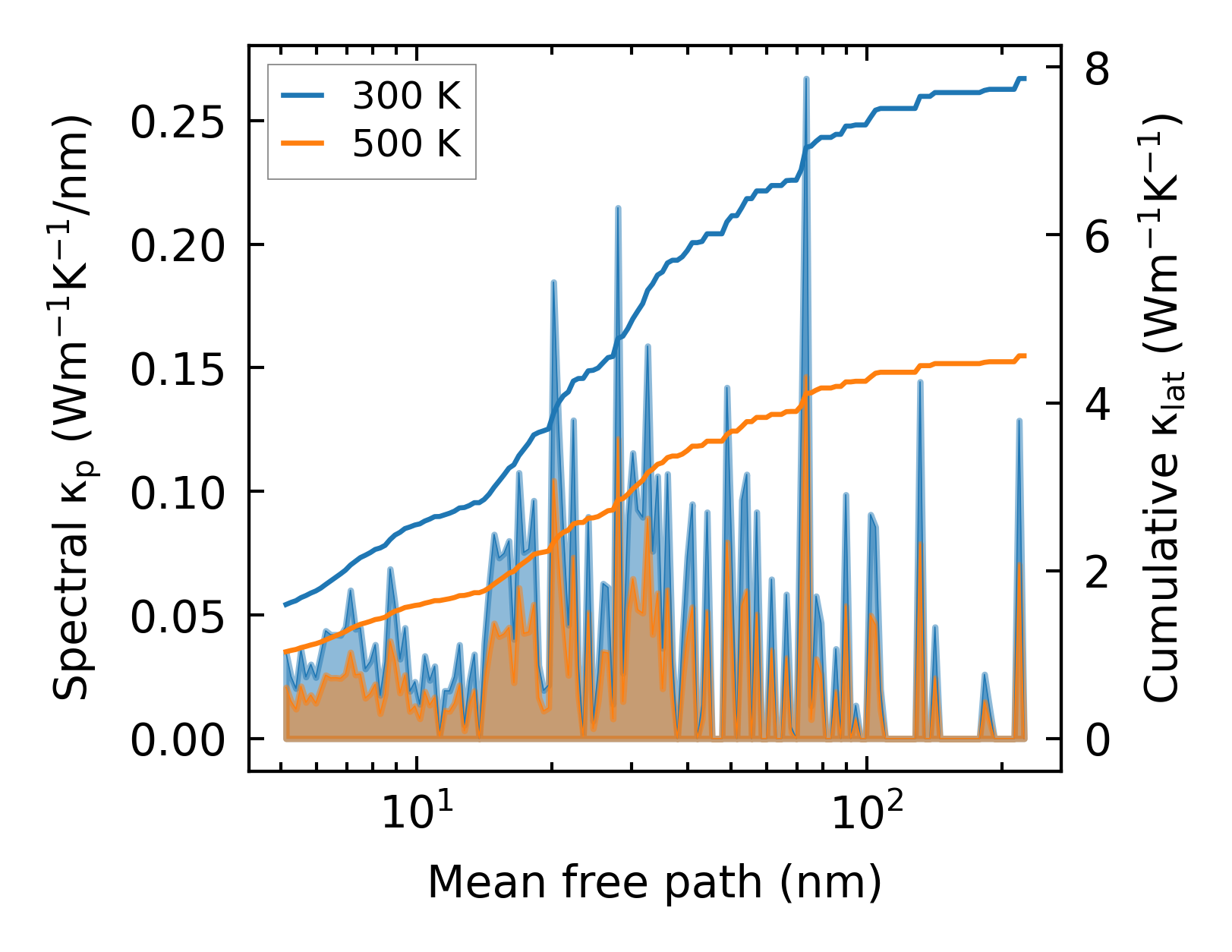

../../_images/fig_cumu_mfp4222.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

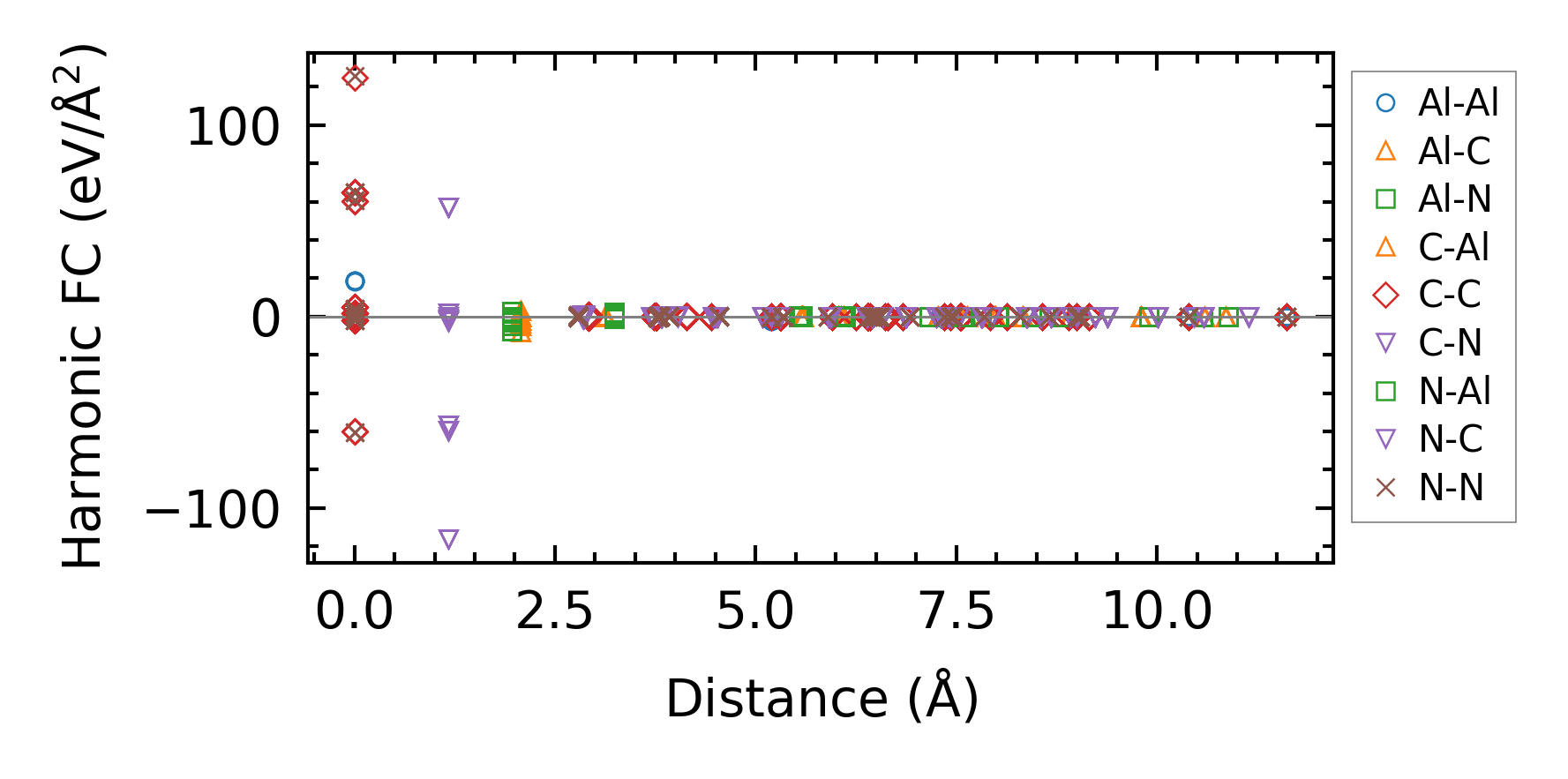

../../_images/fig_fc210251.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa8041.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times18091.png — (b) Computation time
