mp-35647/Zn2PtO4/anharm

Space group: Imma (74)
Link: Materials Project
Download: mp-35647.tar.gz

Harmonic properties

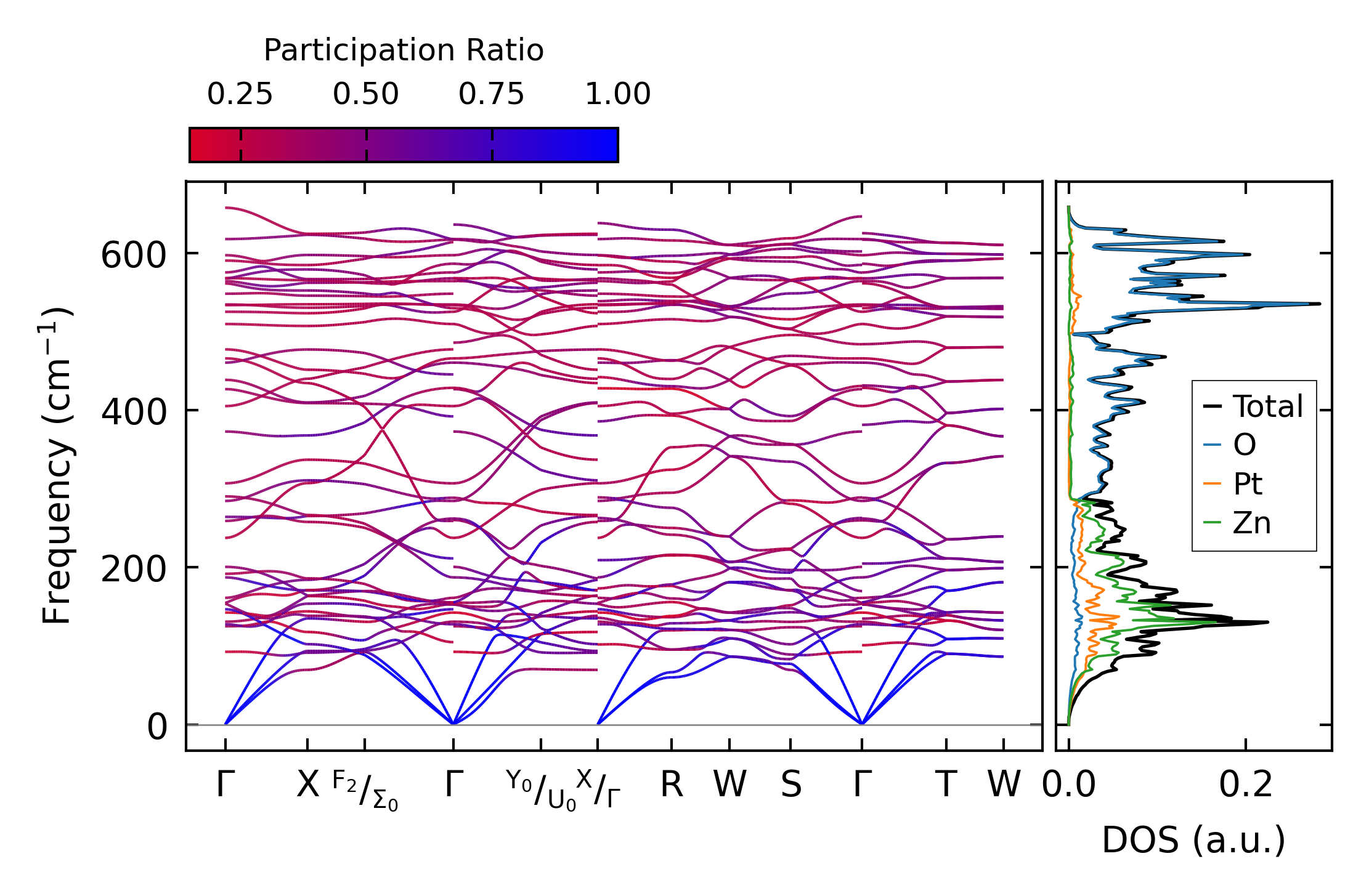

../../_images/fig_bandos_pr10520.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo10520.png — (b) Thermodynamic properties

Grüneisen parameters

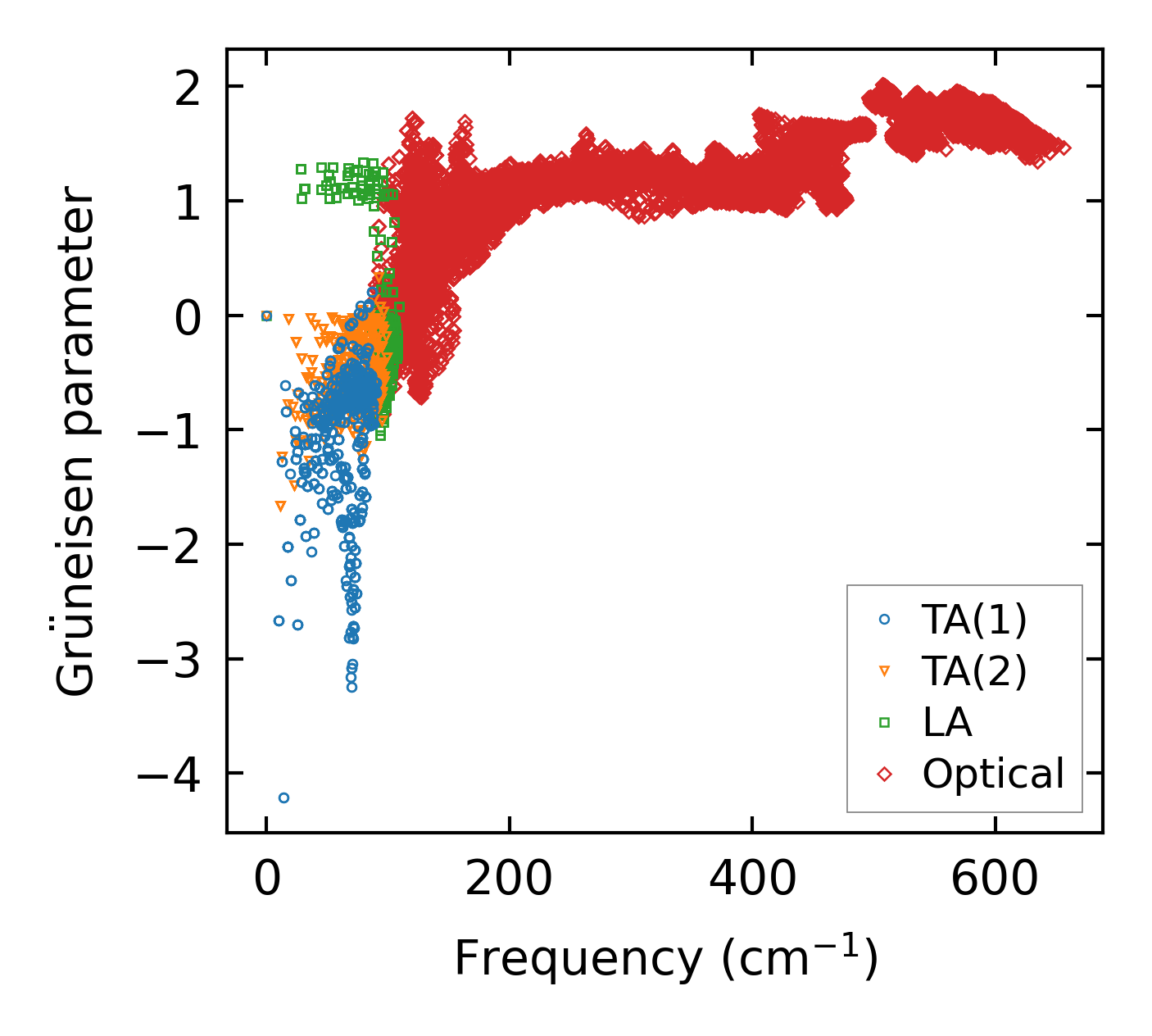

../../_images/fig_gru_all4271.png — (a) Grüneisen parameters

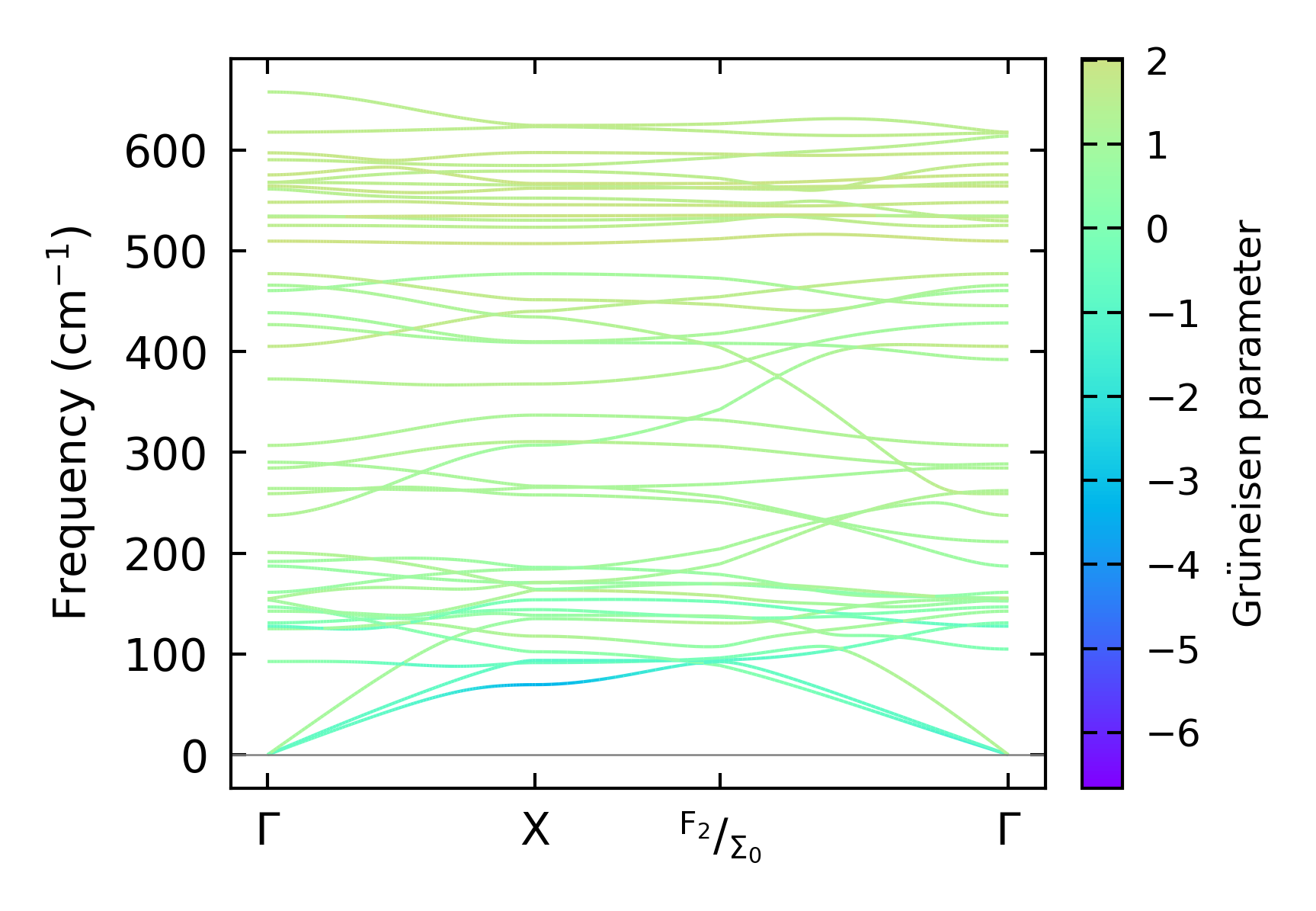

../../_images/fig_gruneisen4271.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x13x13, supercell: 2x2x1

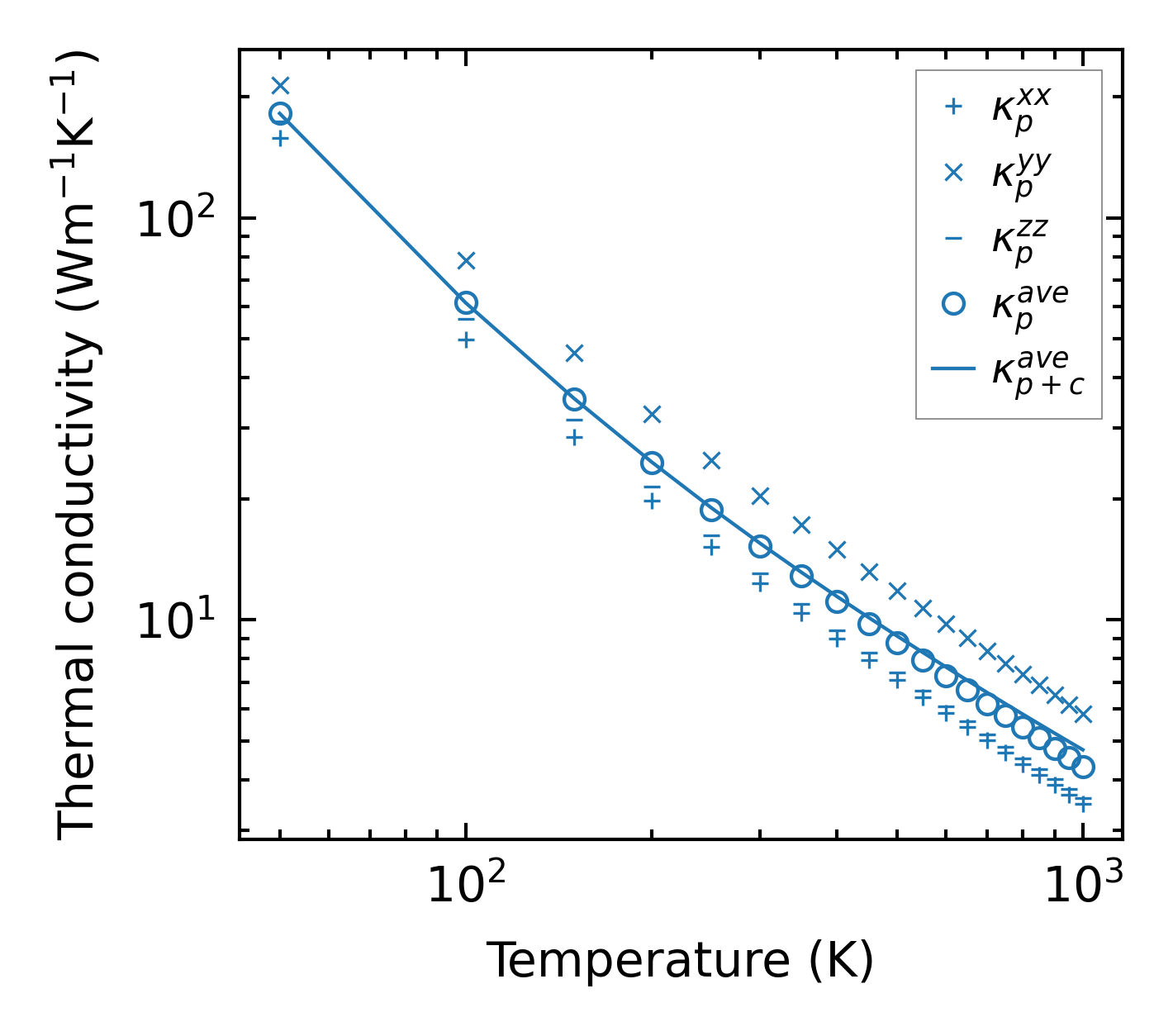

../../_images/fig_kappa8054.png — (a) Temperature-dependent lattice thermal conductivity

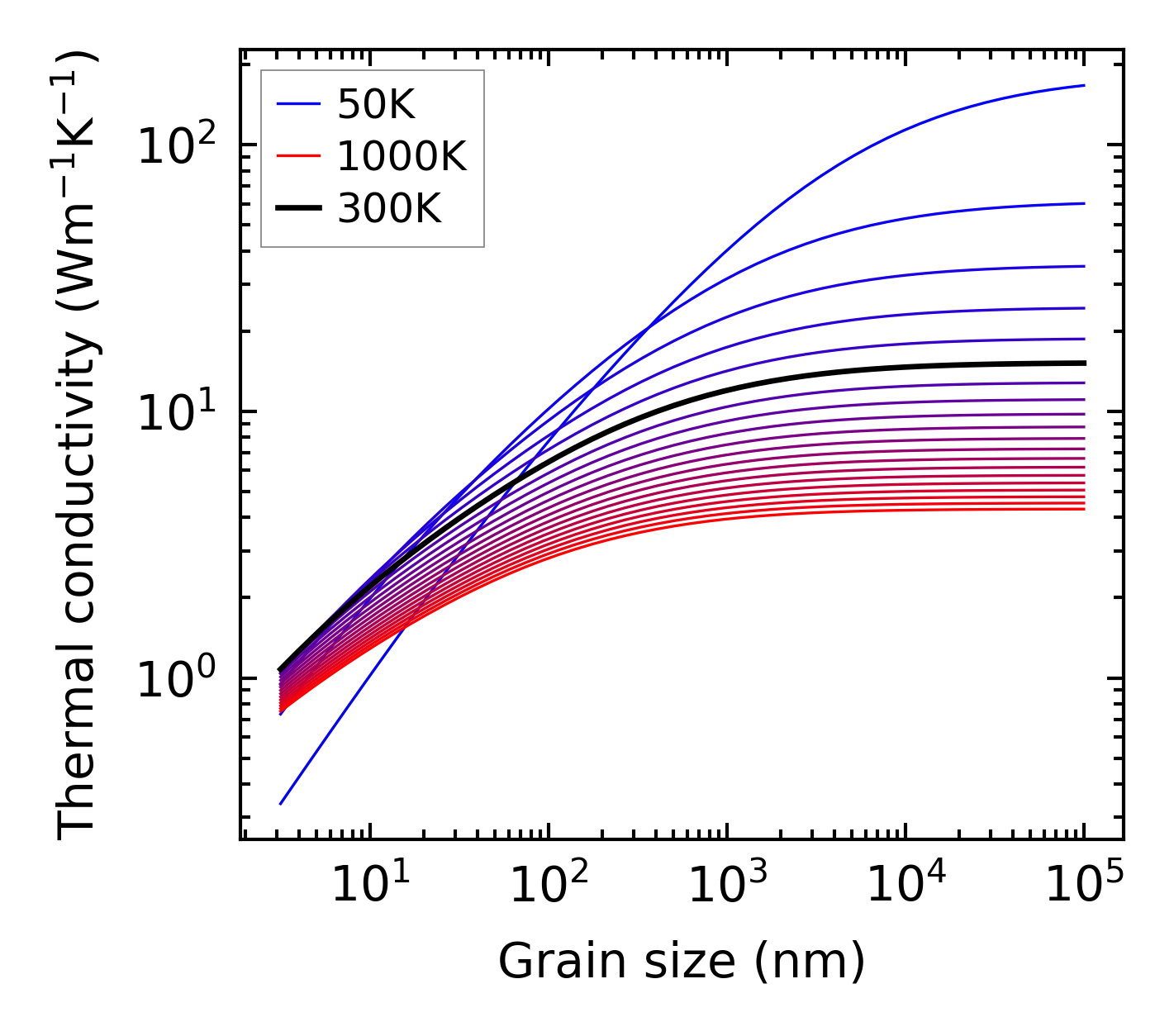

../../_images/fig_kappa_vs_grain_size4324.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

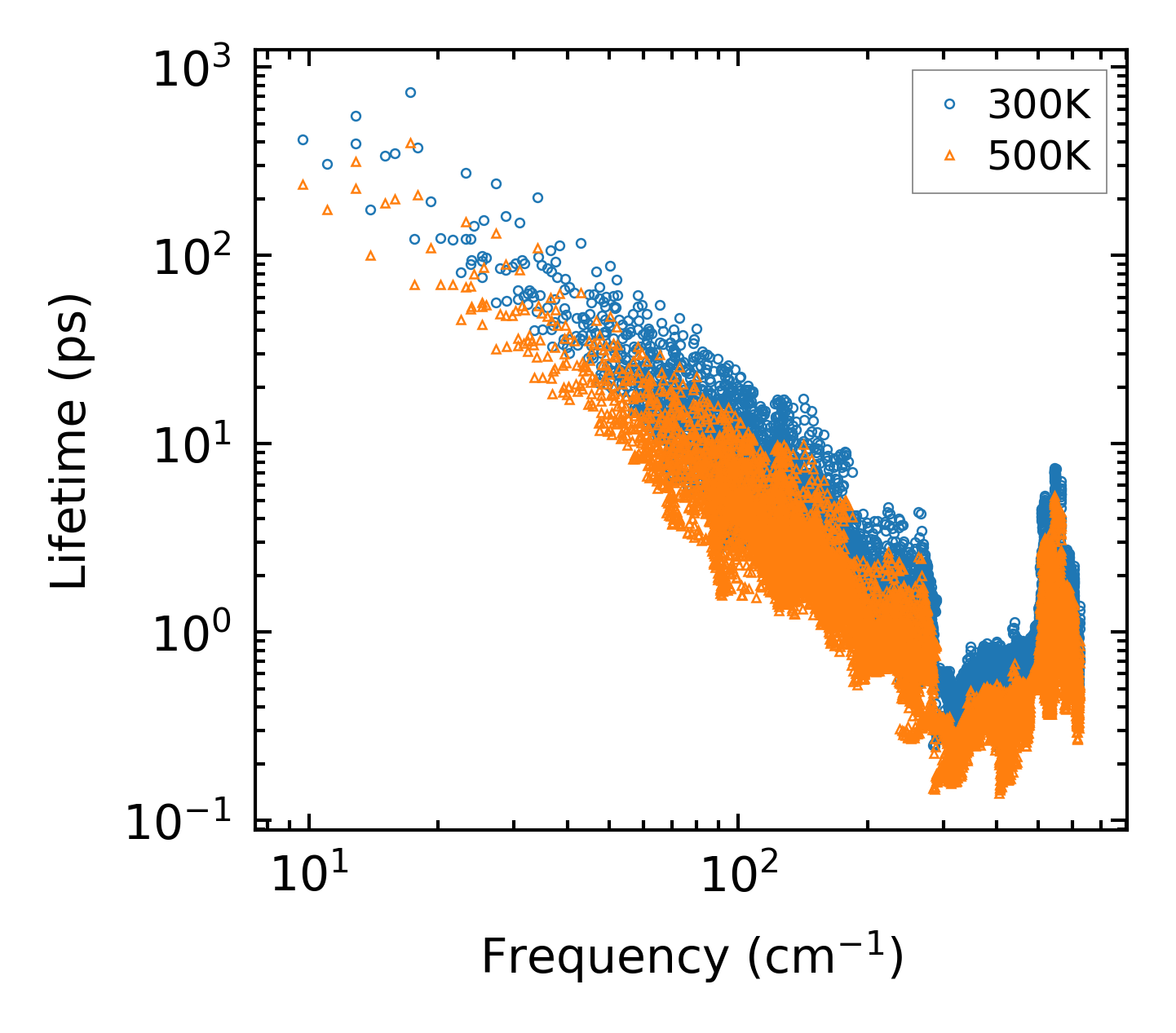

../../_images/fig_lifetime4230.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates4229.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

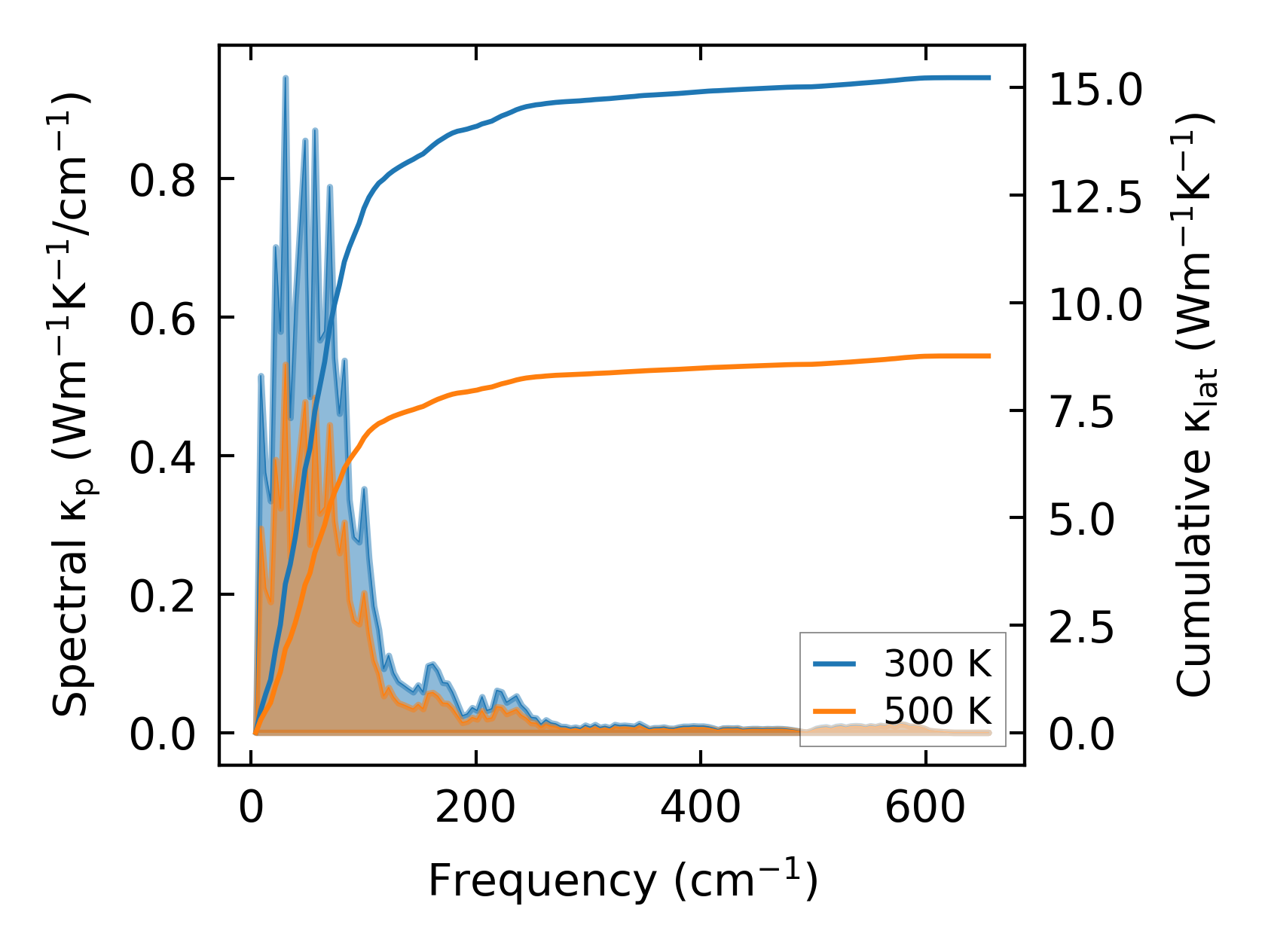

../../_images/fig_cumu_frequency4230.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

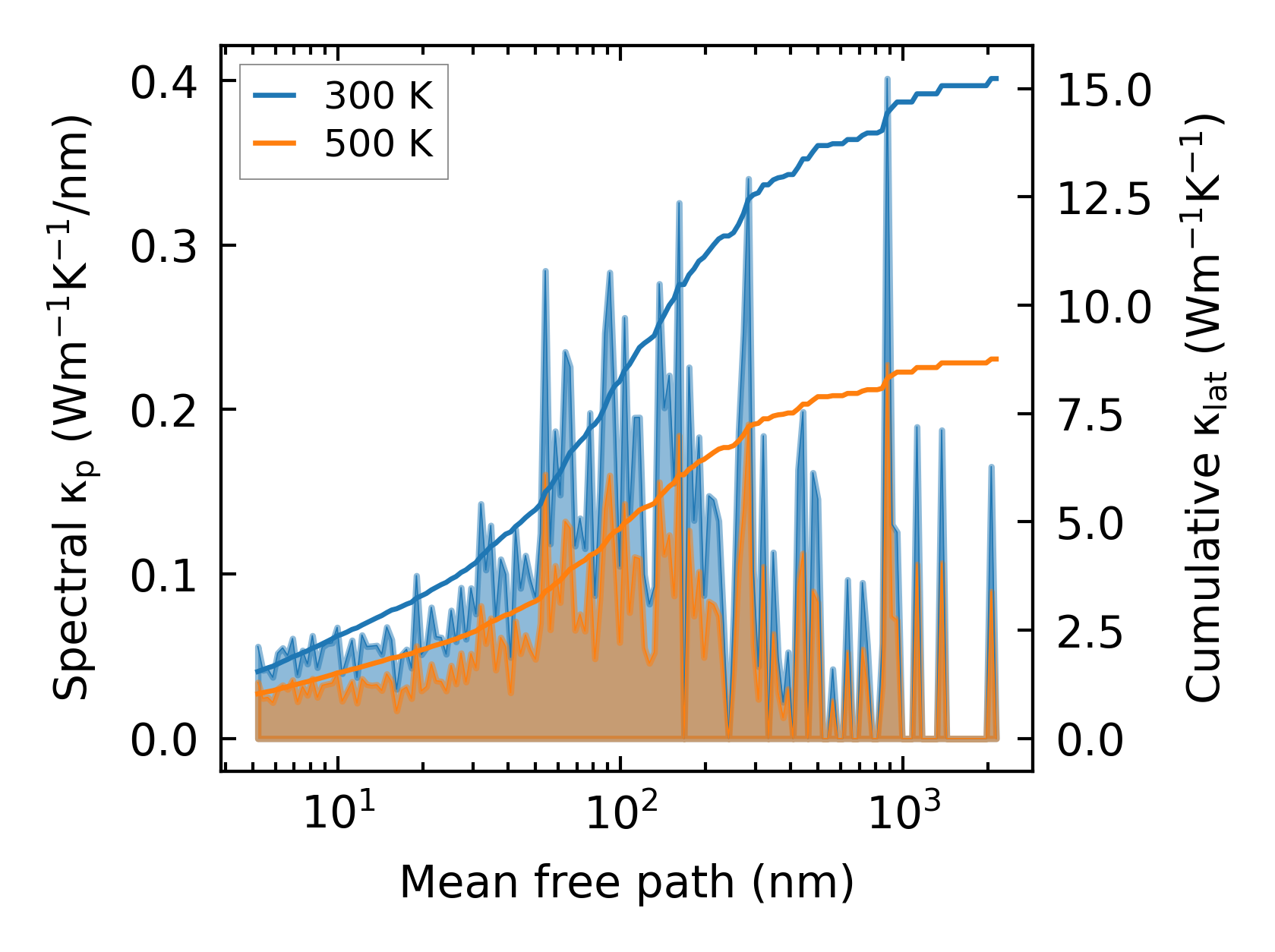

../../_images/fig_cumu_mfp4229.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

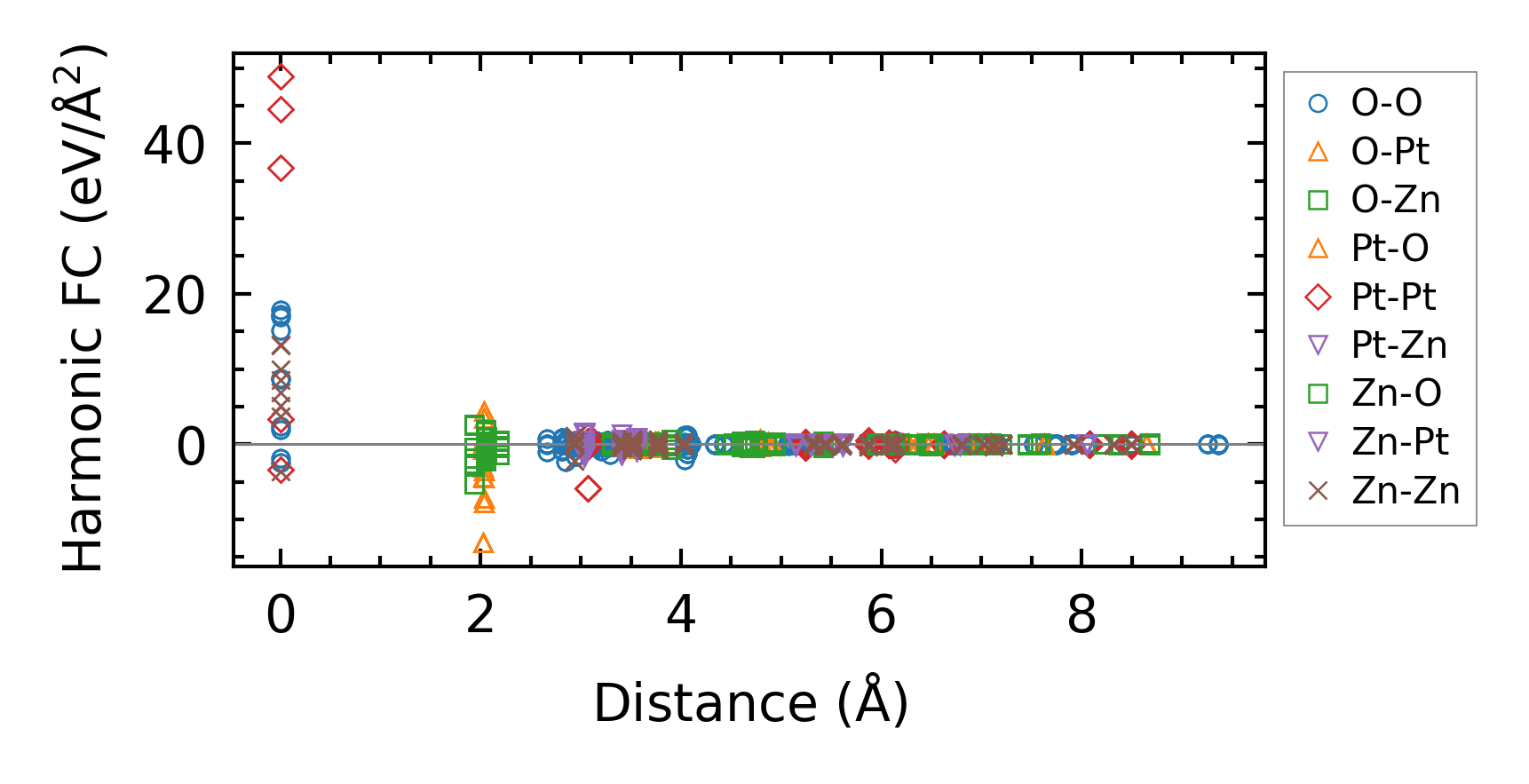

../../_images/fig_fc210260.png — (a) Force constants w.r.t atomic distance

Summary

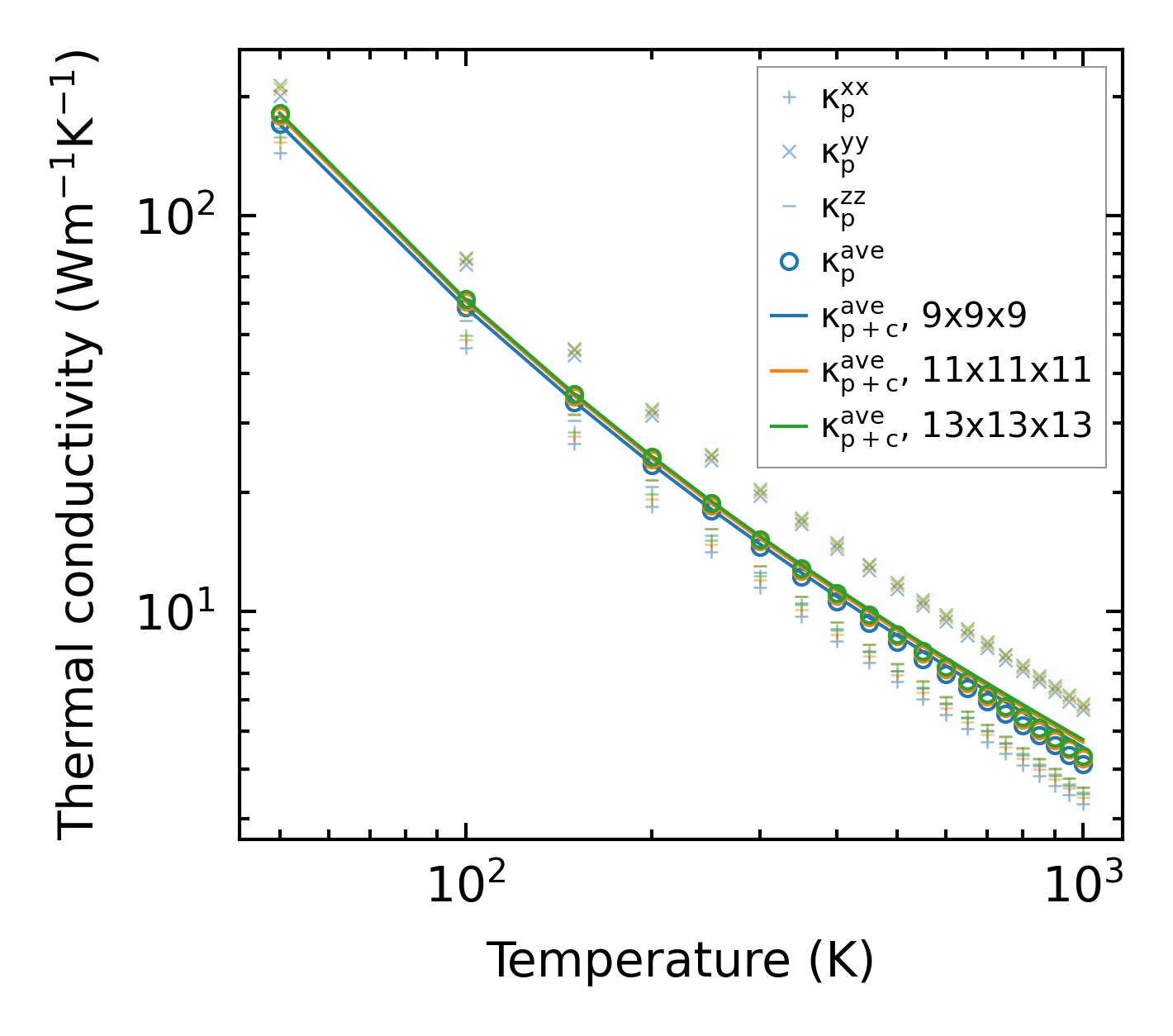

../../_images/fig_kappa8055.png — (a) Temperature-dependent lattice thermal conductivity

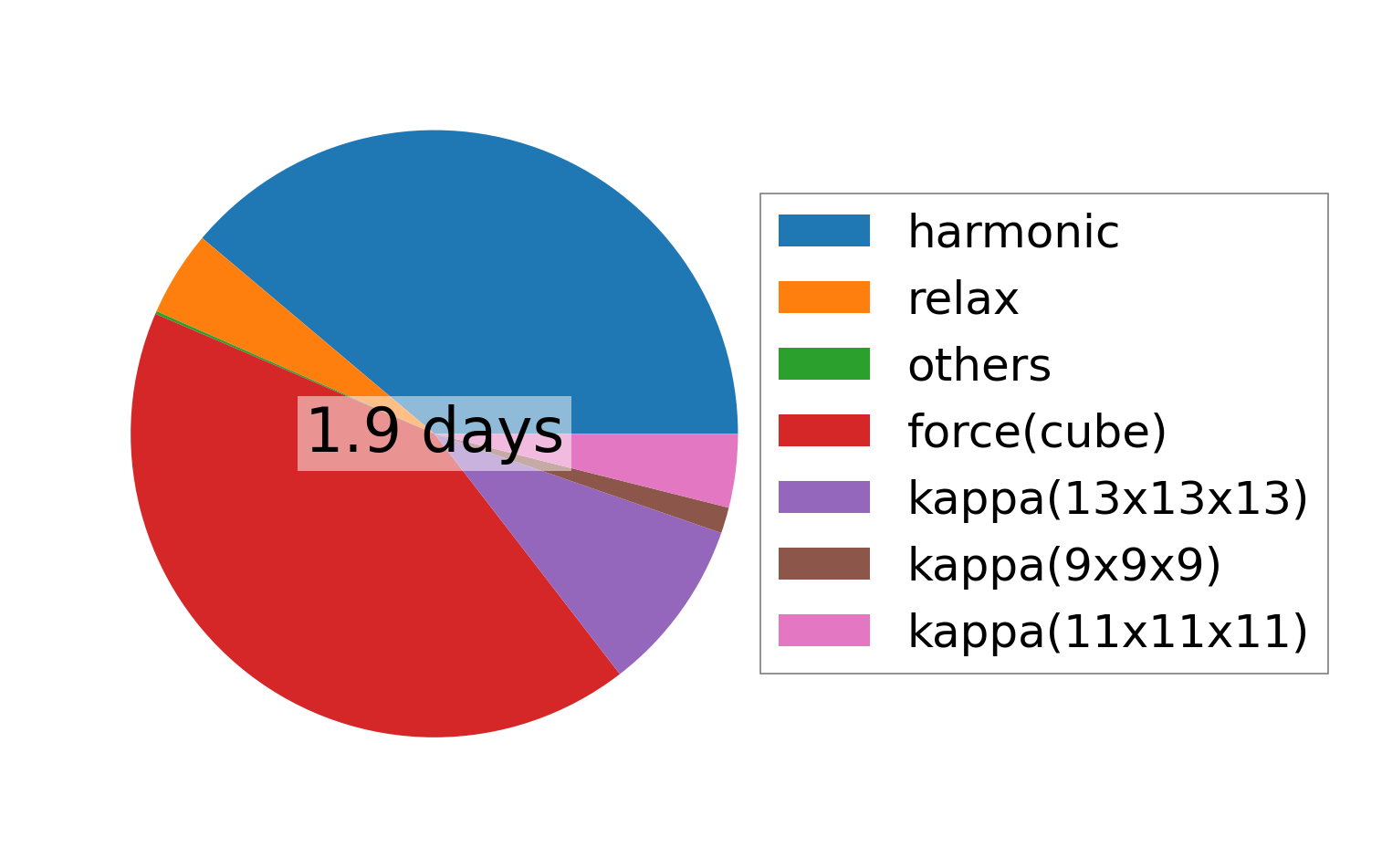

../../_images/fig_times18104.png — (b) Computation time
