mp-1207136-2/RbAgC2/anharm

Space group: P4/mmm (123)
Link: Materials Project
Download: mp-1207136-2.tar.gz

Equation of state

../../_images/fig_bm7579.png — (a) Equation of state

Harmonic properties

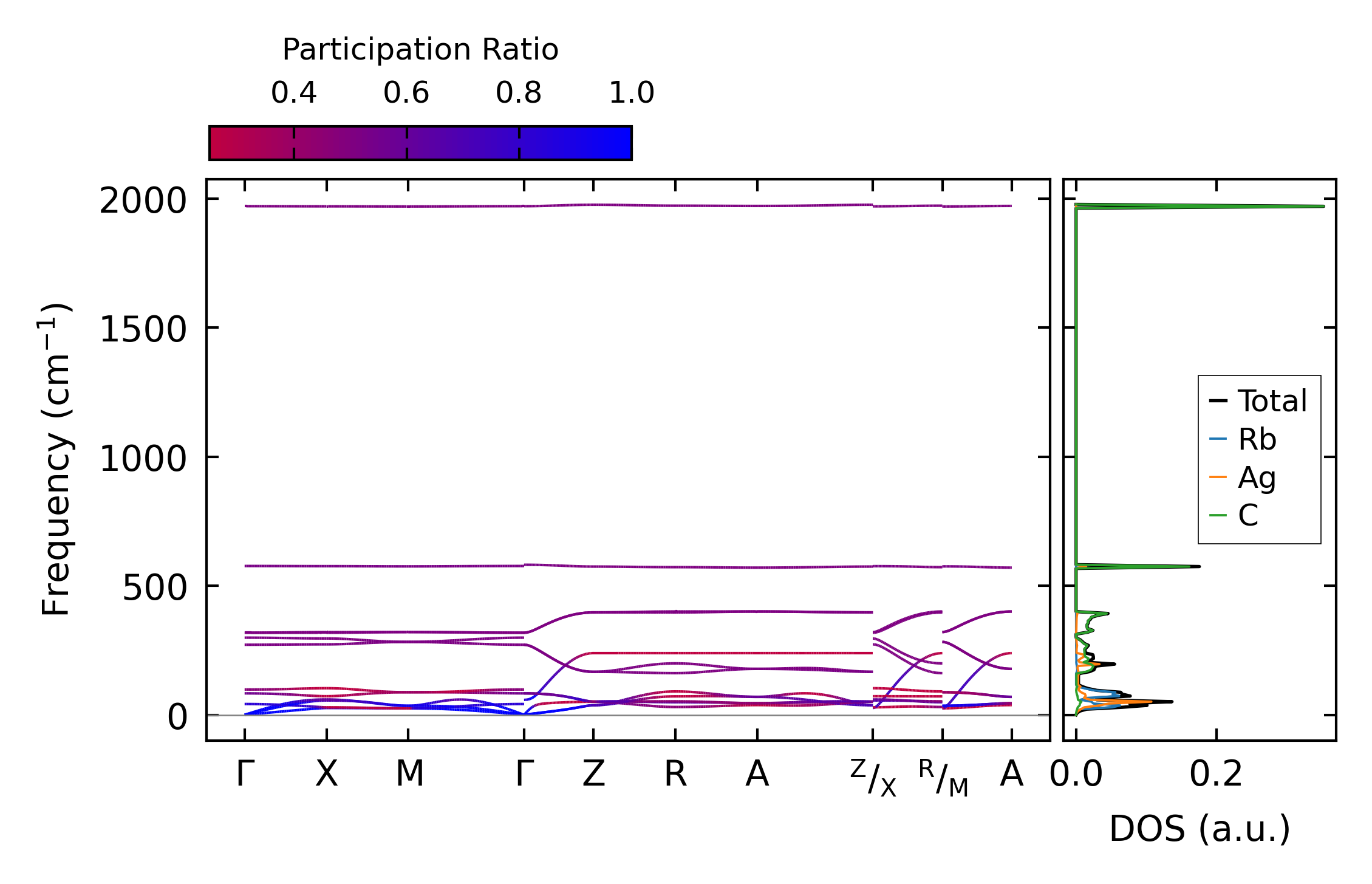

../../_images/fig_bandos_pr15485.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos19852.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo15484.png — (c) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all6702.png — (a) Grüneisen parameters

../../_images/fig_gruneisen6702.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon — q-mesh: 16x16x13, supercell: 3x3x3

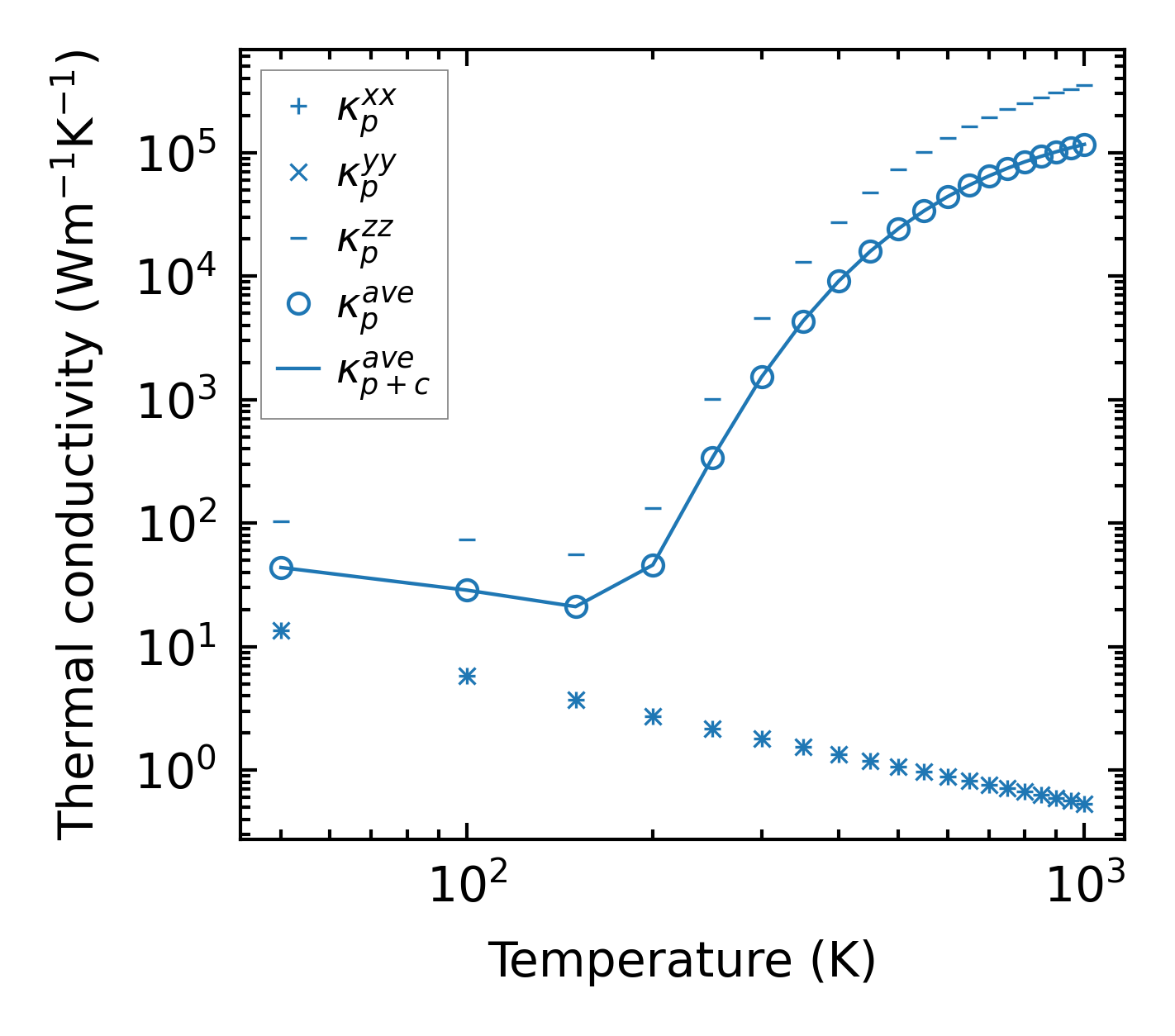

../../_images/fig_kappa12622.png — (a) Temperature-dependent lattice thermal conductivity

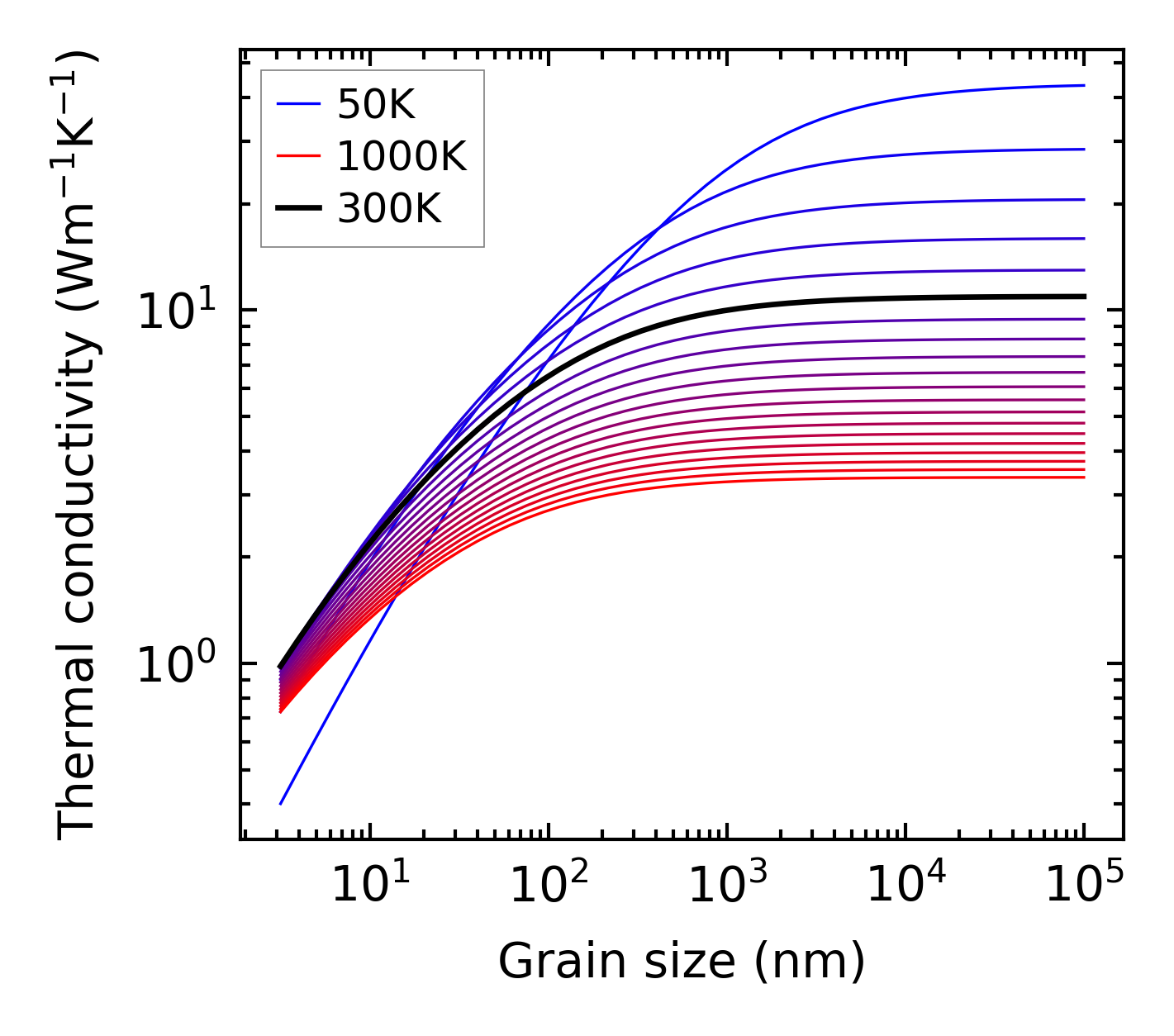

../../_images/fig_kappa_vs_grain_size6780.png — (b) Peierls lattice thermal conductivity w.r.t grain size

3-phonon, supercell 4x4x3 — q-mesh: 16x16x13, supercell: 4x4x3

../../_images/fig_kappa12623.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size6781.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

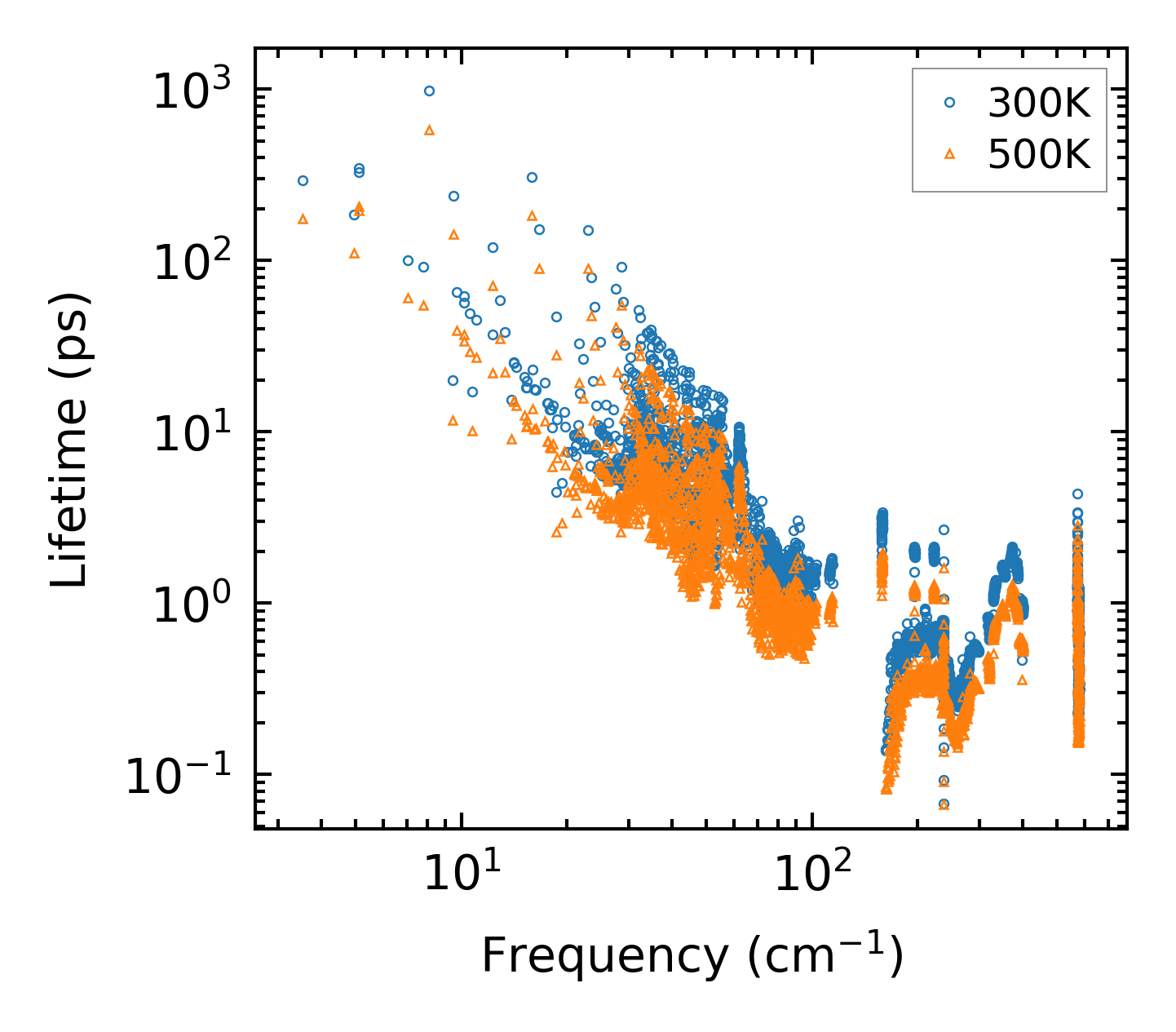

../../_images/fig_lifetime6636.png — (a) Phonon lifetime due to phonon-phonon scattering

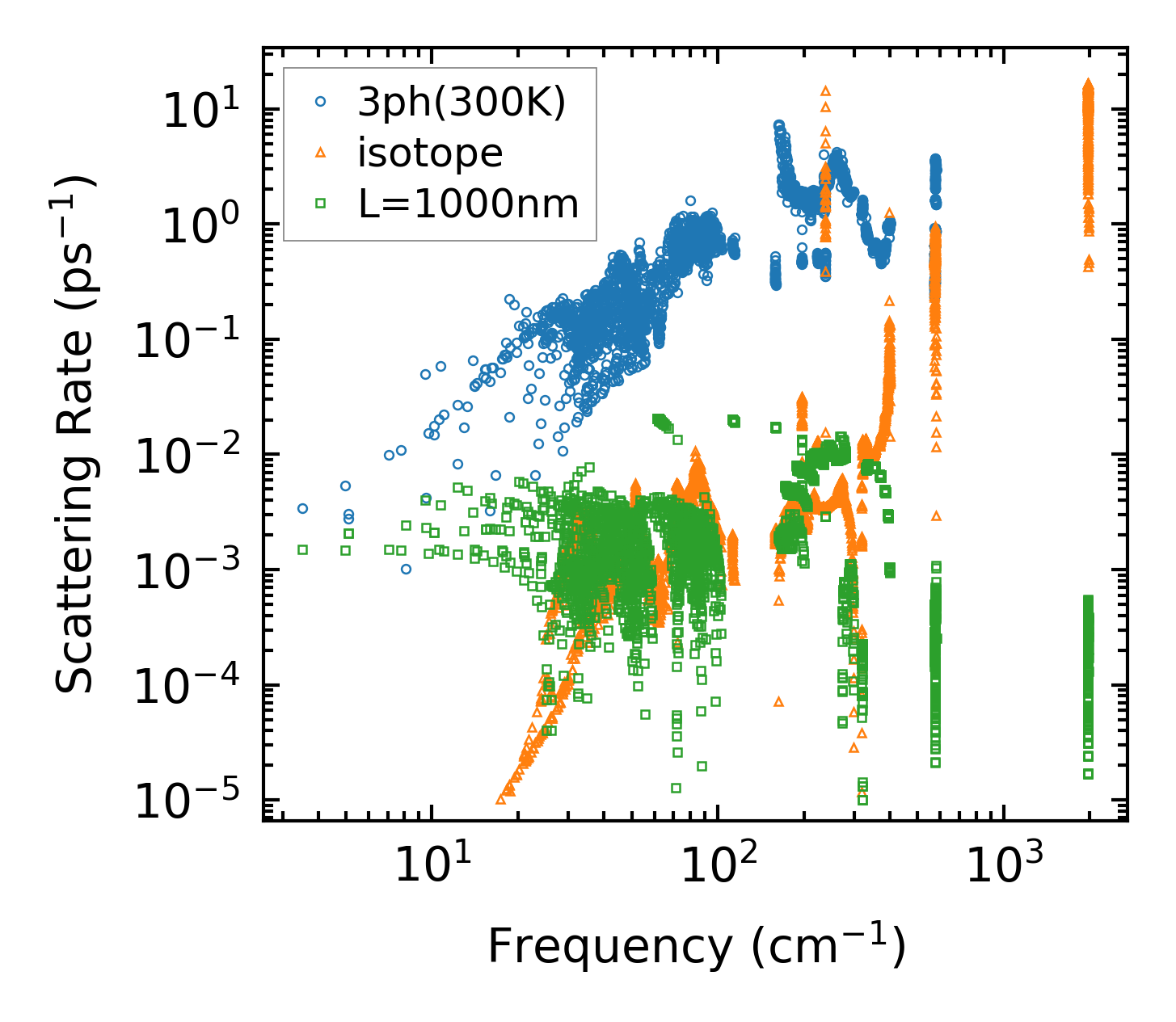

../../_images/fig_scat_rates6635.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency6636.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

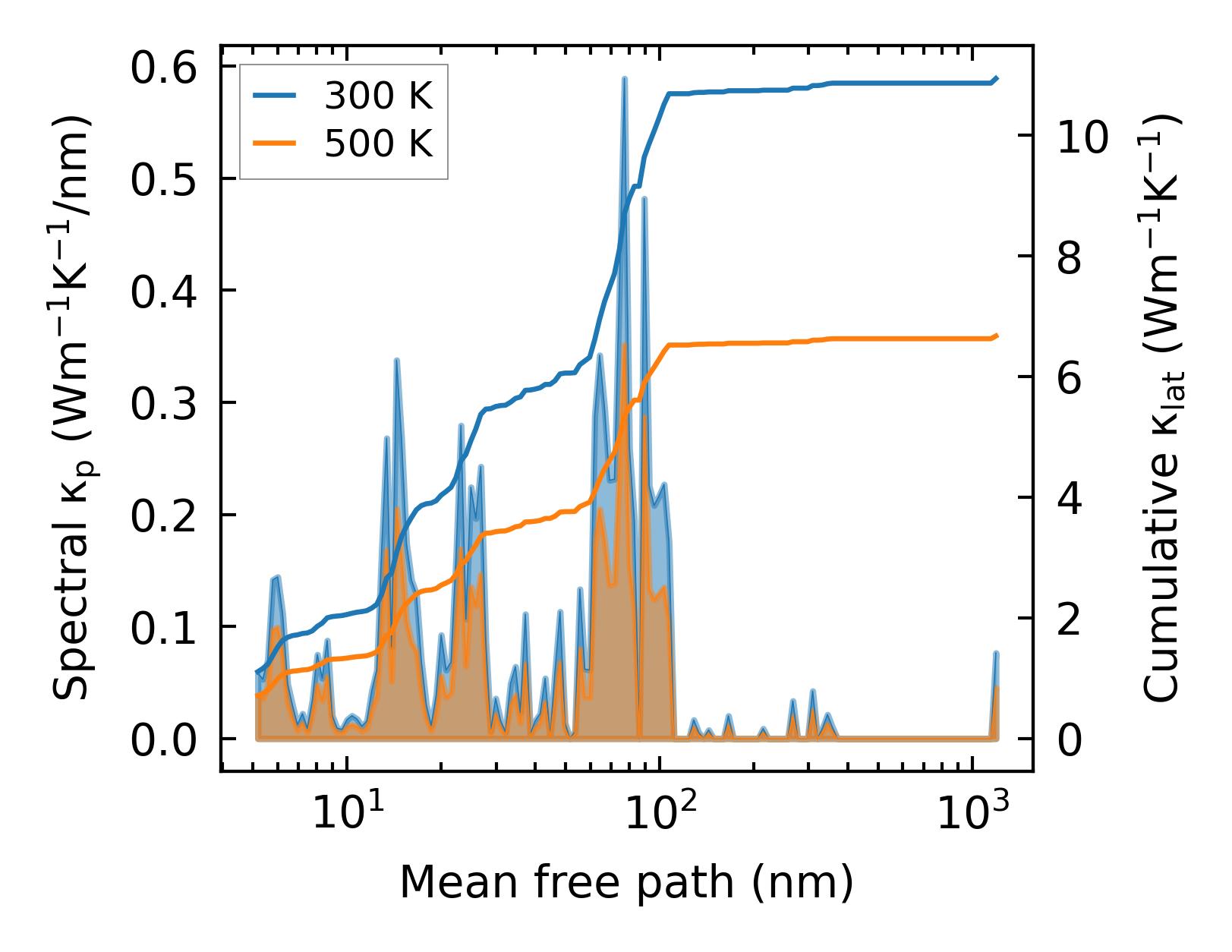

../../_images/fig_cumu_mfp6635.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc3405.png — (a) Force constants w.r.t atomic distance

Summary

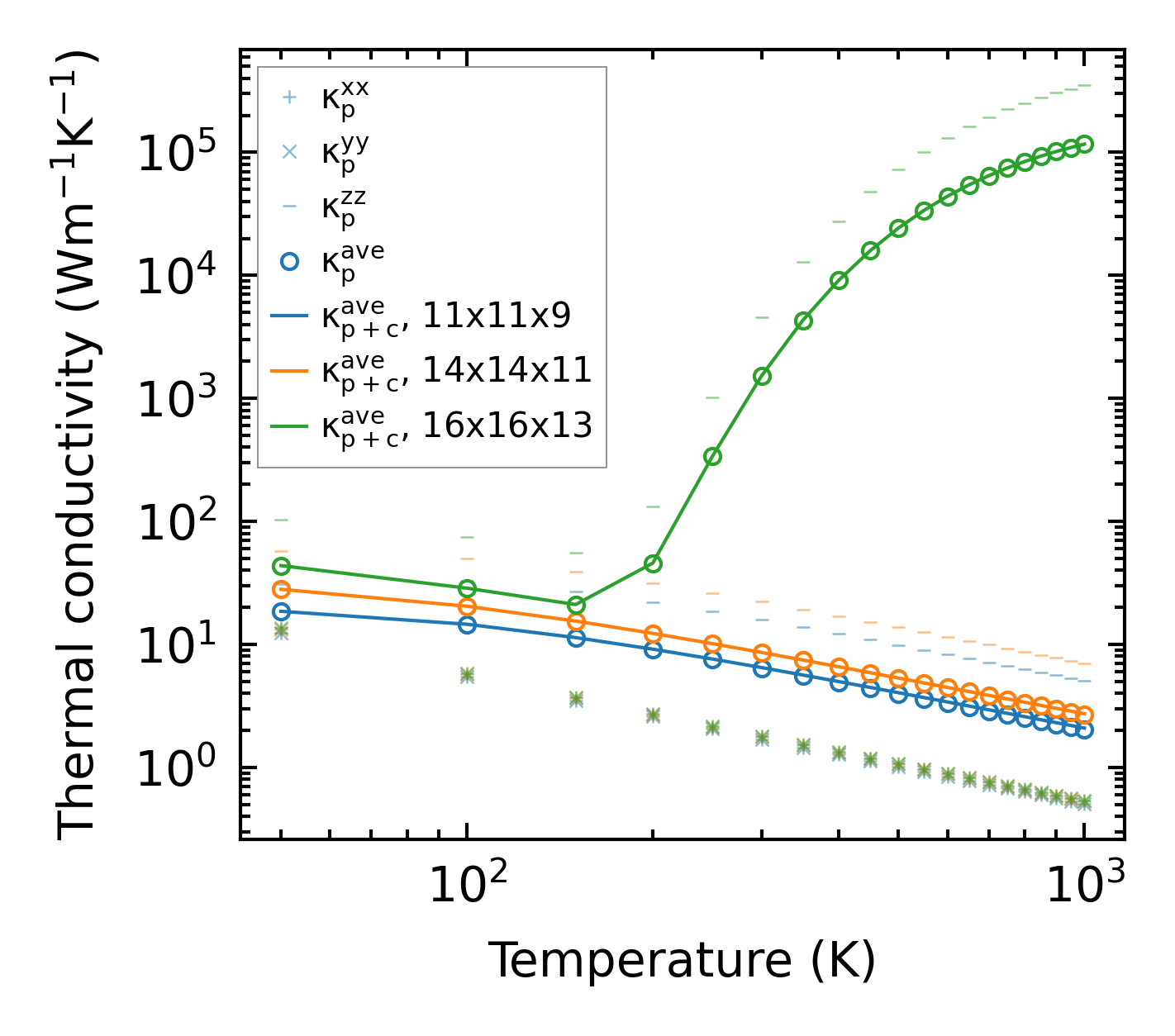

../../_images/fig_kappa12624.png — (a) Temperature-dependent lattice thermal conductivity

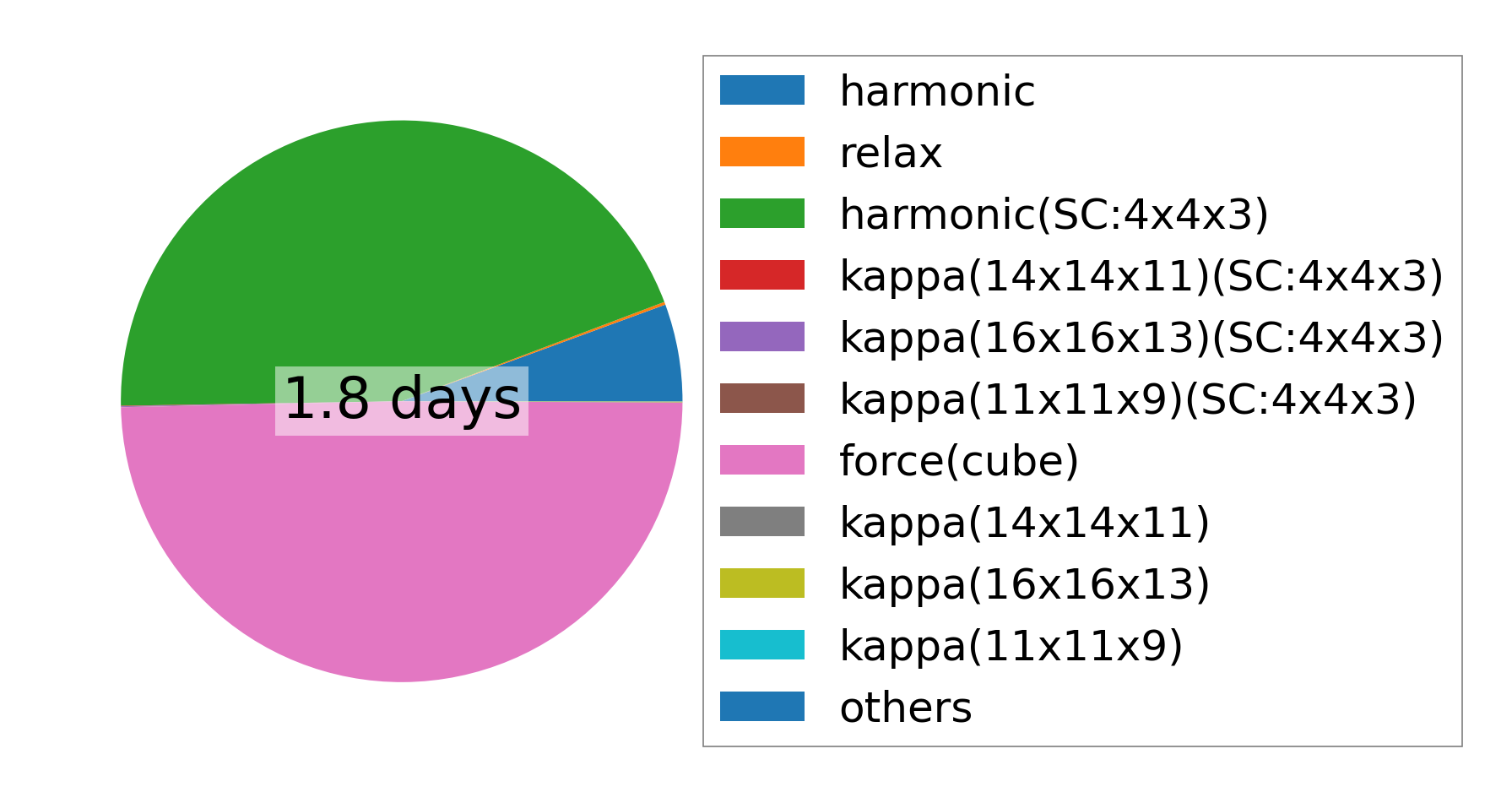

../../_images/fig_times25578.png — (b) Computation time
