mp-1193675/B/anharm

Space group: Pnnm (58)
Link: Materials Project
Download: mp-1193675.tar.gz

Harmonic properties

../../_images/fig_bandos_pr15840.png — (a) Phonon dispersion with participation ratio and DOS

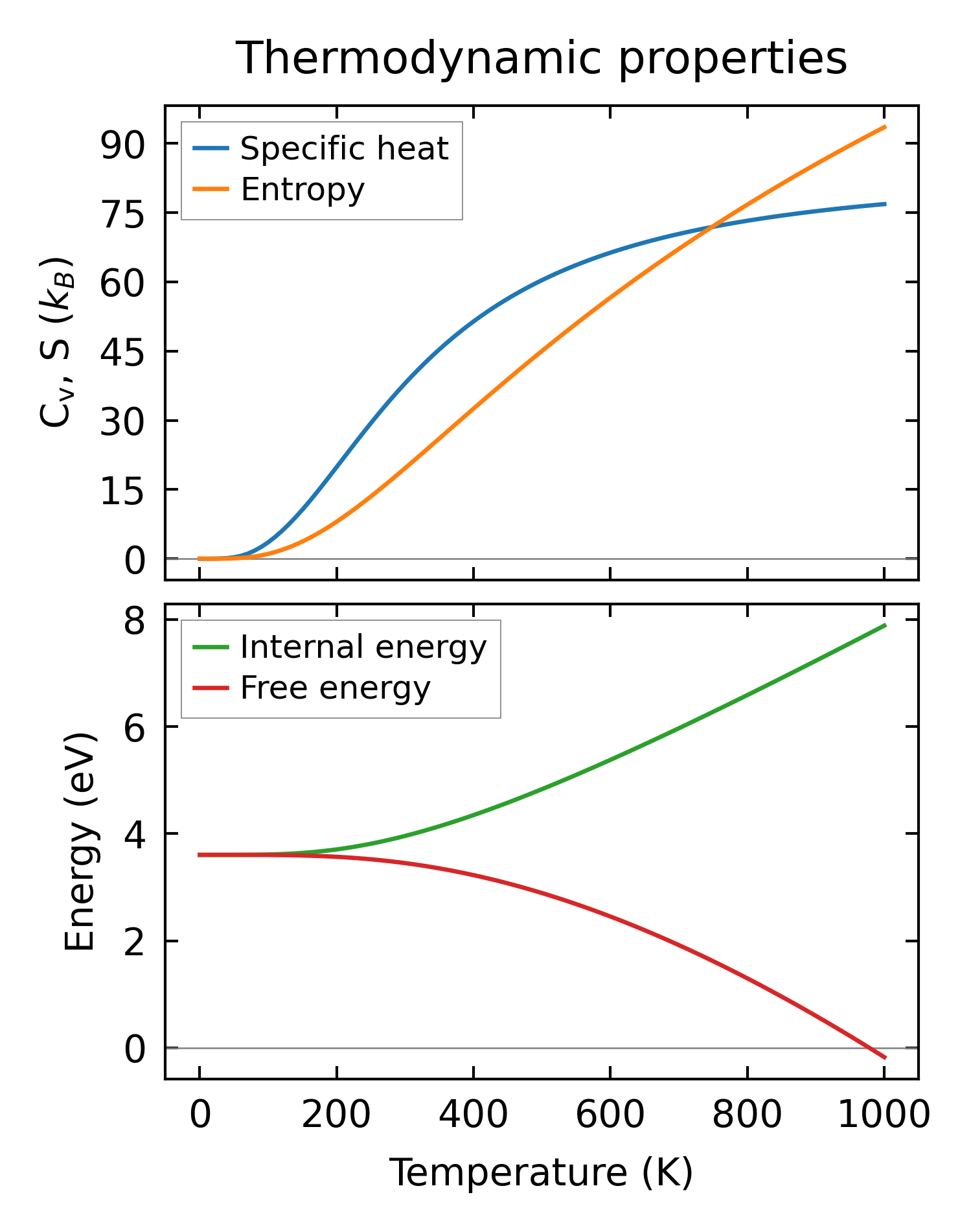

../../_images/fig_thermo15839.png — (b) Thermodynamic properties

Grüneisen parameters

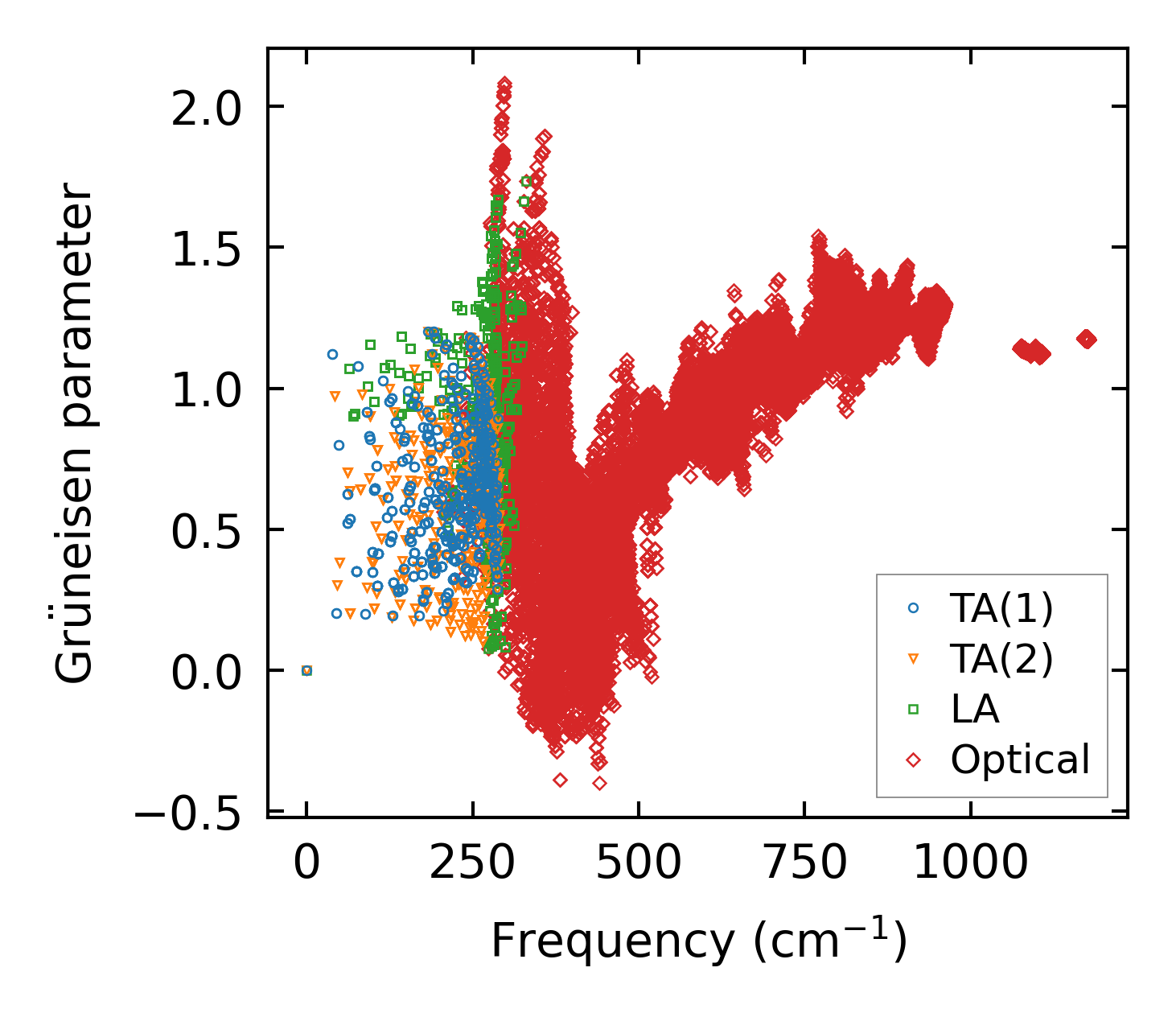

../../_images/fig_gru_all6856.png — (a) Grüneisen parameters

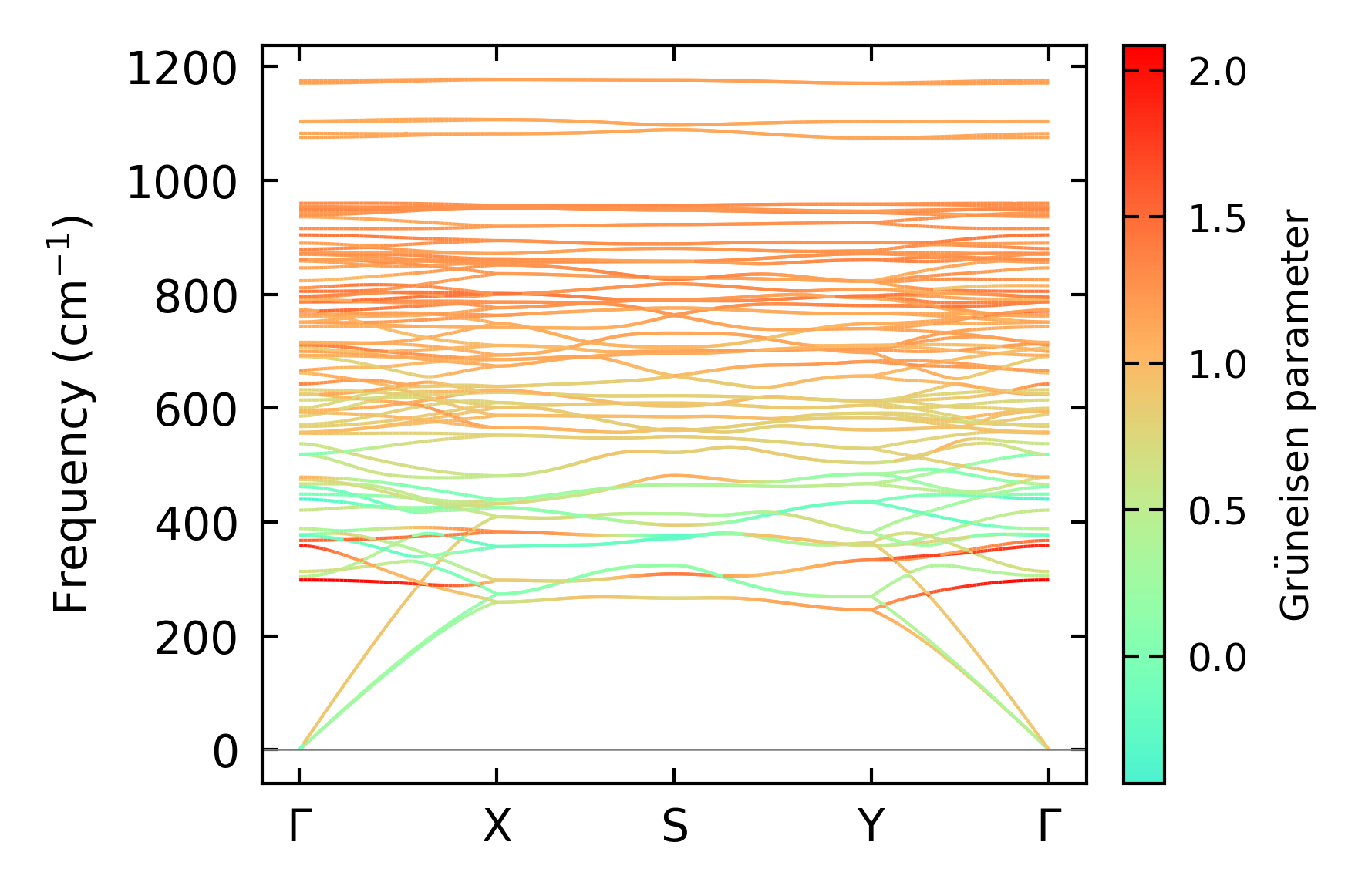

../../_images/fig_gruneisen6856.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x12x10, supercell: 2x2x1

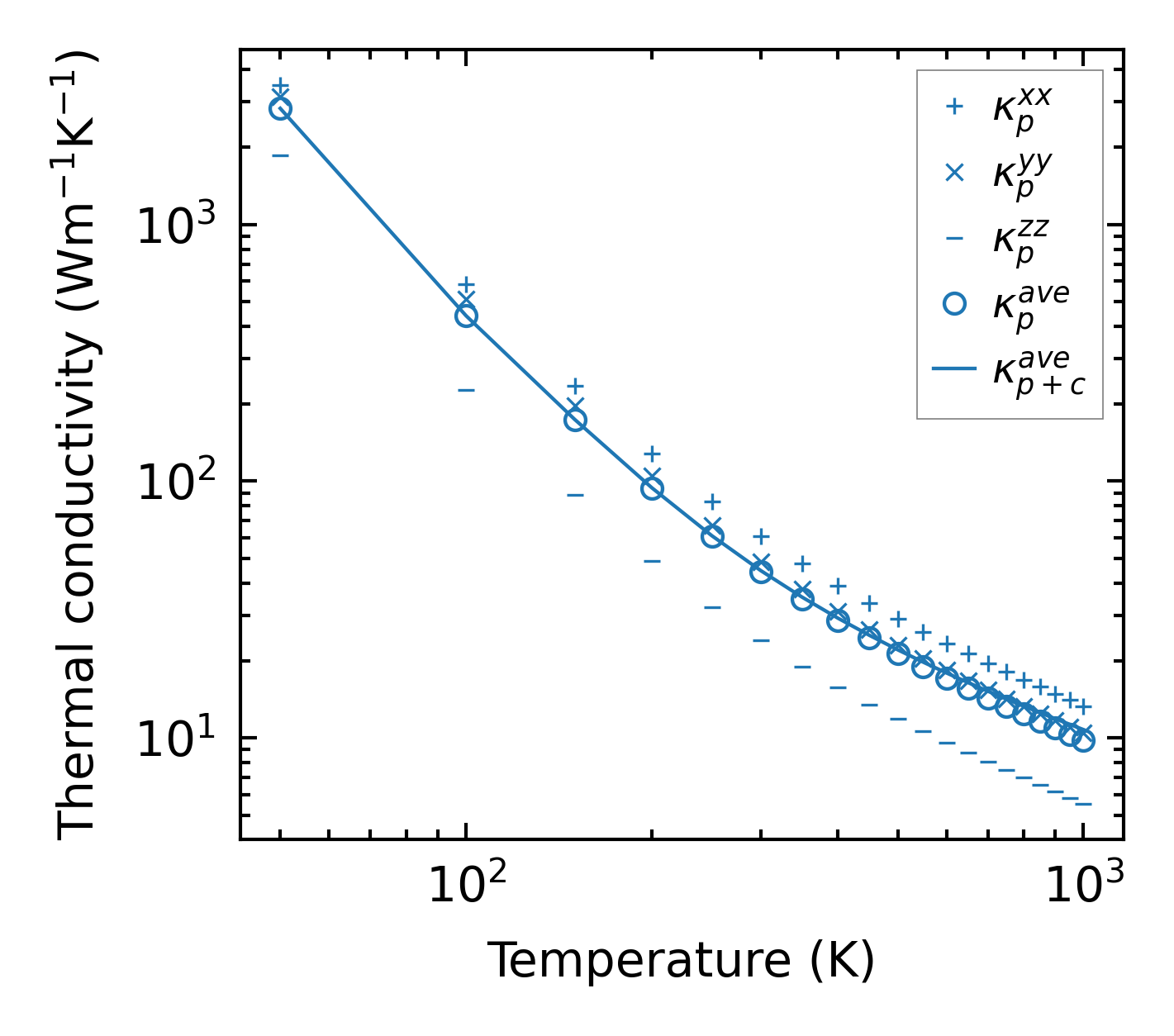

../../_images/fig_kappa12912.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size6936.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

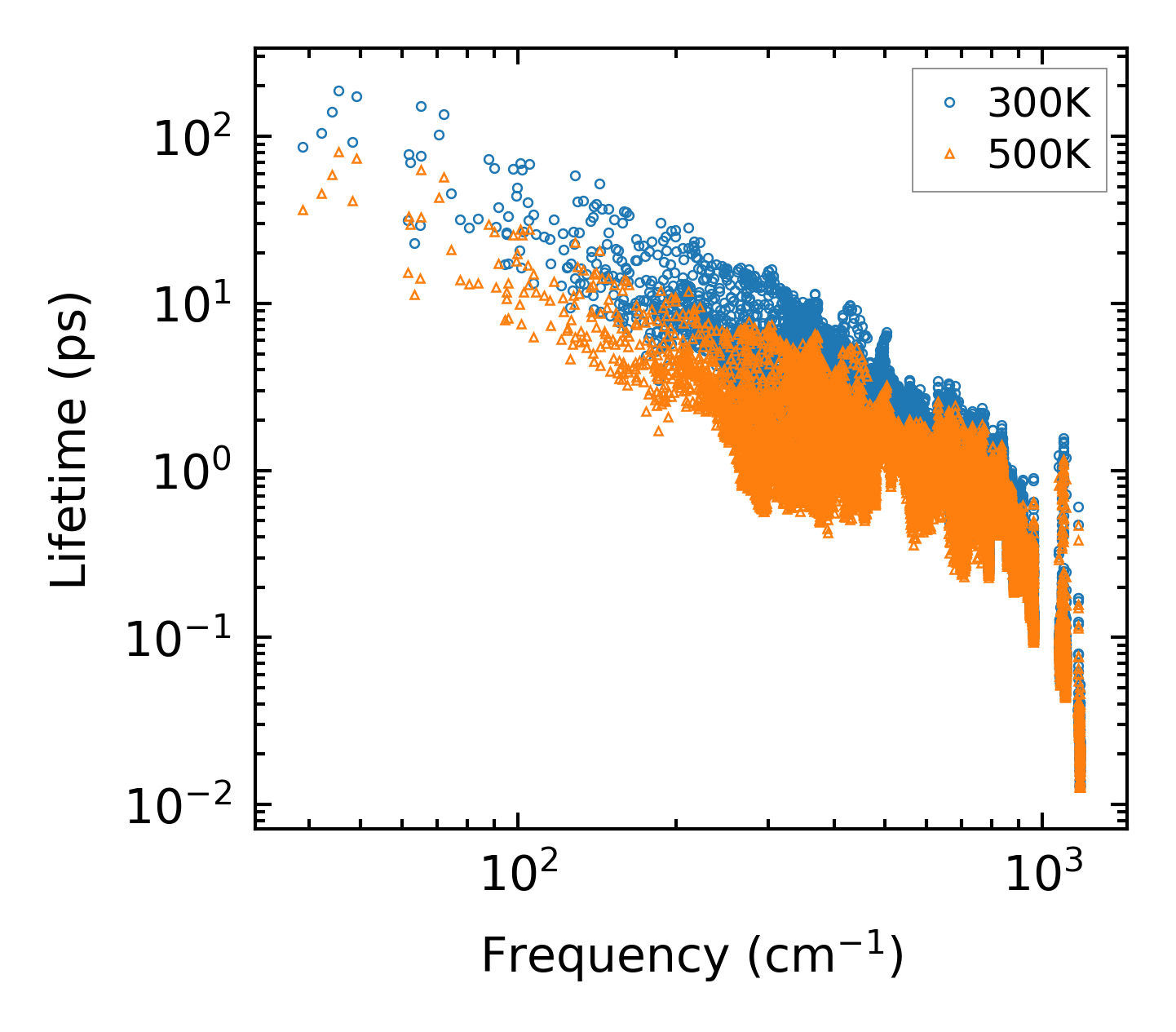

../../_images/fig_lifetime6790.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates6789.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency6790.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

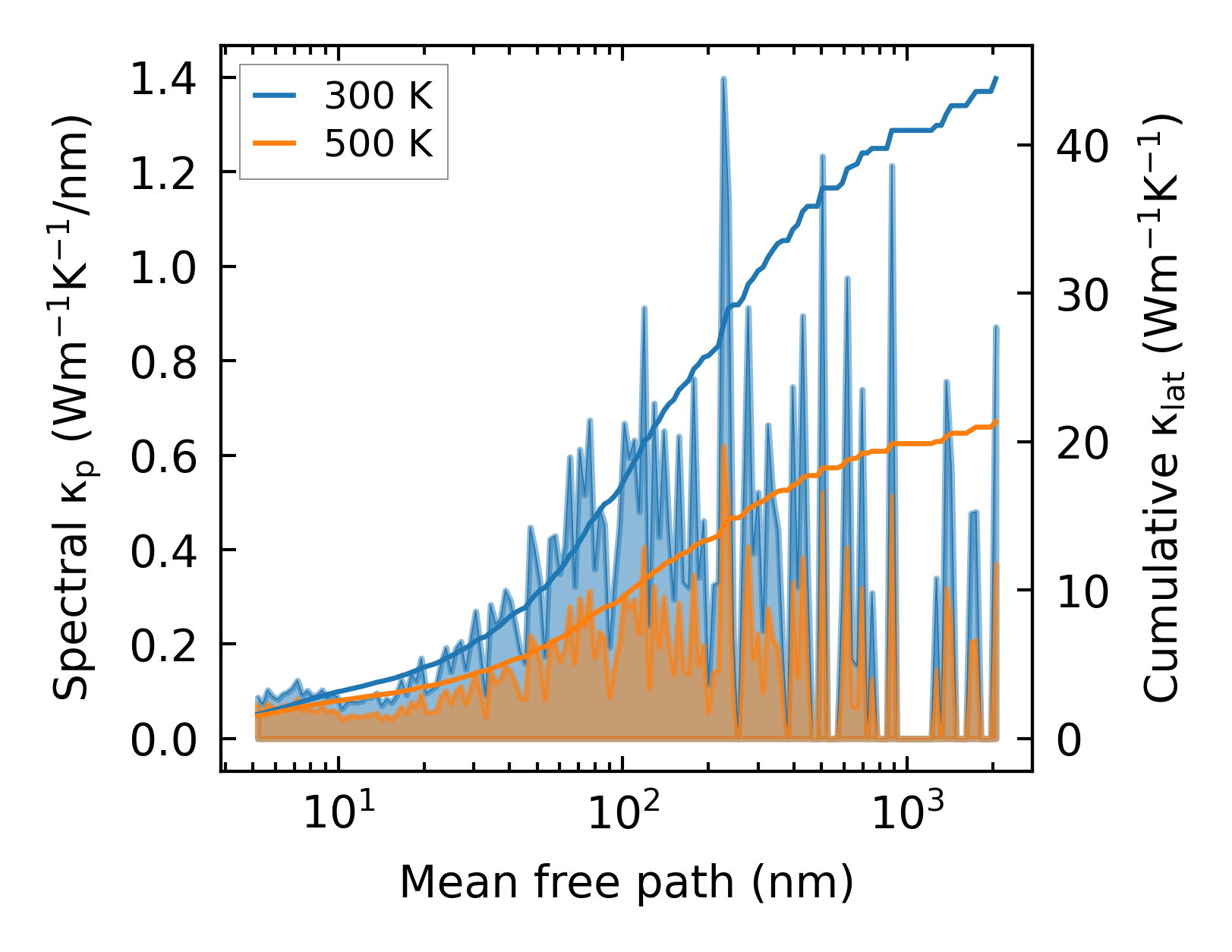

../../_images/fig_cumu_mfp6789.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

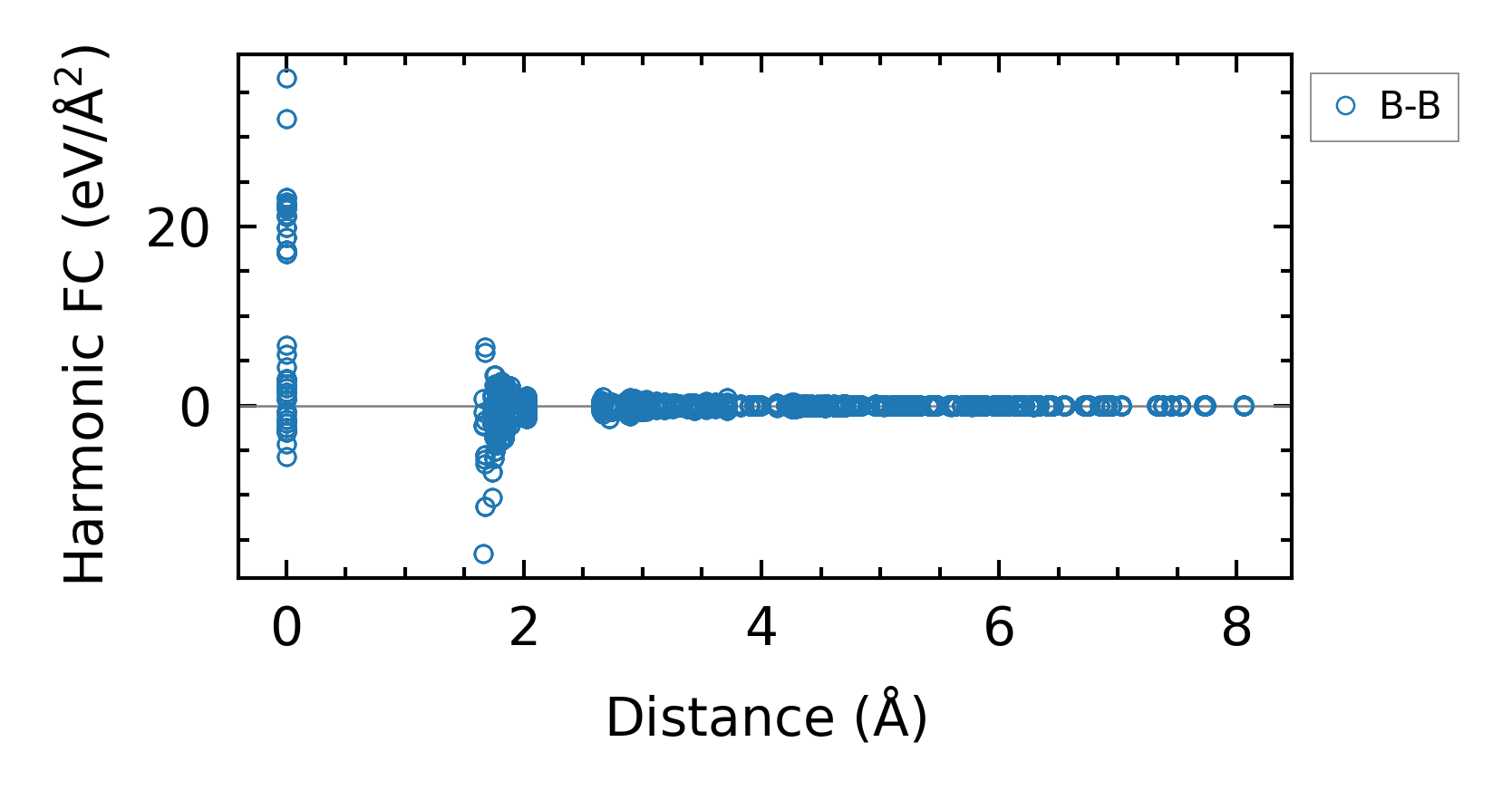

../../_images/fig_fc215435.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa12913.png — (a) Temperature-dependent lattice thermal conductivity

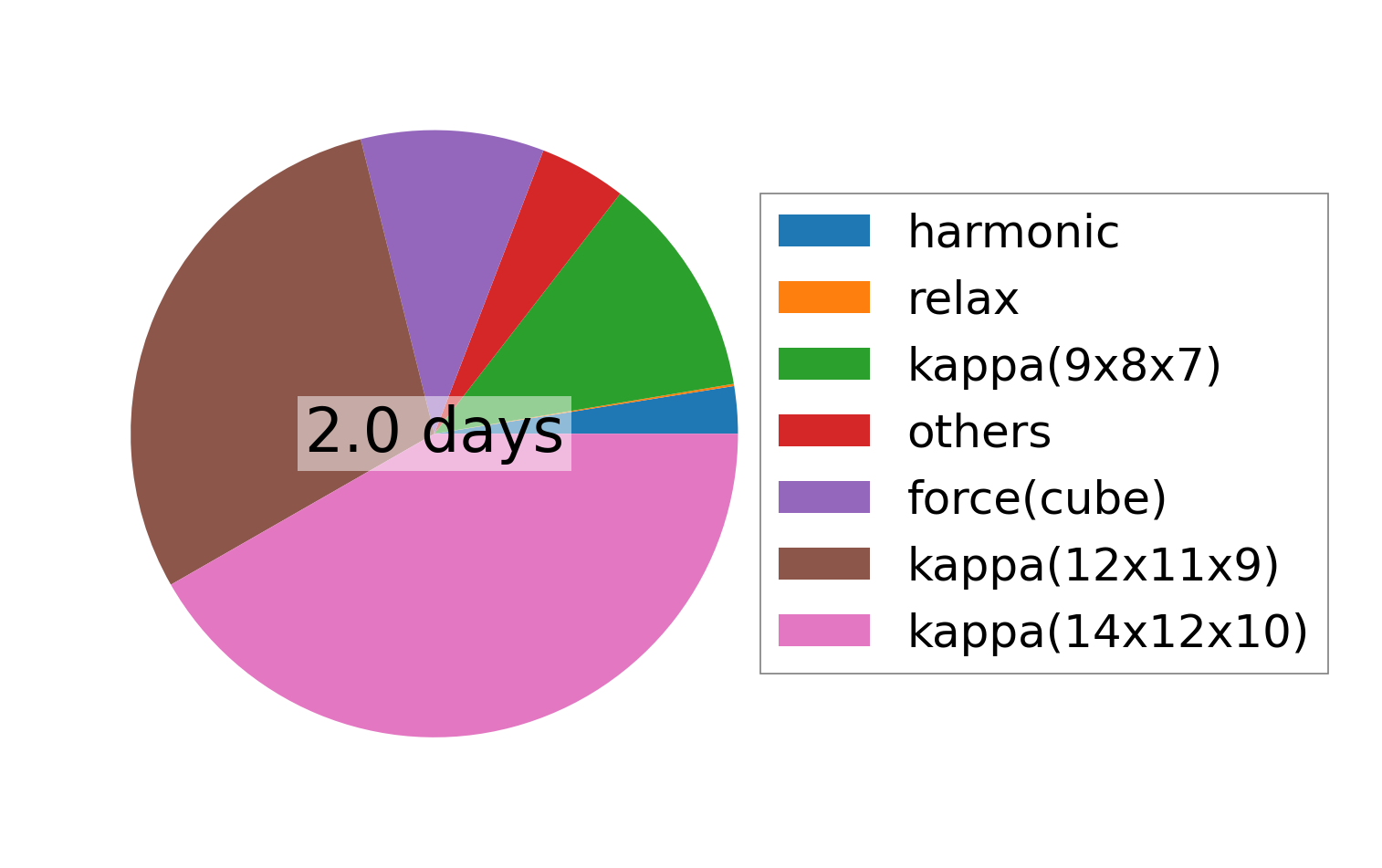

../../_images/fig_times26097.png — (b) Computation time
