mp-1193611/BaTeS3O2/anharm

Space group: Pbcm (57)
Link: Materials Project
Download: mp-1193611.tar.gz

Harmonic properties

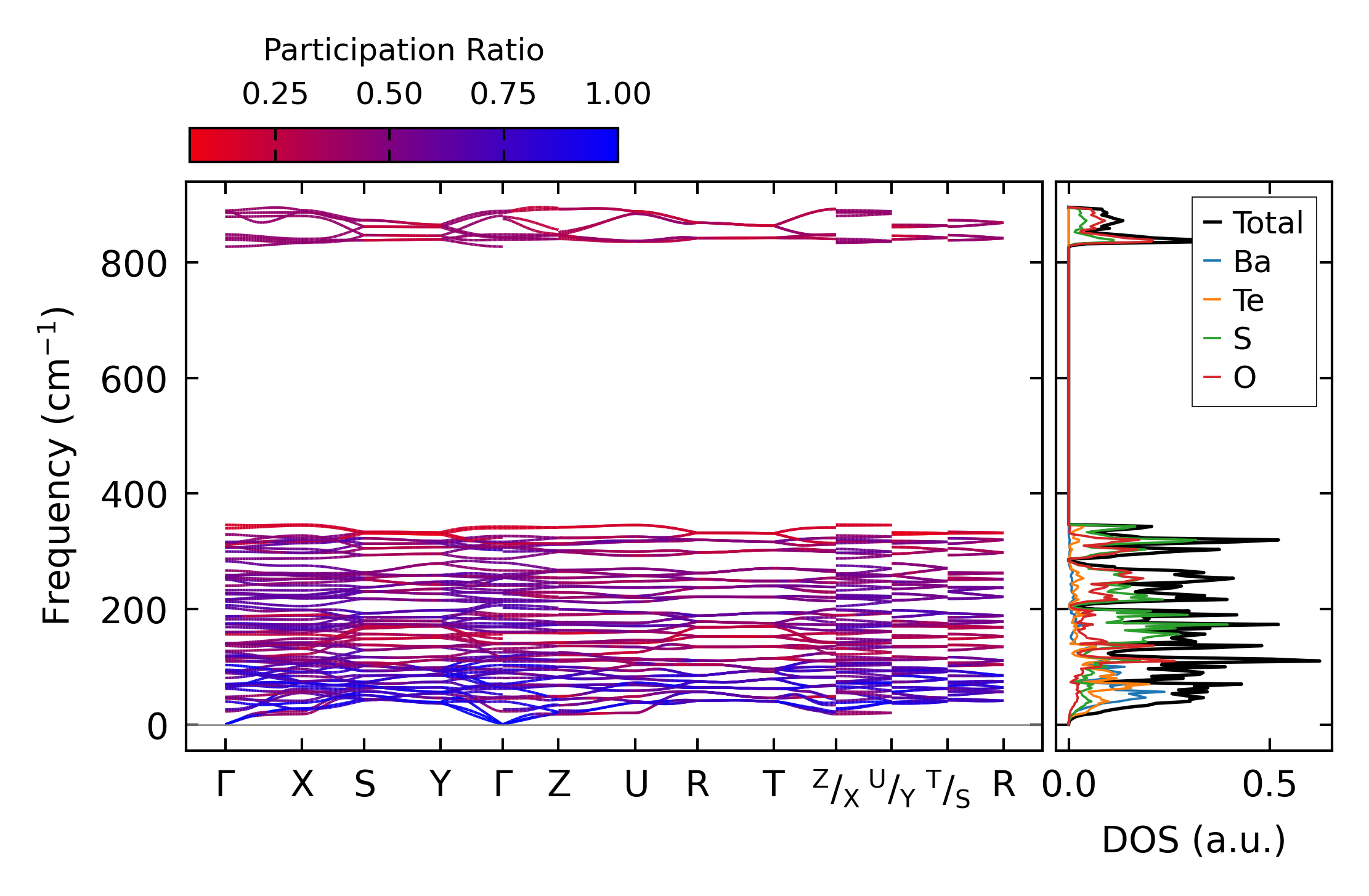

../../_images/fig_bandos_pr15836.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo15835.png — (b) Thermodynamic properties

Grüneisen parameters

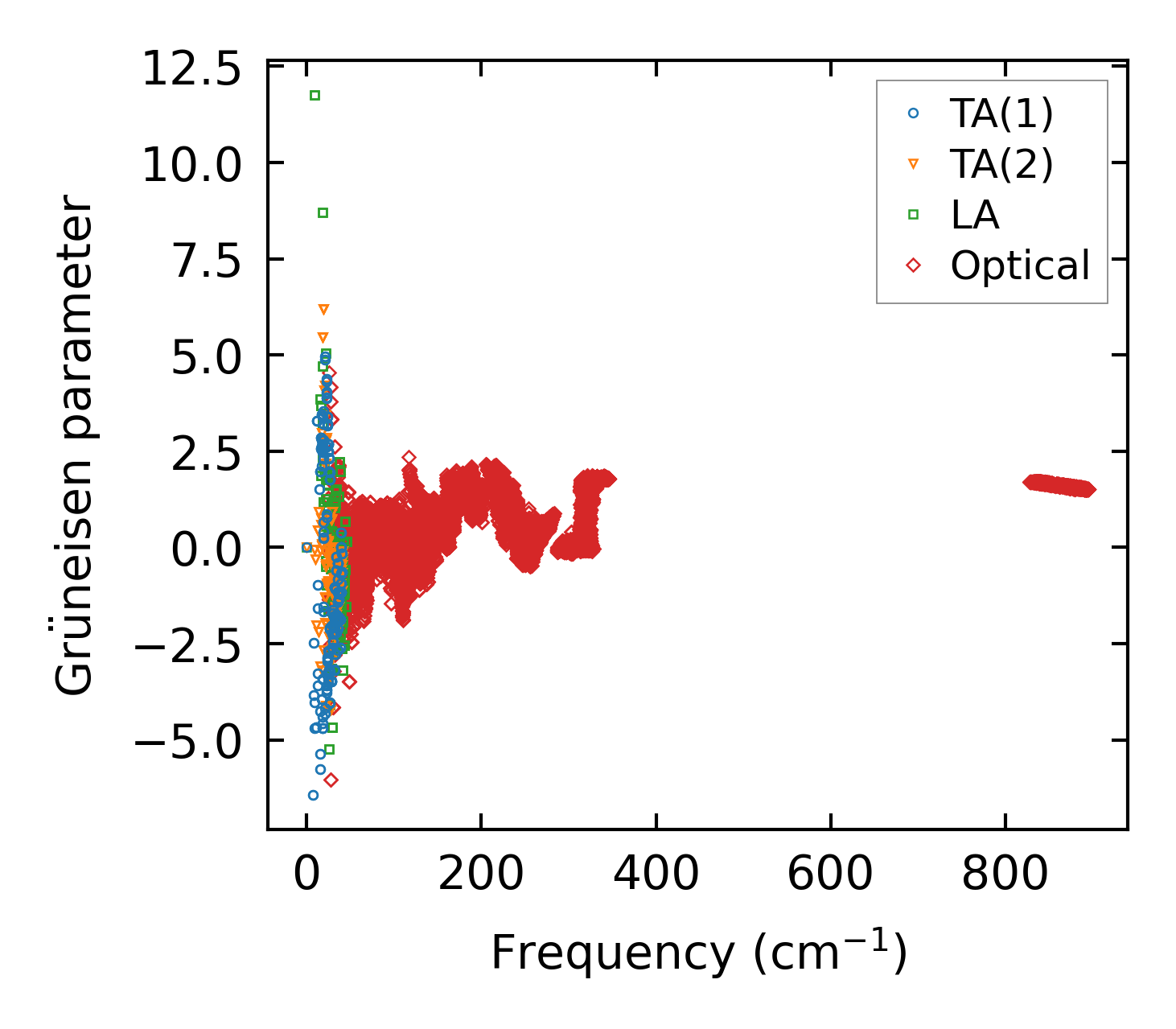

../../_images/fig_gru_all6853.png — (a) Grüneisen parameters

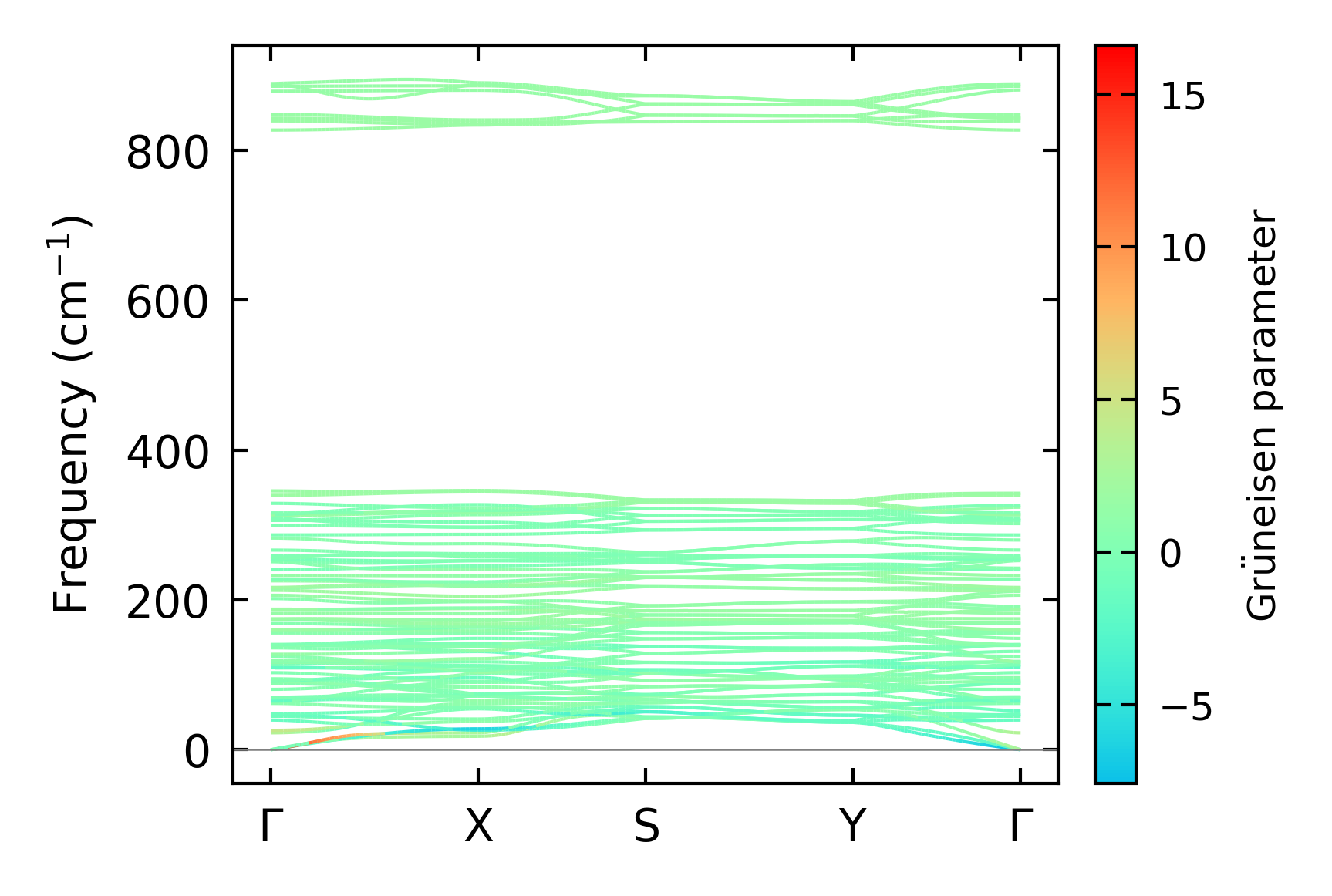

../../_images/fig_gruneisen6853.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x9x5, supercell: 2x2x1

../../_images/fig_kappa12906.png — (a) Temperature-dependent lattice thermal conductivity

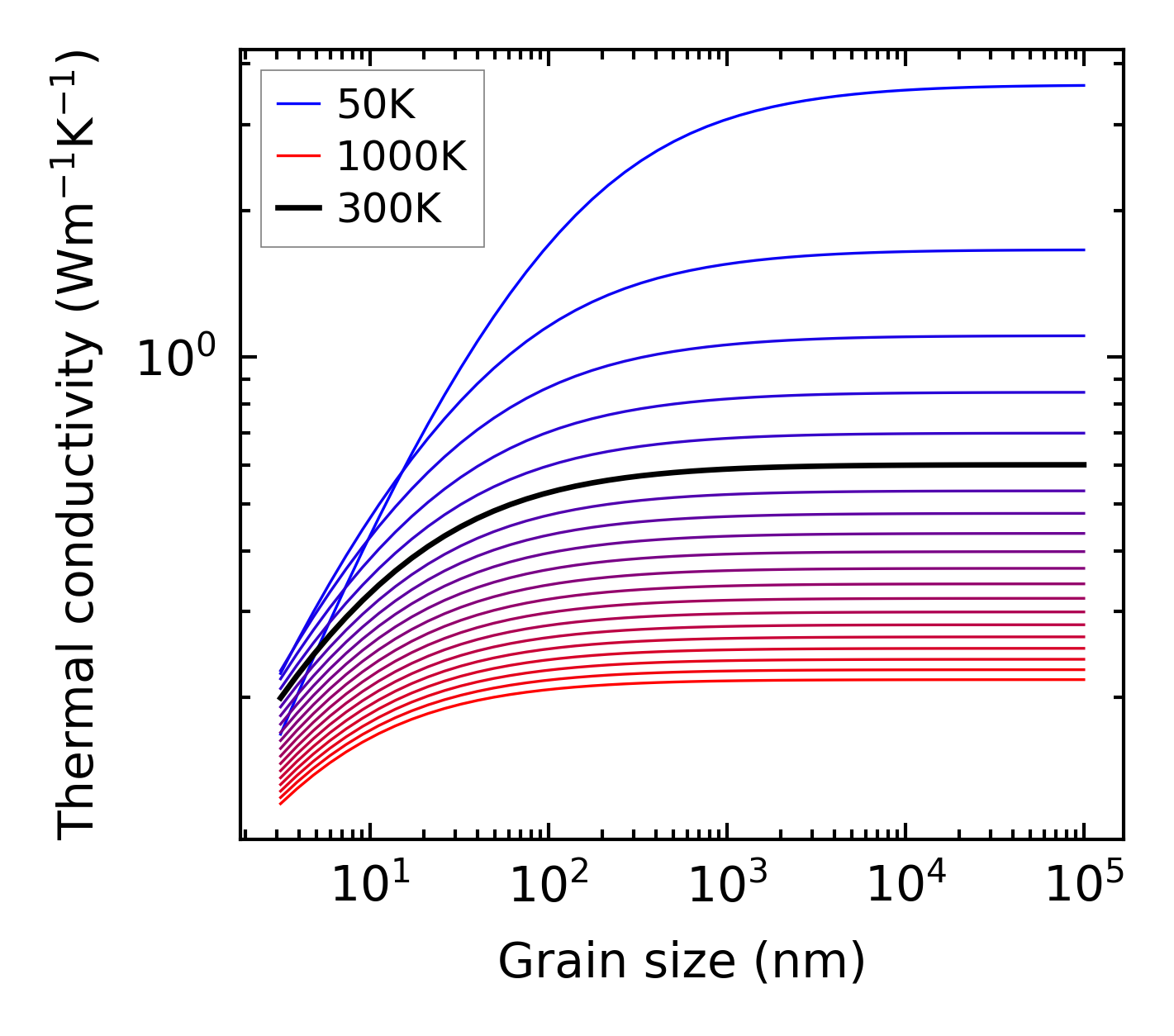

../../_images/fig_kappa_vs_grain_size6933.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

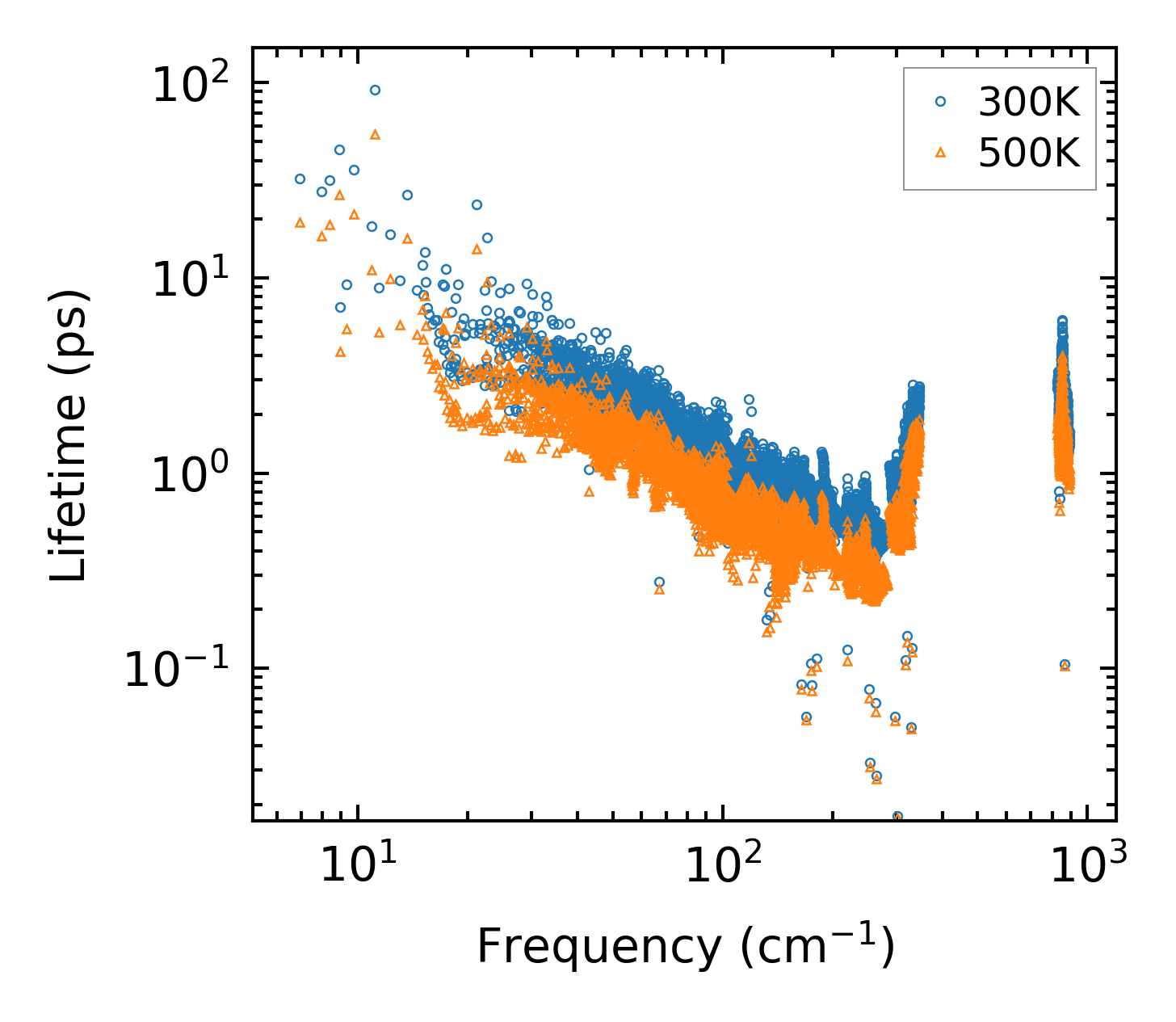

../../_images/fig_lifetime6787.png — (a) Phonon lifetime due to phonon-phonon scattering

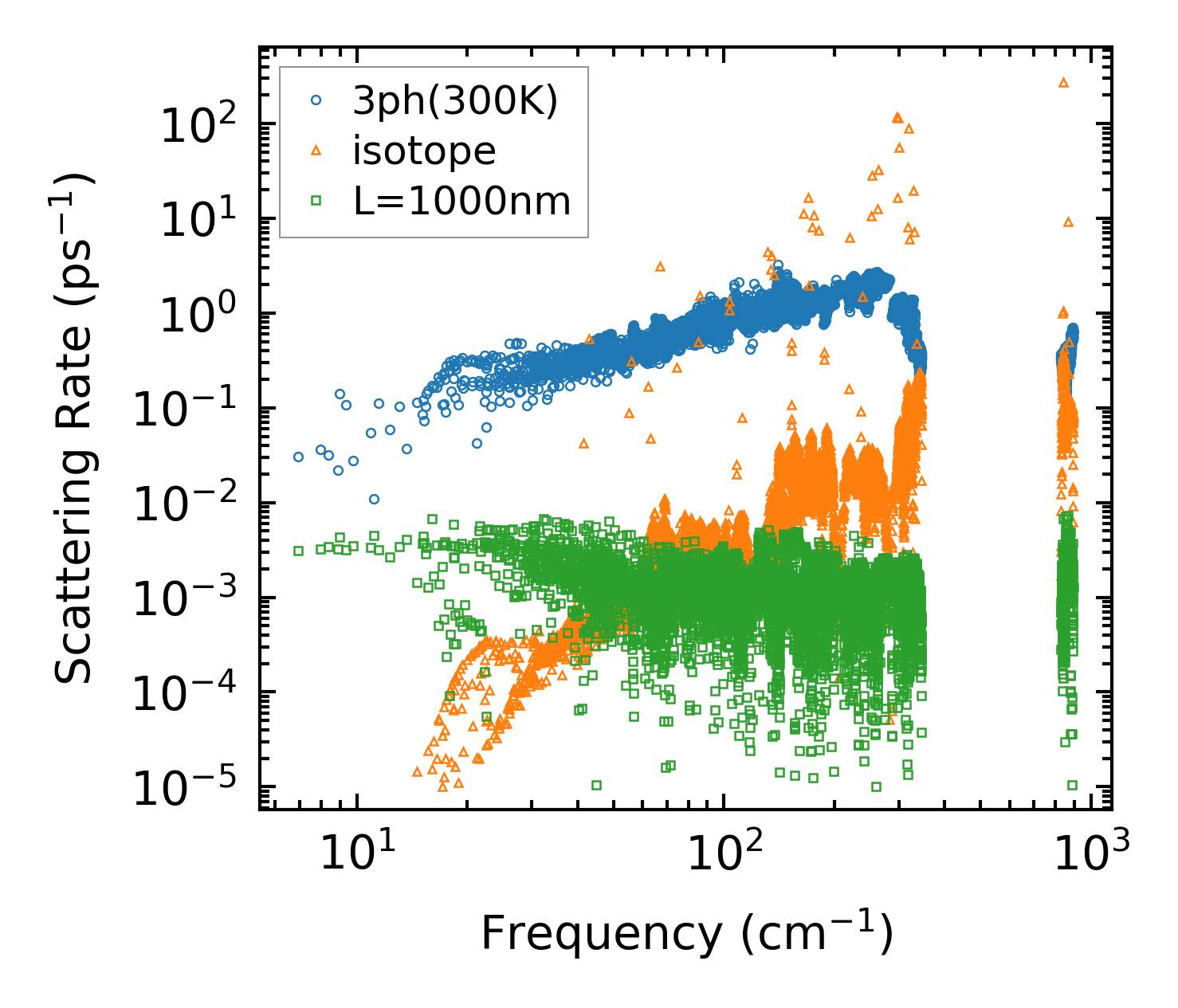

../../_images/fig_scat_rates6786.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

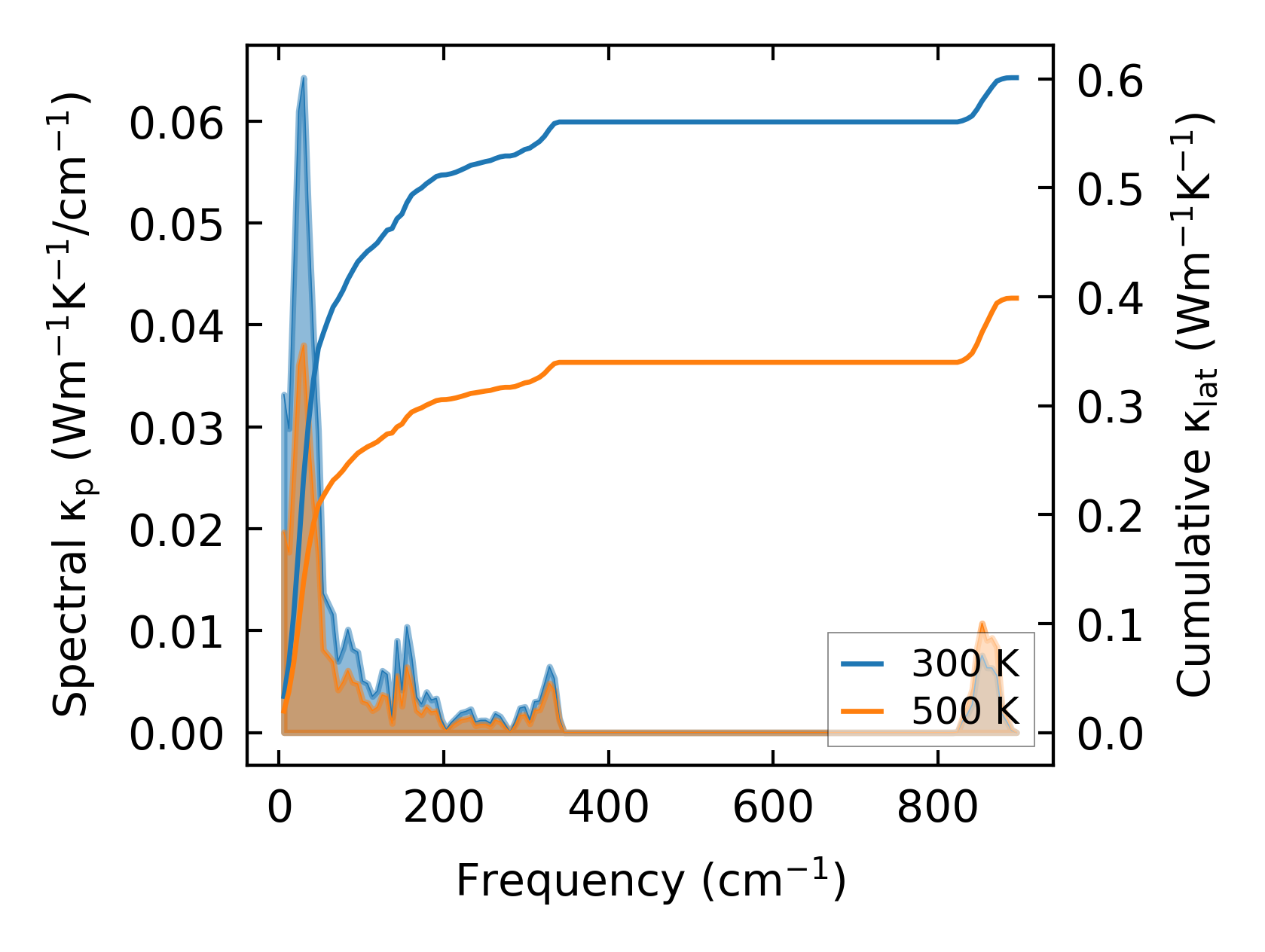

../../_images/fig_cumu_frequency6787.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

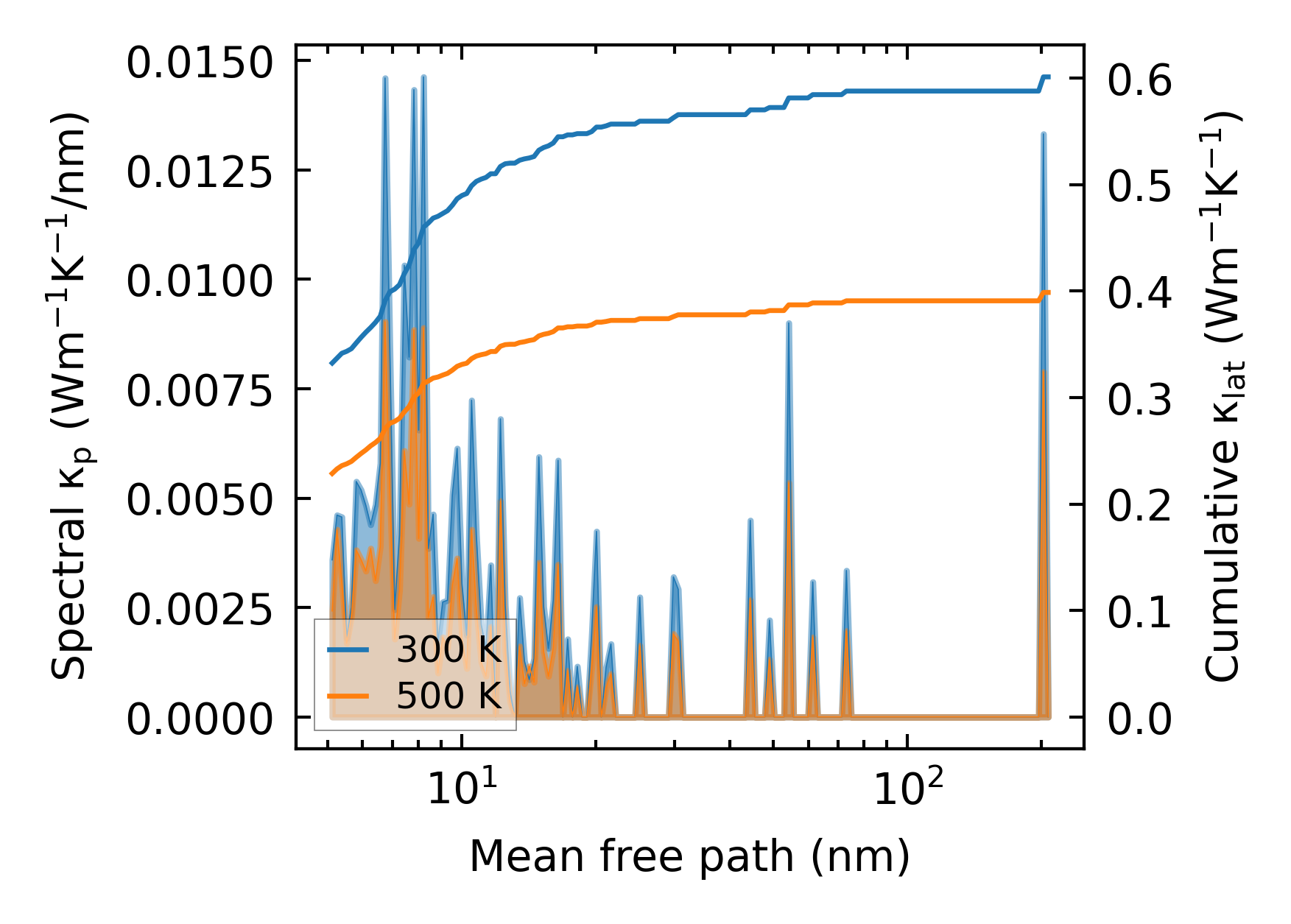

../../_images/fig_cumu_mfp6786.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

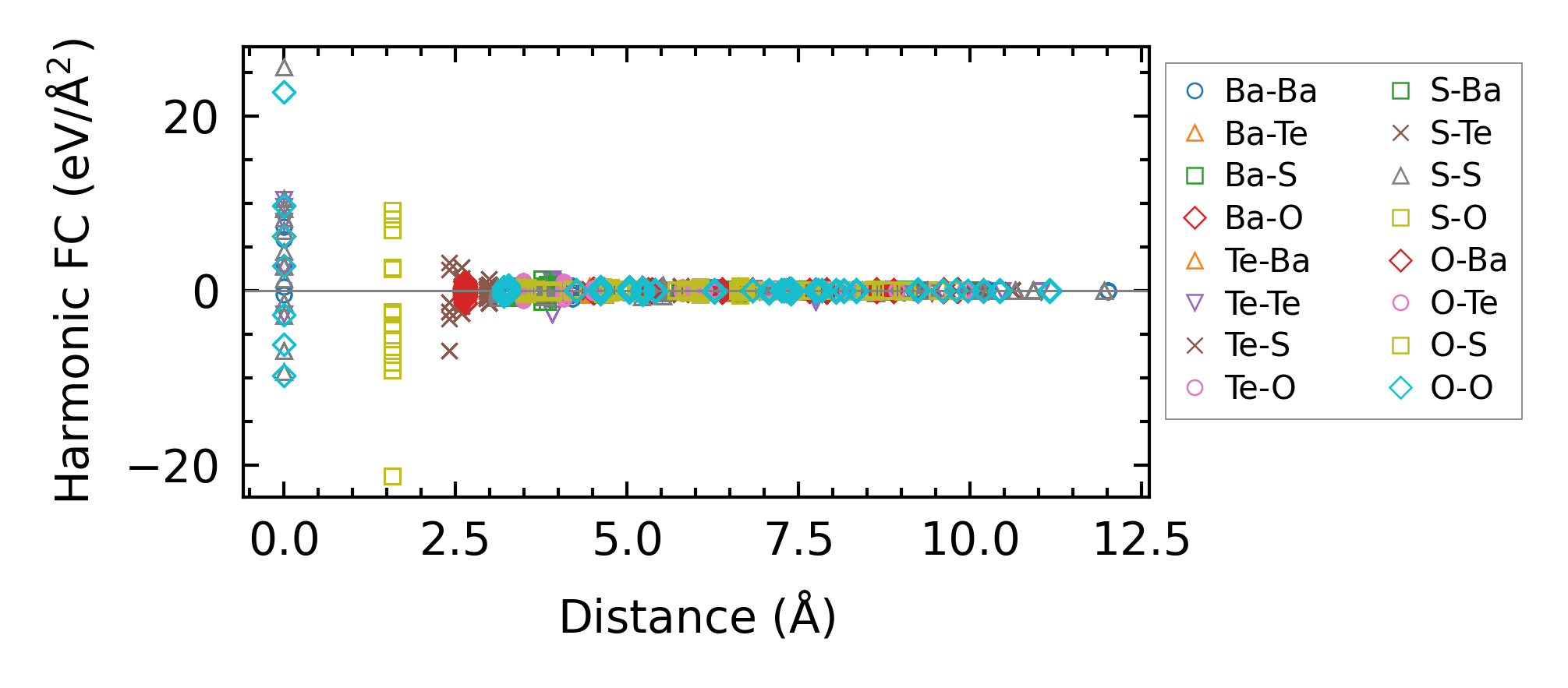

../../_images/fig_fc215431.png — (a) Force constants w.r.t atomic distance

Summary

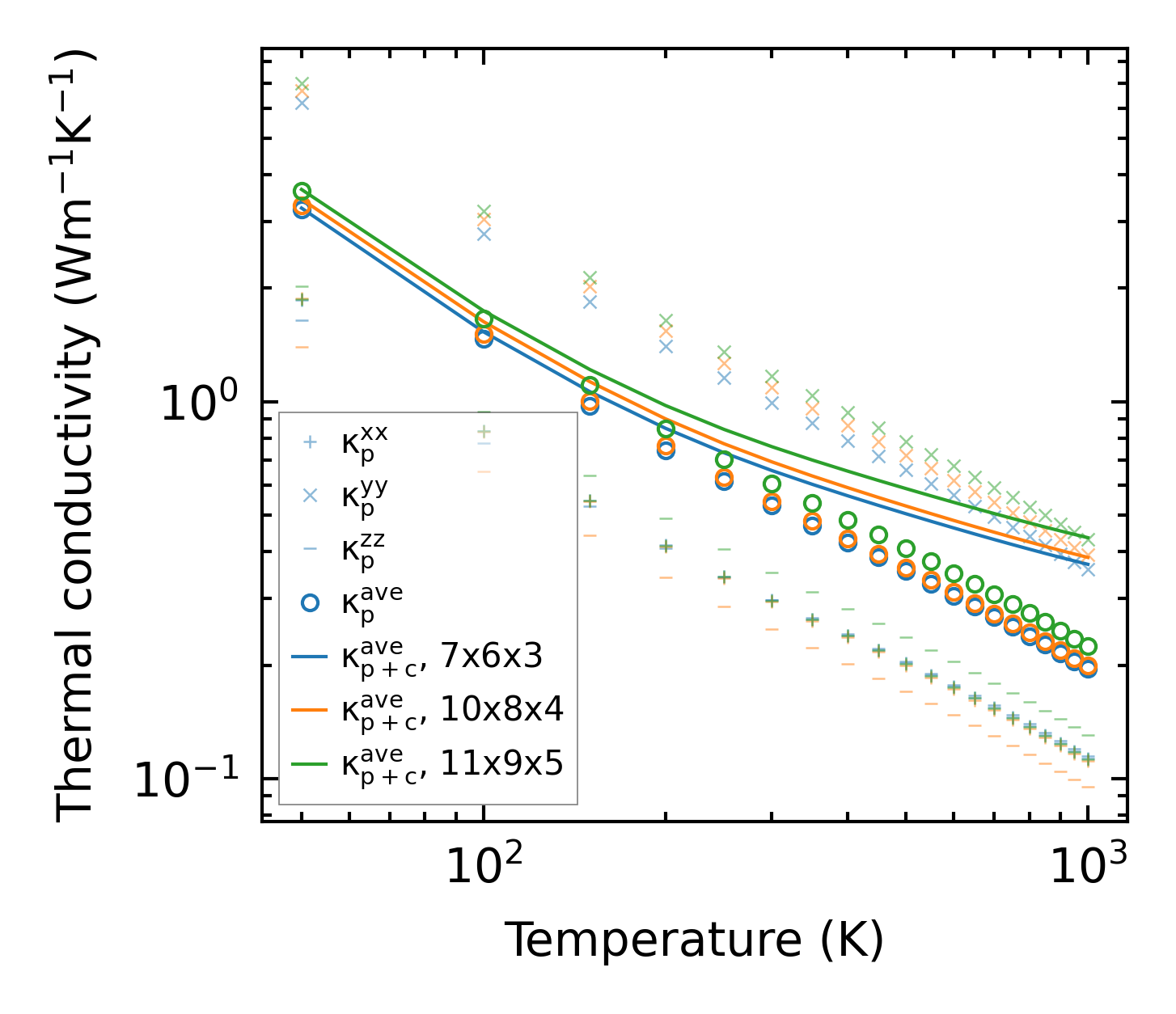

../../_images/fig_kappa12907.png — (a) Temperature-dependent lattice thermal conductivity

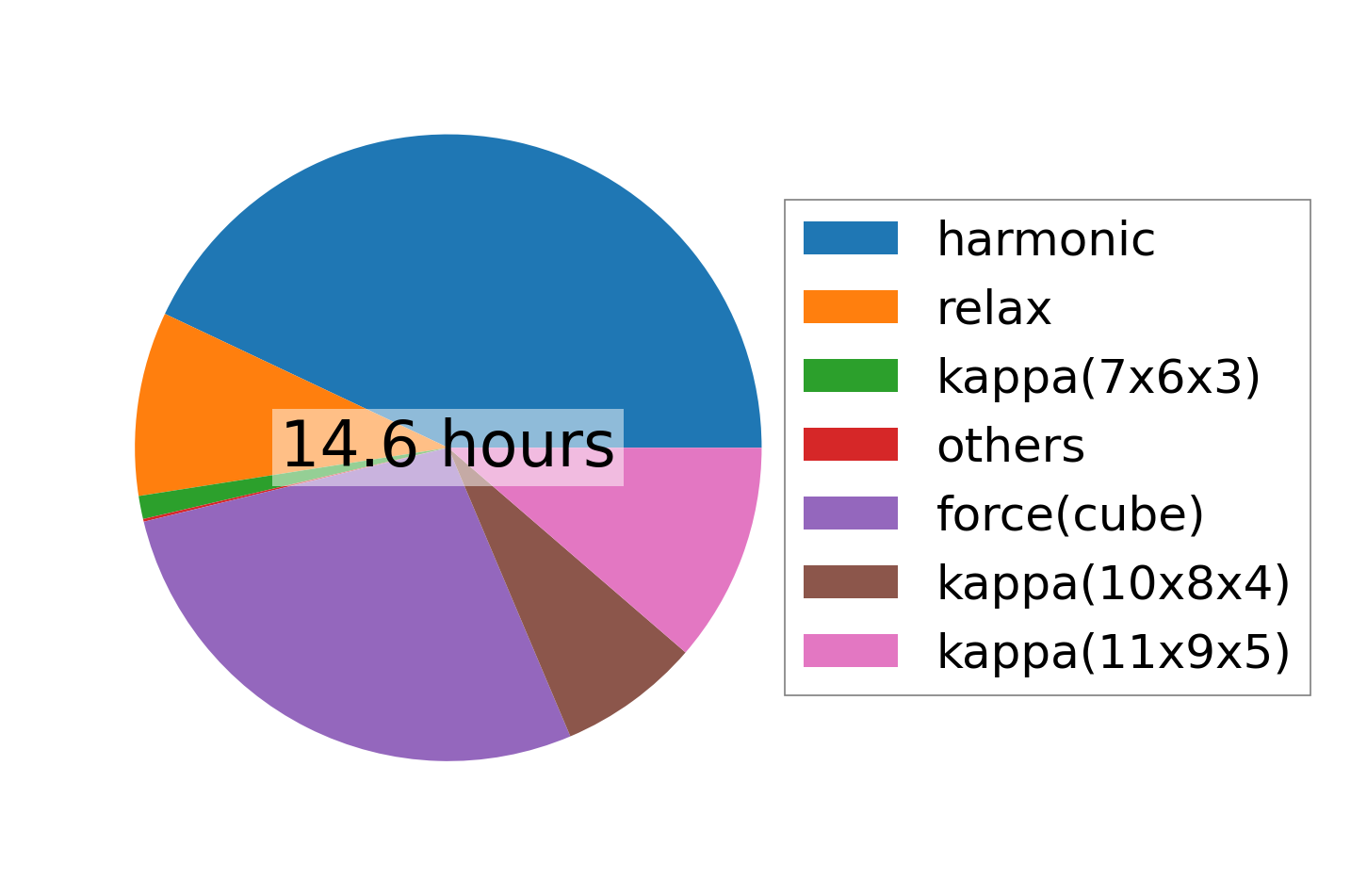

../../_images/fig_times26092.png — (b) Computation time
