mp-1103520/Cs2SiS3/anharm

Space group: C2/m (12)
Link: Materials Project
Download: mp-1103520.tar.gz

Harmonic properties

../../_images/fig_bandos_pr16583.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo16582.png — (b) Thermodynamic properties

Grüneisen parameters

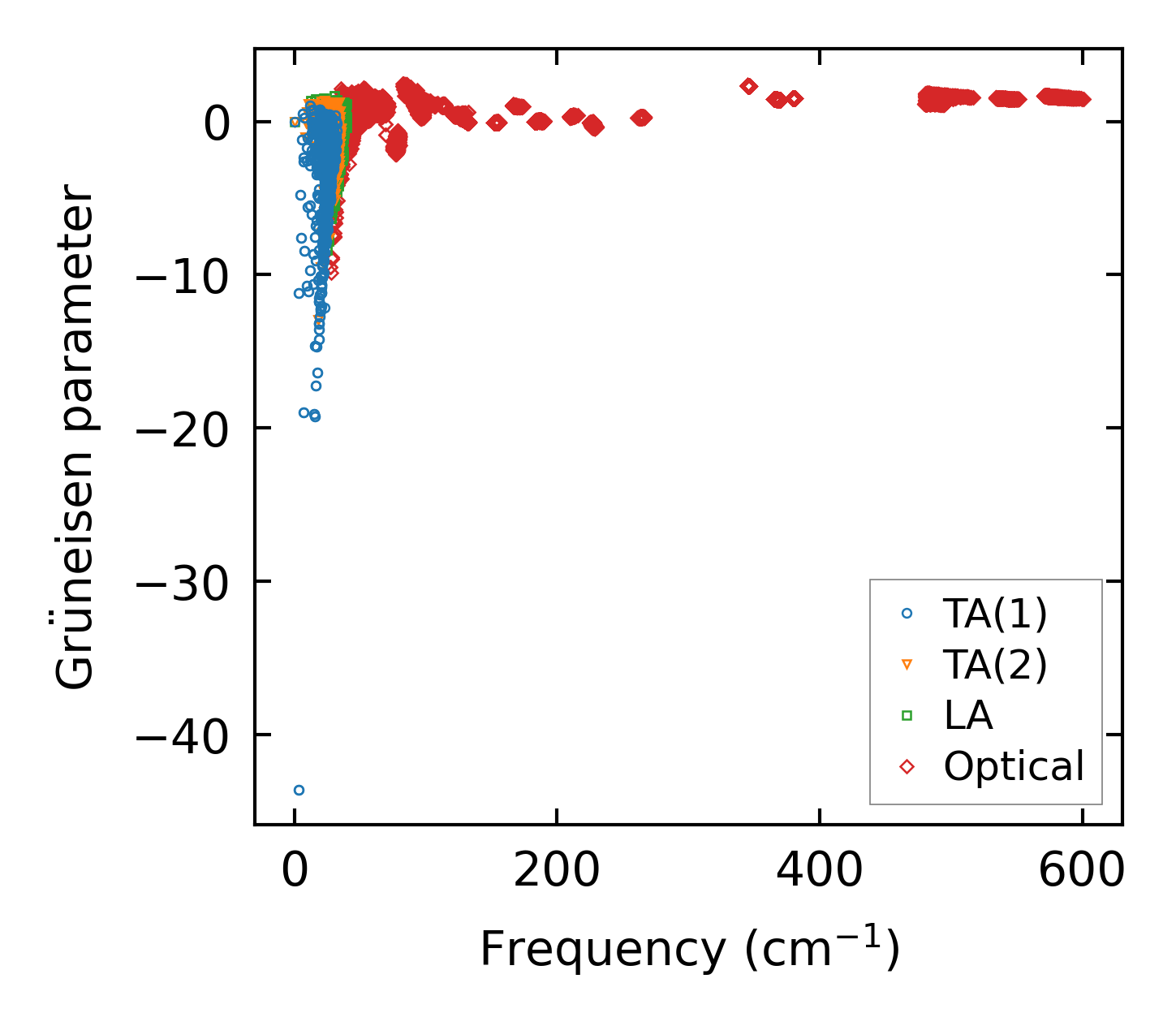

../../_images/fig_gru_all7198.png — (a) Grüneisen parameters

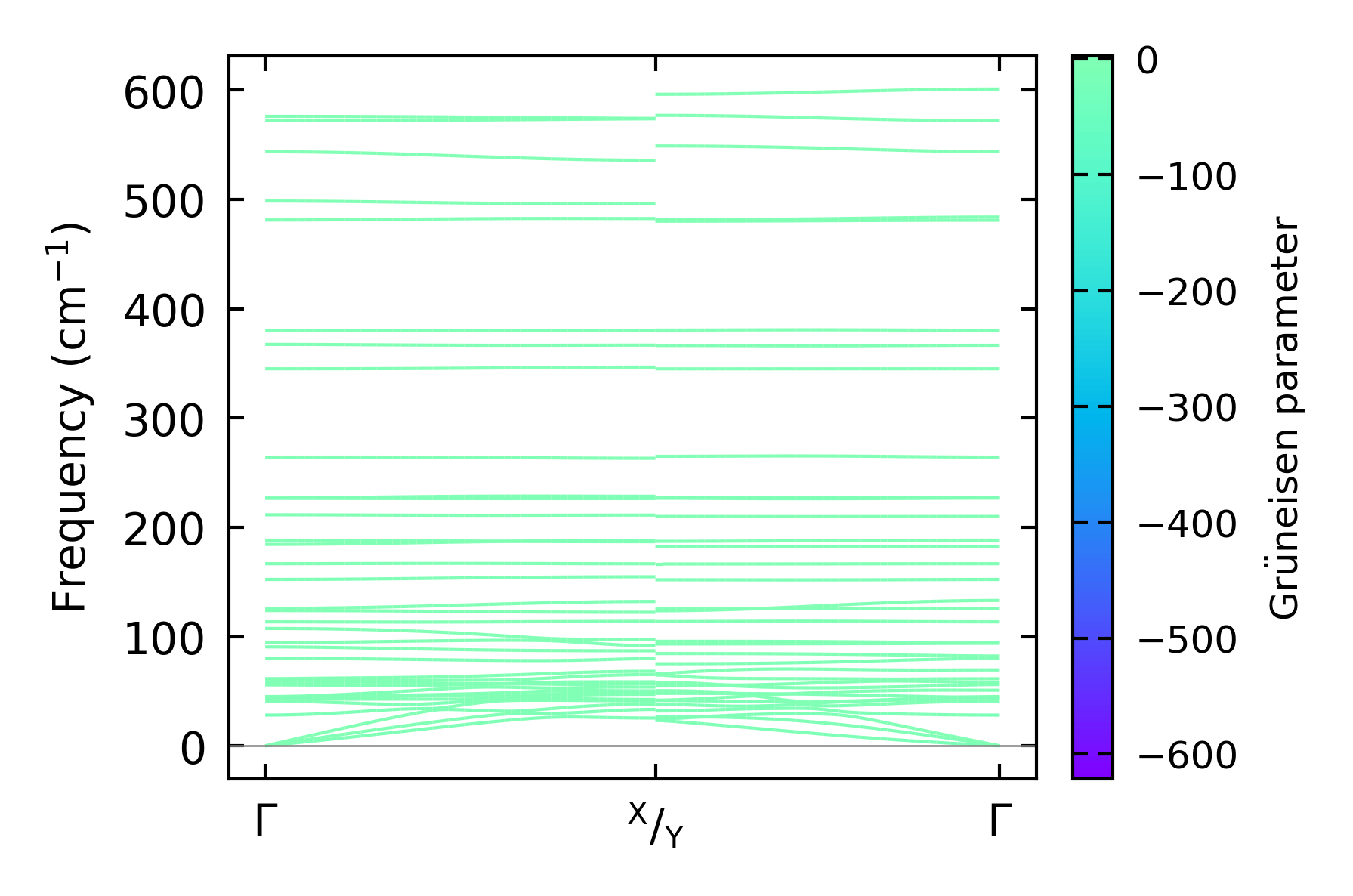

../../_images/fig_gruneisen7198.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x8, supercell: 3x2x2

../../_images/fig_kappa13574.png — (a) Temperature-dependent lattice thermal conductivity

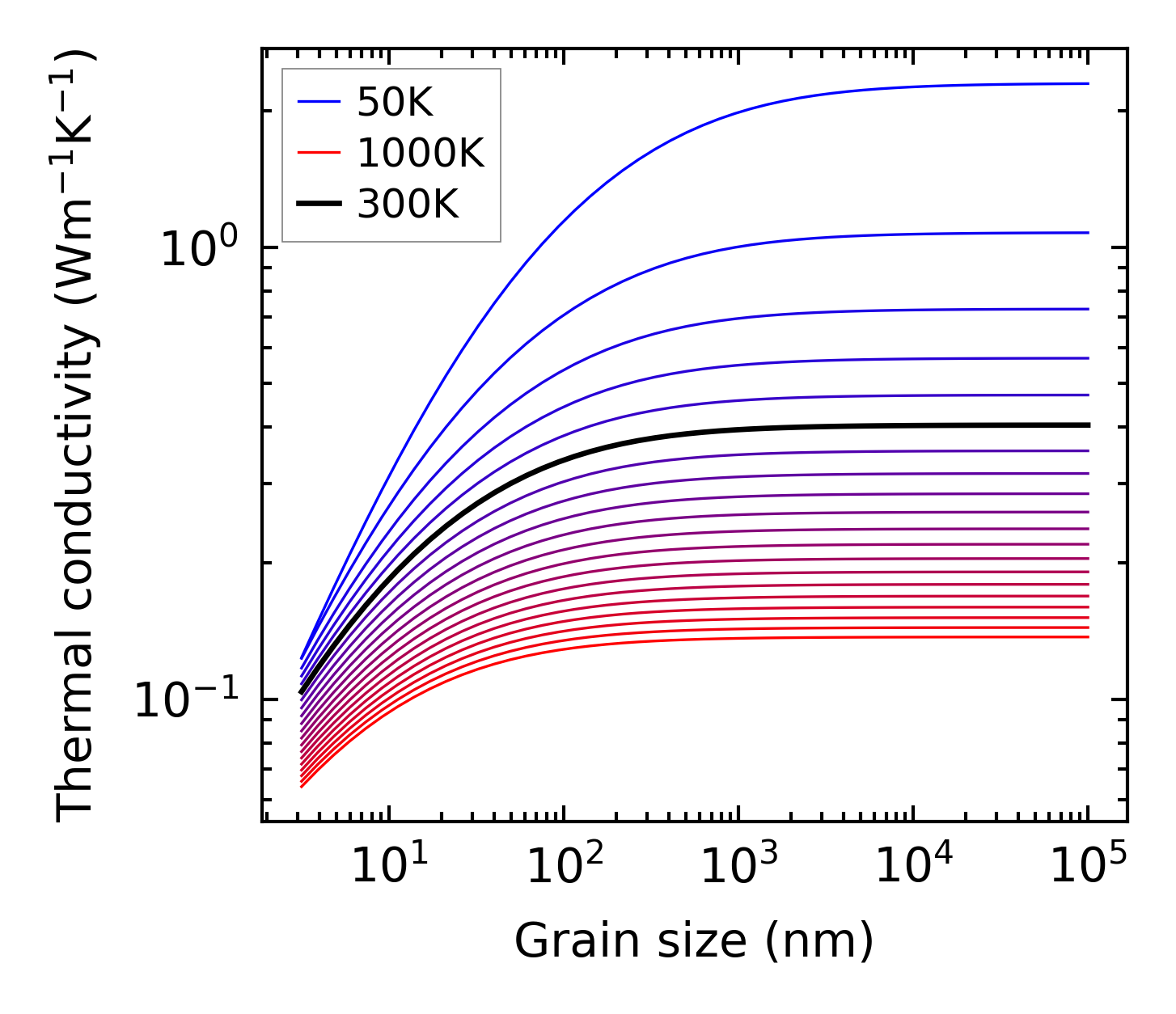

../../_images/fig_kappa_vs_grain_size7284.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

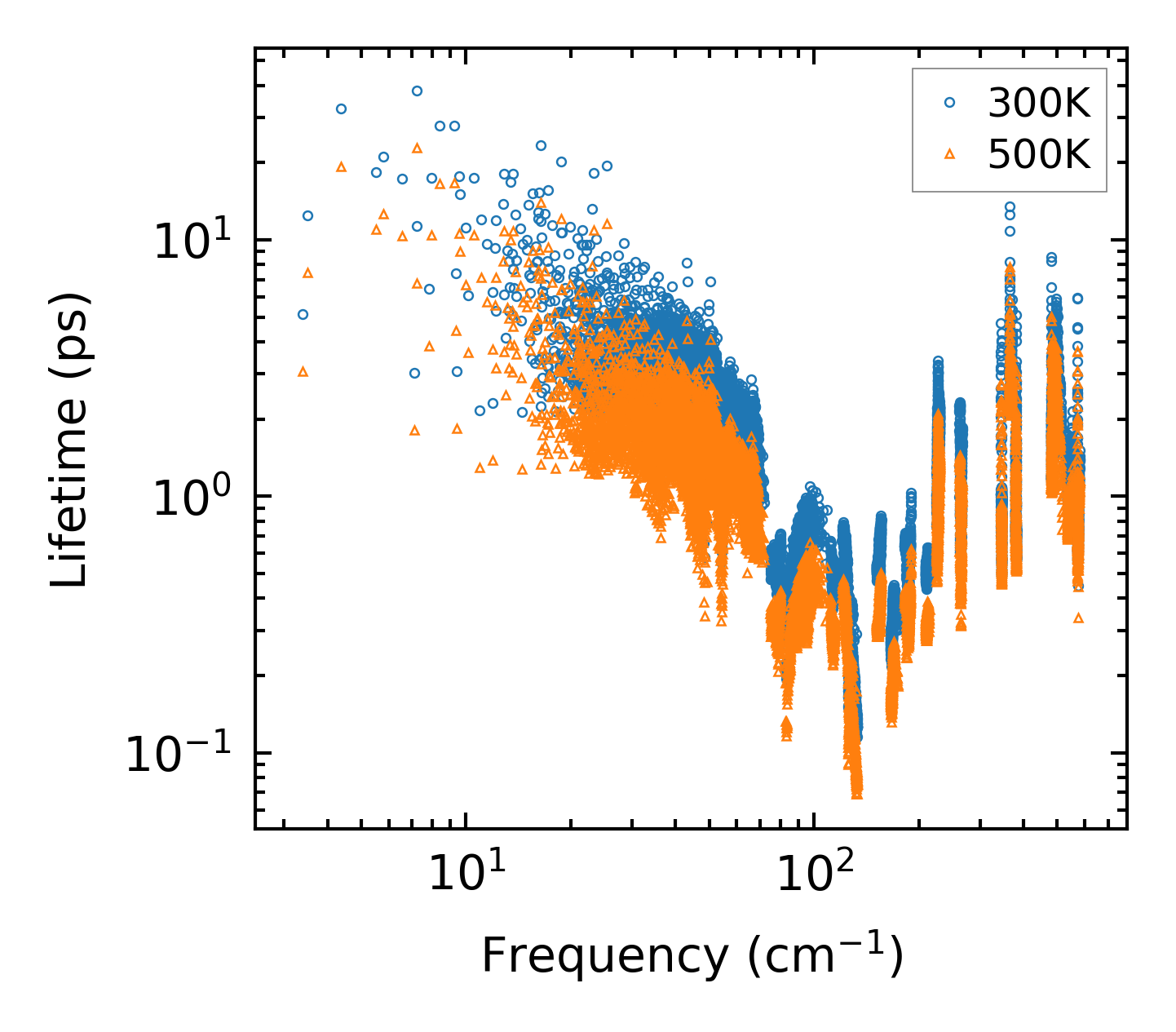

../../_images/fig_lifetime7132.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates7131.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

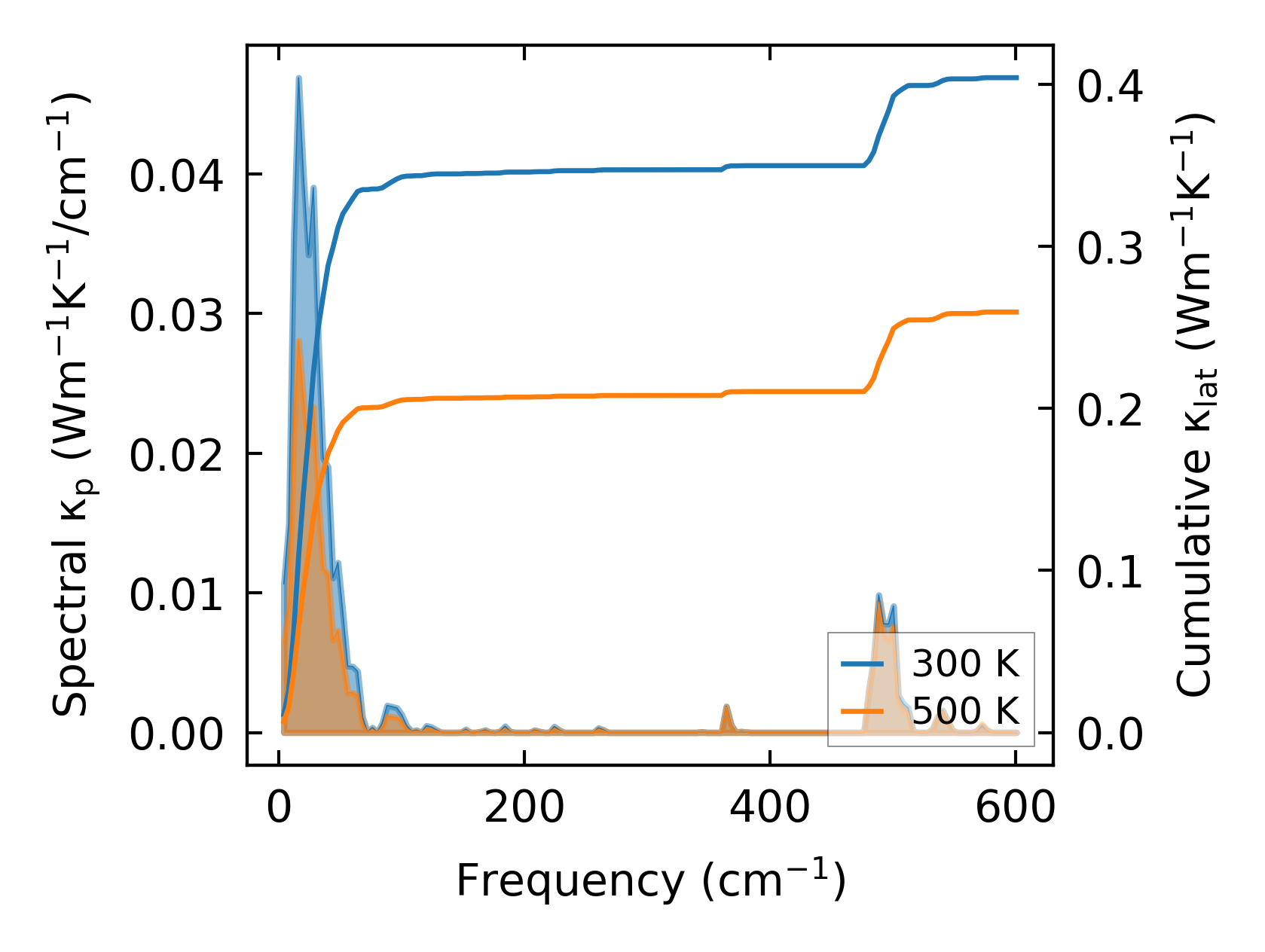

../../_images/fig_cumu_frequency7132.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

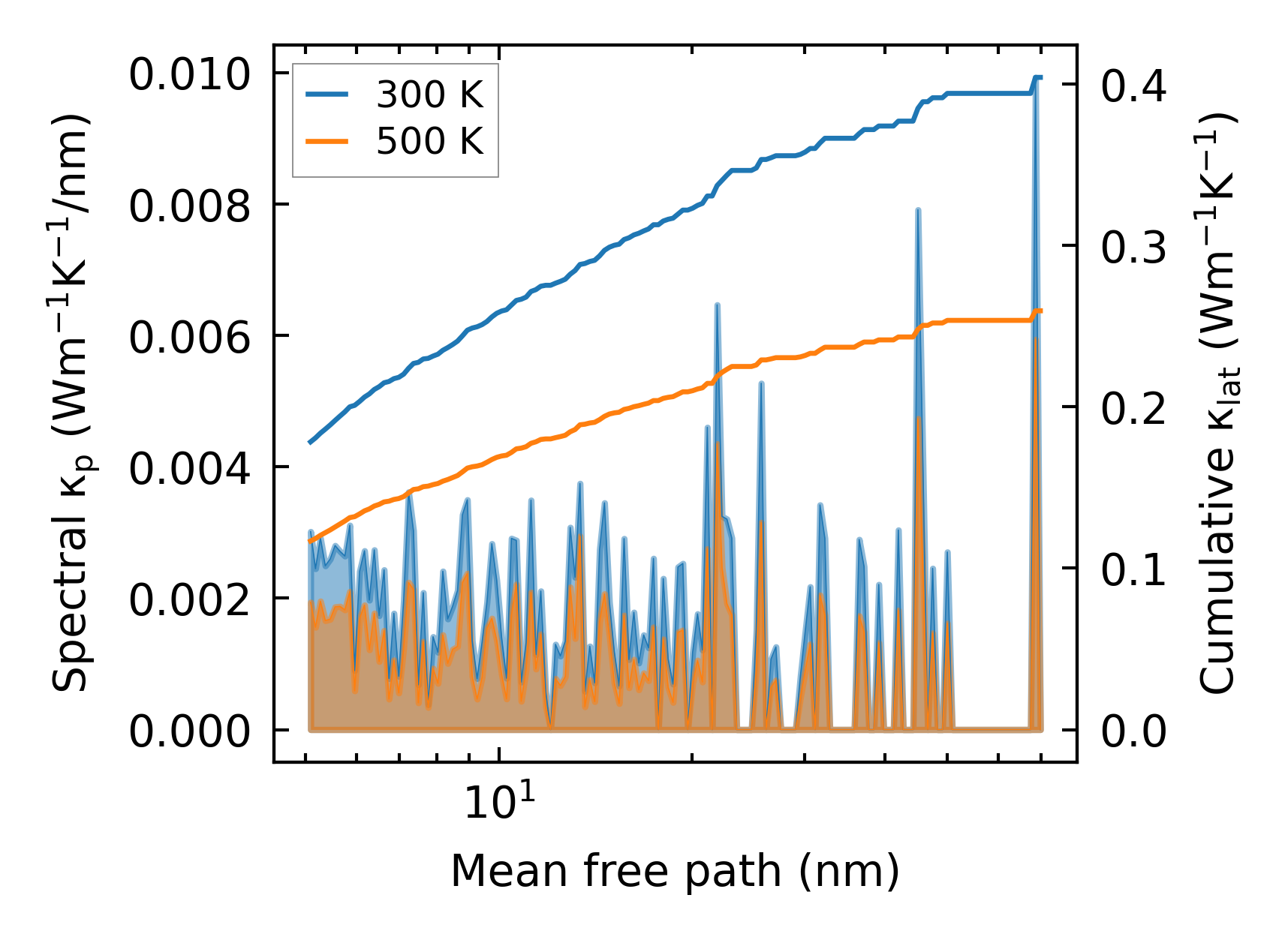

../../_images/fig_cumu_mfp7131.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

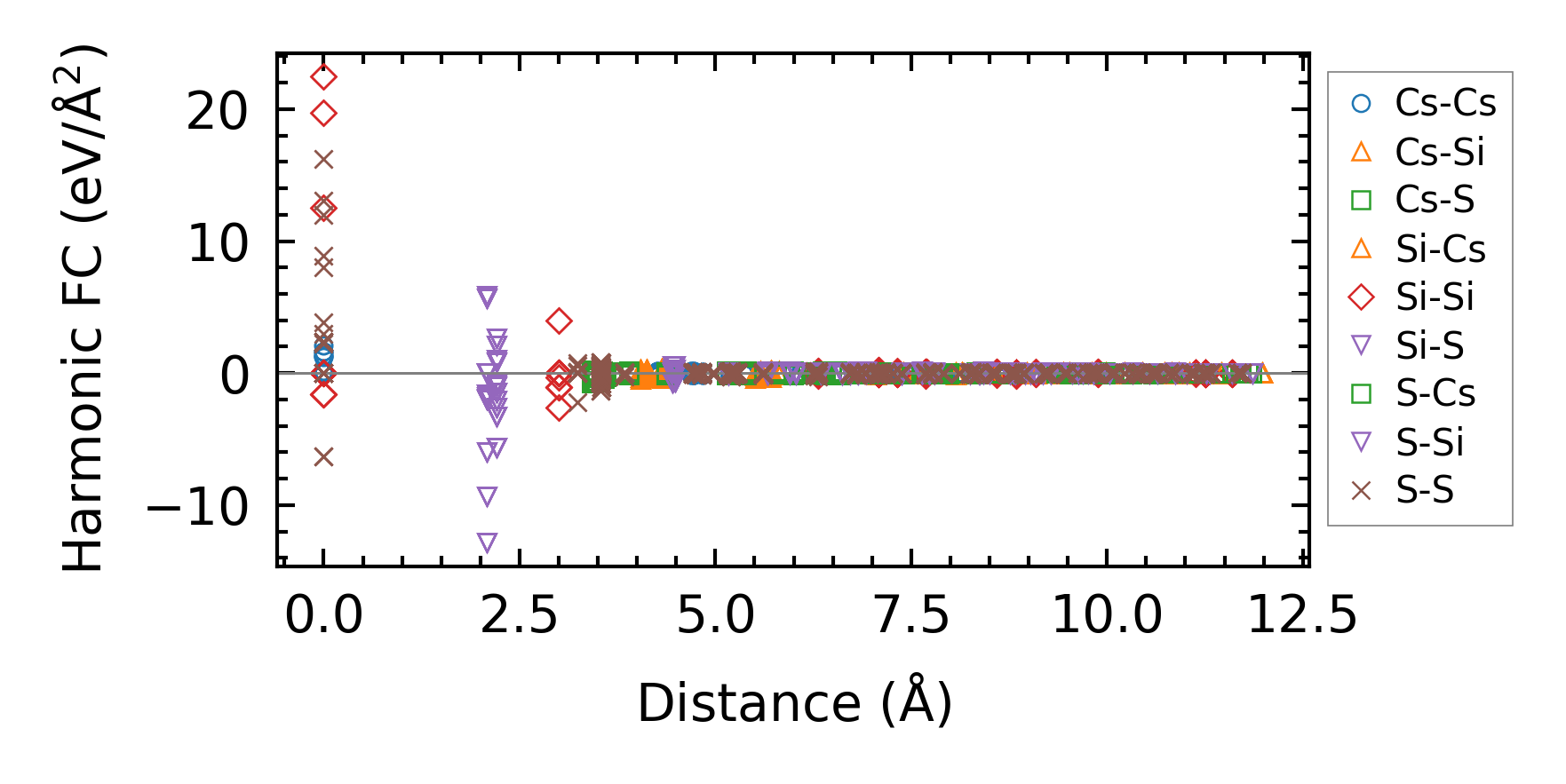

../../_images/fig_fc216157.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa13575.png — (a) Temperature-dependent lattice thermal conductivity

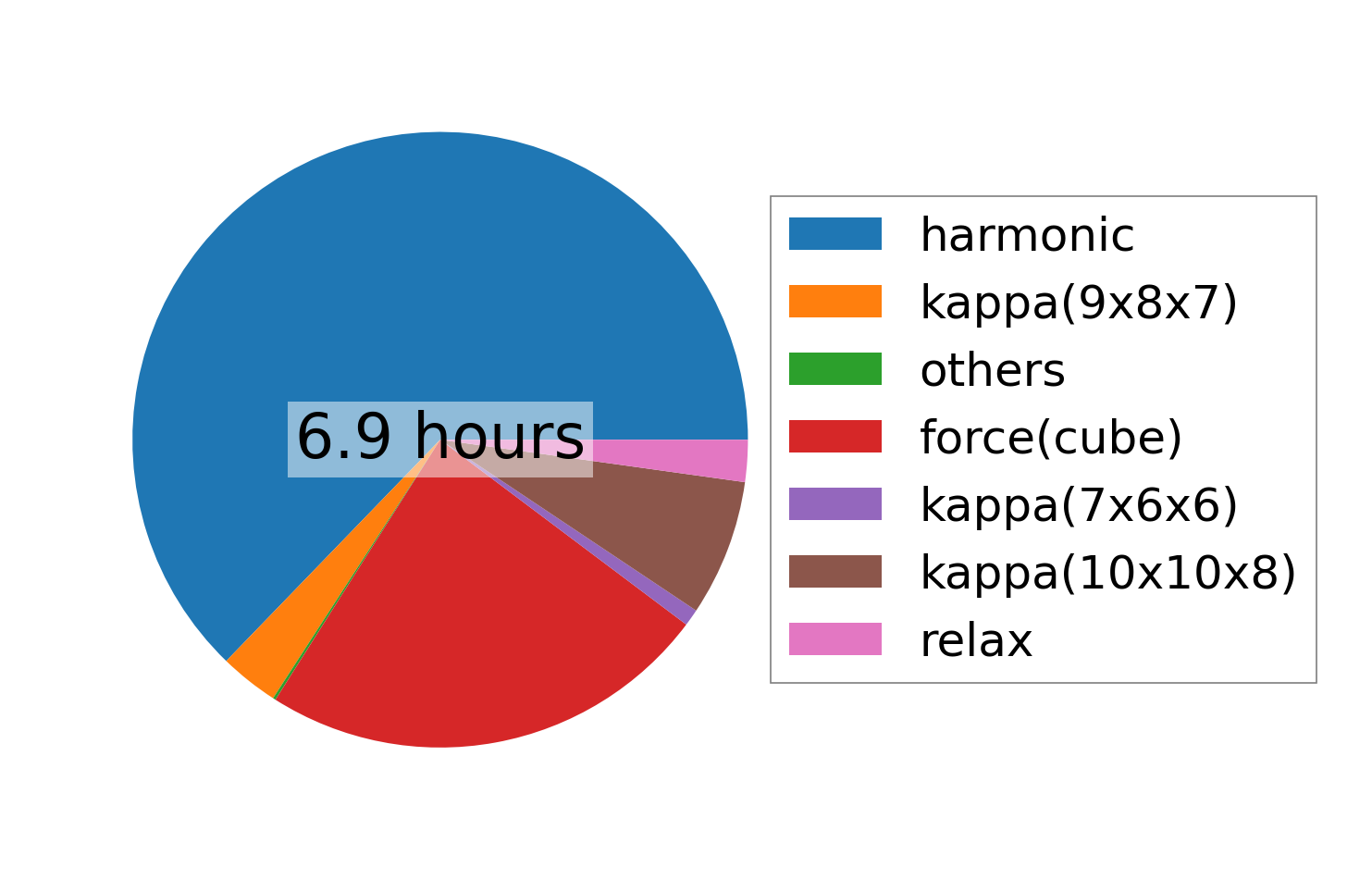

../../_images/fig_times27129.png — (b) Computation time
