mp-1009894/ZrC/anharm

Space group: F-43m (216)
Link: Materials Project
Download: mp-1009894.tar.gz

Harmonic properties

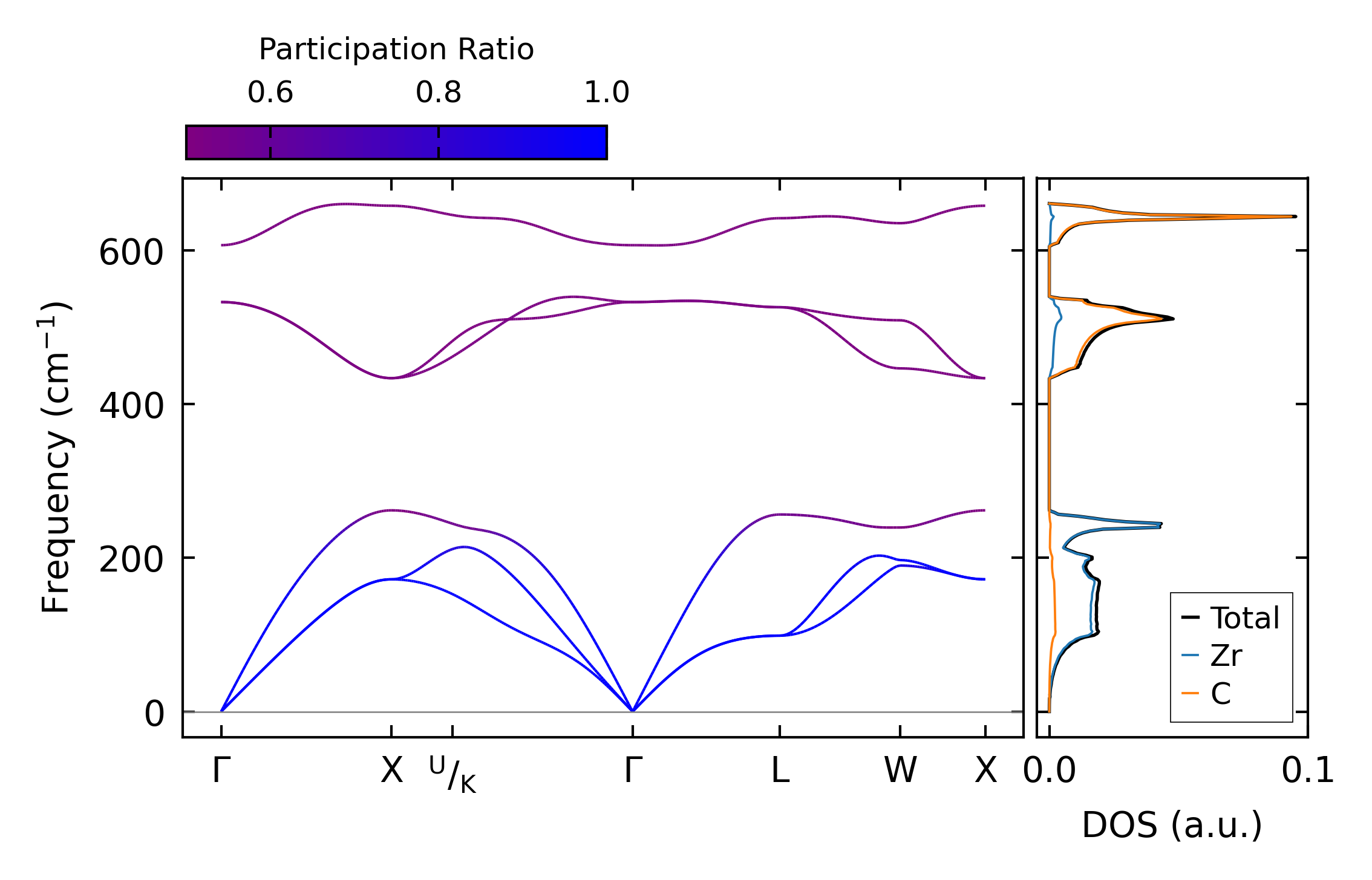

../../_images/fig_bandos_pr308.png — (a) Phonon dispersion with participation ratio and DOS

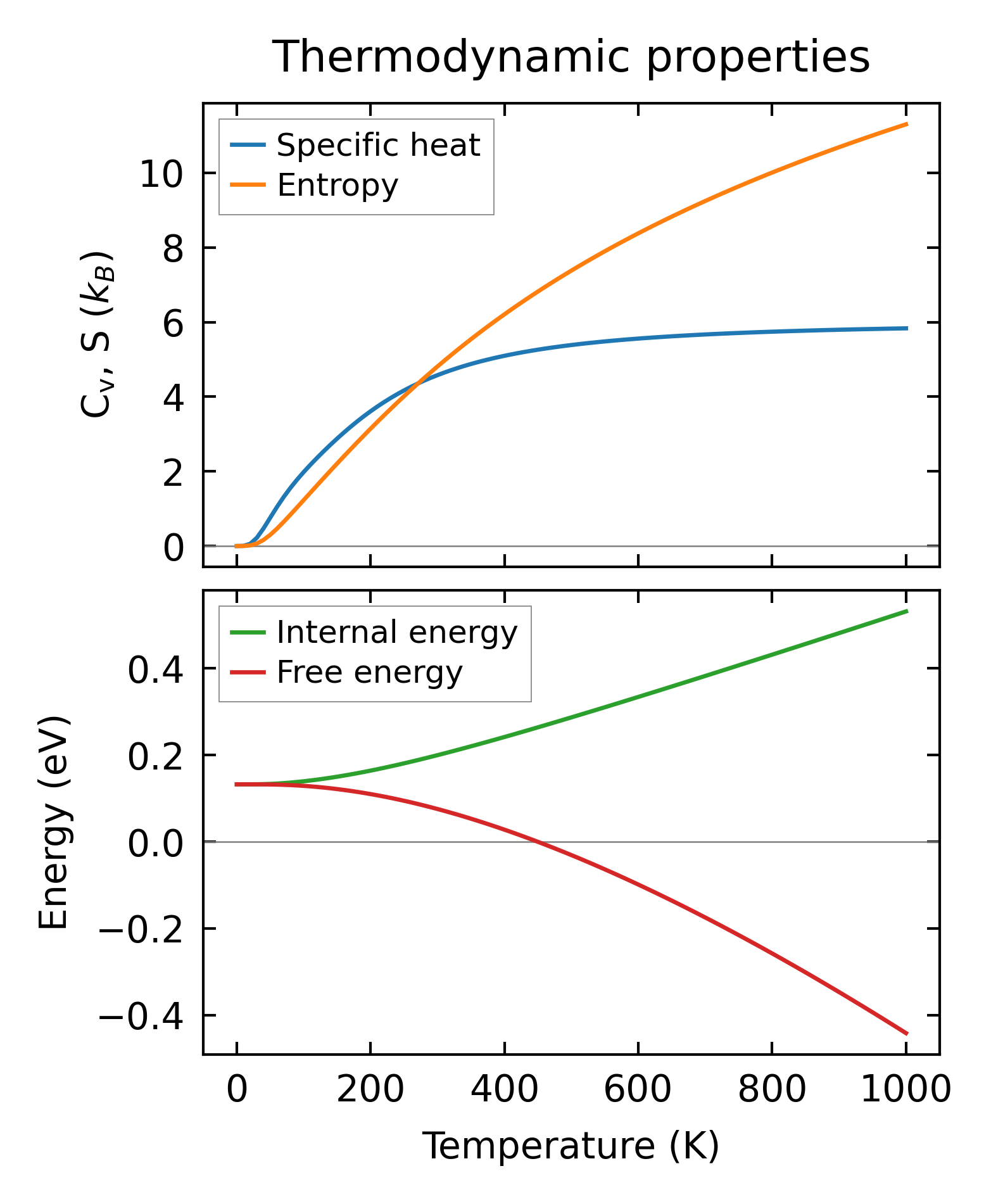

../../_images/fig_thermo308.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all212.png — (a) Grüneisen parameters

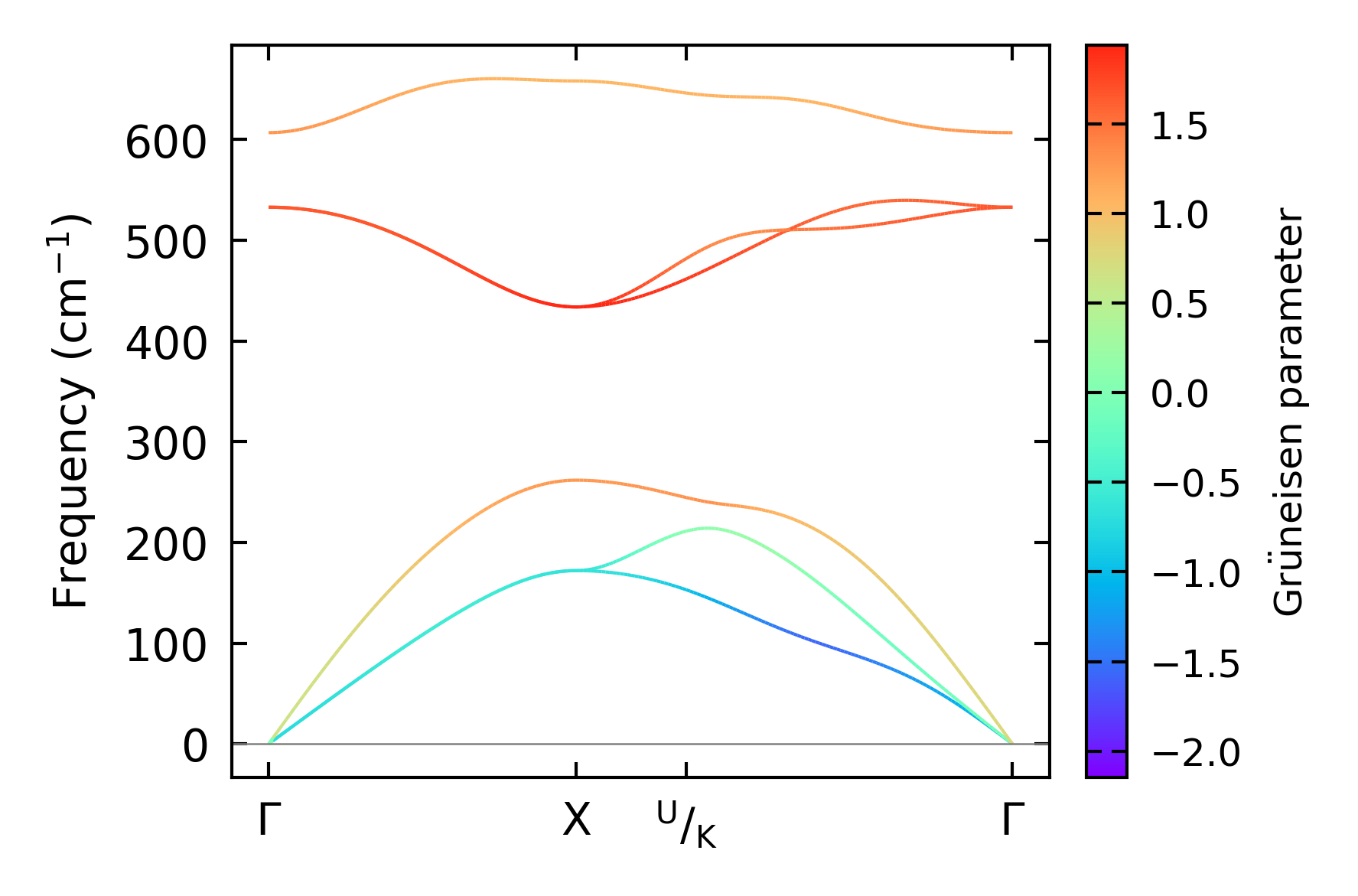

../../_images/fig_gruneisen212.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon — q-mesh: 22x22x22, supercell: 2x2x2

../../_images/fig_kappa416.png — (a) Temperature-dependent lattice thermal conductivity

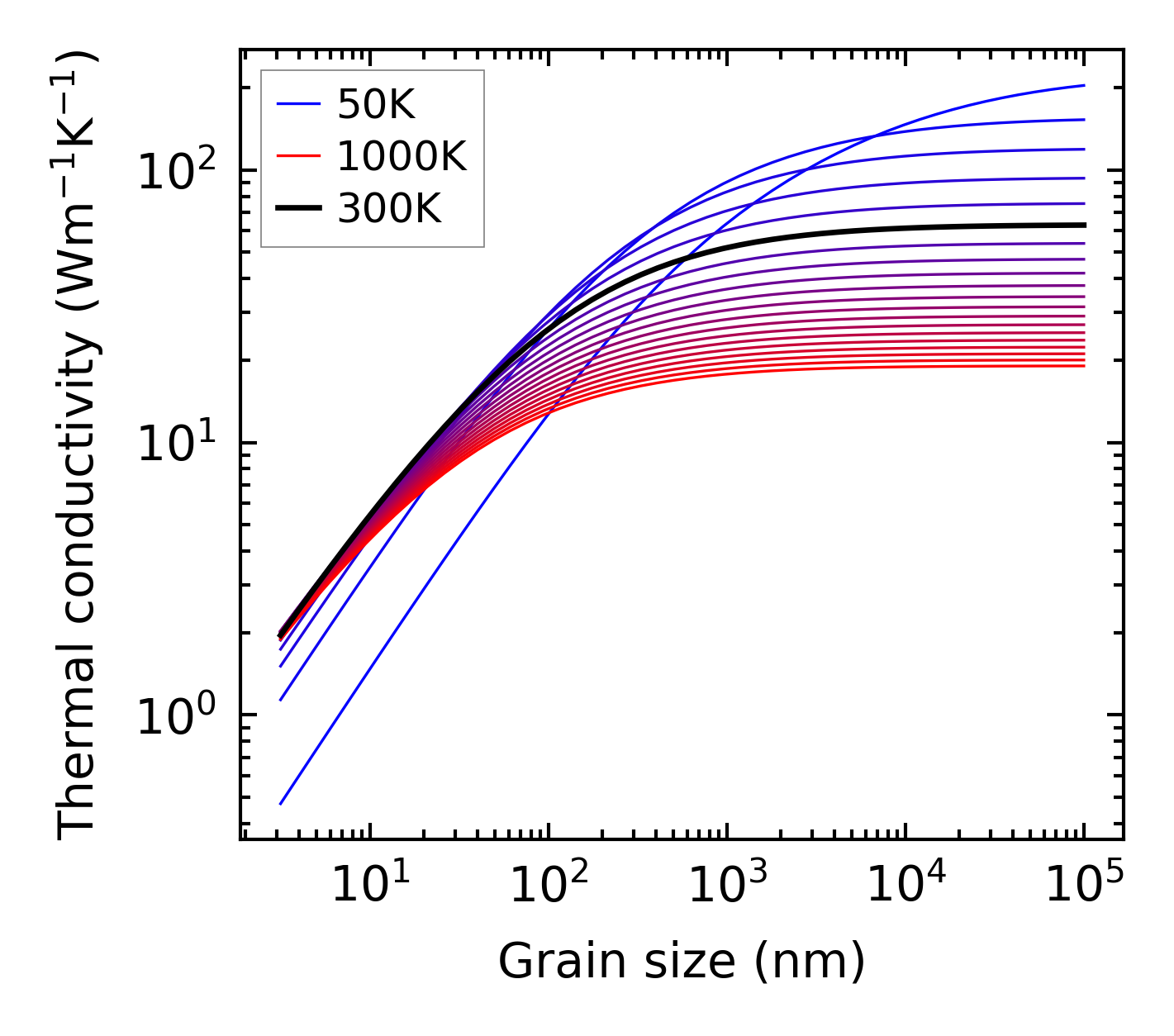

../../_images/fig_kappa_vs_grain_size215.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime211.png — (a) Phonon lifetime due to phonon-phonon scattering

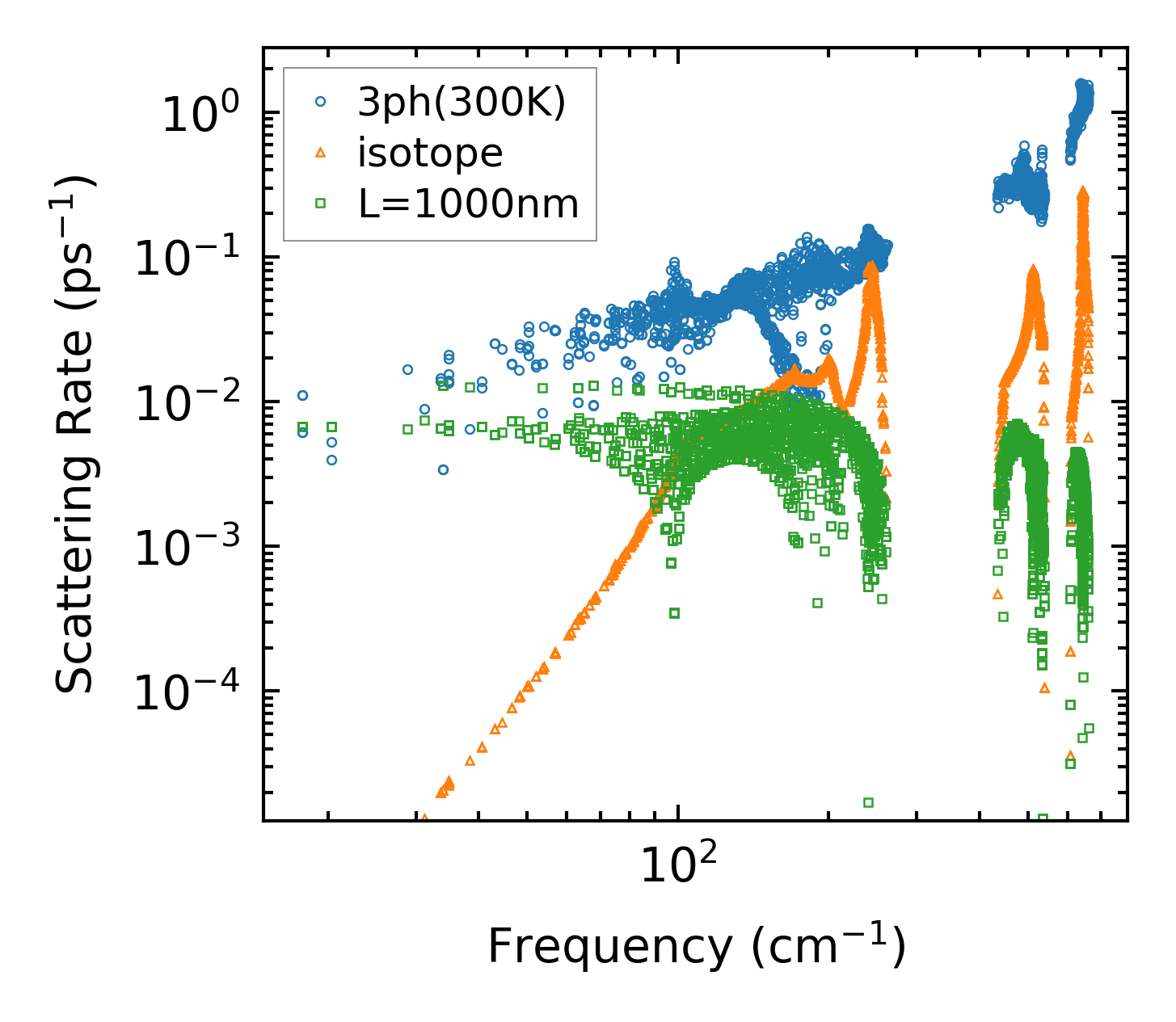

../../_images/fig_scat_rates210.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

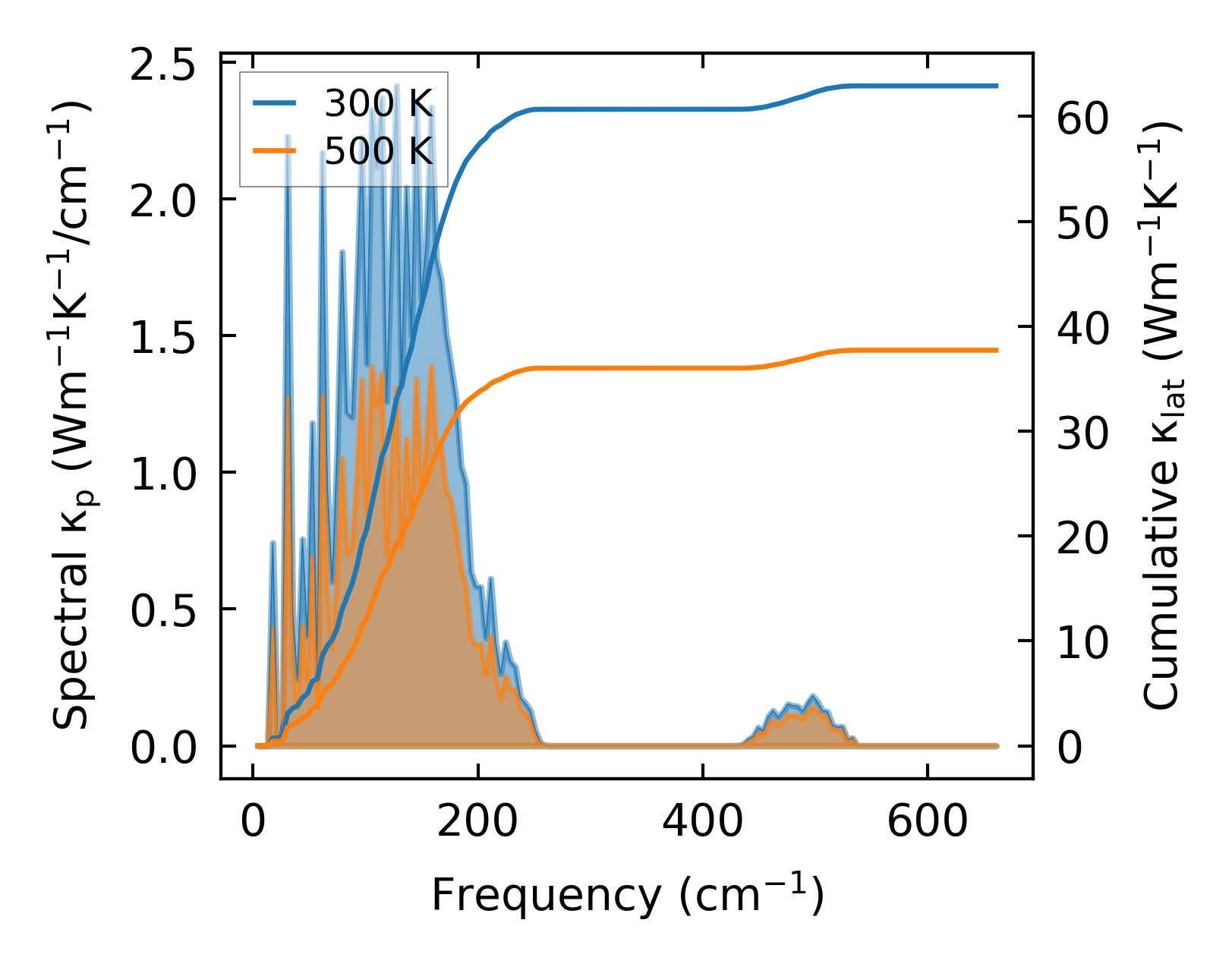

../../_images/fig_cumu_frequency211.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp211.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

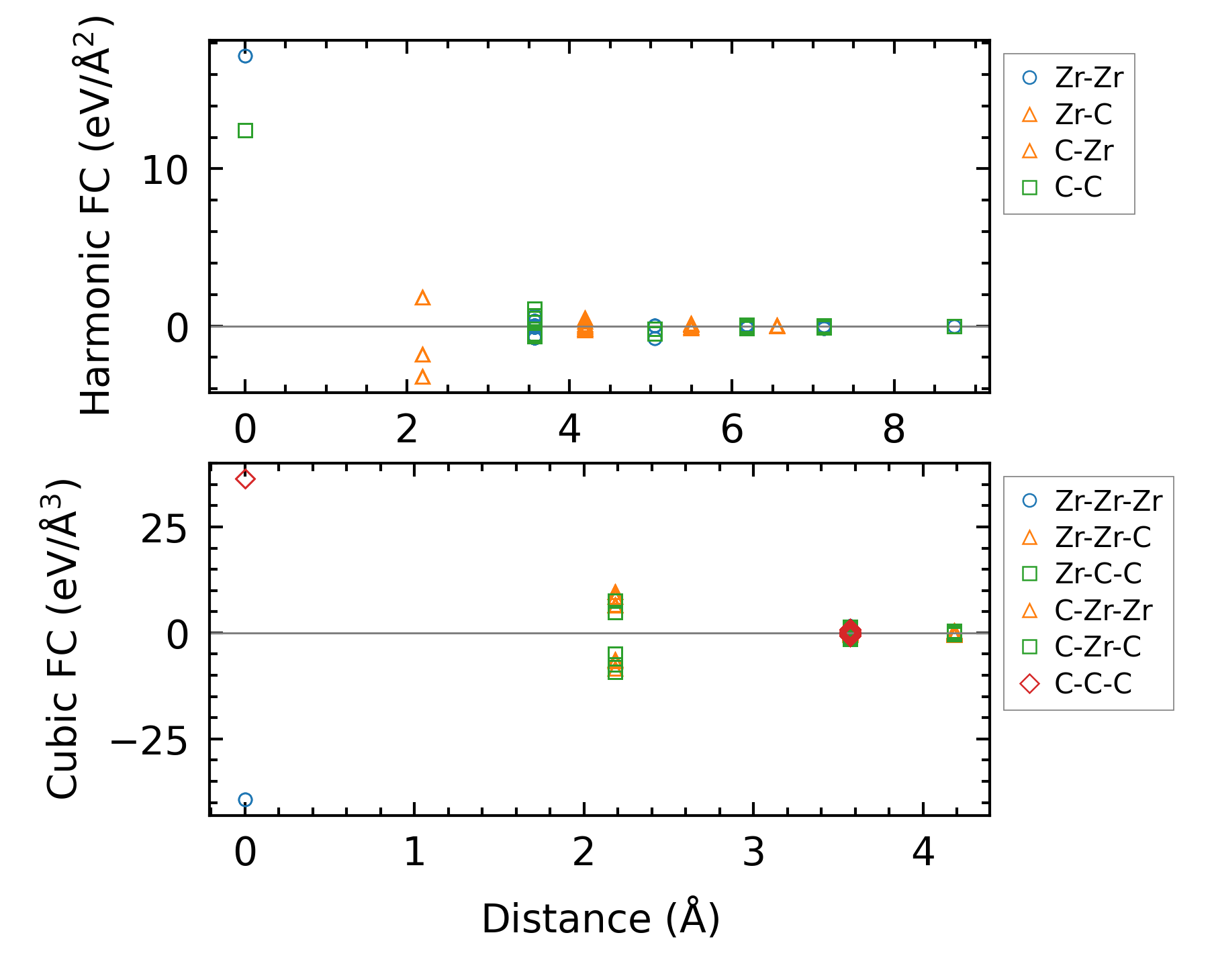

../../_images/fig_fc350.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa417.png — (a) Temperature-dependent lattice thermal conductivity

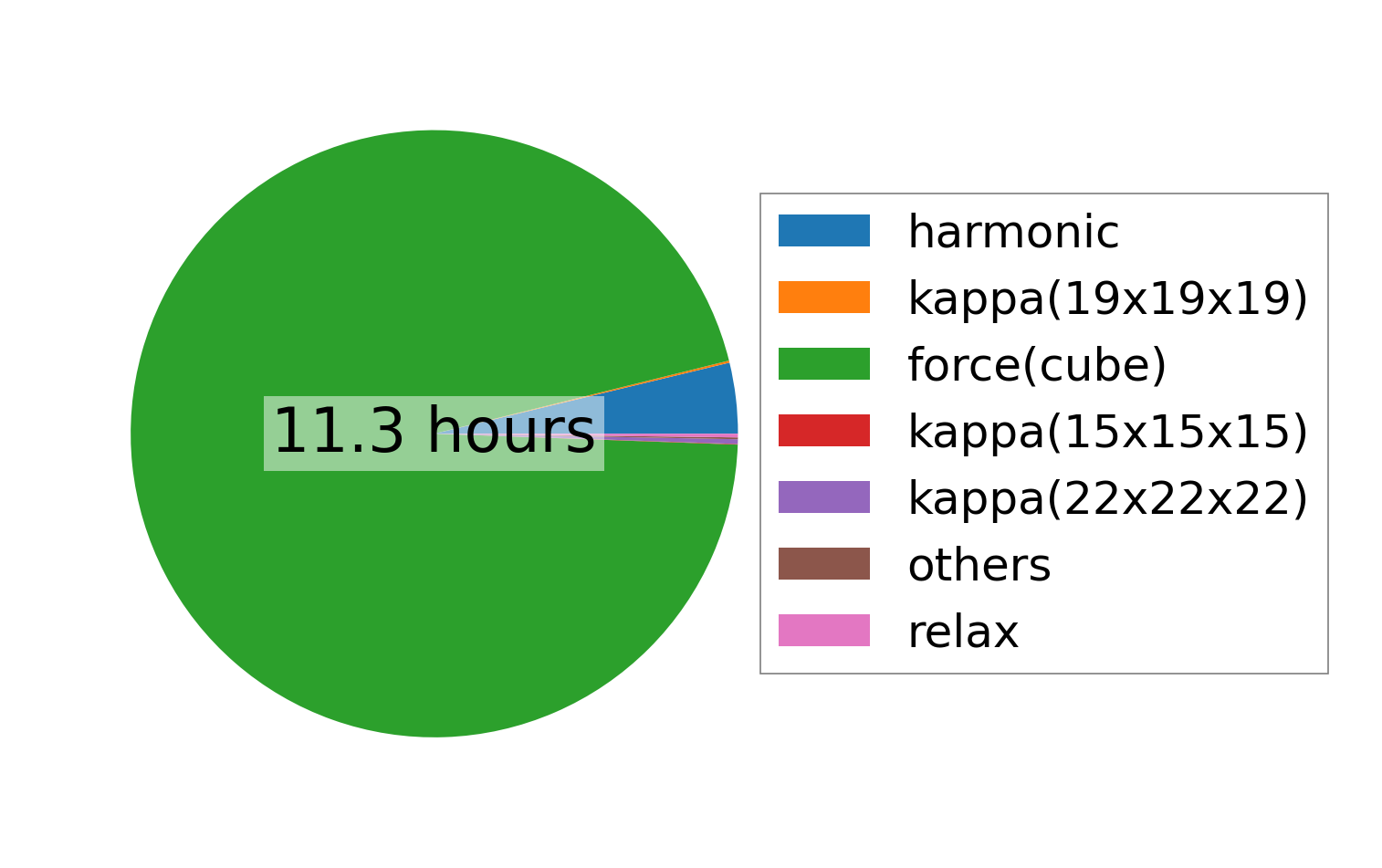

../../_images/fig_times495.png — (b) Computation time
