mp-1009820/SnC/anharm

Space group: F-43m (216)
Link: Materials Project
Download: mp-1009820.tar.gz

Harmonic properties

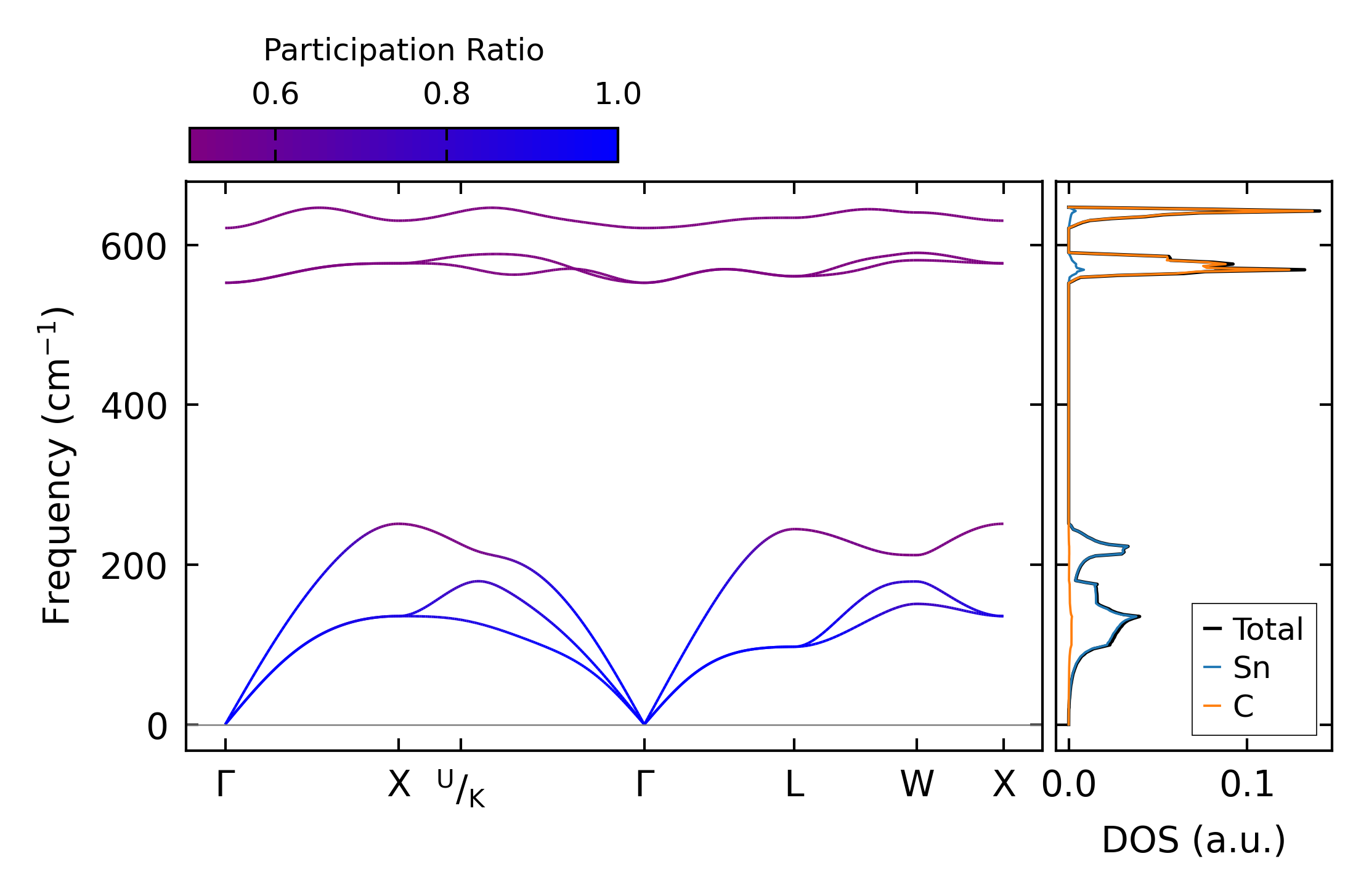

../../_images/fig_bandos_pr307.png — (a) Phonon dispersion with participation ratio and DOS

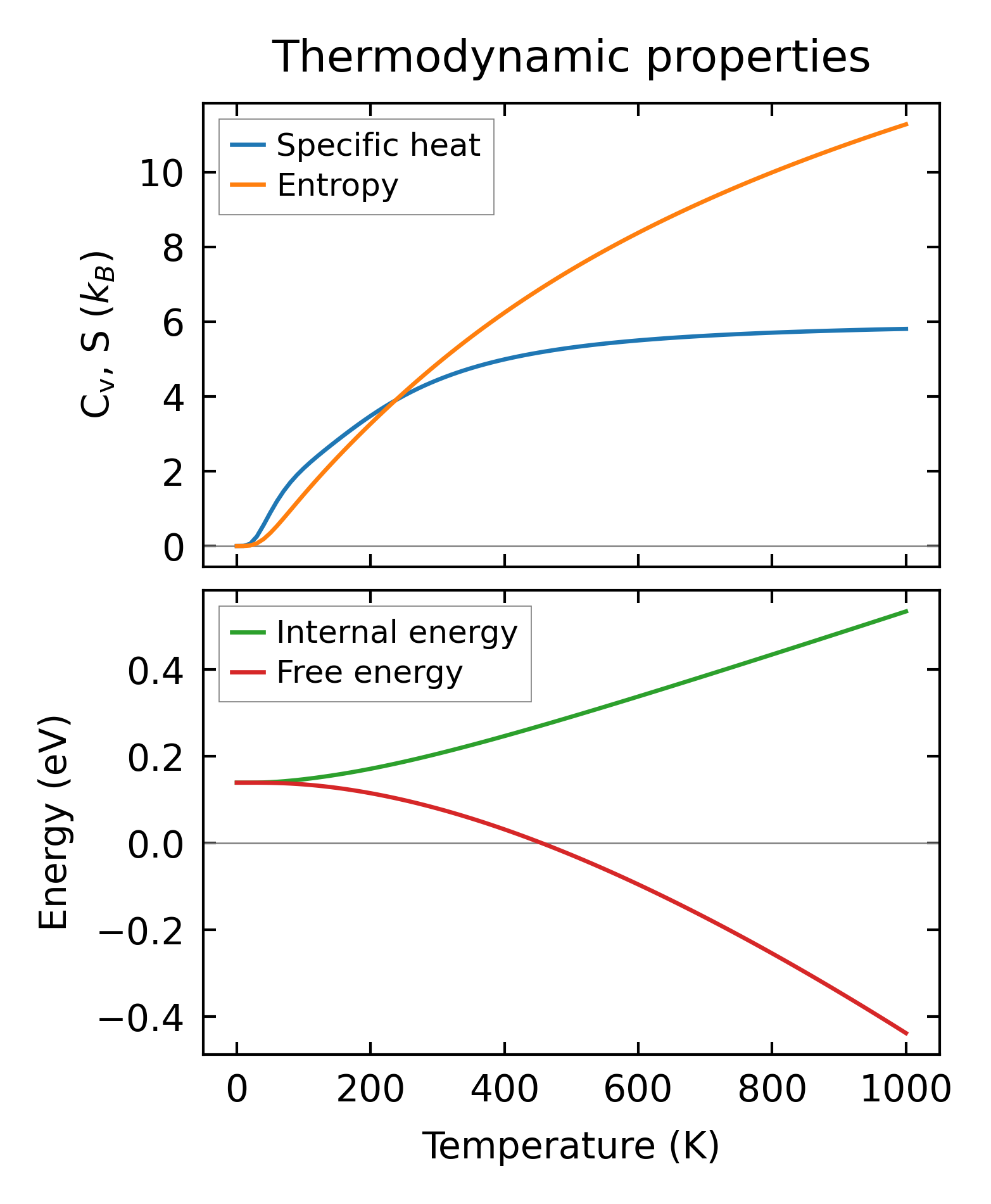

../../_images/fig_thermo307.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all211.png — (a) Grüneisen parameters

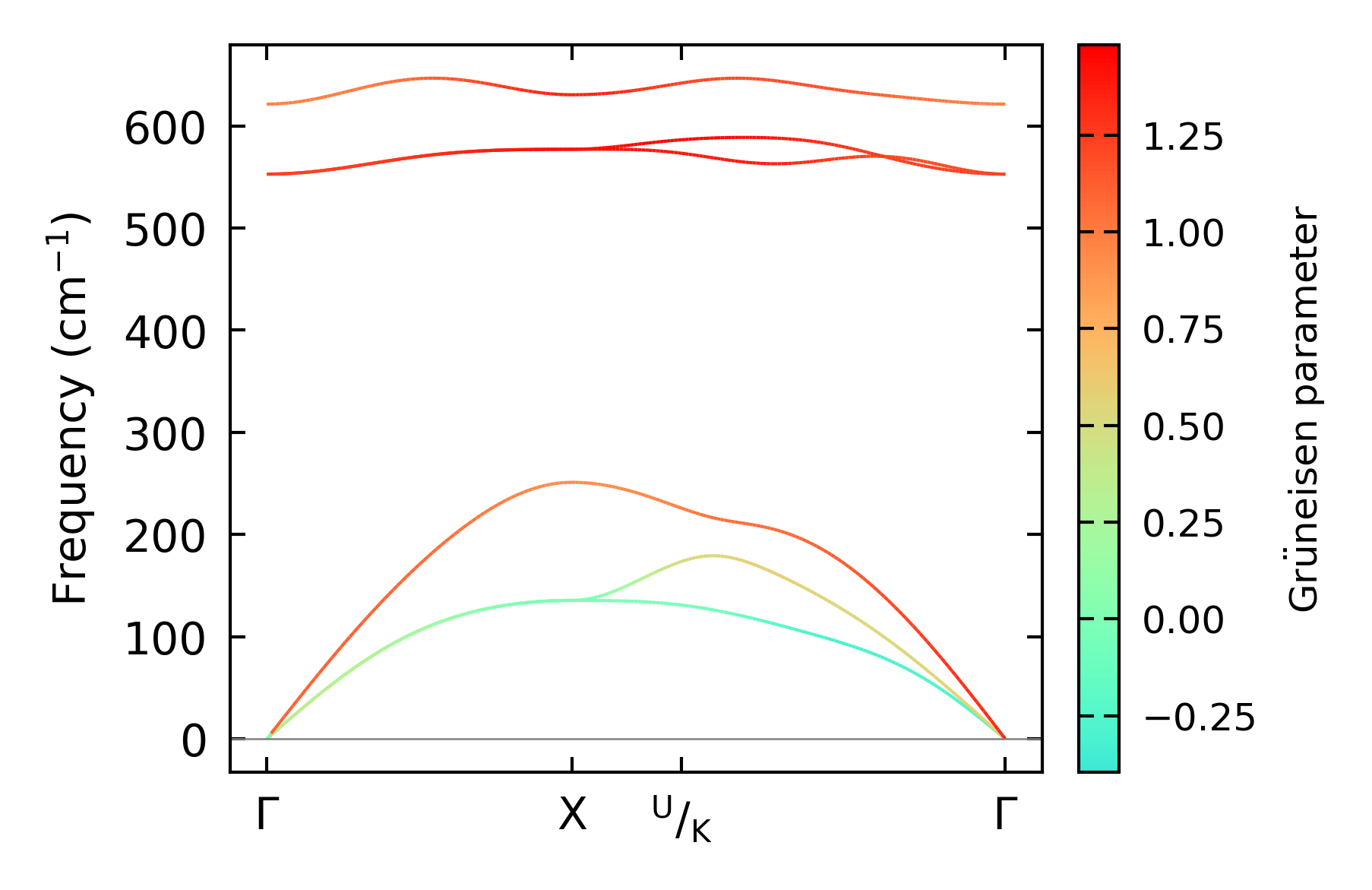

../../_images/fig_gruneisen211.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon — q-mesh: 22x22x22, supercell: 2x2x2

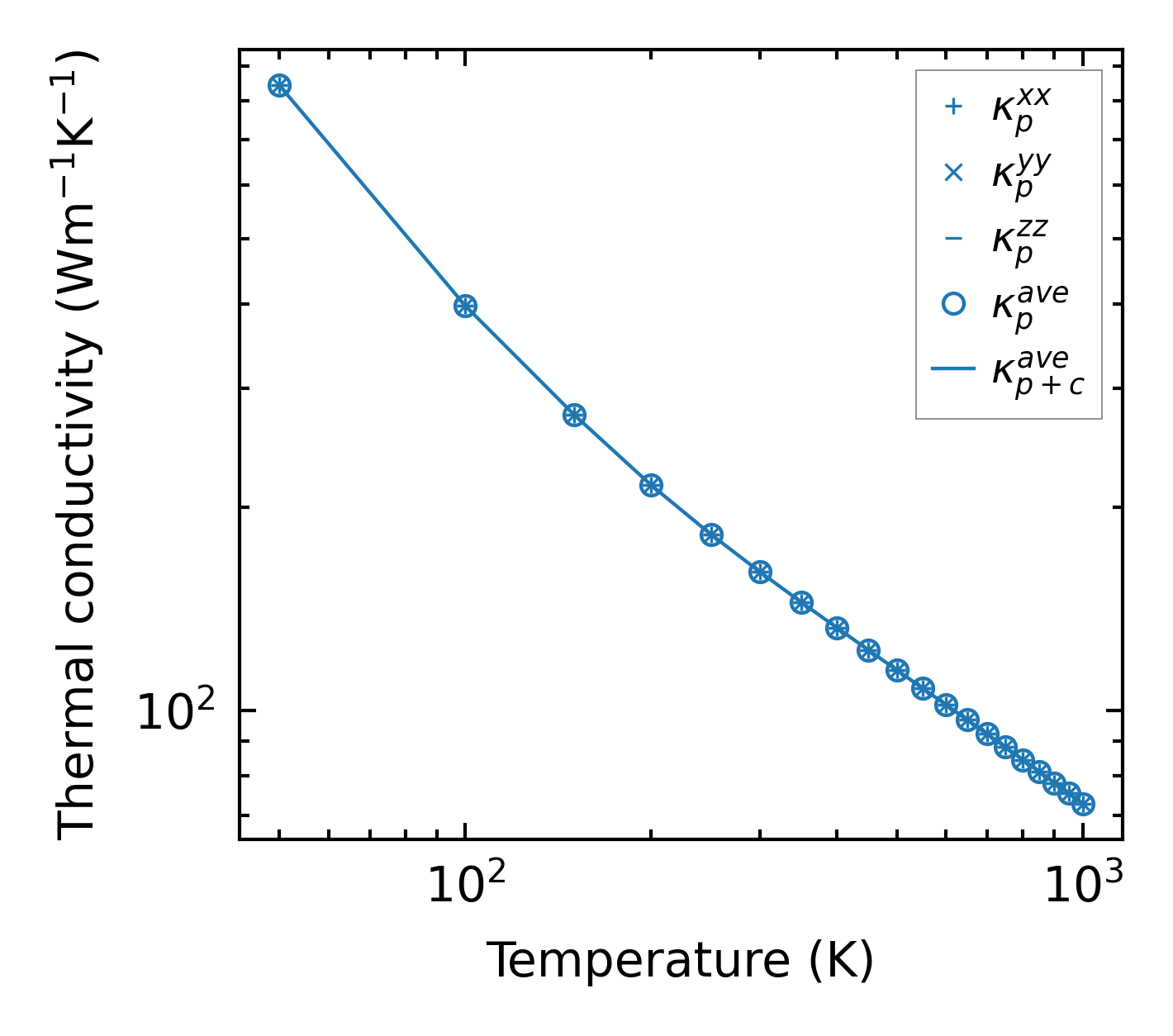

../../_images/fig_kappa414.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size214.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime210.png — (a) Phonon lifetime due to phonon-phonon scattering

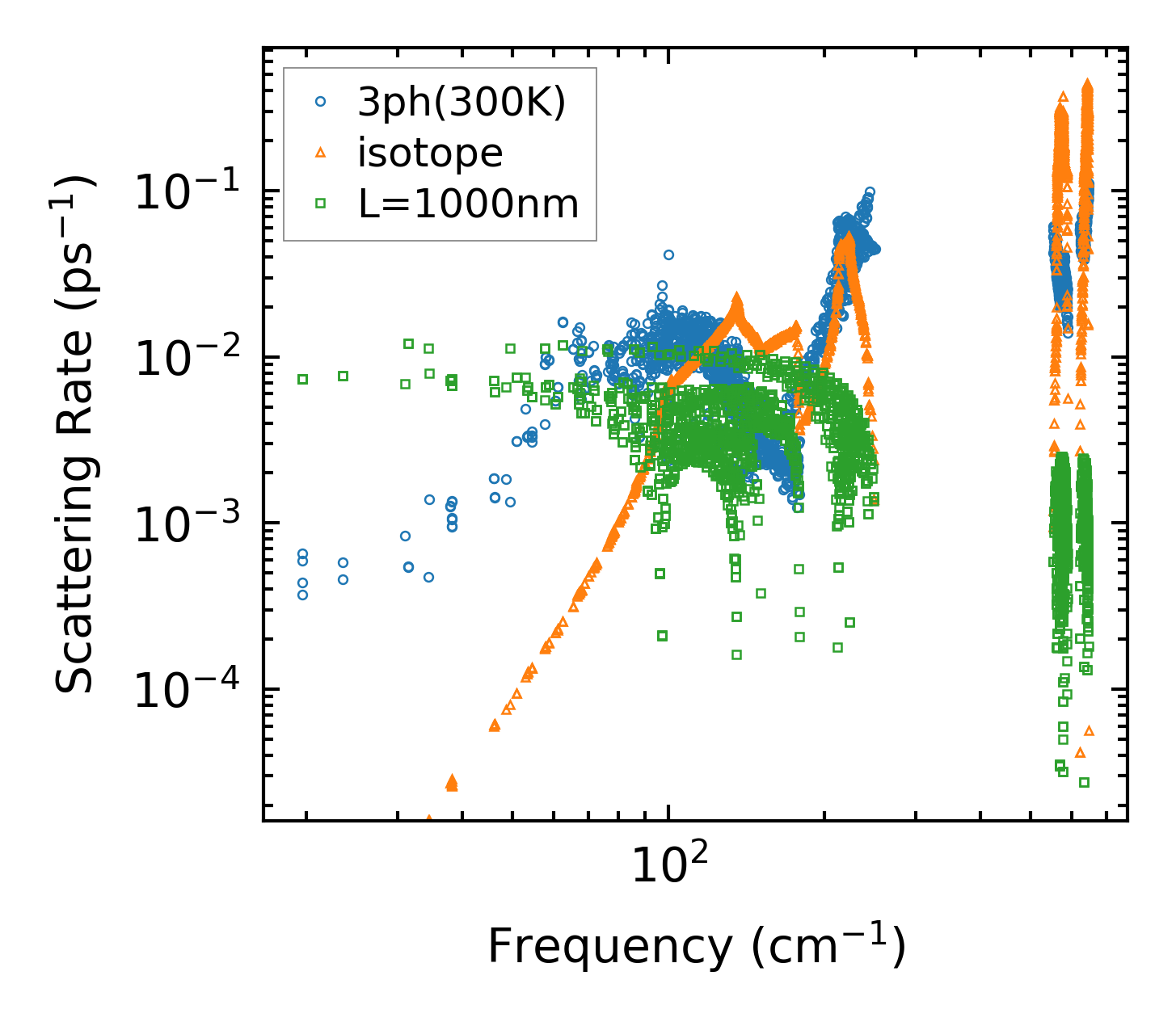

../../_images/fig_scat_rates209.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

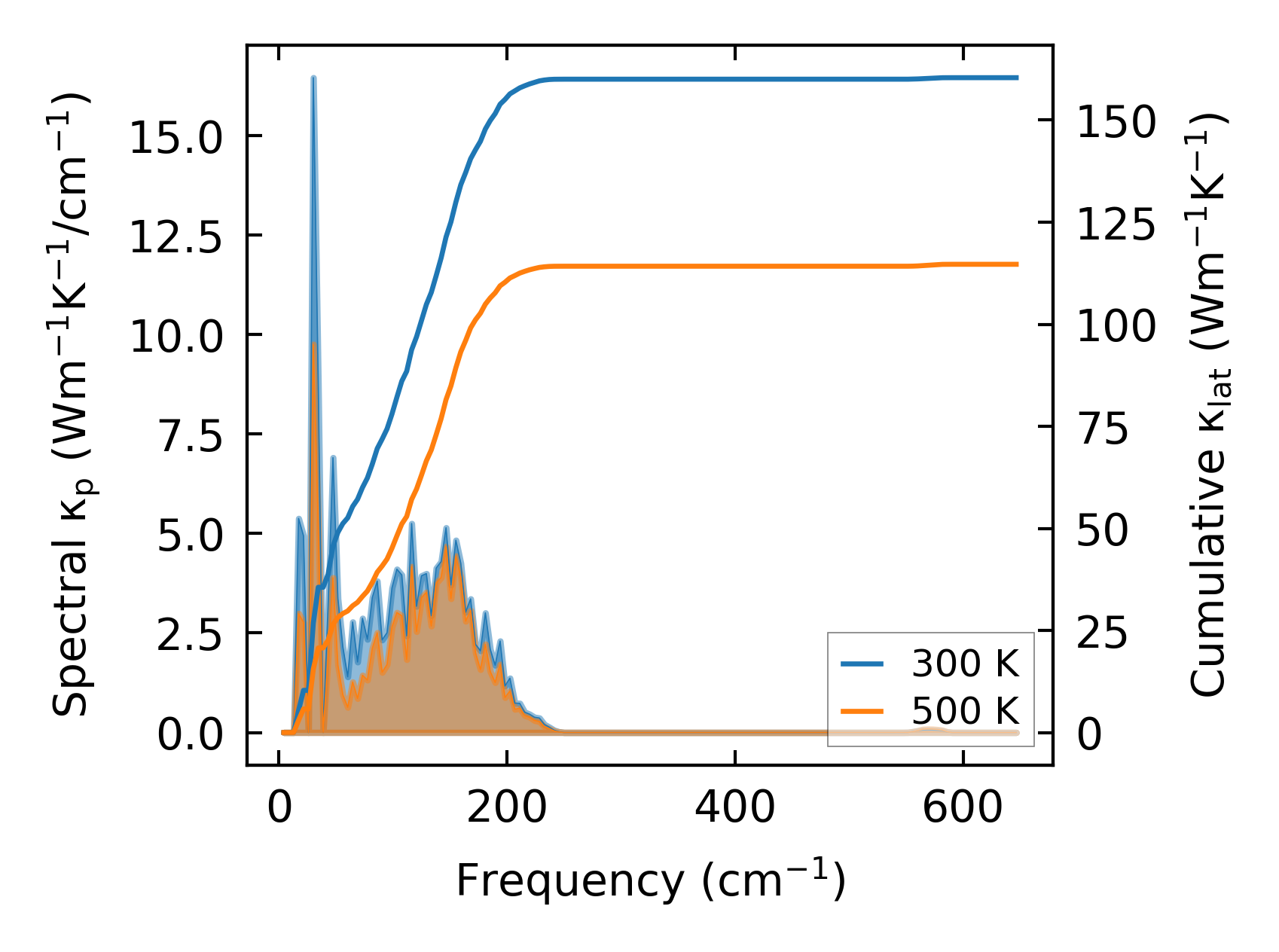

../../_images/fig_cumu_frequency210.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp210.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc349.png — (a) Force constants w.r.t atomic distance

Summary

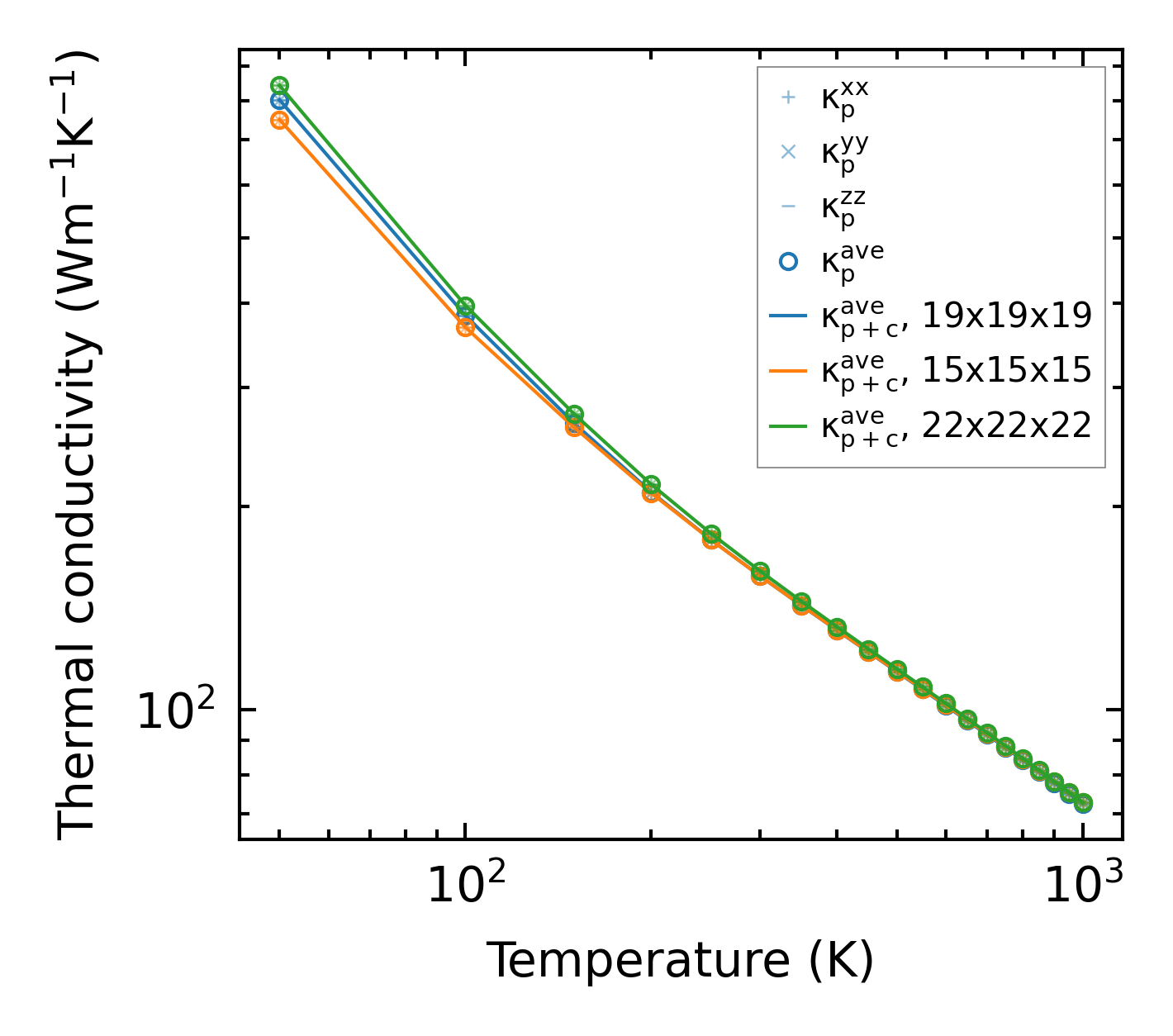

../../_images/fig_kappa415.png — (a) Temperature-dependent lattice thermal conductivity

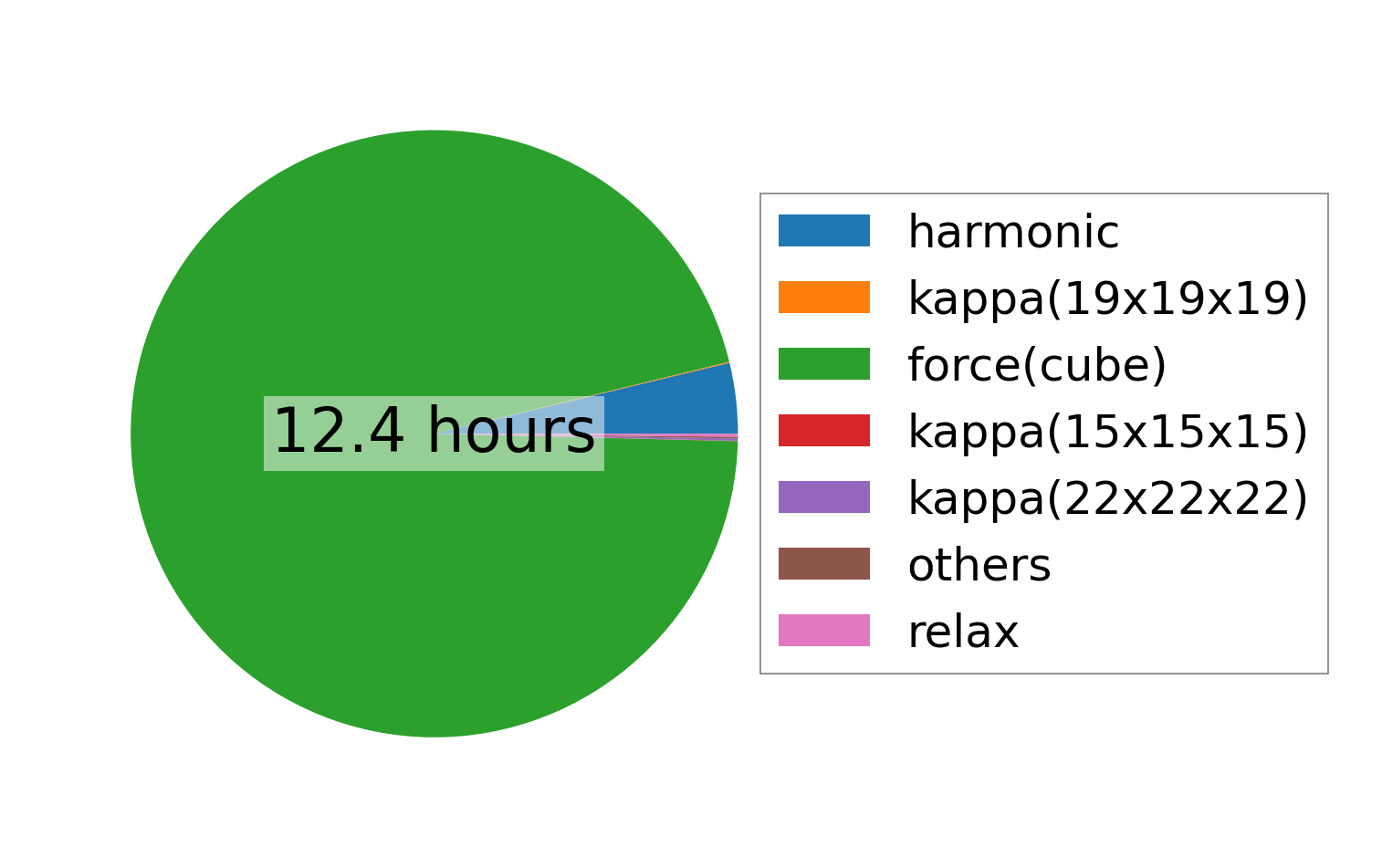

../../_images/fig_times493.png — (b) Computation time
