mp-1009750/ScN/anharm

Space group: F-43m (216)
Link: Materials Project
Download: mp-1009750.tar.gz

Harmonic properties

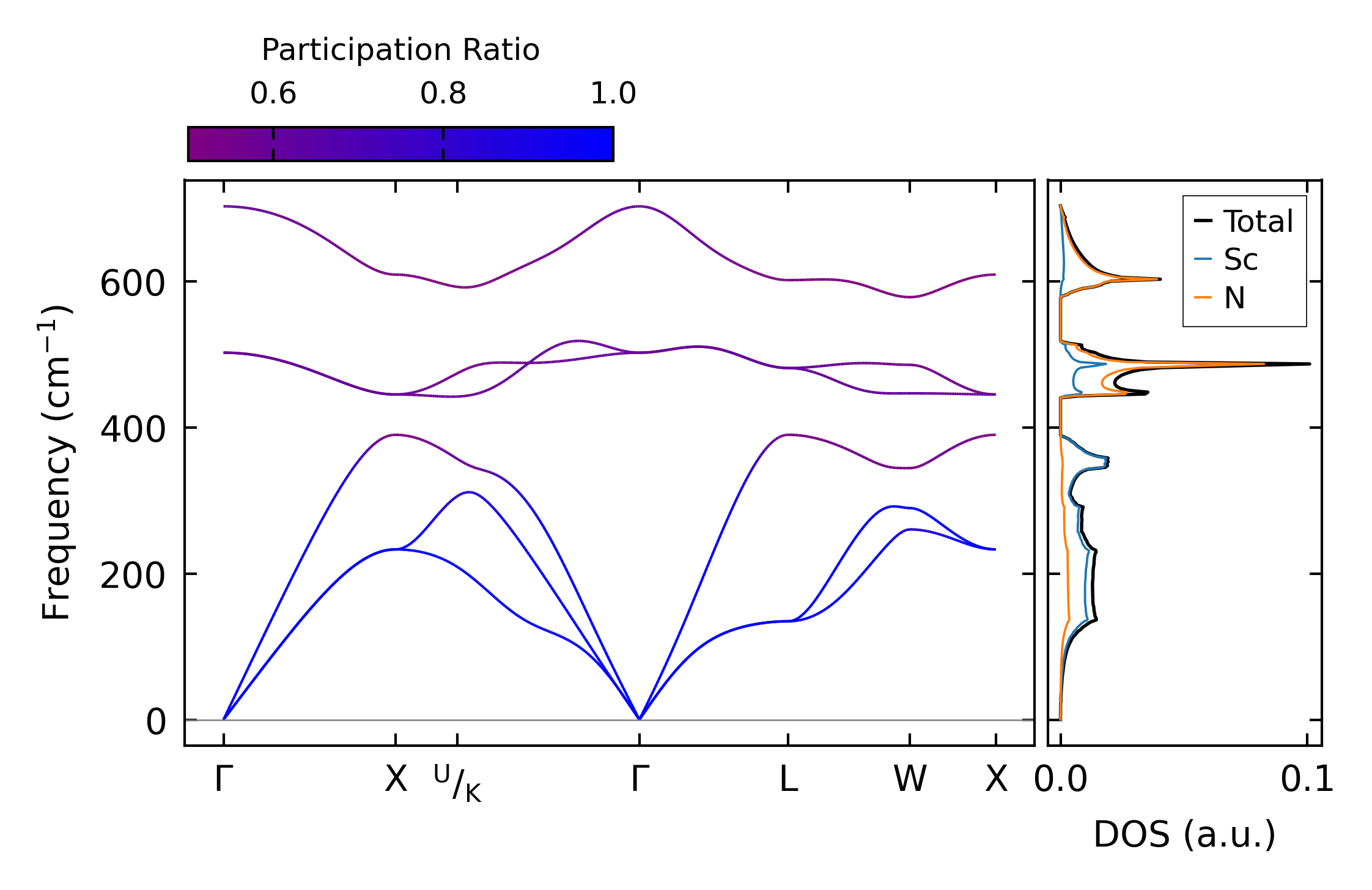

../../_images/fig_bandos_pr301.png — (a) Phonon dispersion with participation ratio and DOS

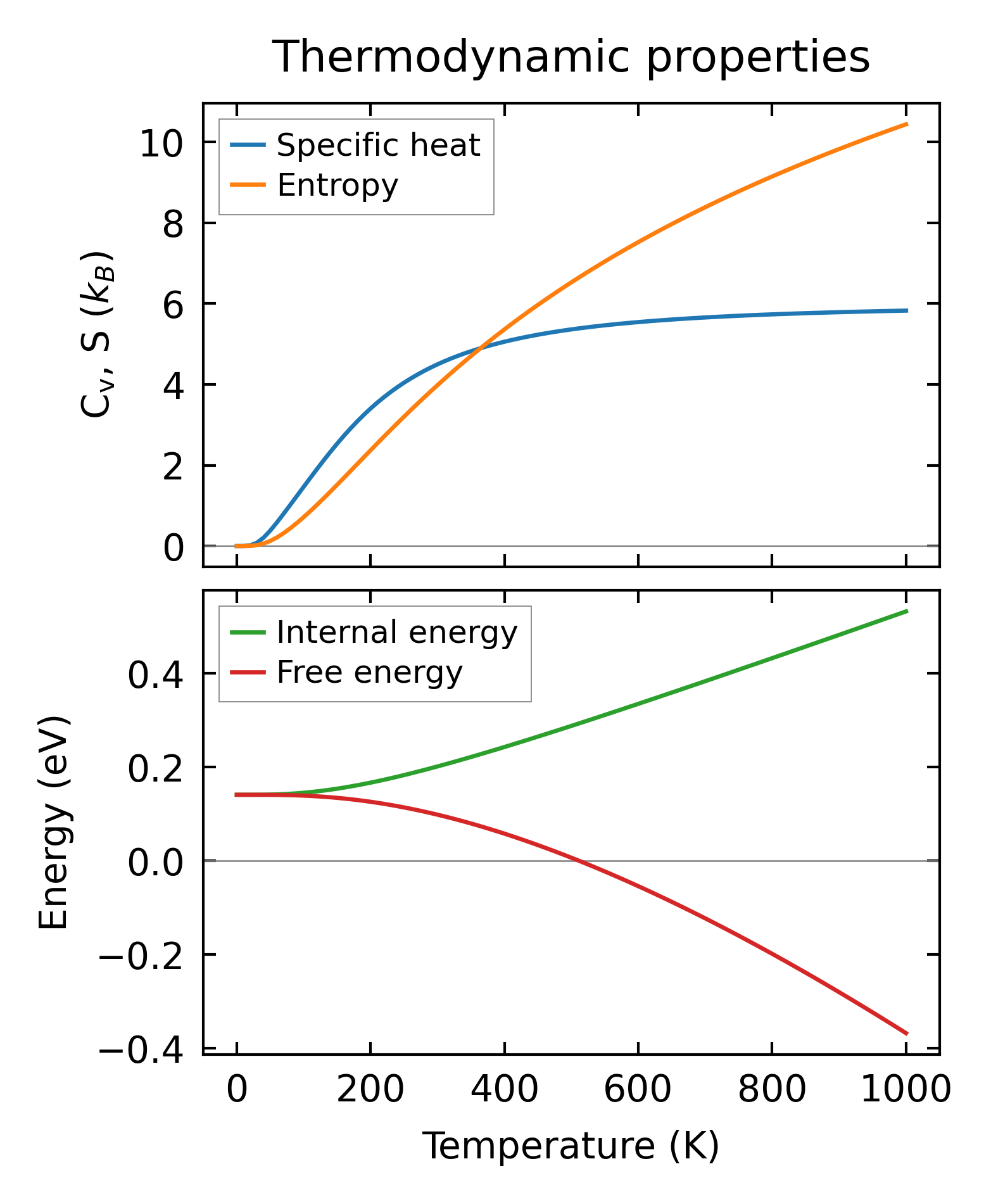

../../_images/fig_thermo301.png — (b) Thermodynamic properties

Grüneisen parameters

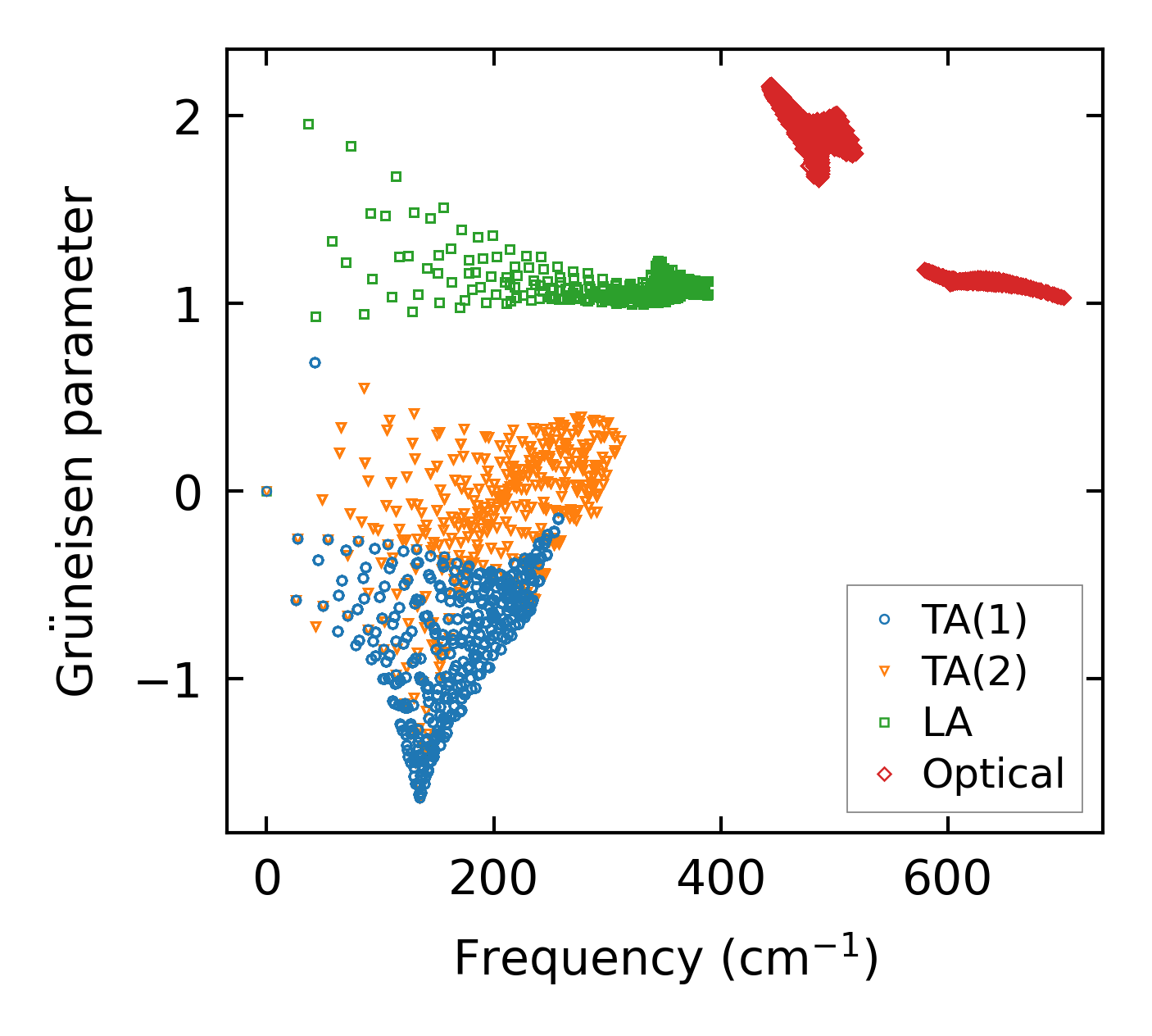

../../_images/fig_gru_all206.png — (a) Grüneisen parameters

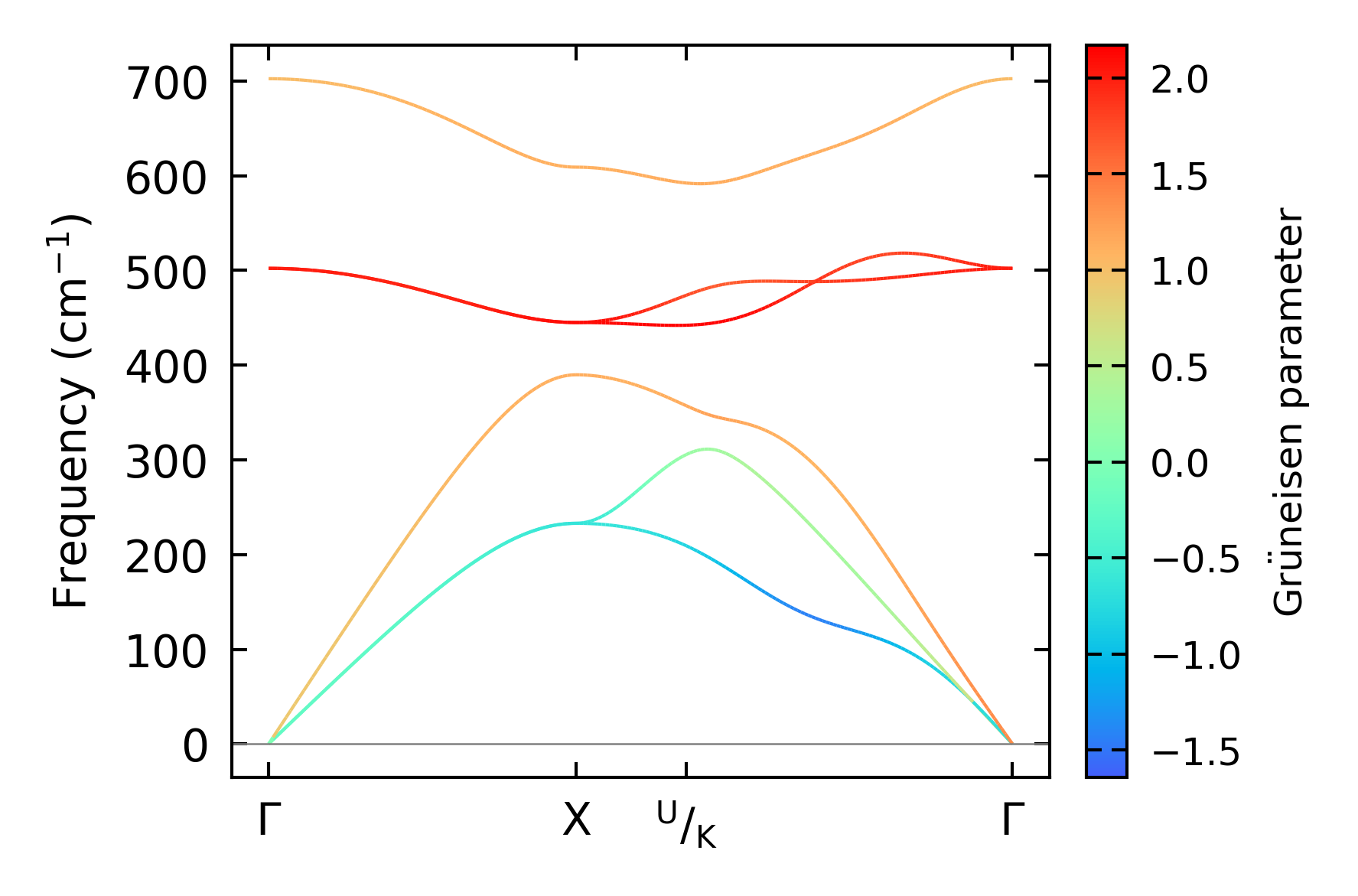

../../_images/fig_gruneisen206.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon — q-mesh: 23x23x23, supercell: 2x2x2

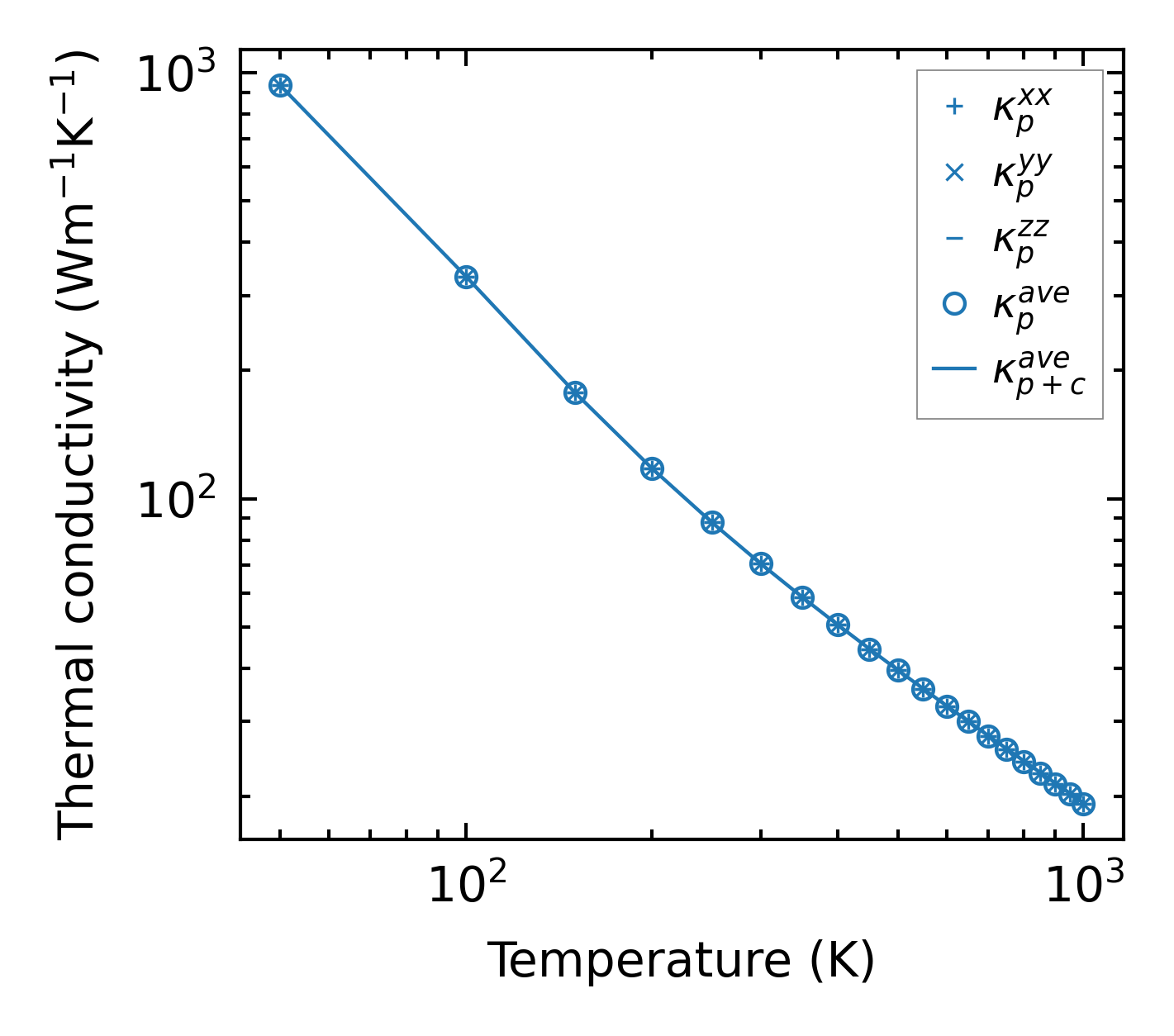

../../_images/fig_kappa404.png — (a) Temperature-dependent lattice thermal conductivity

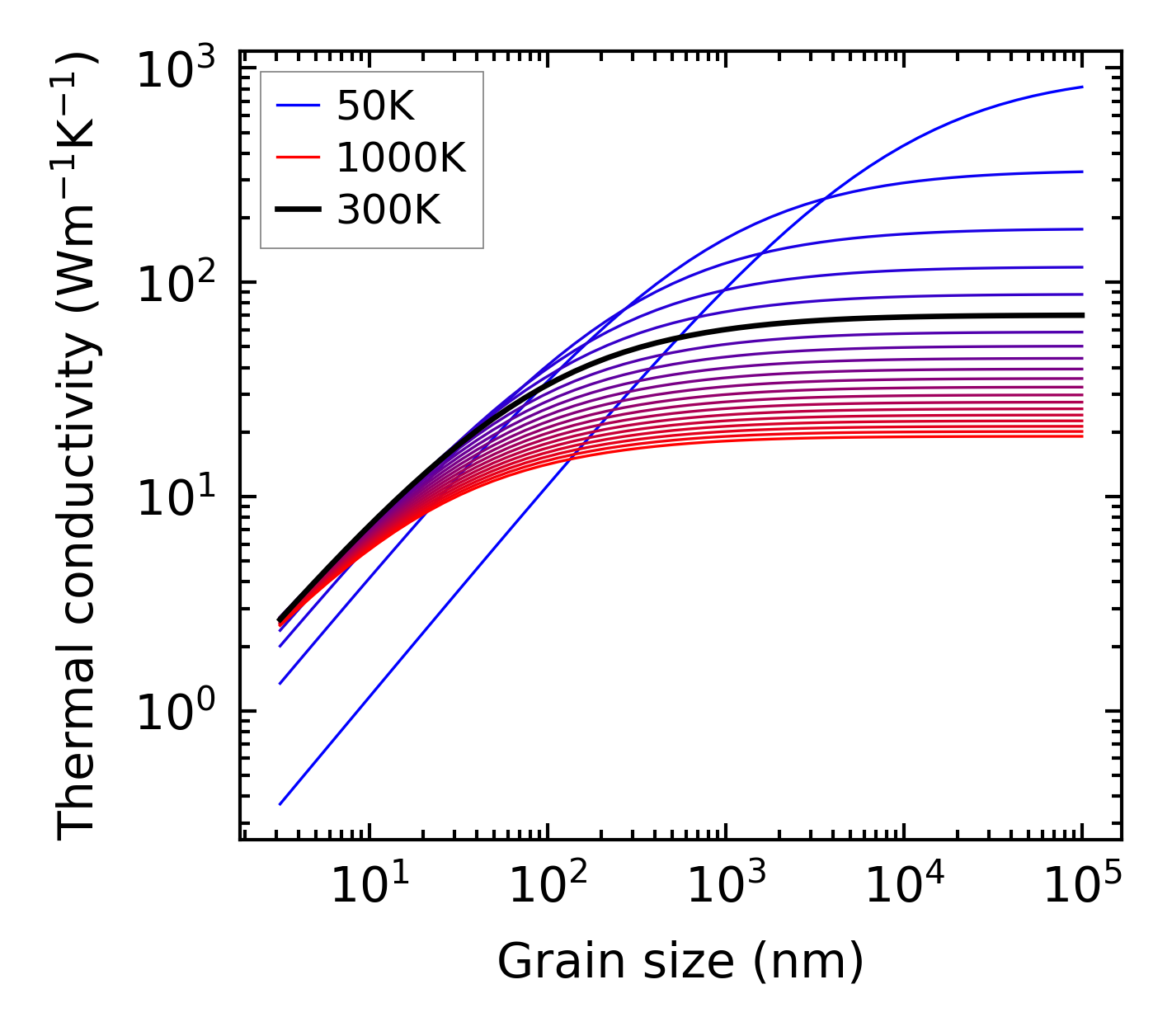

../../_images/fig_kappa_vs_grain_size209.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

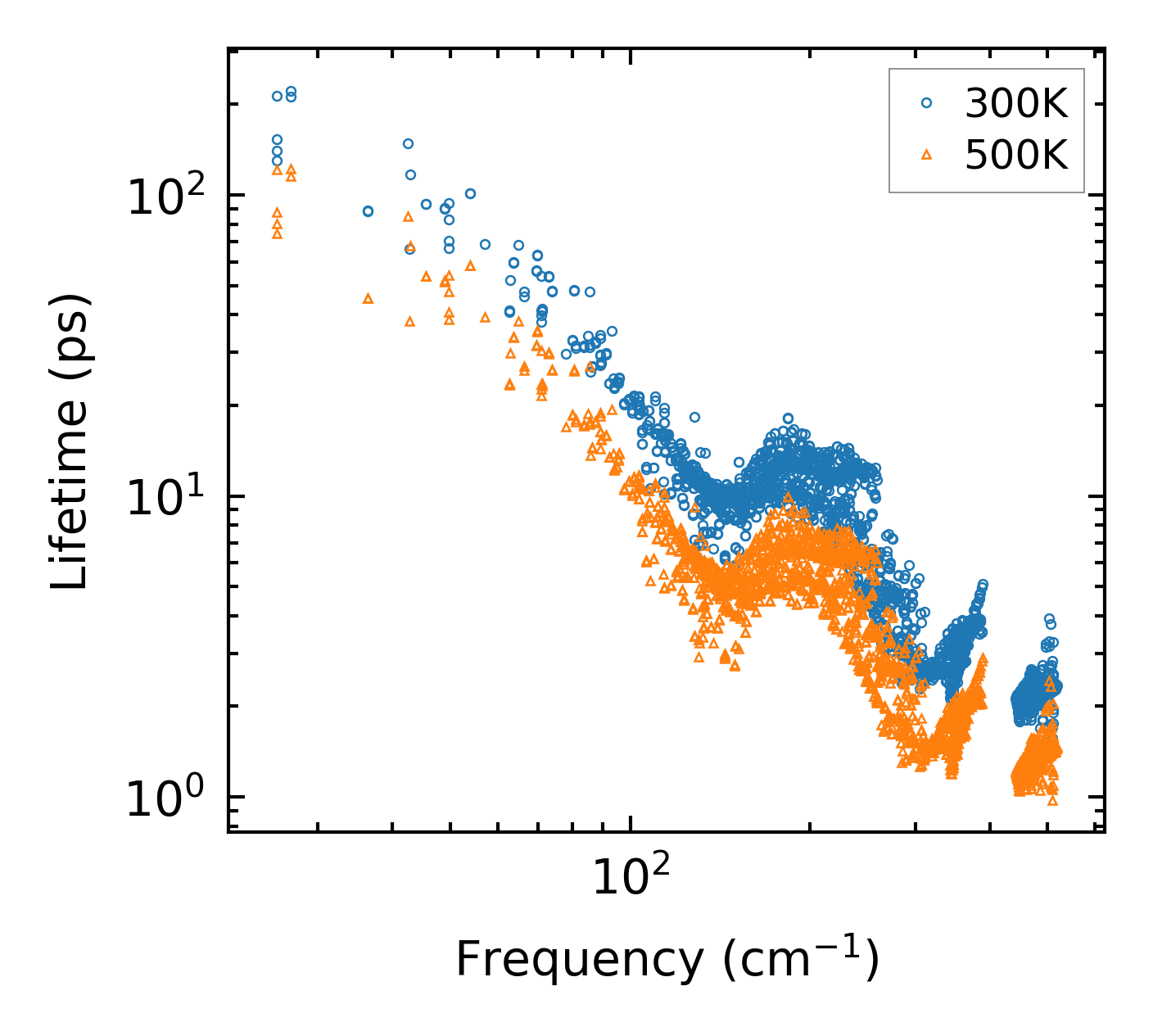

../../_images/fig_lifetime205.png — (a) Phonon lifetime due to phonon-phonon scattering

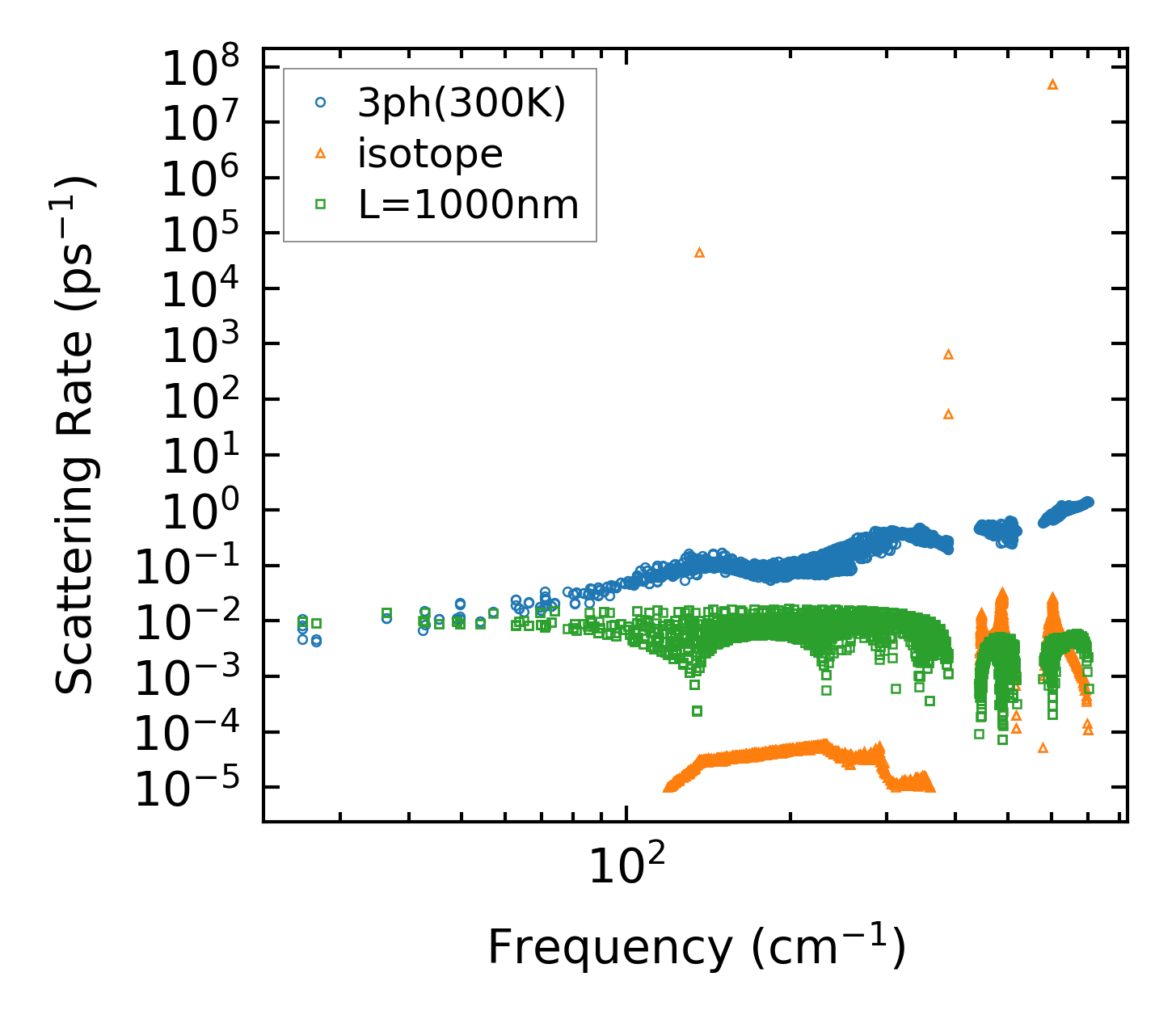

../../_images/fig_scat_rates204.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

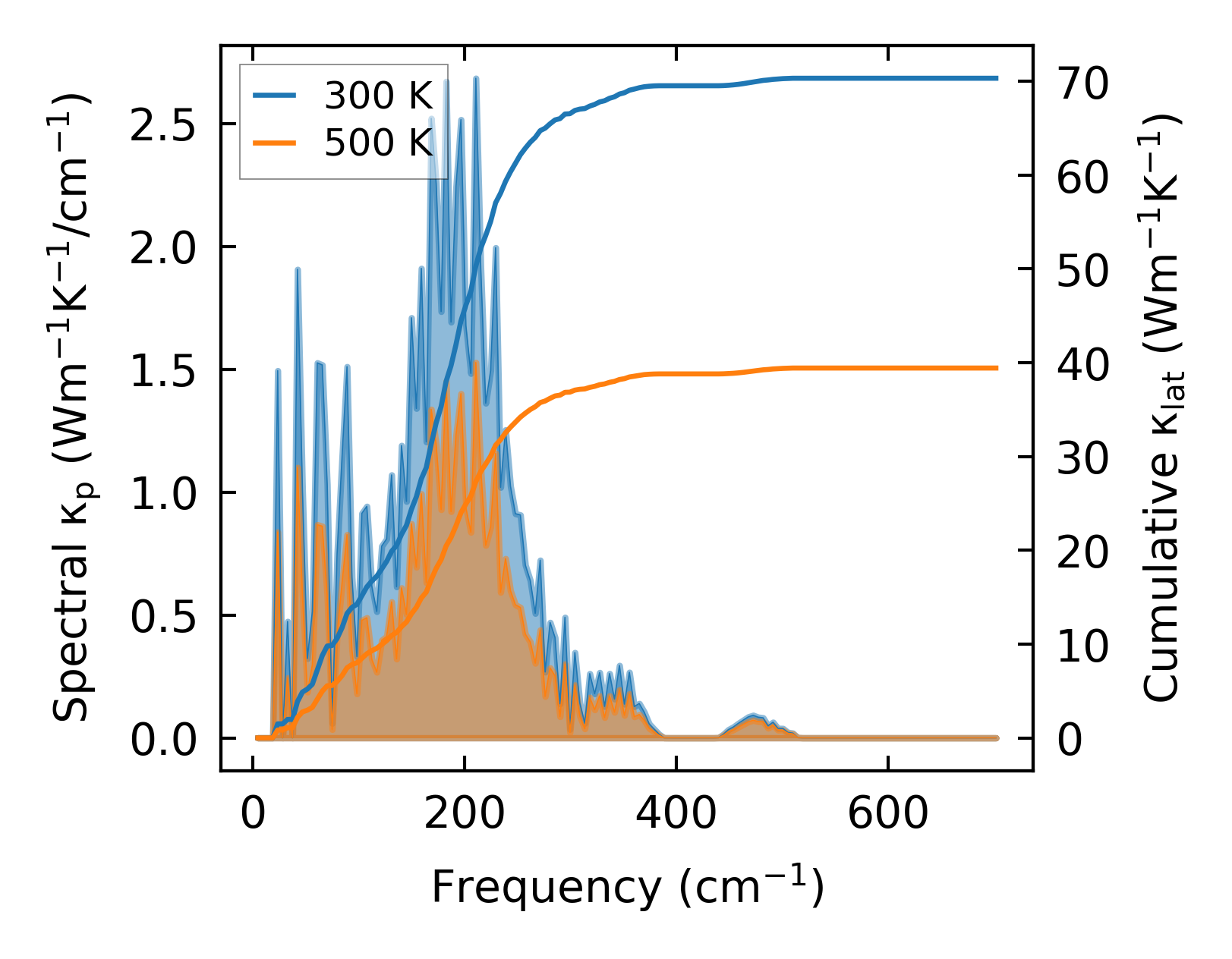

../../_images/fig_cumu_frequency205.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

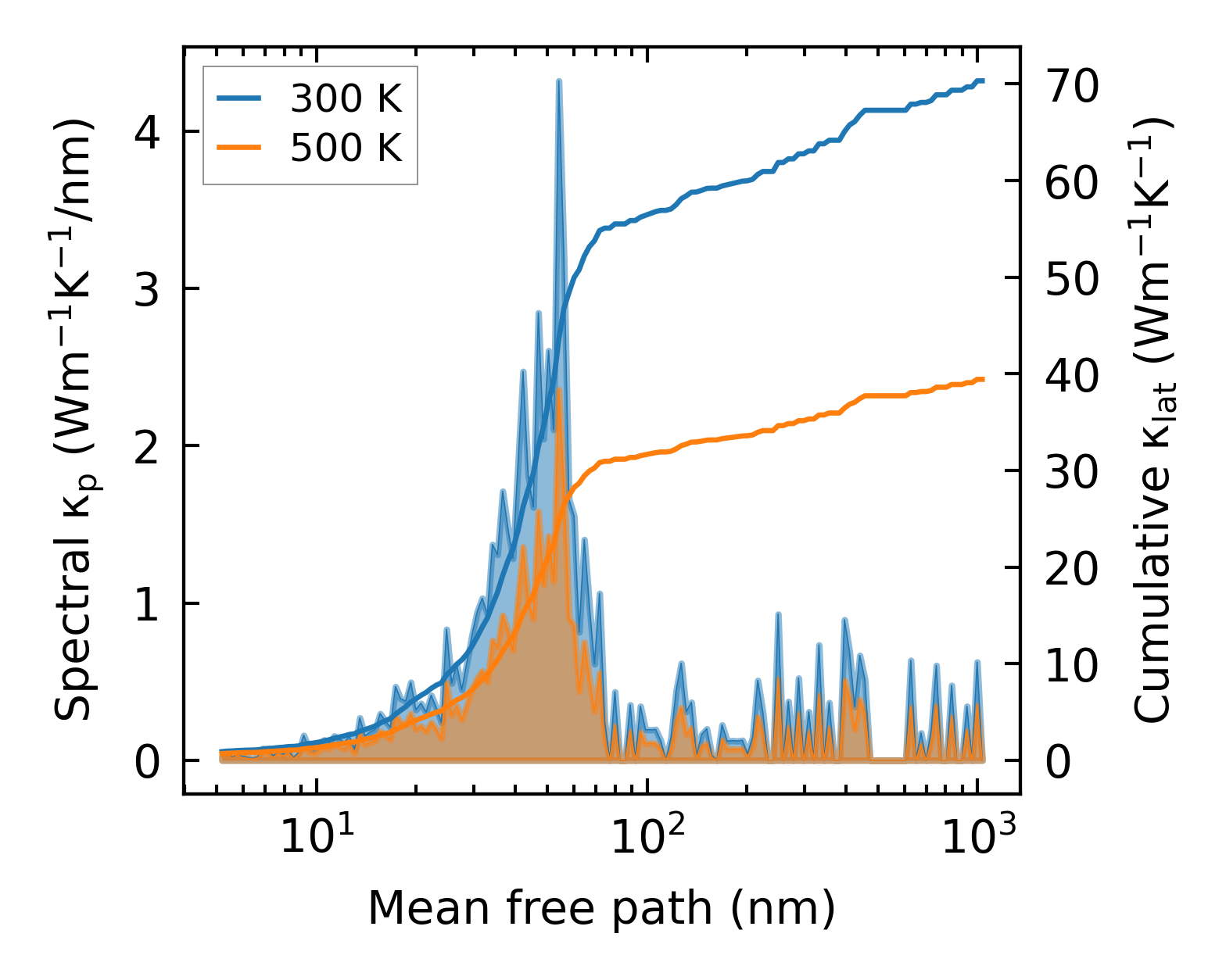

../../_images/fig_cumu_mfp205.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc344.png — (a) Force constants w.r.t atomic distance

Summary

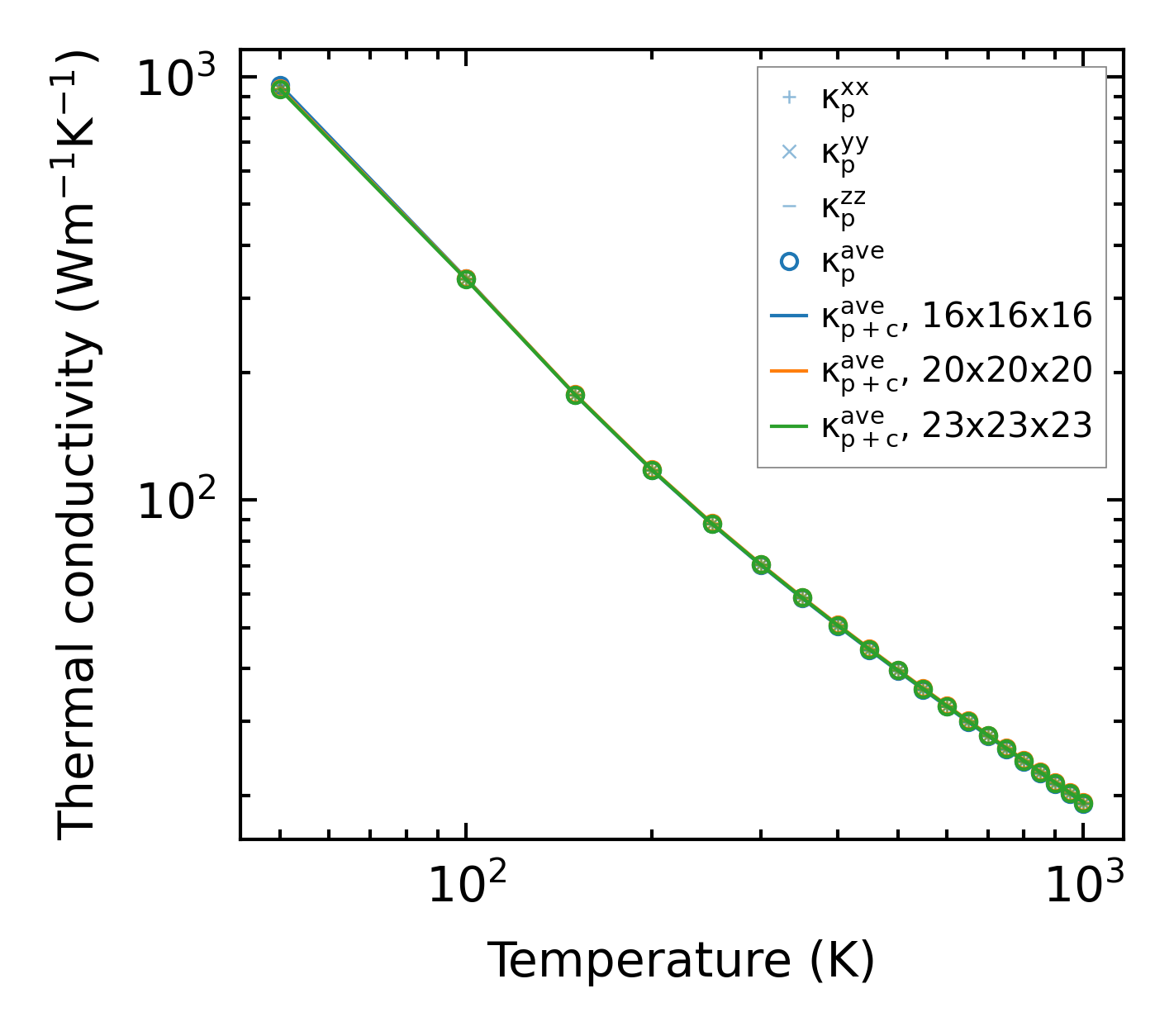

../../_images/fig_kappa405.png — (a) Temperature-dependent lattice thermal conductivity

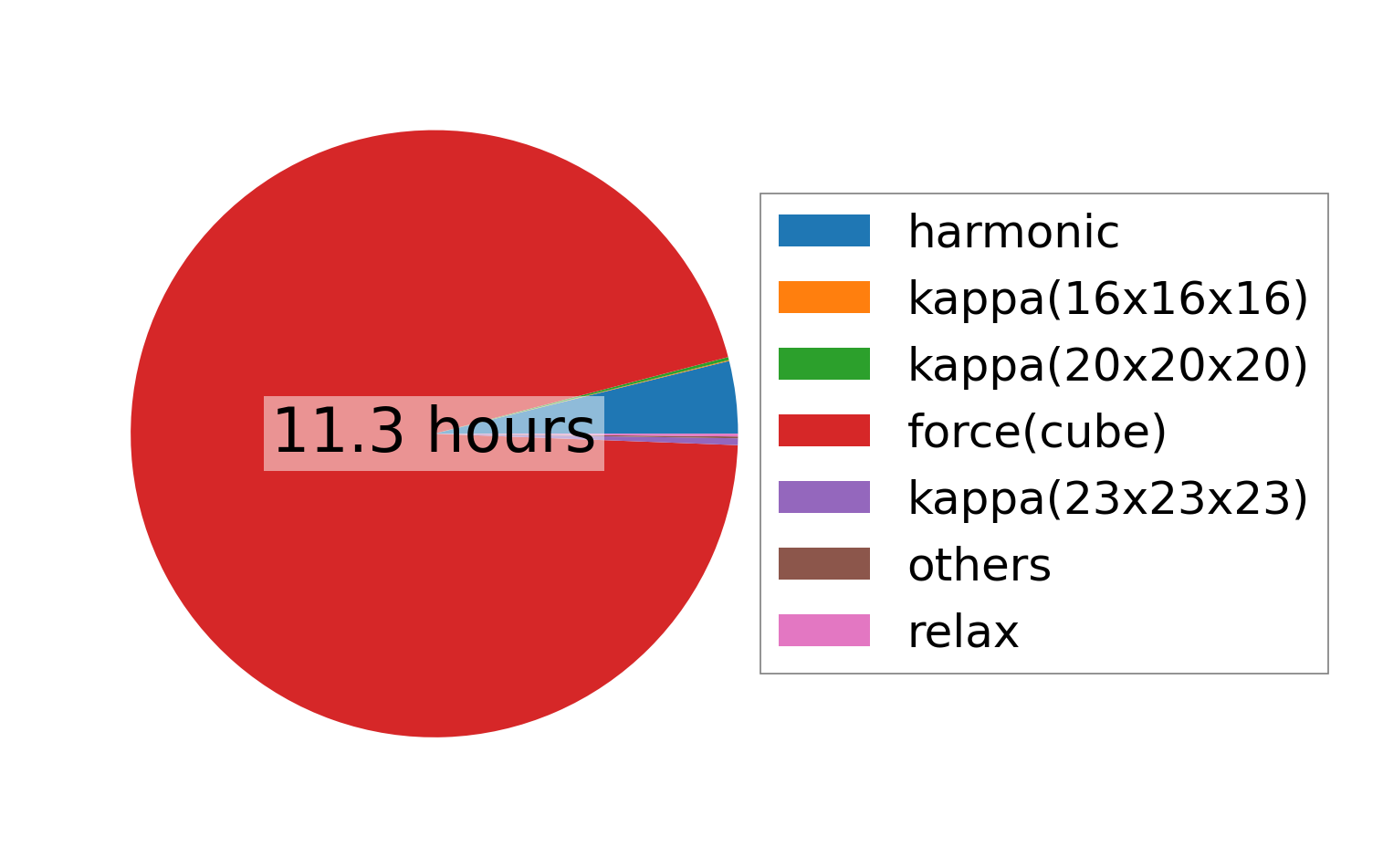

../../_images/fig_times486.png — (b) Computation time
