mp-996966/KAgO2/anharm

Space group: Pmmm (47)
Link: Materials Project
Download: mp-996966.tar.gz

Harmonic properties

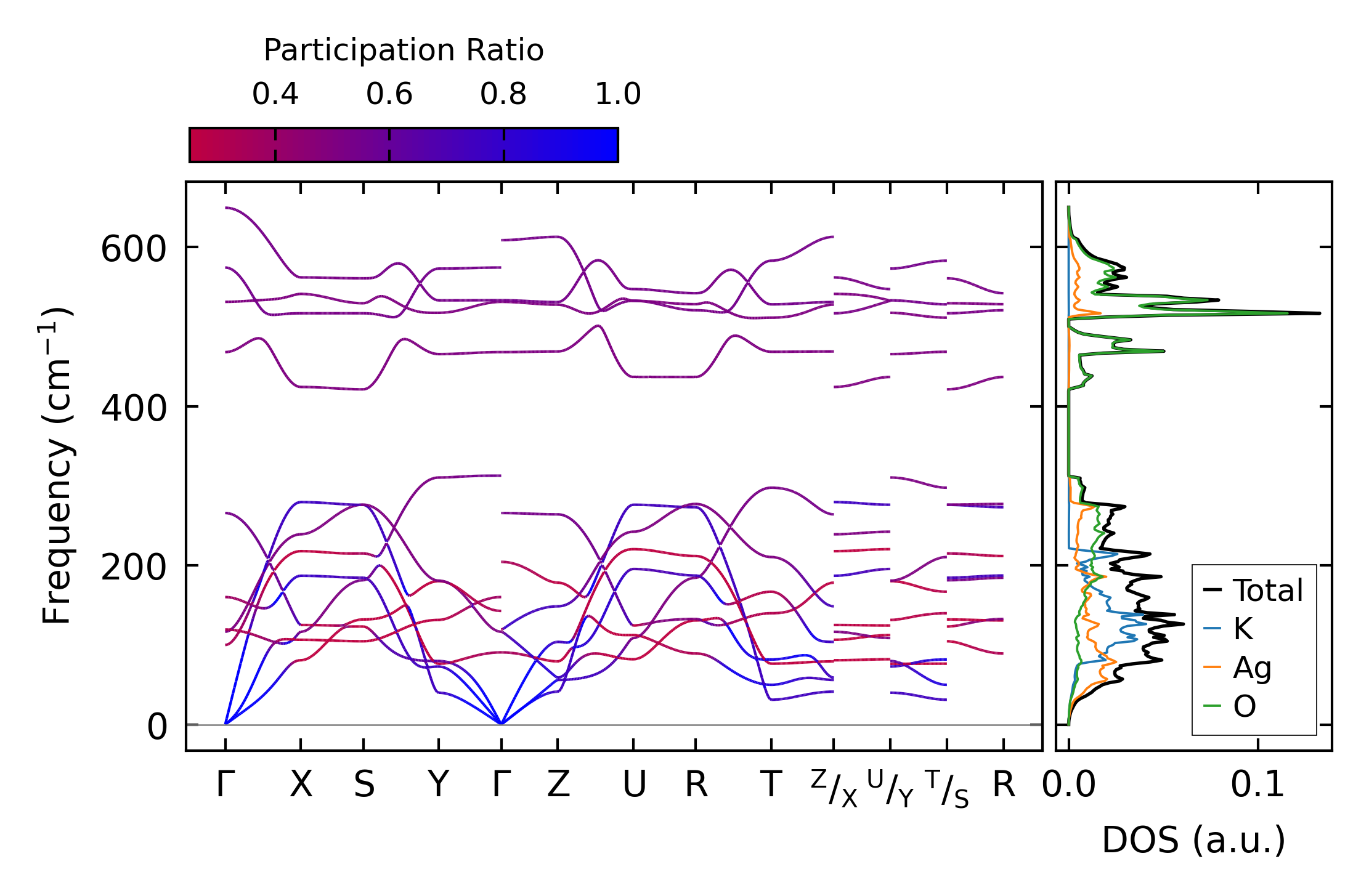

../../_images/fig_bandos_pr911.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo911.png — (b) Thermodynamic properties

Grüneisen parameters

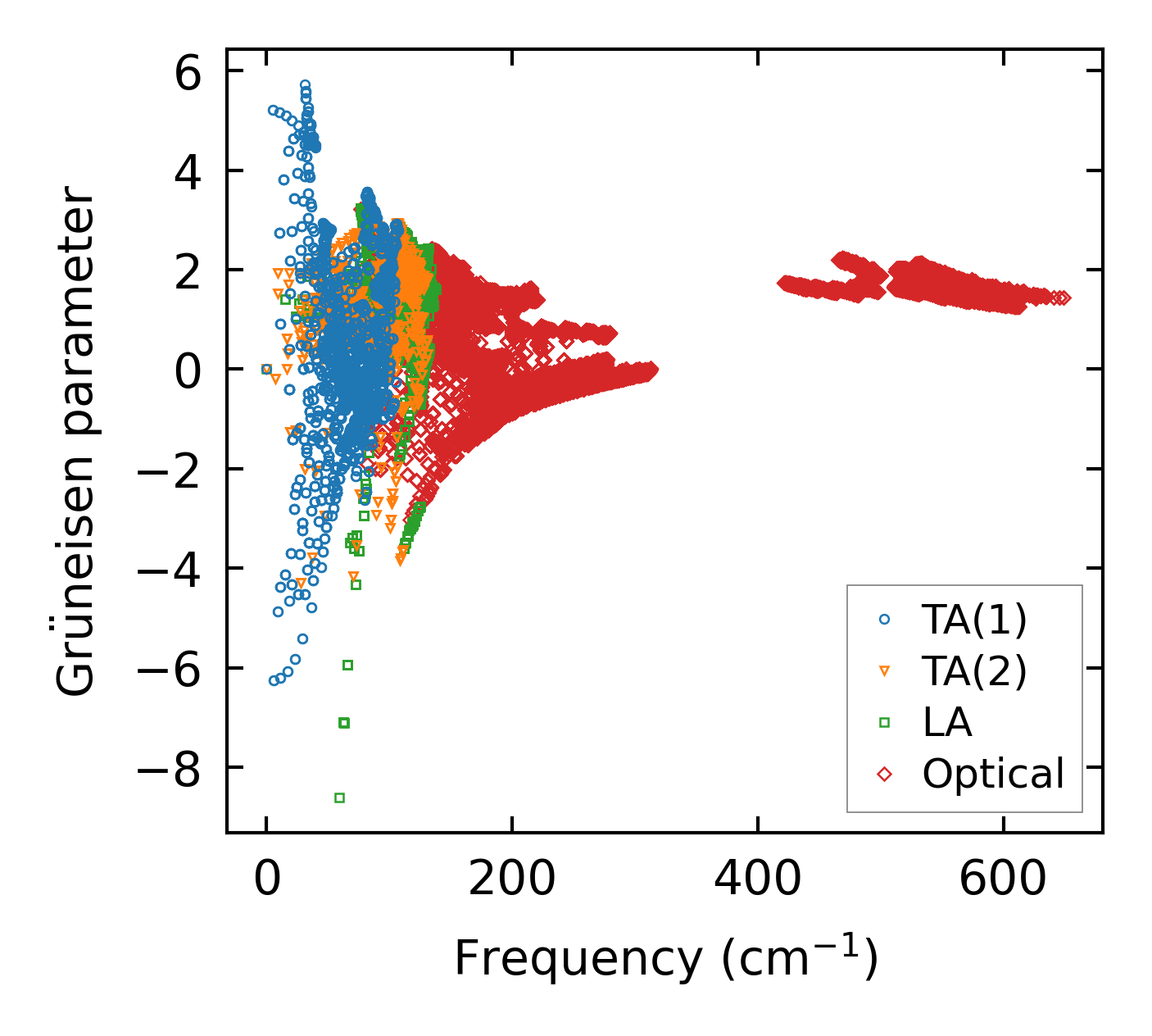

../../_images/fig_gru_all561.png — (a) Grüneisen parameters

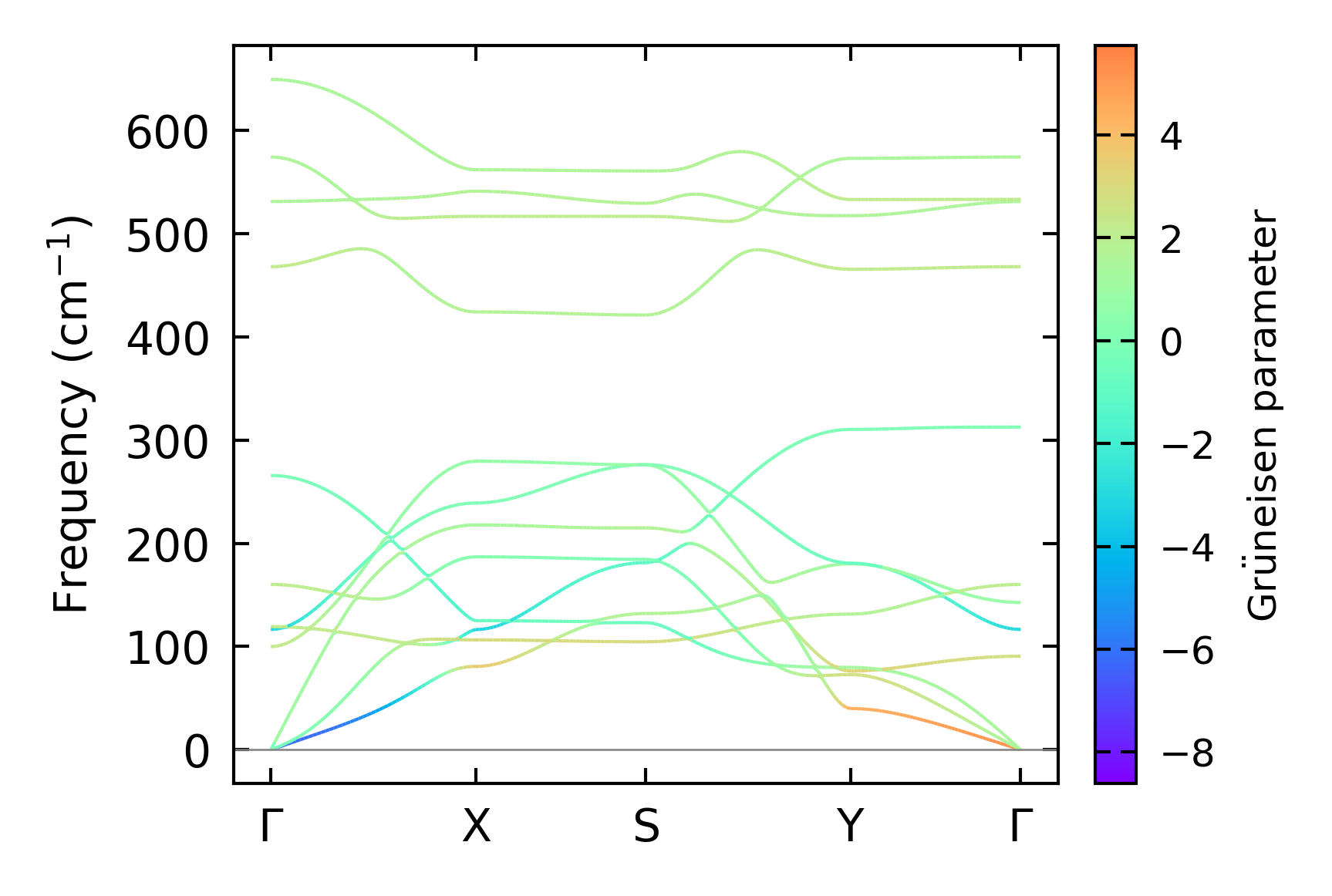

../../_images/fig_gruneisen561.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 24x20x12, supercell: 4x4x2

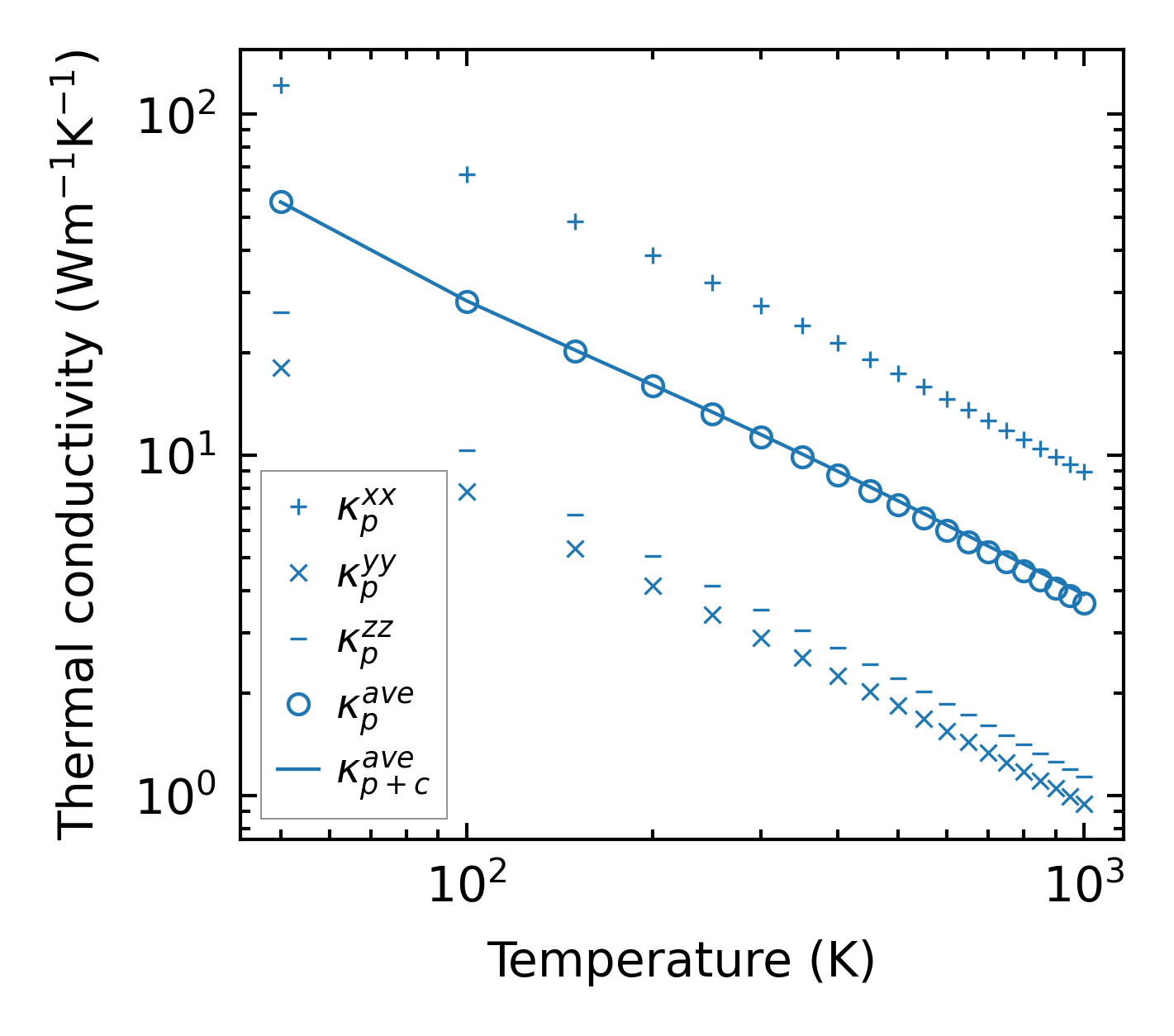

../../_images/fig_kappa1093.png — (a) Temperature-dependent lattice thermal conductivity

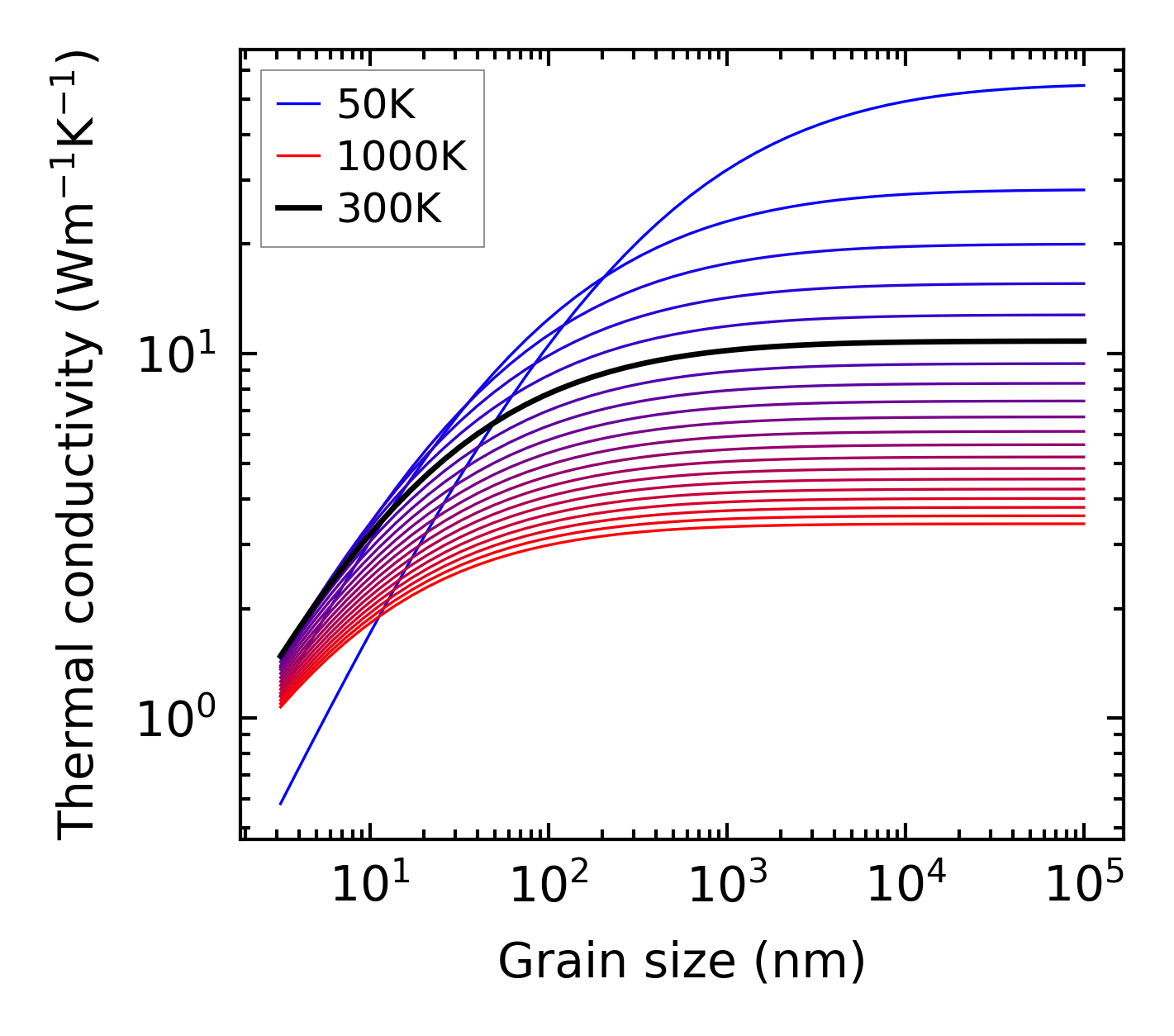

../../_images/fig_kappa_vs_grain_size568.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

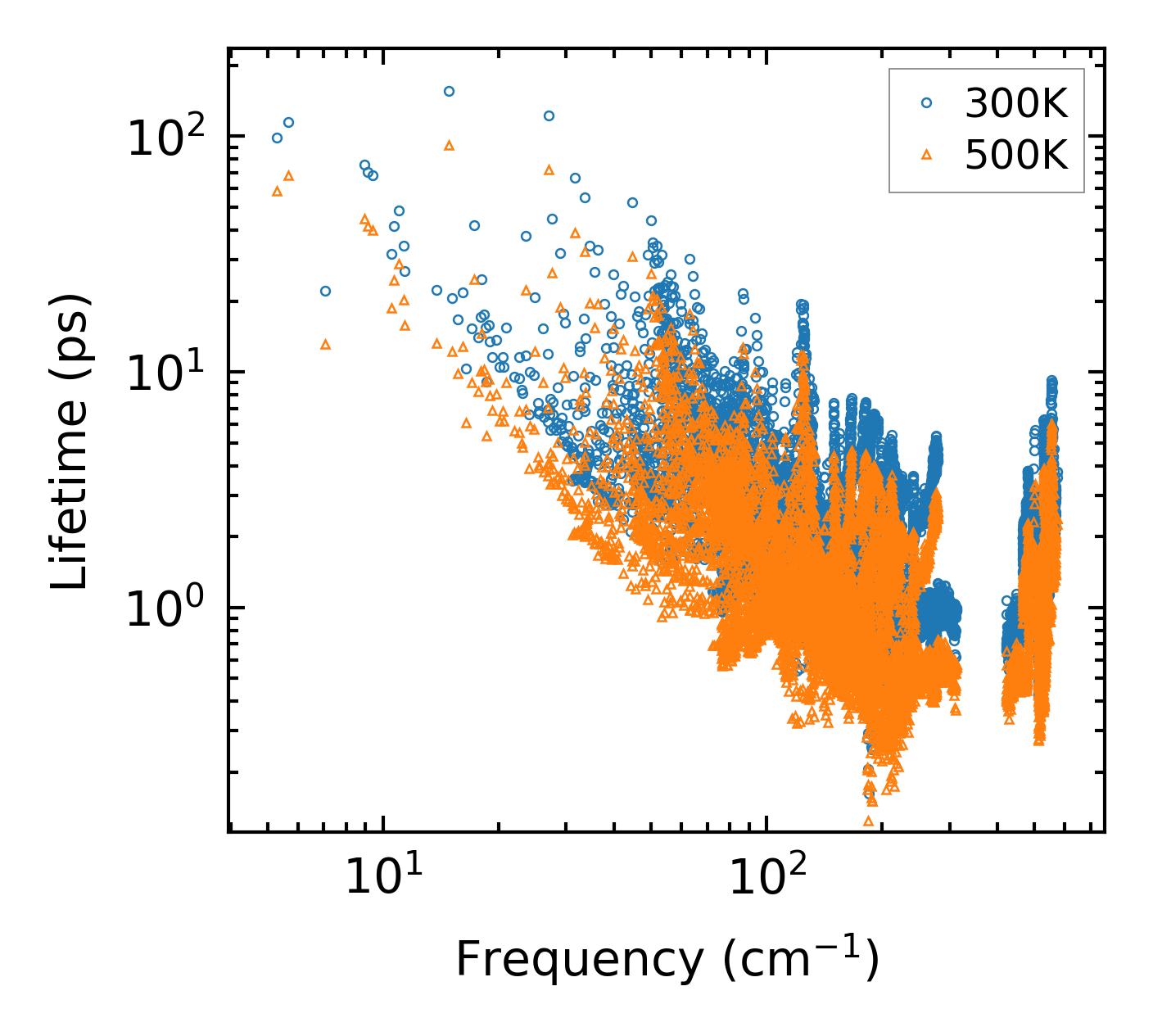

../../_images/fig_lifetime559.png — (a) Phonon lifetime due to phonon-phonon scattering

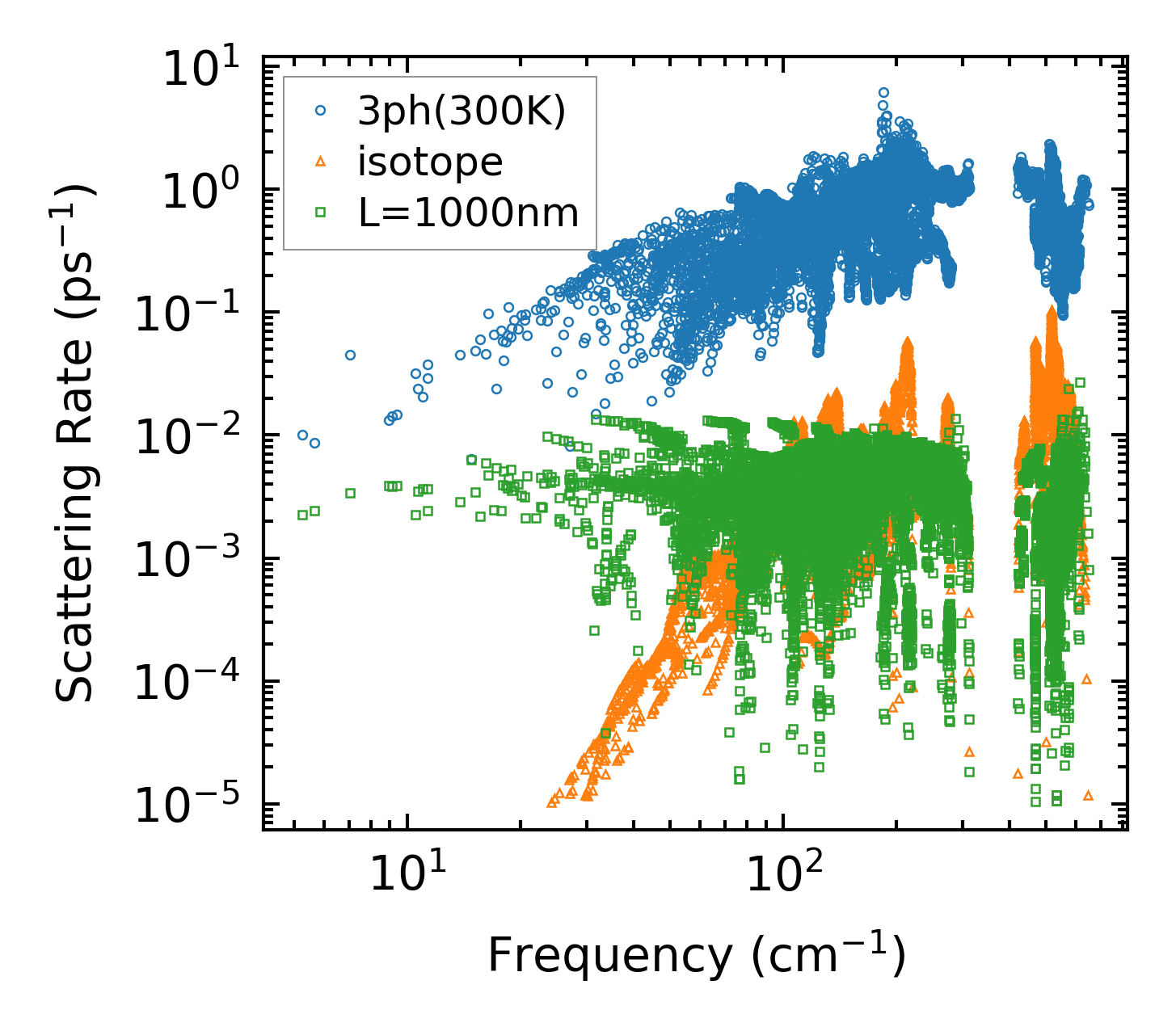

../../_images/fig_scat_rates558.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

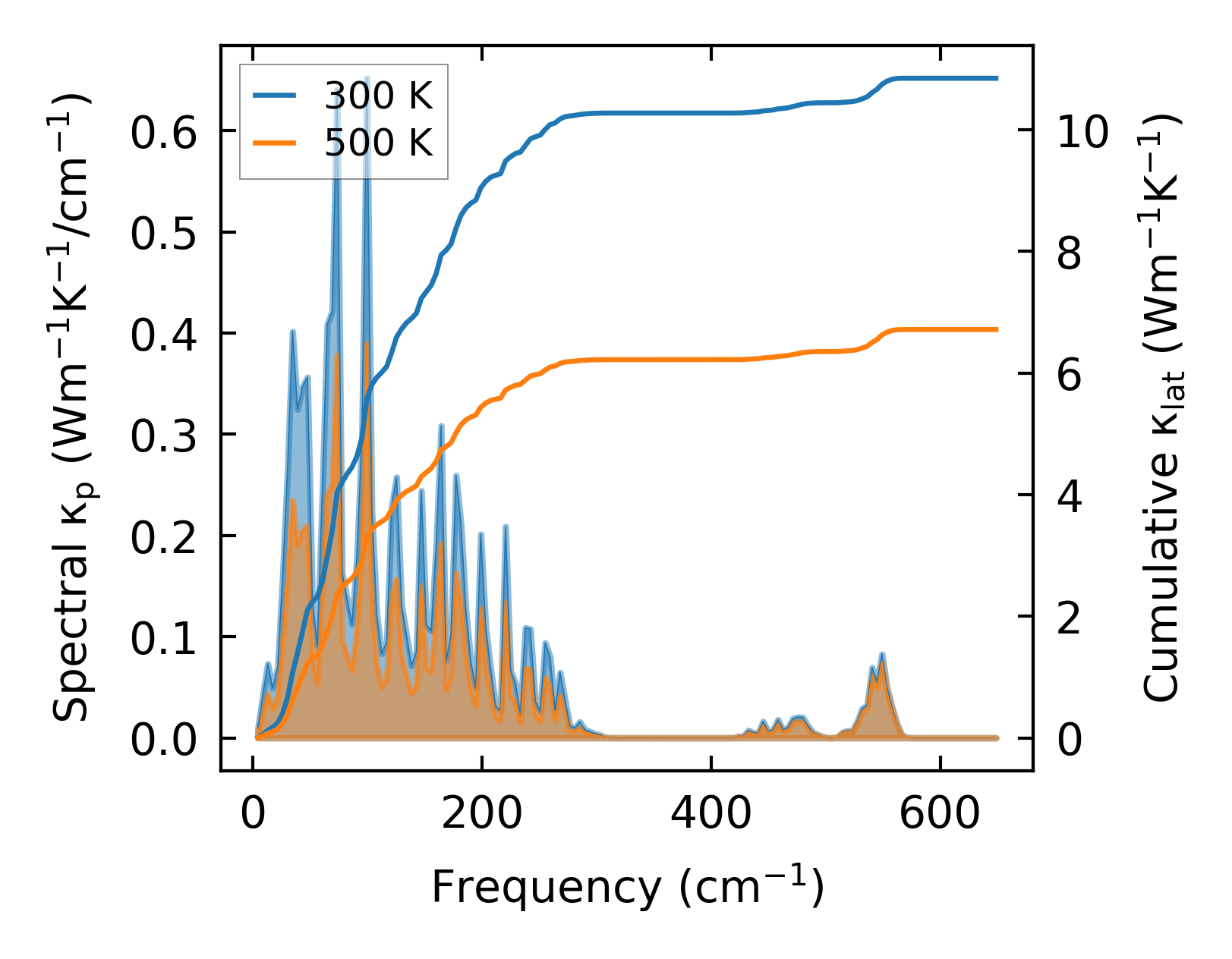

../../_images/fig_cumu_frequency559.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

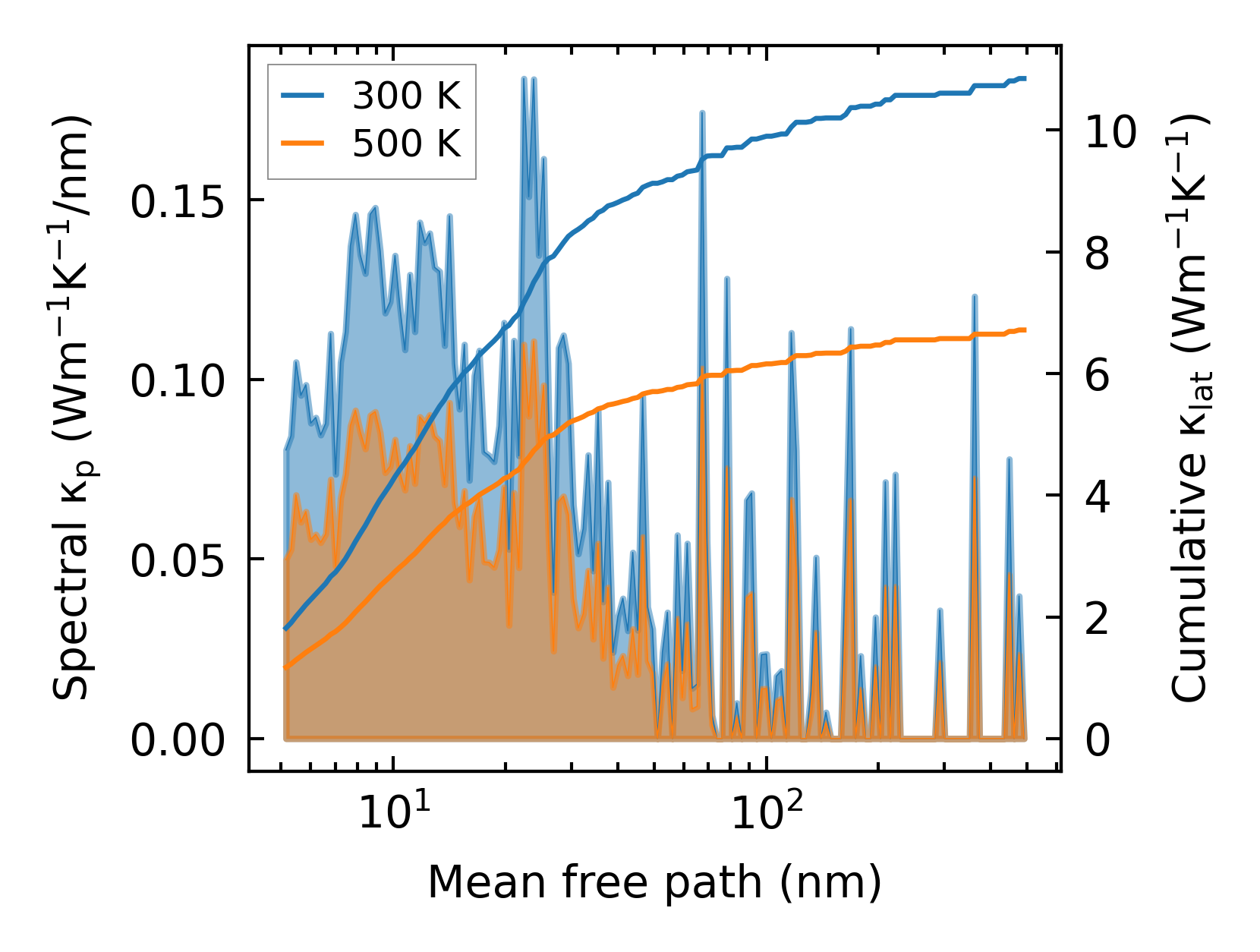

../../_images/fig_cumu_mfp559.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

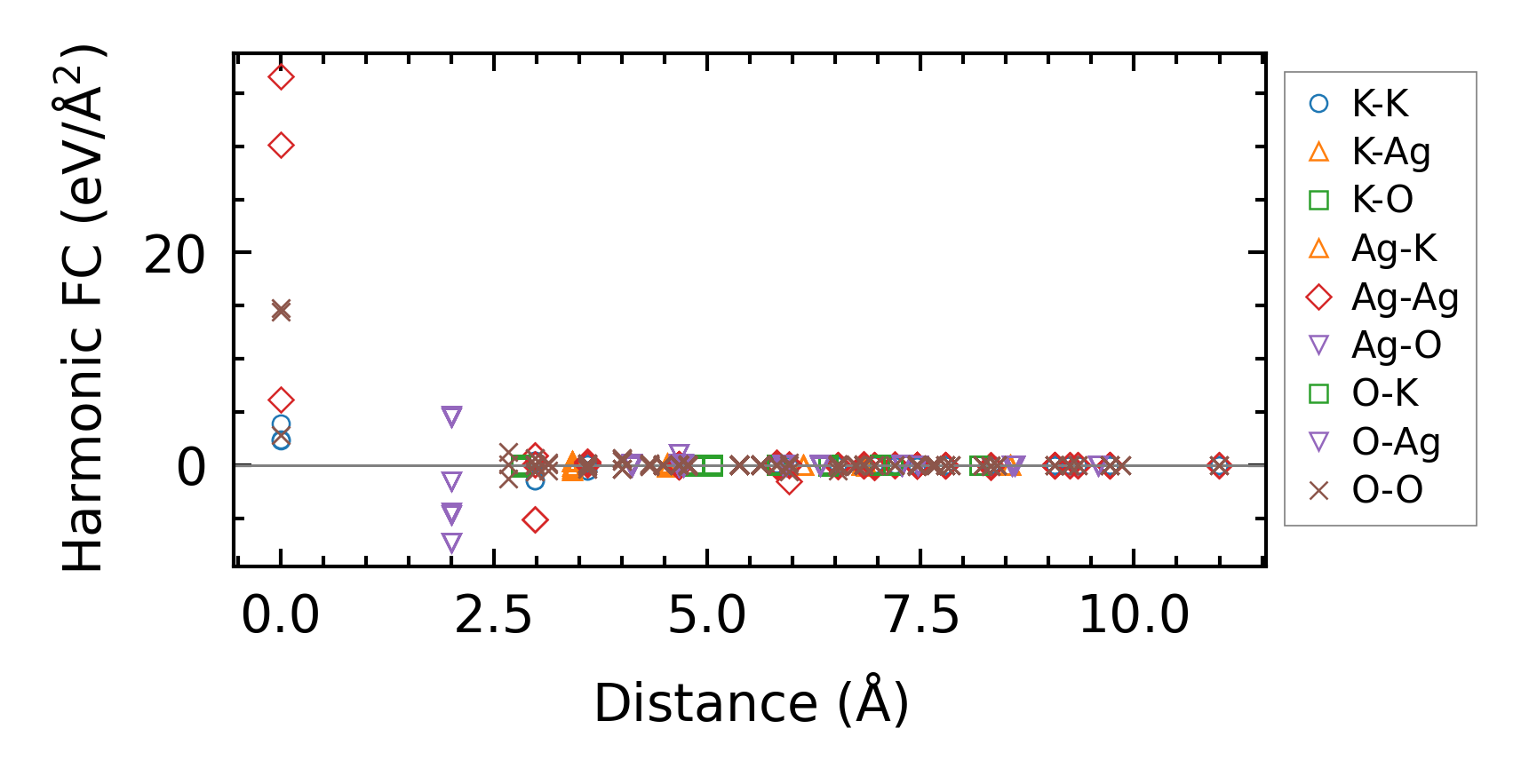

../../_images/fig_fc2802.png — (a) Force constants w.r.t atomic distance

Summary

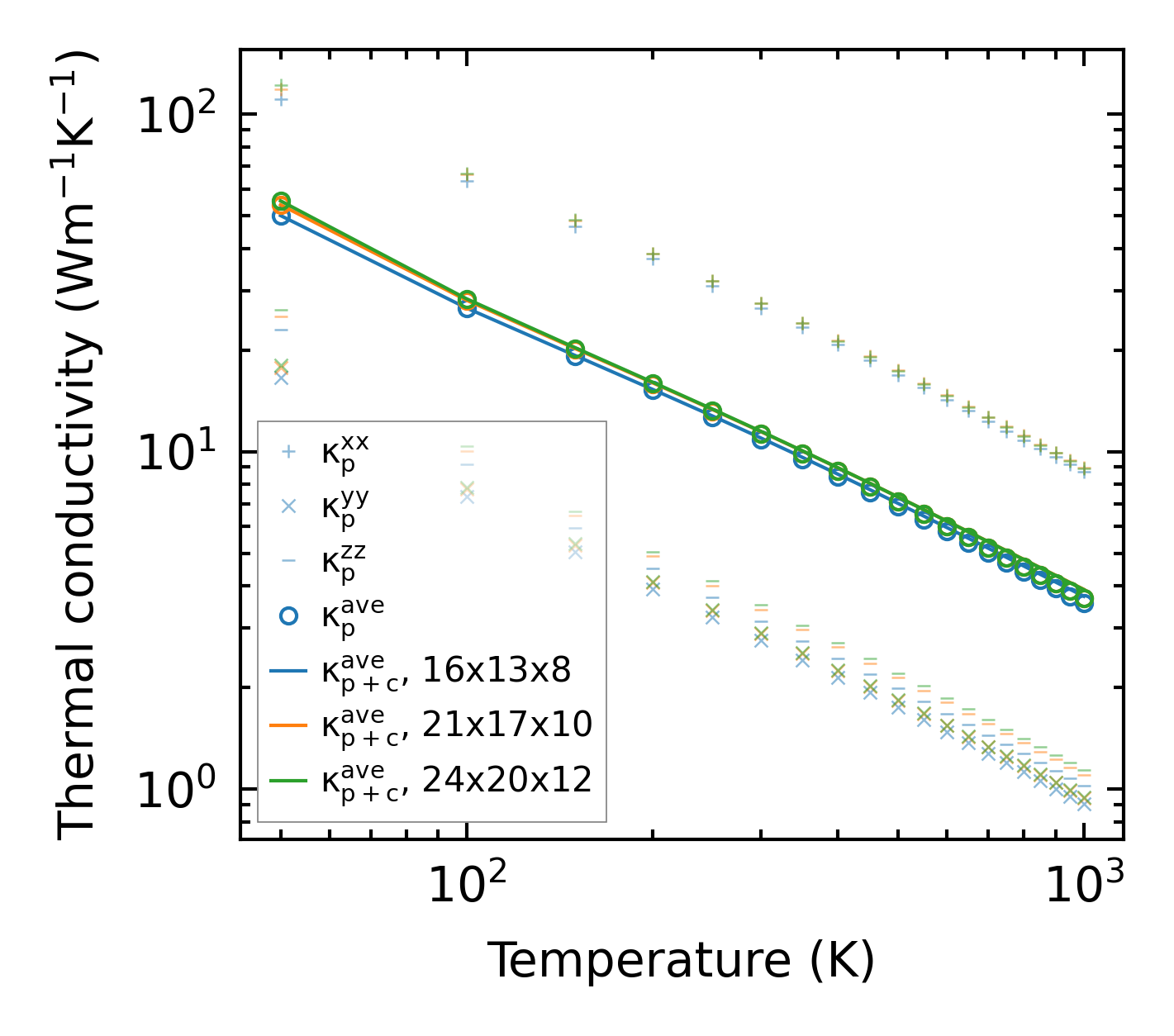

../../_images/fig_kappa1094.png — (a) Temperature-dependent lattice thermal conductivity

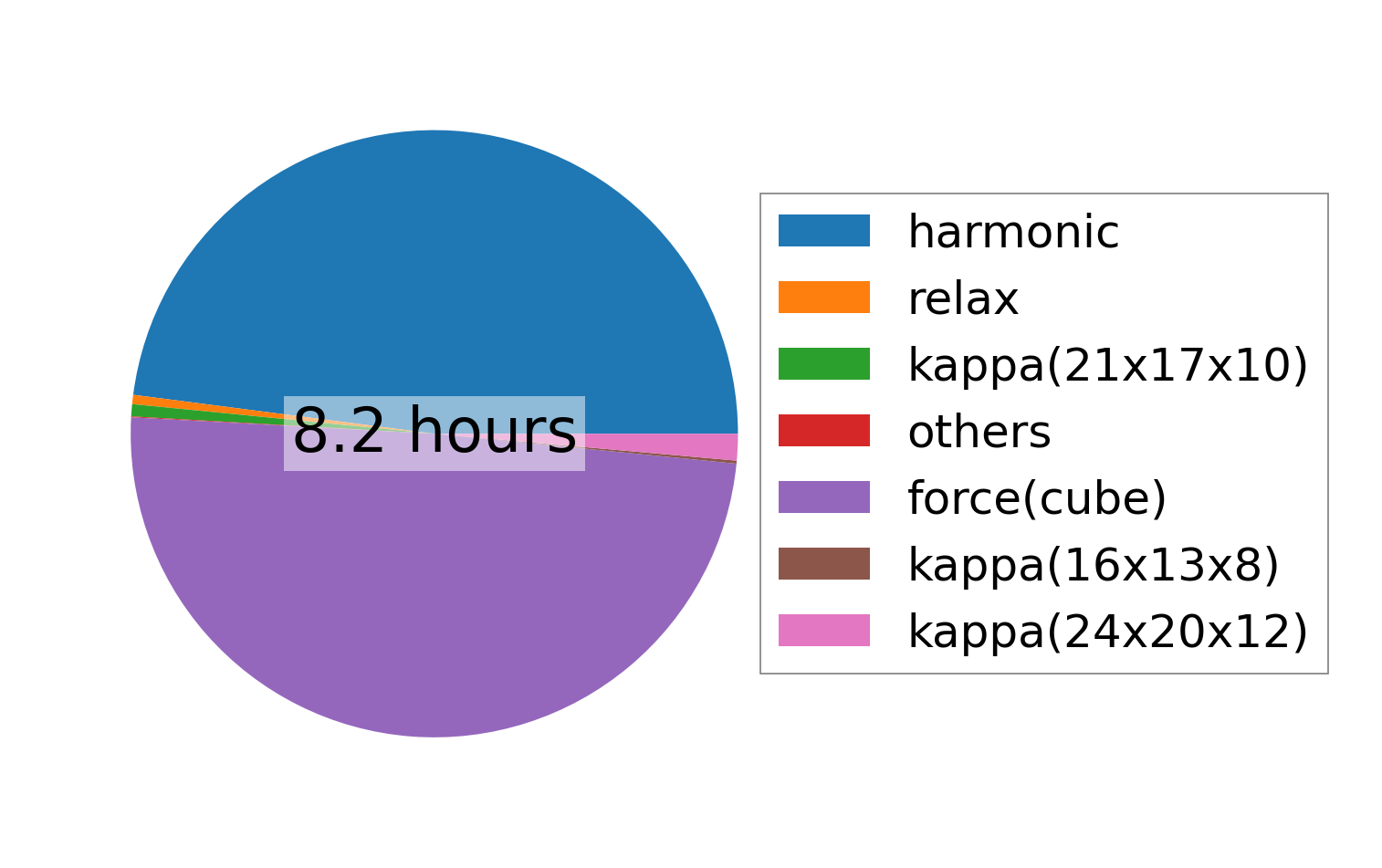

../../_images/fig_times1357.png — (b) Computation time
