mp-773491-2/RbH2SNO3/anharm

Space group: Pbca (61)
Link: Materials Project
Download: mp-773491-2.tar.gz

Equation of state

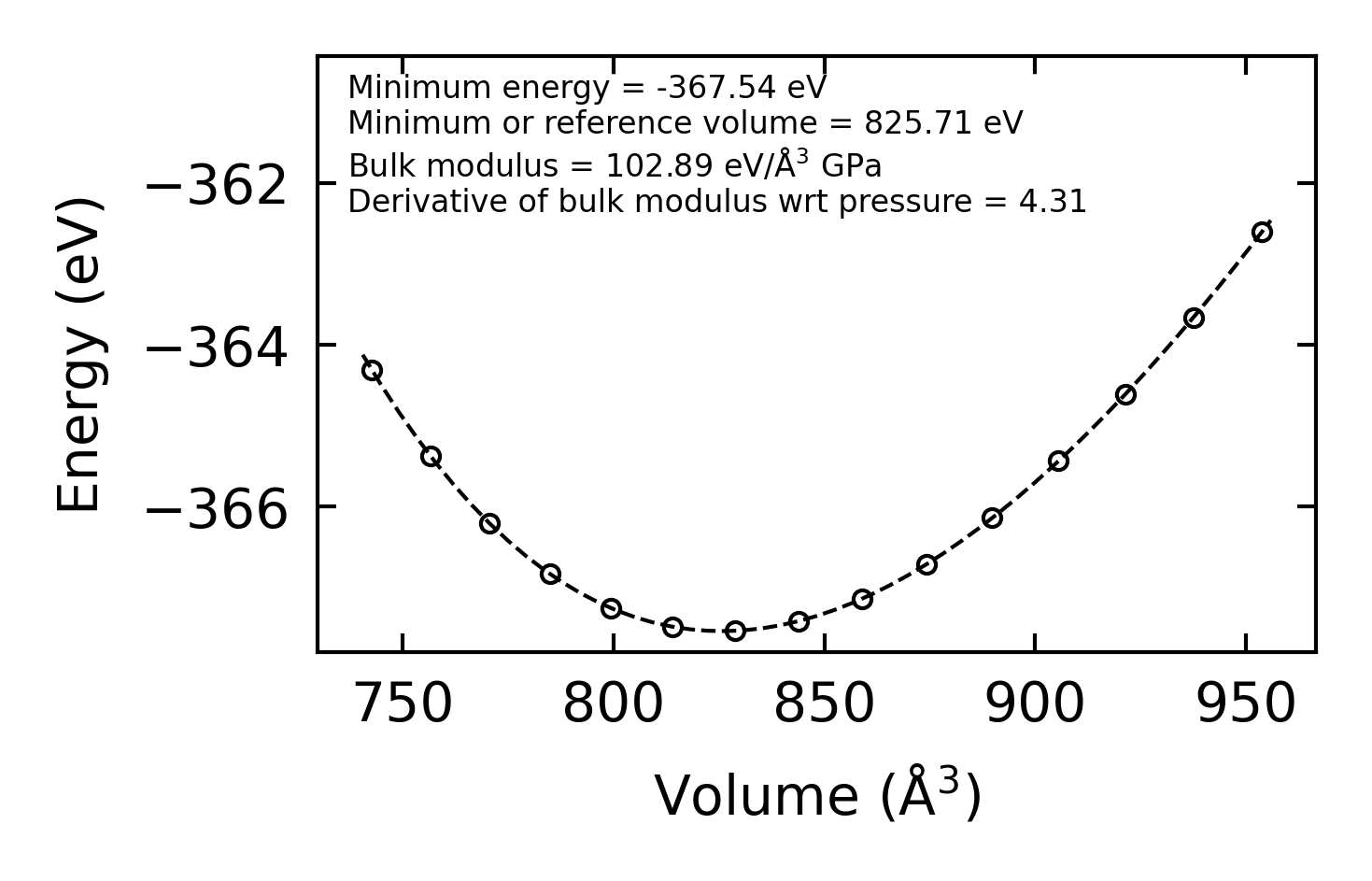

../../_images/fig_bm1149.png — (a) Equation of state

Harmonic properties

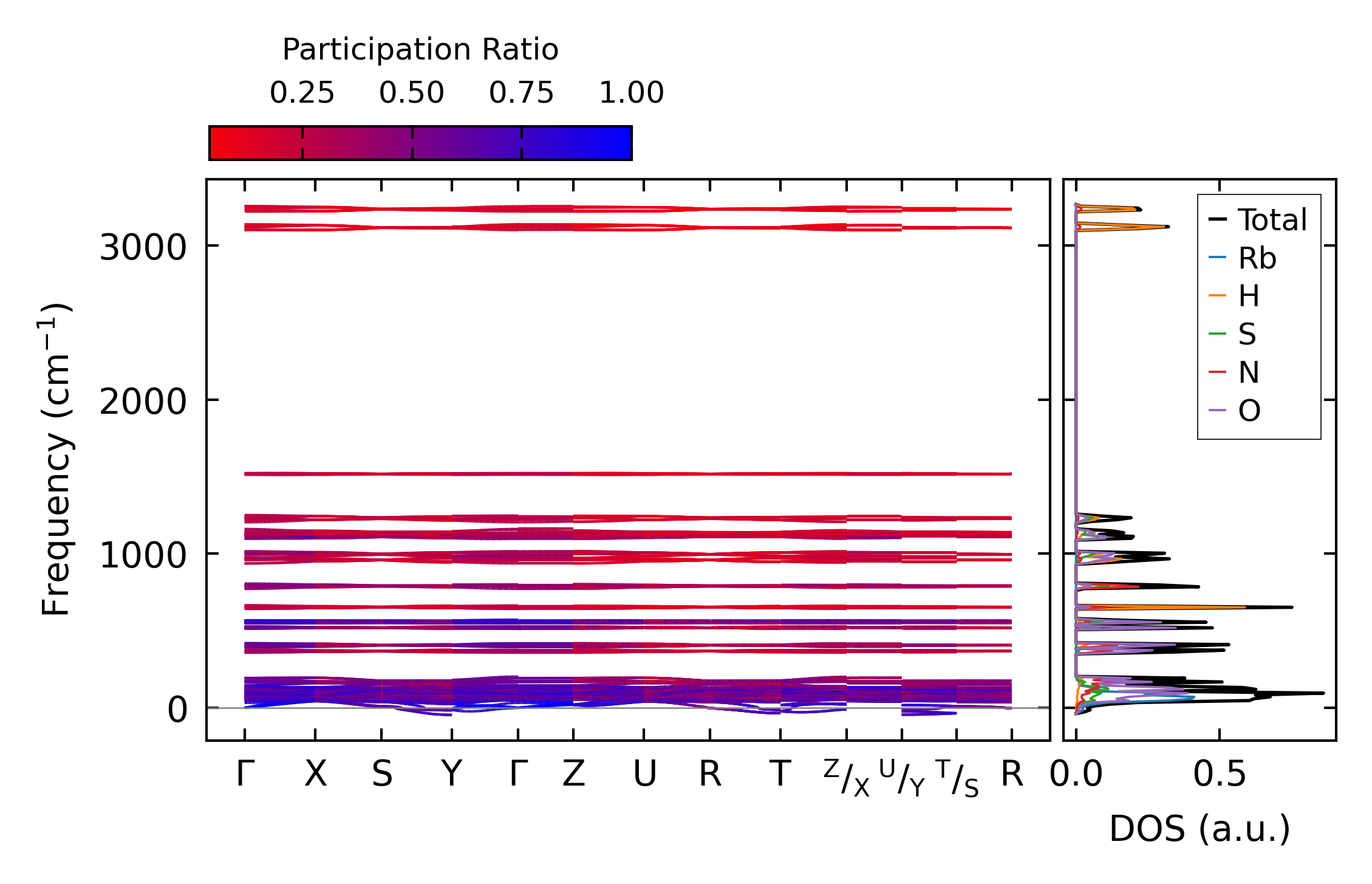

../../_images/fig_bandos_pr2362.png — (a) Phonon dispersion with participation ratio and DOS

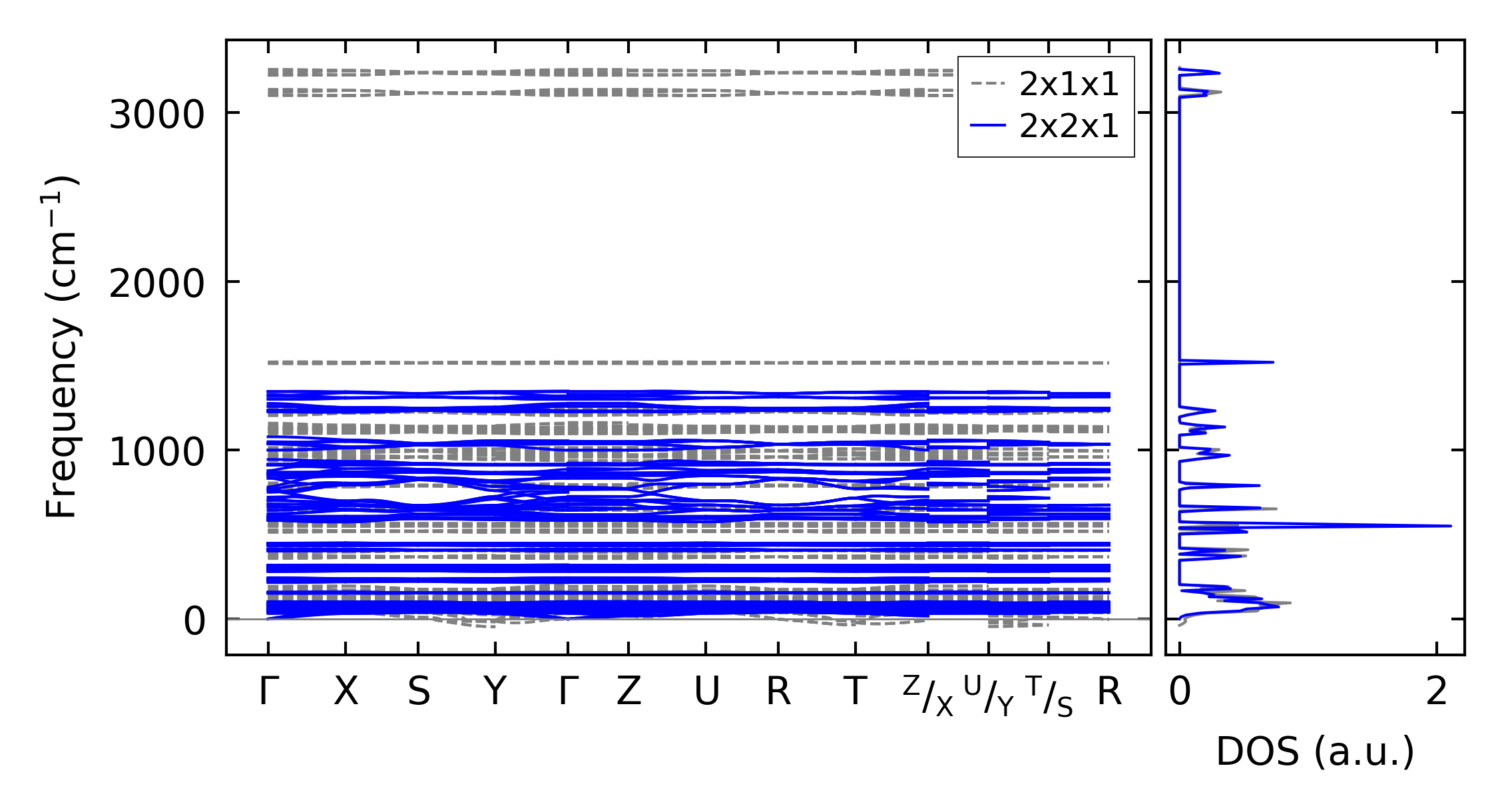

../../_images/fig_bandos2742.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo2362.png — (c) Thermodynamic properties

Grüneisen parameters

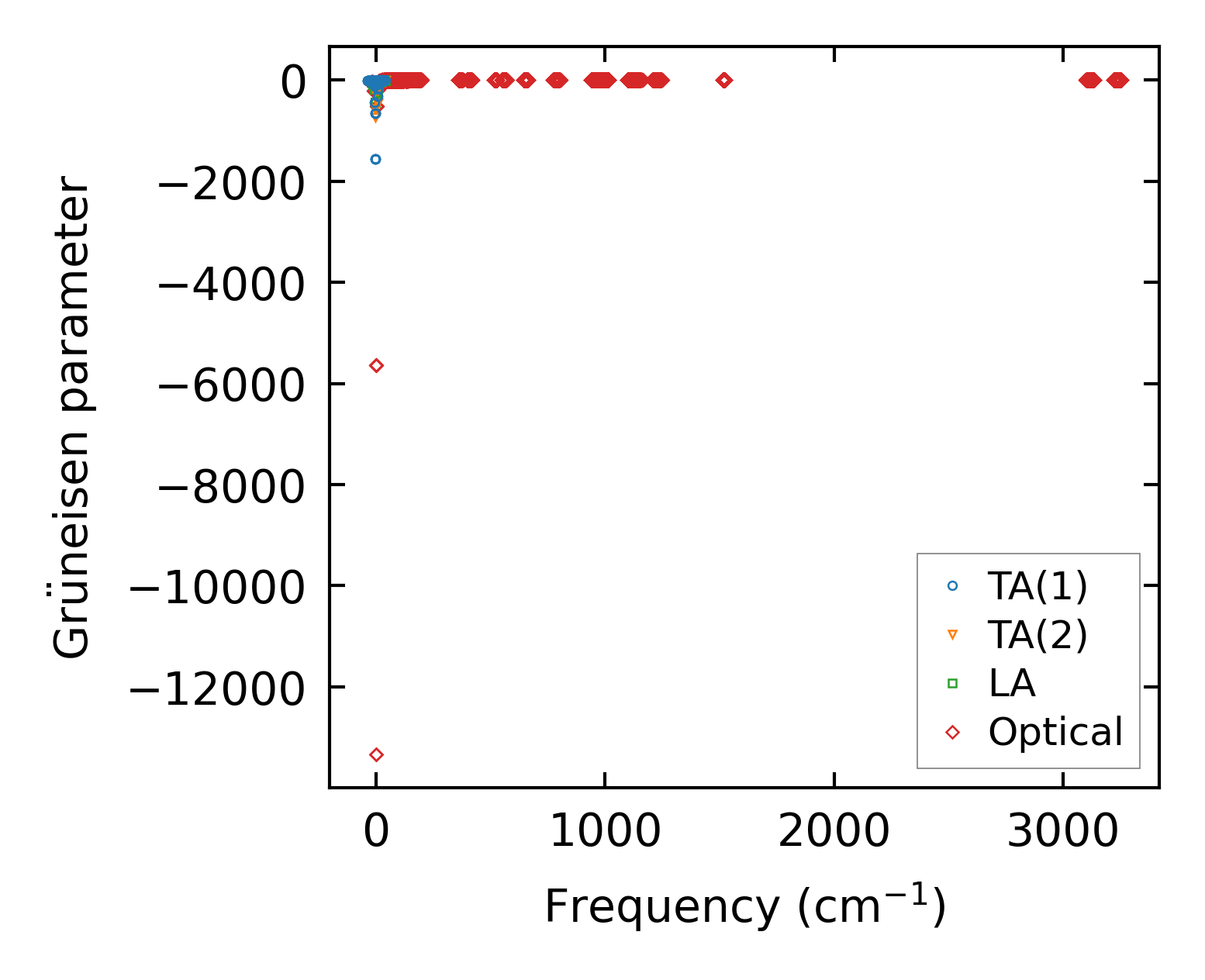

../../_images/fig_gru_all1273.png — (a) Grüneisen parameters

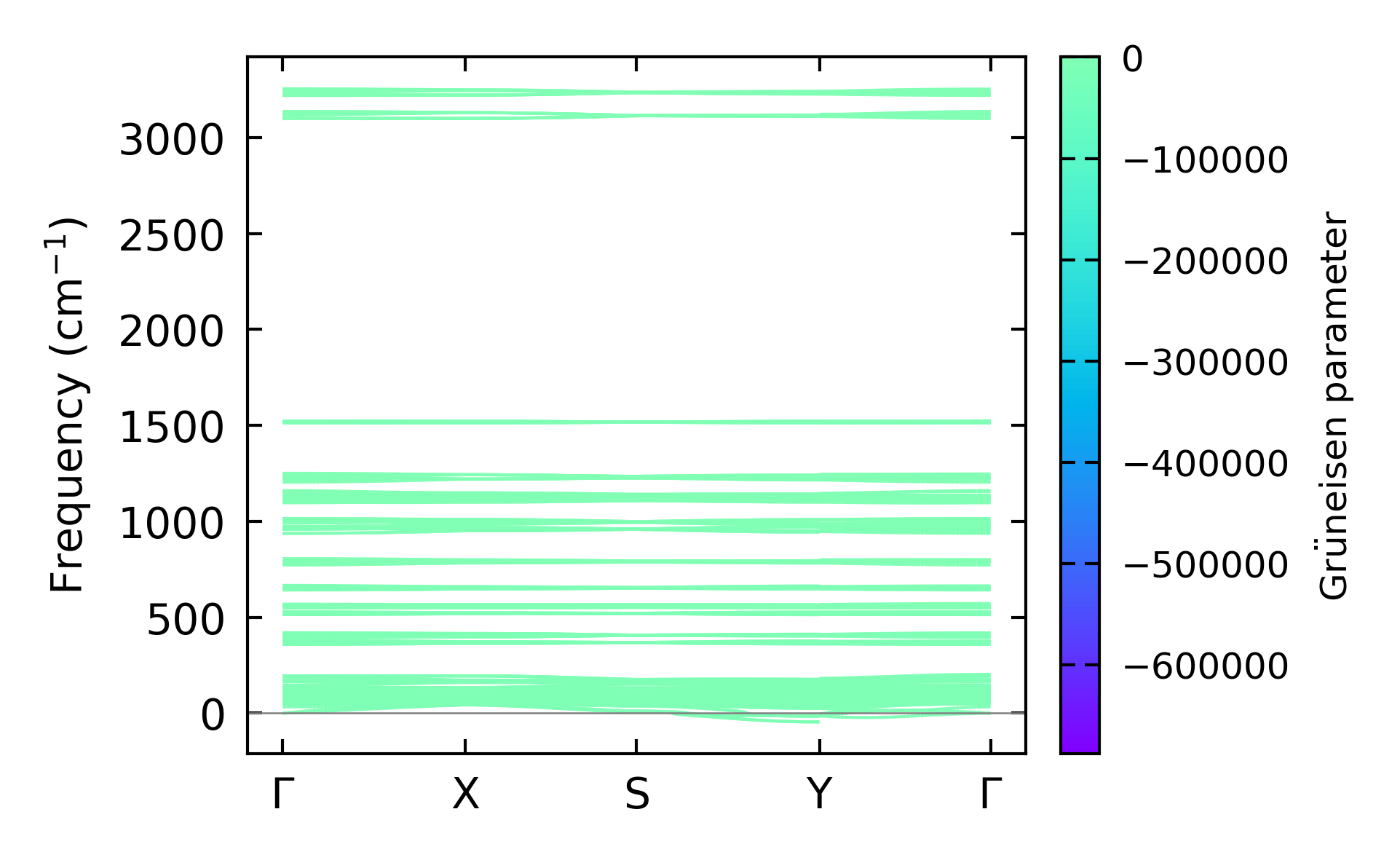

../../_images/fig_gruneisen1273.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x2x1 — q-mesh: 9x9x4, supercell: 2x2x1

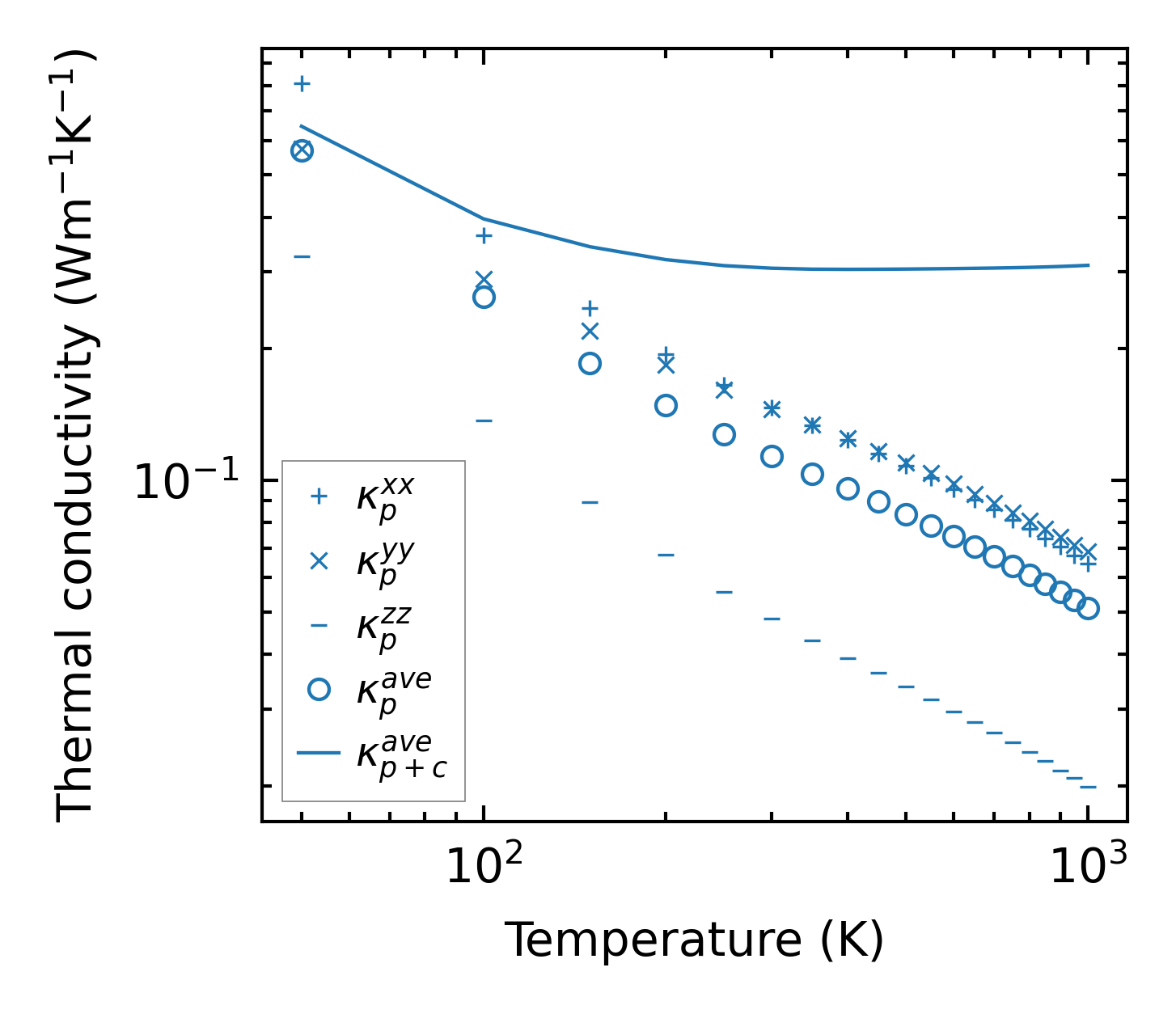

../../_images/fig_kappa2449.png — (a) Temperature-dependent lattice thermal conductivity

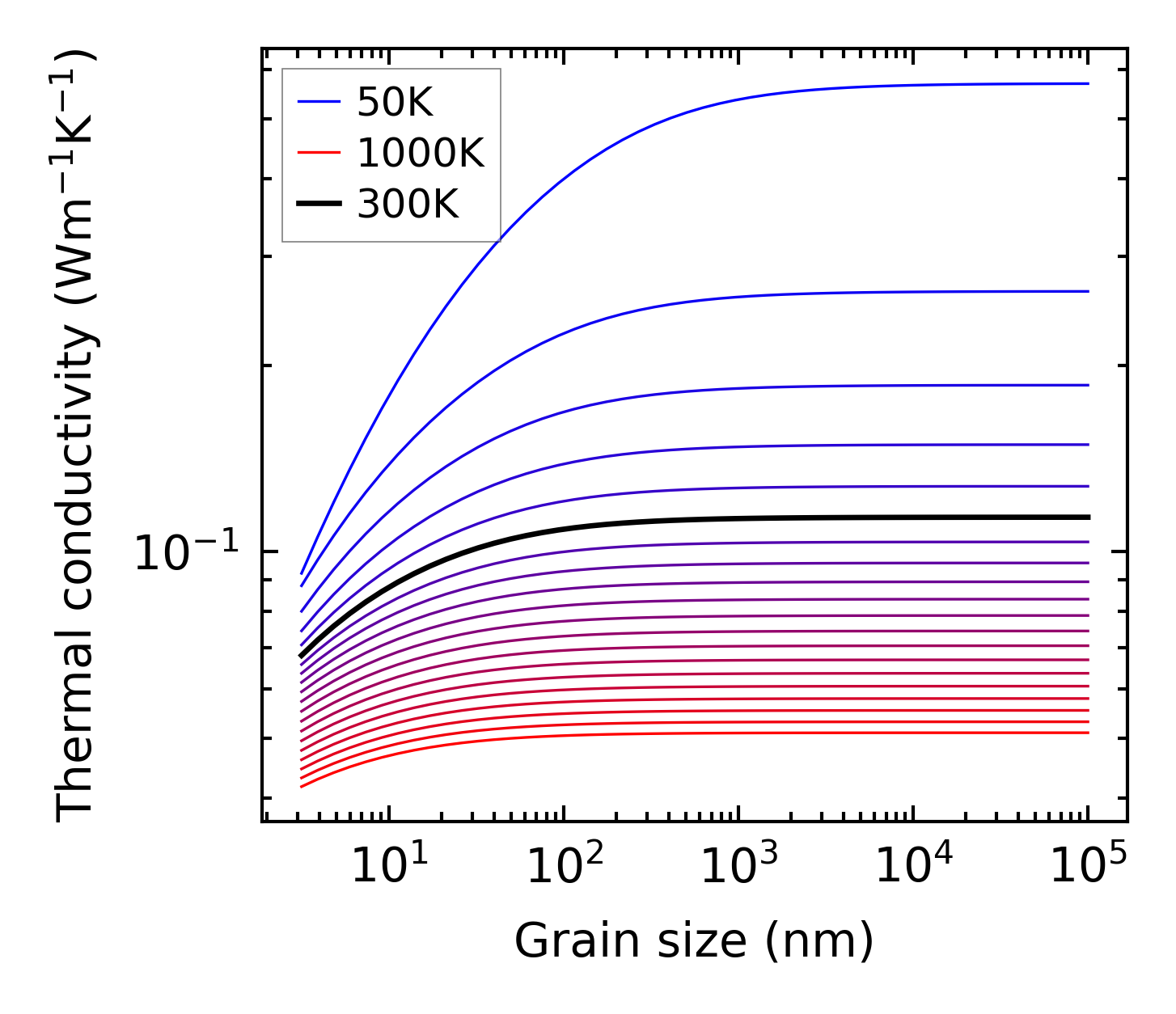

../../_images/fig_kappa_vs_grain_size1289.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

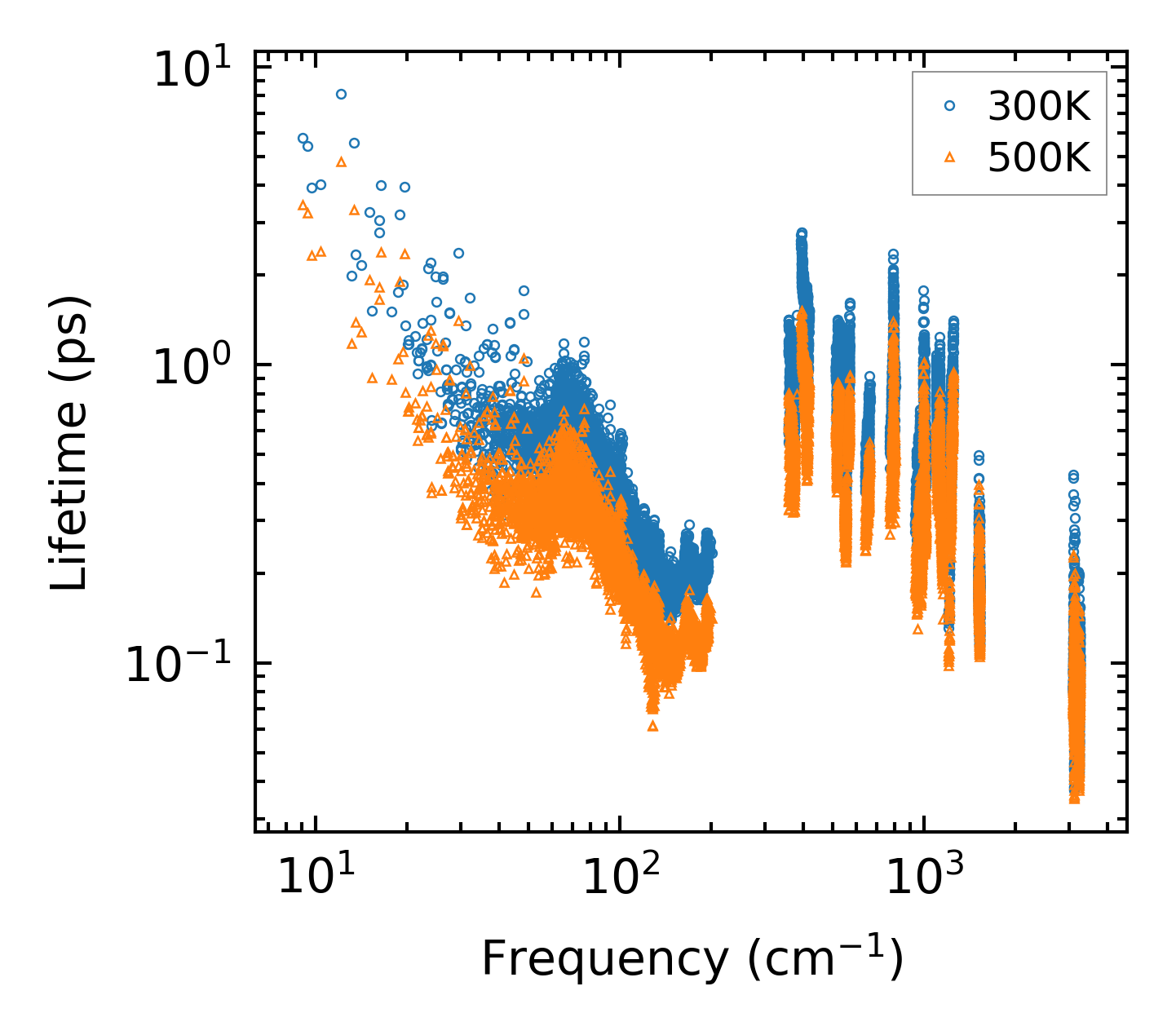

../../_images/fig_lifetime1263.png — (a) Phonon lifetime due to phonon-phonon scattering

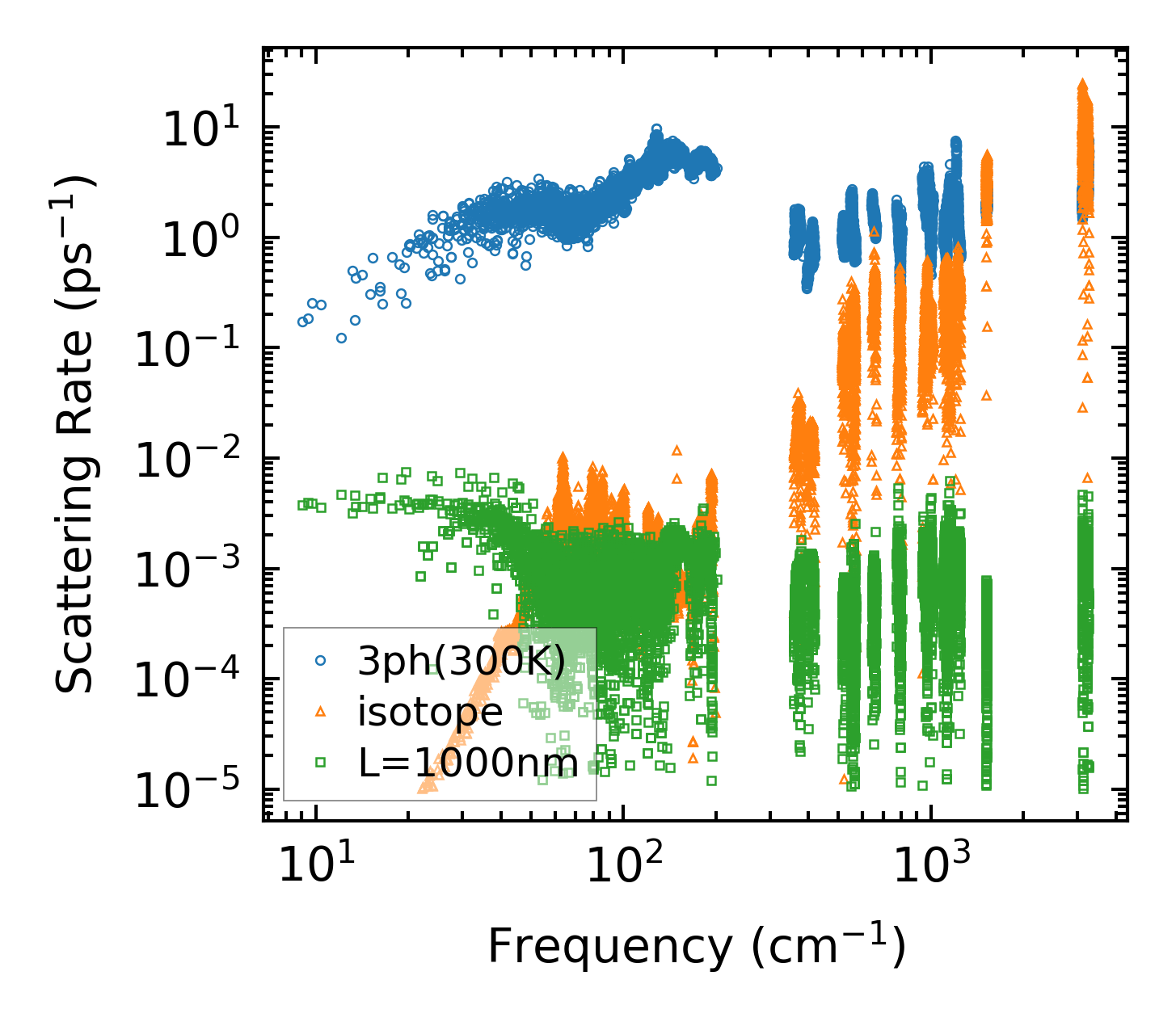

../../_images/fig_scat_rates1262.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

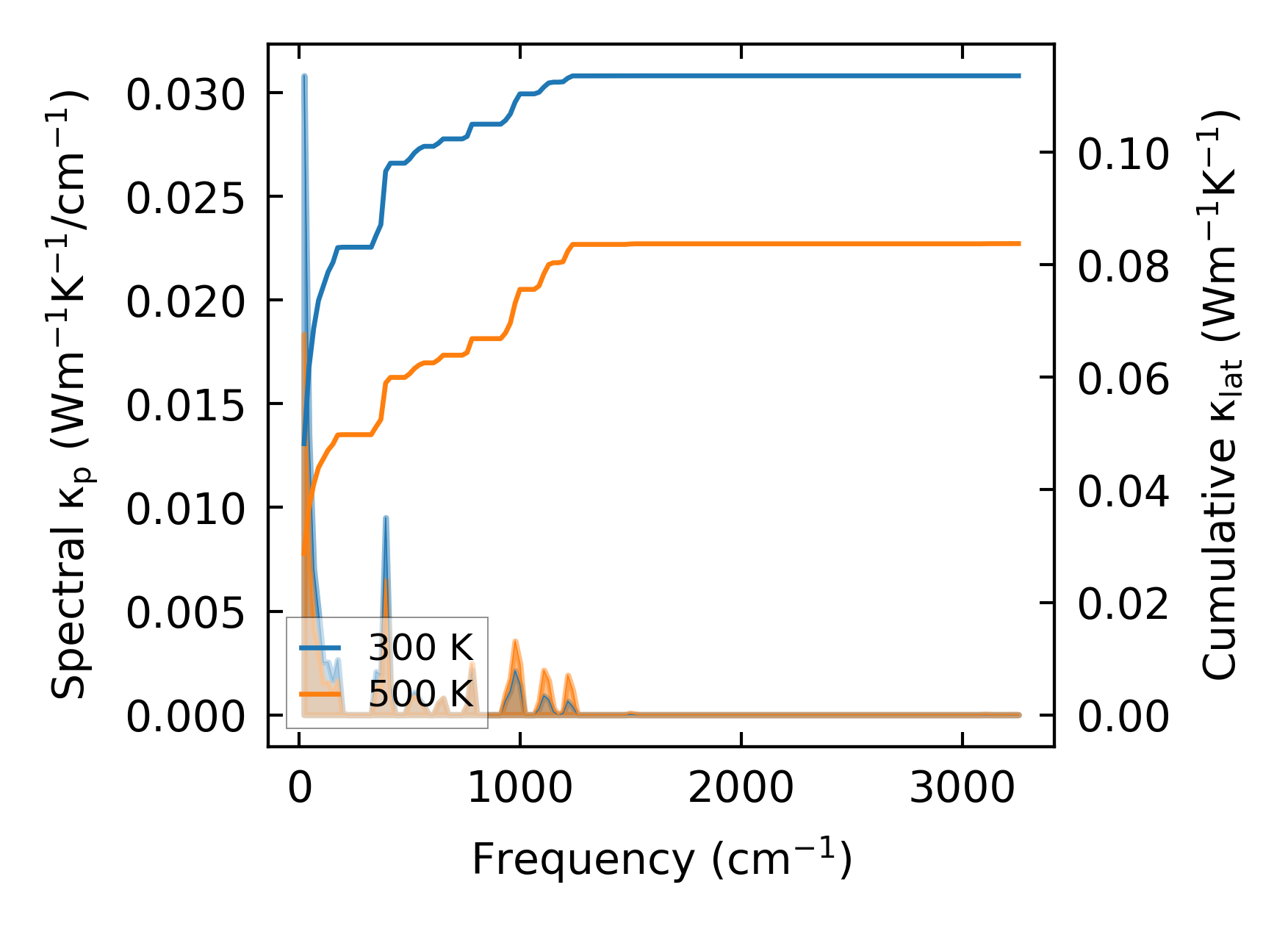

../../_images/fig_cumu_frequency1263.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

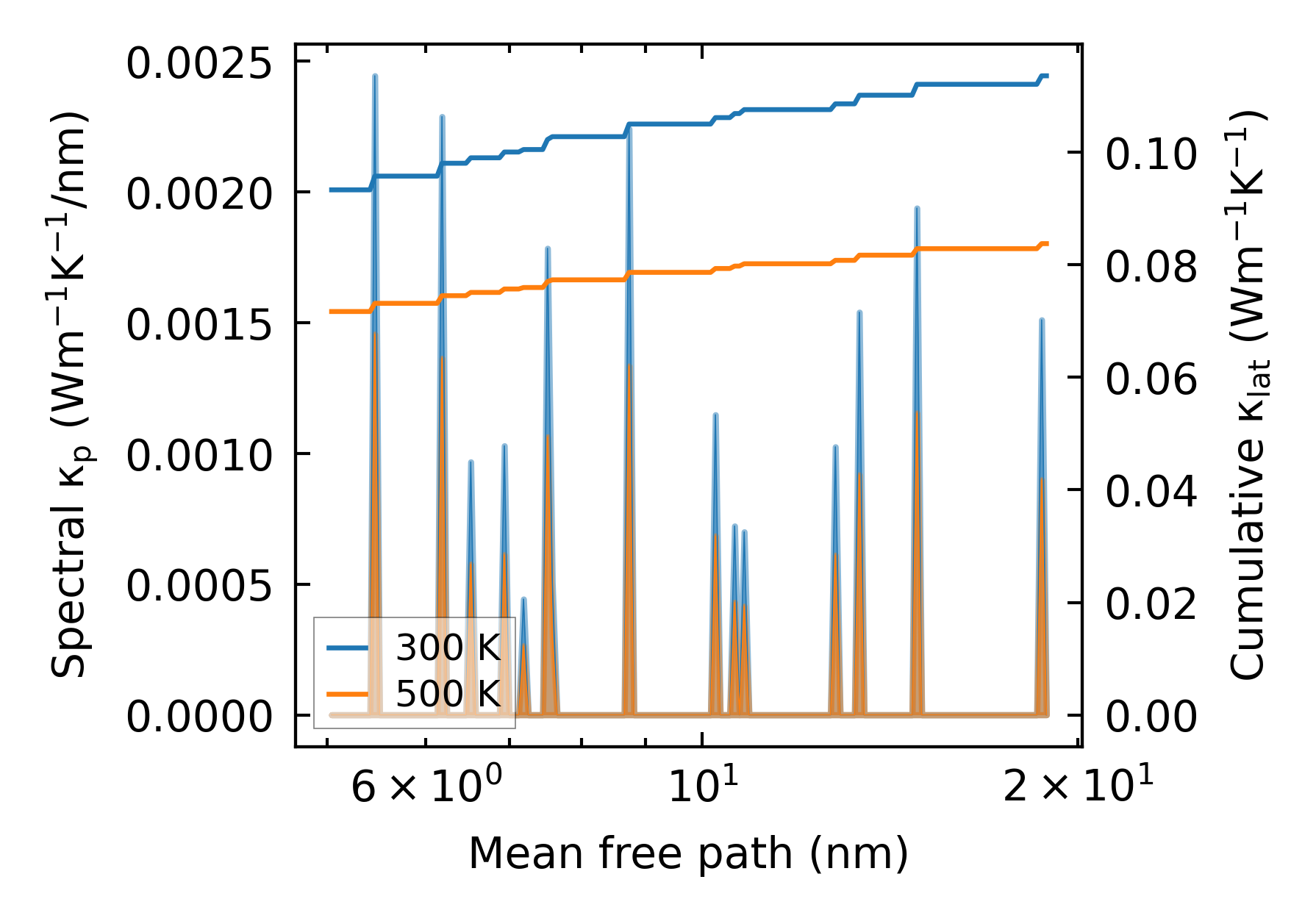

../../_images/fig_cumu_mfp1263.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

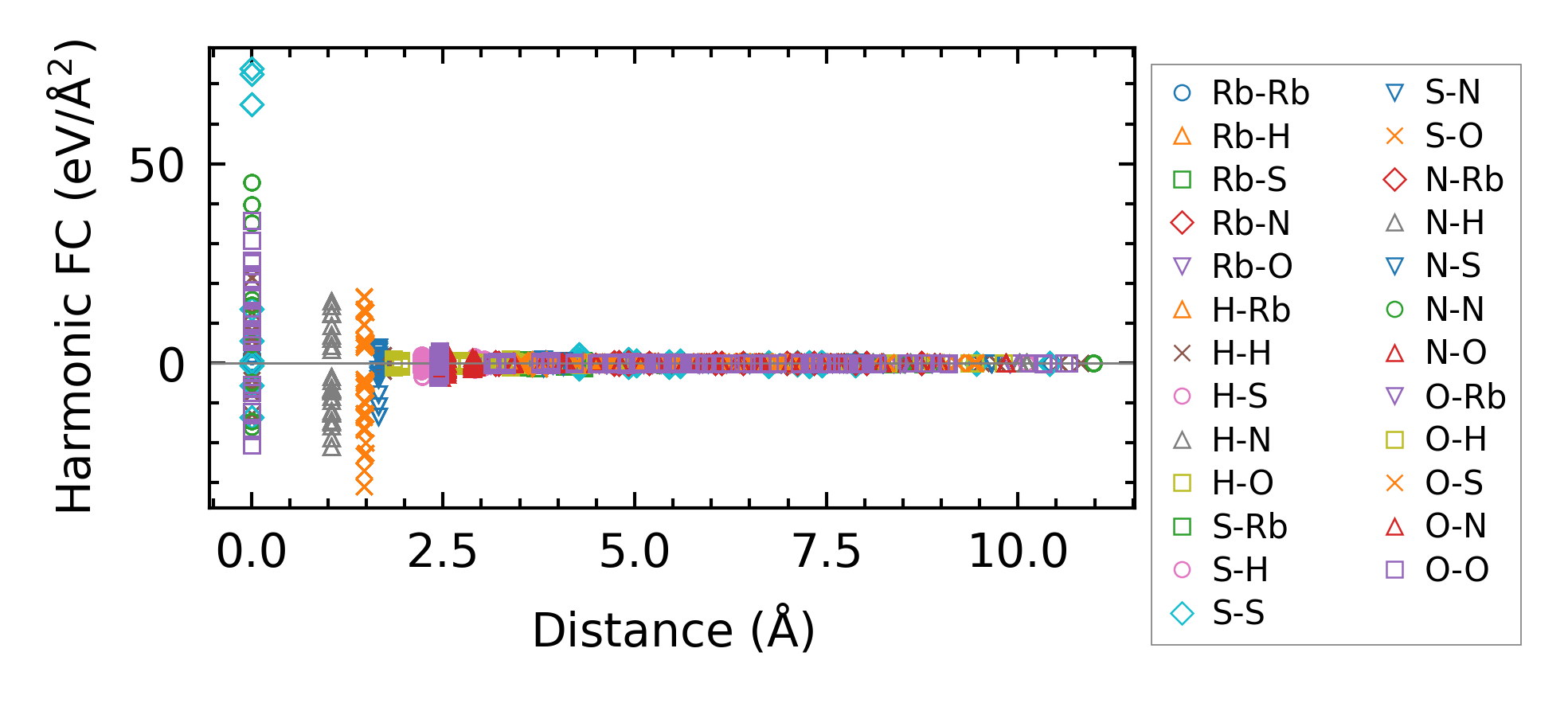

../../_images/fig_fc22183.png — (a) Force constants w.r.t atomic distance

Summary

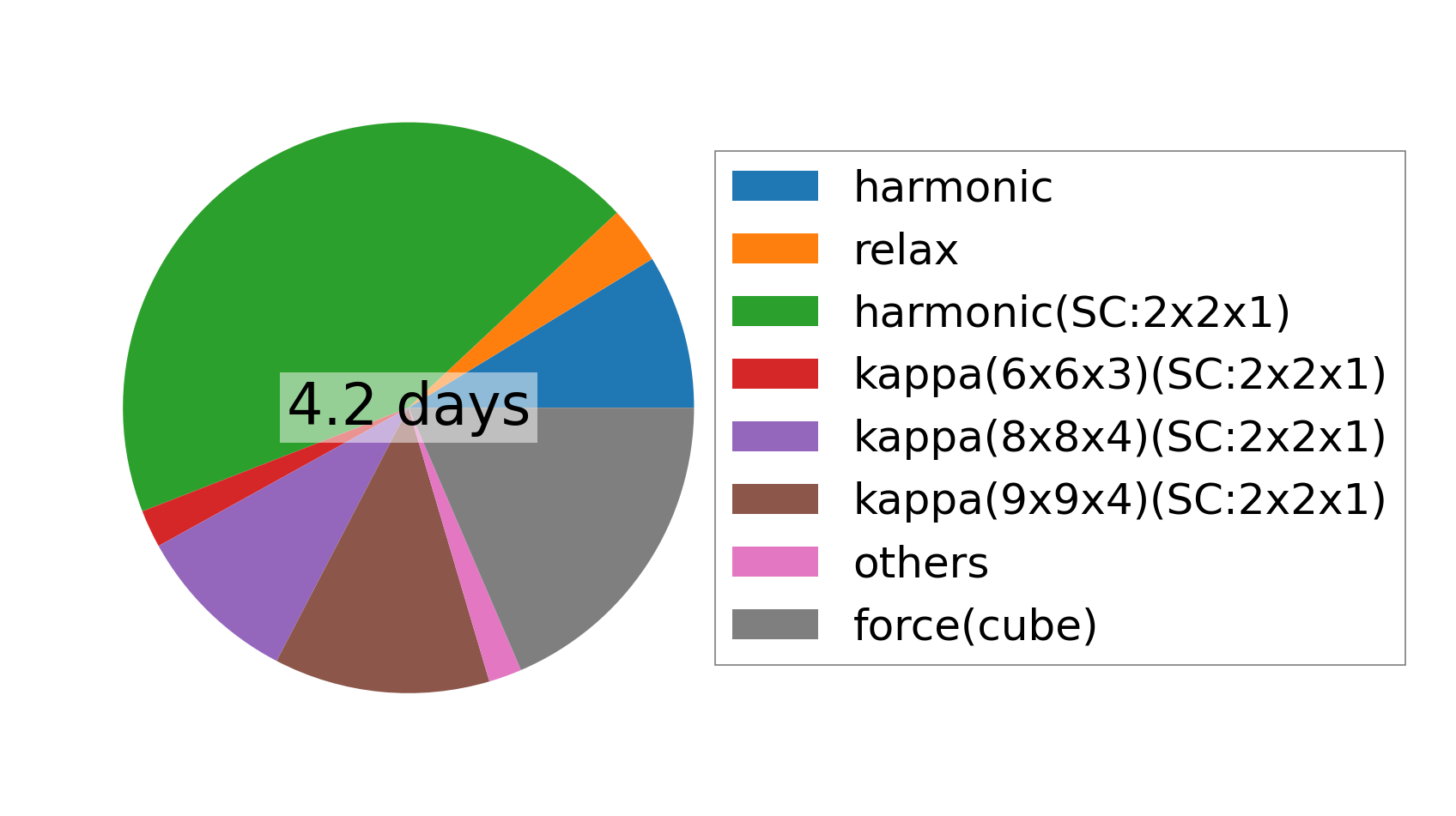

../../_images/fig_times3877.png — (a) Computation time
