mp-759876/Na5SbO5/anharm

Space group: C2 (5)
Link: Materials Project
Download: mp-759876.tar.gz

Harmonic properties

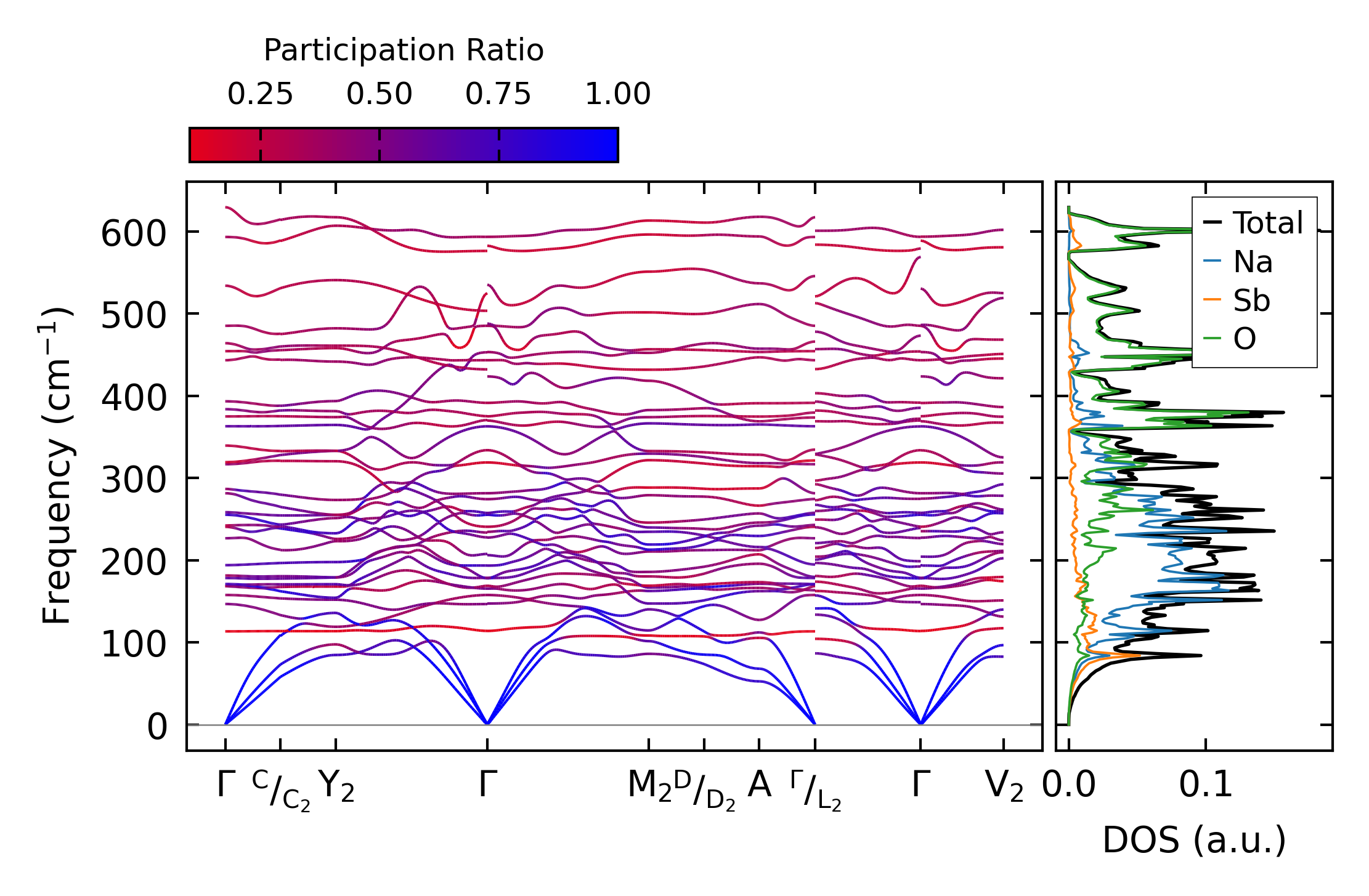

../../_images/fig_bandos_pr3101.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo3101.png — (b) Thermodynamic properties

Grüneisen parameters

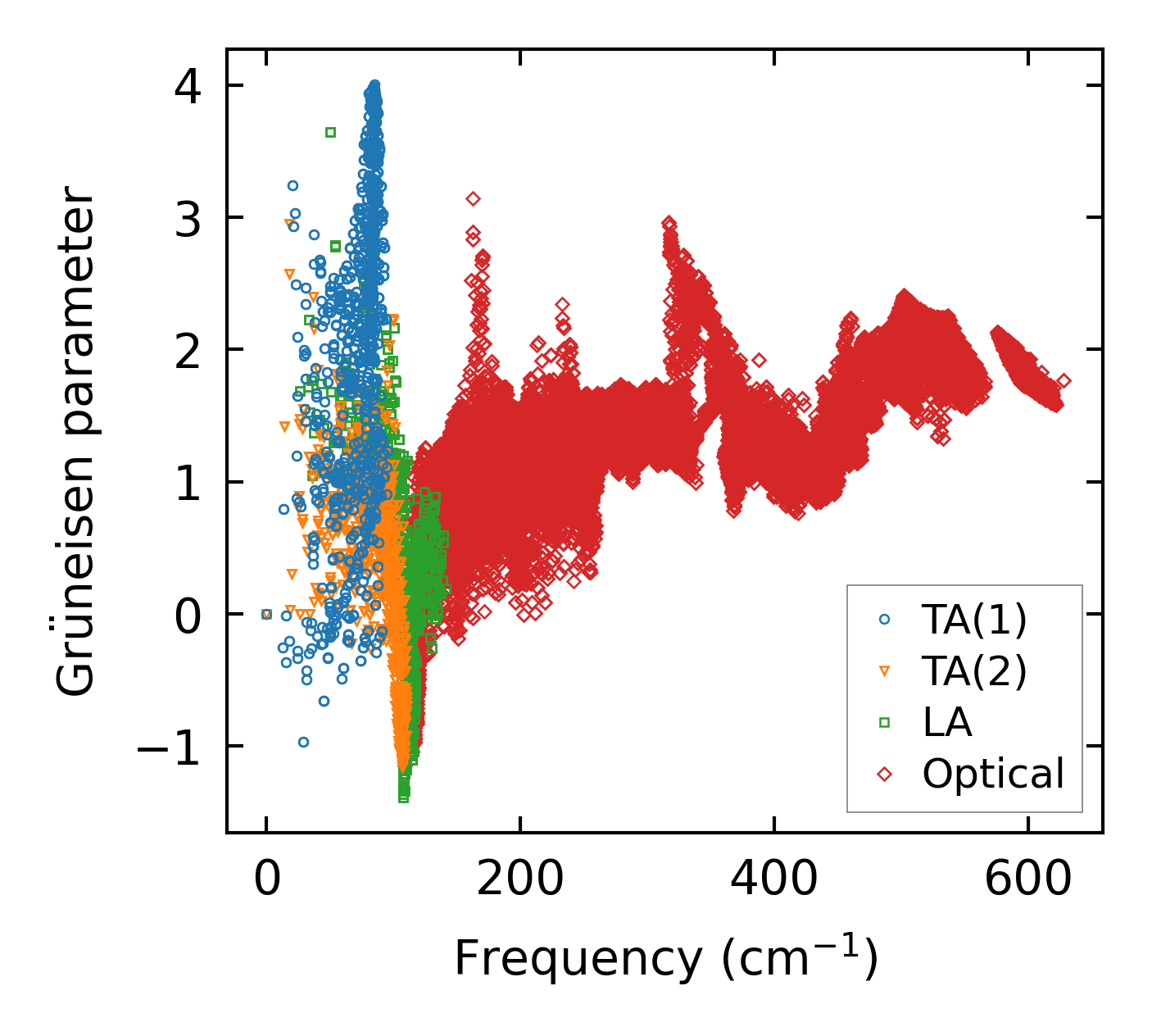

../../_images/fig_gru_all1461.png — (a) Grüneisen parameters

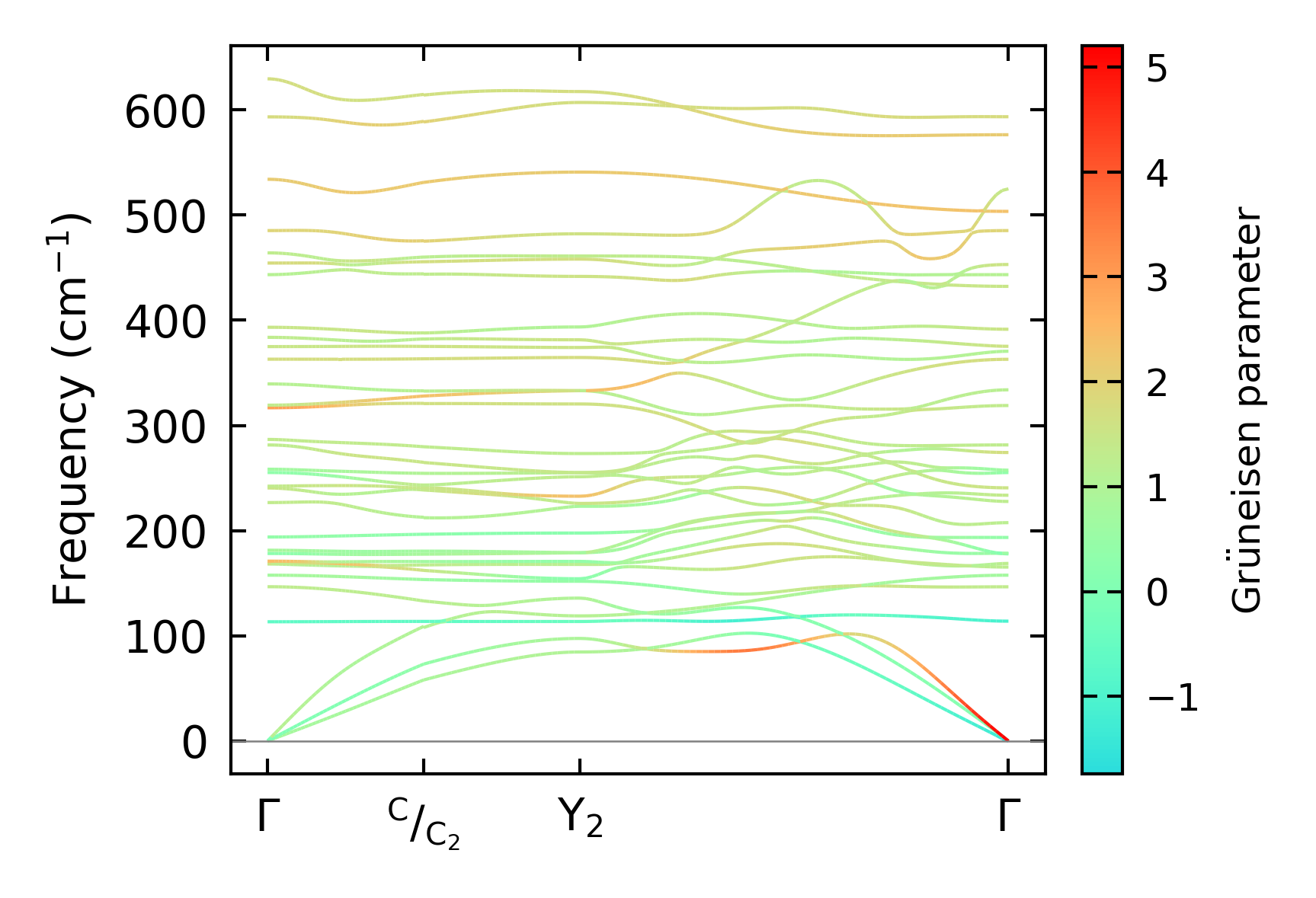

../../_images/fig_gruneisen1461.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x14x12, supercell: 1x3x2

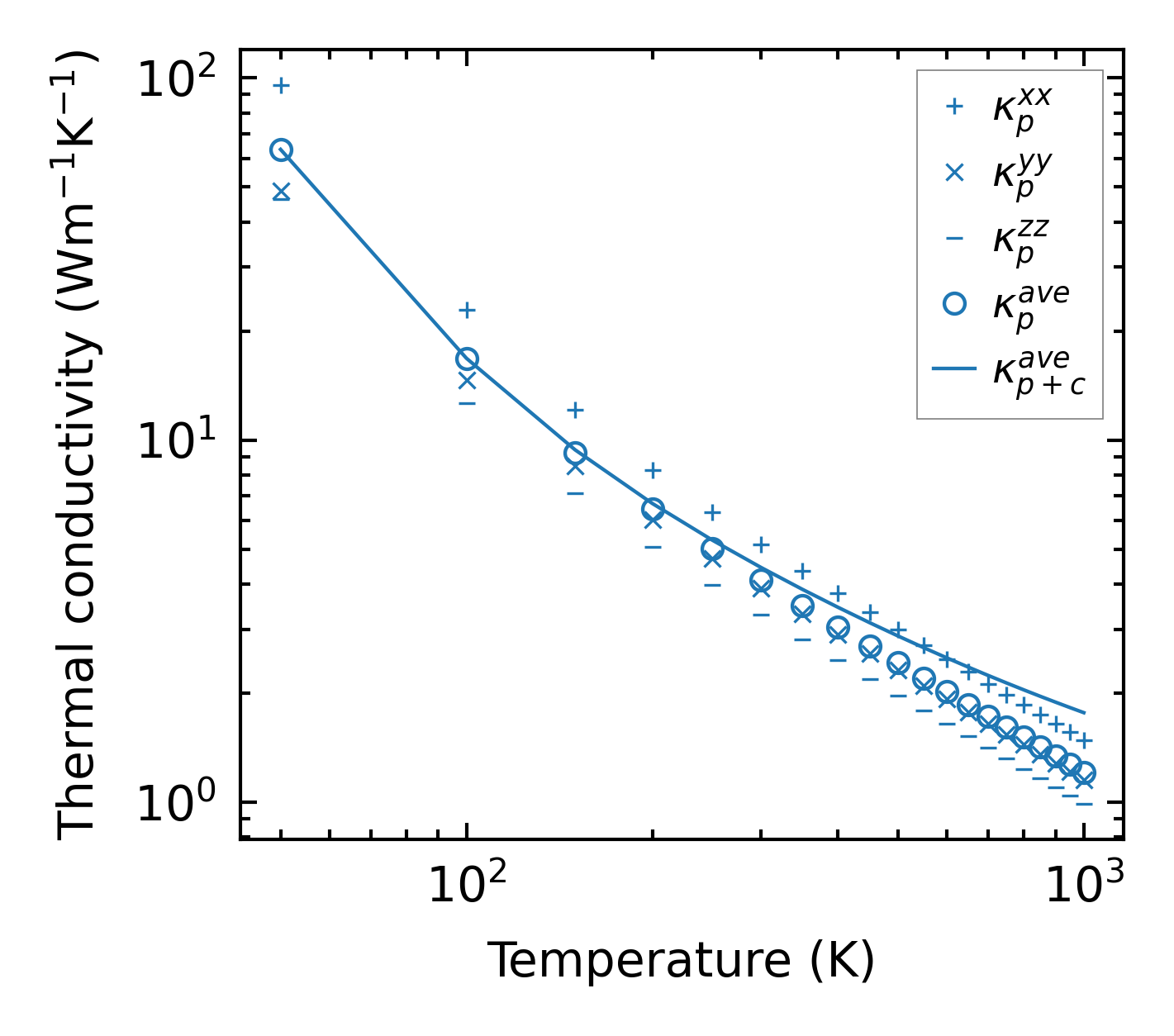

../../_images/fig_kappa2816.png — (a) Temperature-dependent lattice thermal conductivity

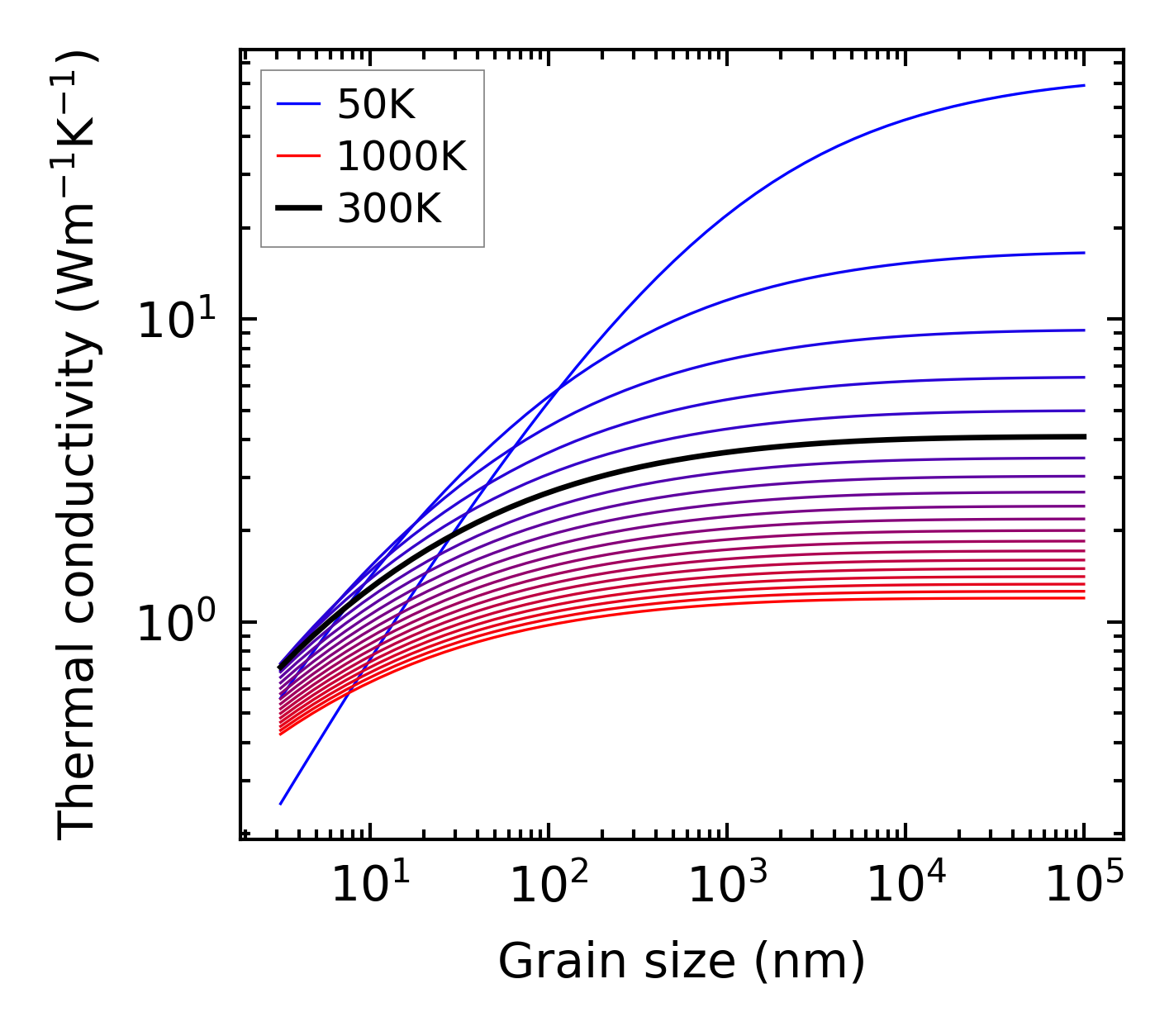

../../_images/fig_kappa_vs_grain_size1477.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

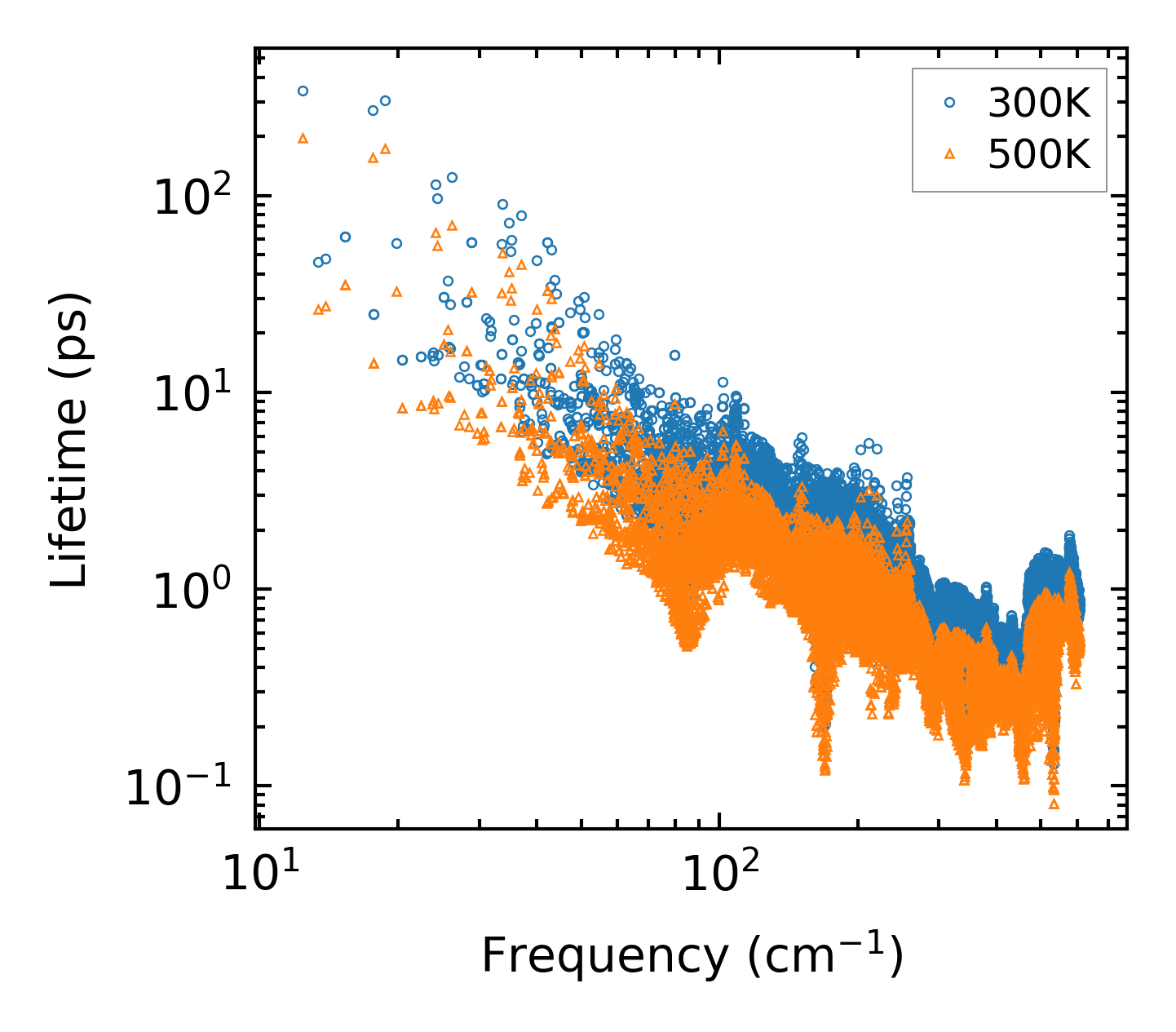

../../_images/fig_lifetime1451.png — (a) Phonon lifetime due to phonon-phonon scattering

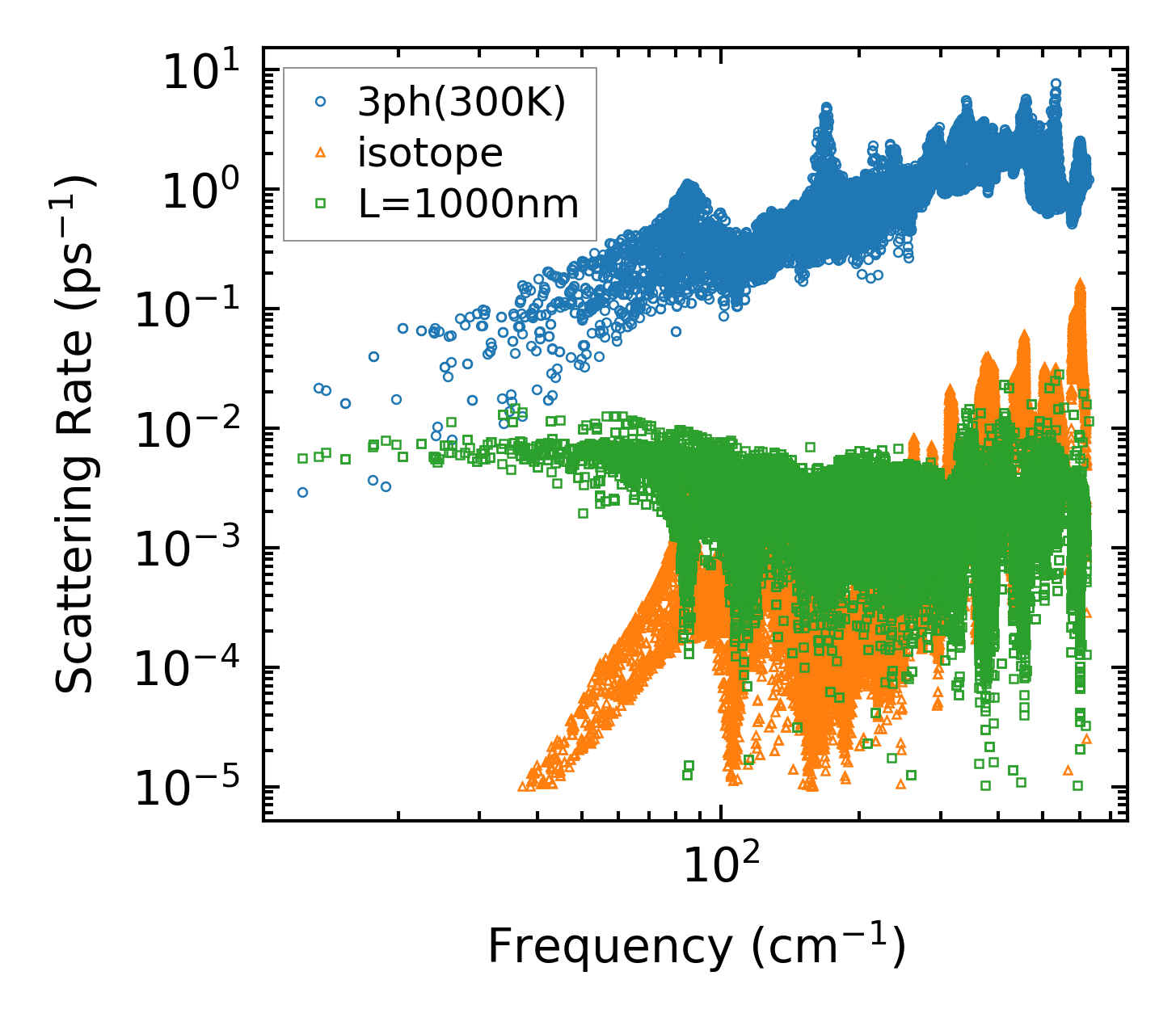

../../_images/fig_scat_rates1450.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

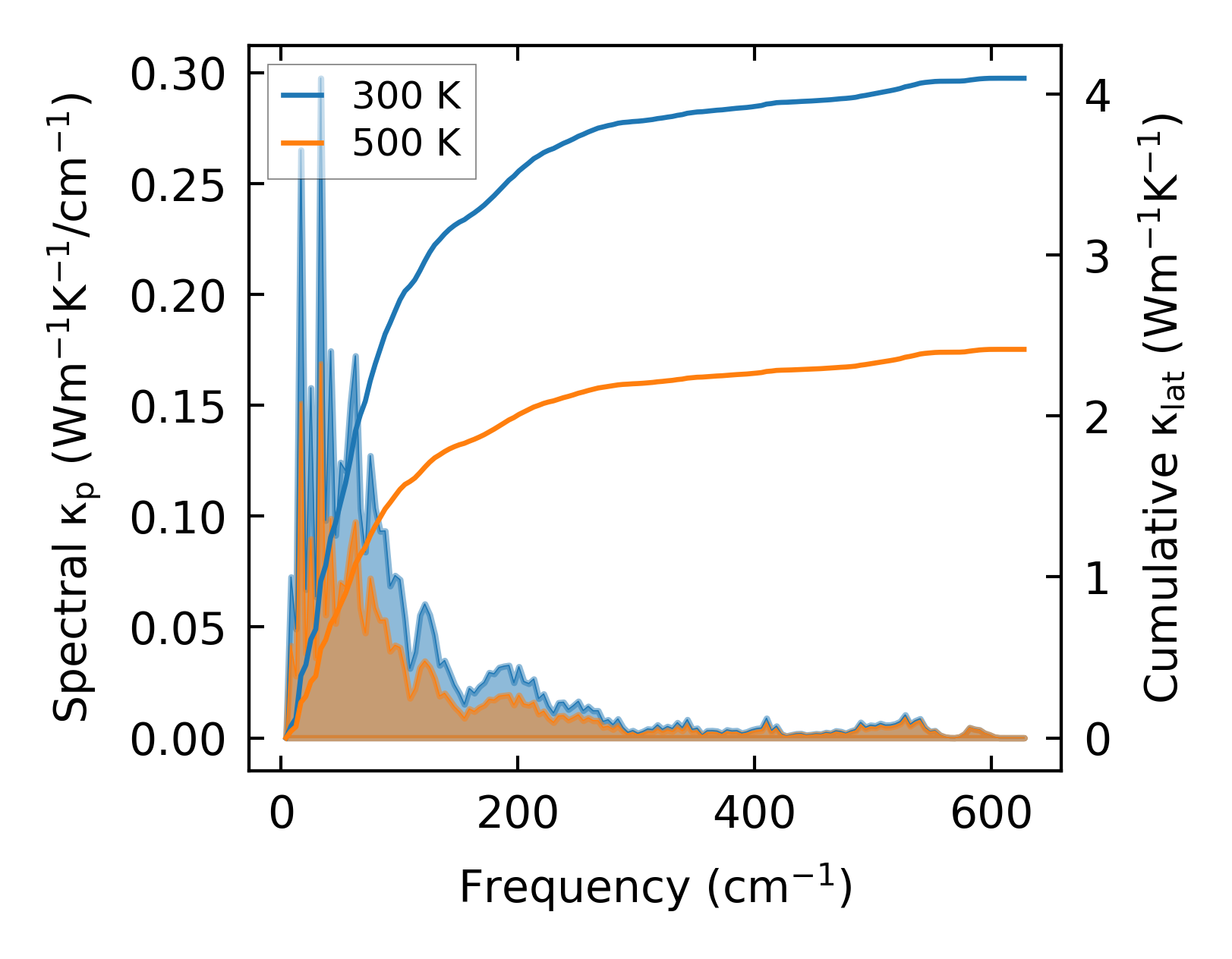

../../_images/fig_cumu_frequency1451.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

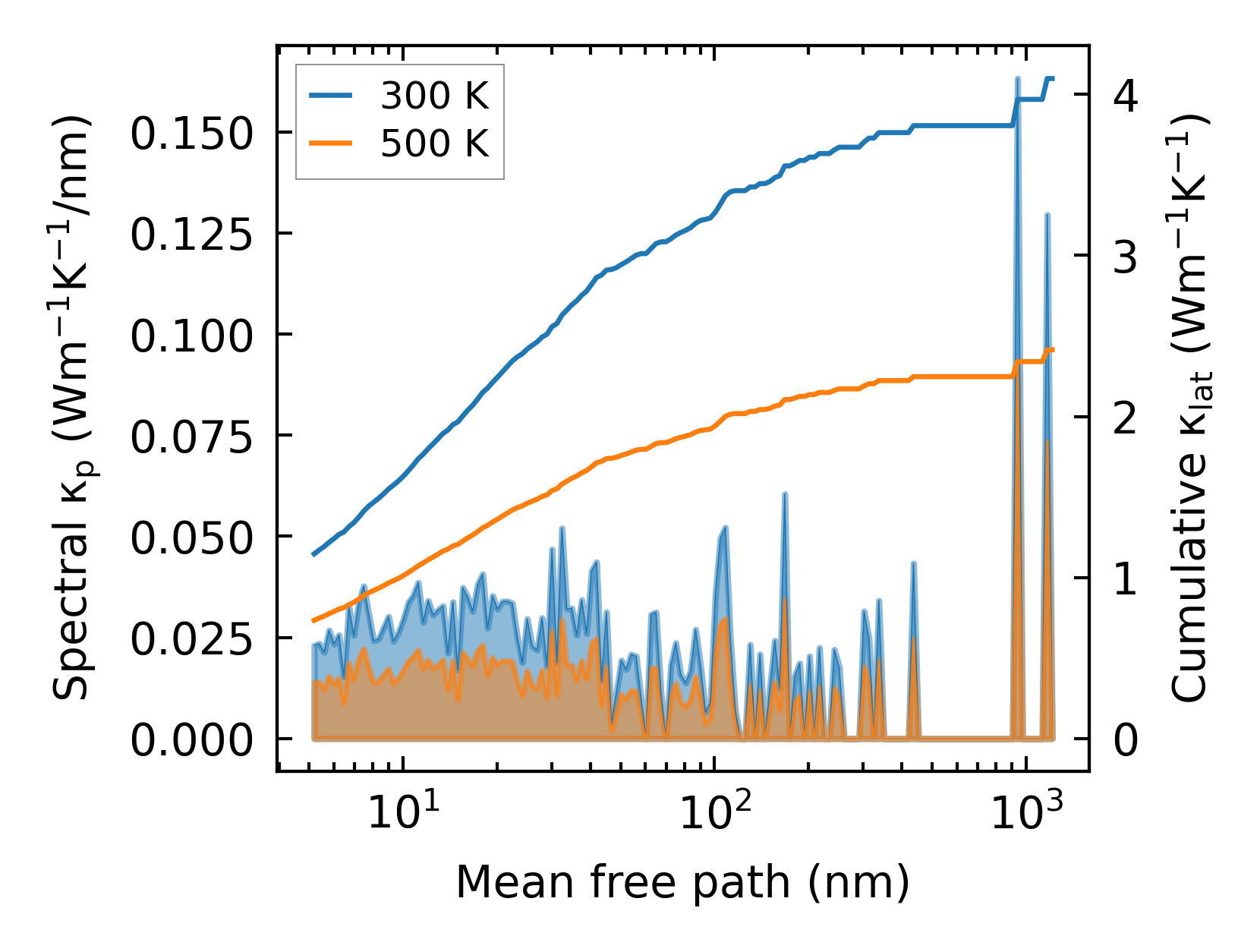

../../_images/fig_cumu_mfp1451.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

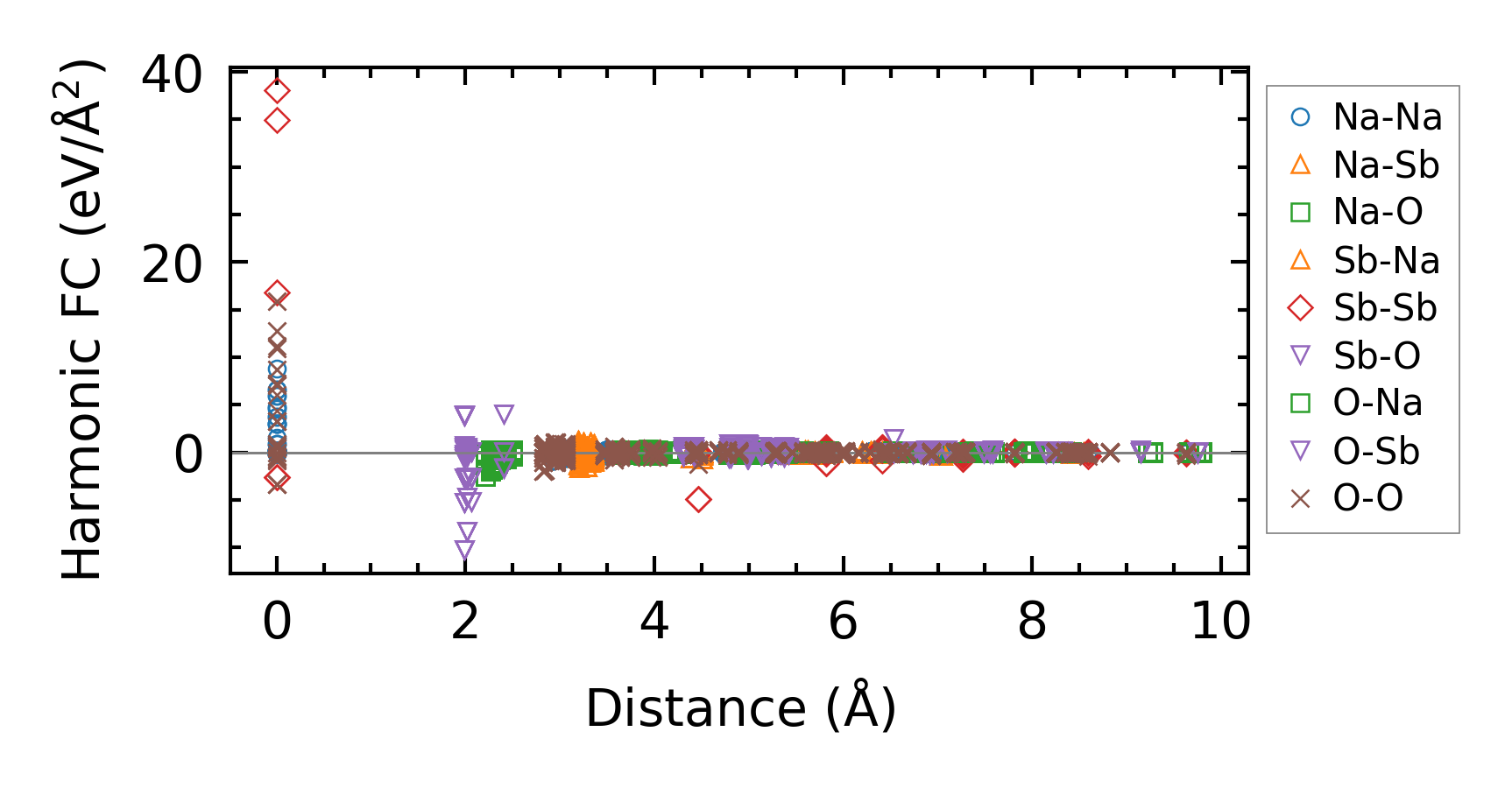

../../_images/fig_fc22921.png — (a) Force constants w.r.t atomic distance

Summary

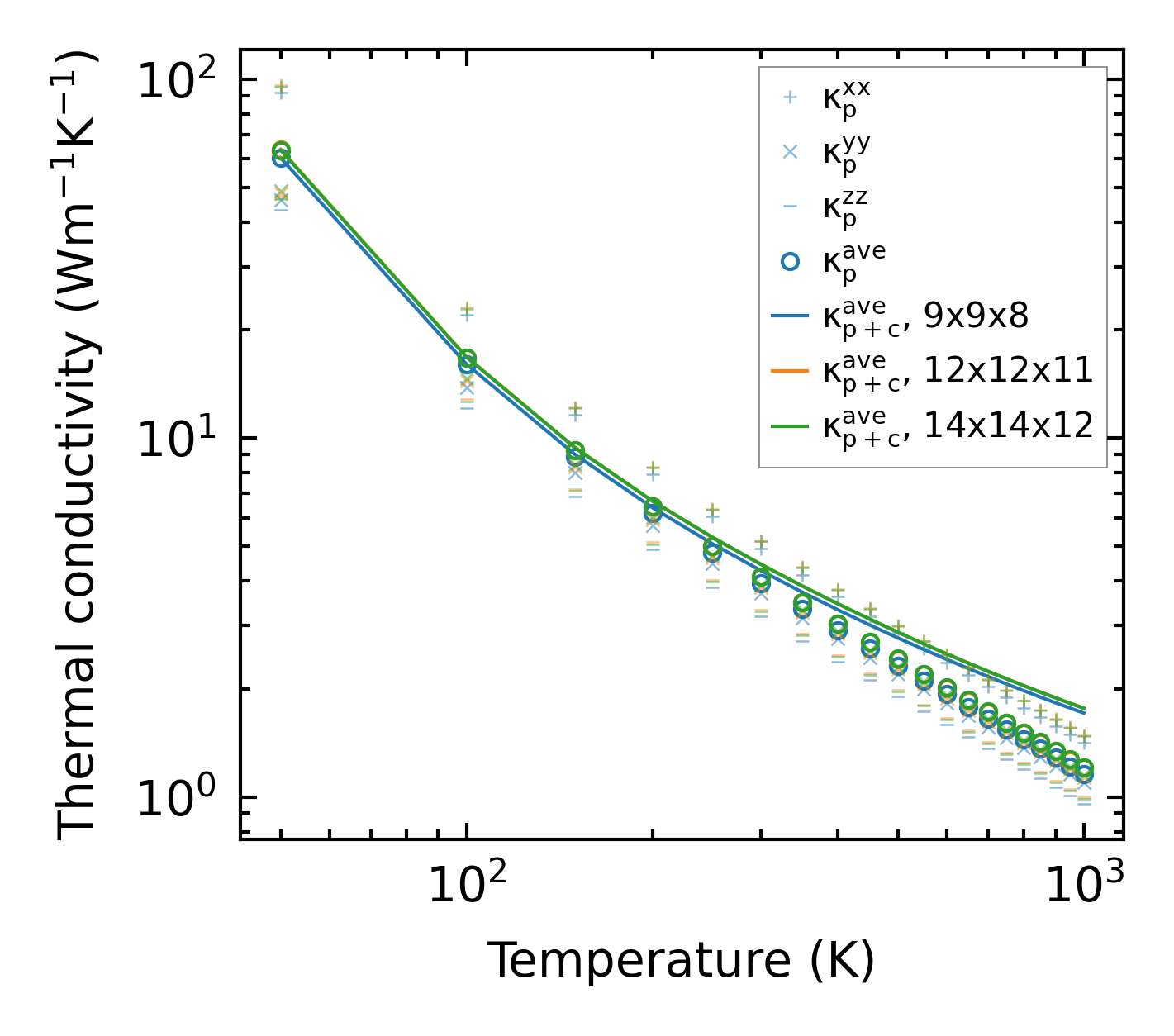

../../_images/fig_kappa2817.png — (a) Temperature-dependent lattice thermal conductivity

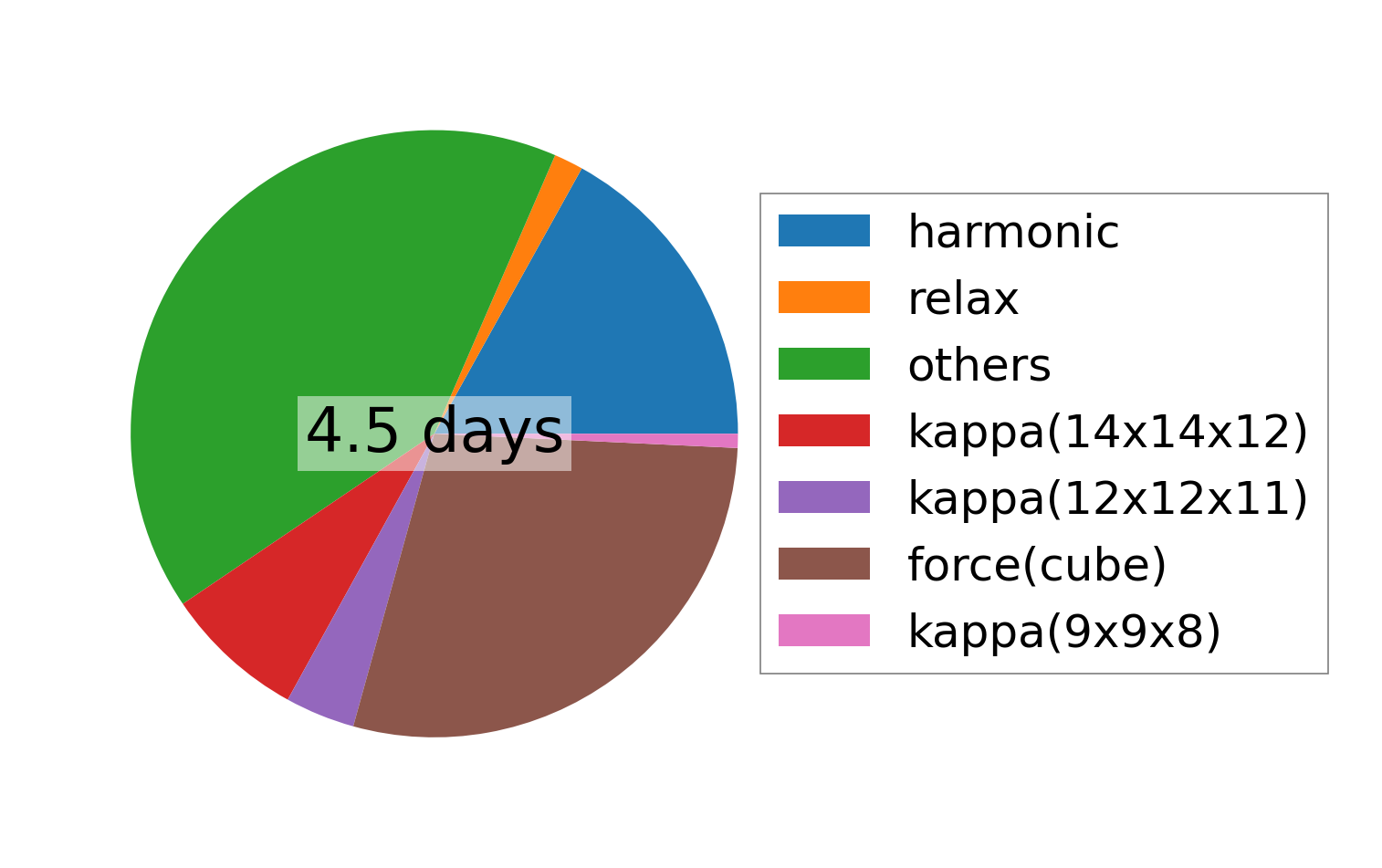

../../_images/fig_times5336.png — (b) Computation time
