mp-677241-2/LuCuSe2/anharm

Space group: P3m1 (156)
Link: Materials Project
Download: mp-677241-2.tar.gz

Harmonic properties

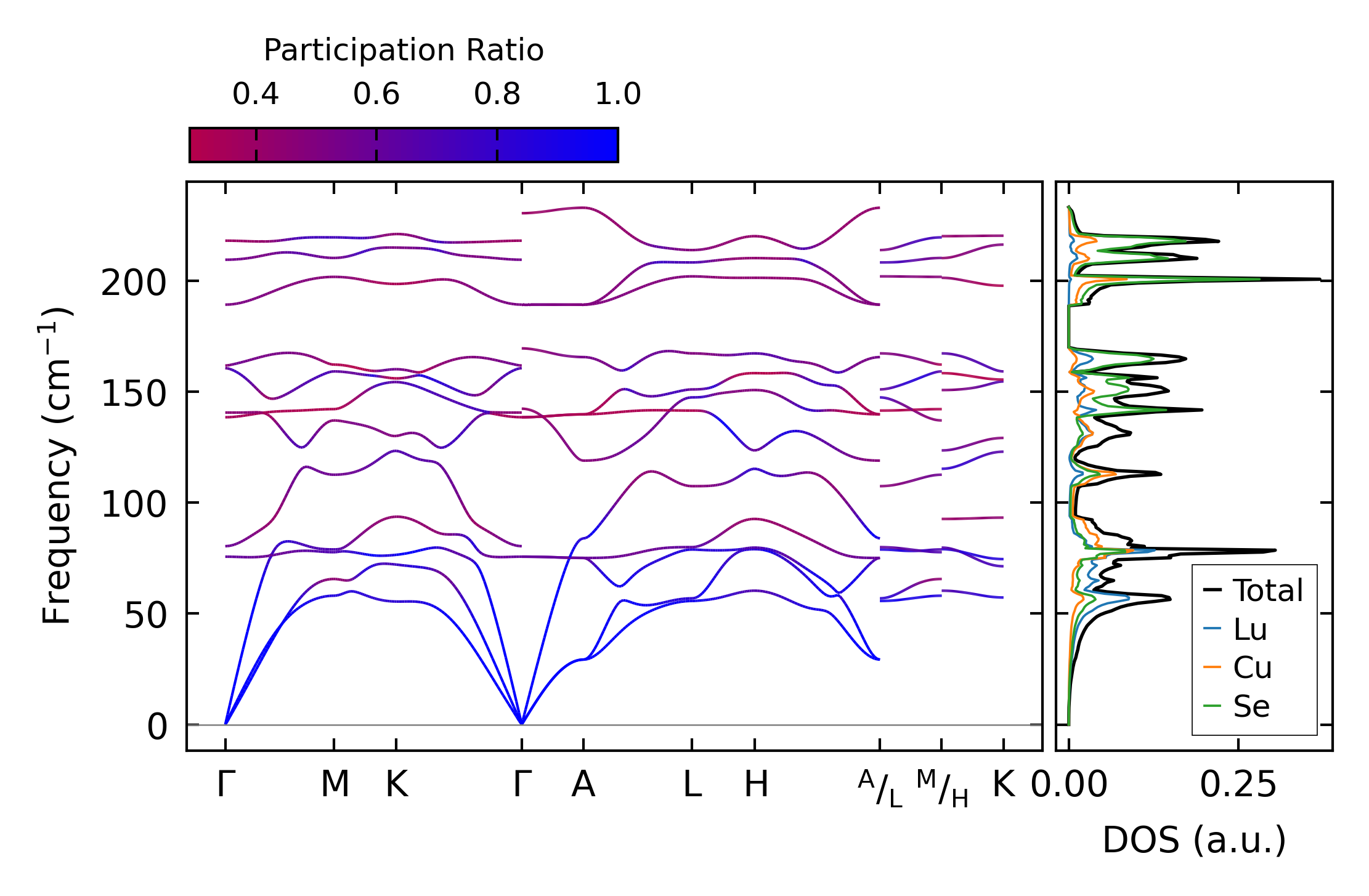

../../_images/fig_bandos_pr5110.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo5110.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all2144.png — (a) Grüneisen parameters

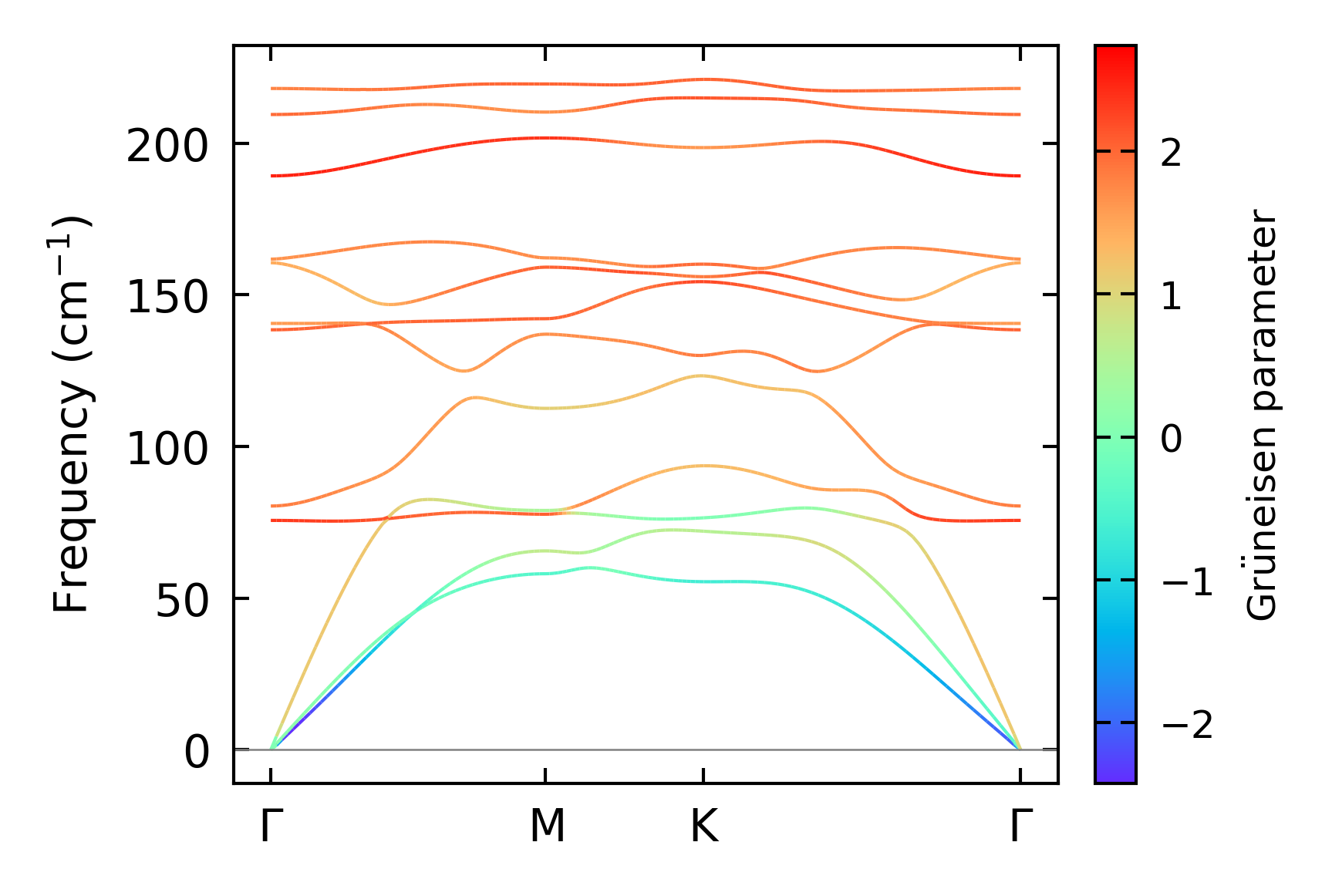

../../_images/fig_gruneisen2144.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 18x18x12, supercell: 4x4x2

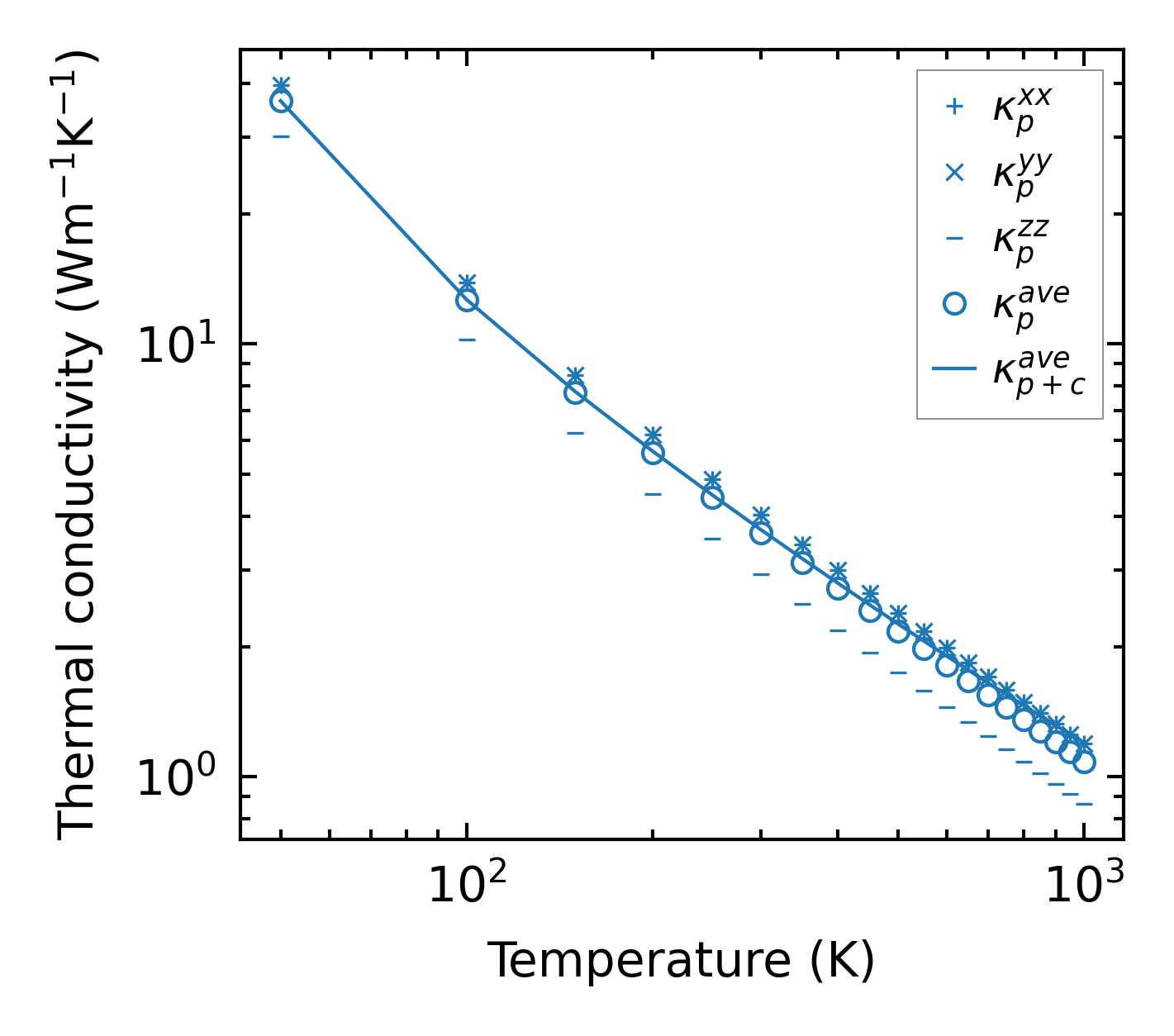

../../_images/fig_kappa4109.png — (a) Temperature-dependent lattice thermal conductivity

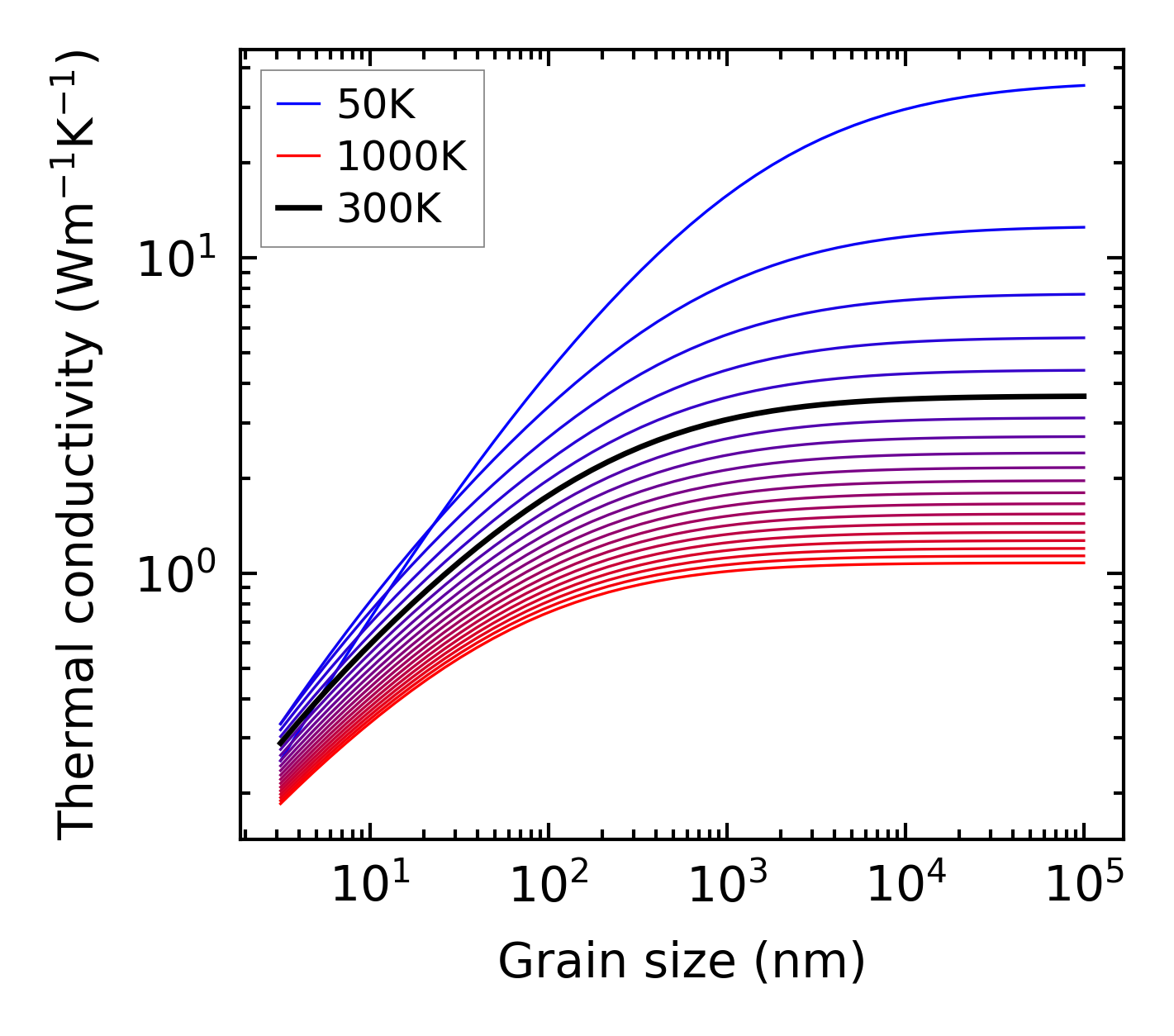

../../_images/fig_kappa_vs_grain_size2176.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime2131.png — (a) Phonon lifetime due to phonon-phonon scattering

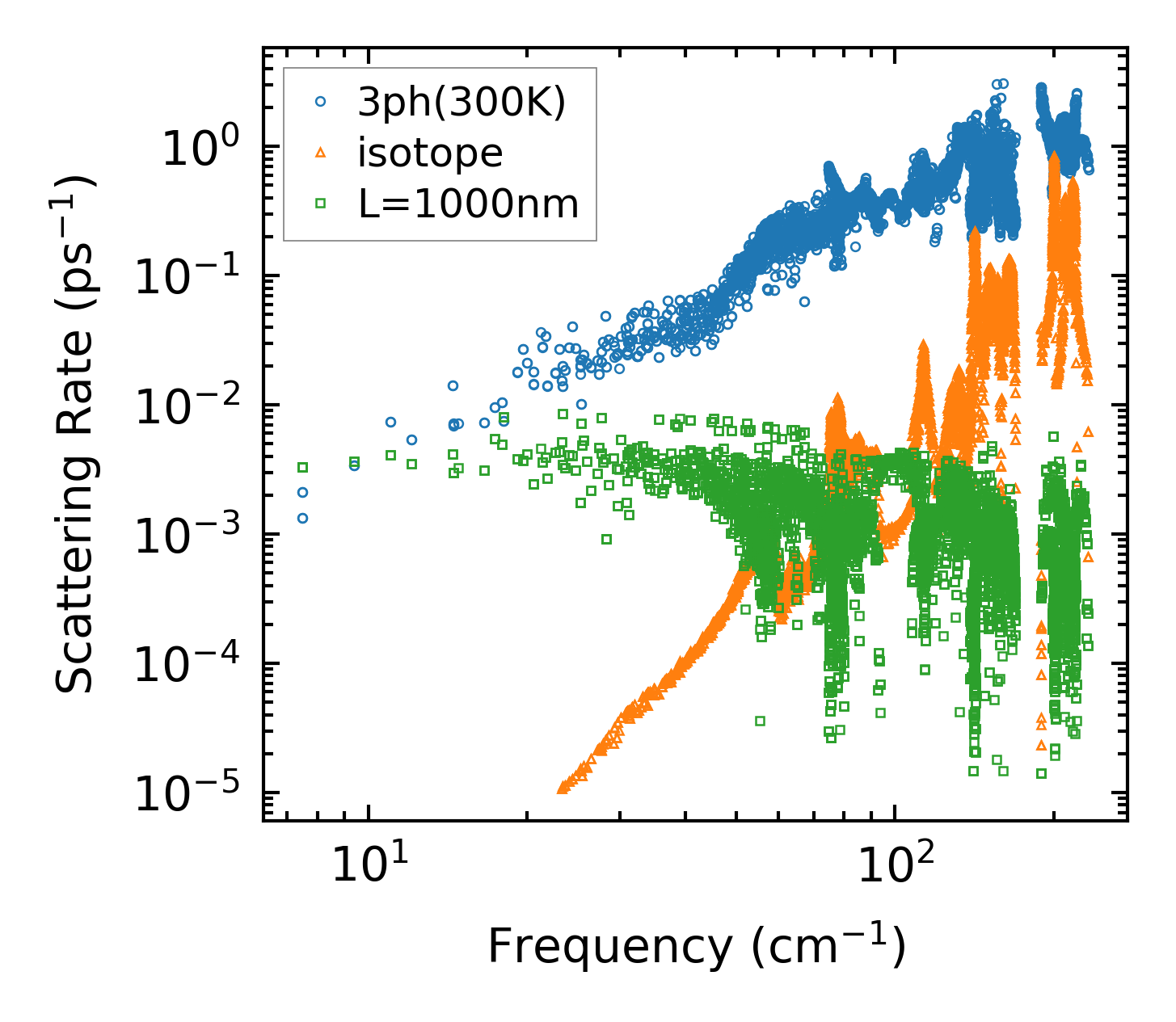

../../_images/fig_scat_rates2130.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

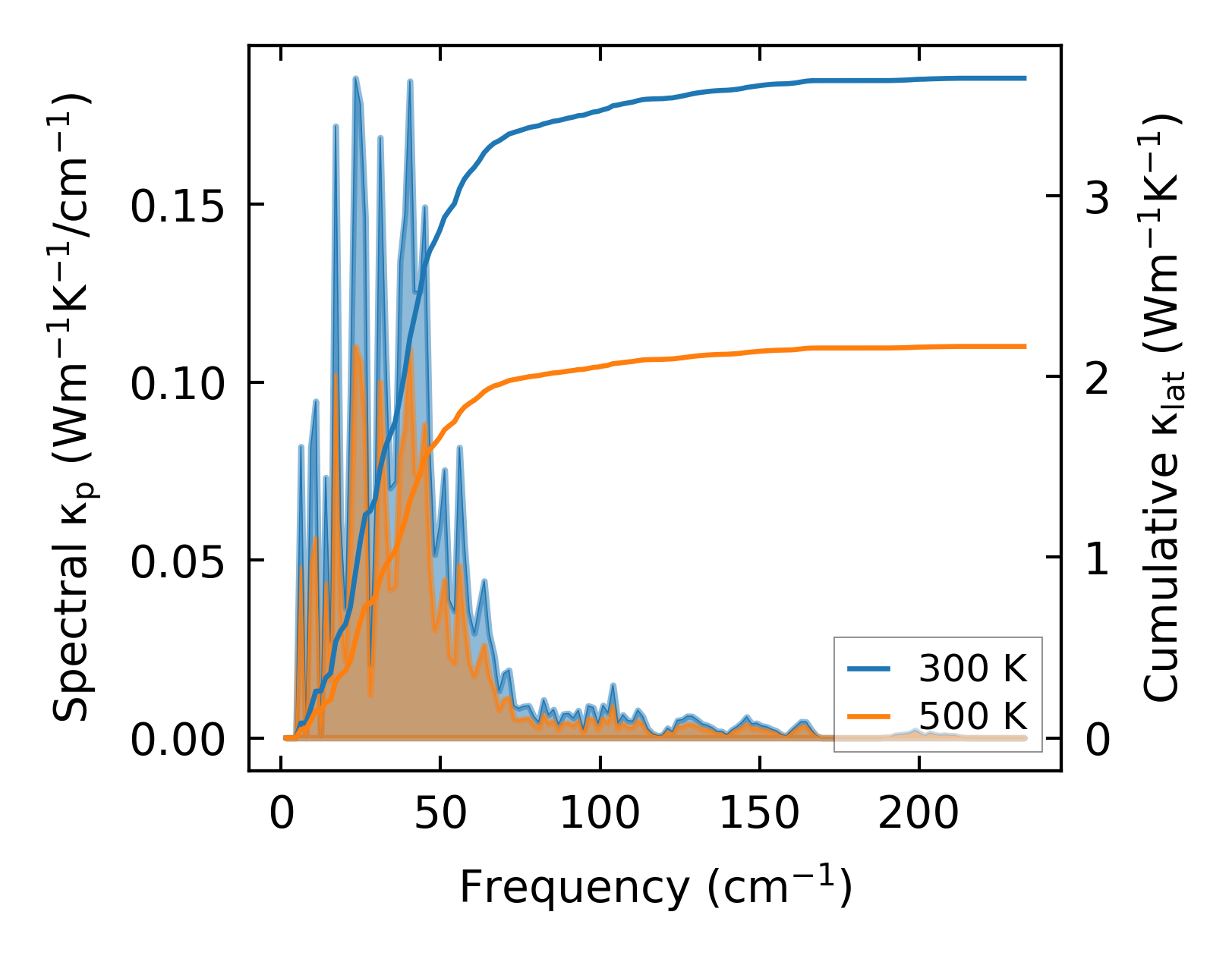

../../_images/fig_cumu_frequency2131.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp2131.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

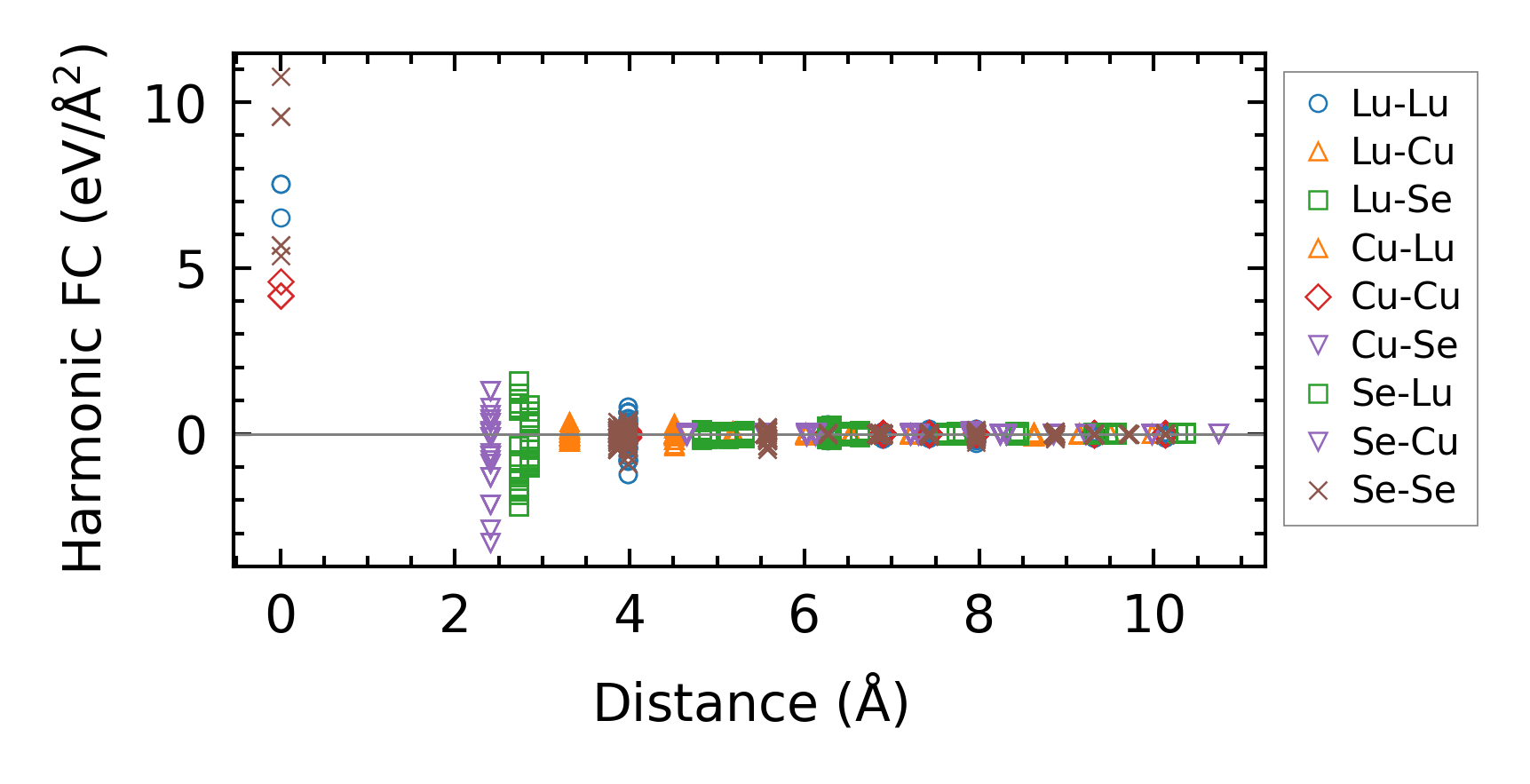

../../_images/fig_fc24915.png — (a) Force constants w.r.t atomic distance

Summary

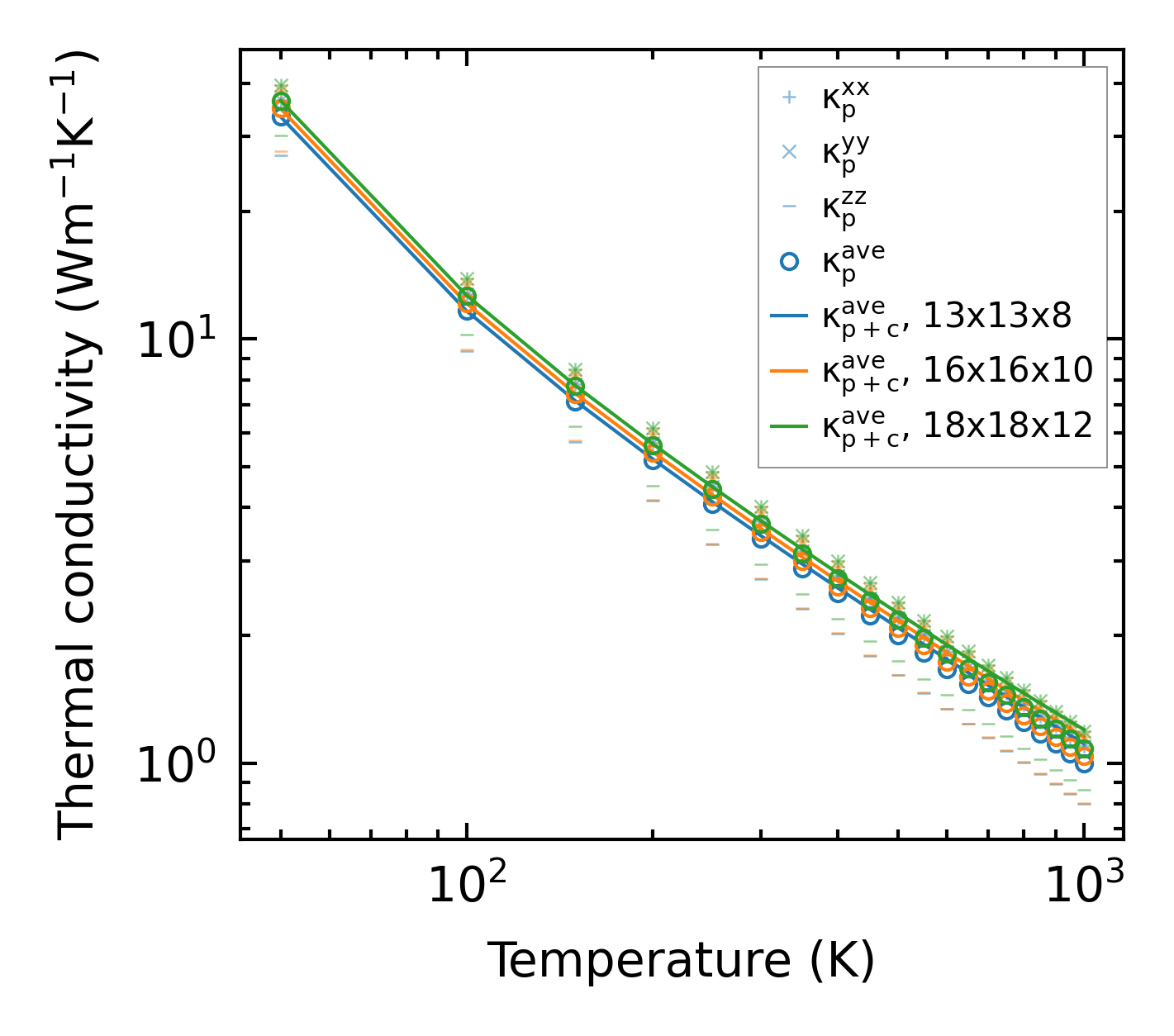

../../_images/fig_kappa4110.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times9141.png — (b) Computation time
