mp-672339/Ag2Hg7P8I6/anharm

Space group: C2/m (12)
Link: Materials Project
Download: mp-672339.tar.gz

Harmonic properties

../../_images/fig_bandos_pr5389.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo5389.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all2240.png — (a) Grüneisen parameters

../../_images/fig_gruneisen2240.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x8x8, supercell: 1x1x2

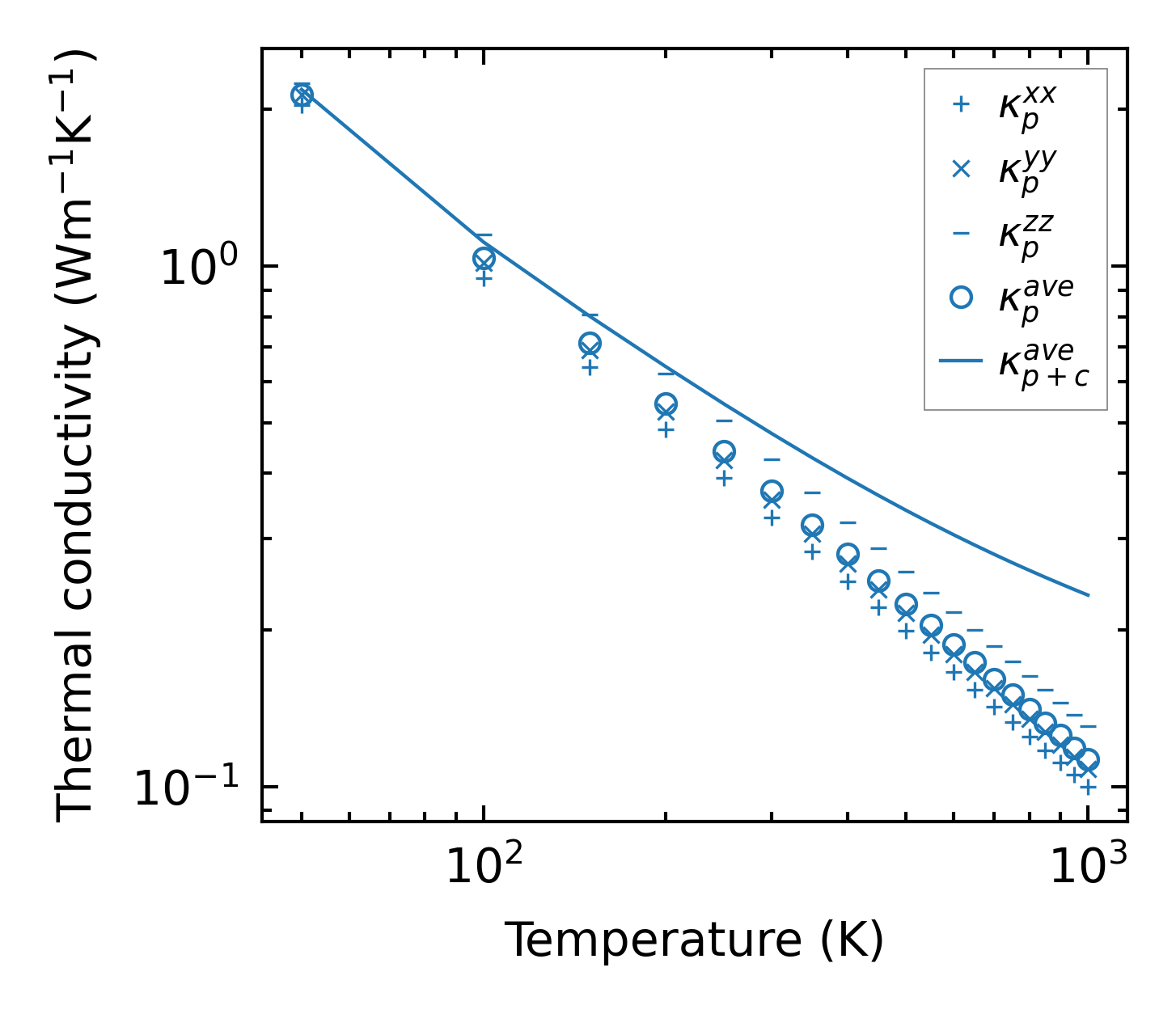

../../_images/fig_kappa4285.png — (a) Temperature-dependent lattice thermal conductivity

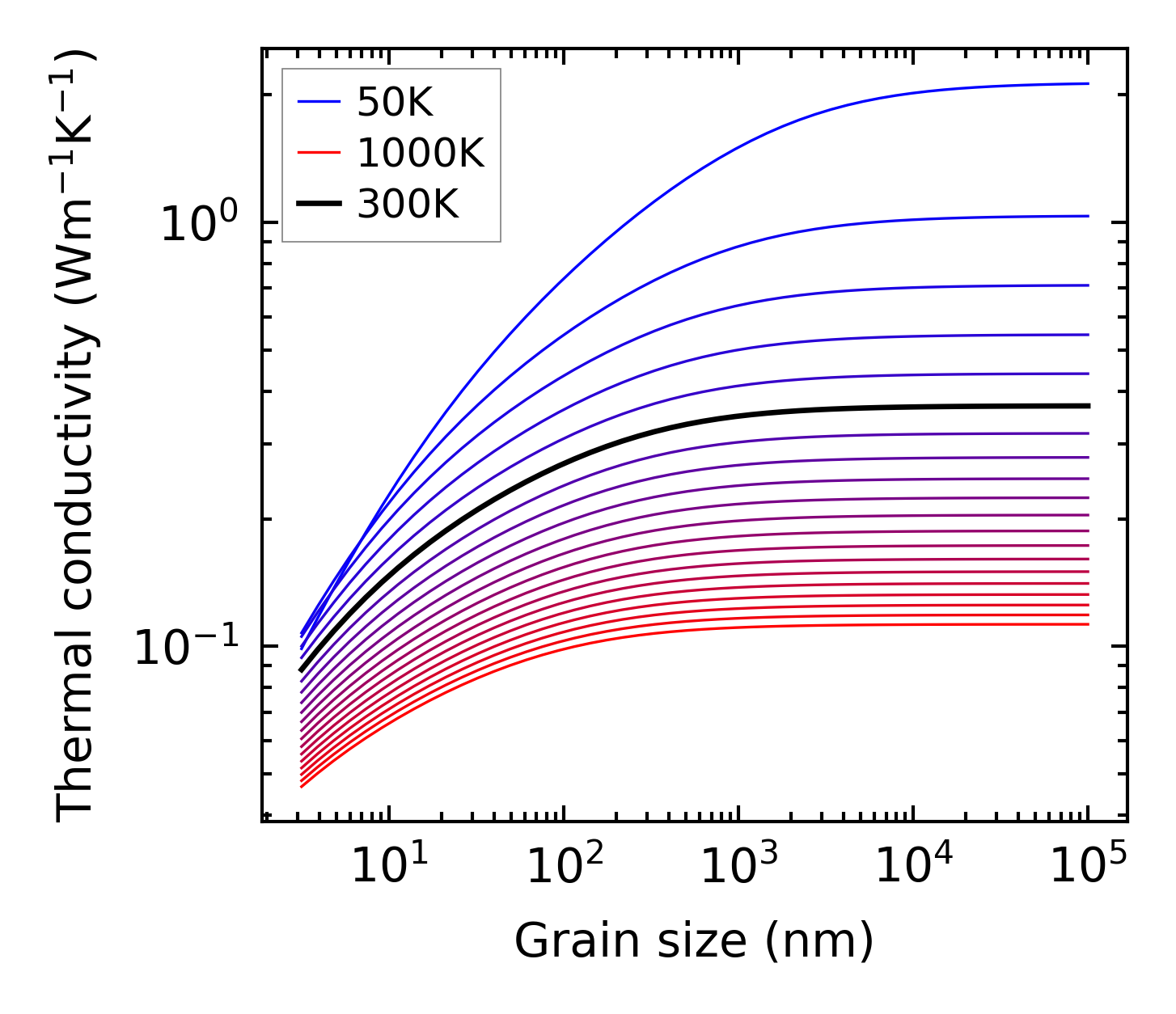

../../_images/fig_kappa_vs_grain_size2271.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

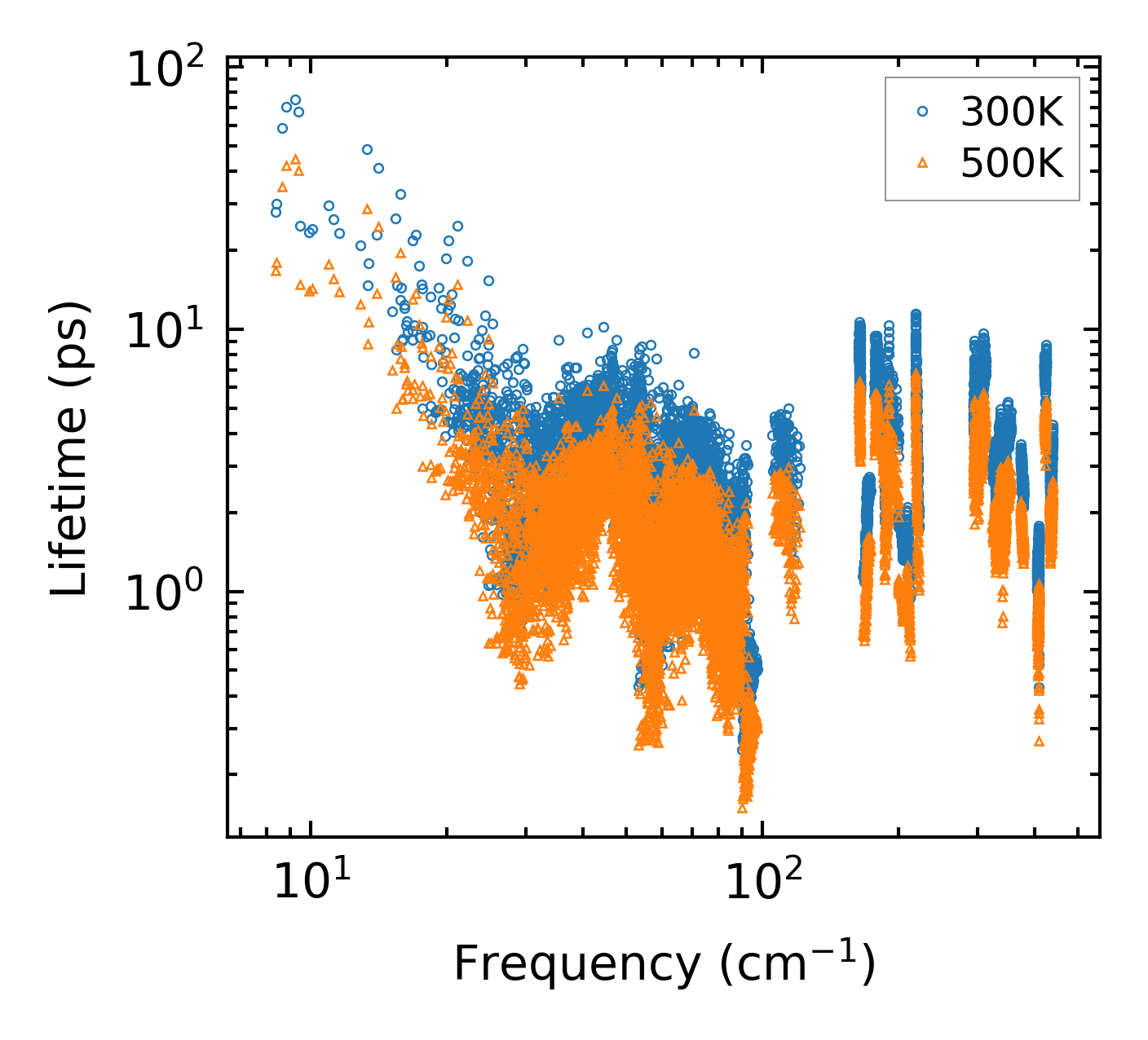

../../_images/fig_lifetime2226.png — (a) Phonon lifetime due to phonon-phonon scattering

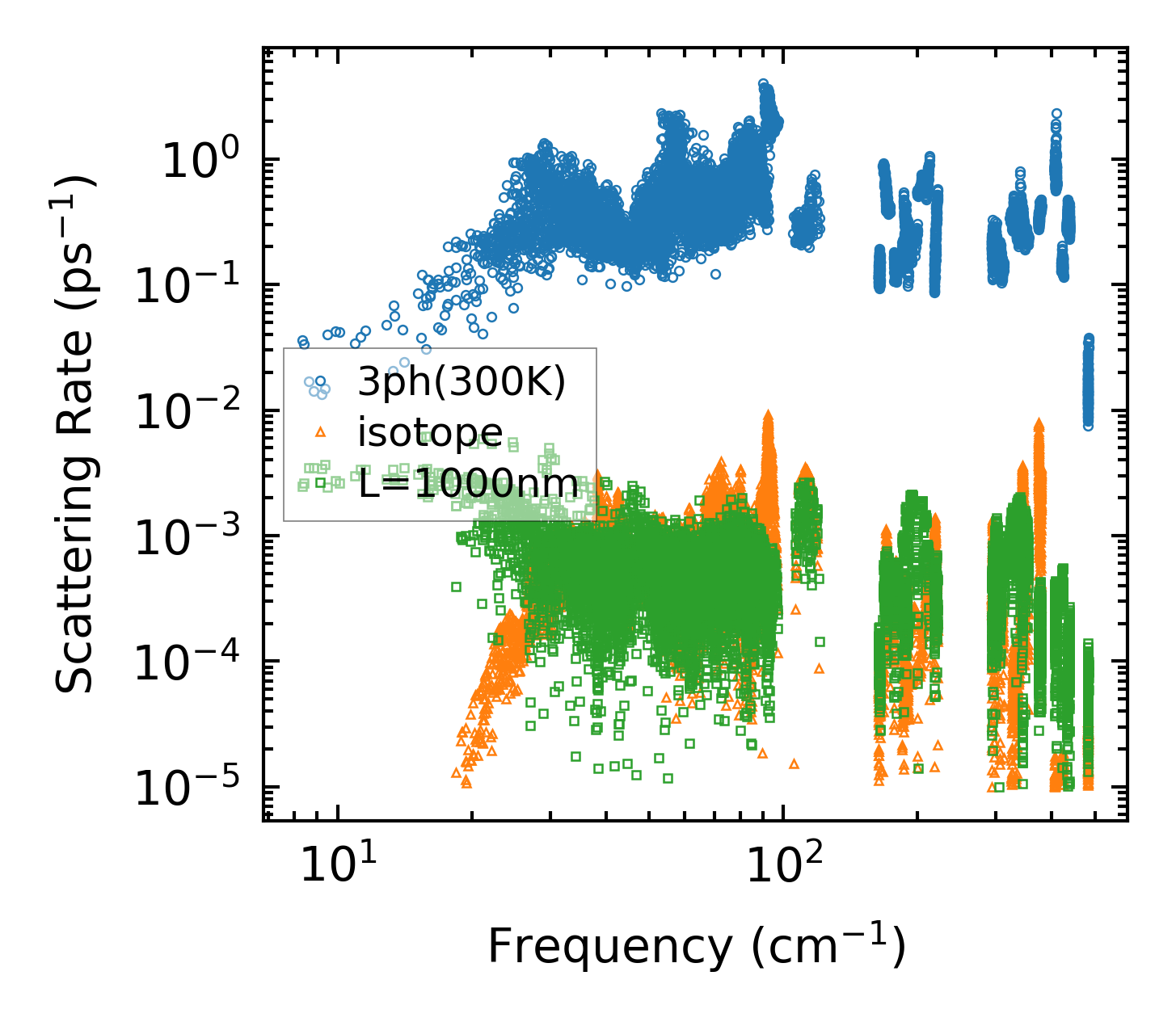

../../_images/fig_scat_rates2225.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency2226.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

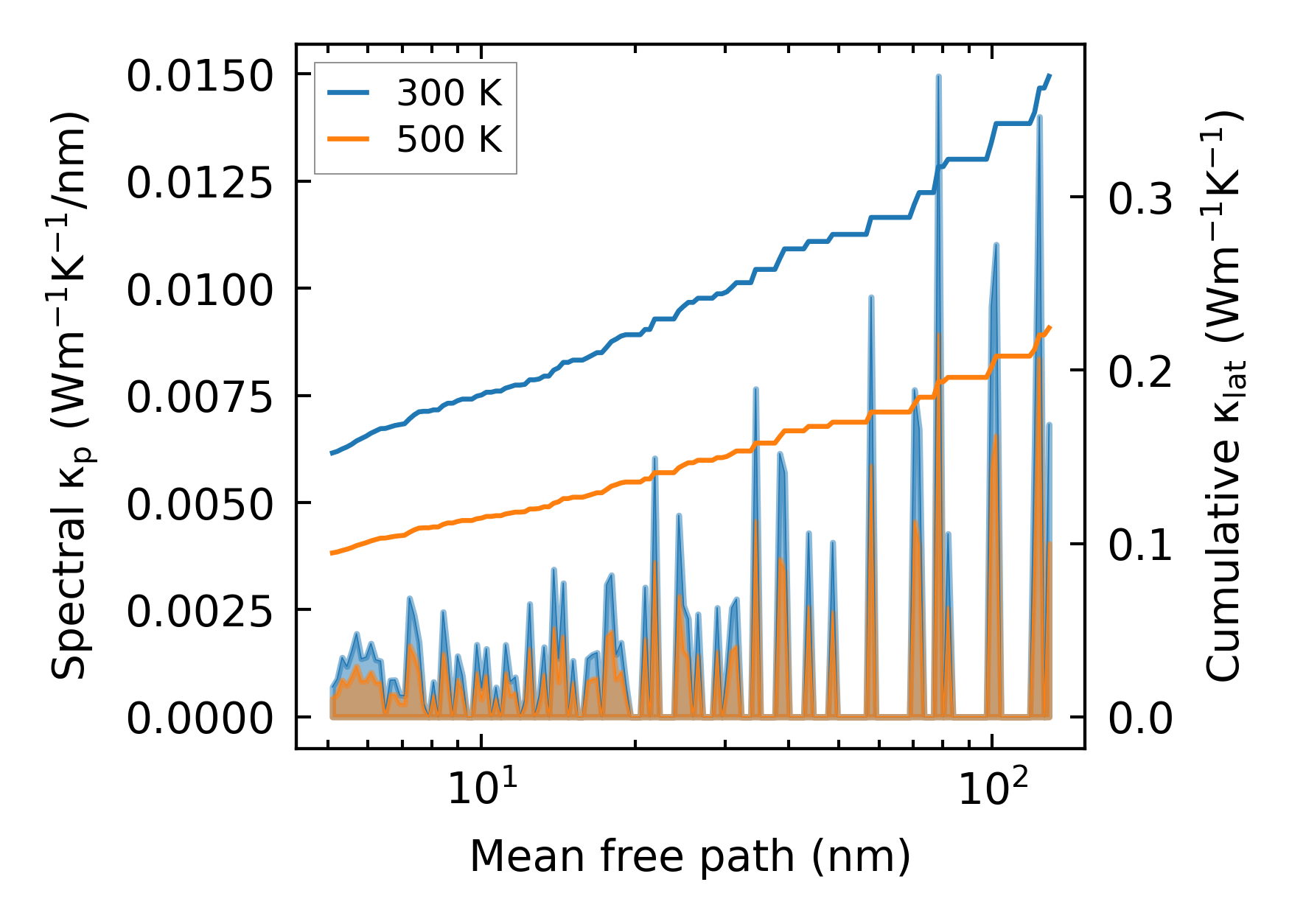

../../_images/fig_cumu_mfp2226.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

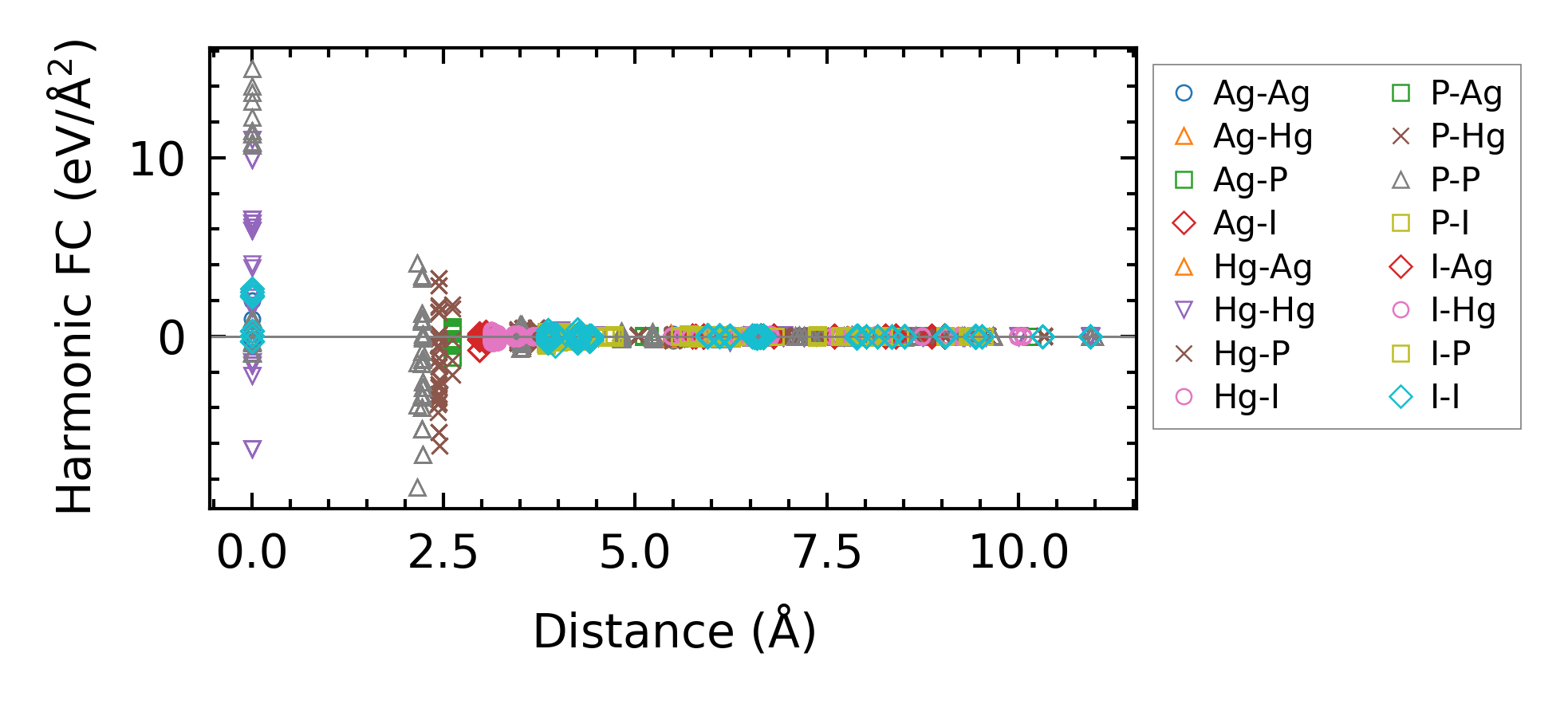

../../_images/fig_fc25194.png — (a) Force constants w.r.t atomic distance

Summary

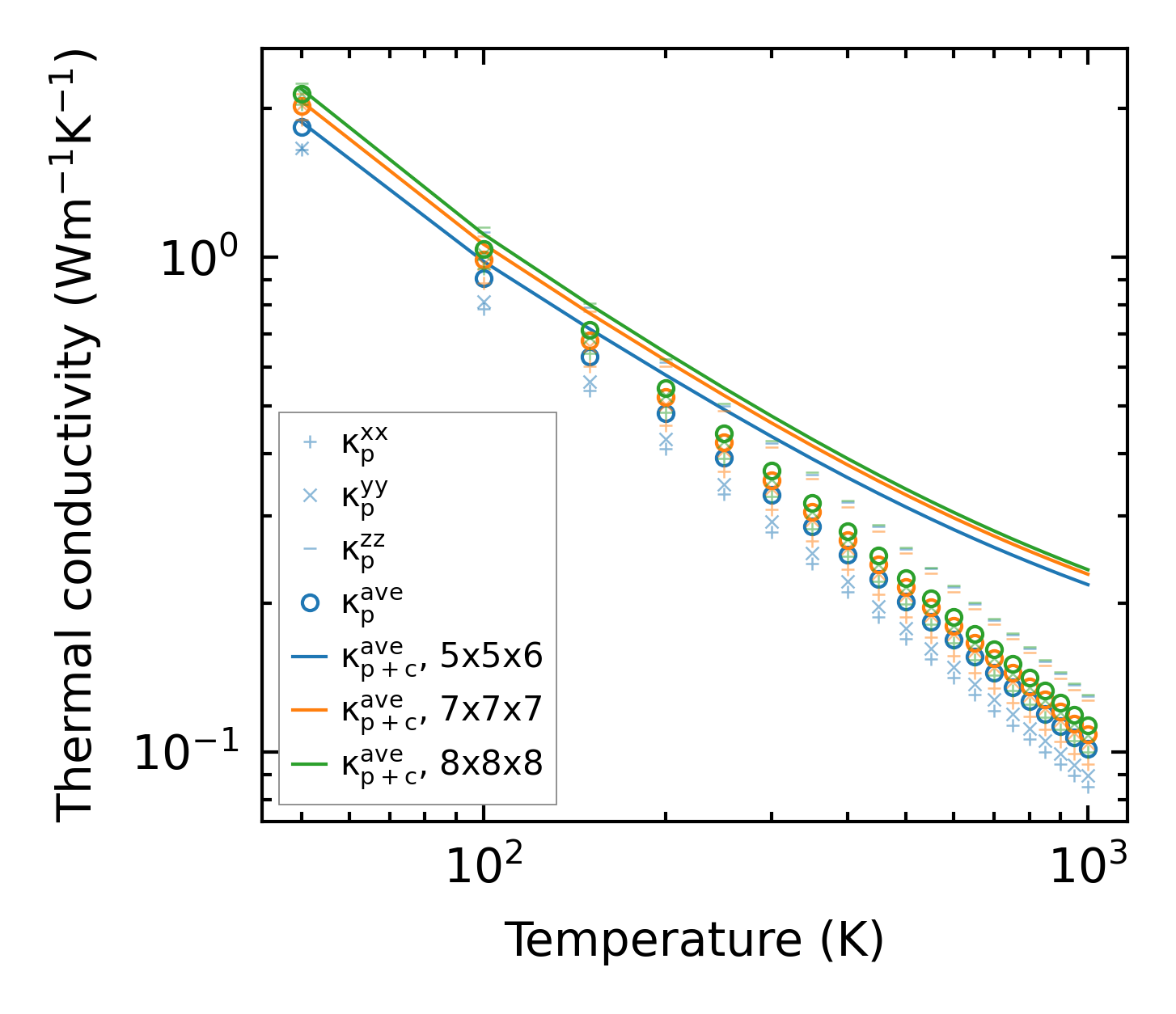

../../_images/fig_kappa4286.png — (a) Temperature-dependent lattice thermal conductivity

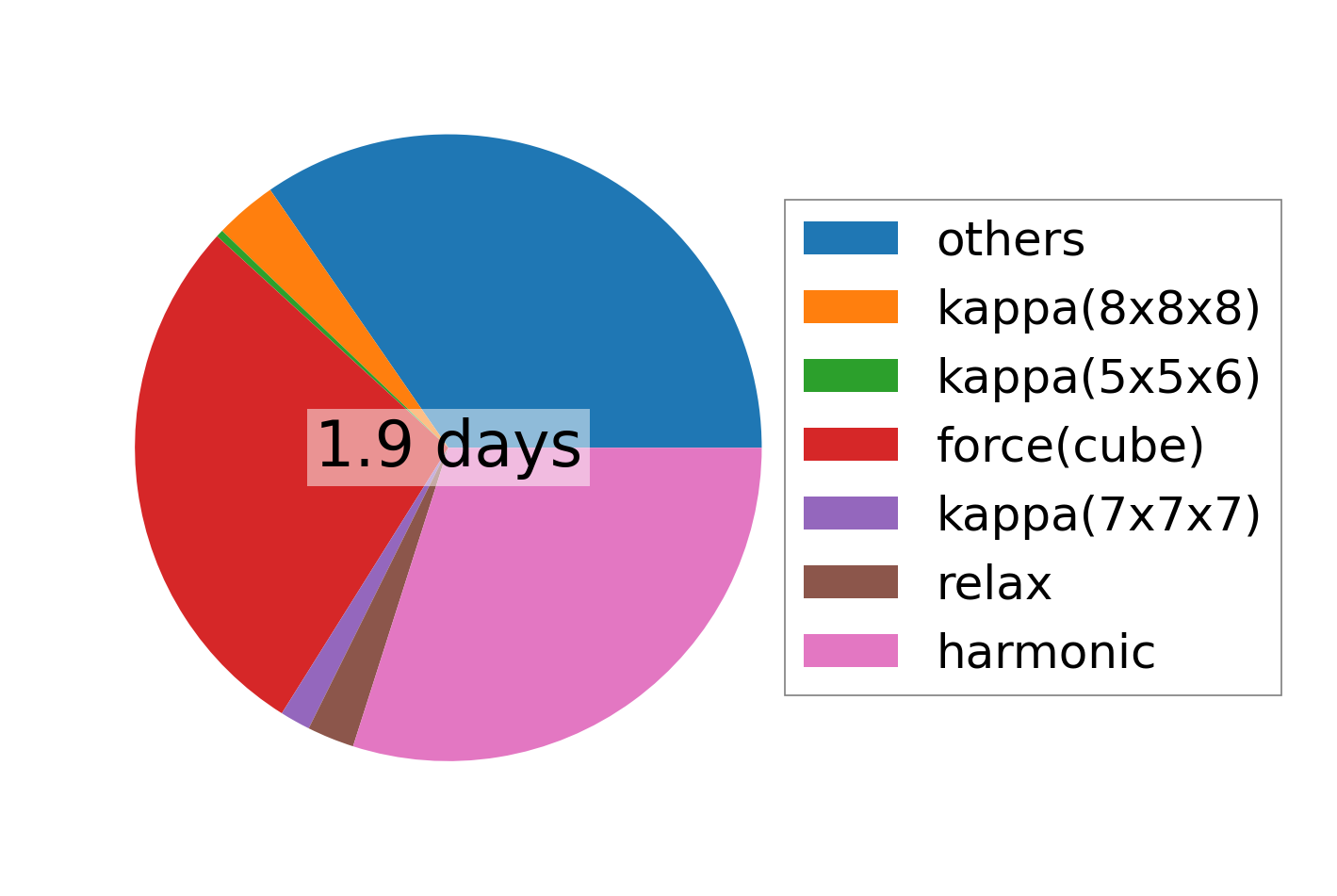

../../_images/fig_times9766.png — (b) Computation time
