mp-574060/KBC4N4/anharm

Space group: I4_1/a (88)
Link: Materials Project
Download: mp-574060.tar.gz

Harmonic properties

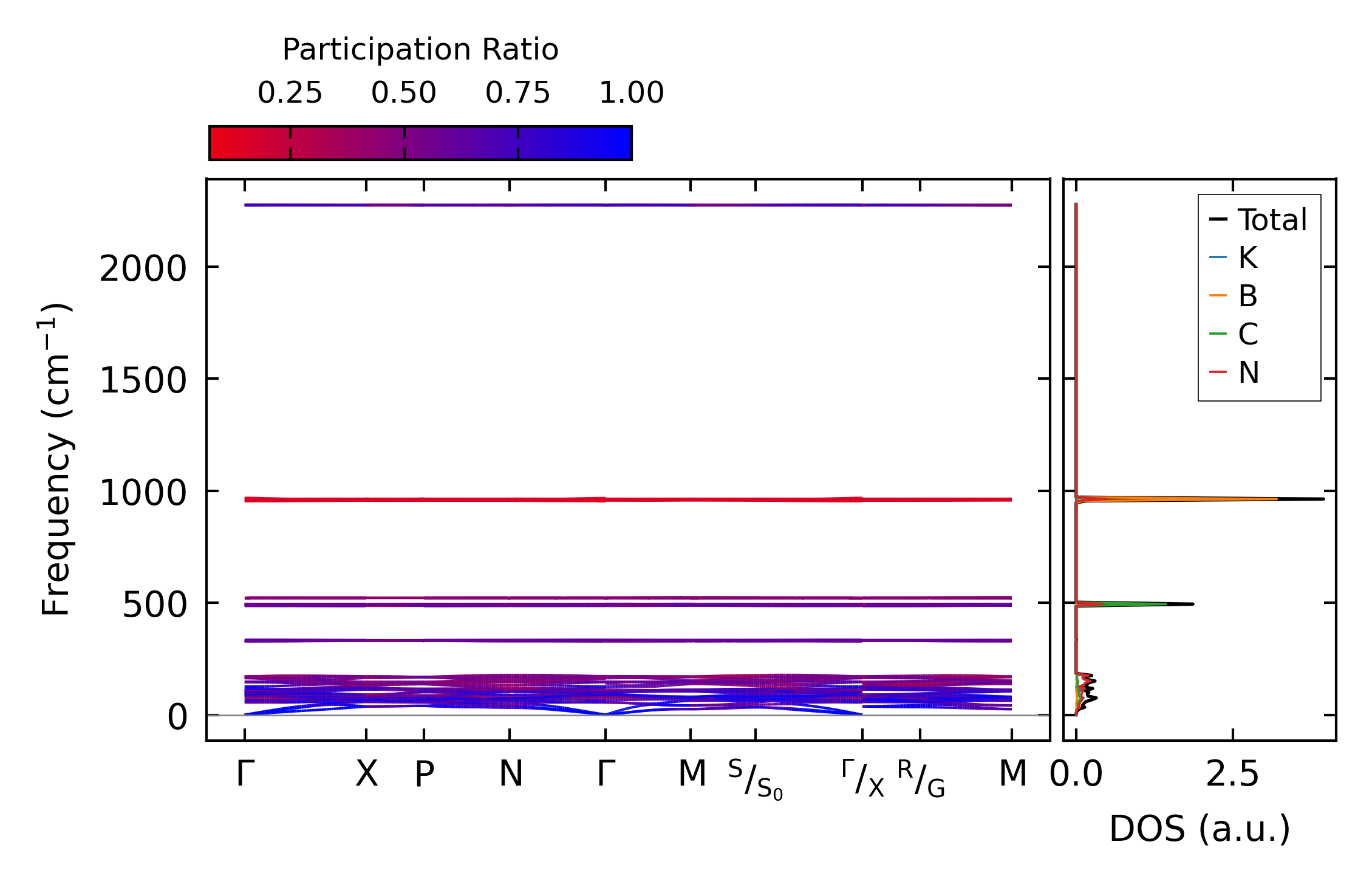

../../_images/fig_bandos_pr6729.png — (a) Phonon dispersion with participation ratio and DOS

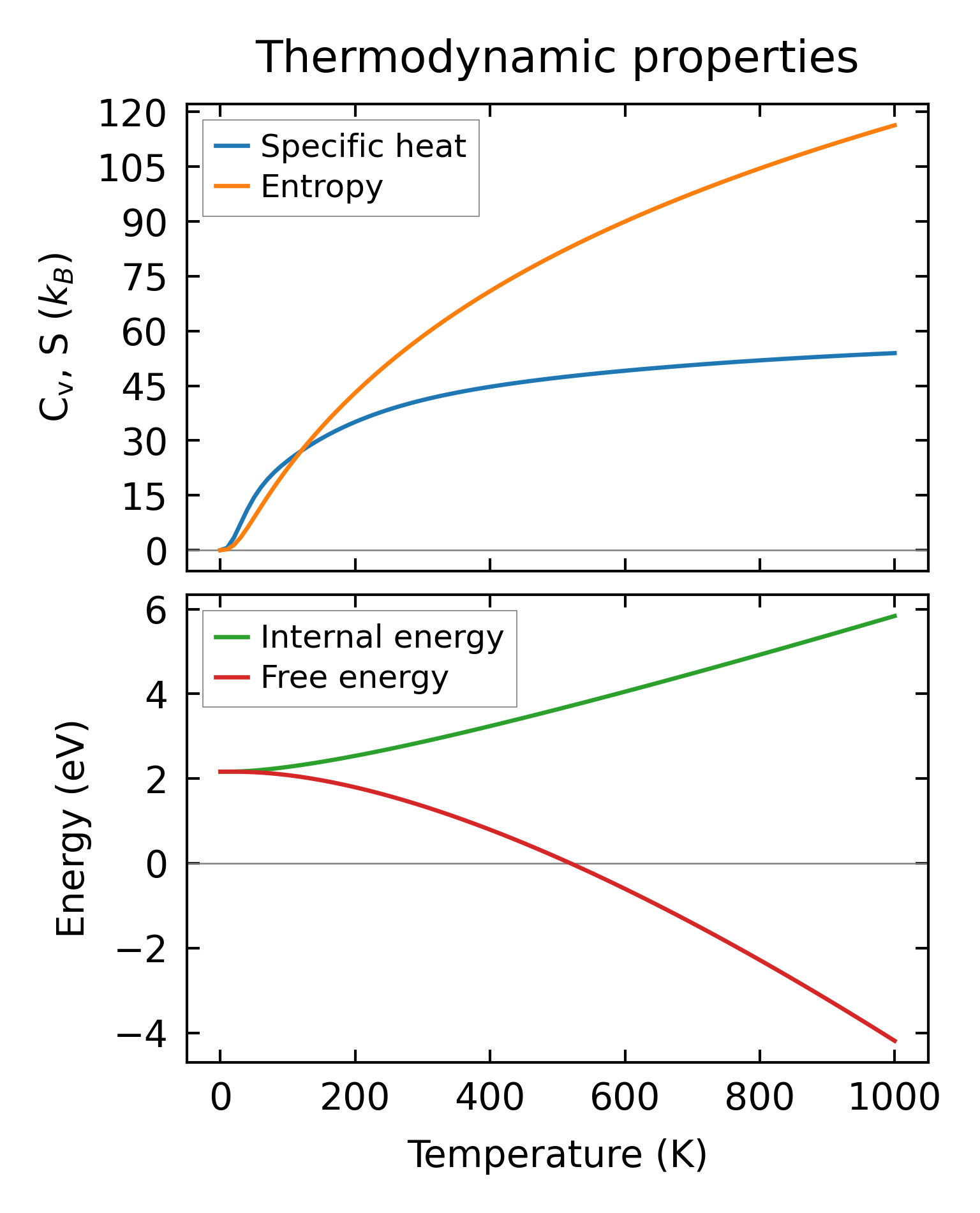

../../_images/fig_thermo6729.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all2757.png — (a) Grüneisen parameters

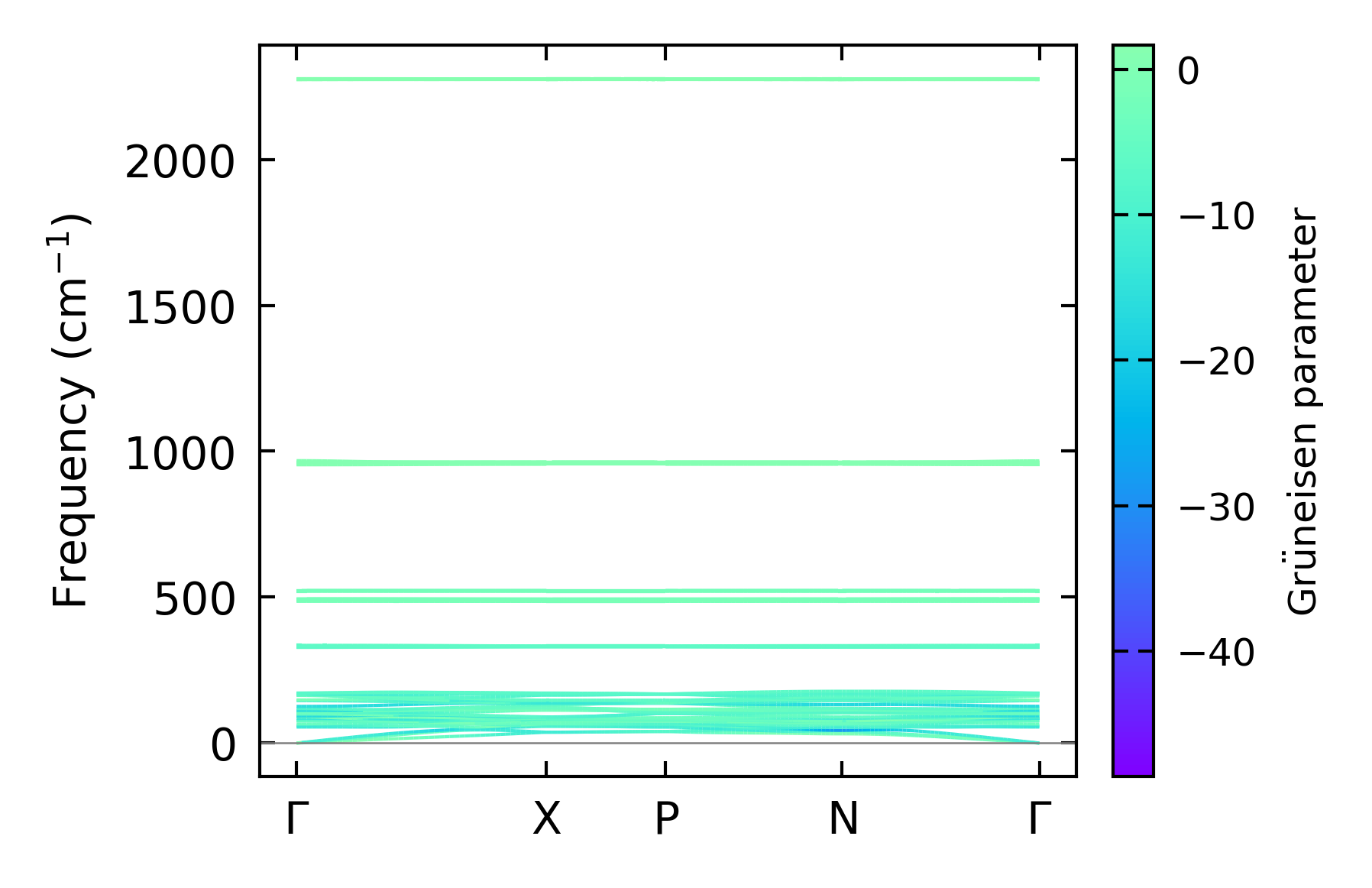

../../_images/fig_gruneisen2757.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x10, supercell: 1x1x1

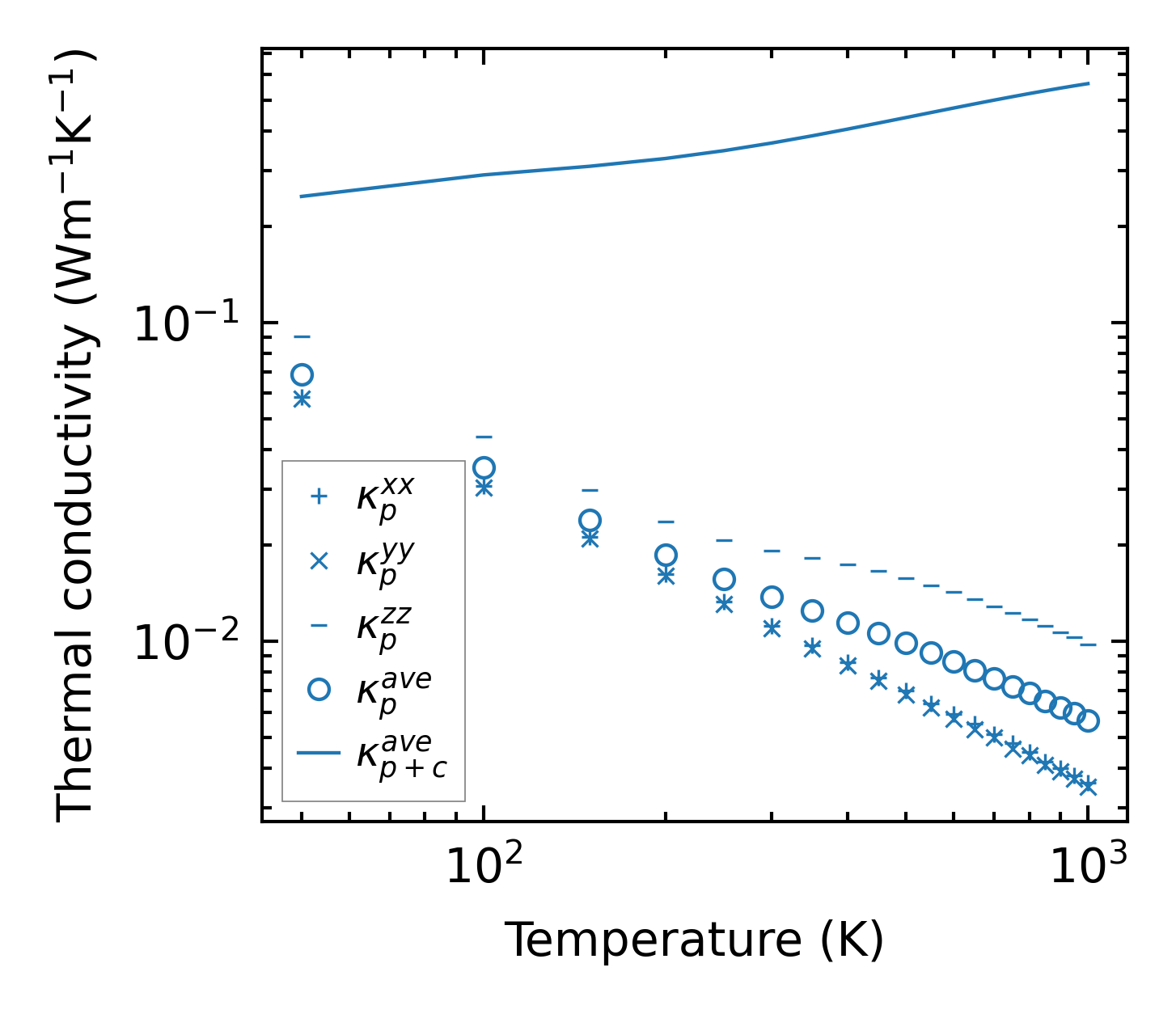

../../_images/fig_kappa5240.png — (a) Temperature-dependent lattice thermal conductivity

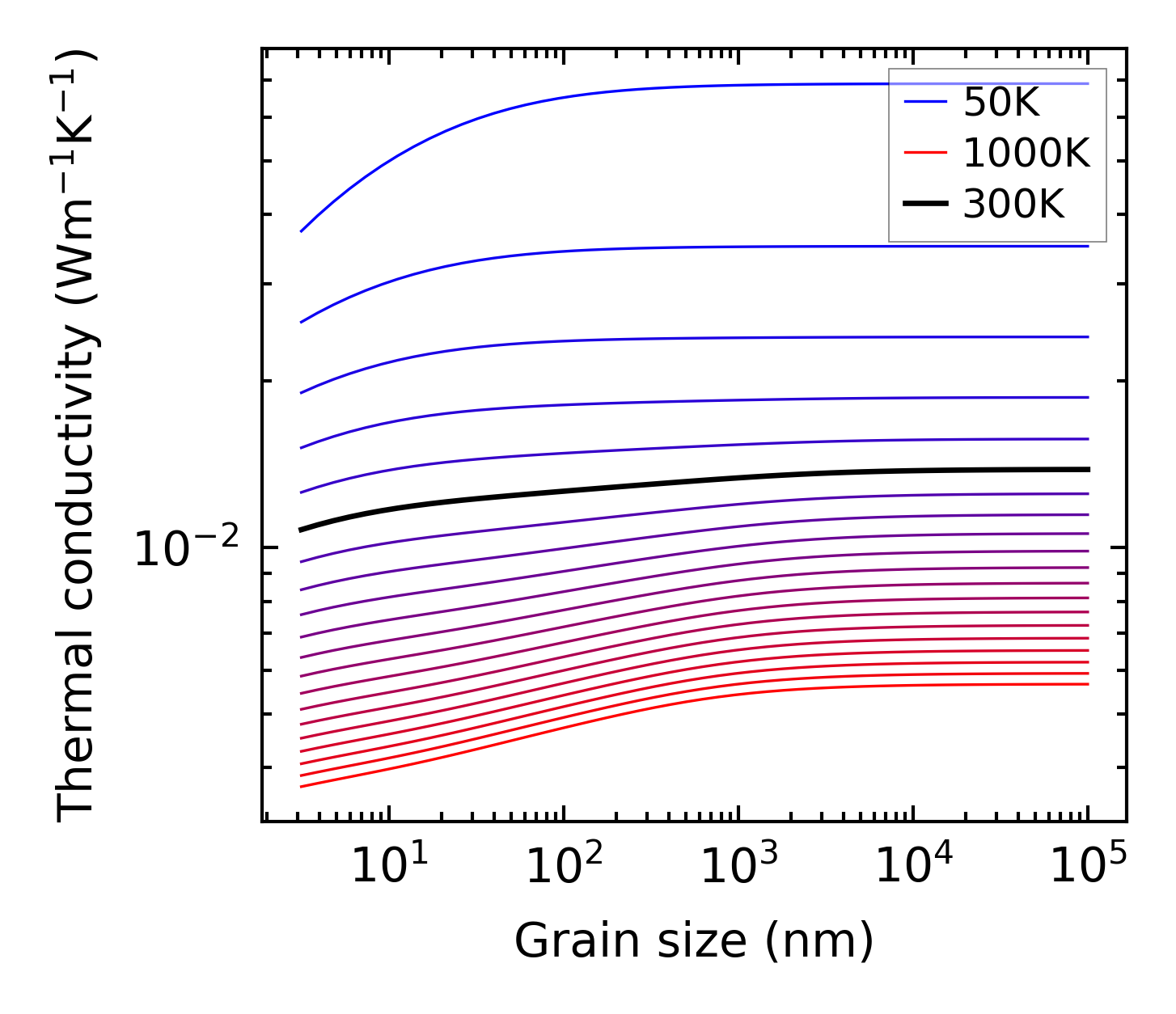

../../_images/fig_kappa_vs_grain_size2798.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime2733.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates2732.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

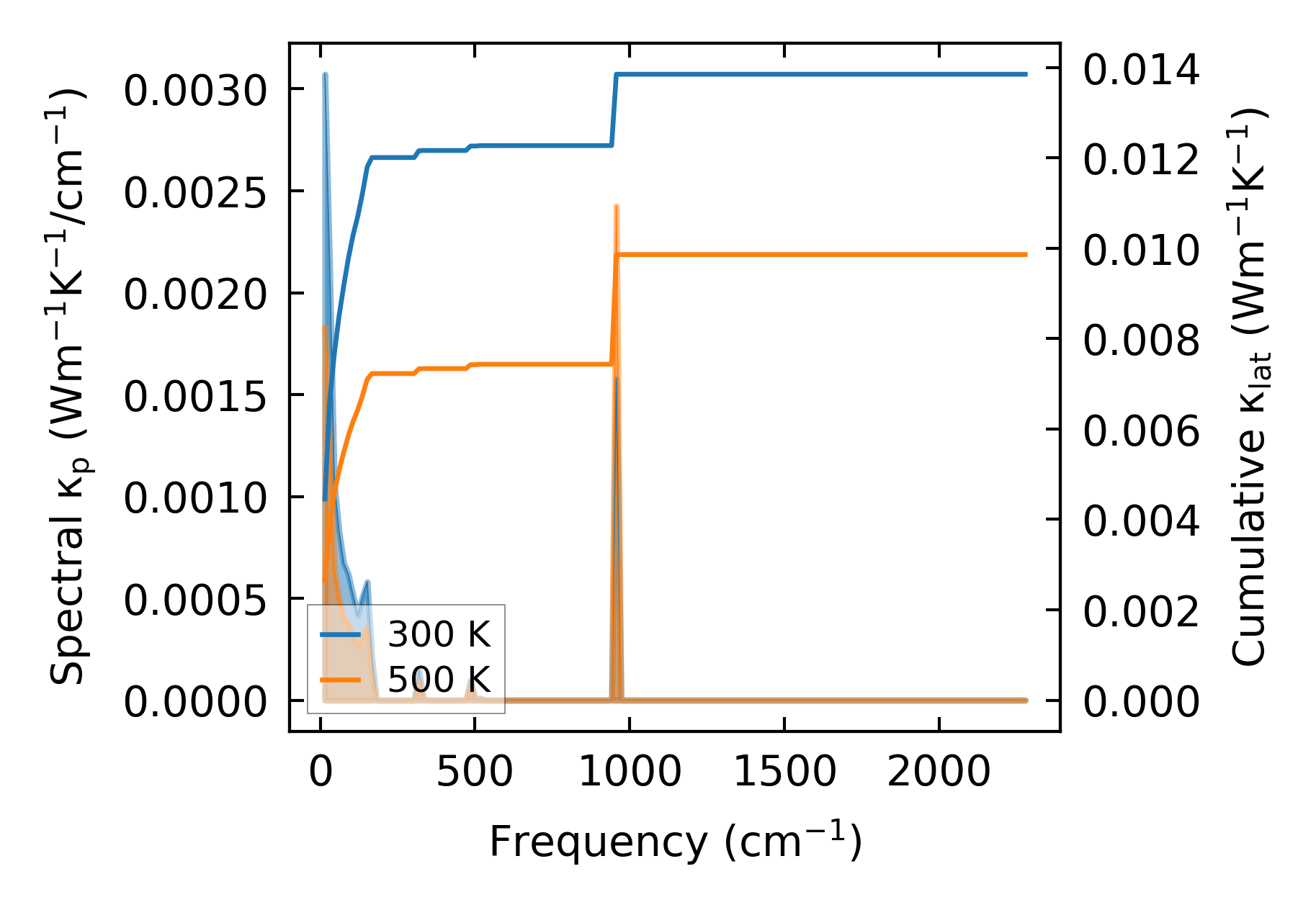

../../_images/fig_cumu_frequency2733.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

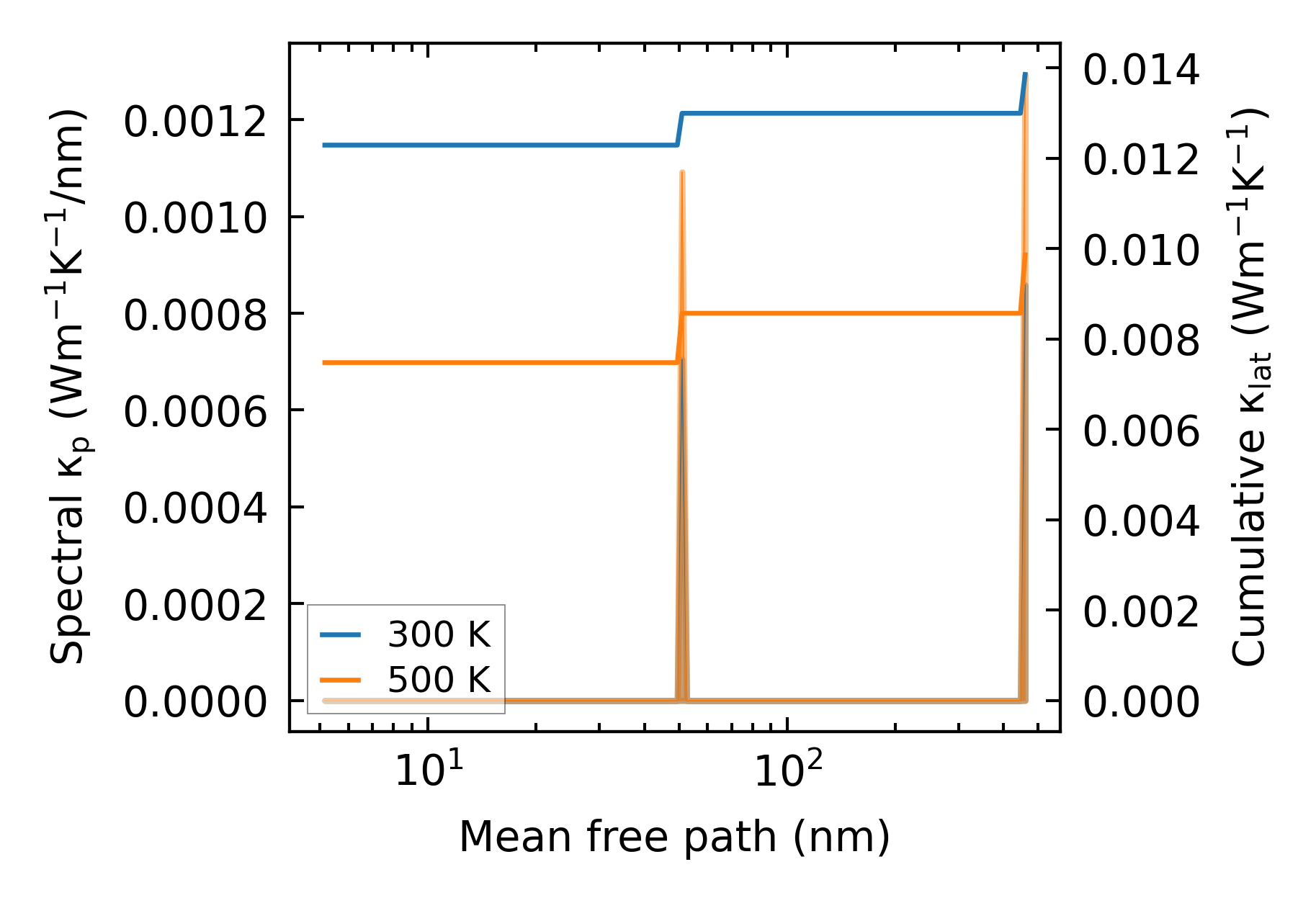

../../_images/fig_cumu_mfp2732.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc26518.png — (a) Force constants w.r.t atomic distance

Summary

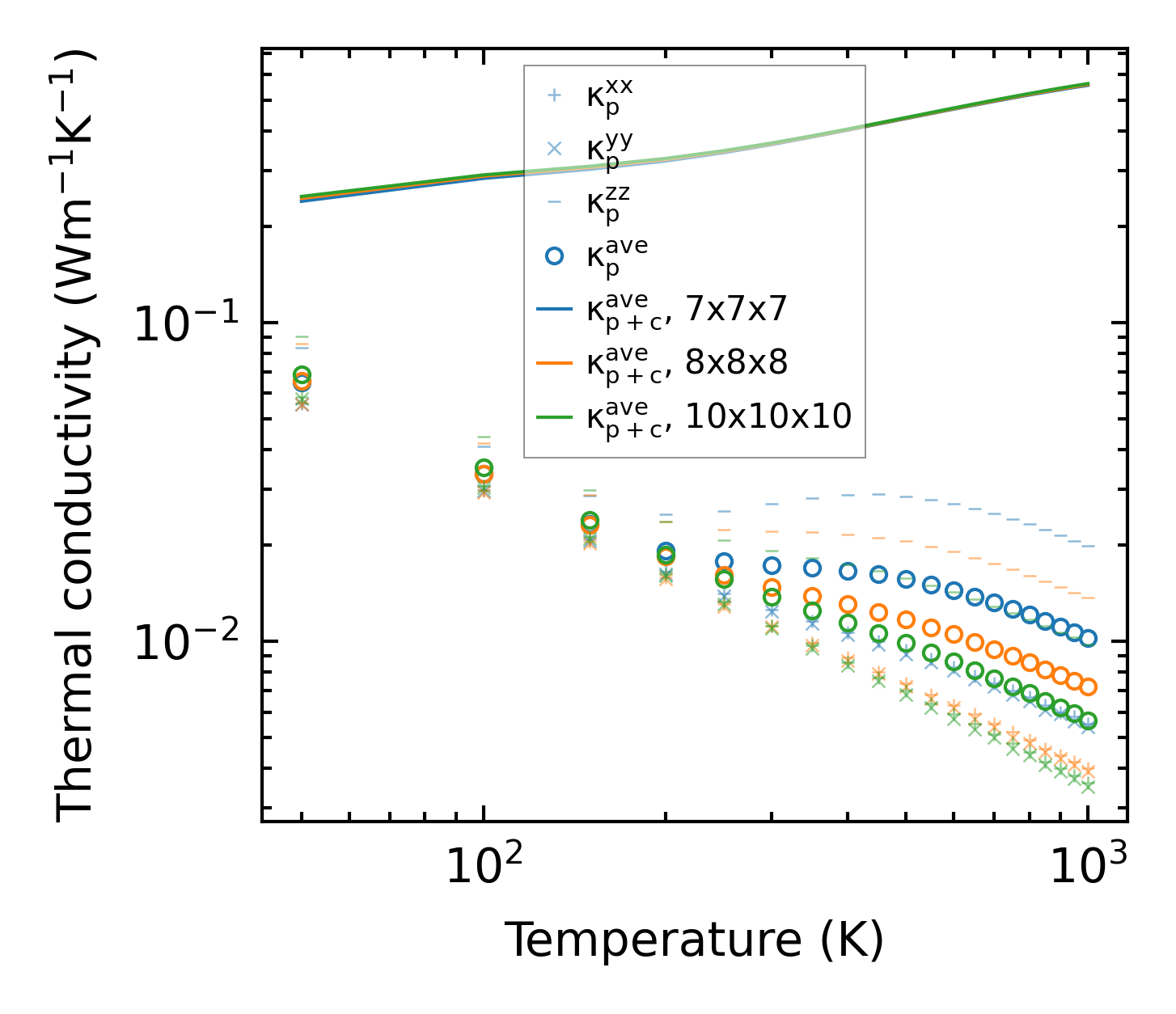

../../_images/fig_kappa5241.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times12084.png — (b) Computation time
