mp-574040/K2SnBr6/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-574040.tar.gz

Harmonic properties

../../_images/fig_bandos_pr6728.png — (a) Phonon dispersion with participation ratio and DOS

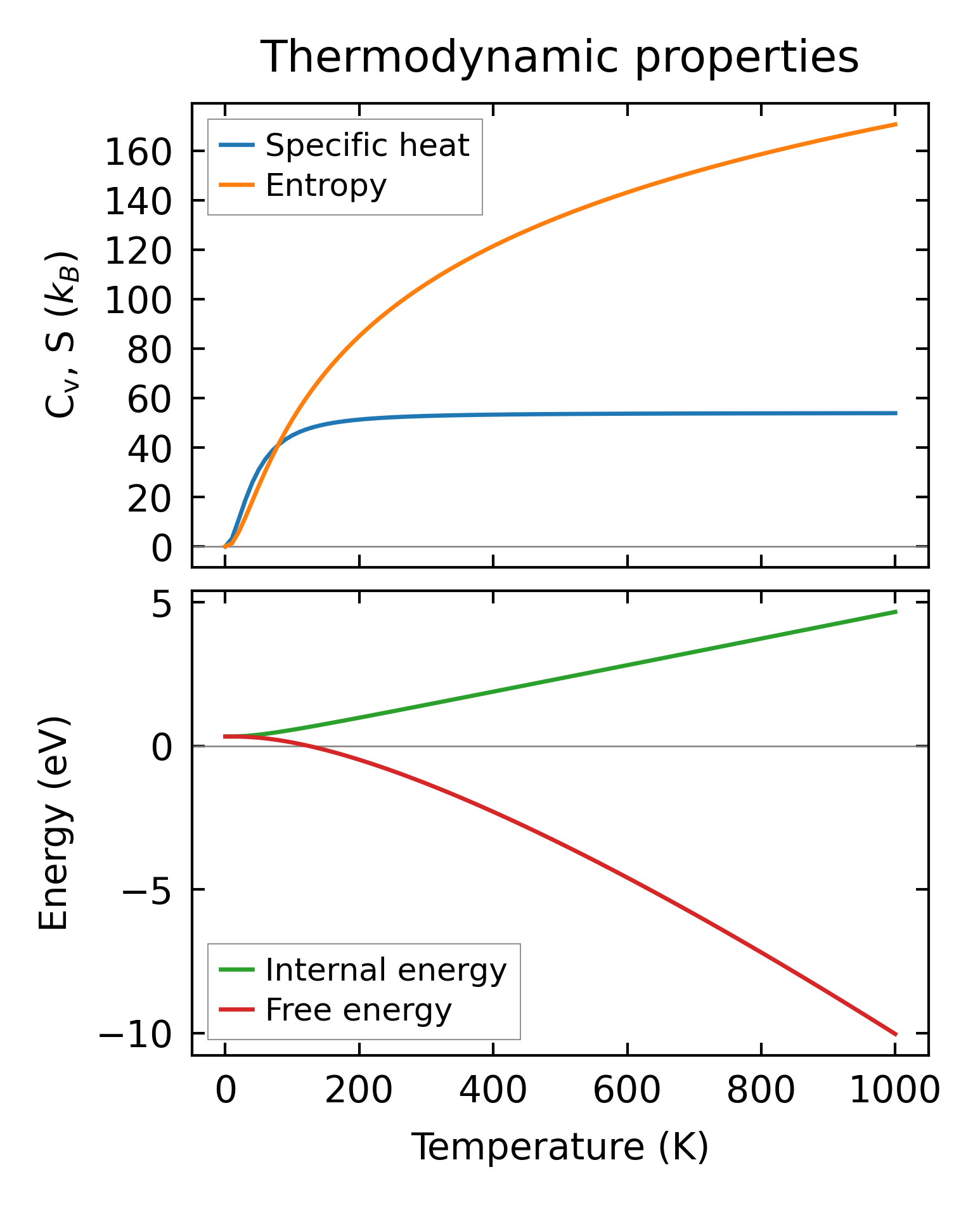

../../_images/fig_thermo6728.png — (b) Thermodynamic properties

Grüneisen parameters

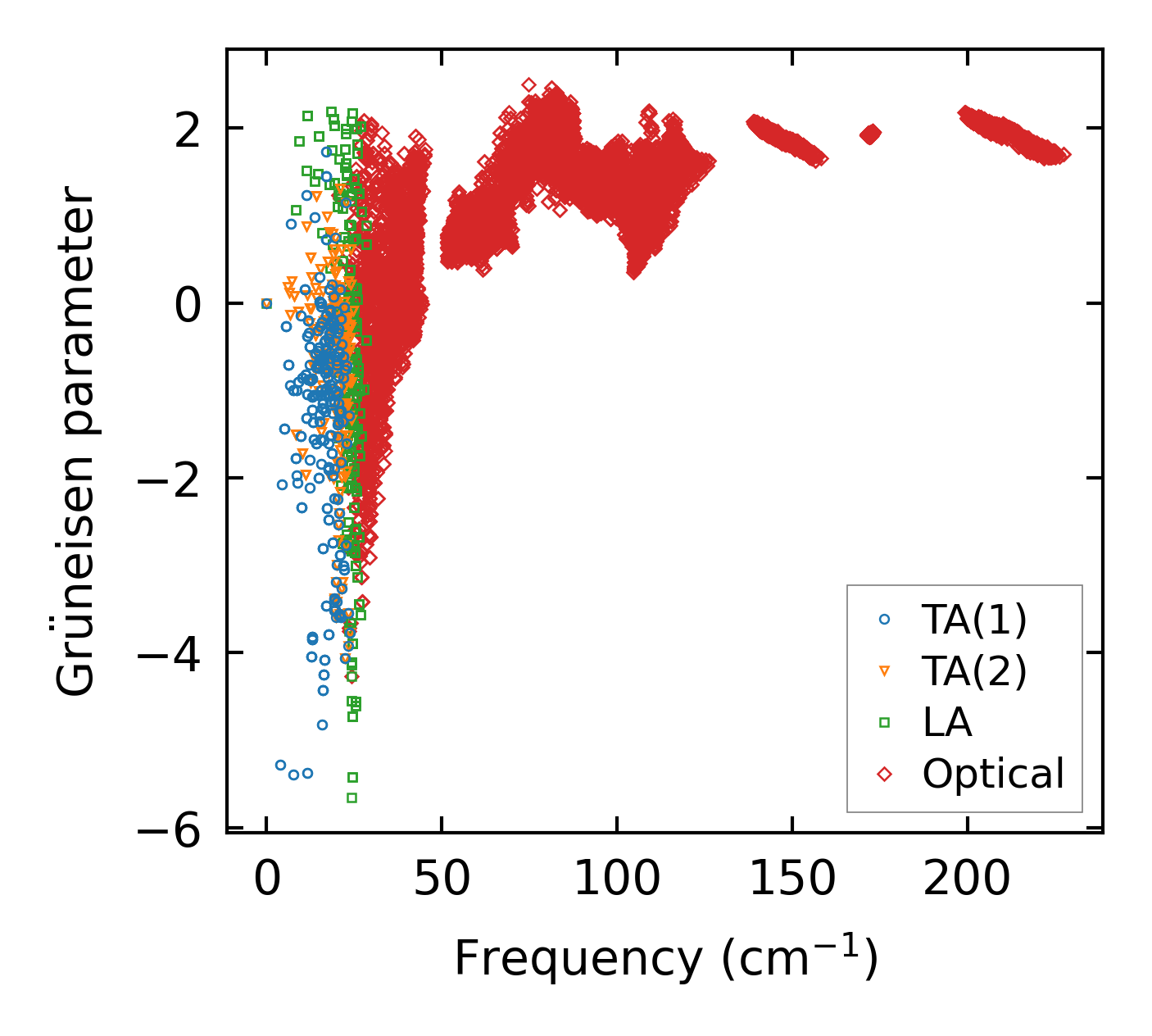

../../_images/fig_gru_all2756.png — (a) Grüneisen parameters

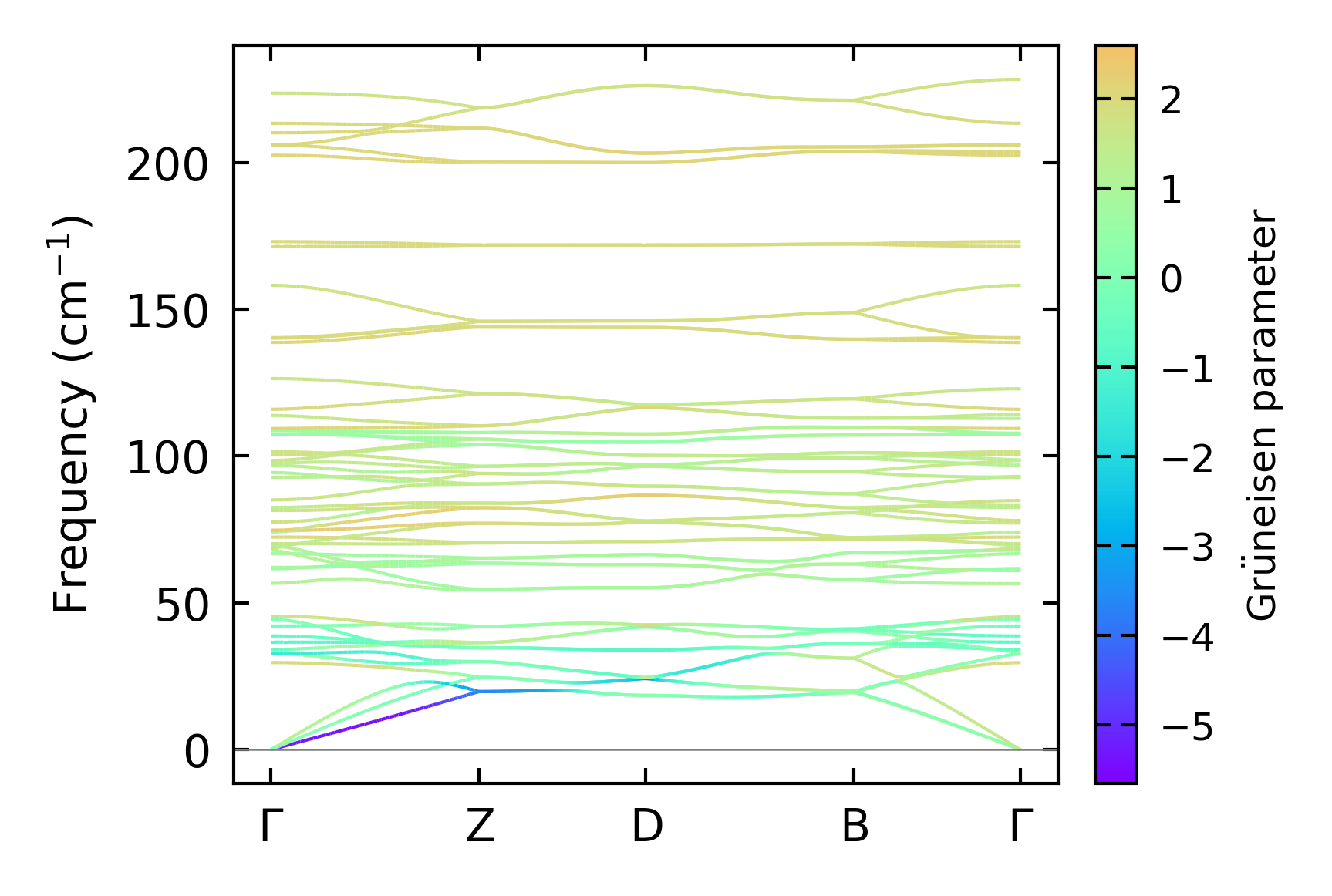

../../_images/fig_gruneisen2756.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x6, supercell: 2x2x2

../../_images/fig_kappa5238.png — (a) Temperature-dependent lattice thermal conductivity

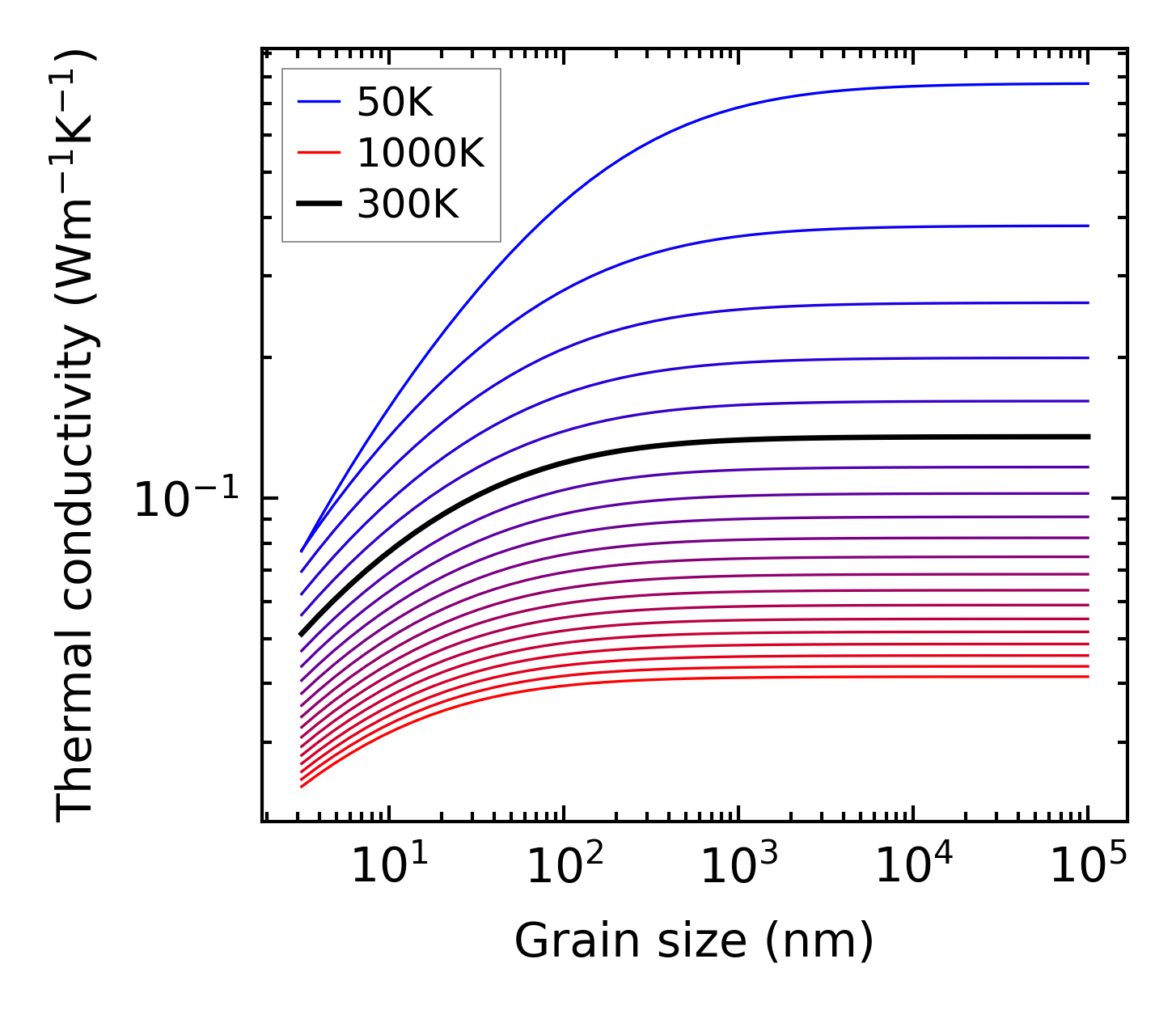

../../_images/fig_kappa_vs_grain_size2797.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime2732.png — (a) Phonon lifetime due to phonon-phonon scattering

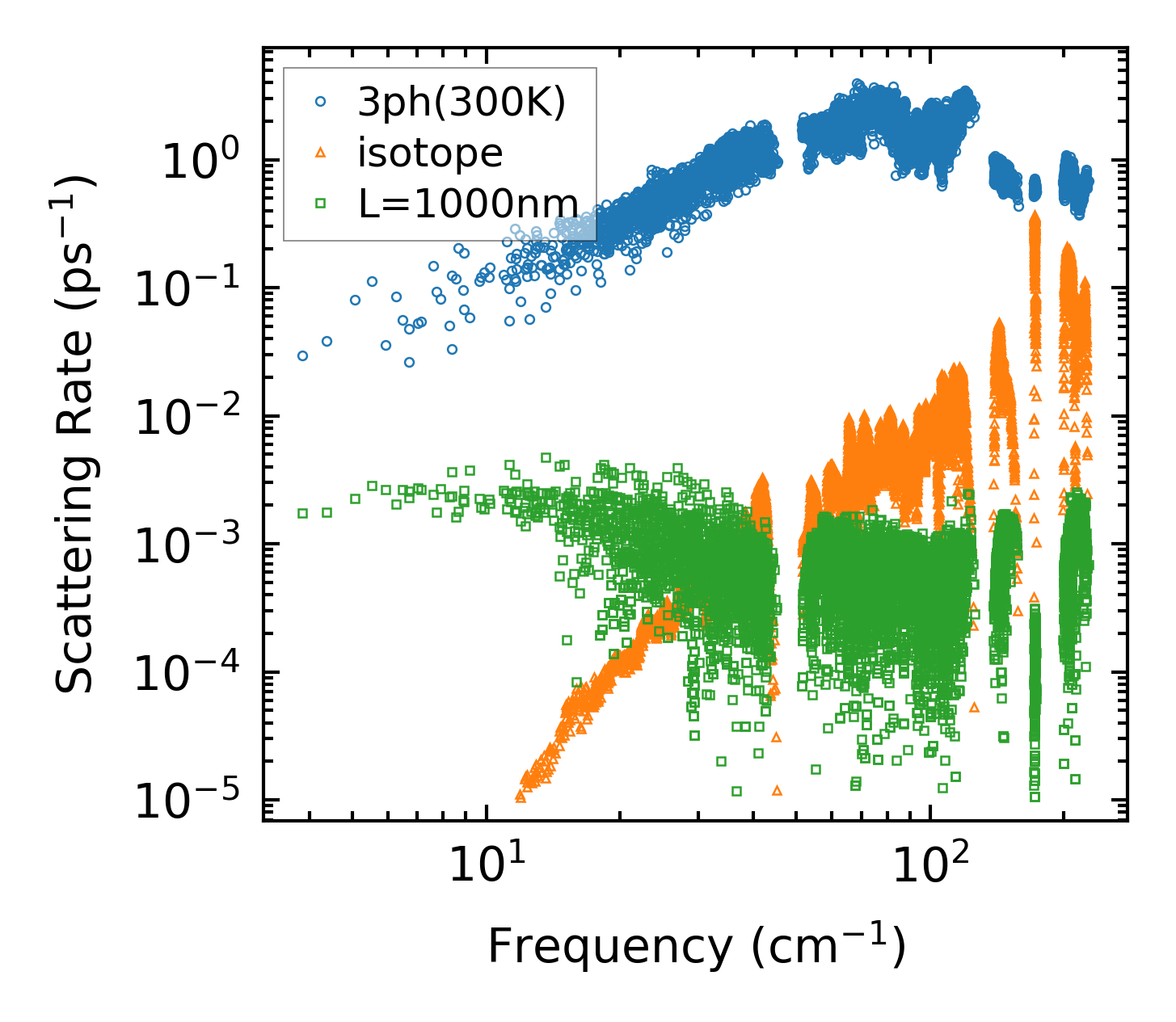

../../_images/fig_scat_rates2731.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency2732.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp2731.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

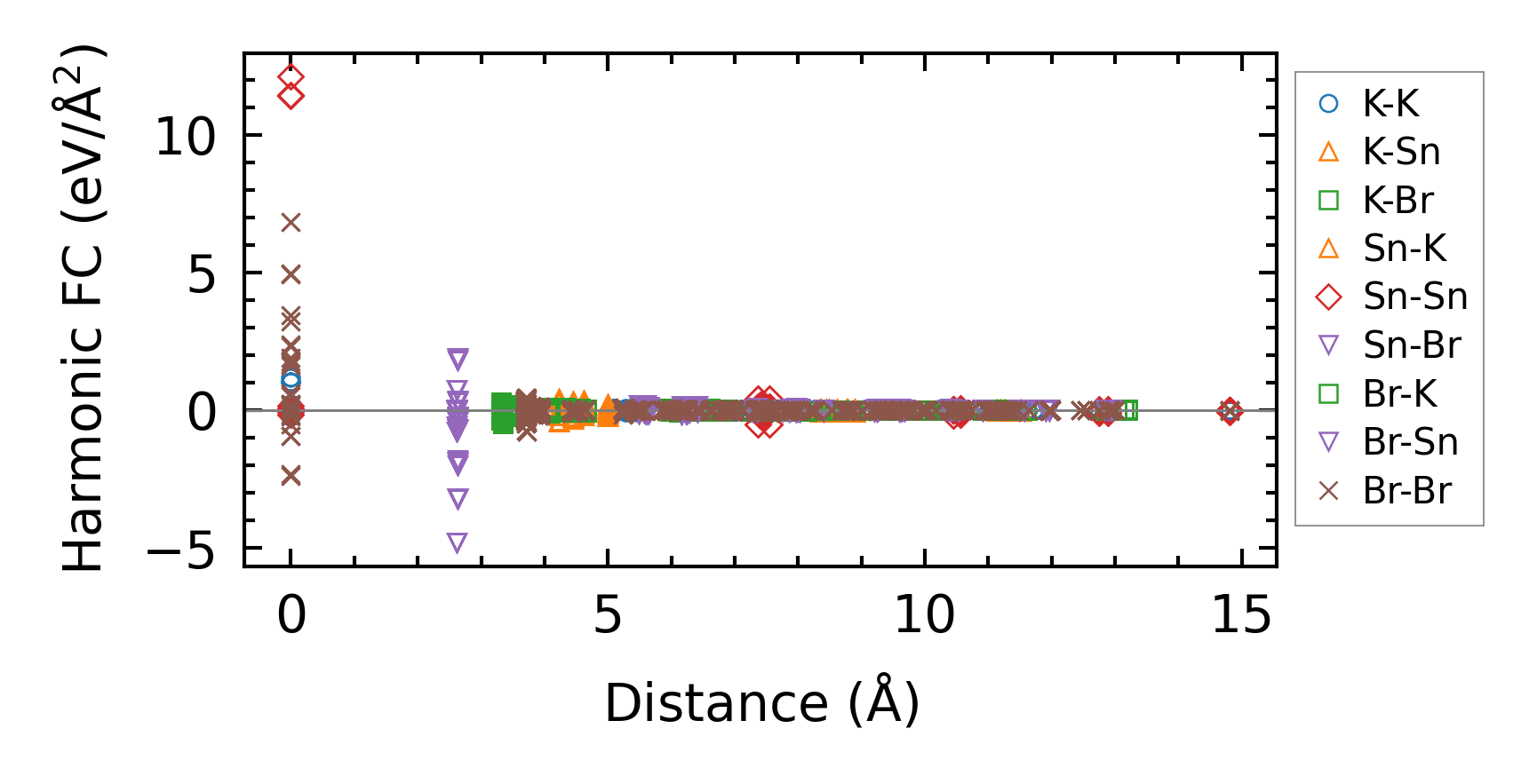

../../_images/fig_fc26517.png — (a) Force constants w.r.t atomic distance

Summary

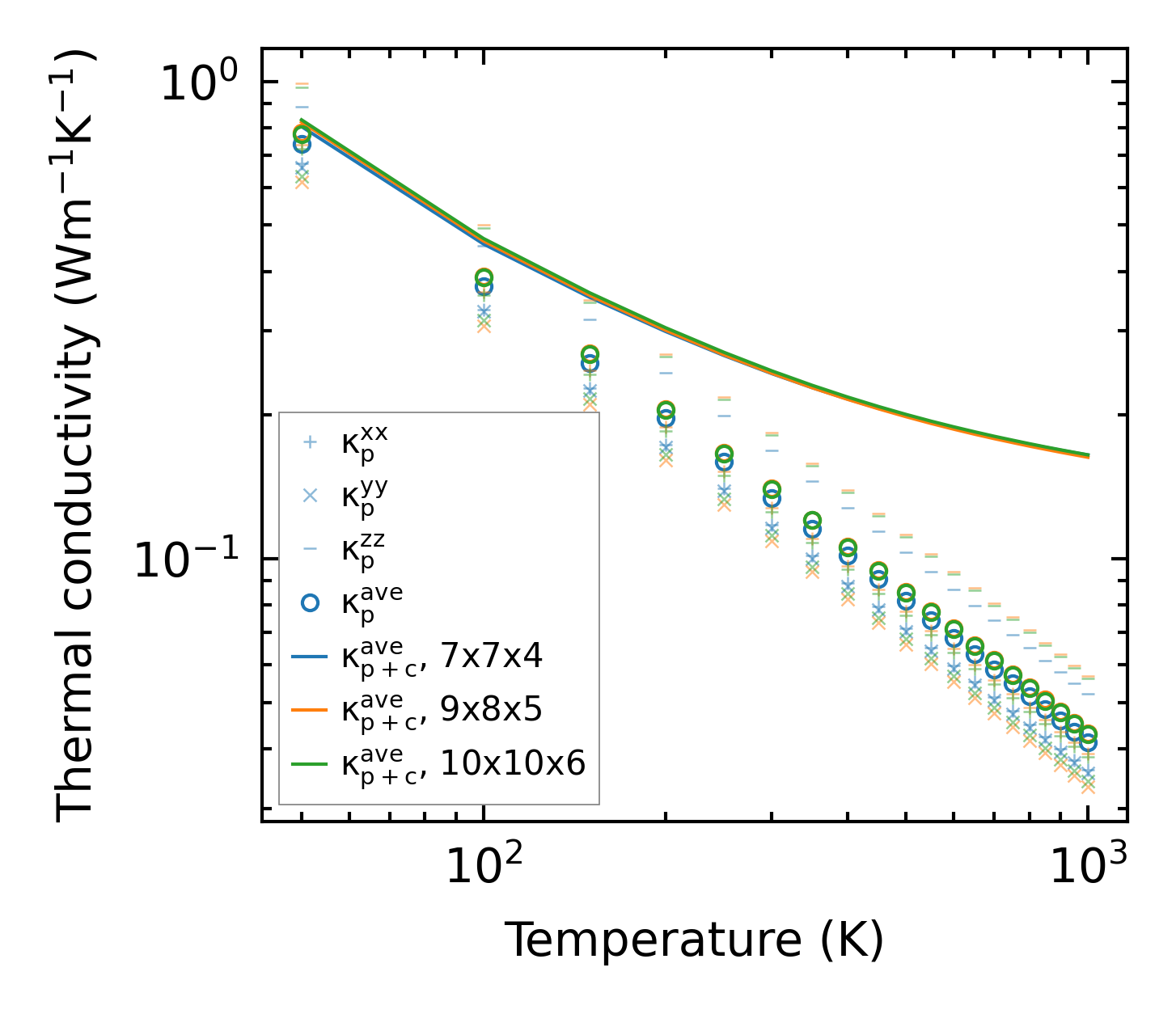

../../_images/fig_kappa5239.png — (a) Temperature-dependent lattice thermal conductivity

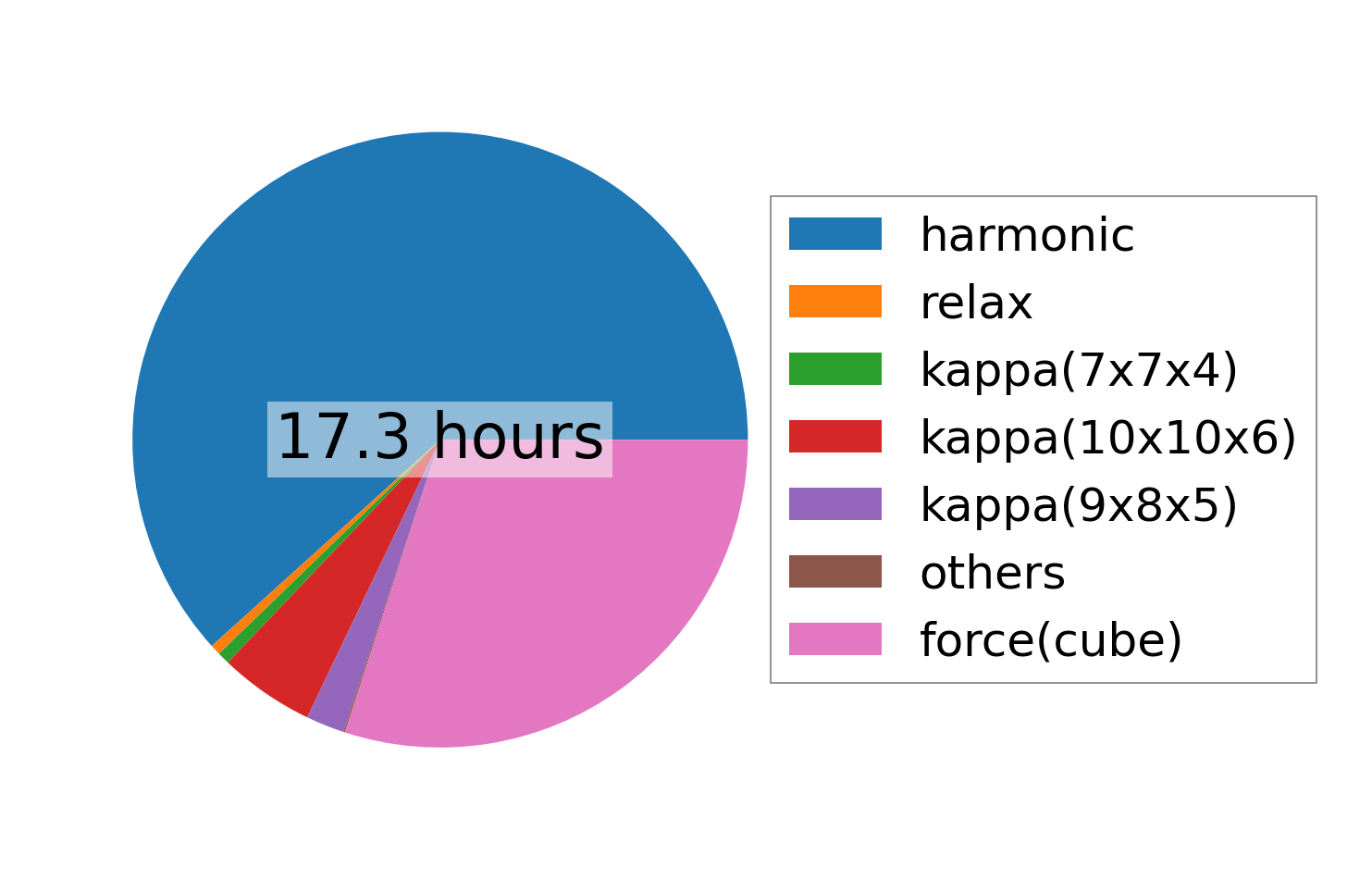

../../_images/fig_times12083.png — (b) Computation time
