mp-573815/ReI3/anharm

Space group: P2_1/m (11)
Link: Materials Project
Download: mp-573815.tar.gz

Harmonic properties

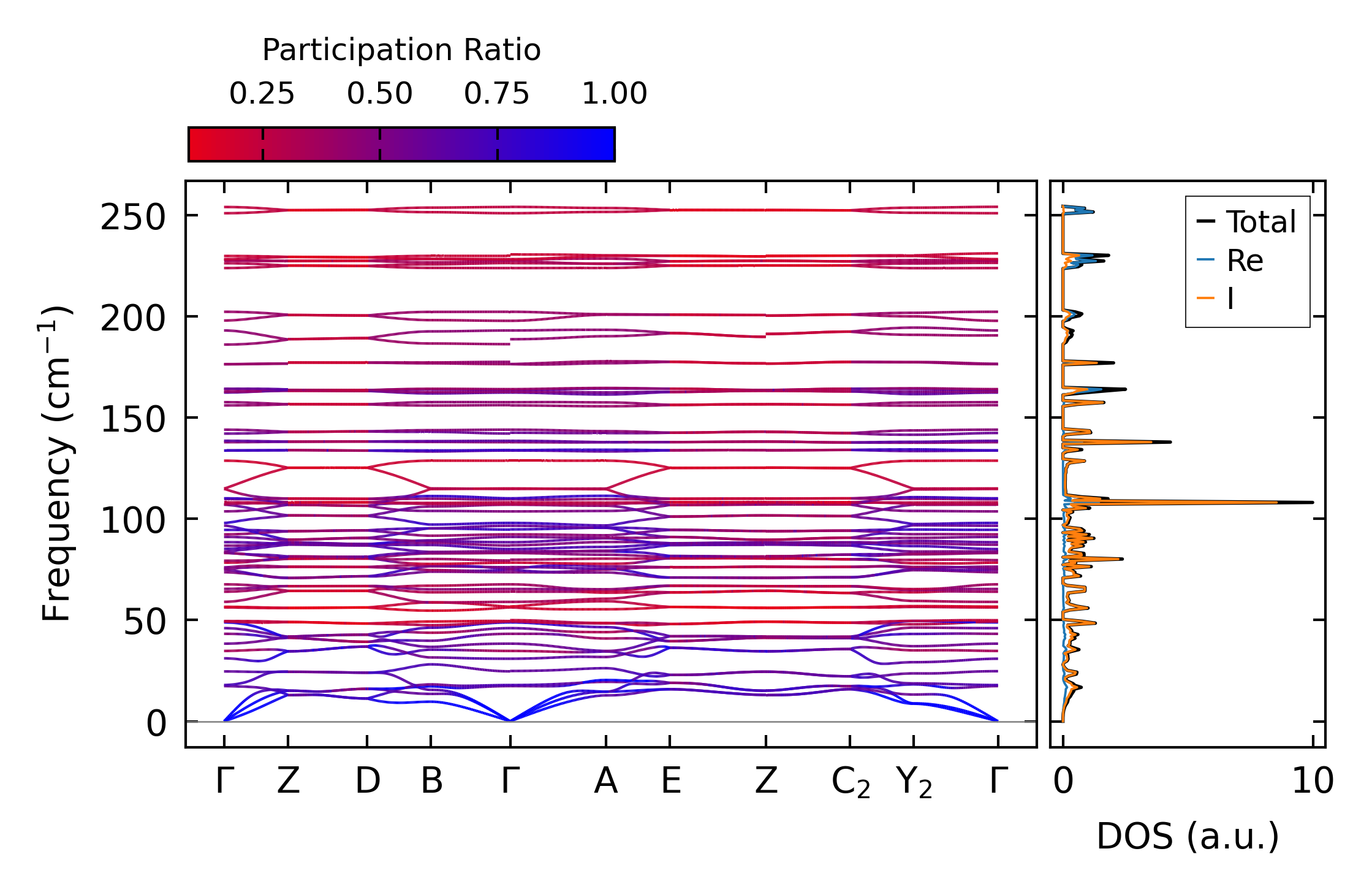

../../_images/fig_bandos_pr6724.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo6724.png — (b) Thermodynamic properties

Grüneisen parameters

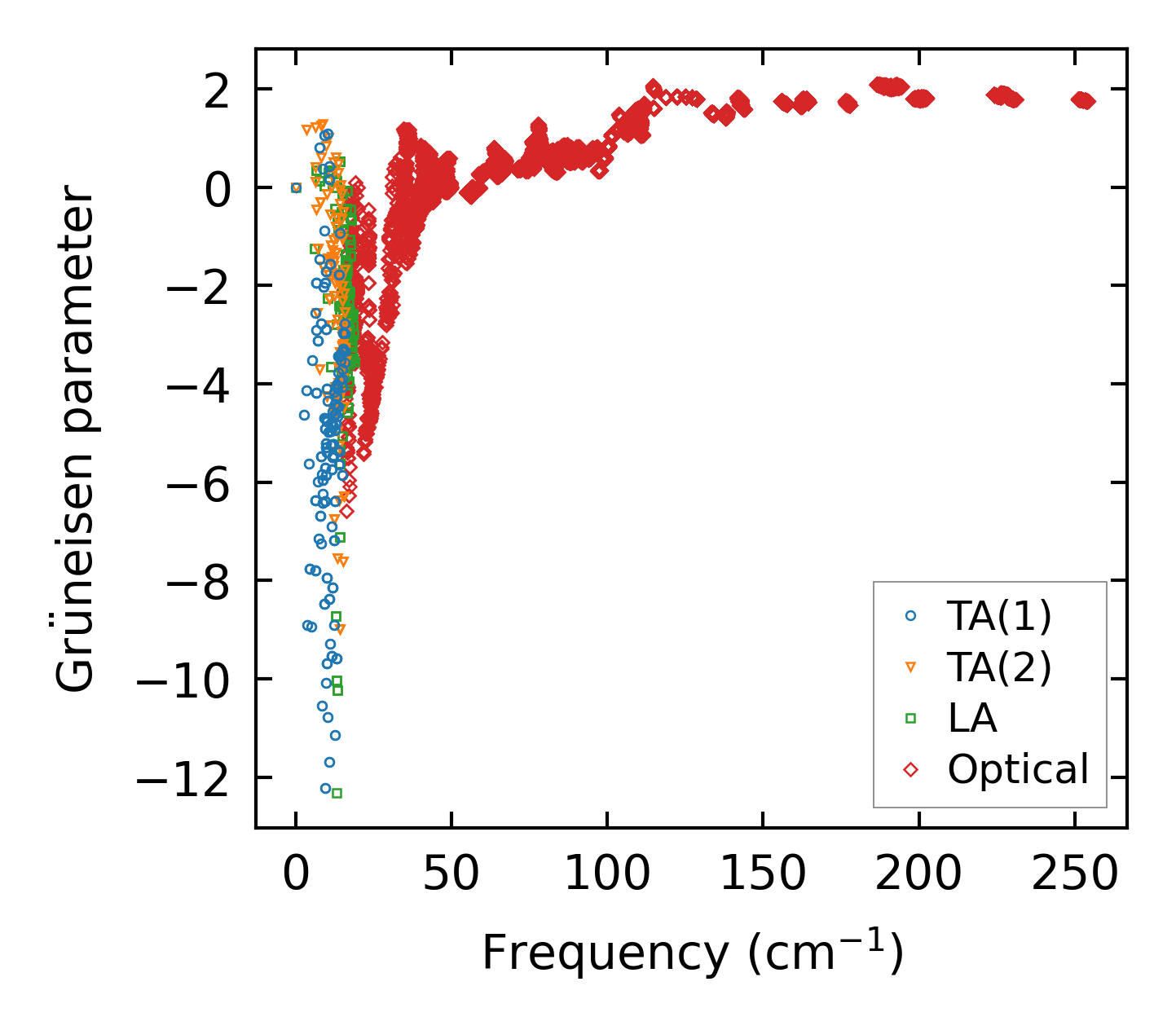

../../_images/fig_gru_all2754.png — (a) Grüneisen parameters

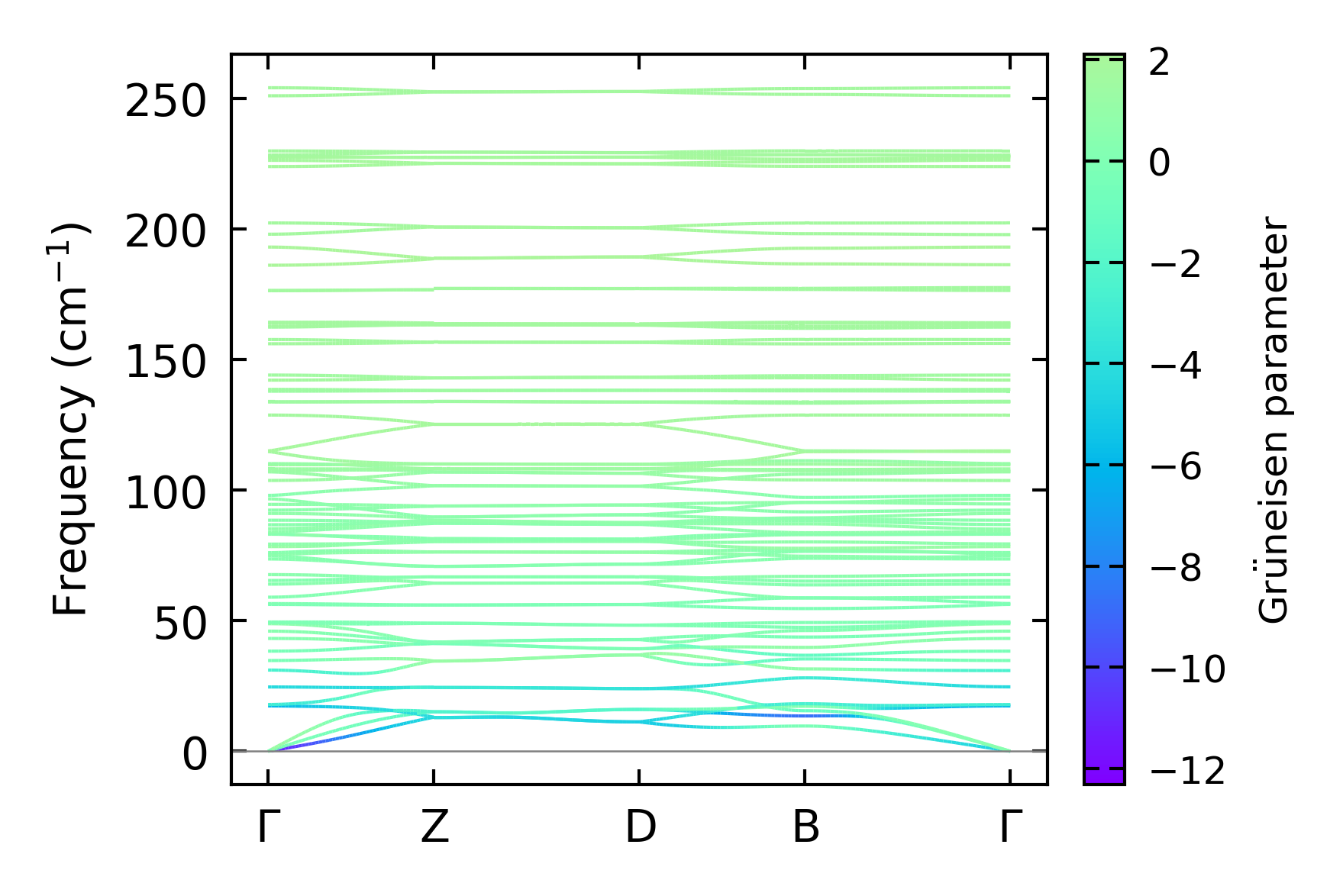

../../_images/fig_gruneisen2754.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x6x7, supercell: 2x1x2

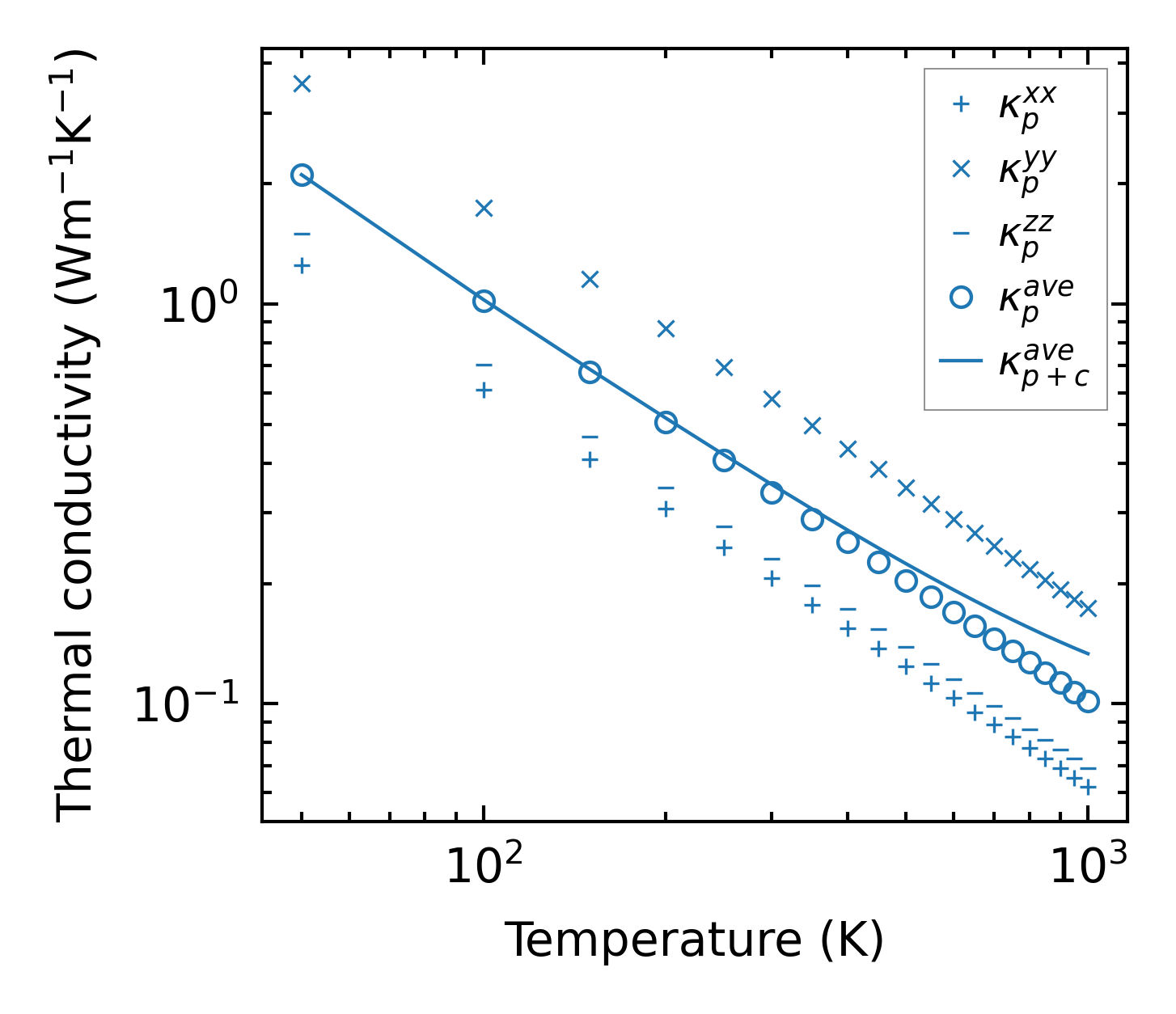

../../_images/fig_kappa5235.png — (a) Temperature-dependent lattice thermal conductivity

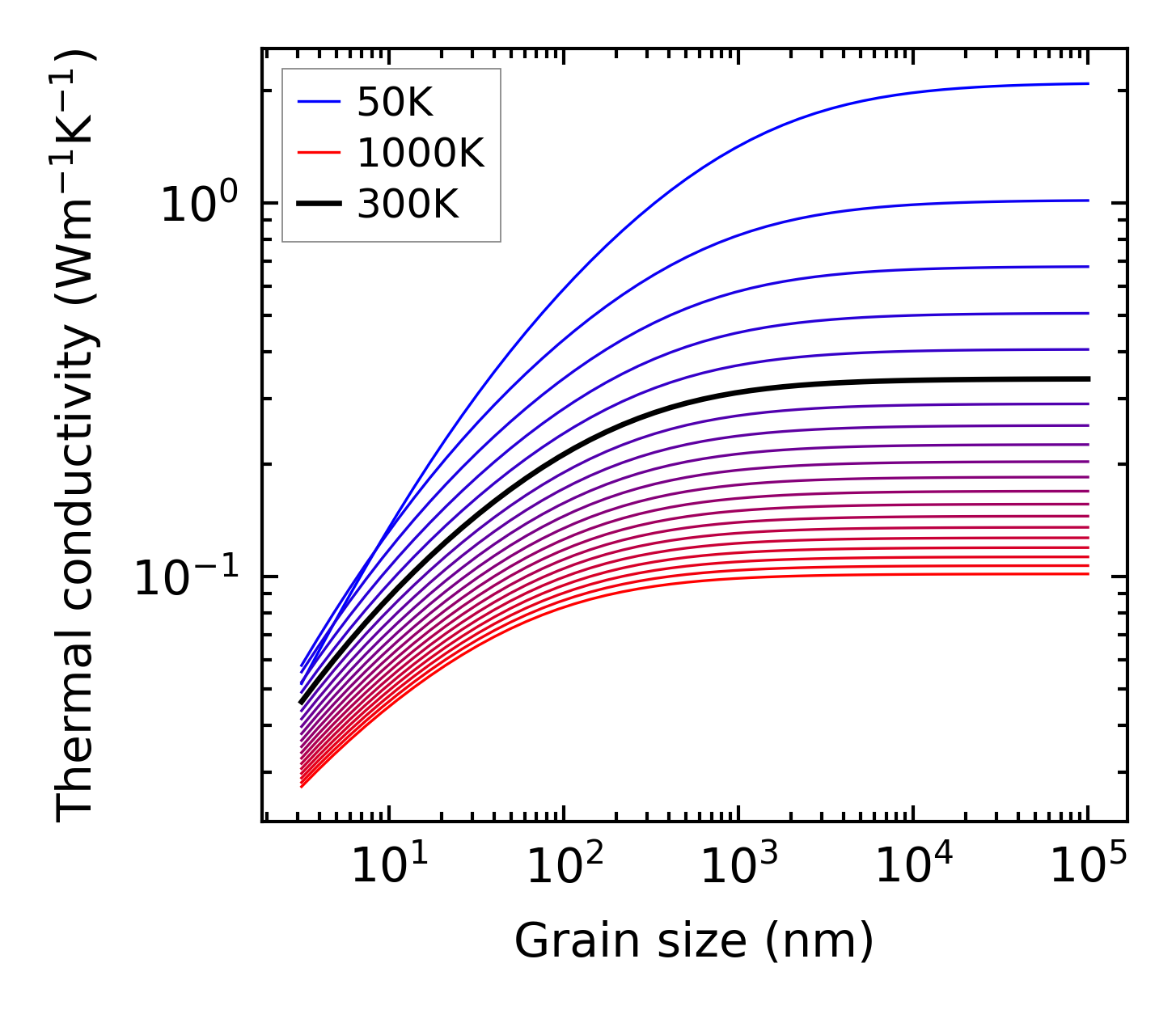

../../_images/fig_kappa_vs_grain_size2795.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

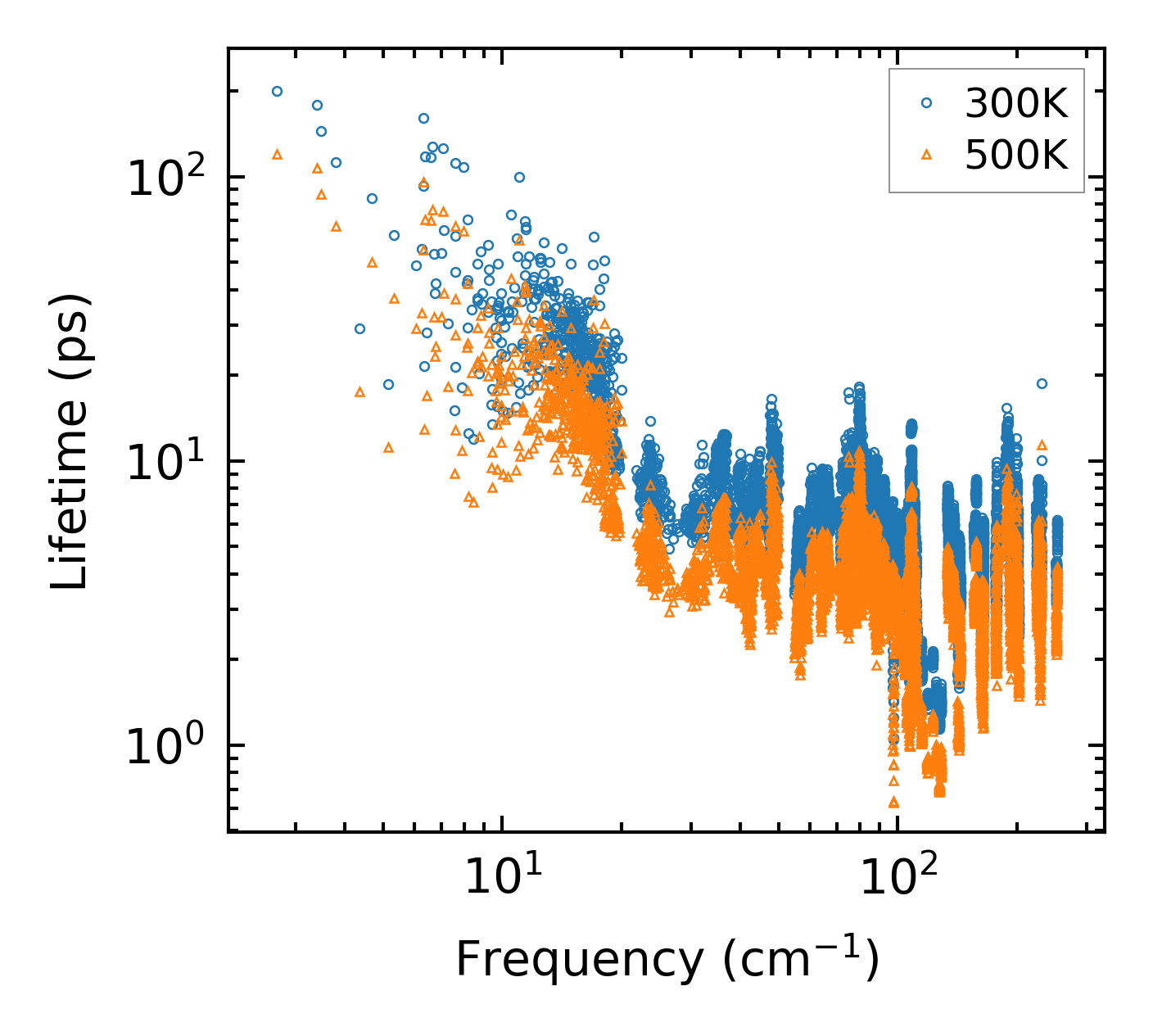

../../_images/fig_lifetime2730.png — (a) Phonon lifetime due to phonon-phonon scattering

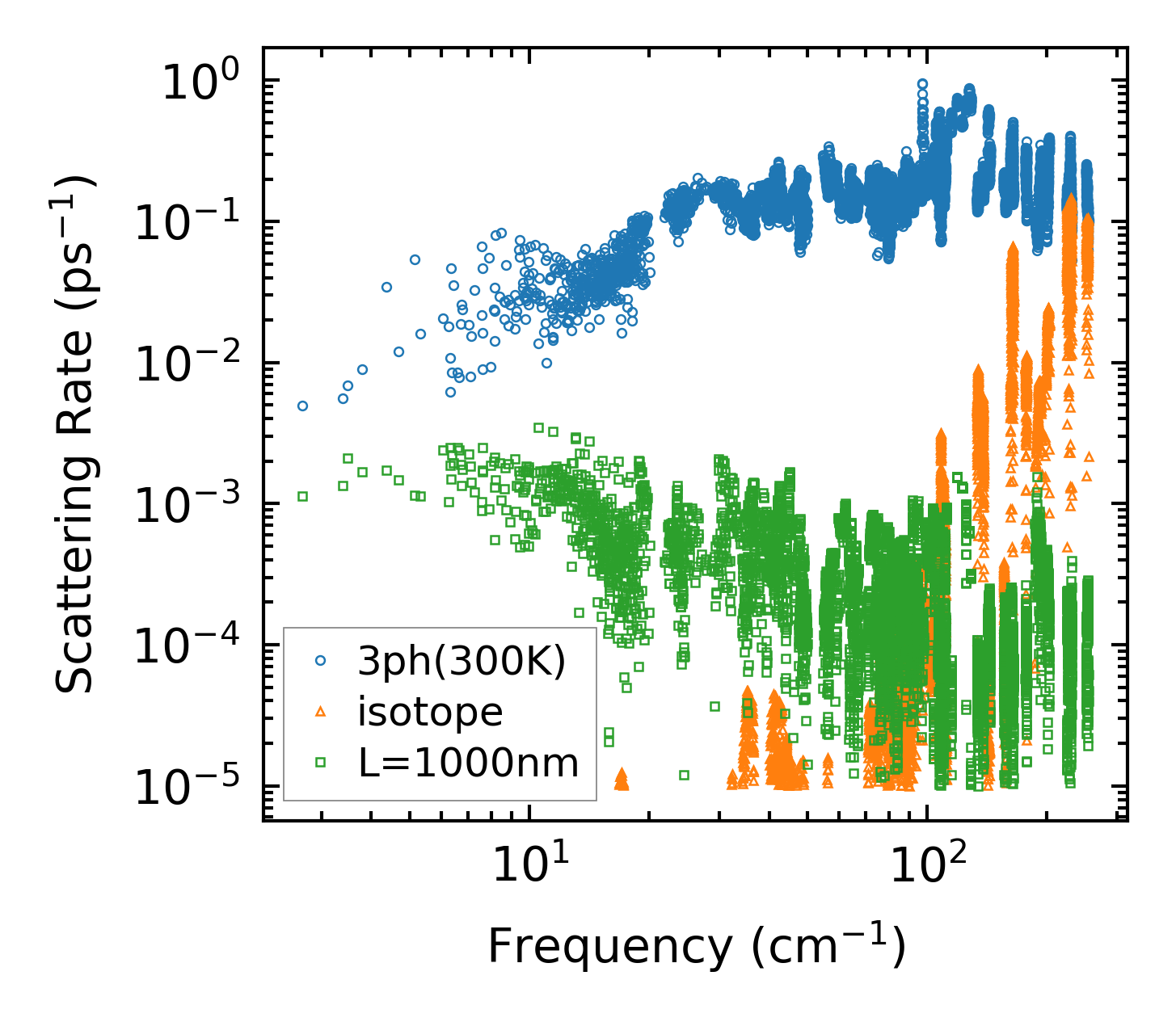

../../_images/fig_scat_rates2729.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

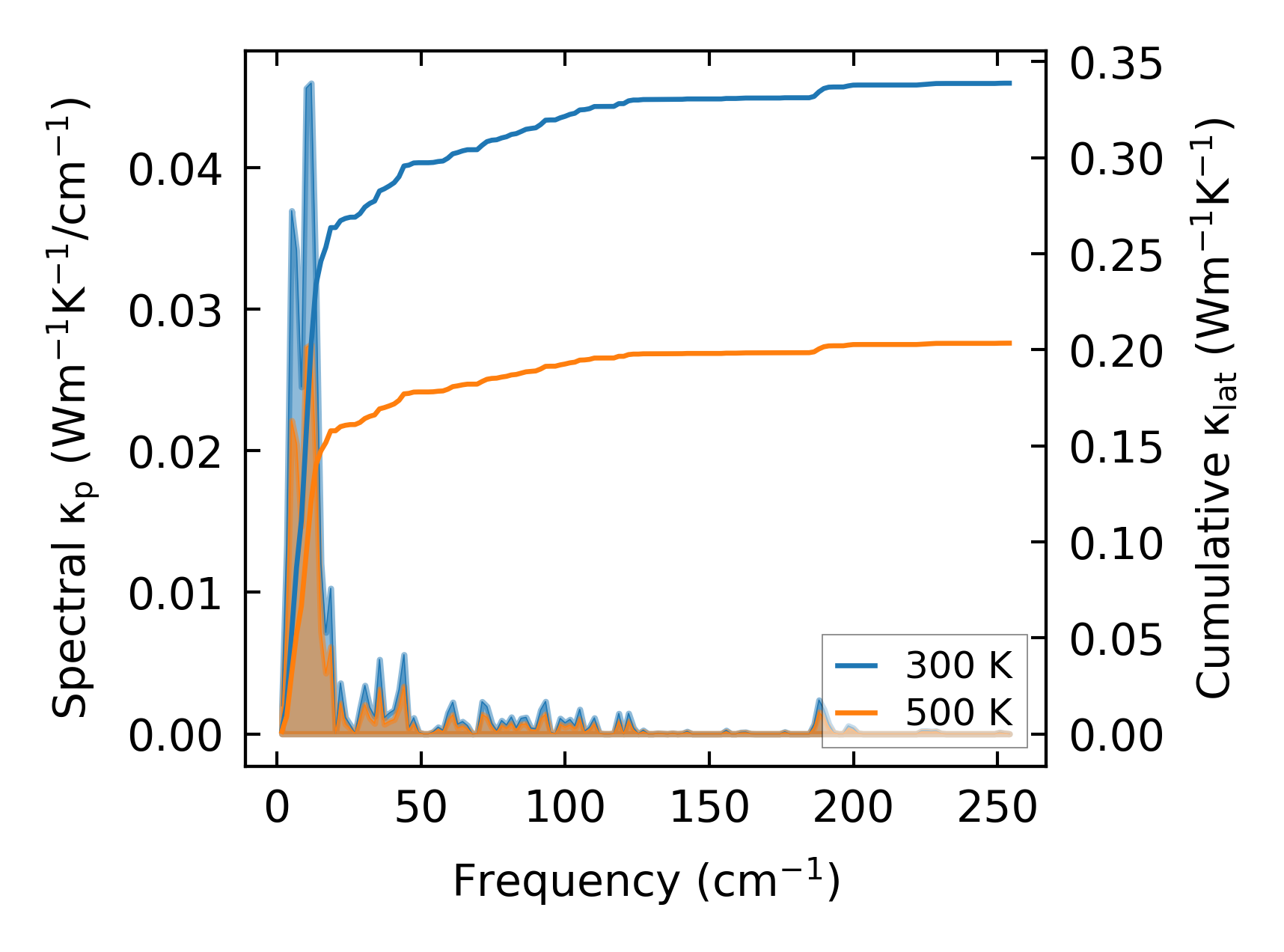

../../_images/fig_cumu_frequency2730.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

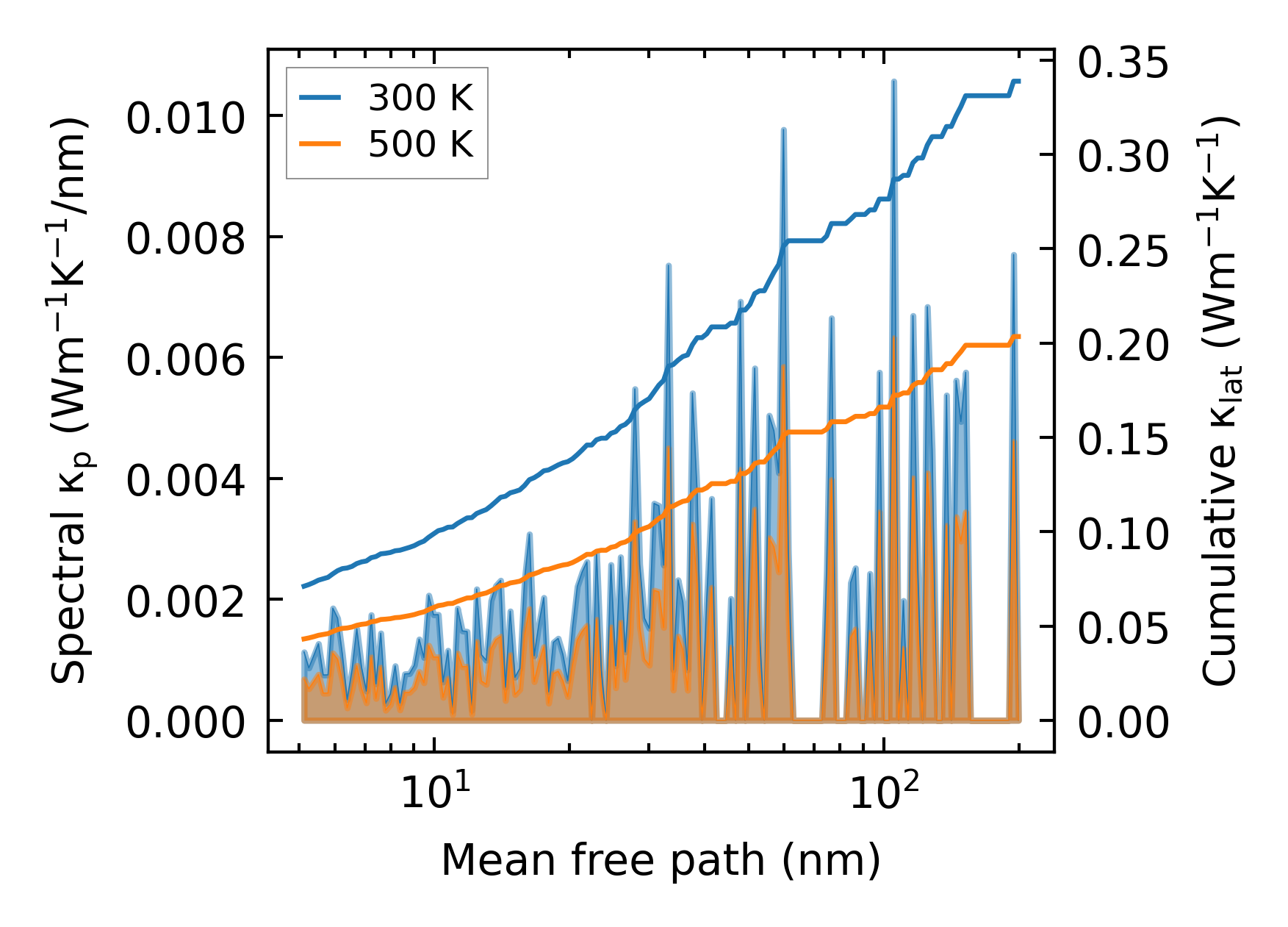

../../_images/fig_cumu_mfp2729.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

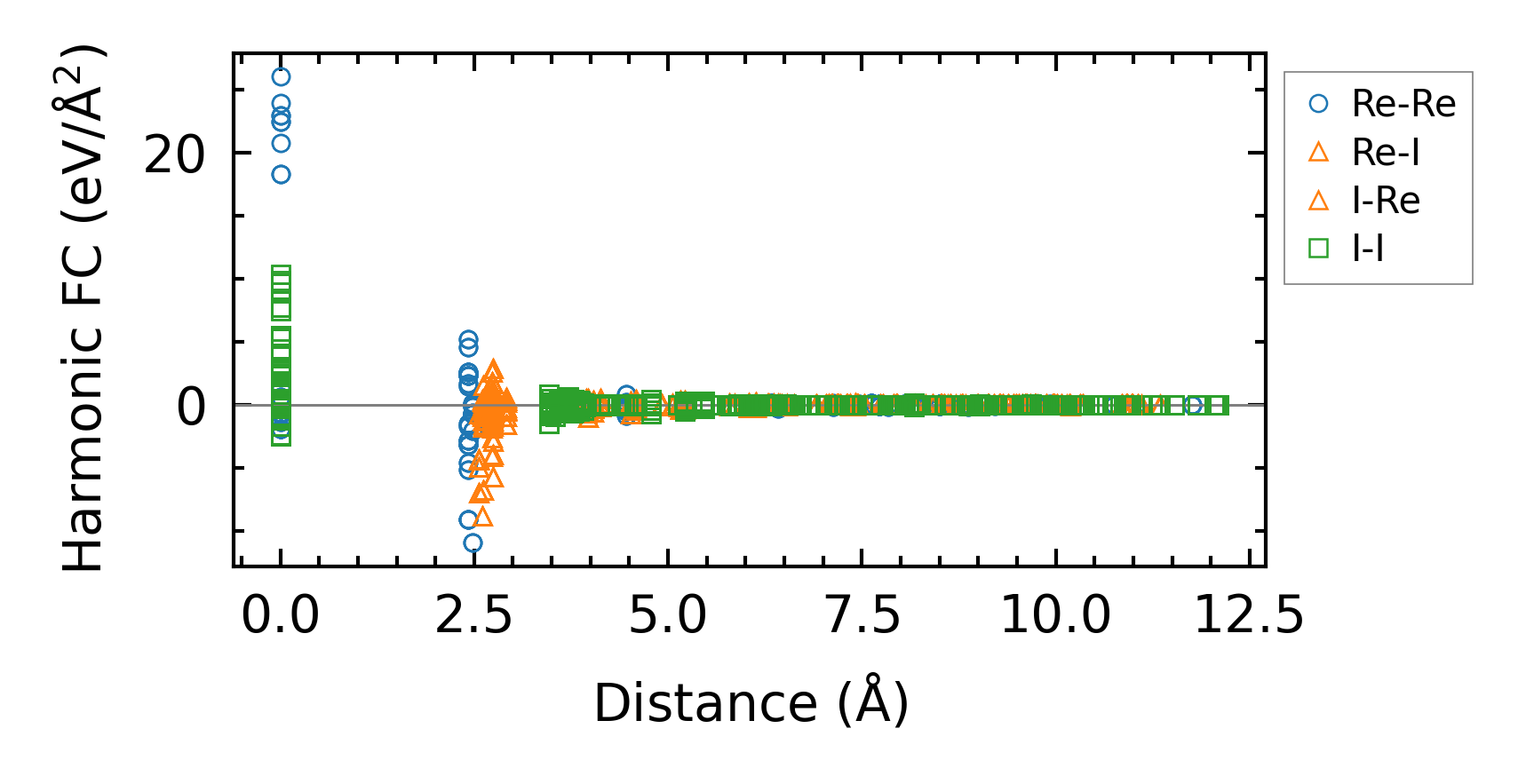

../../_images/fig_fc26513.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa5236.png — (a) Temperature-dependent lattice thermal conductivity

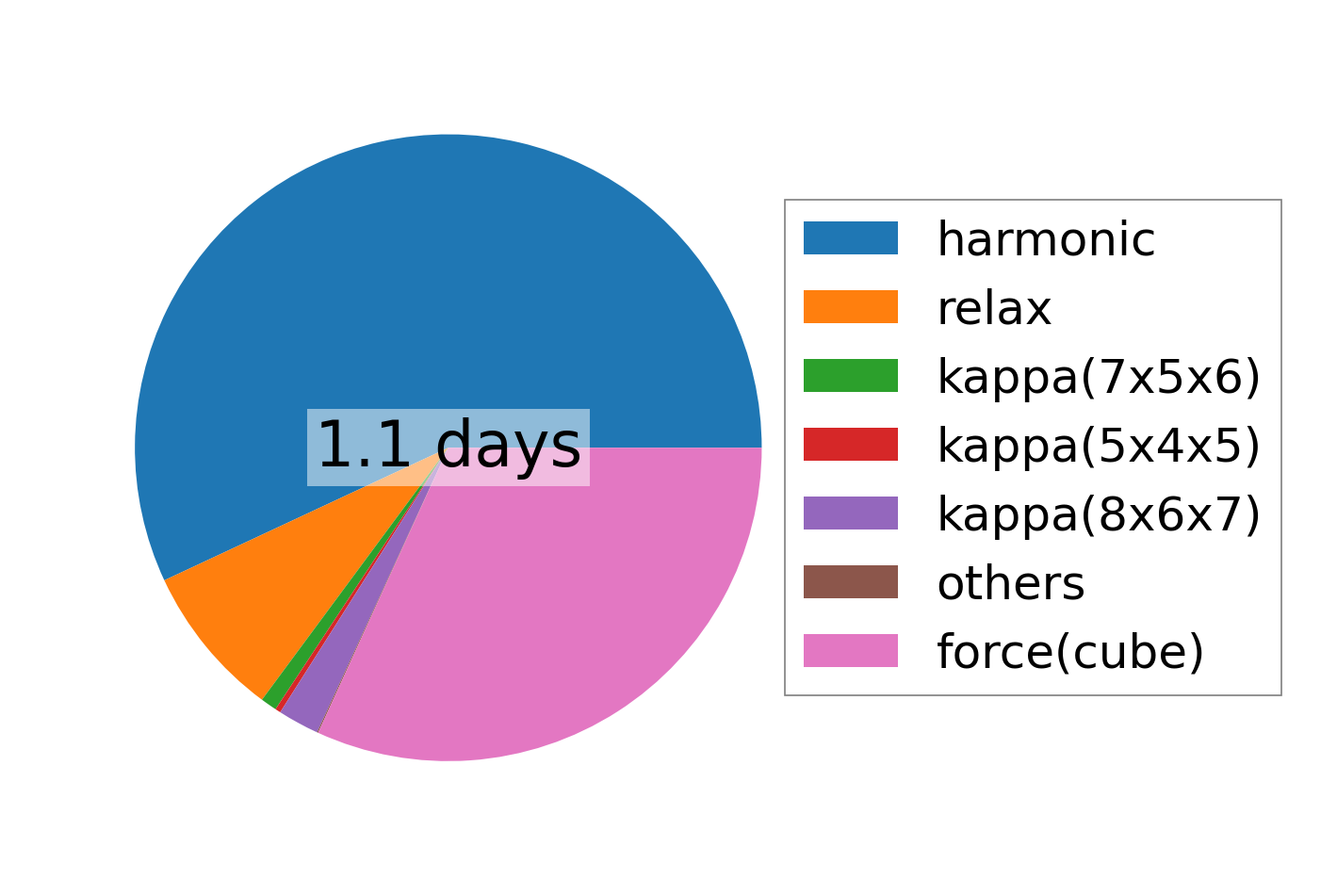

../../_images/fig_times12077.png — (b) Computation time
