mp-1181198/H3CI/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-1181198.tar.gz

Harmonic properties

../../_images/fig_bandos_pr16142.png — (a) Phonon dispersion with participation ratio and DOS

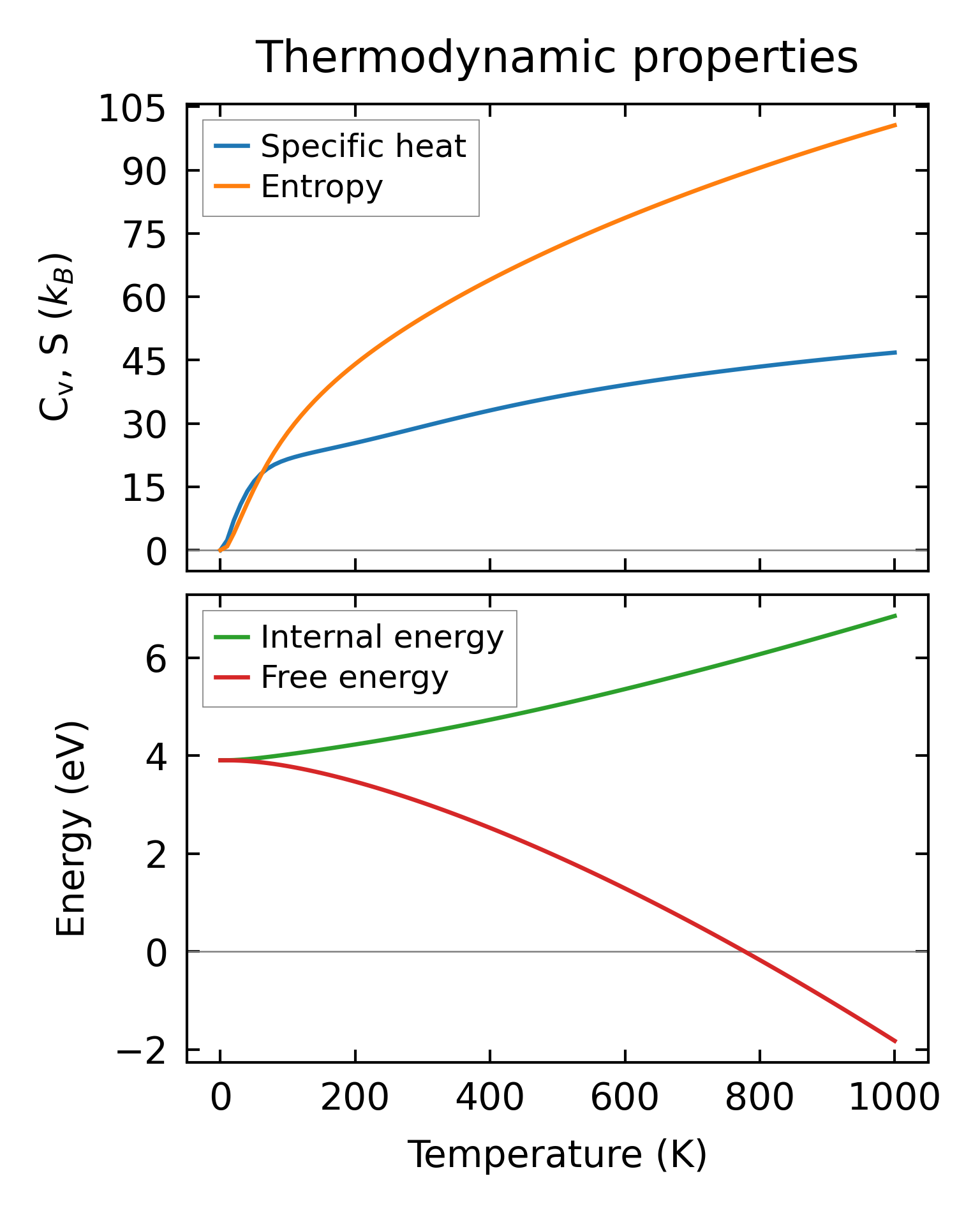

../../_images/fig_thermo16141.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all6998.png — (a) Grüneisen parameters

../../_images/fig_gruneisen6998.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 15x10x7, supercell: 3x2x1

../../_images/fig_kappa13176.png — (a) Temperature-dependent lattice thermal conductivity

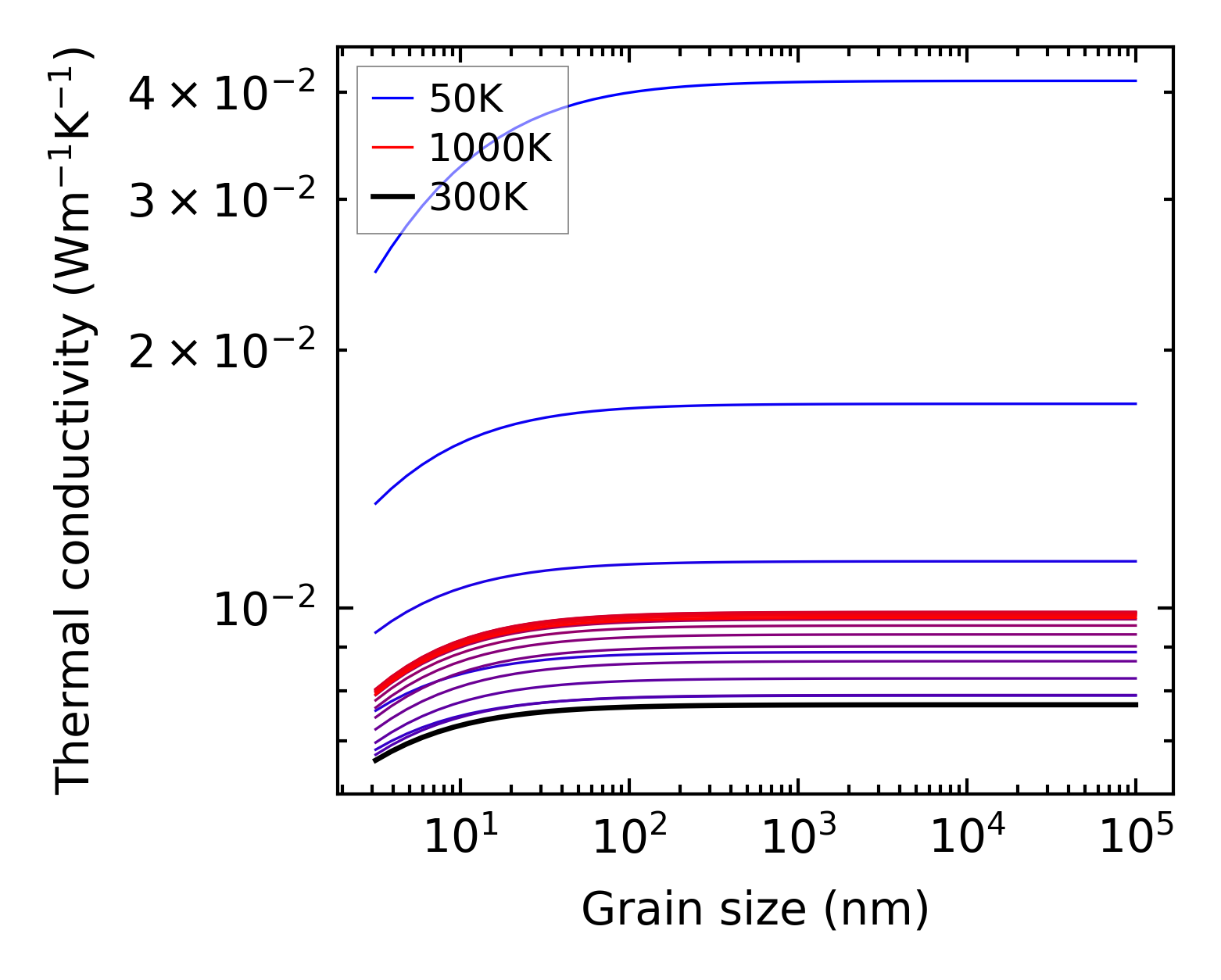

../../_images/fig_kappa_vs_grain_size7080.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

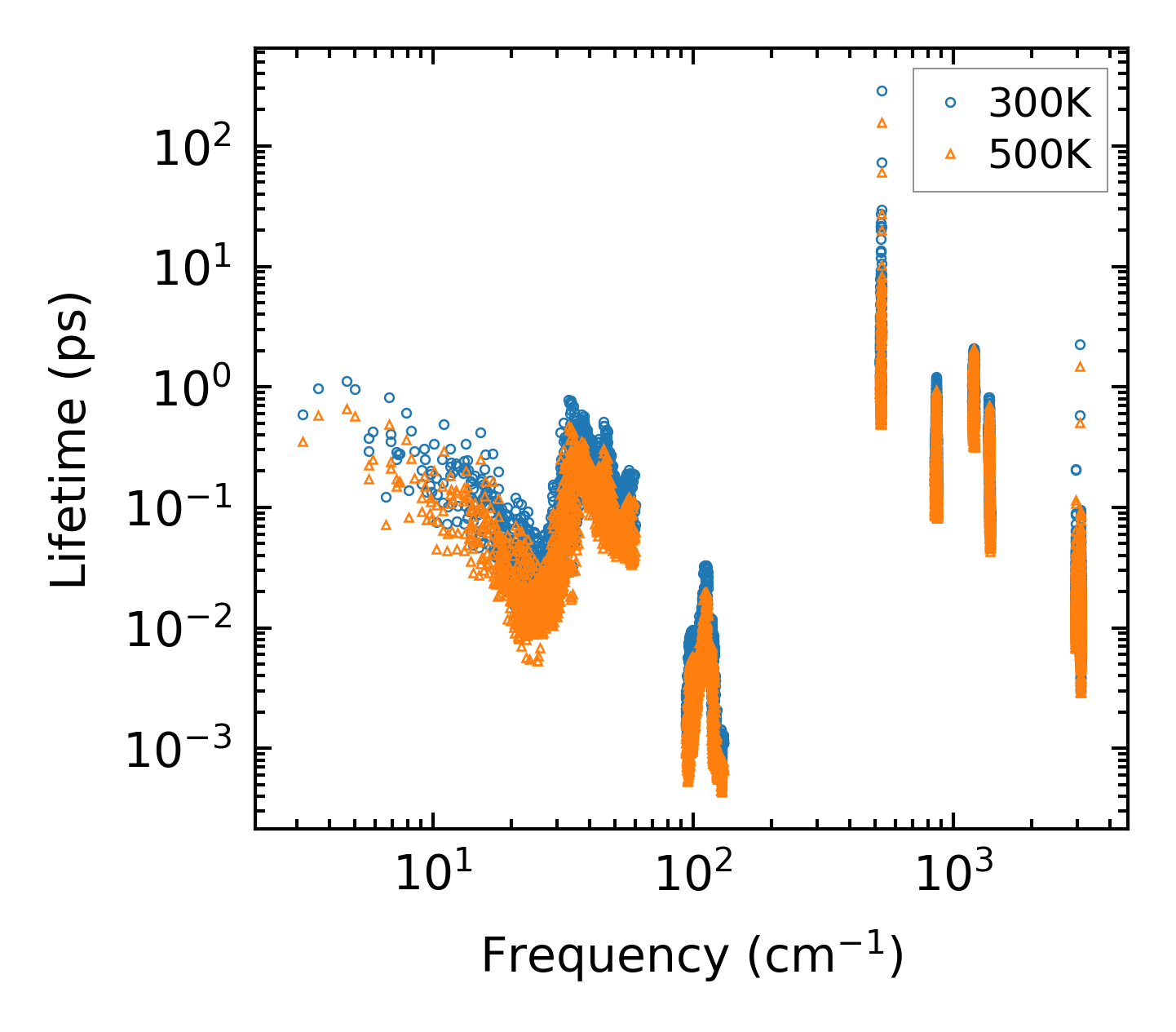

../../_images/fig_lifetime6932.png — (a) Phonon lifetime due to phonon-phonon scattering

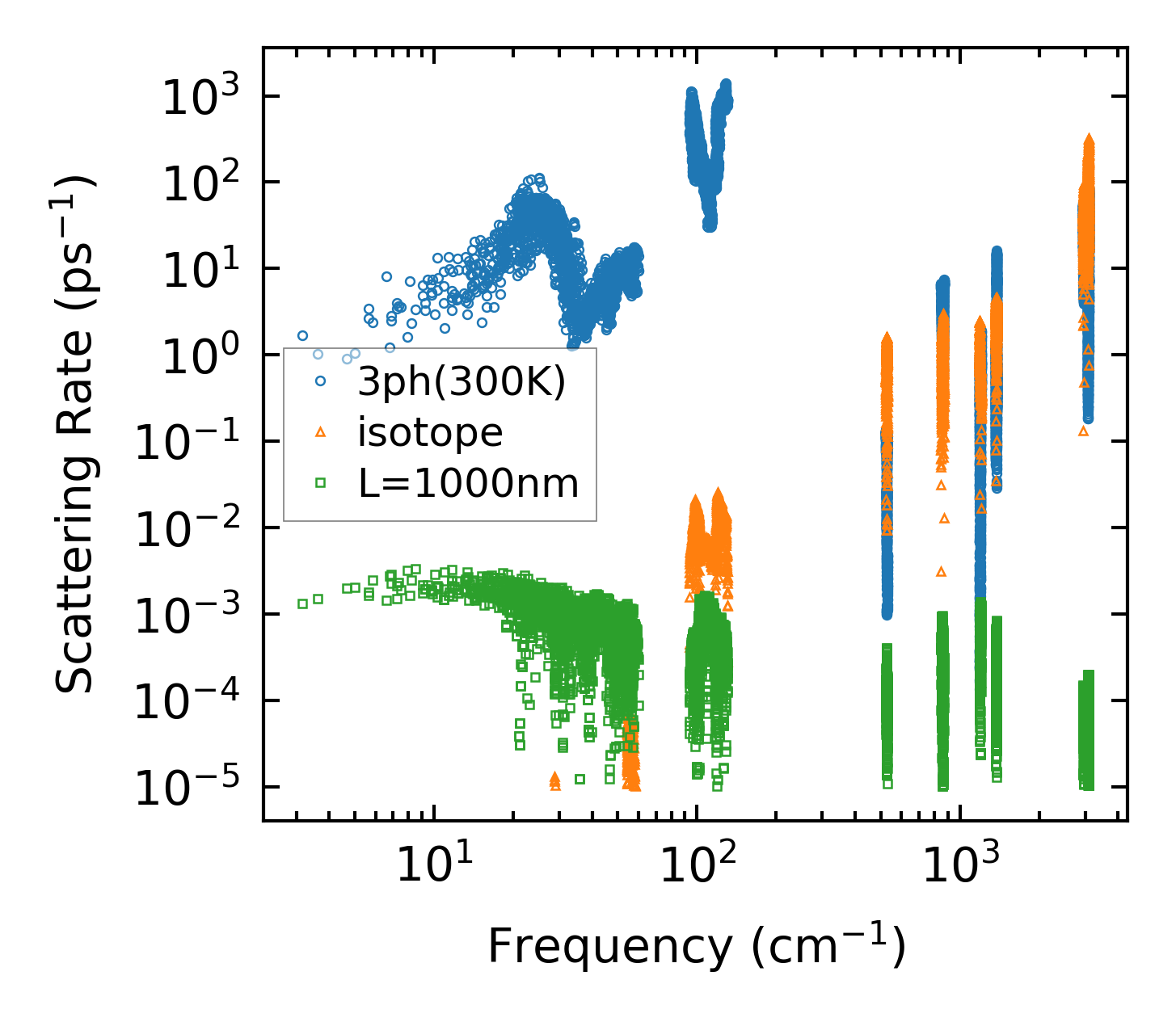

../../_images/fig_scat_rates6931.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

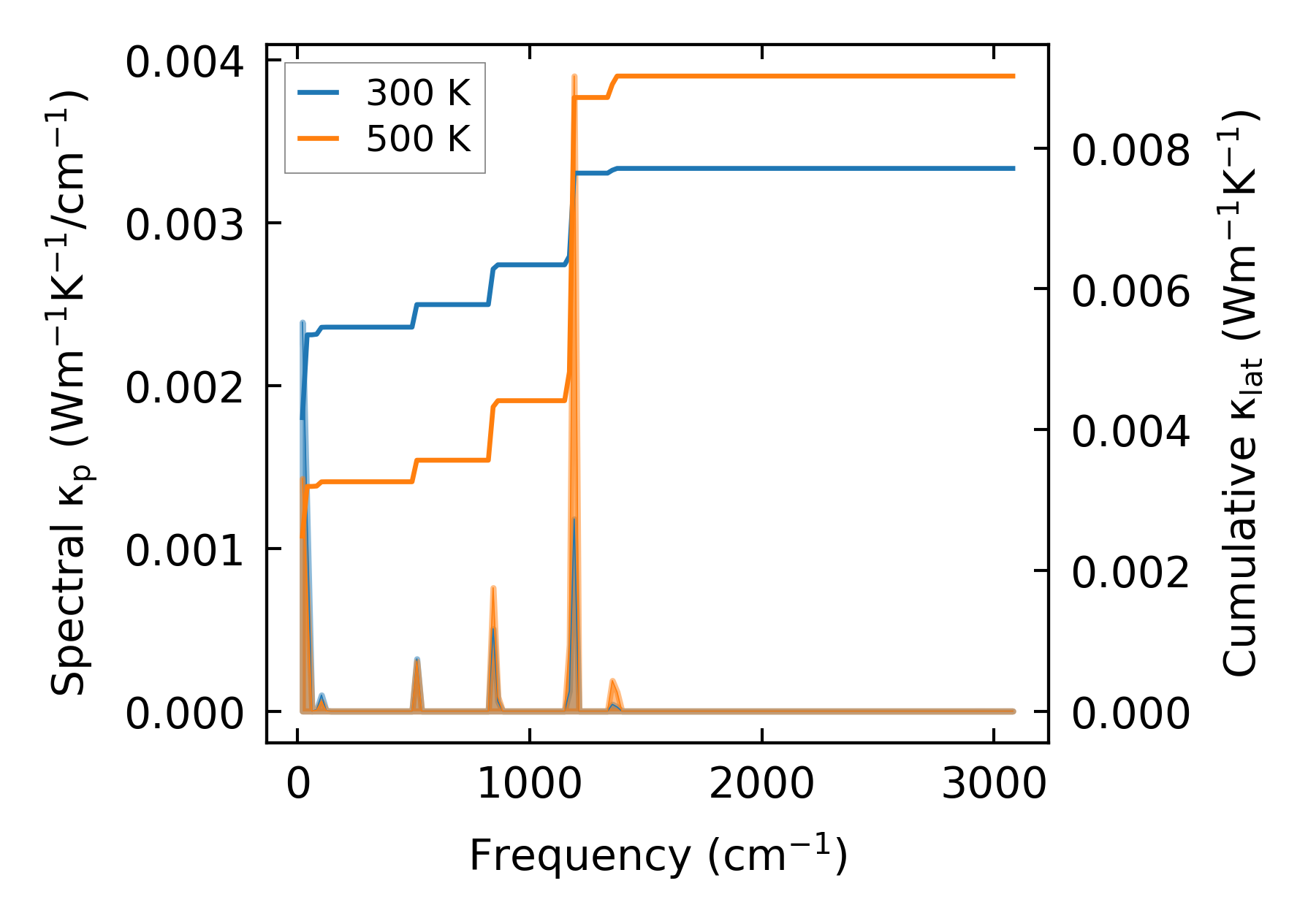

../../_images/fig_cumu_frequency6932.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

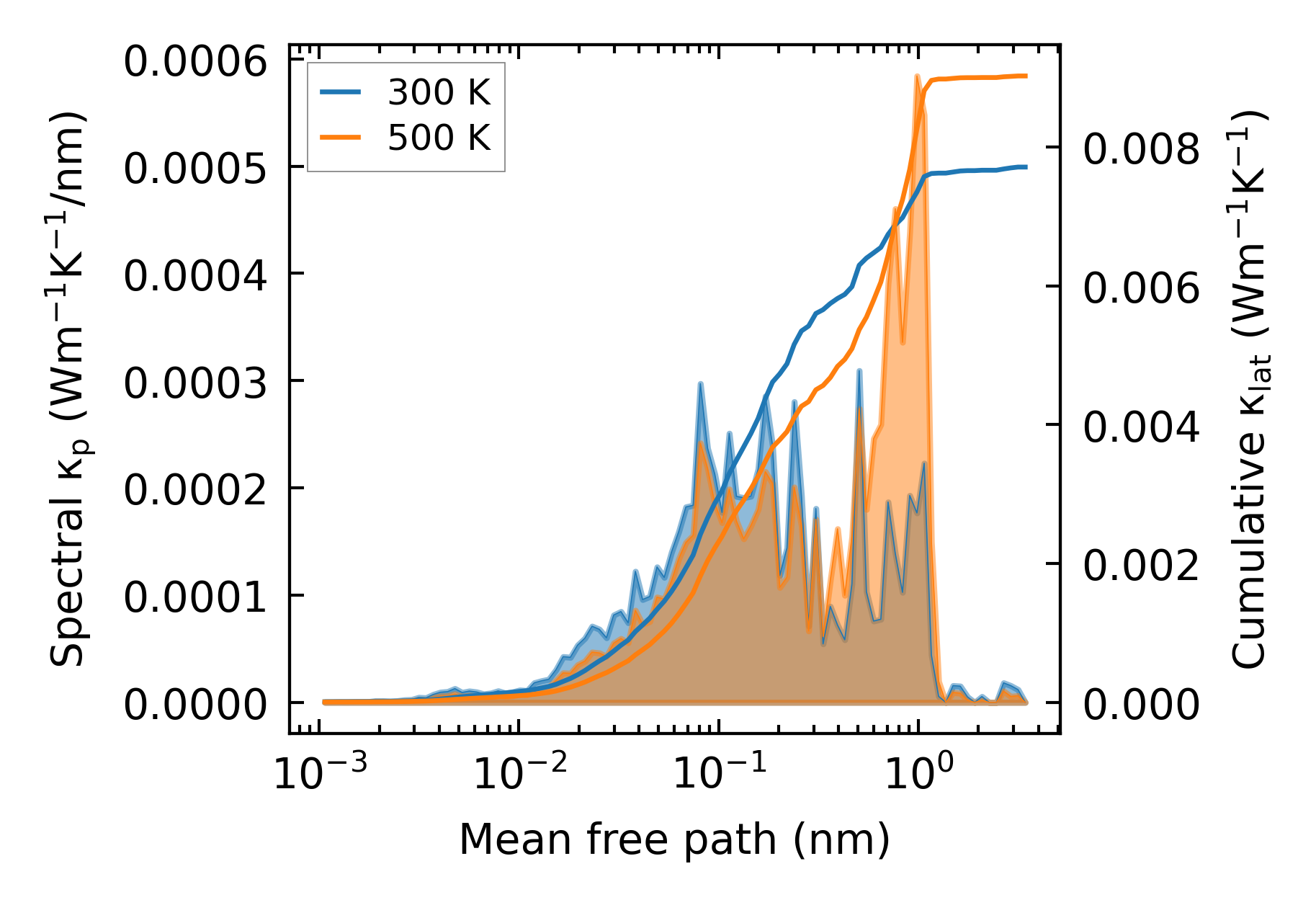

../../_images/fig_cumu_mfp6931.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

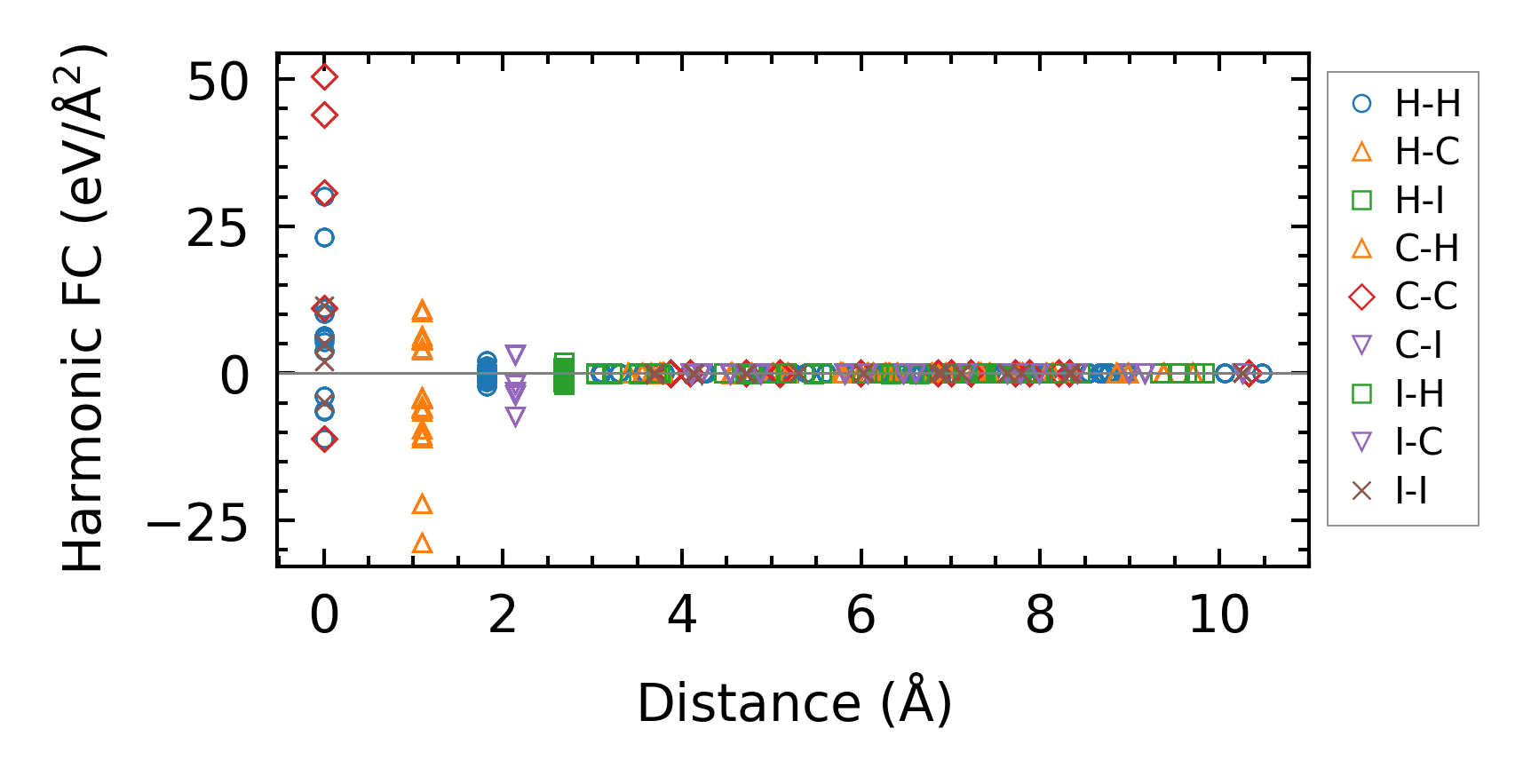

../../_images/fig_fc215737.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa13177.png — (a) Temperature-dependent lattice thermal conductivity

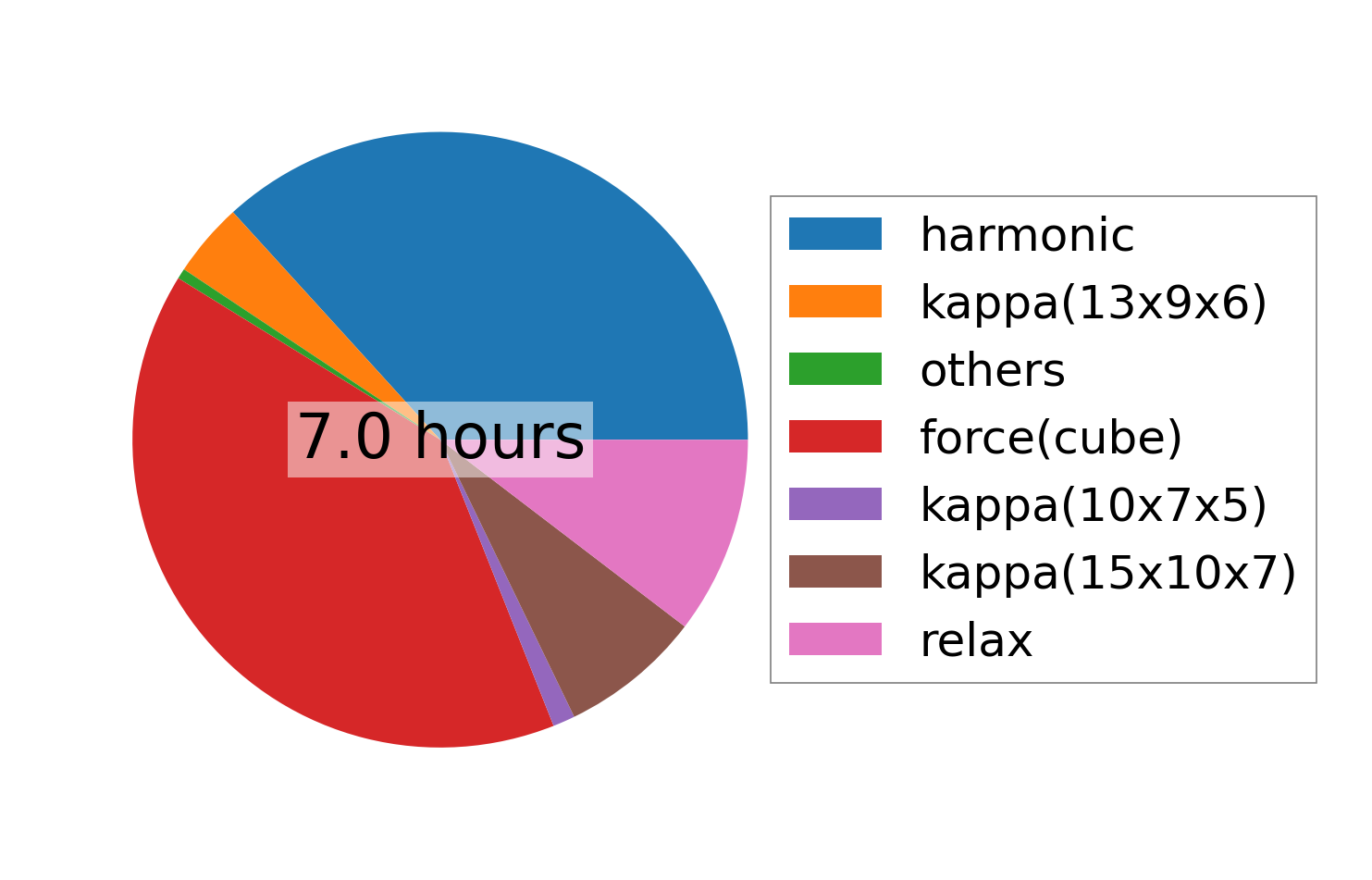

../../_images/fig_times26545.png — (b) Computation time
