mp-1106254/LaLu3S6/anharm

Space group: P2_1/m (11)
Link: Materials Project
Download: mp-1106254.tar.gz

Harmonic properties

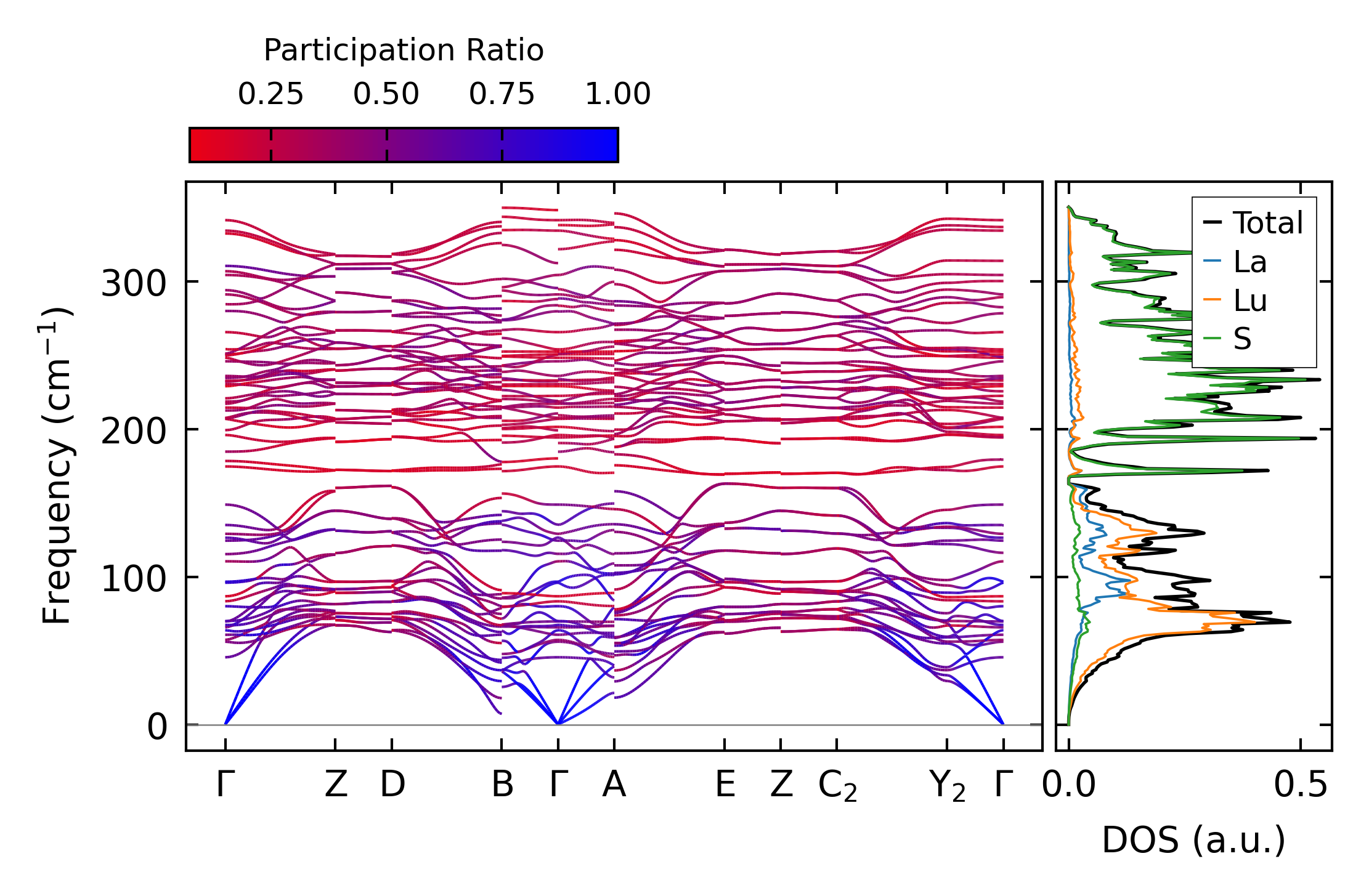

../../_images/fig_bandos_pr16263.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo16262.png — (b) Thermodynamic properties

Grüneisen parameters

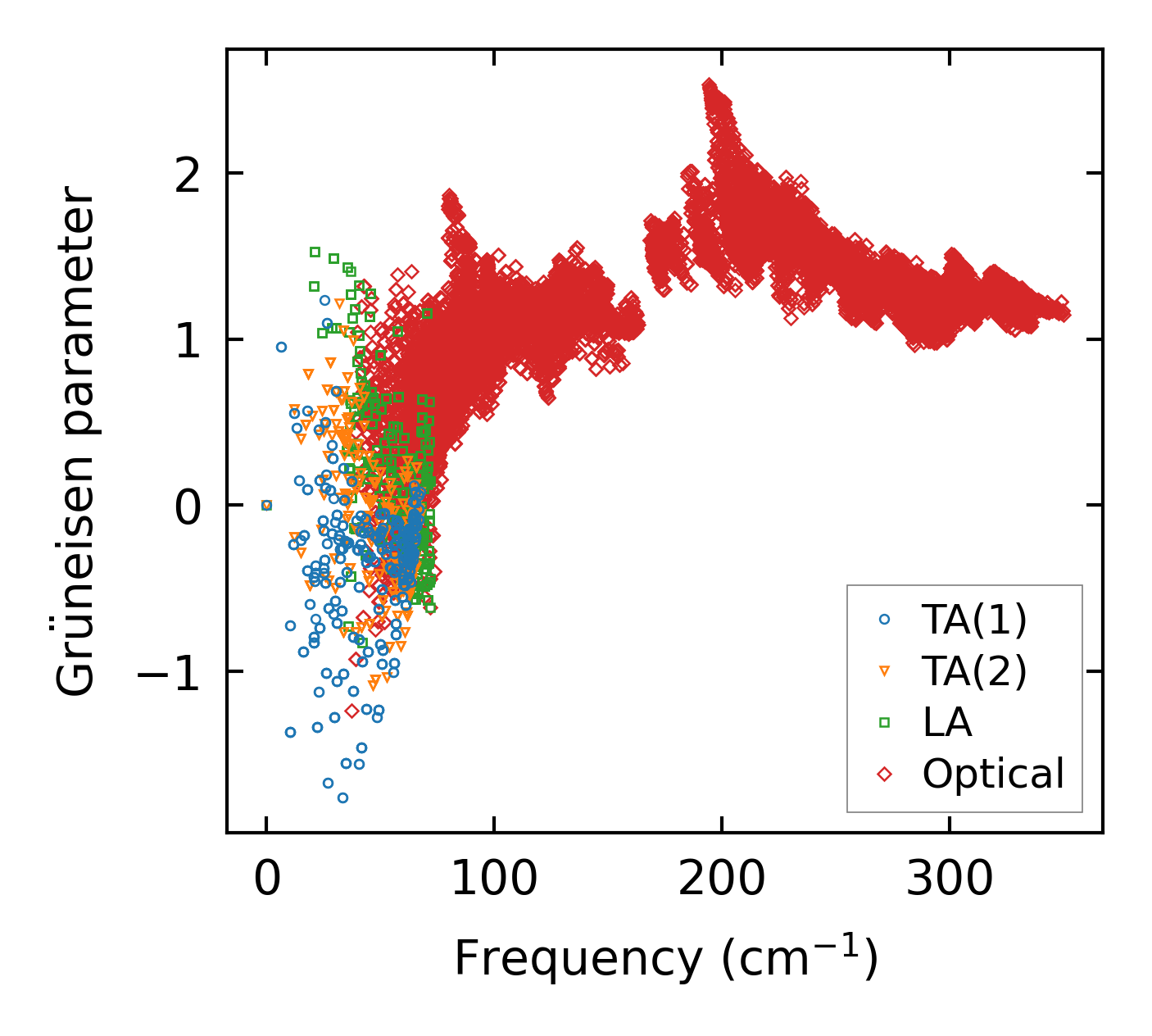

../../_images/fig_gru_all7077.png — (a) Grüneisen parameters

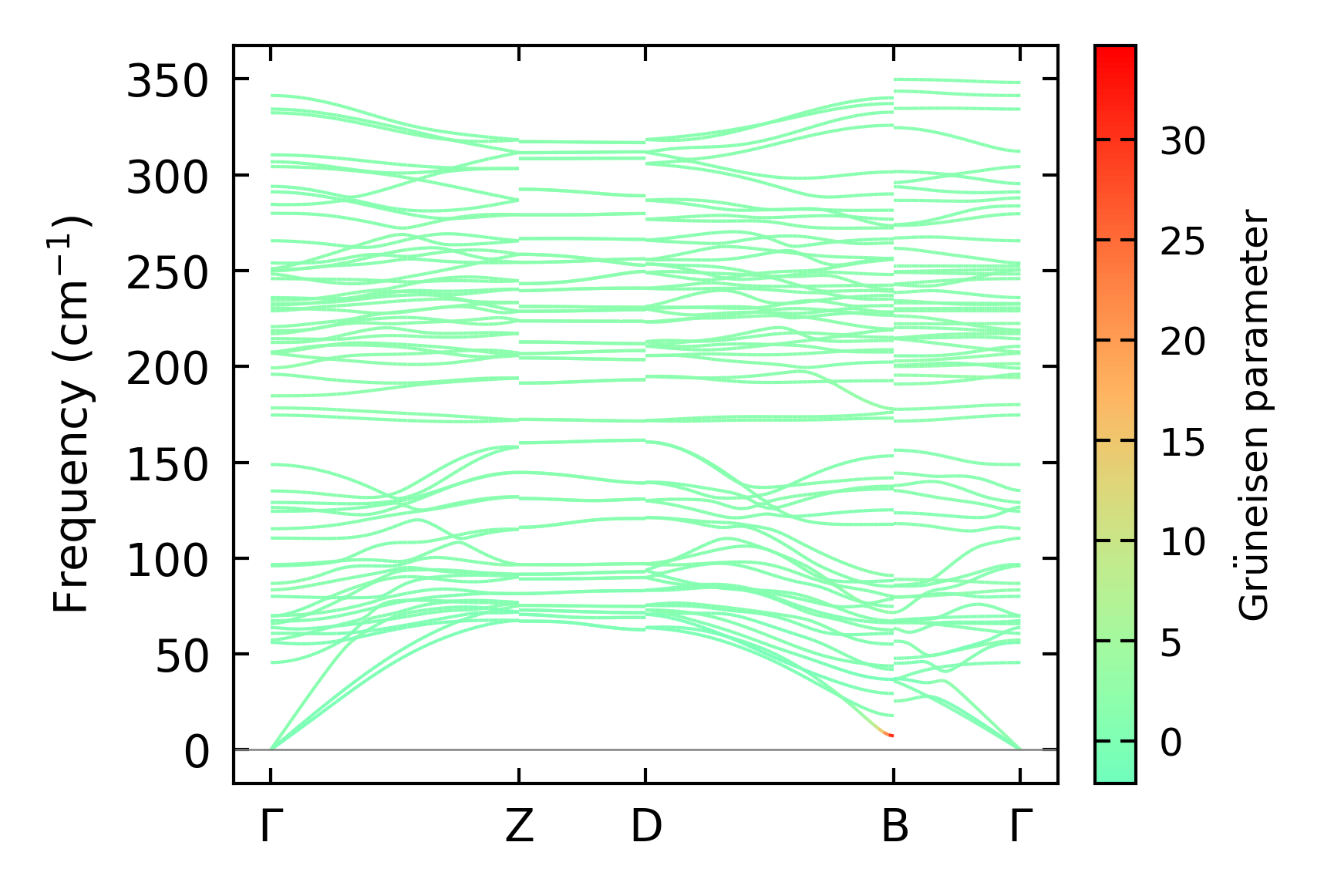

../../_images/fig_gruneisen7077.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 6x18x6, supercell: 2x3x1

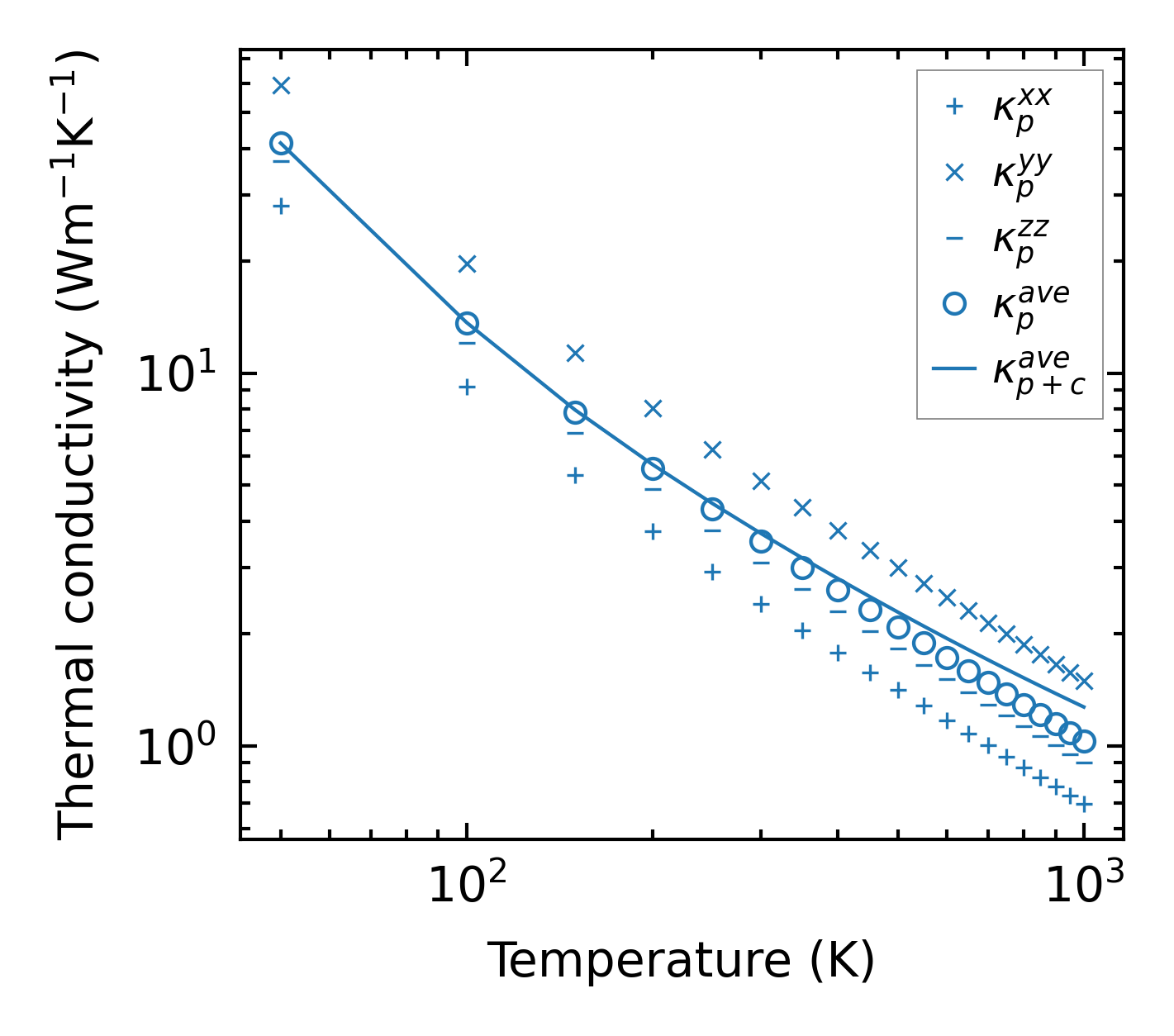

../../_images/fig_kappa13334.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size7159.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime7011.png — (a) Phonon lifetime due to phonon-phonon scattering

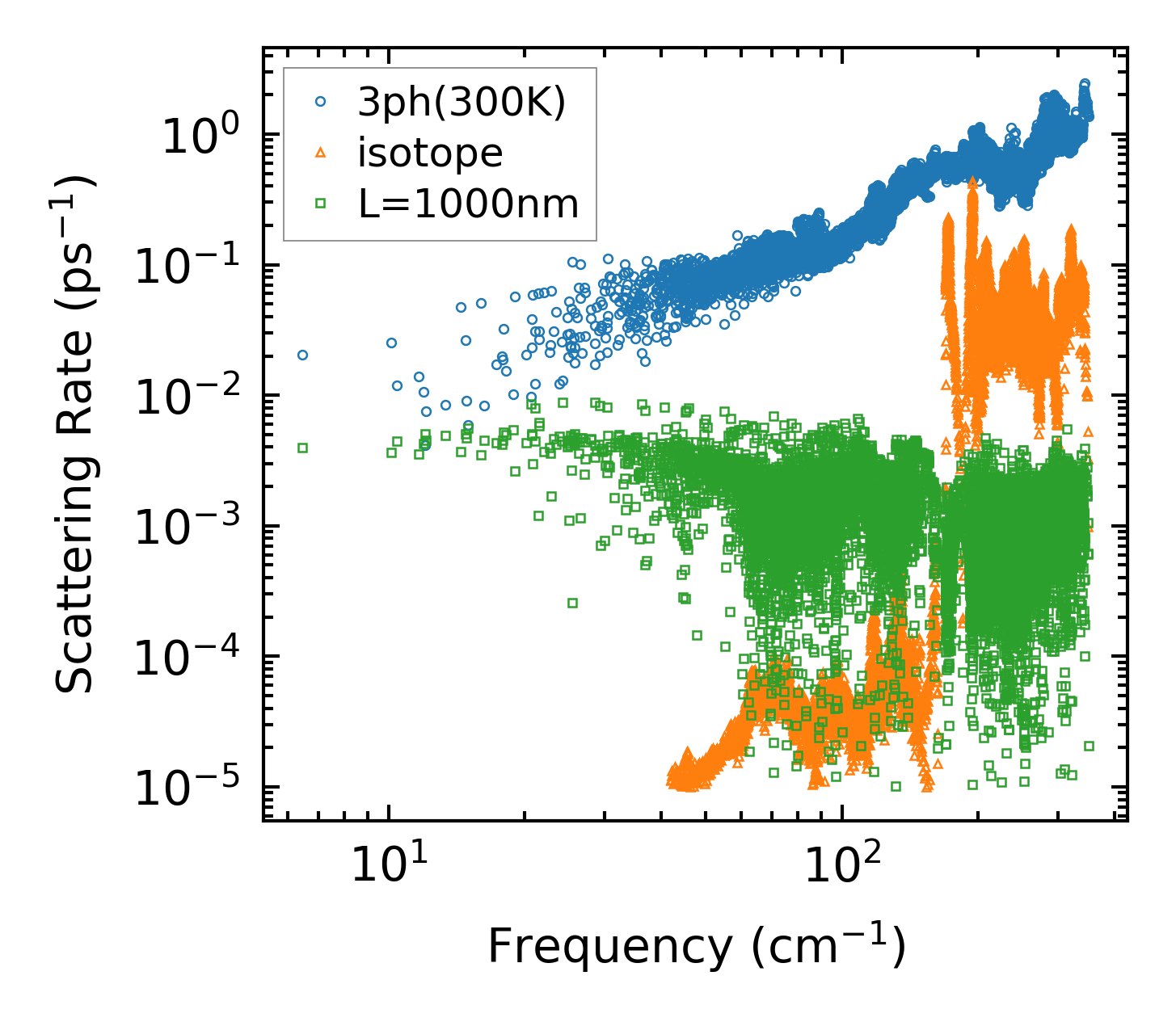

../../_images/fig_scat_rates7010.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

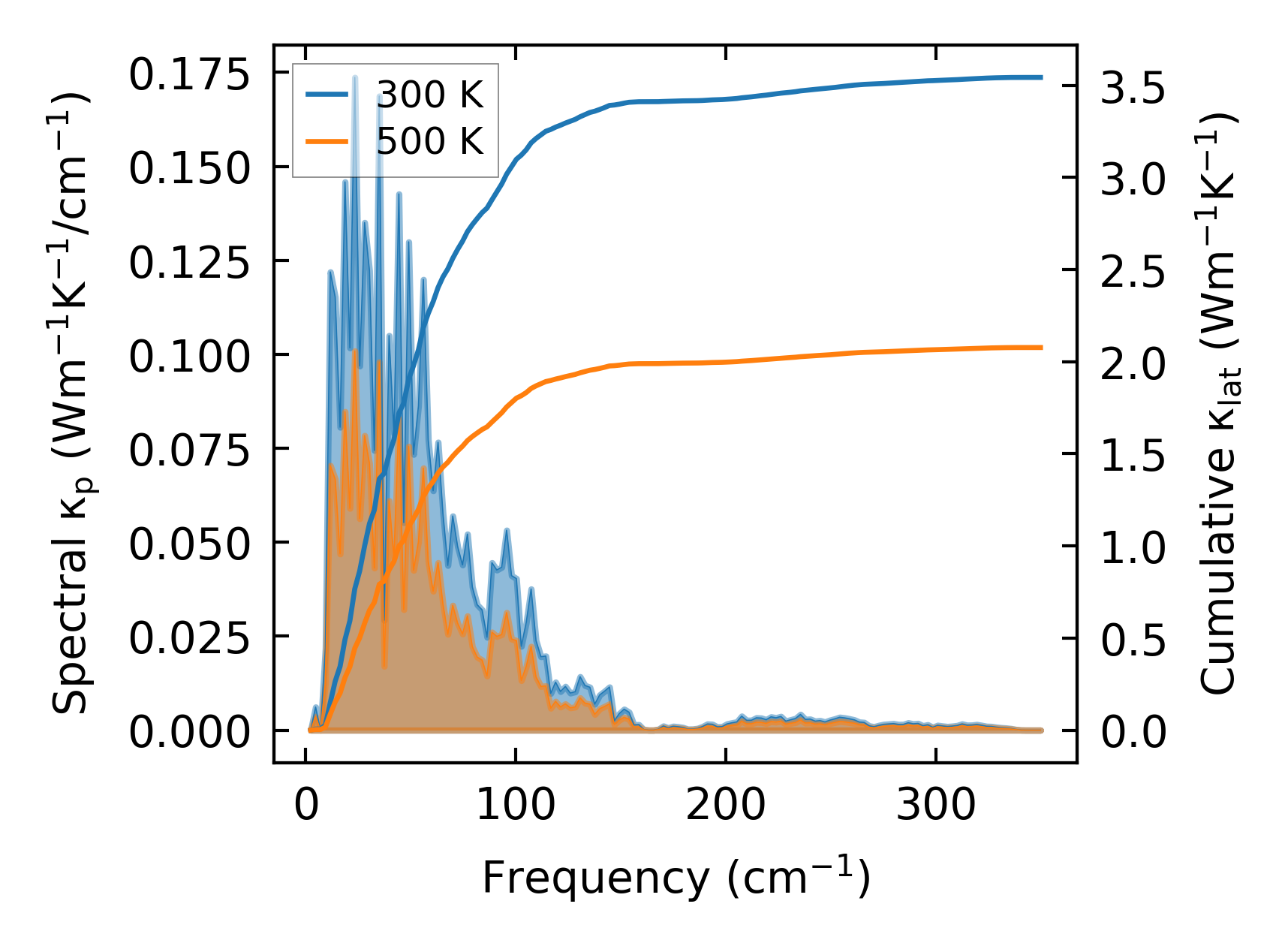

../../_images/fig_cumu_frequency7011.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp7010.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

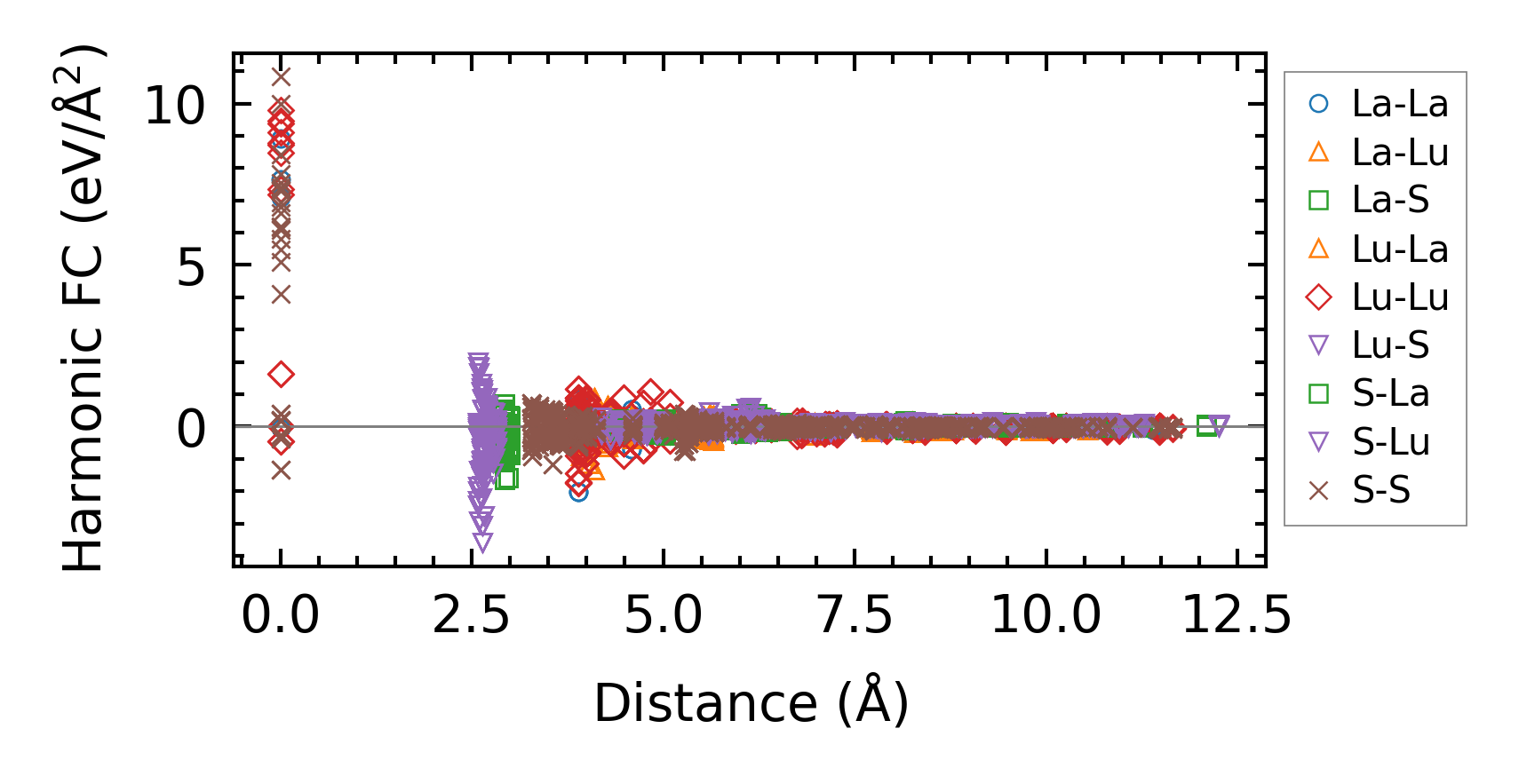

../../_images/fig_fc215856.png — (a) Force constants w.r.t atomic distance

Summary

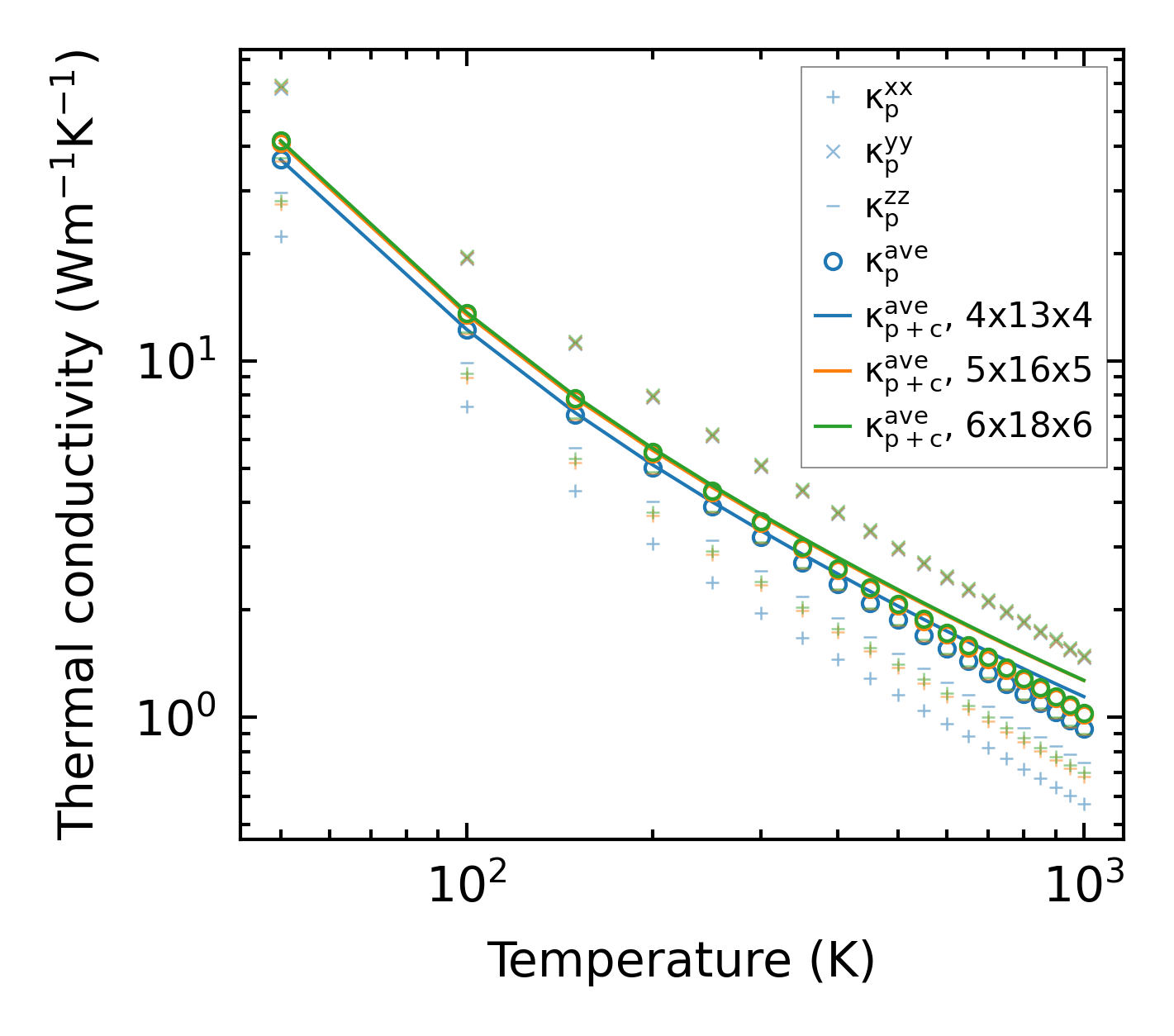

../../_images/fig_kappa13335.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times26760.png — (b) Computation time
