mp-1102214/BaCaPb/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-1102214.tar.gz

Harmonic properties

../../_images/fig_bandos_pr16527.png — (a) Phonon dispersion with participation ratio and DOS

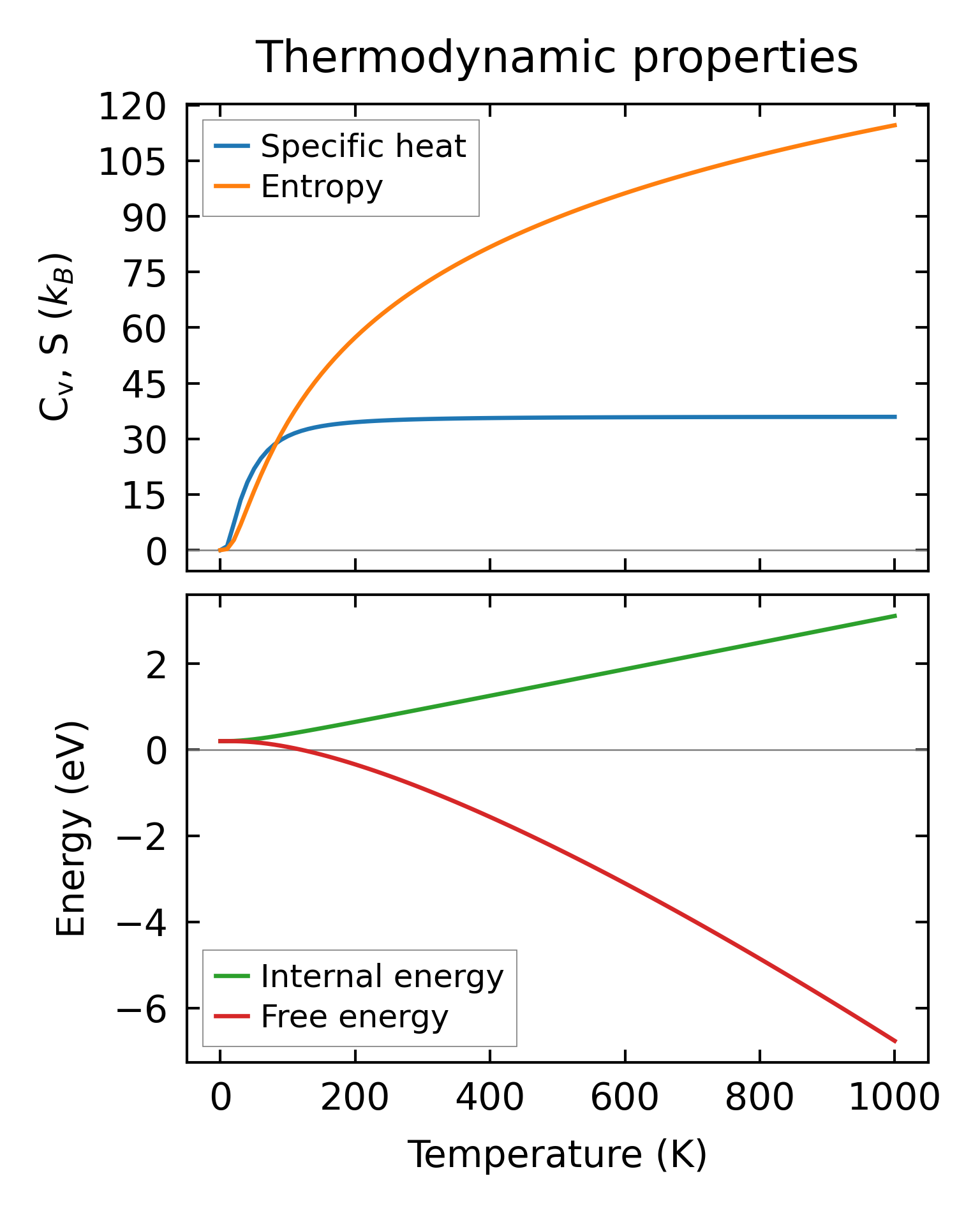

../../_images/fig_thermo16526.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all7164.png — (a) Grüneisen parameters

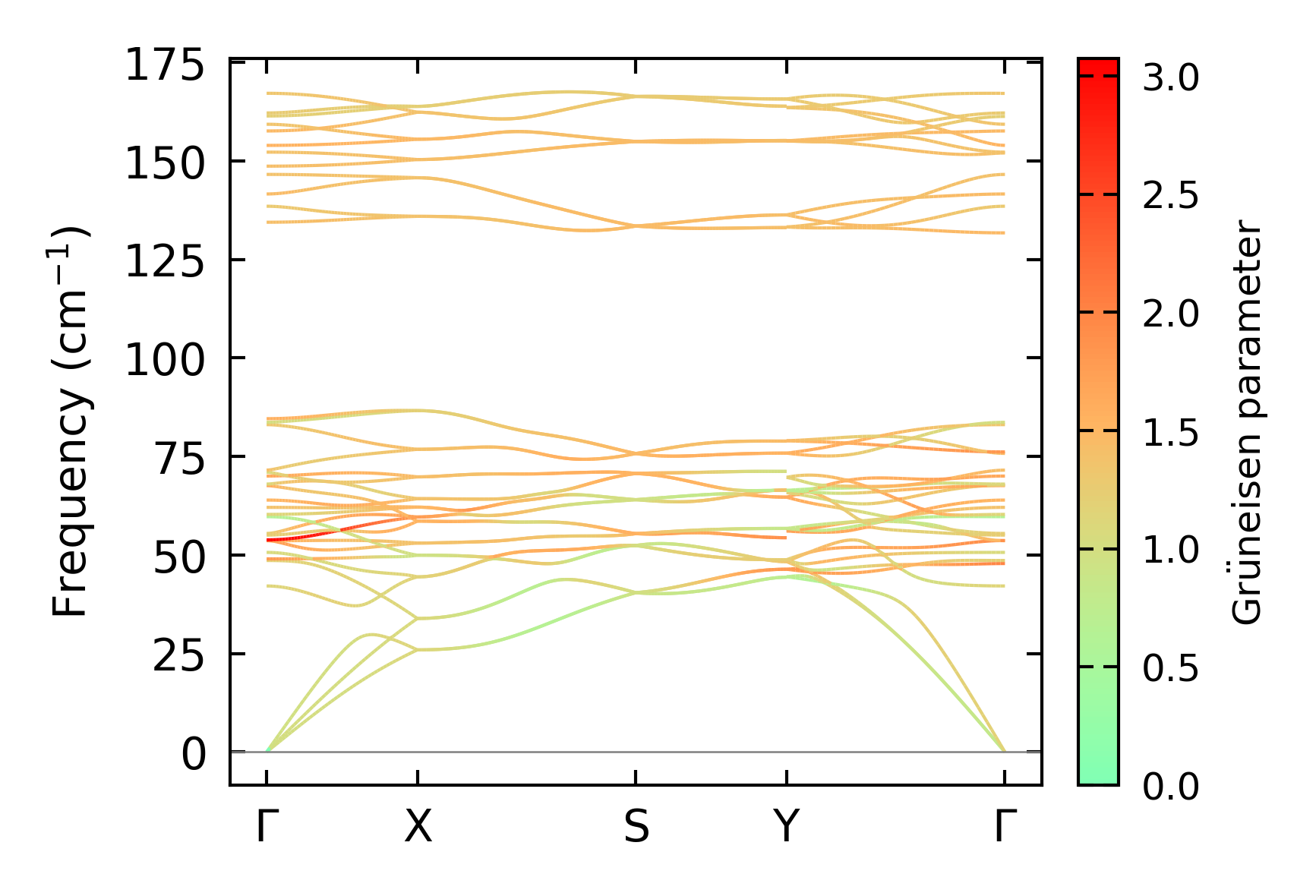

../../_images/fig_gruneisen7164.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x13x7, supercell: 2x3x2

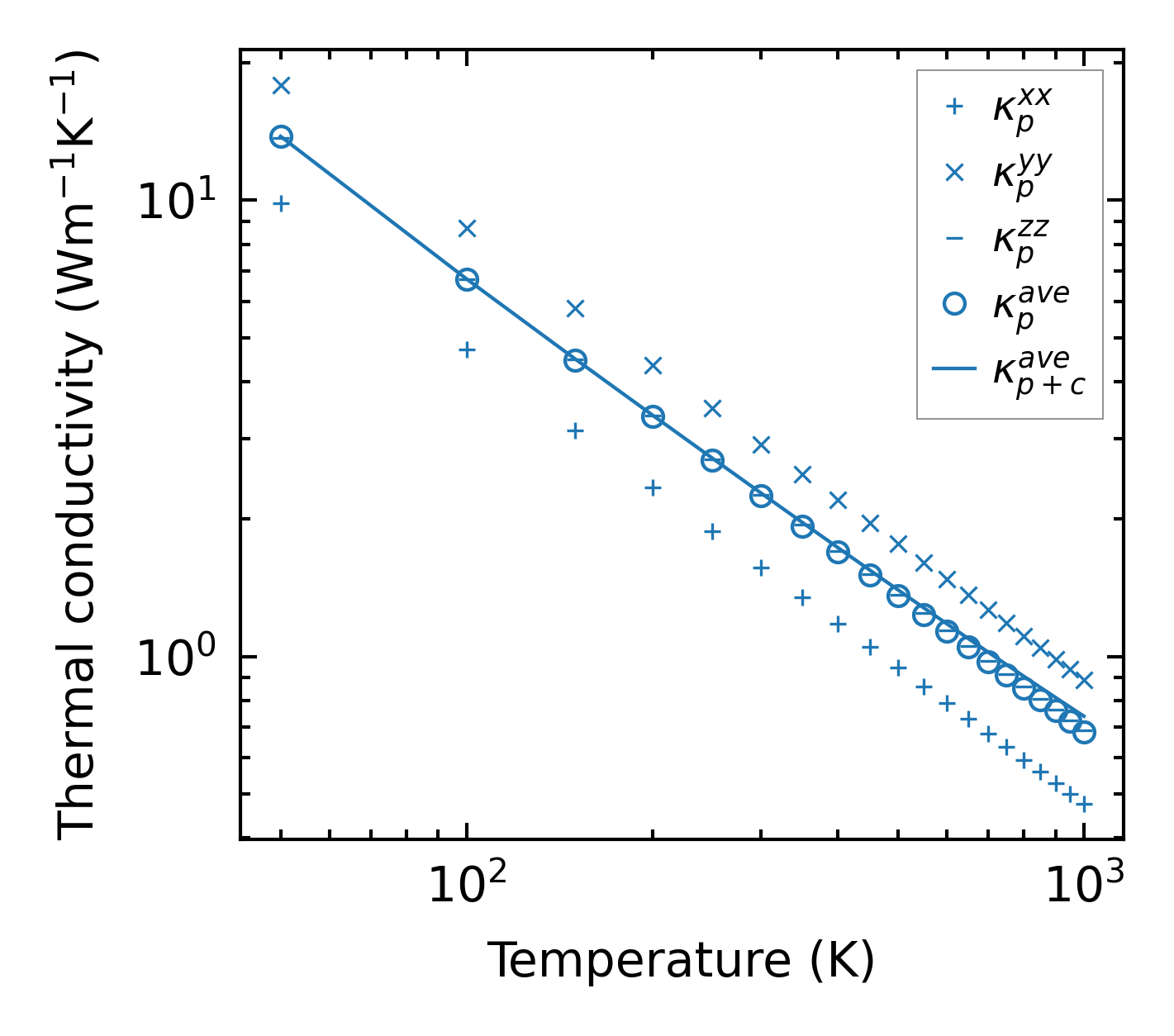

../../_images/fig_kappa13509.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size7250.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

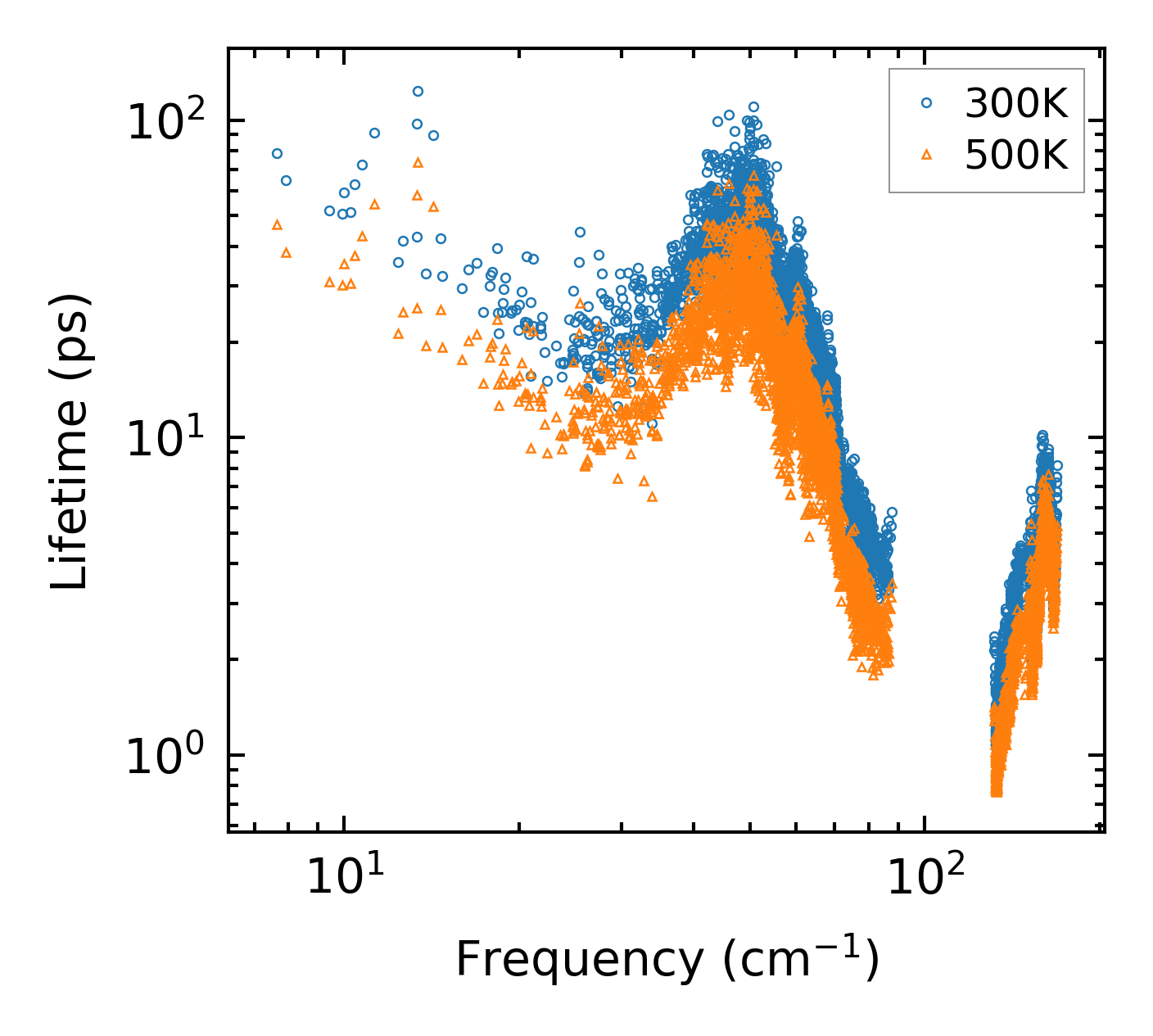

../../_images/fig_lifetime7098.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates7097.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency7098.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

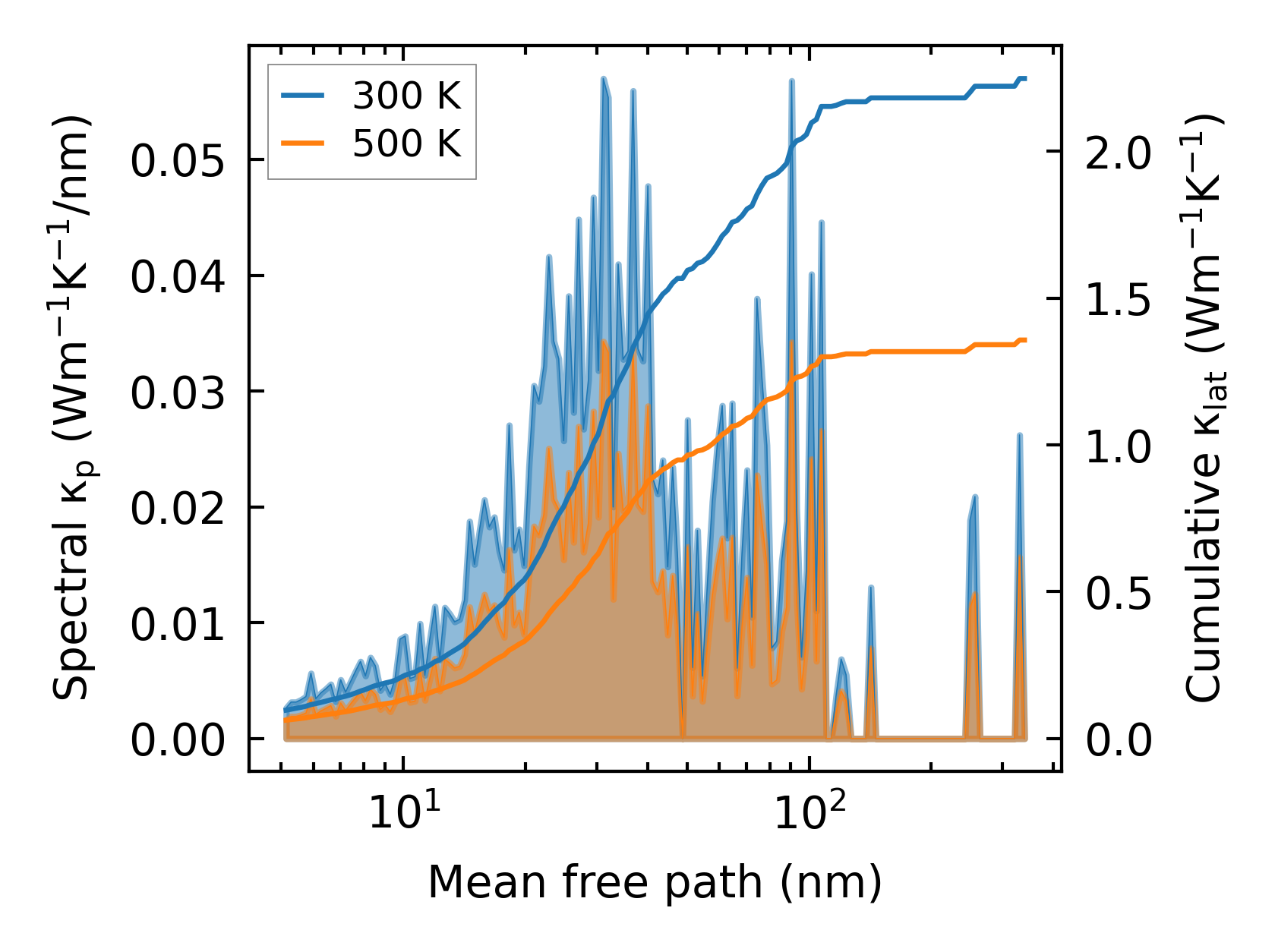

../../_images/fig_cumu_mfp7097.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

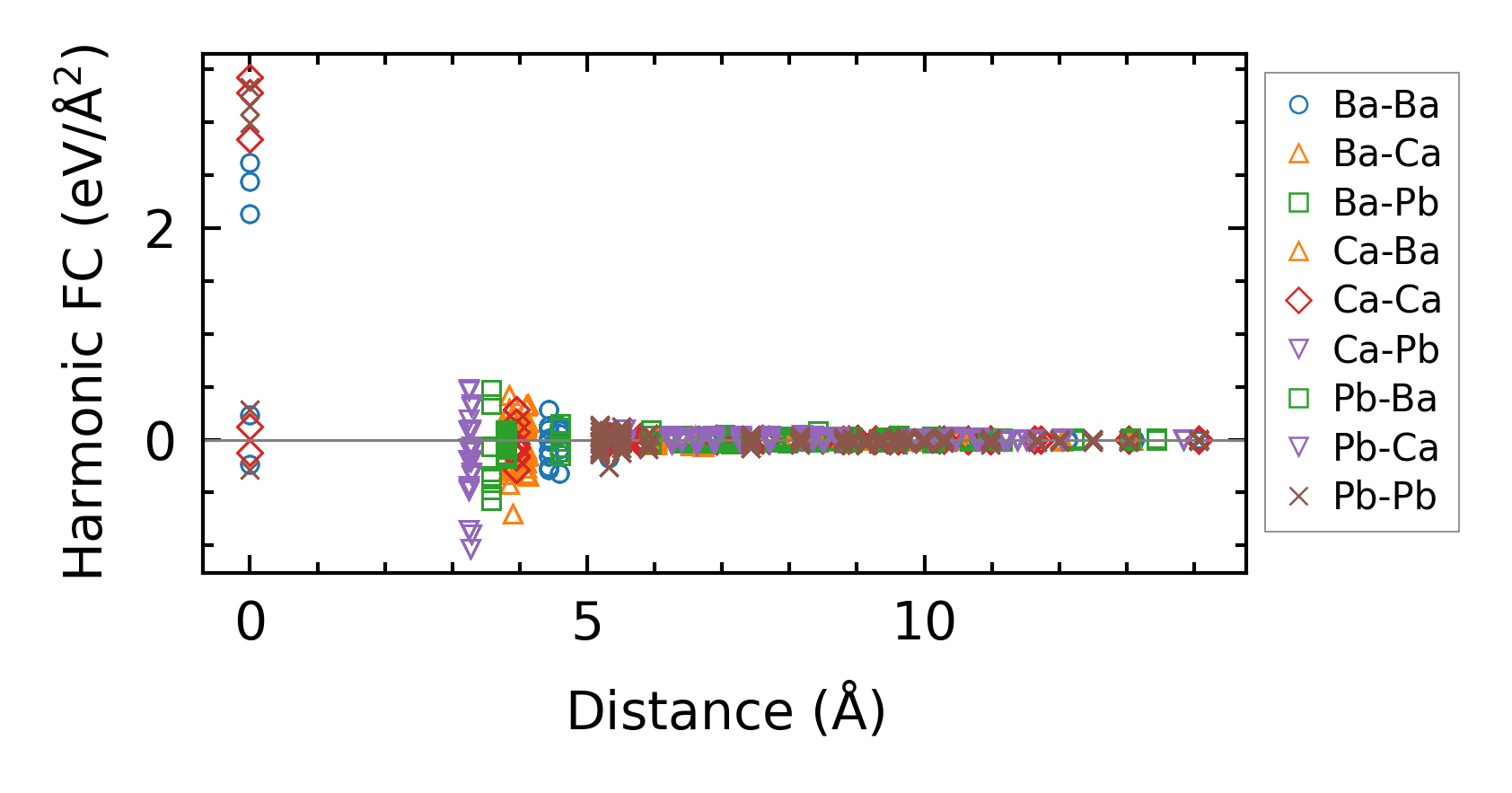

../../_images/fig_fc216102.png — (a) Force constants w.r.t atomic distance

Summary

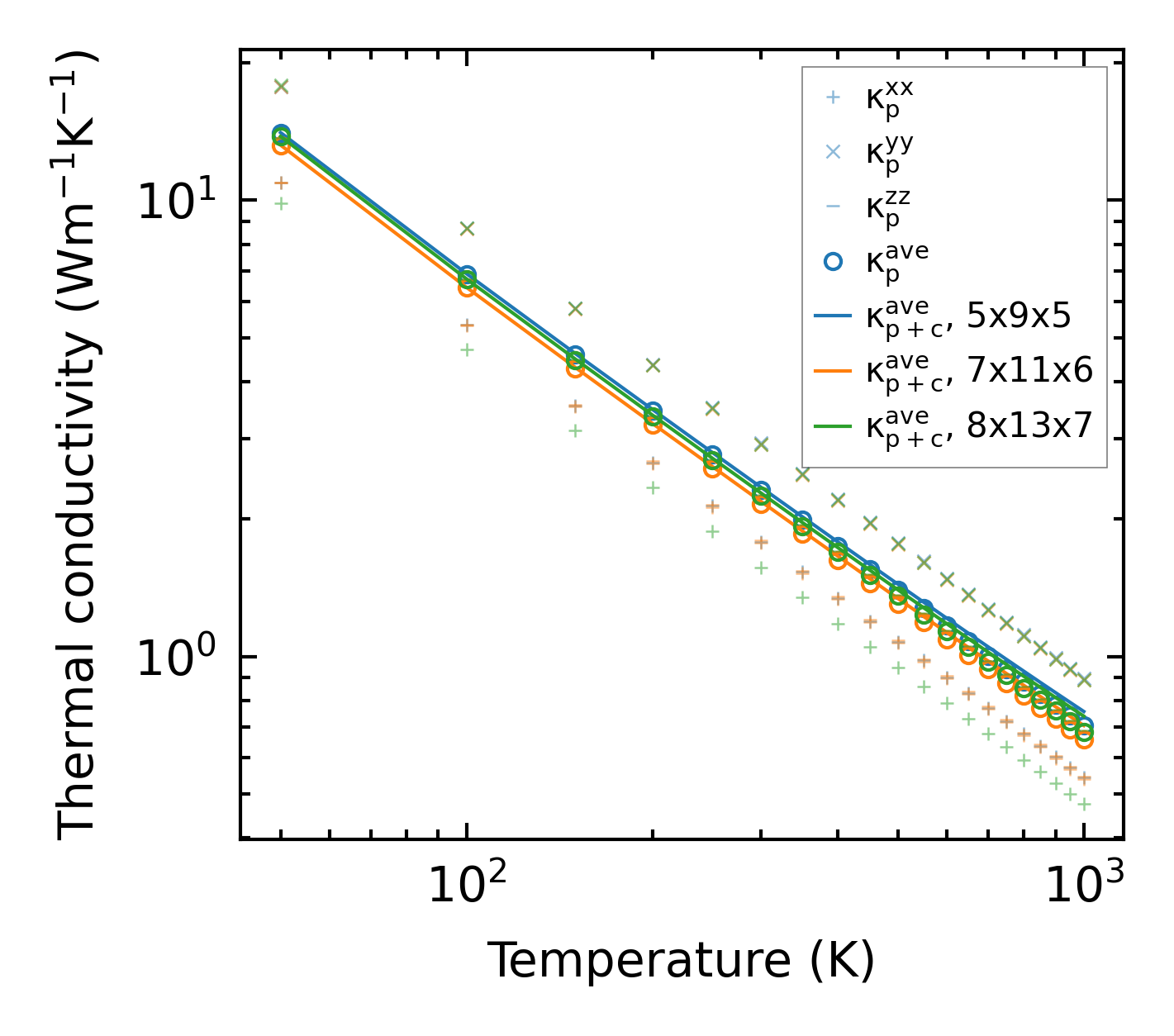

../../_images/fig_kappa13510.png — (a) Temperature-dependent lattice thermal conductivity

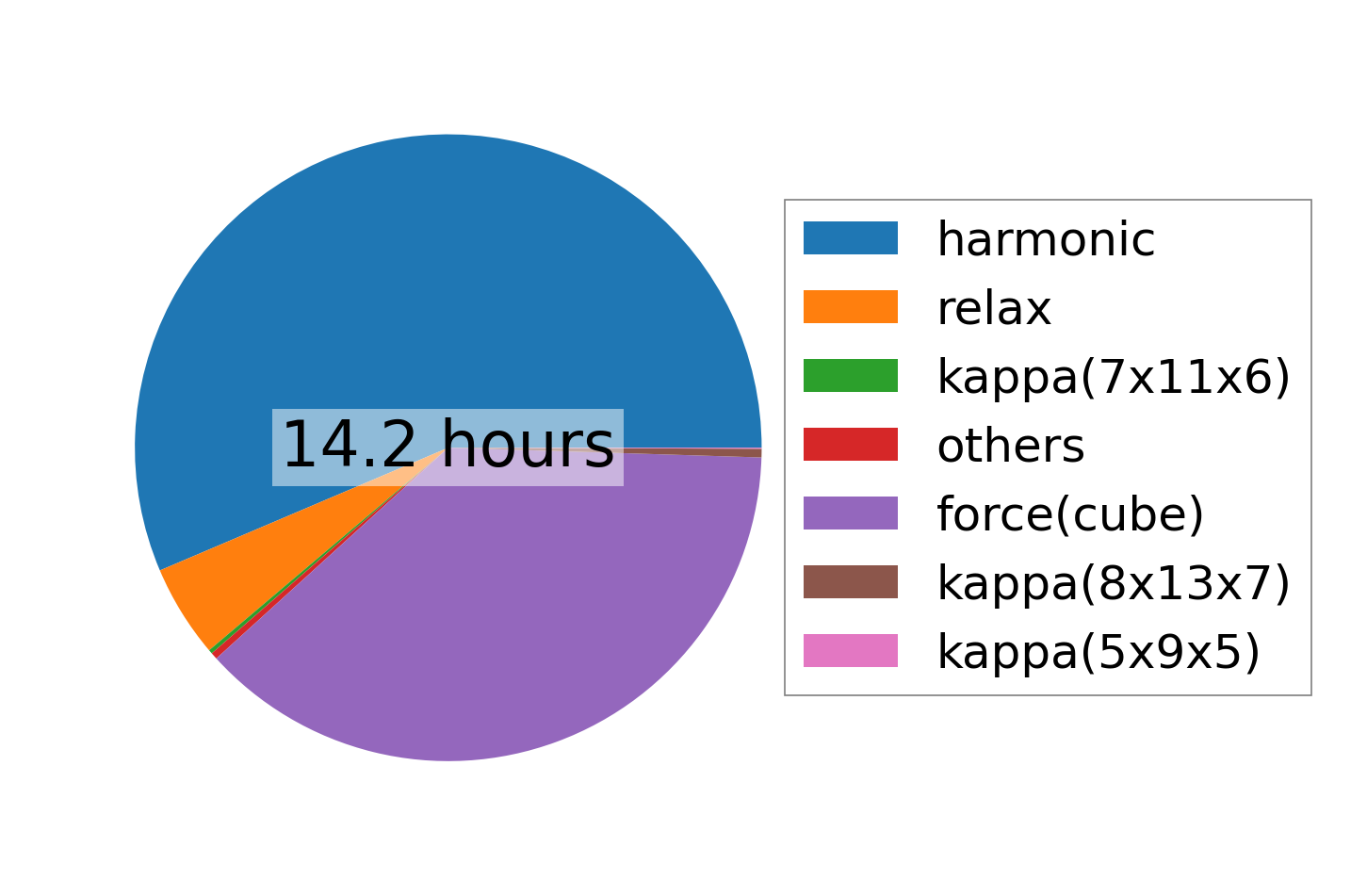

../../_images/fig_times27057.png — (b) Computation time
