mp-1025340/Cu2WSe4/anharm

Space group: I-42m (121)
Link: Materials Project
Download: mp-1025340.tar.gz

Harmonic properties

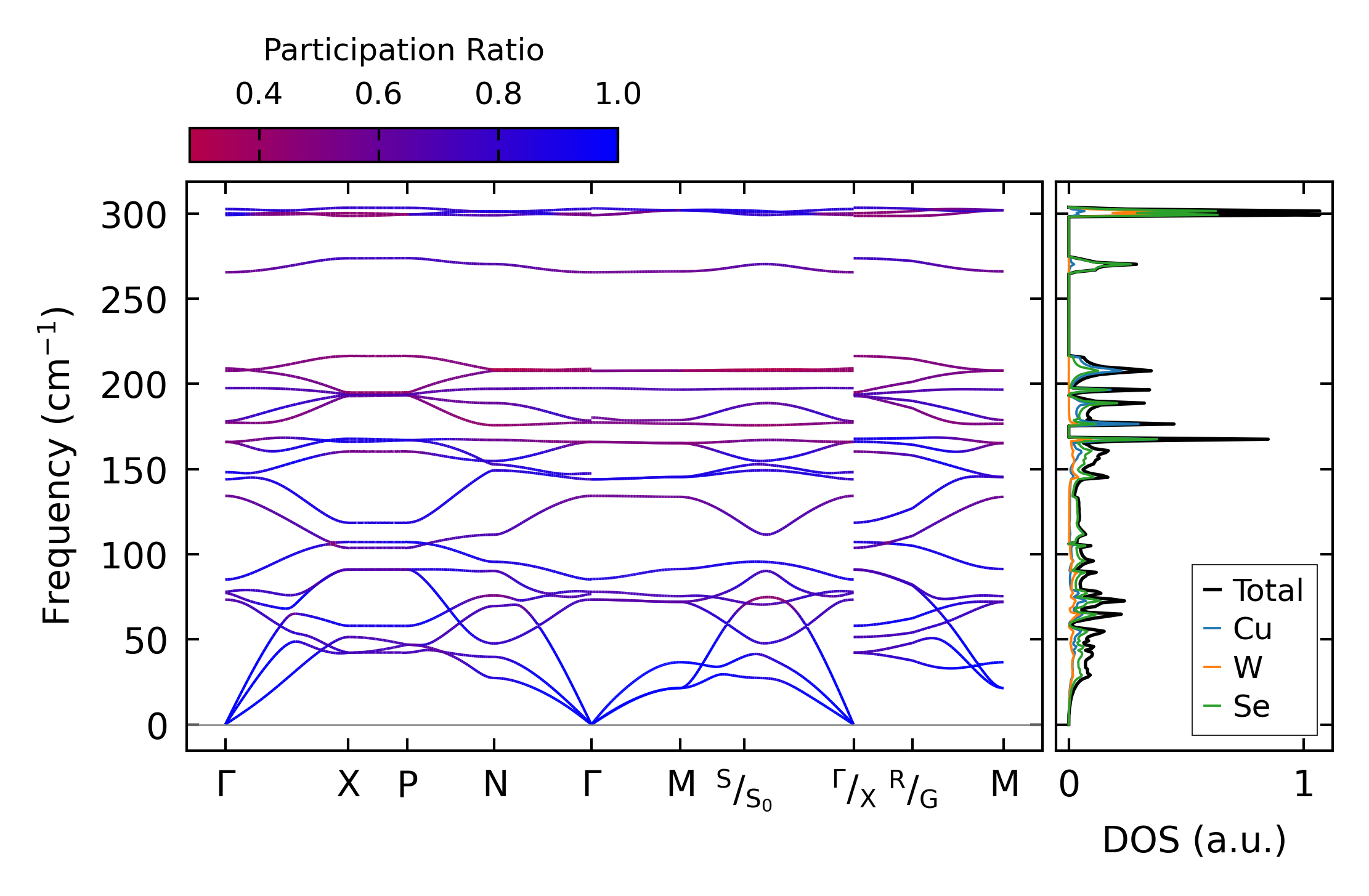

../../_images/fig_bandos_pr17157.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo17156.png — (b) Thermodynamic properties

Grüneisen parameters

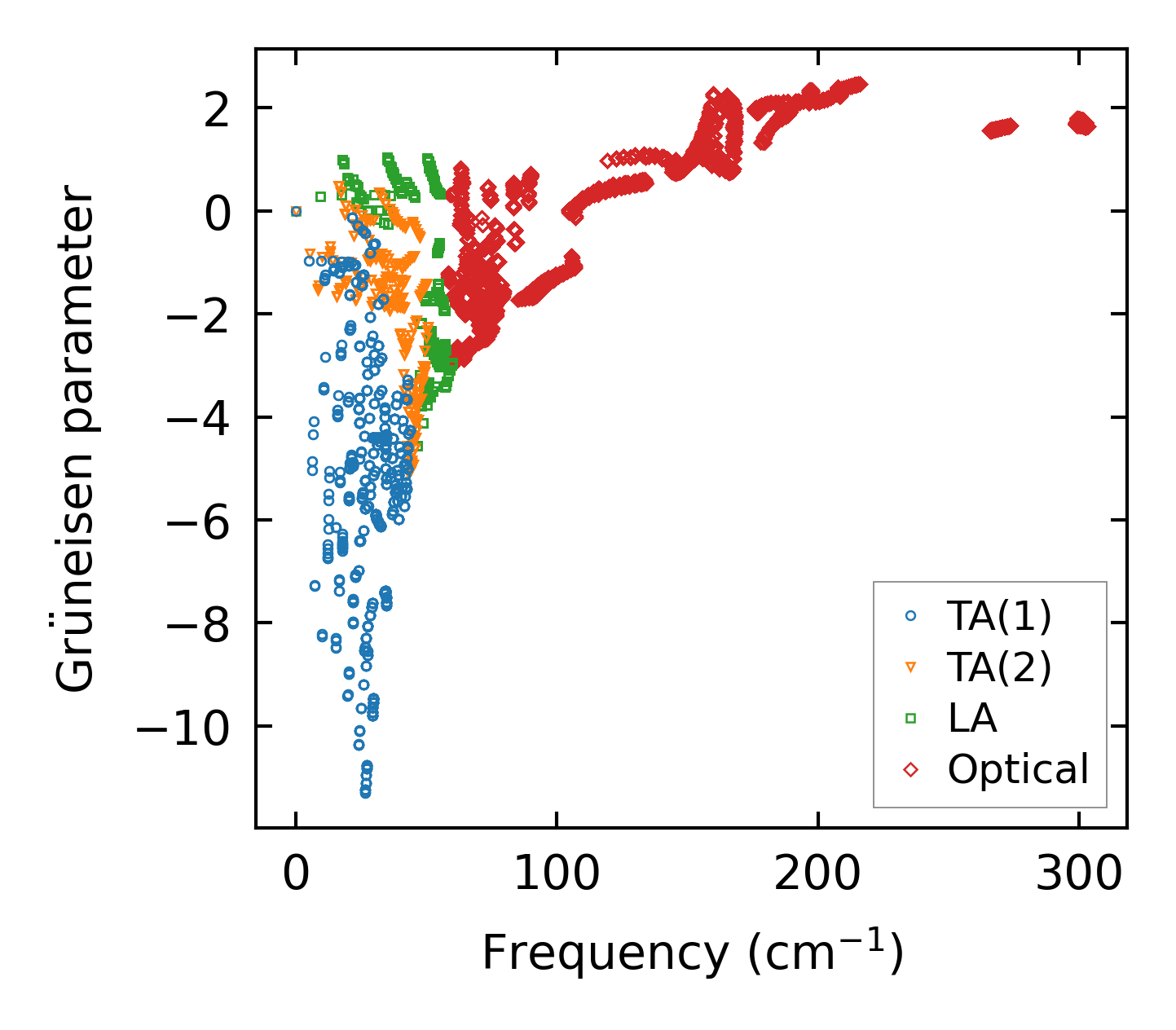

../../_images/fig_gru_all7509.png — (a) Grüneisen parameters

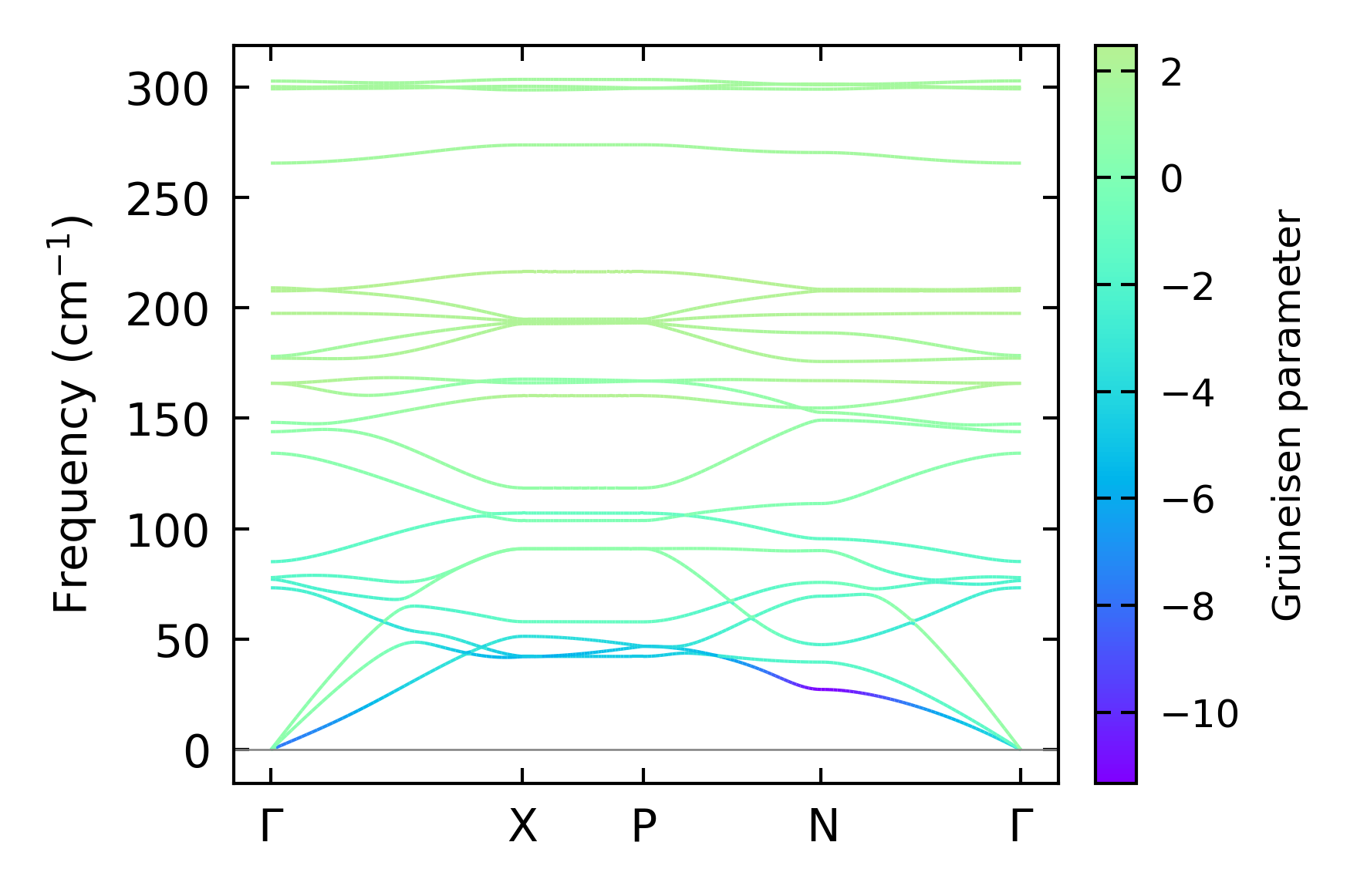

../../_images/fig_gruneisen7509.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x13x13, supercell: 3x3x1

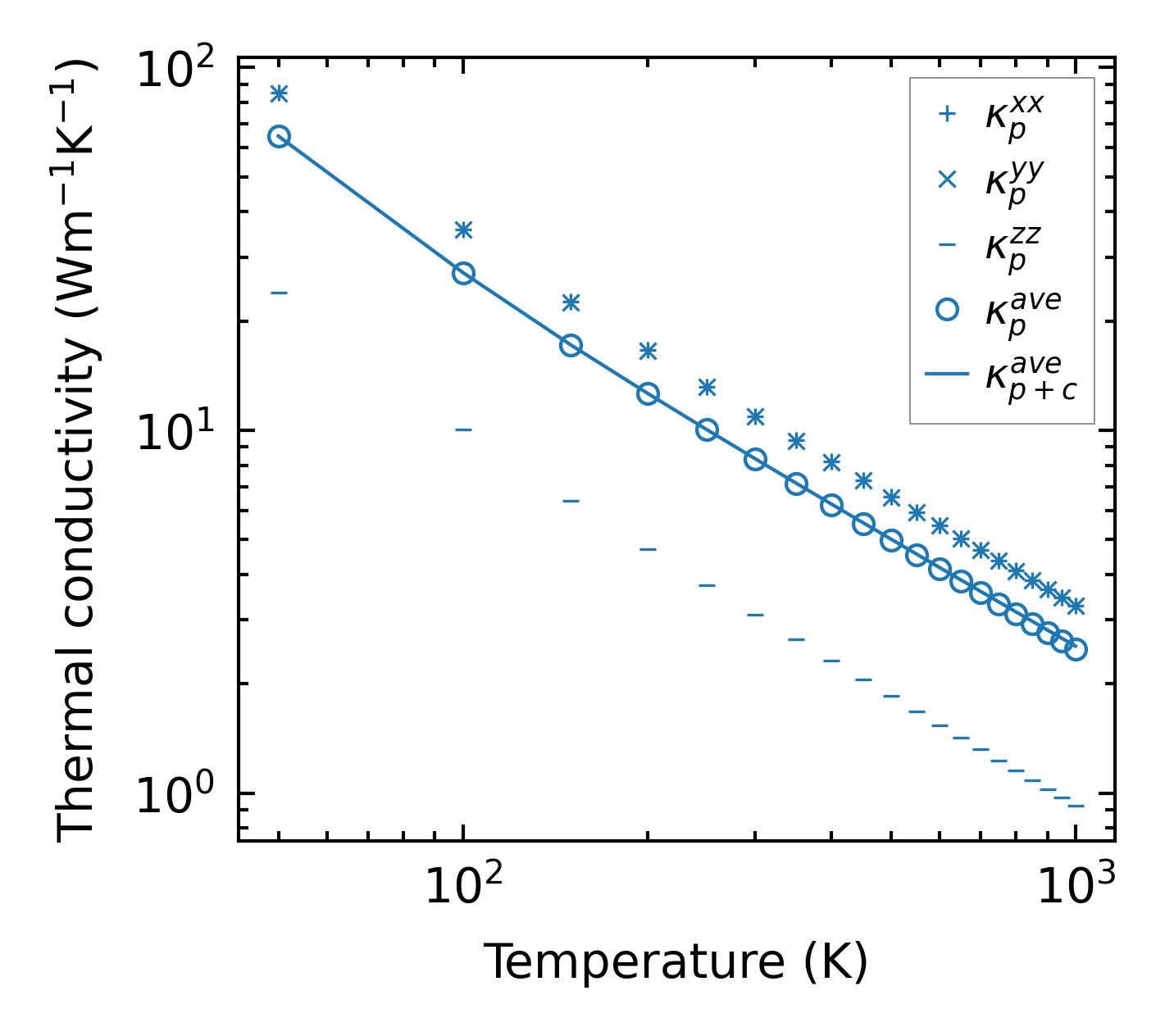

../../_images/fig_kappa14168.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size7599.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime7442.png — (a) Phonon lifetime due to phonon-phonon scattering

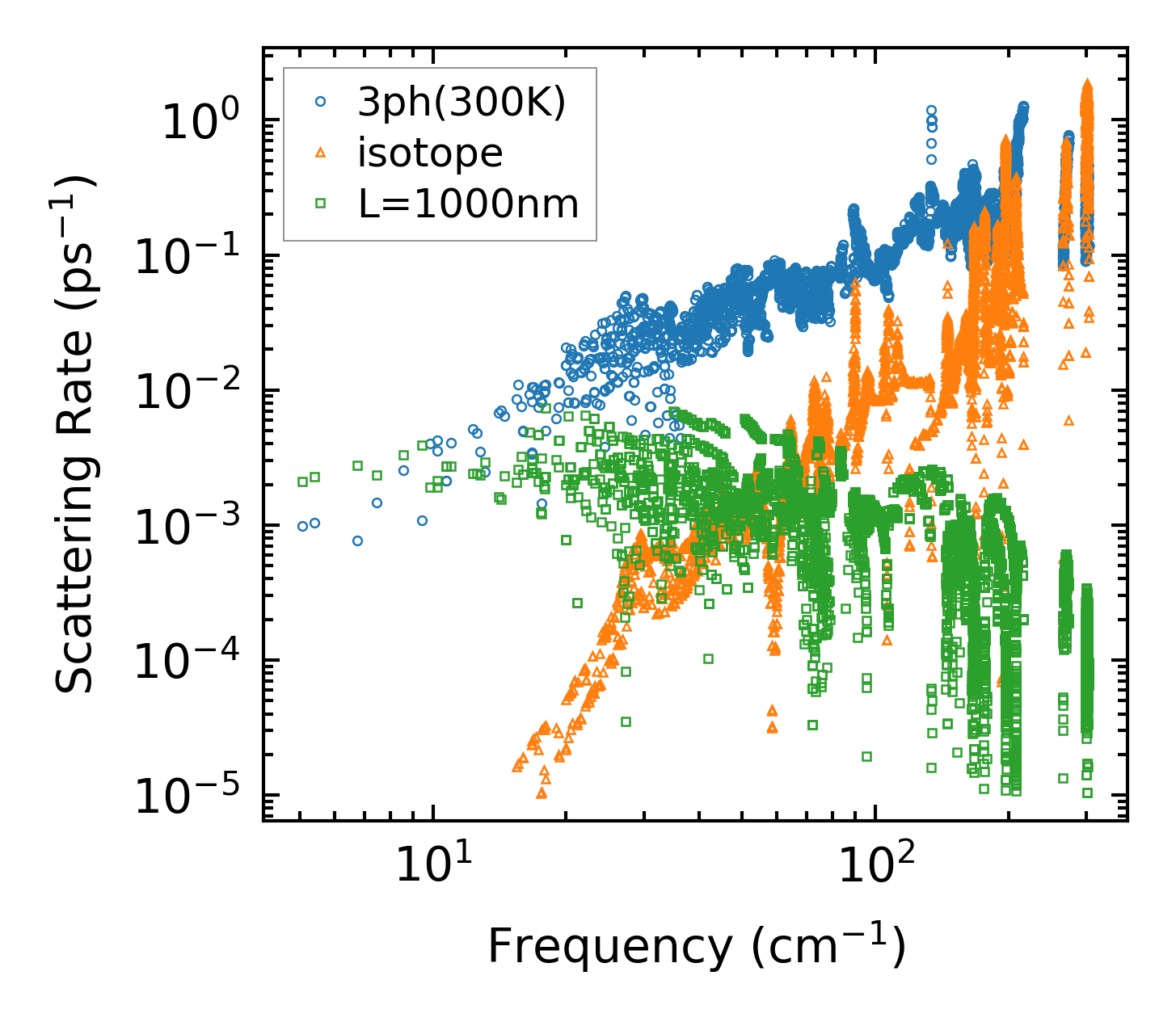

../../_images/fig_scat_rates7441.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

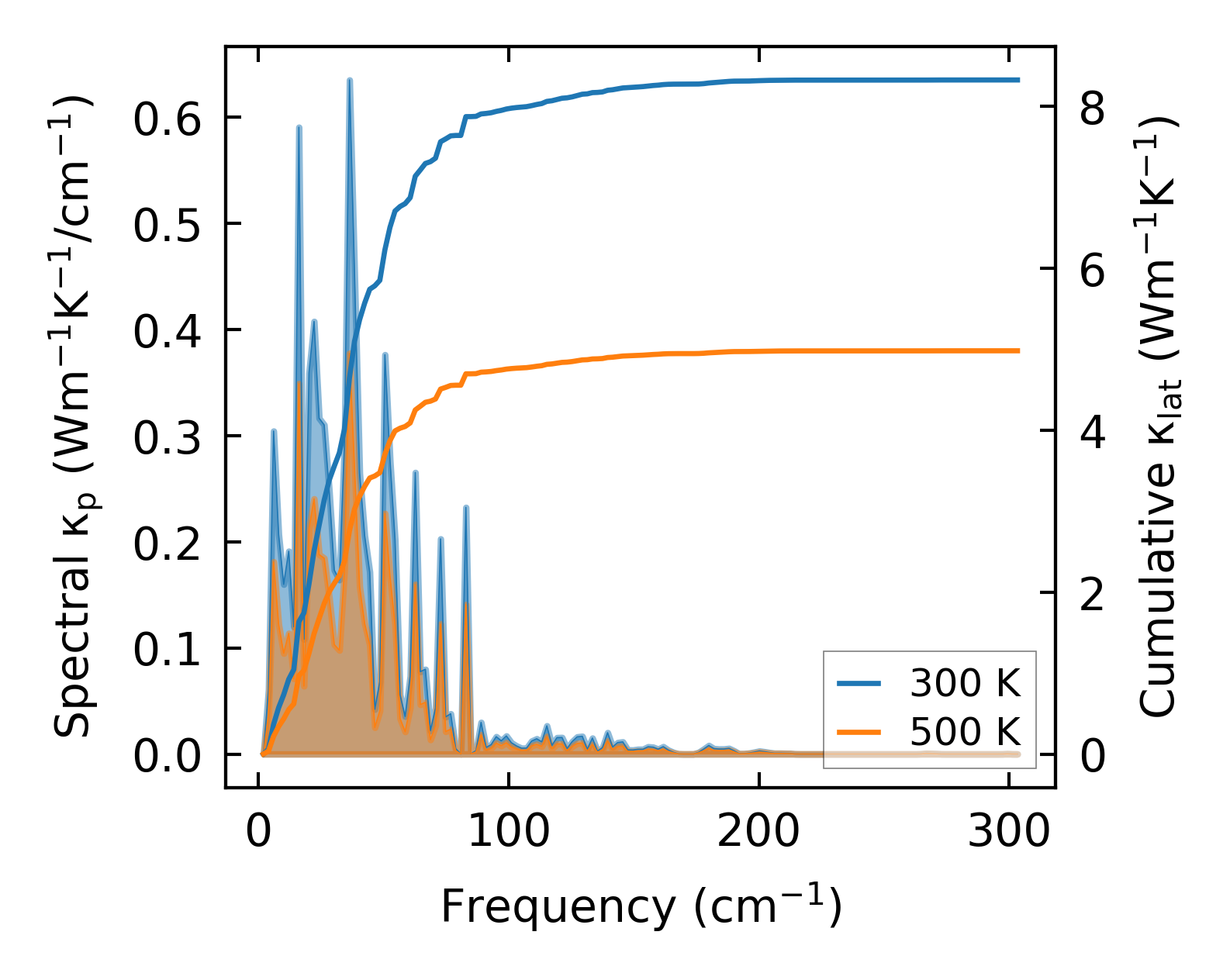

../../_images/fig_cumu_frequency7442.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp7441.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

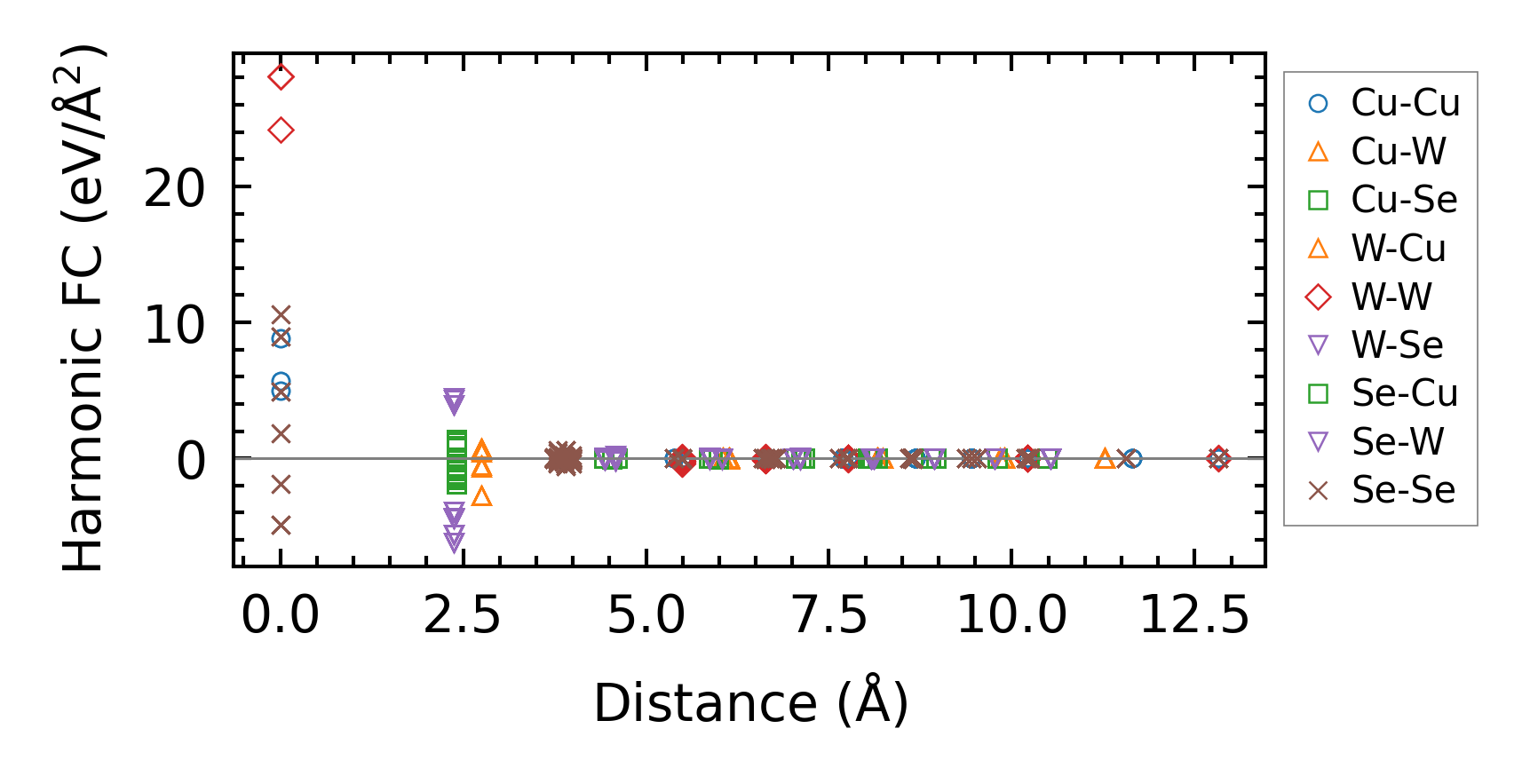

../../_images/fig_fc216700.png — (a) Force constants w.r.t atomic distance

Summary

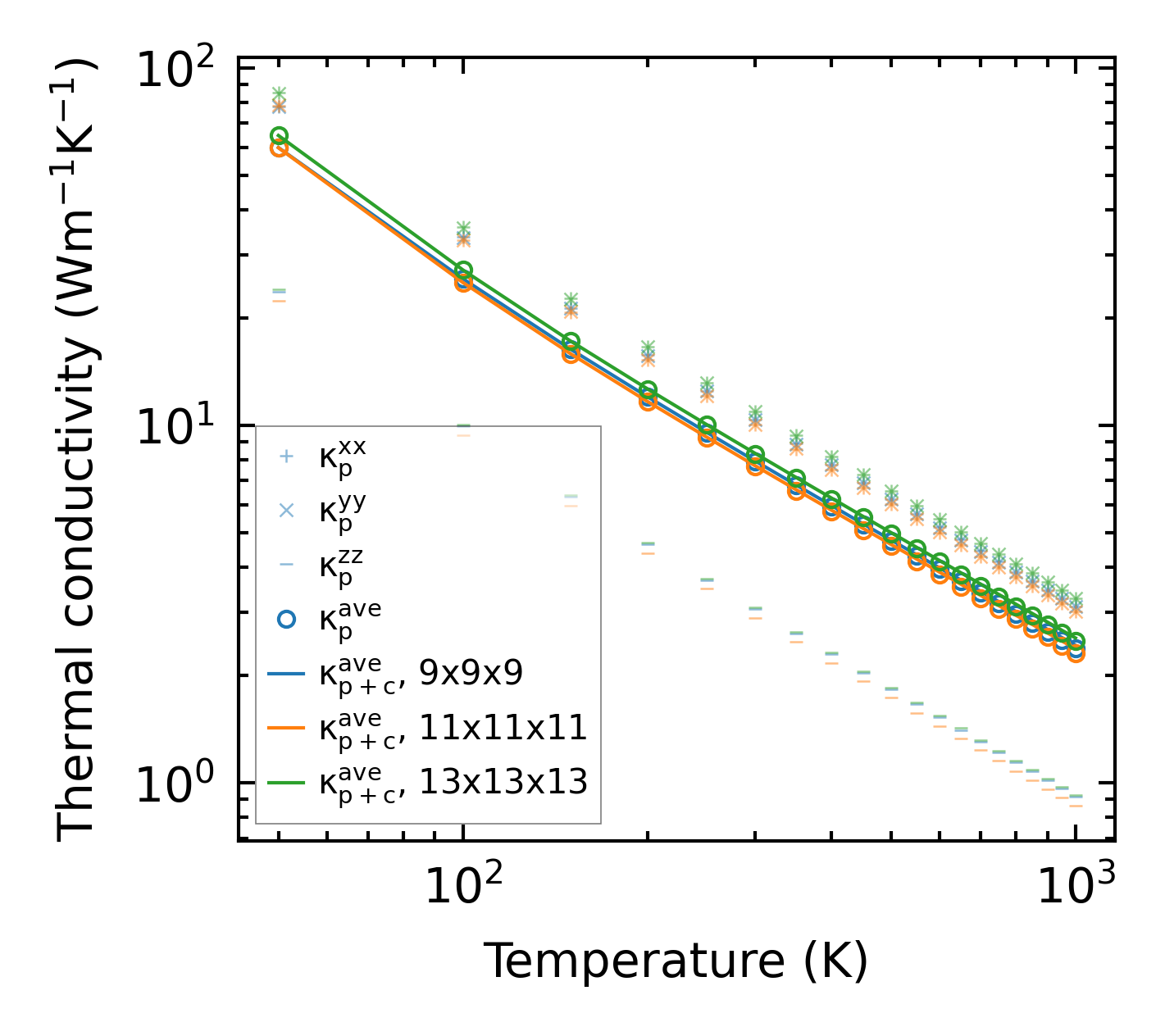

../../_images/fig_kappa14169.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times27986.png — (b) Computation time
