mp-1025201/Rb2PdCl4/anharm

Space group: P4/mmm (123)
Link: Materials Project
Download: mp-1025201.tar.gz

Harmonic properties

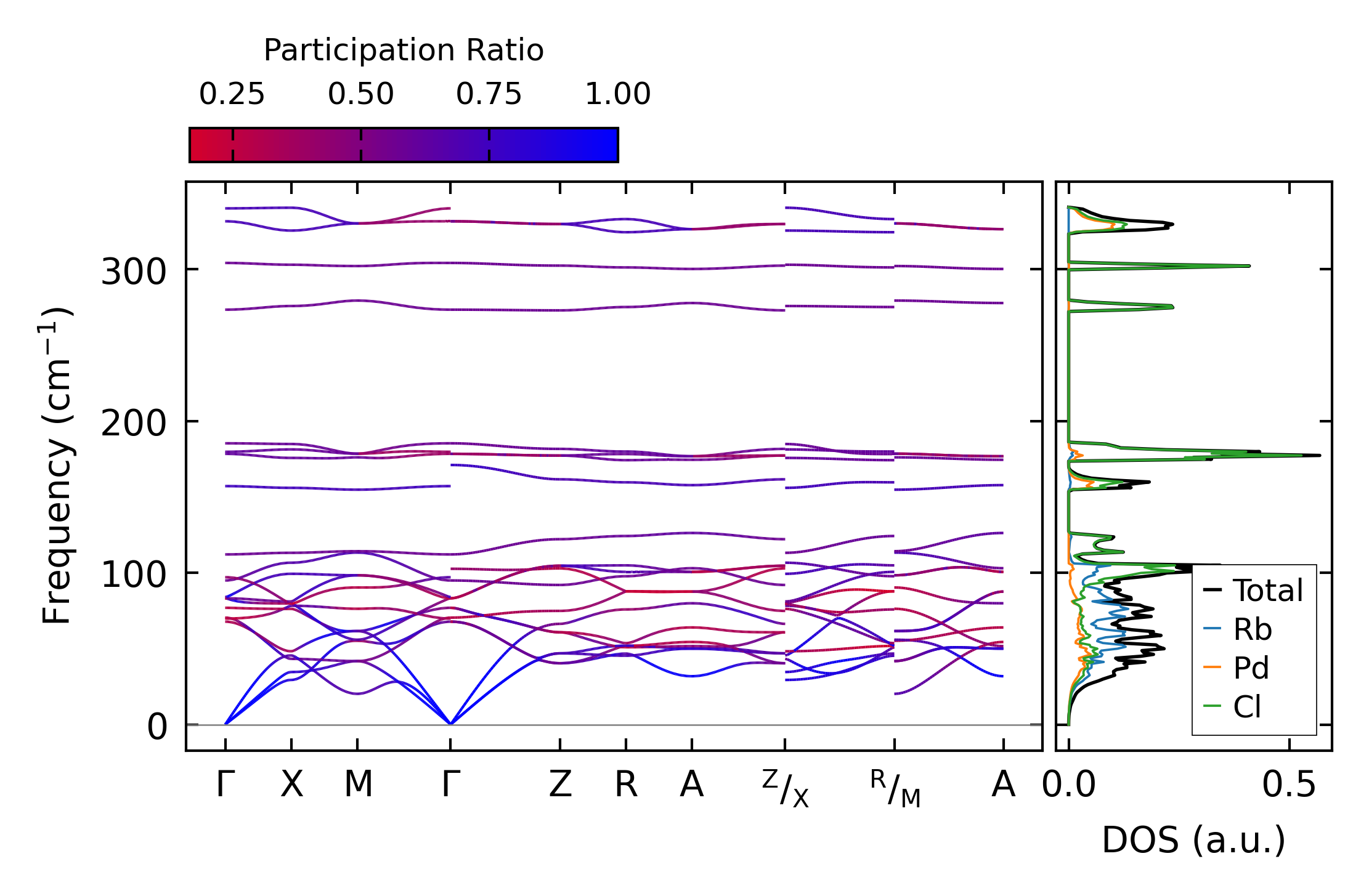

../../_images/fig_bandos_pr17151.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo17150.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all7505.png — (a) Grüneisen parameters

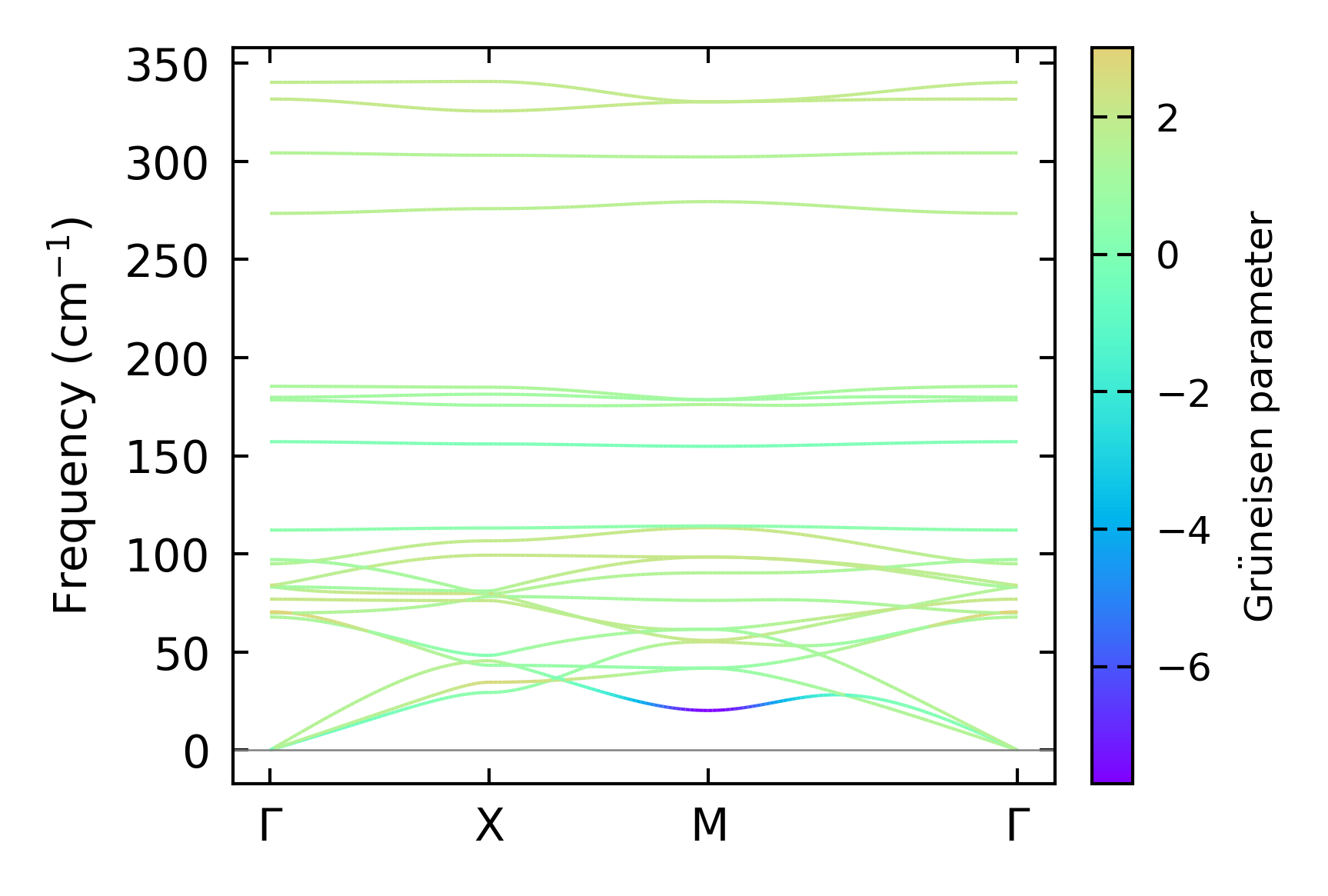

../../_images/fig_gruneisen7505.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon — q-mesh: 10x10x16, supercell: 2x2x4

../../_images/fig_kappa14160.png — (a) Temperature-dependent lattice thermal conductivity

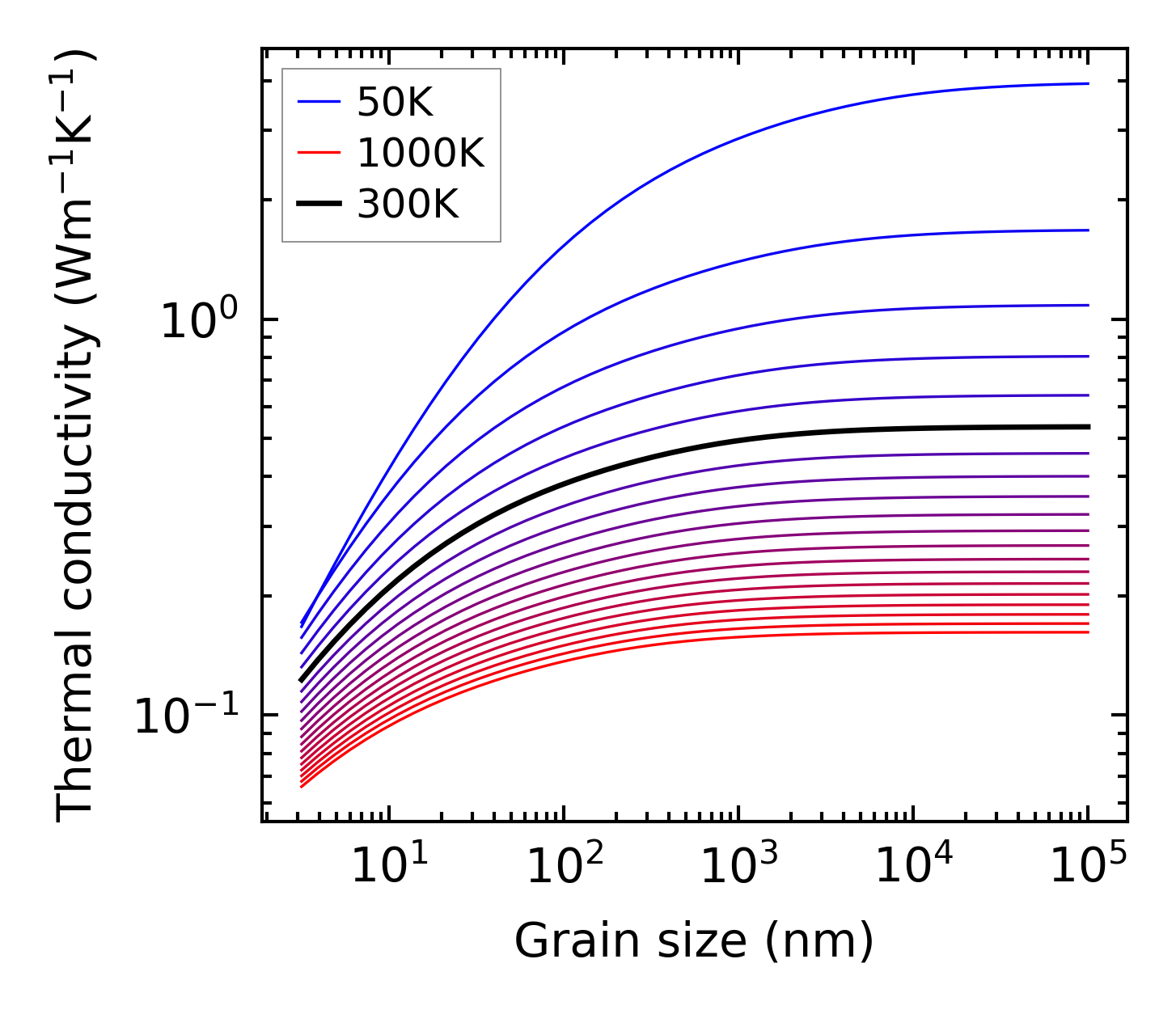

../../_images/fig_kappa_vs_grain_size7595.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

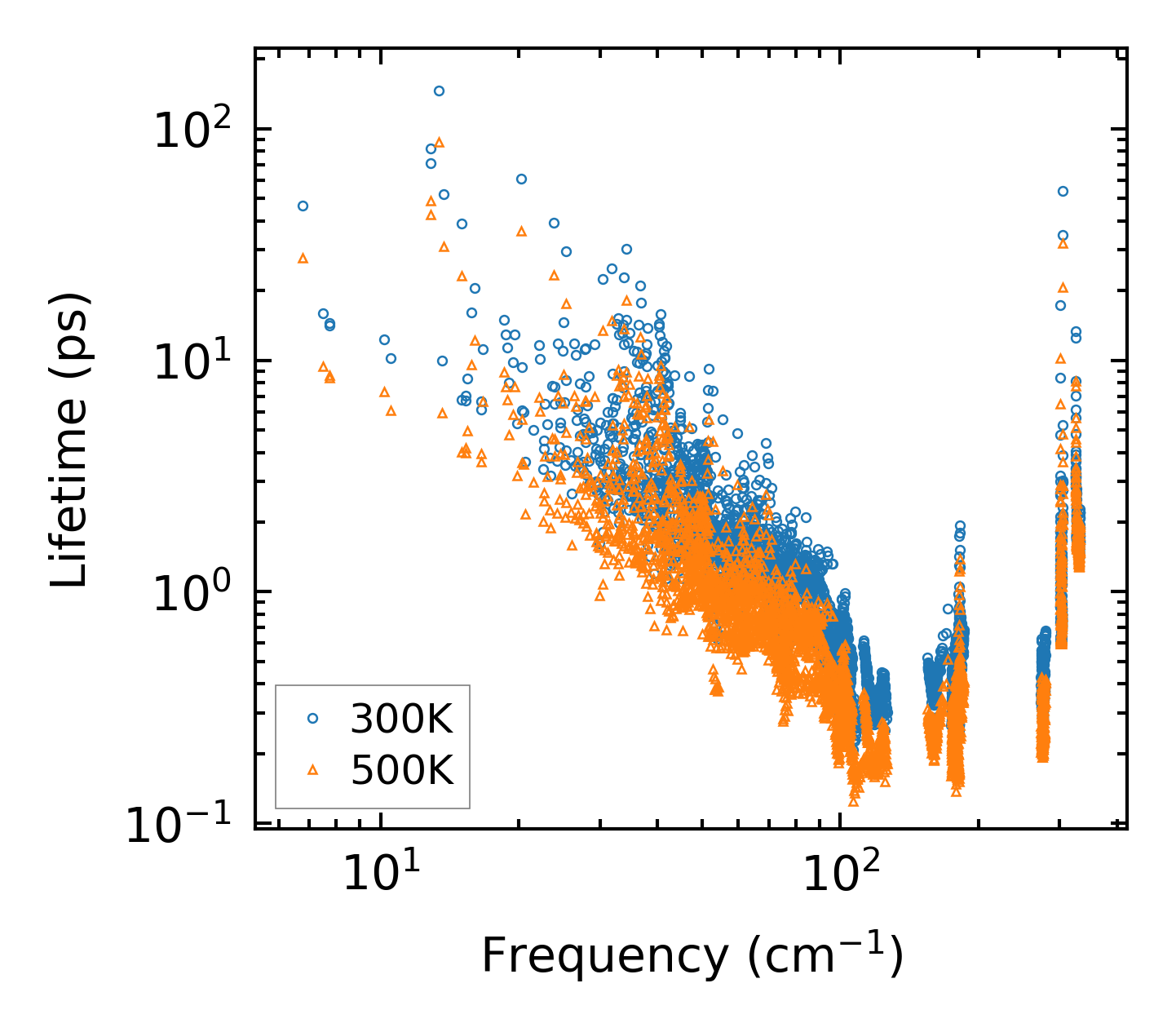

../../_images/fig_lifetime7438.png — (a) Phonon lifetime due to phonon-phonon scattering

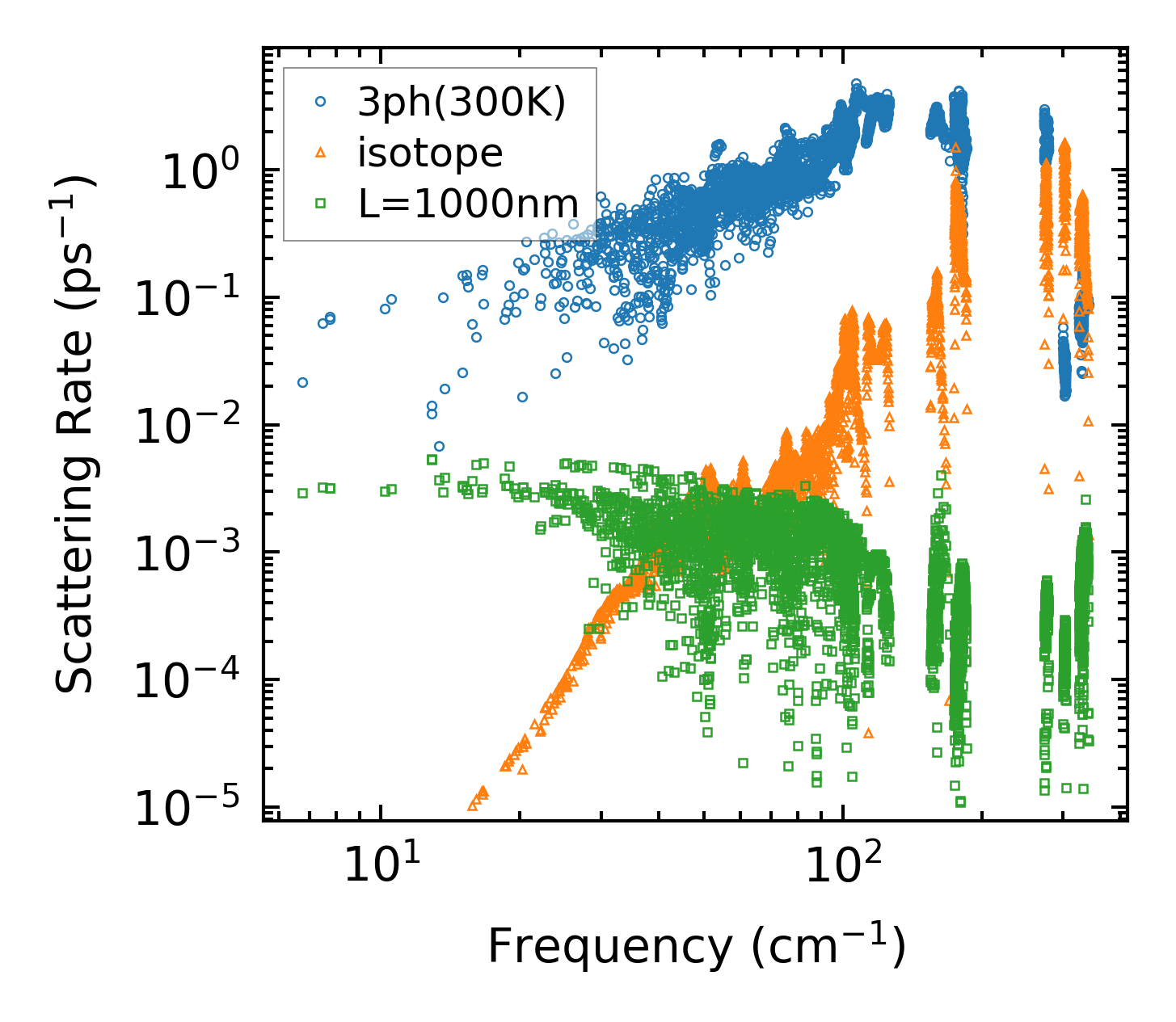

../../_images/fig_scat_rates7437.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

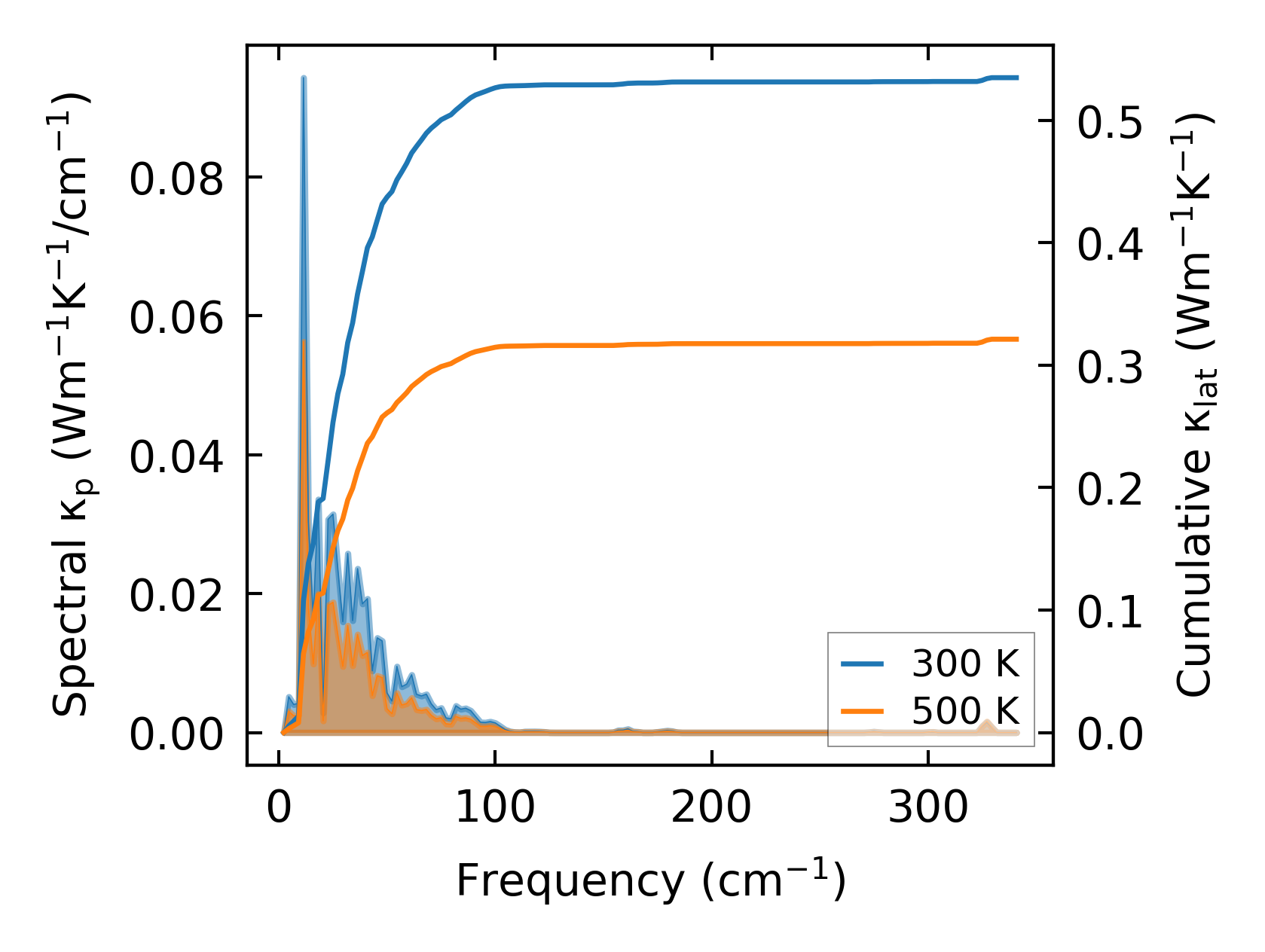

../../_images/fig_cumu_frequency7438.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

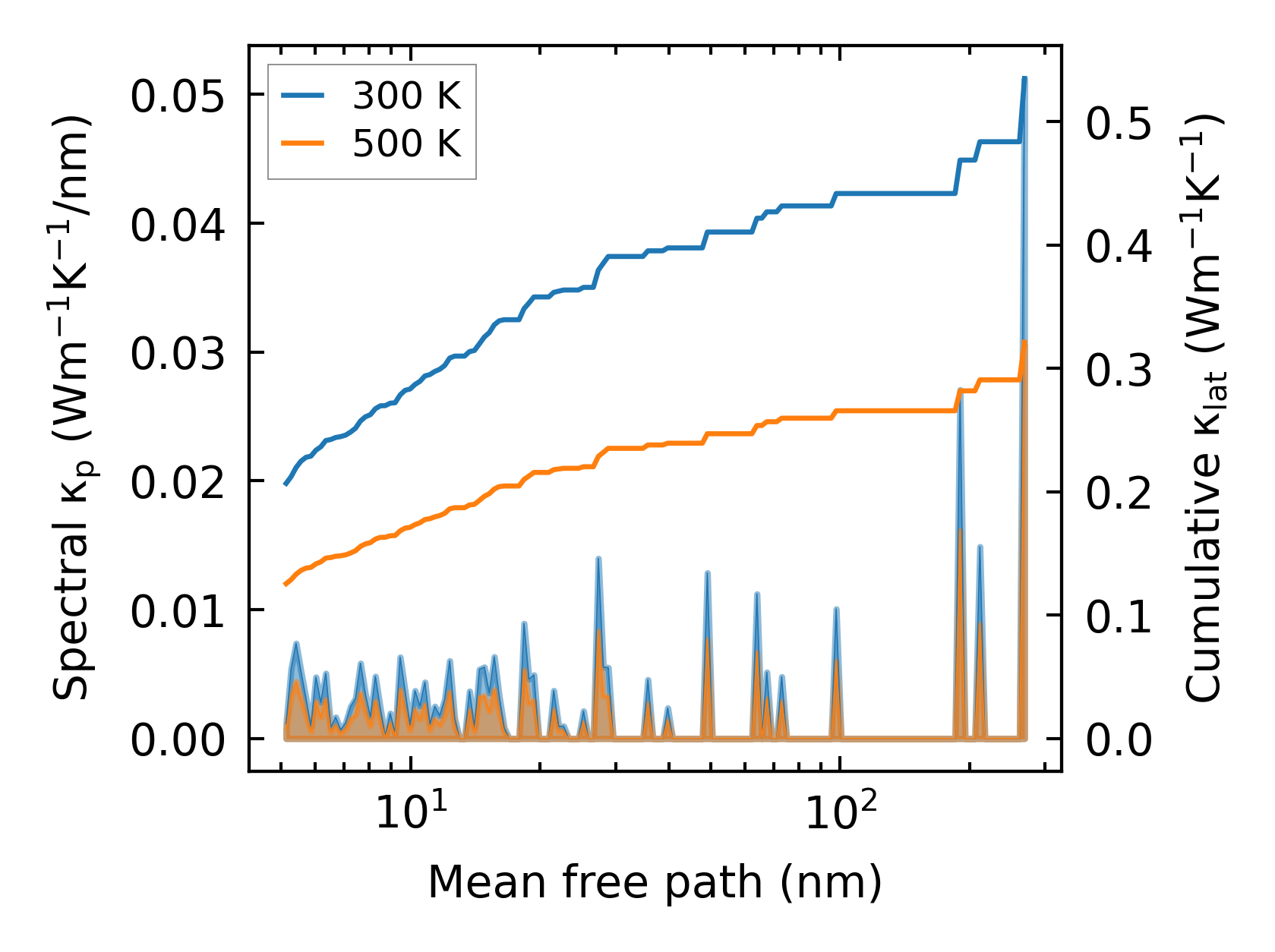

../../_images/fig_cumu_mfp7437.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

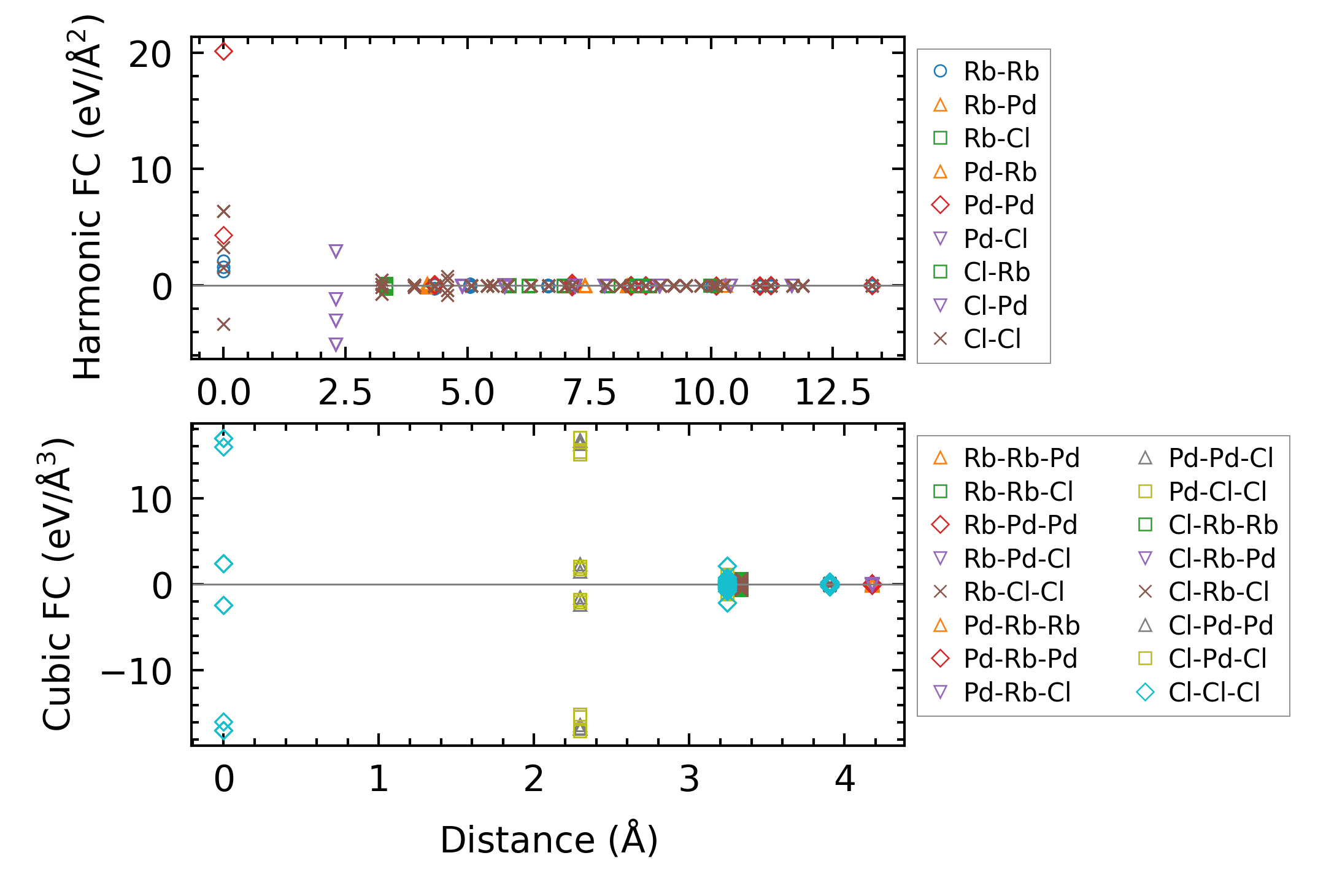

../../_images/fig_fc3457.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa14161.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times27980.png — (b) Computation time
