mp-1008506/BaGaSiH/anharm

Space group: P3m1 (156)
Link: Materials Project
Download: mp-1008506.tar.gz

Harmonic properties

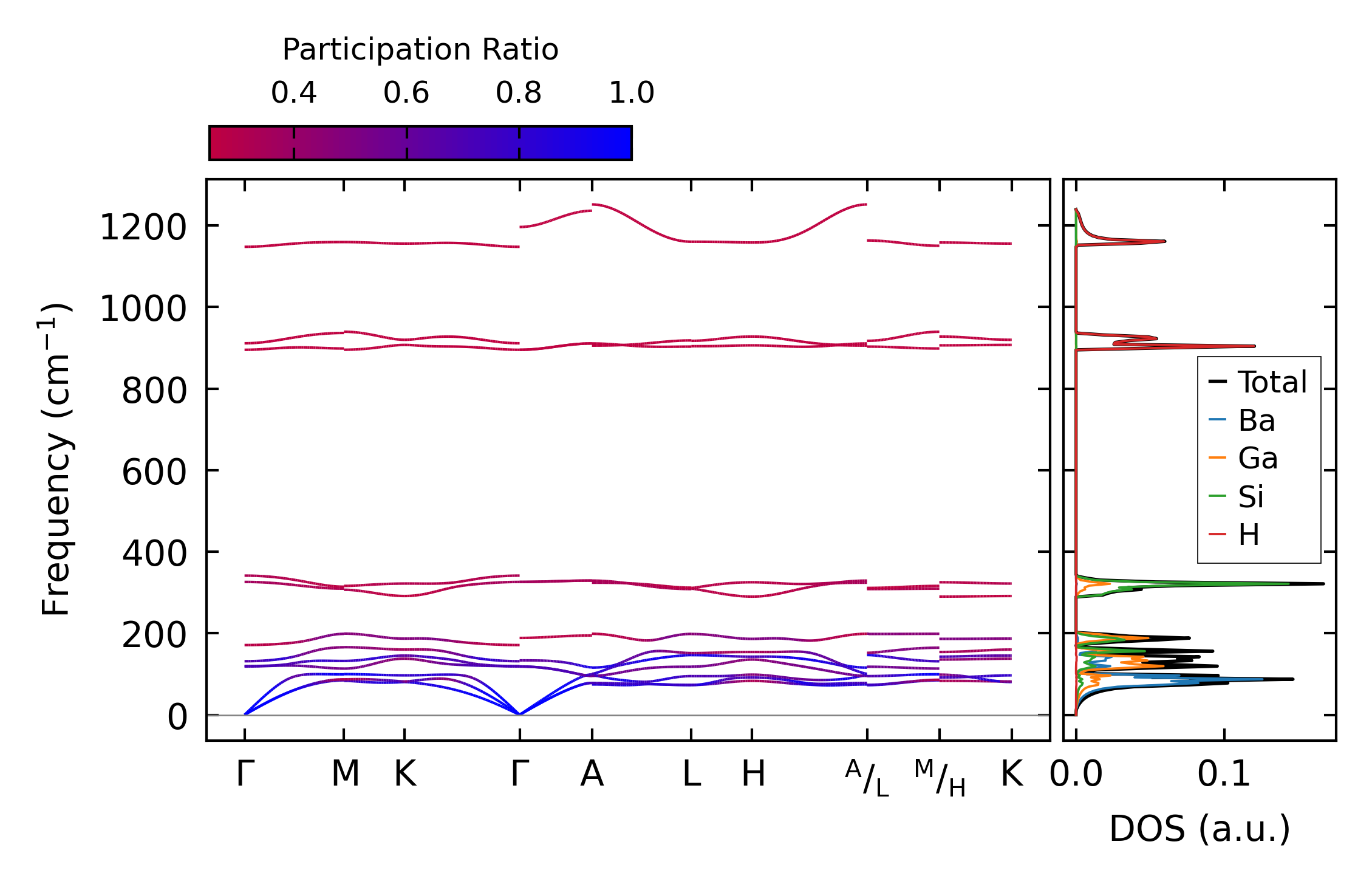

../../_images/fig_bandos_pr283.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo283.png — (b) Thermodynamic properties

Grüneisen parameters

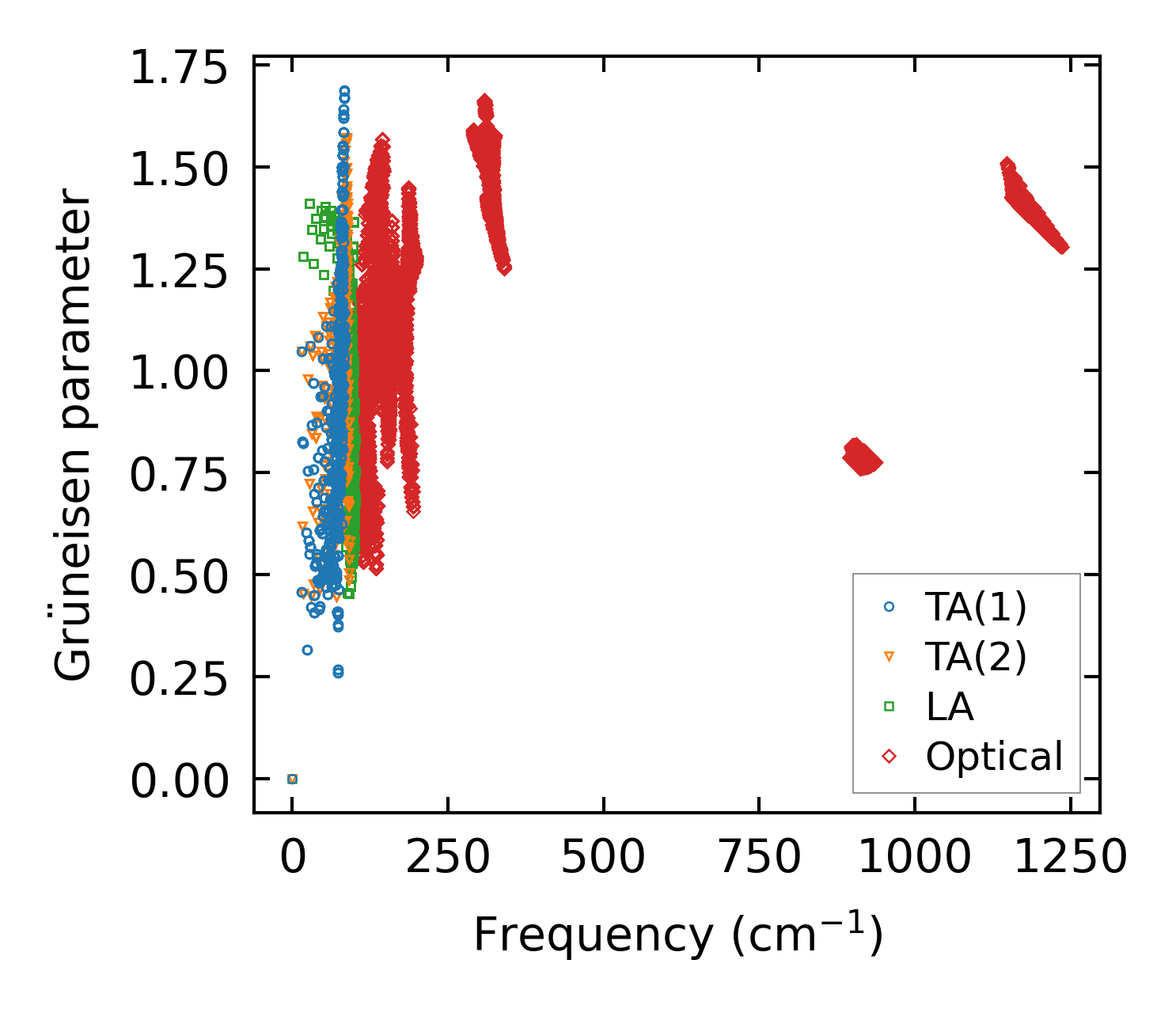

../../_images/fig_gru_all193.png — (a) Grüneisen parameters

../../_images/fig_gruneisen193.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 17x17x14, supercell: 3x3x3

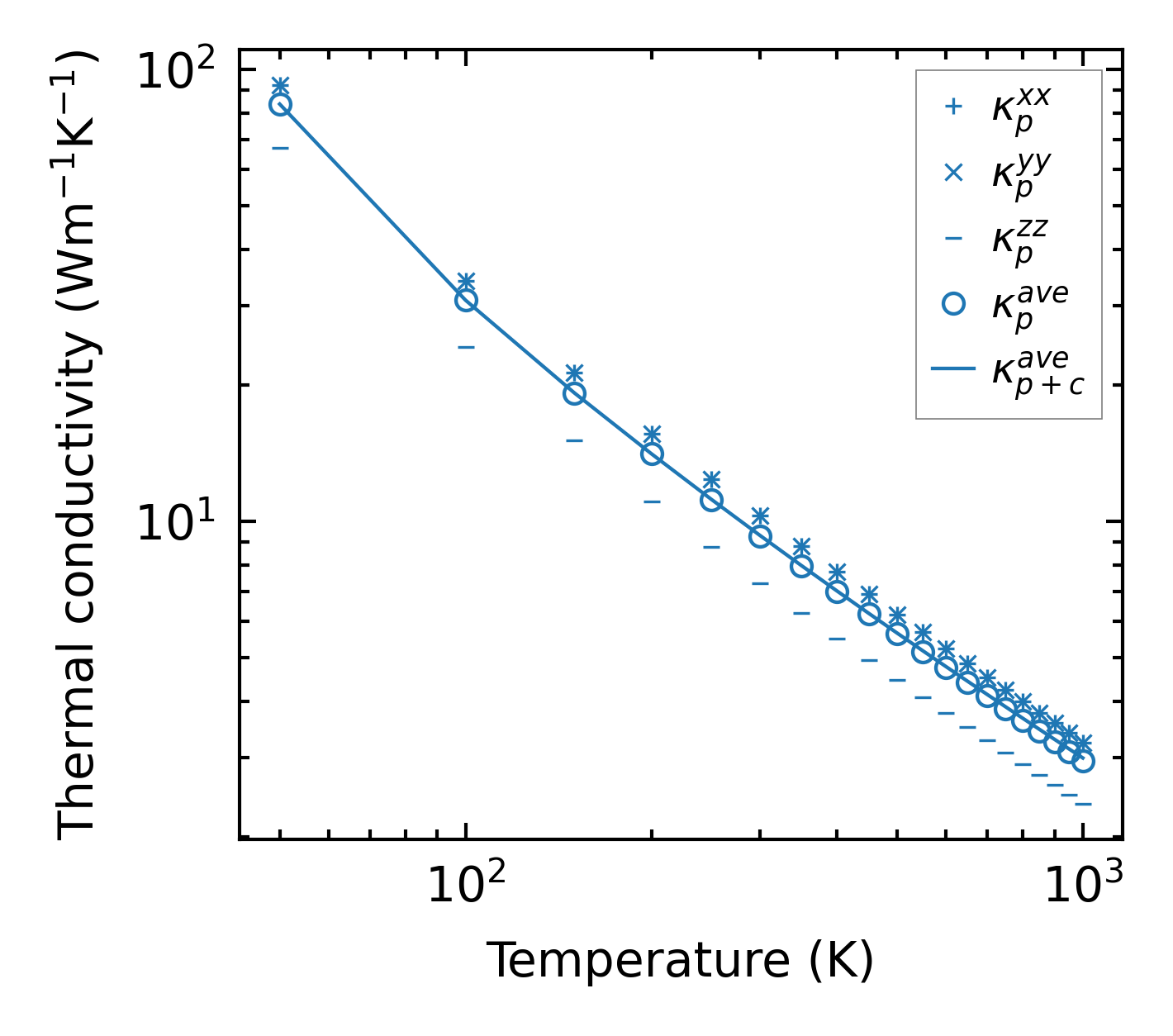

../../_images/fig_kappa378.png — (a) Temperature-dependent lattice thermal conductivity

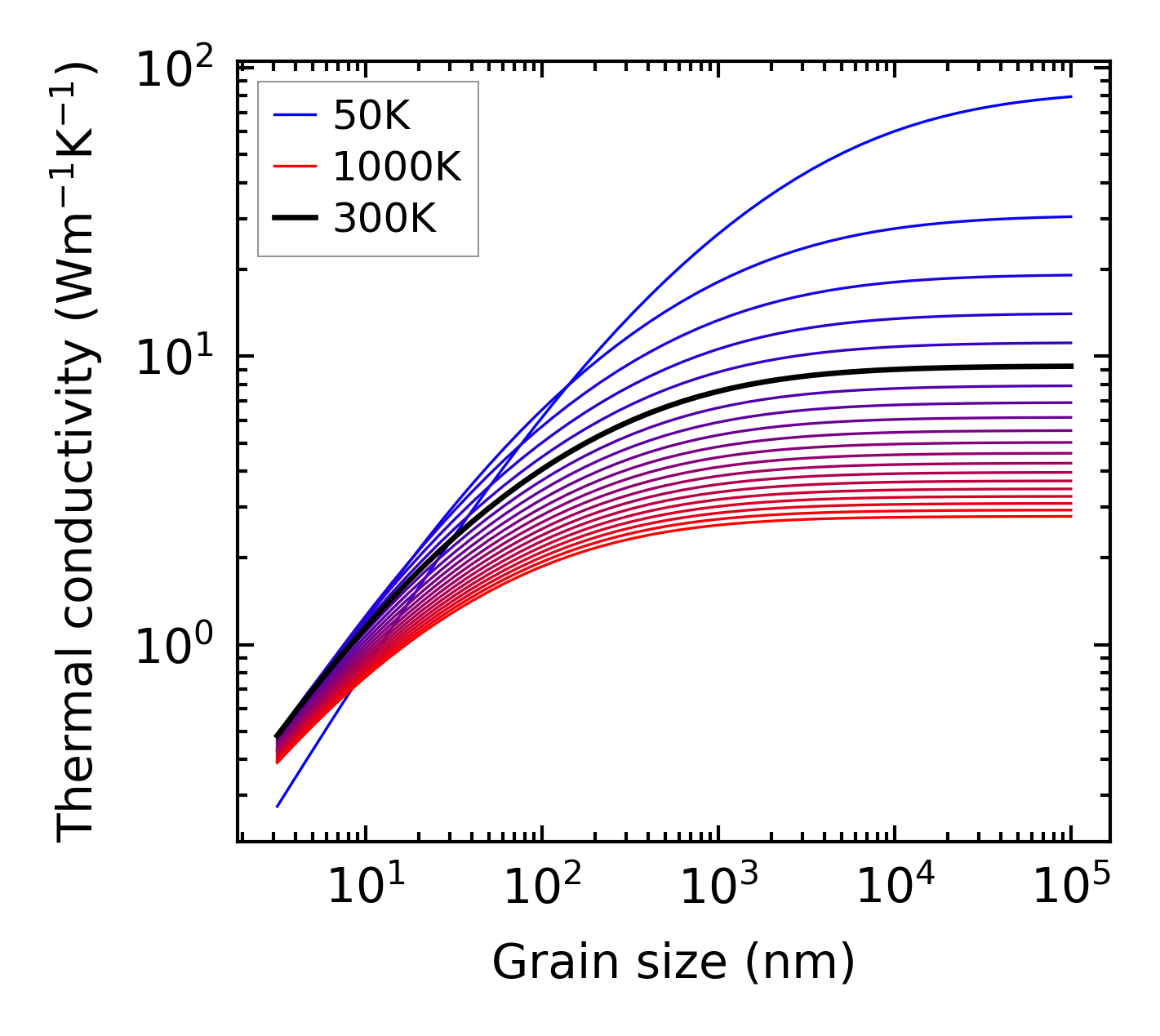

../../_images/fig_kappa_vs_grain_size196.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

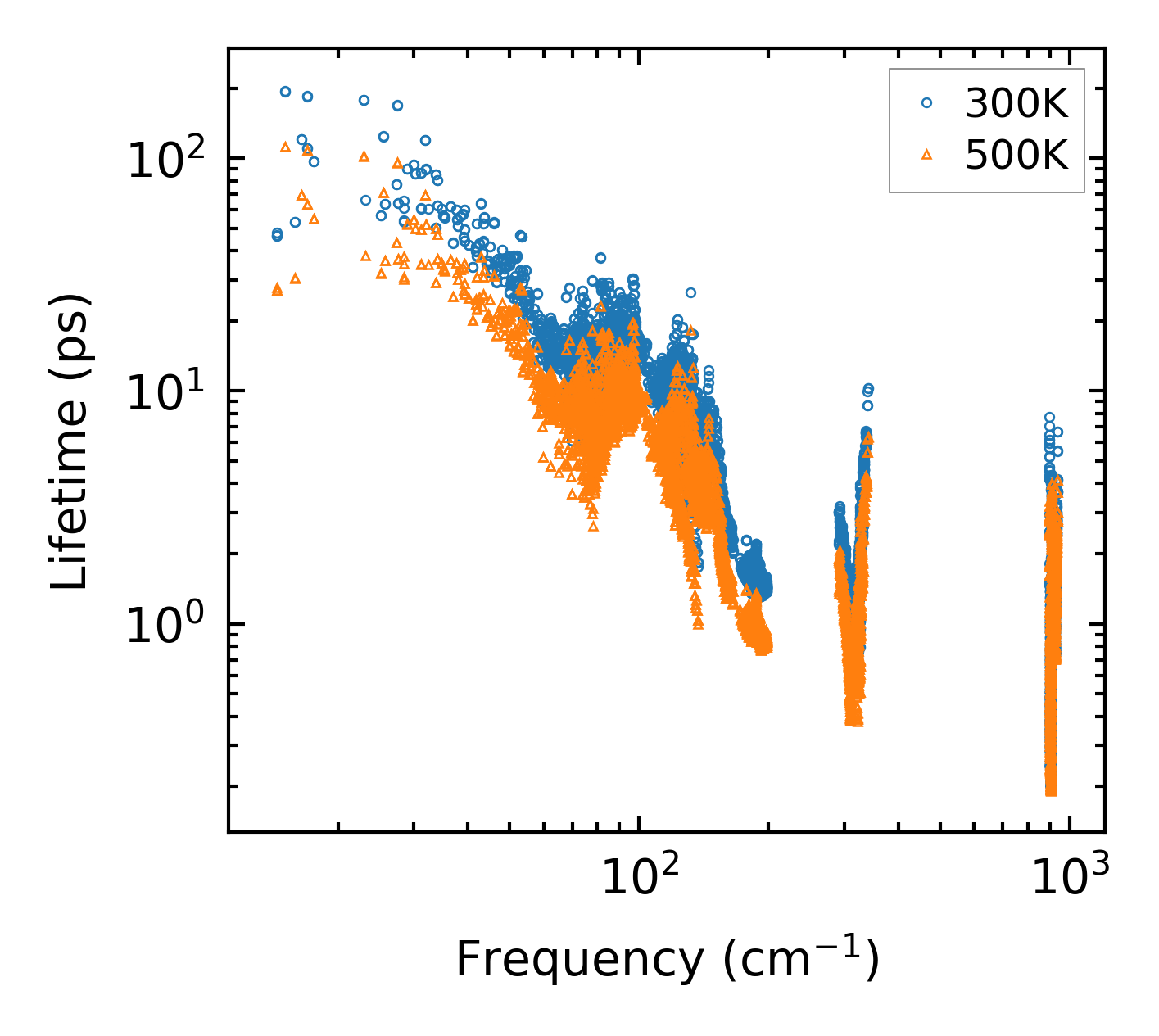

../../_images/fig_lifetime192.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates191.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

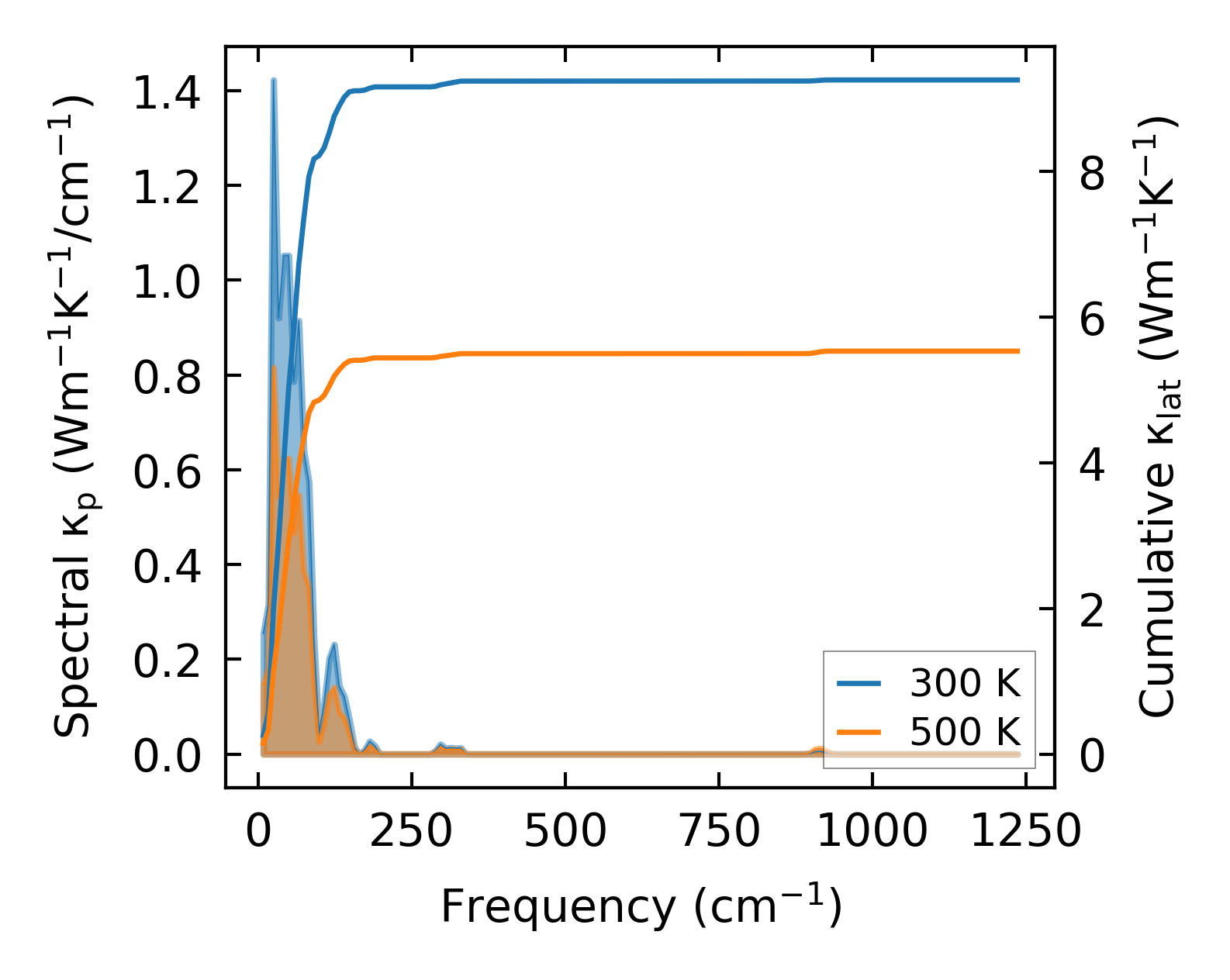

../../_images/fig_cumu_frequency192.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

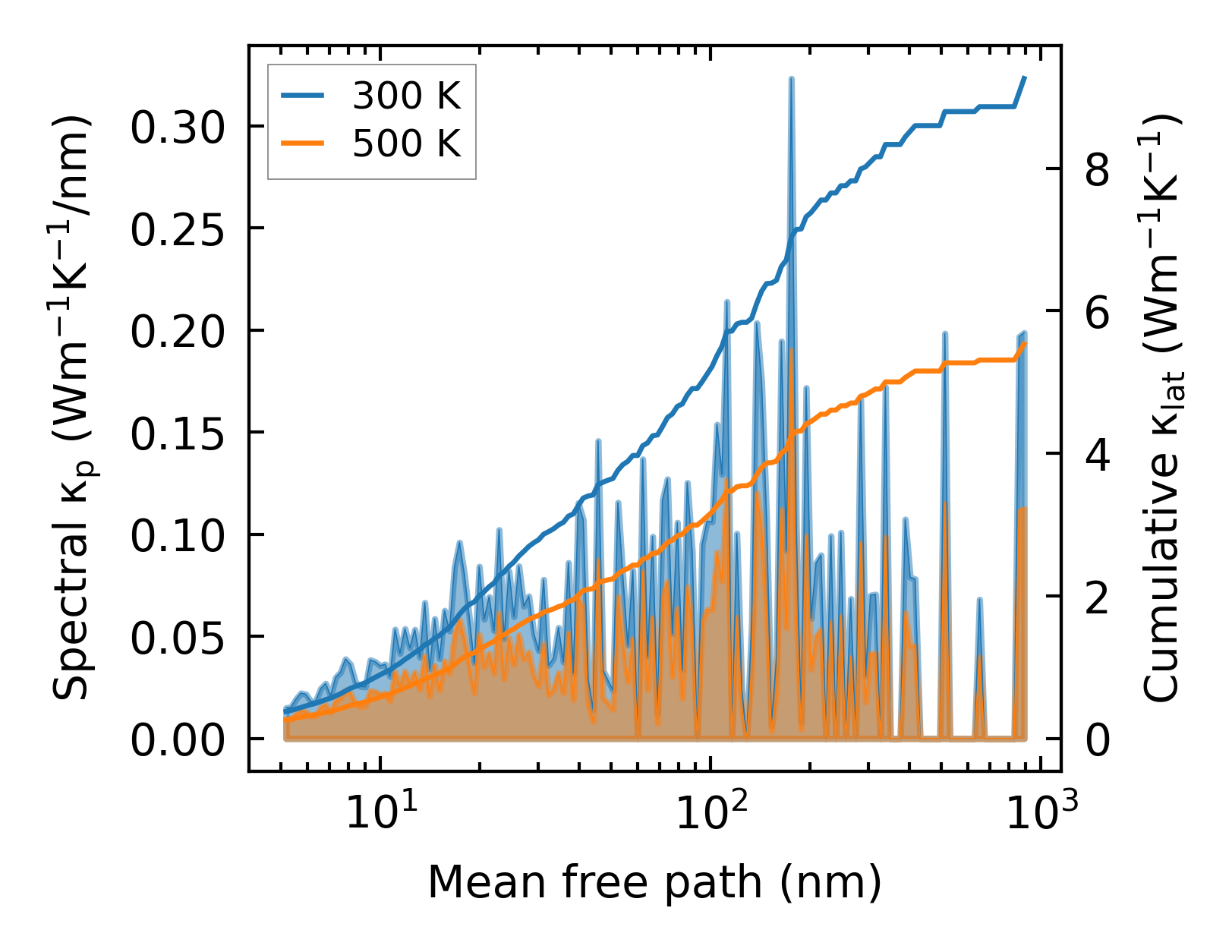

../../_images/fig_cumu_mfp192.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc2247.png — (a) Force constants w.r.t atomic distance

Summary

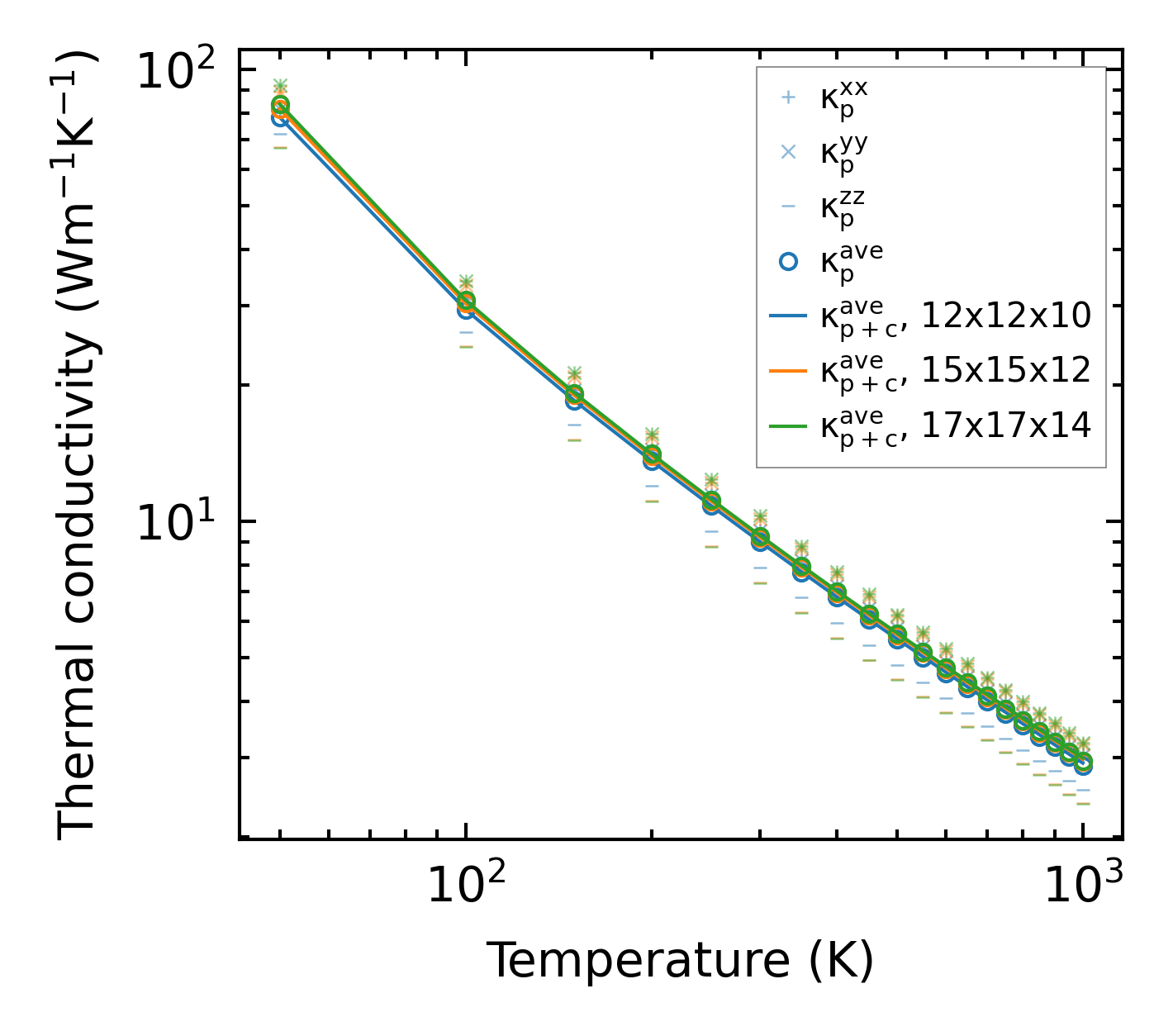

../../_images/fig_kappa379.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times457.png — (b) Computation time
