mp-1008395/C/anharm

Space group: I4/mmm (139)
Link: Materials Project
Download: mp-1008395.tar.gz

Harmonic properties

../../_images/fig_bandos_pr280.png — (a) Phonon dispersion with participation ratio and DOS

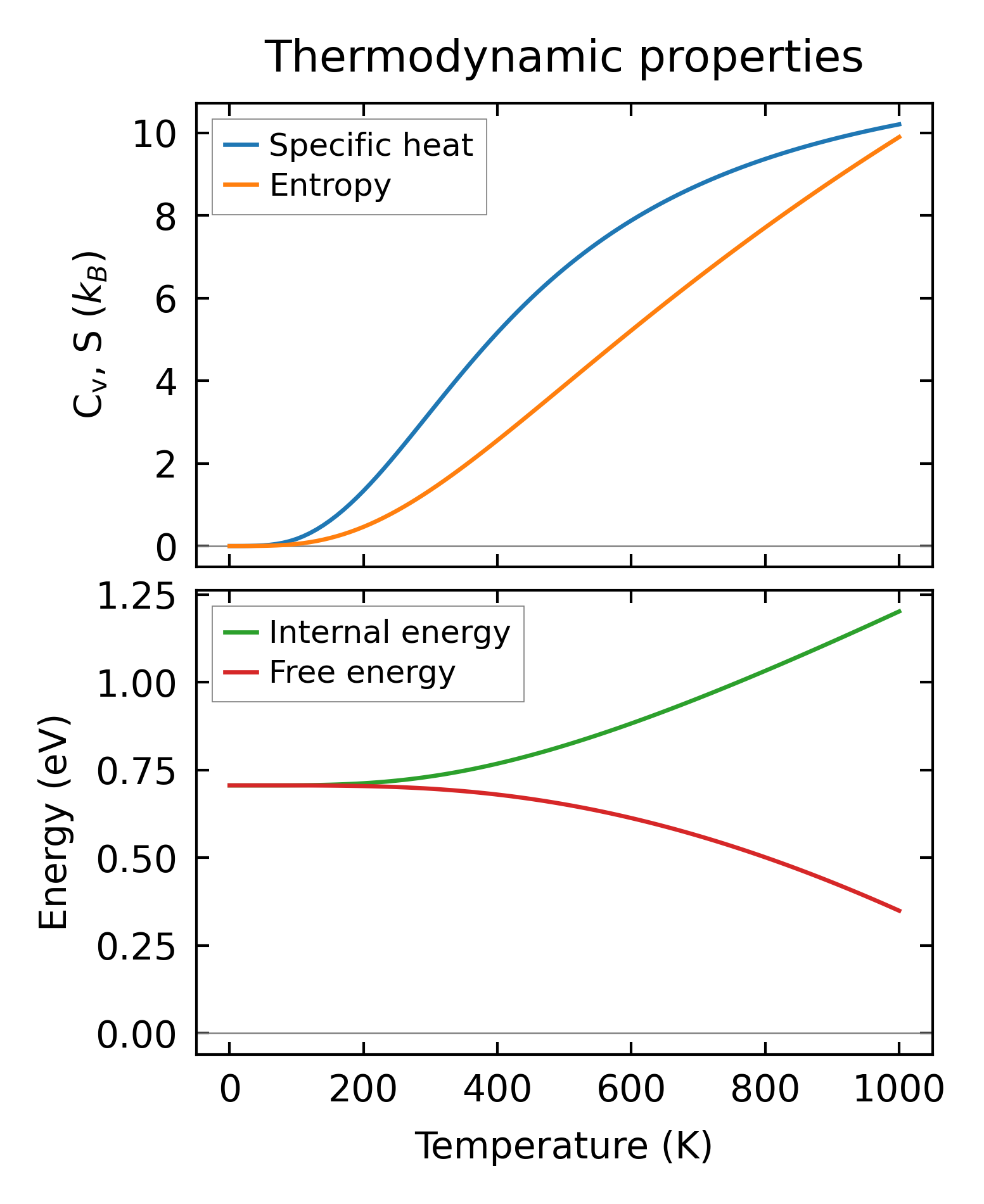

../../_images/fig_thermo280.png — (b) Thermodynamic properties

Grüneisen parameters

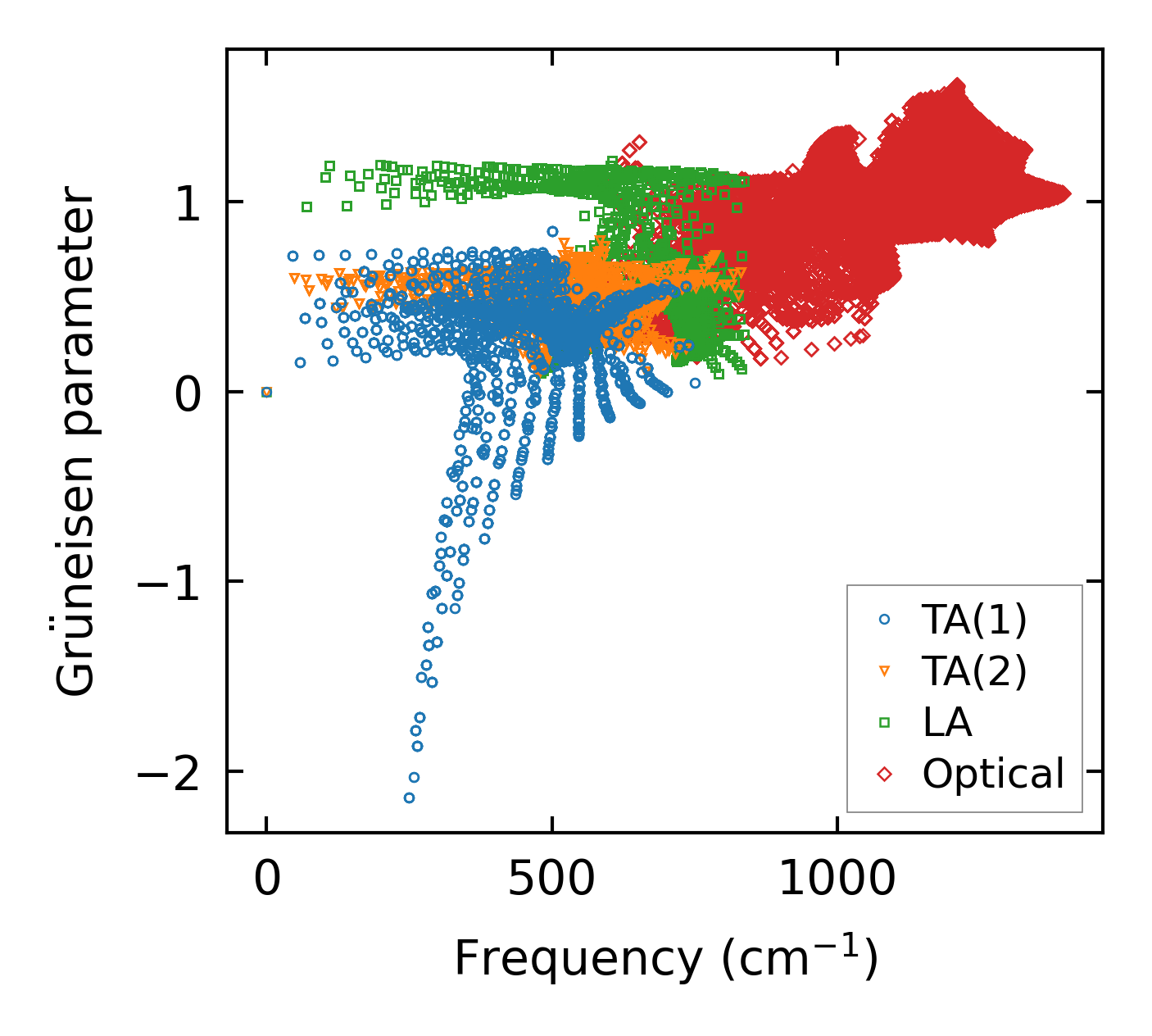

../../_images/fig_gru_all191.png — (a) Grüneisen parameters

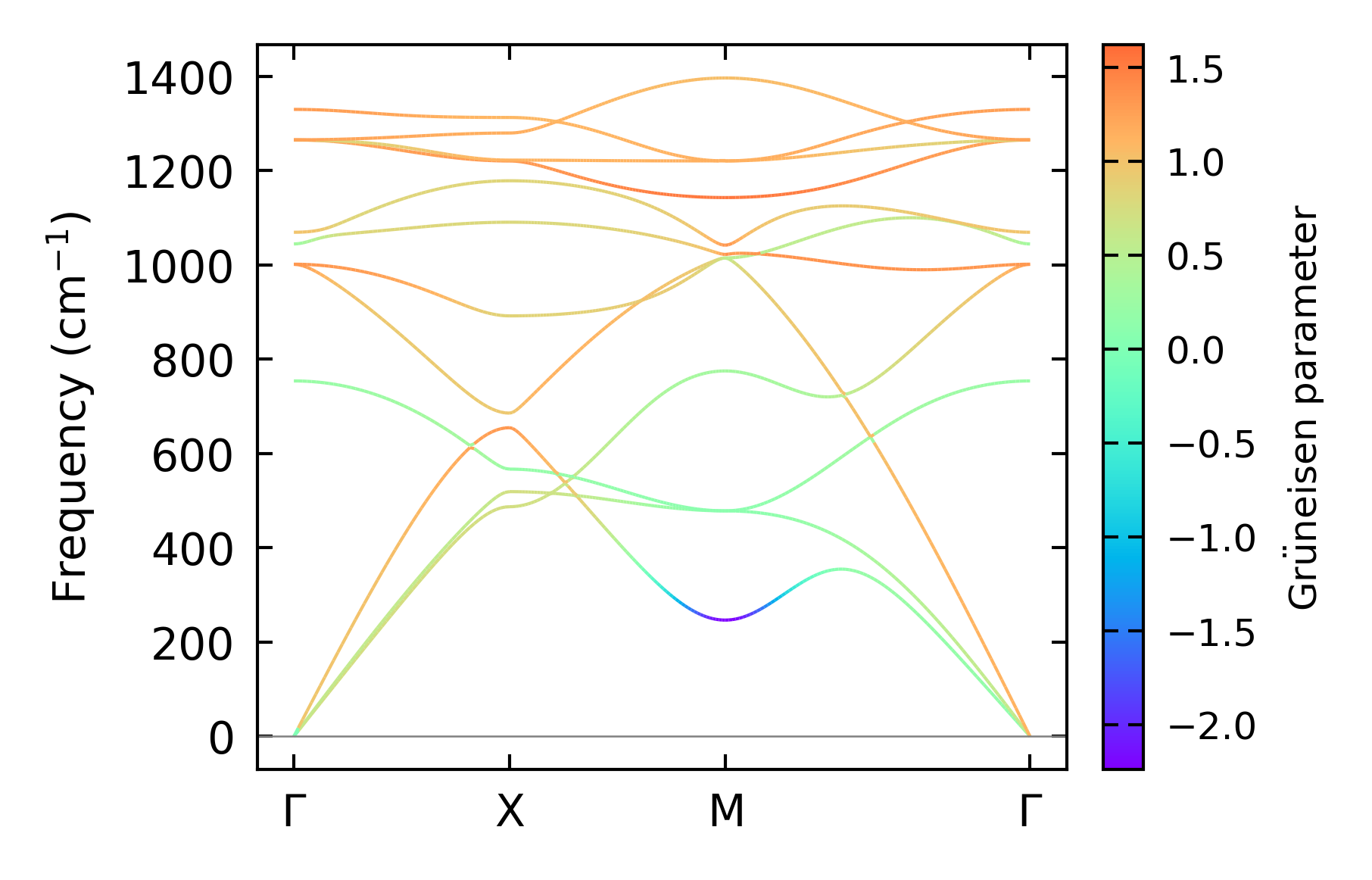

../../_images/fig_gruneisen191.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 25x25x25, supercell: 2x2x4

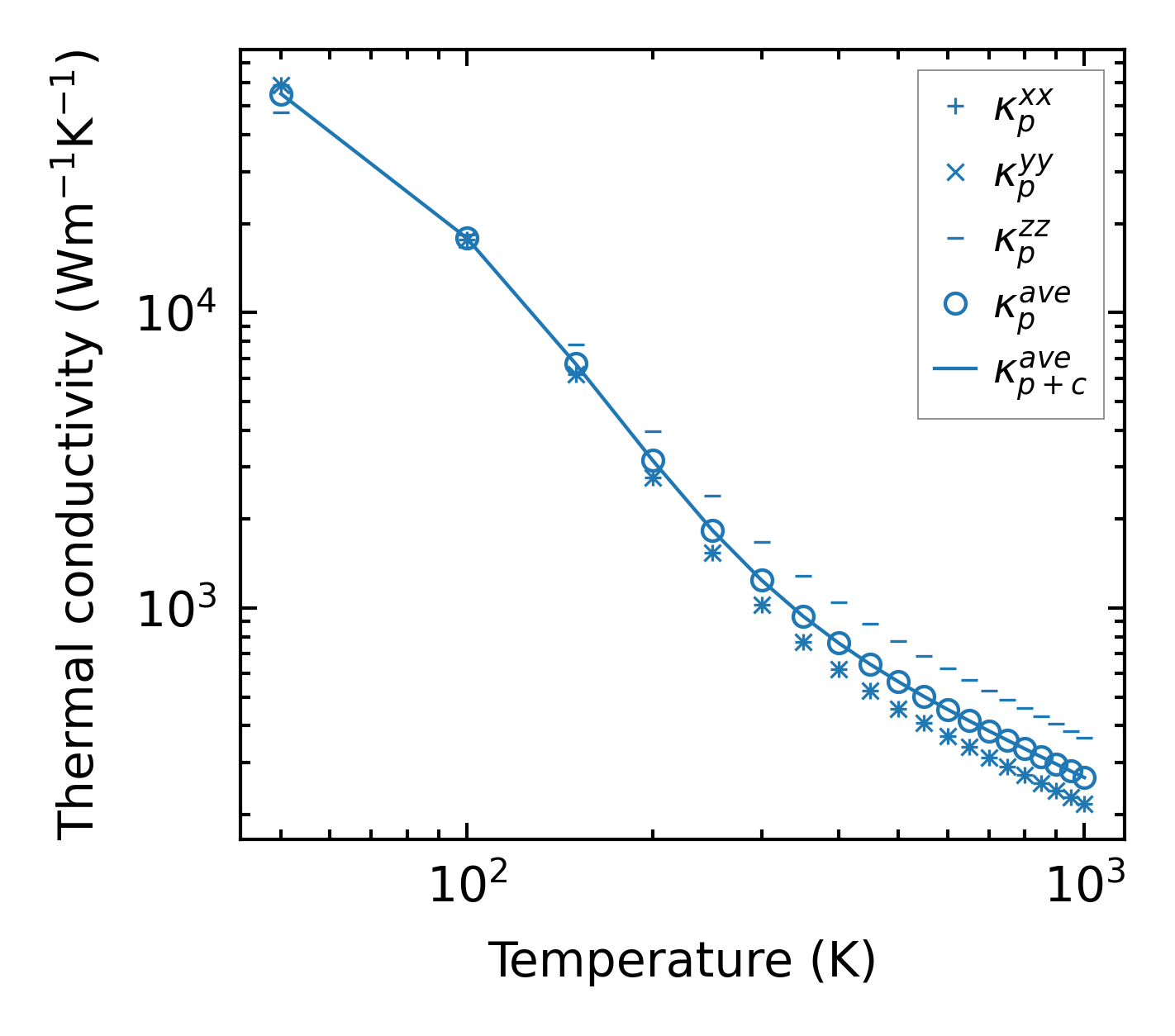

../../_images/fig_kappa374.png — (a) Temperature-dependent lattice thermal conductivity

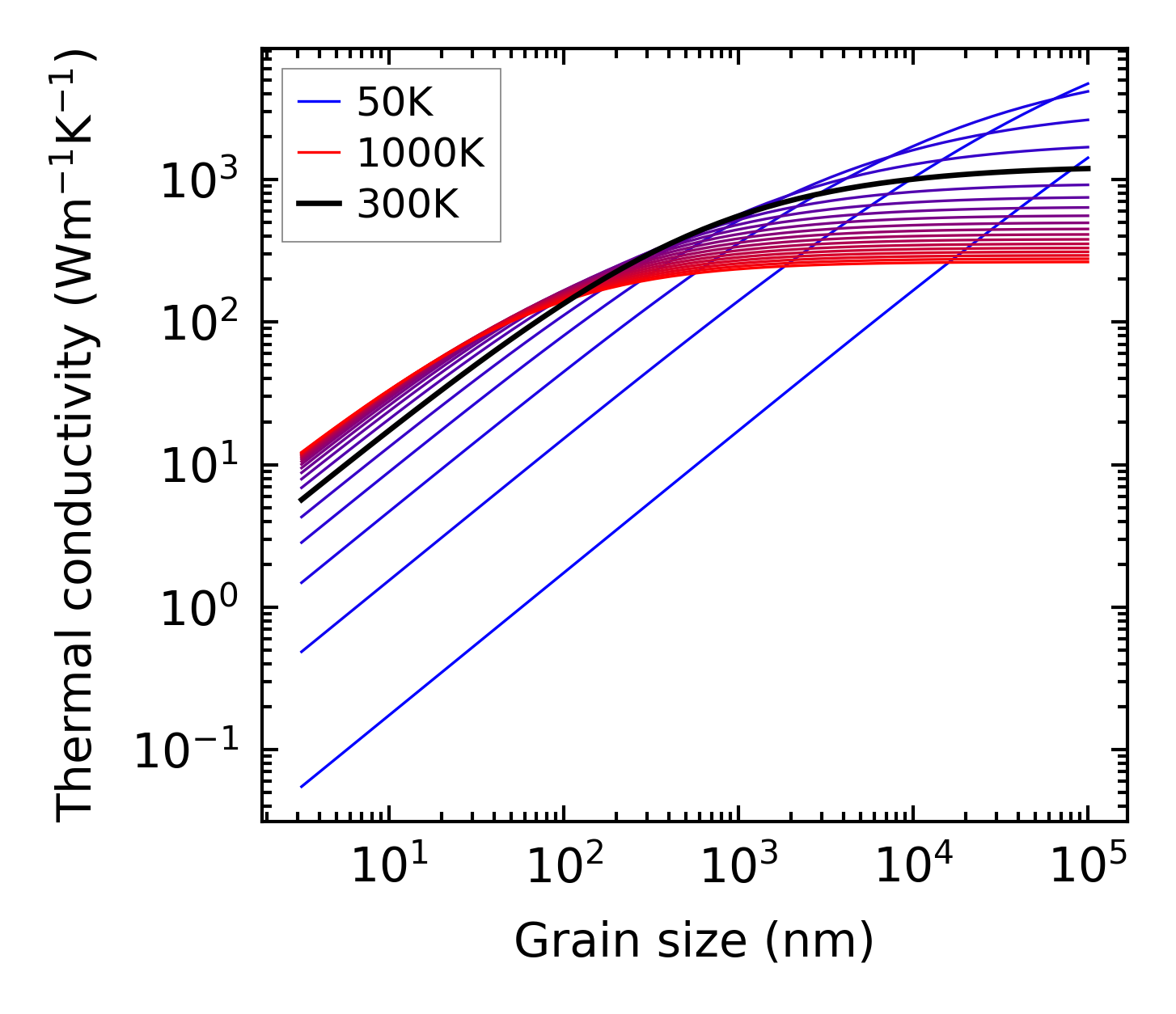

../../_images/fig_kappa_vs_grain_size194.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

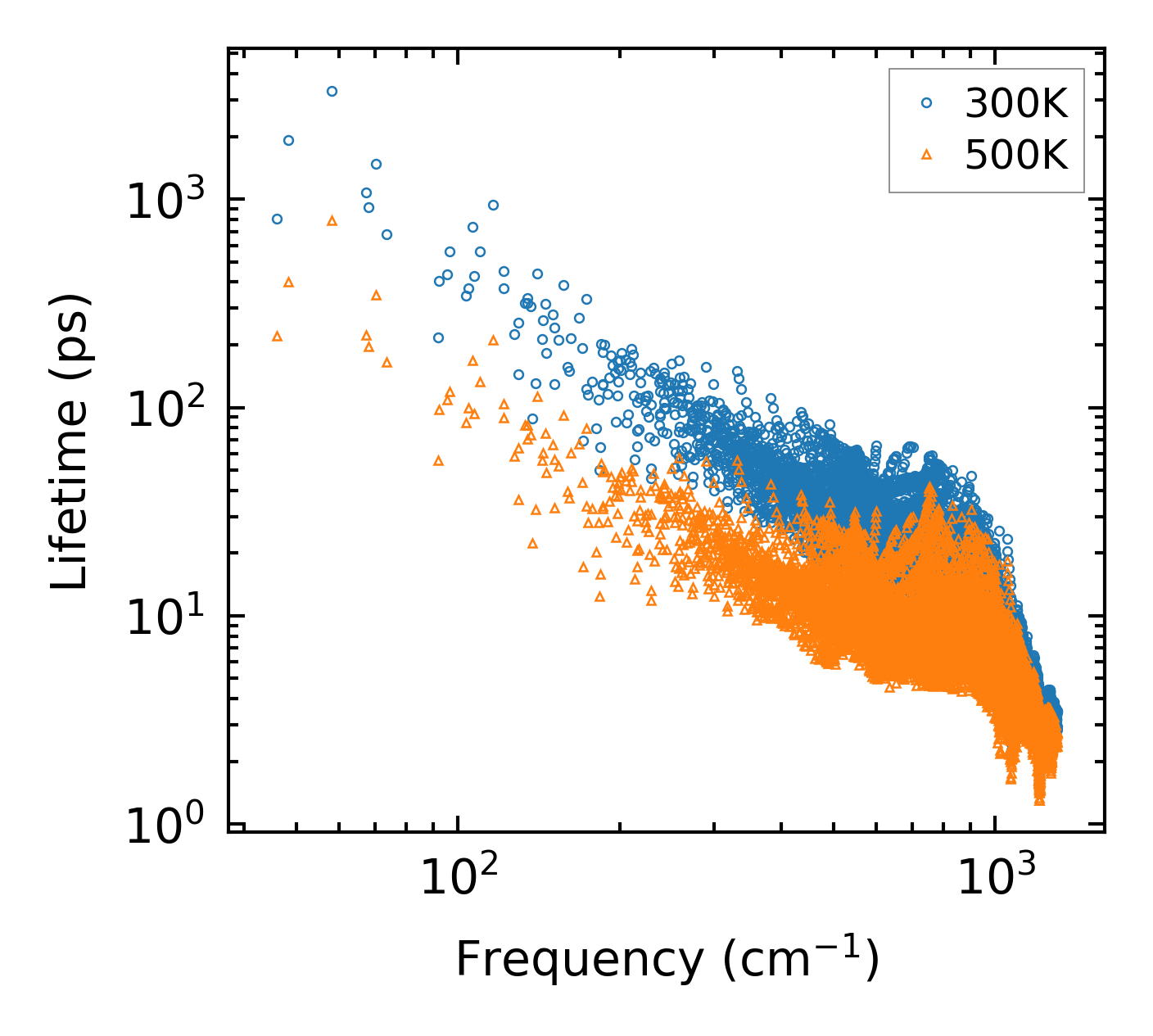

../../_images/fig_lifetime190.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates189.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

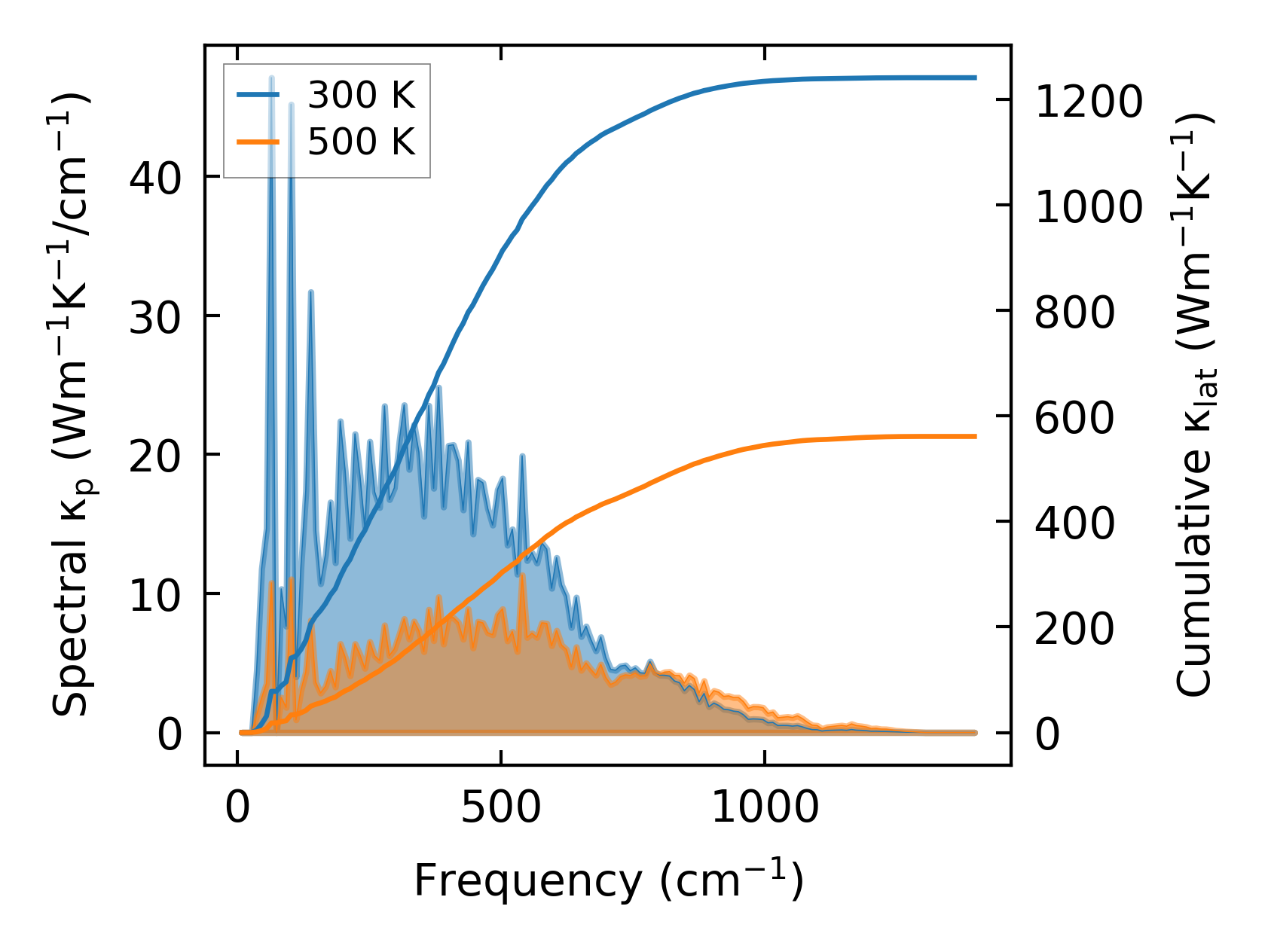

../../_images/fig_cumu_frequency190.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp190.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc2244.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa375.png — (a) Temperature-dependent lattice thermal conductivity

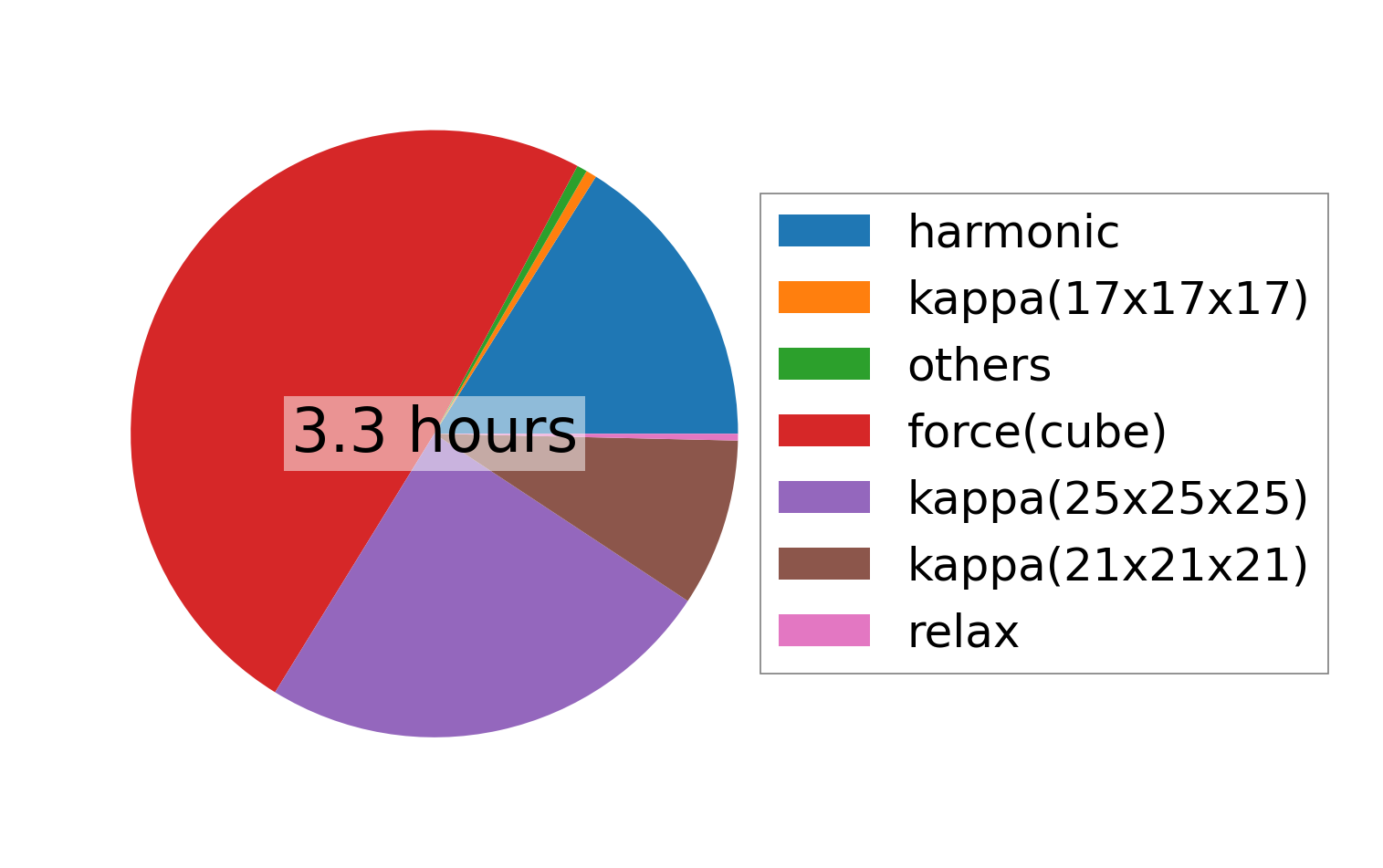

../../_images/fig_times454.png — (b) Computation time
