mp-984766-2/CaB2H8/anharm

Space group: P4_2/m (84)
Link: Materials Project
Download: mp-984766-2.tar.gz

Equation of state

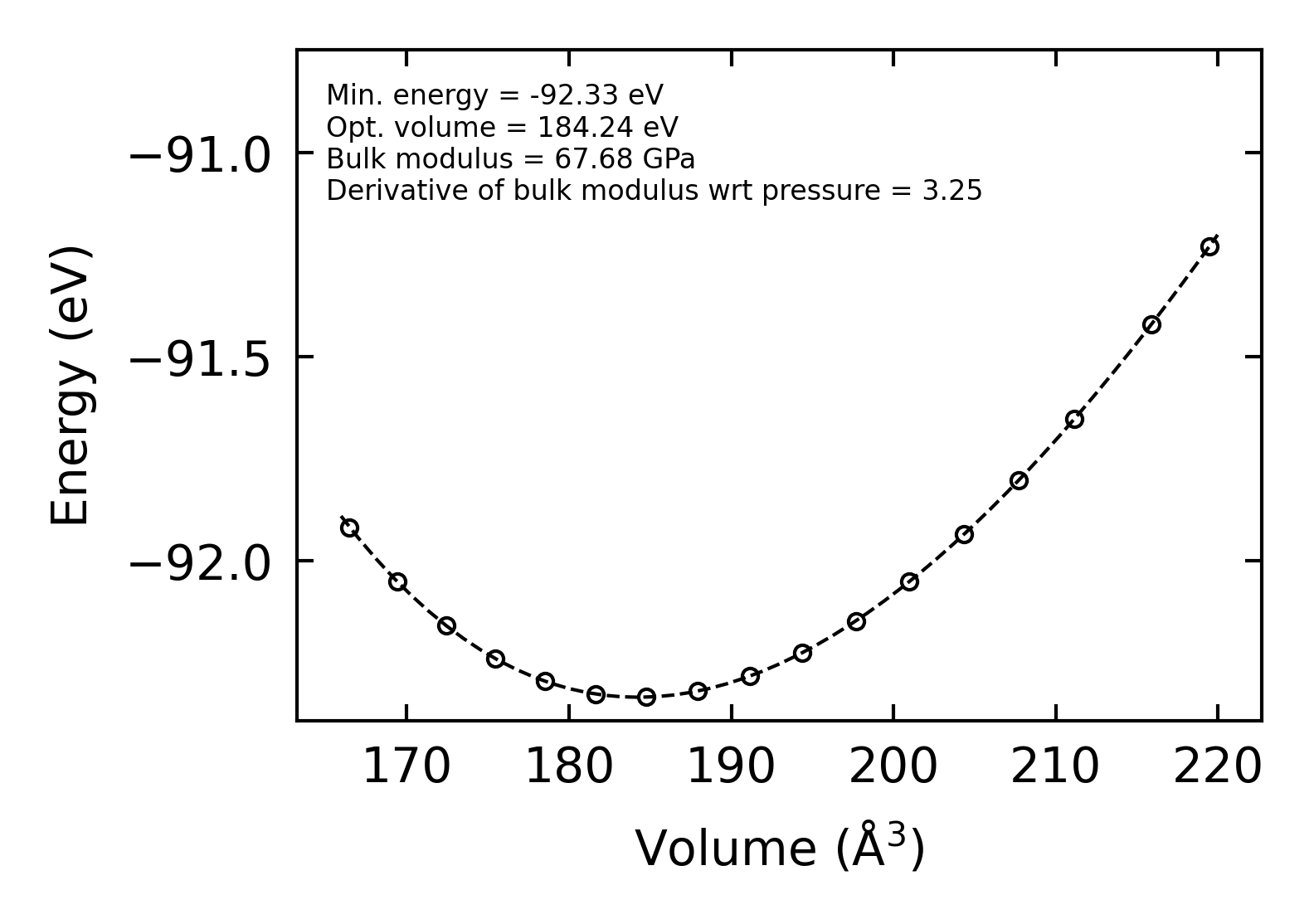

../../_images/fig_bm365.png — (a) Equation of state

Harmonic properties

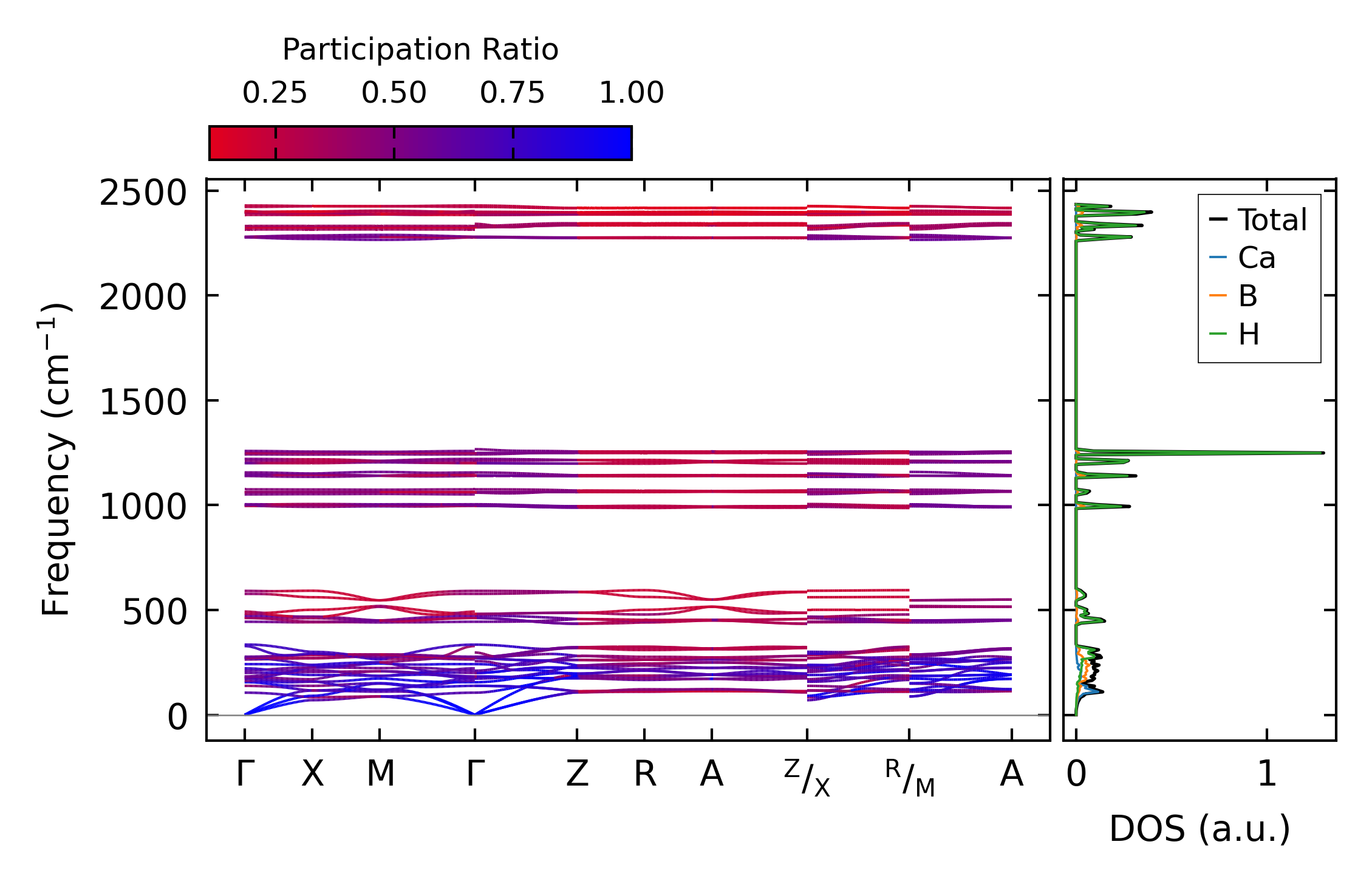

../../_images/fig_bandos_pr1098.png — (a) Phonon dispersion with participation ratio and DOS

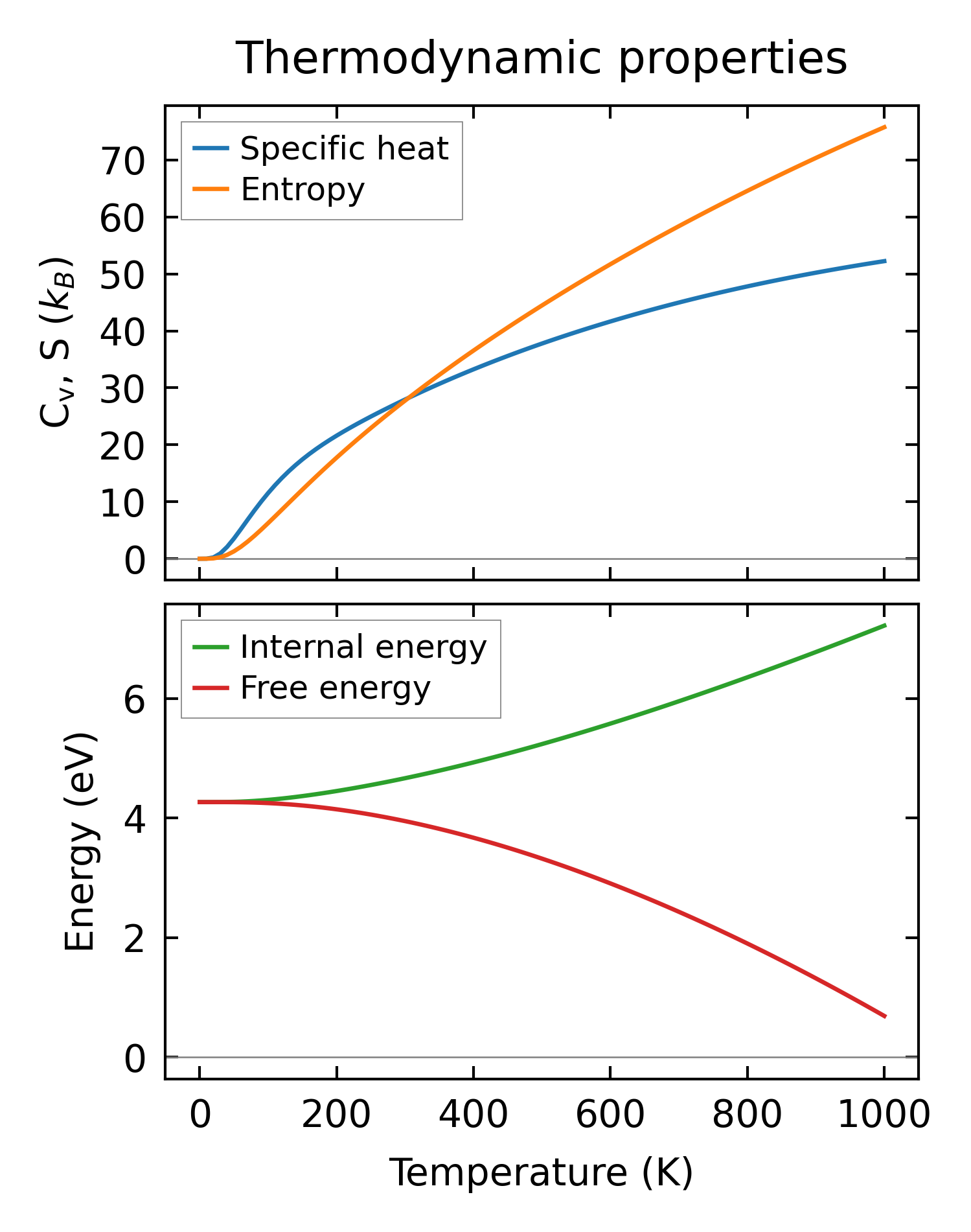

../../_images/fig_thermo1098.png — (b) Thermodynamic properties

Grüneisen parameters

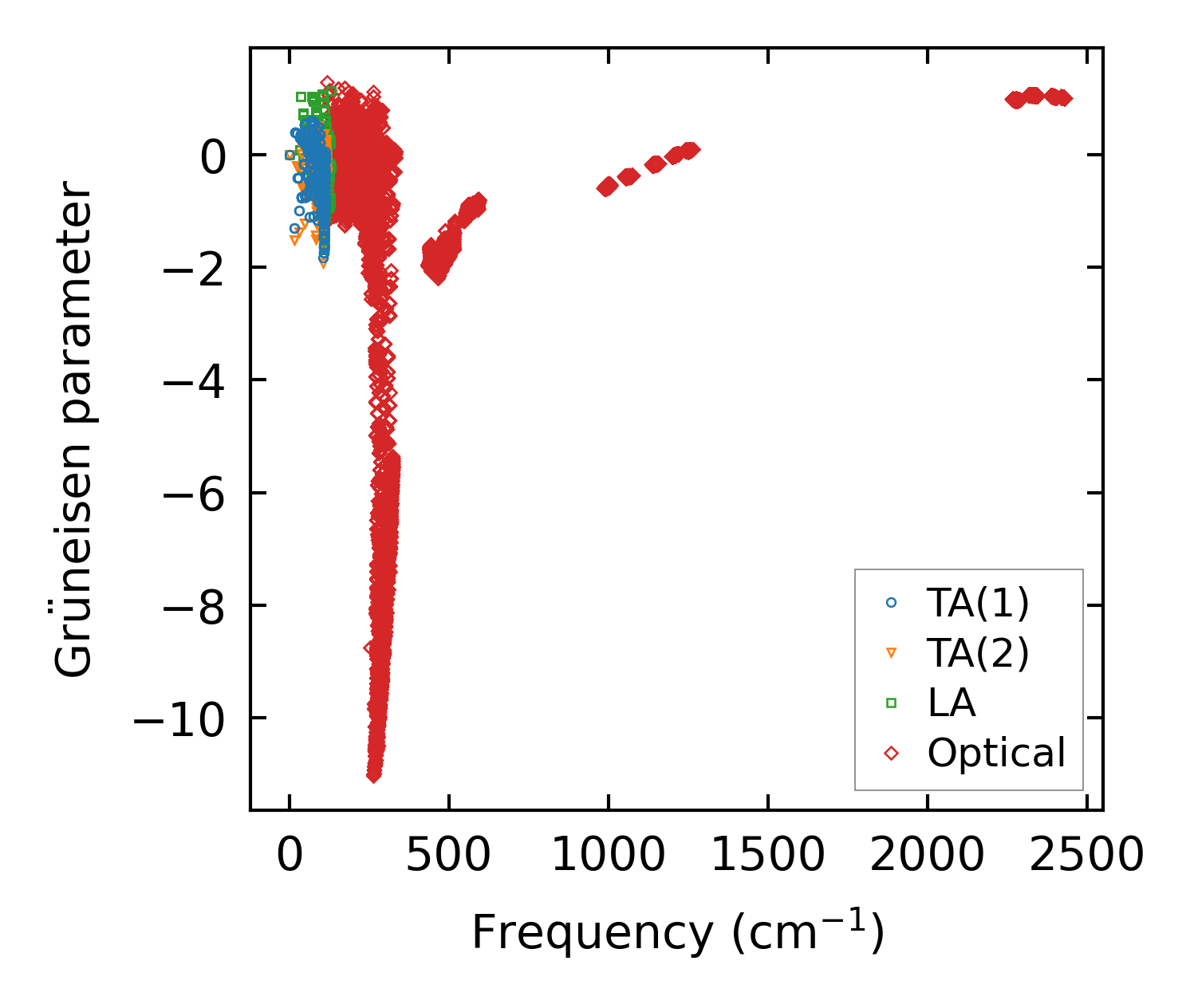

../../_images/fig_gru_all677.png — (a) Grüneisen parameters

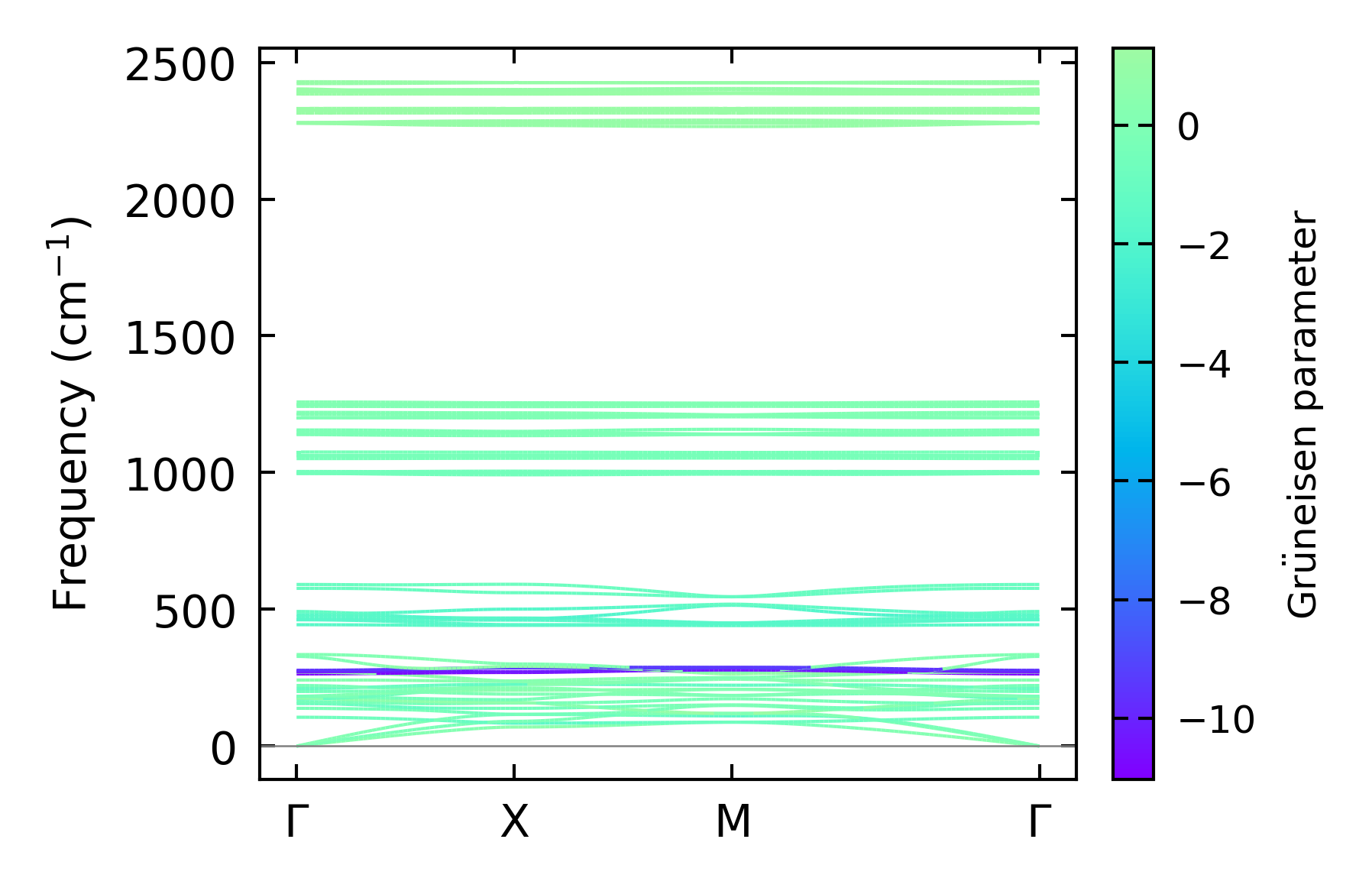

../../_images/fig_gruneisen677.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x16, supercell: 1x1x2

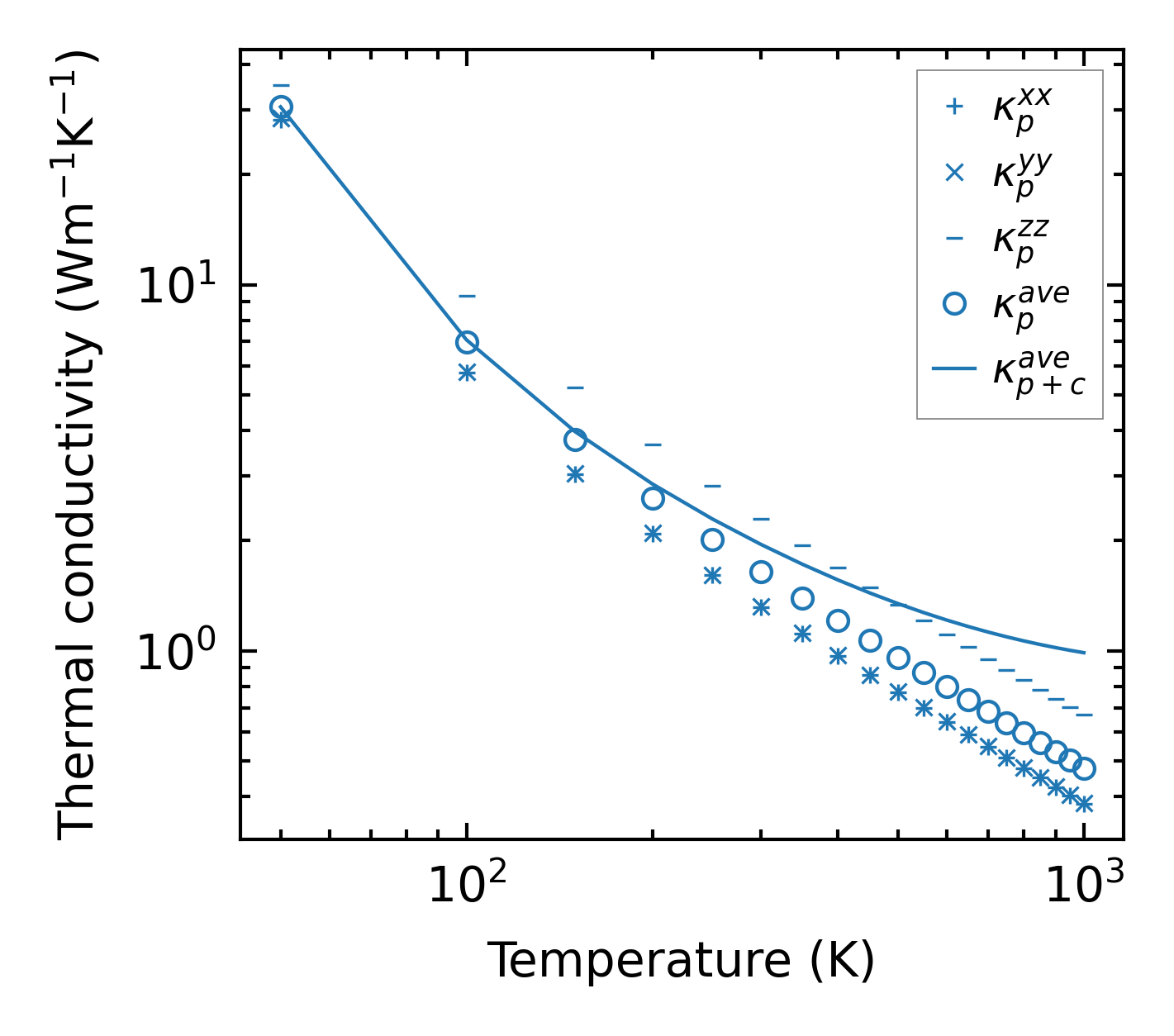

../../_images/fig_kappa1320.png — (a) Temperature-dependent lattice thermal conductivity

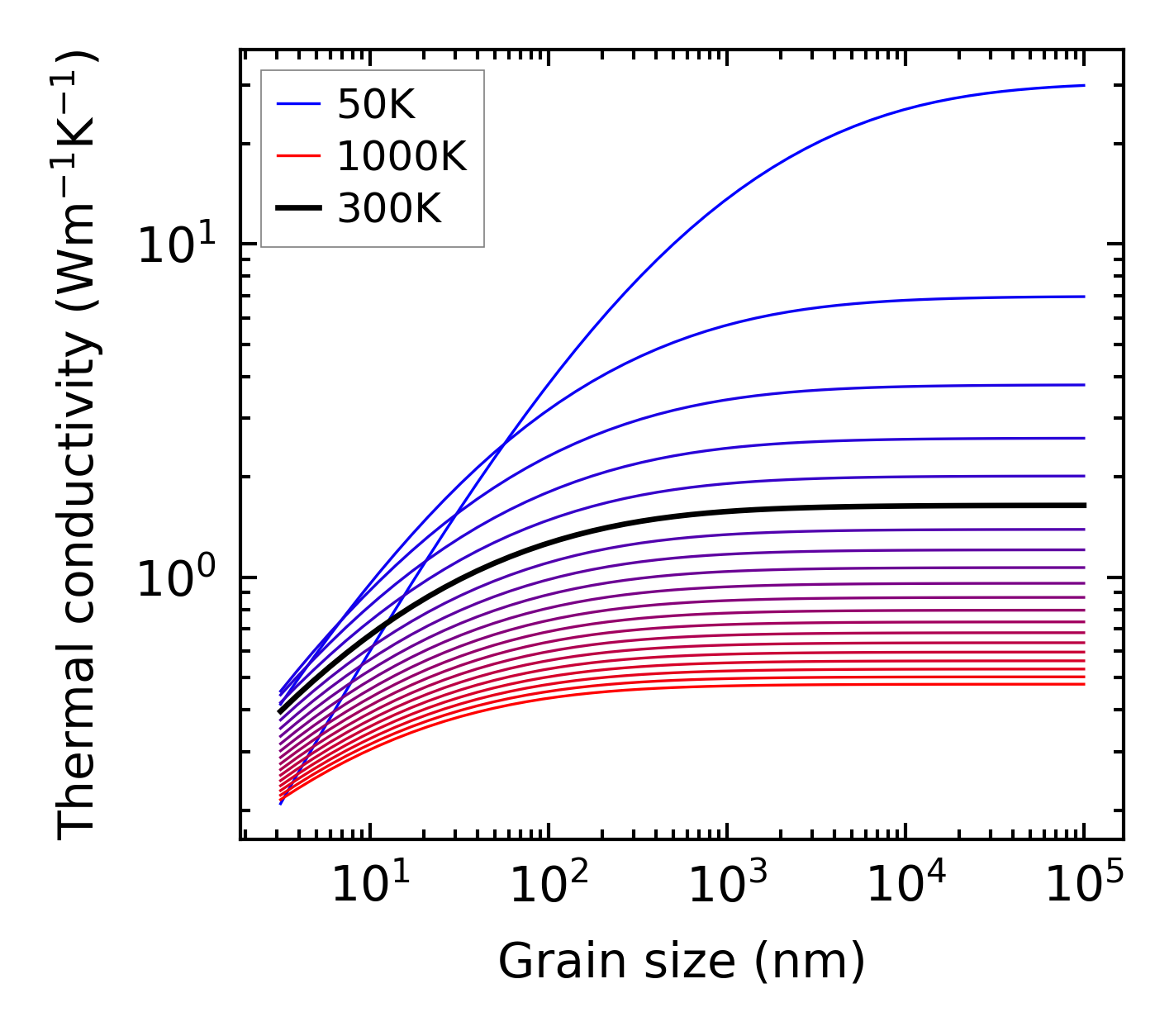

../../_images/fig_kappa_vs_grain_size685.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

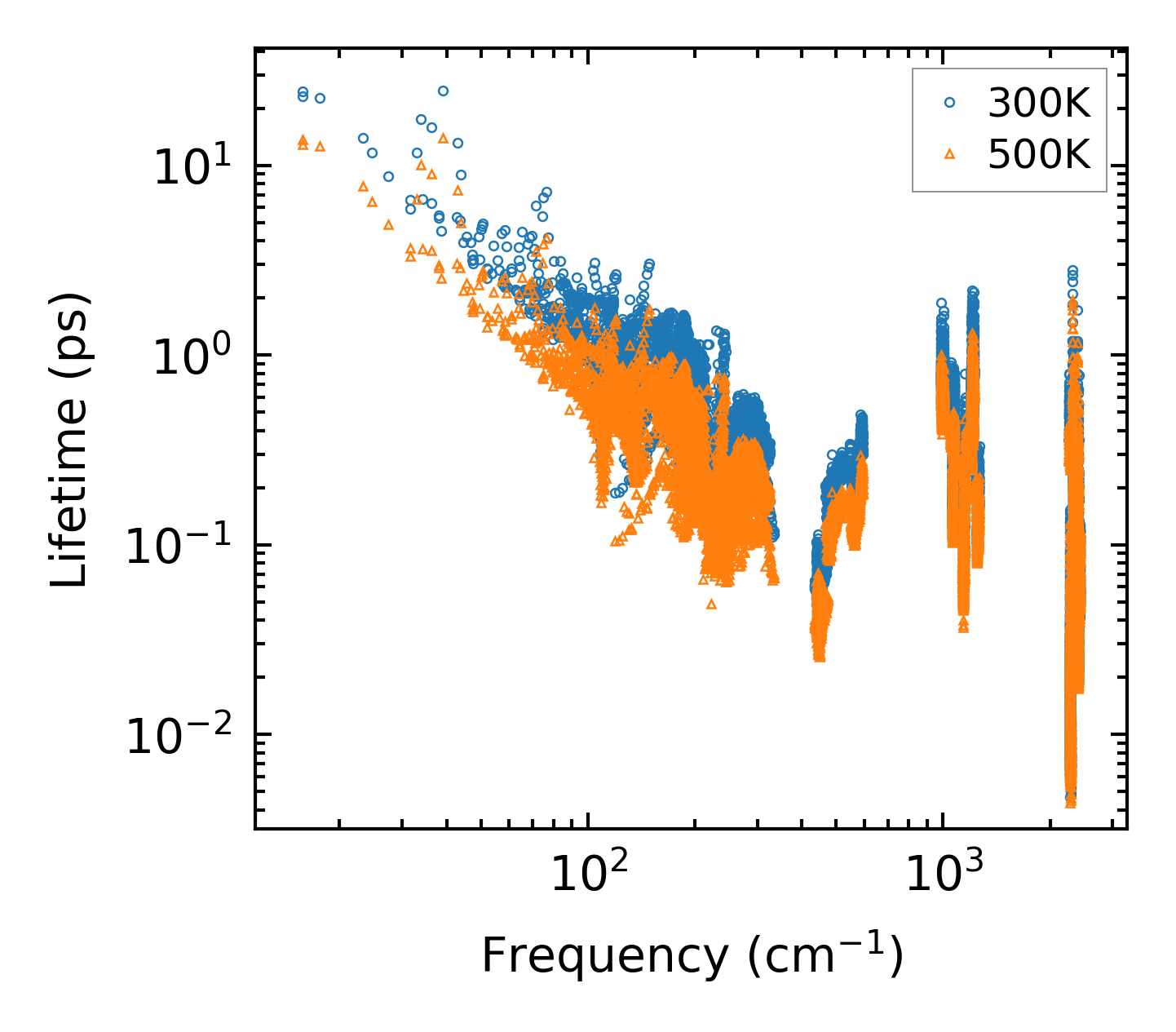

../../_images/fig_lifetime675.png — (a) Phonon lifetime due to phonon-phonon scattering

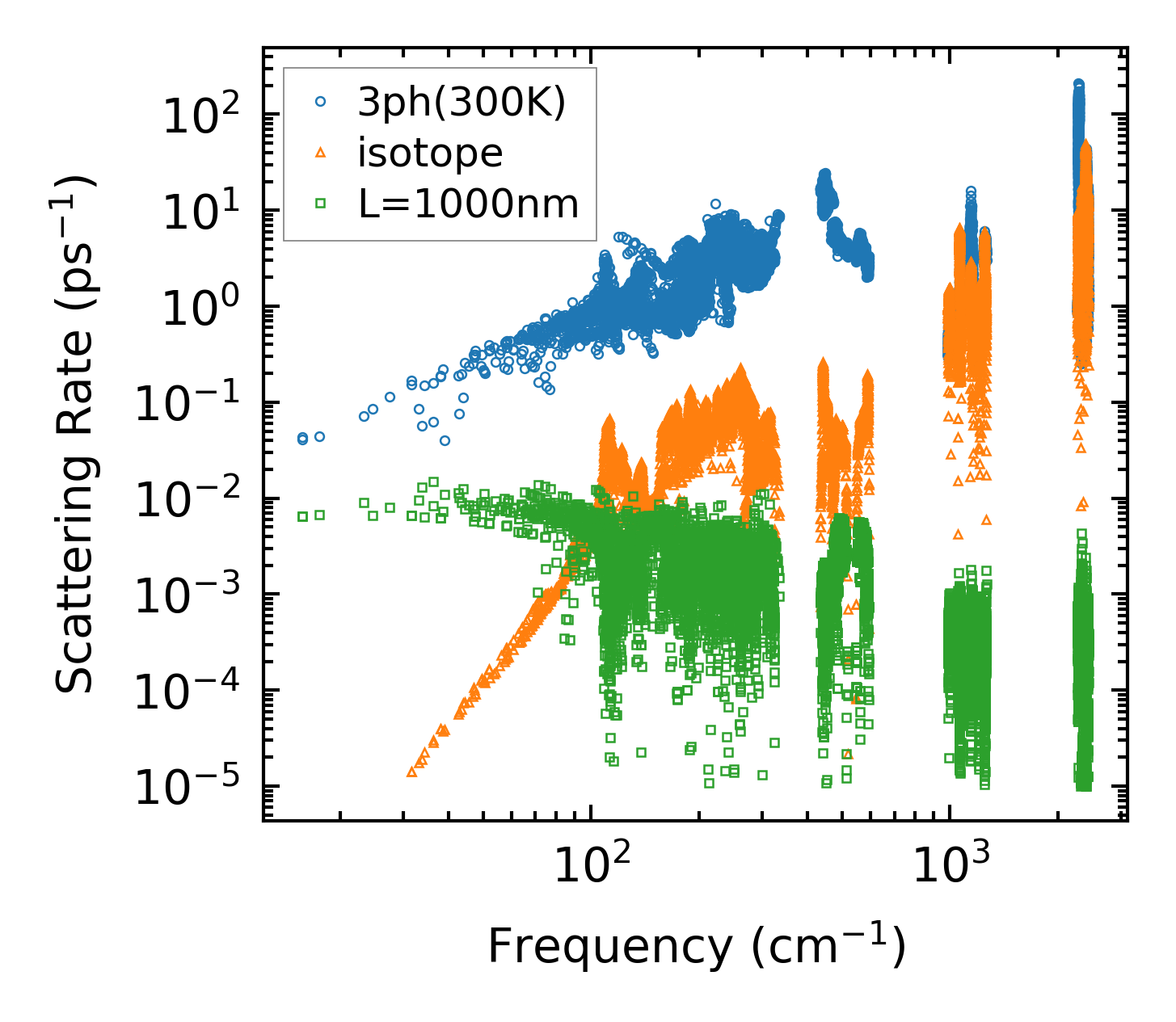

../../_images/fig_scat_rates674.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

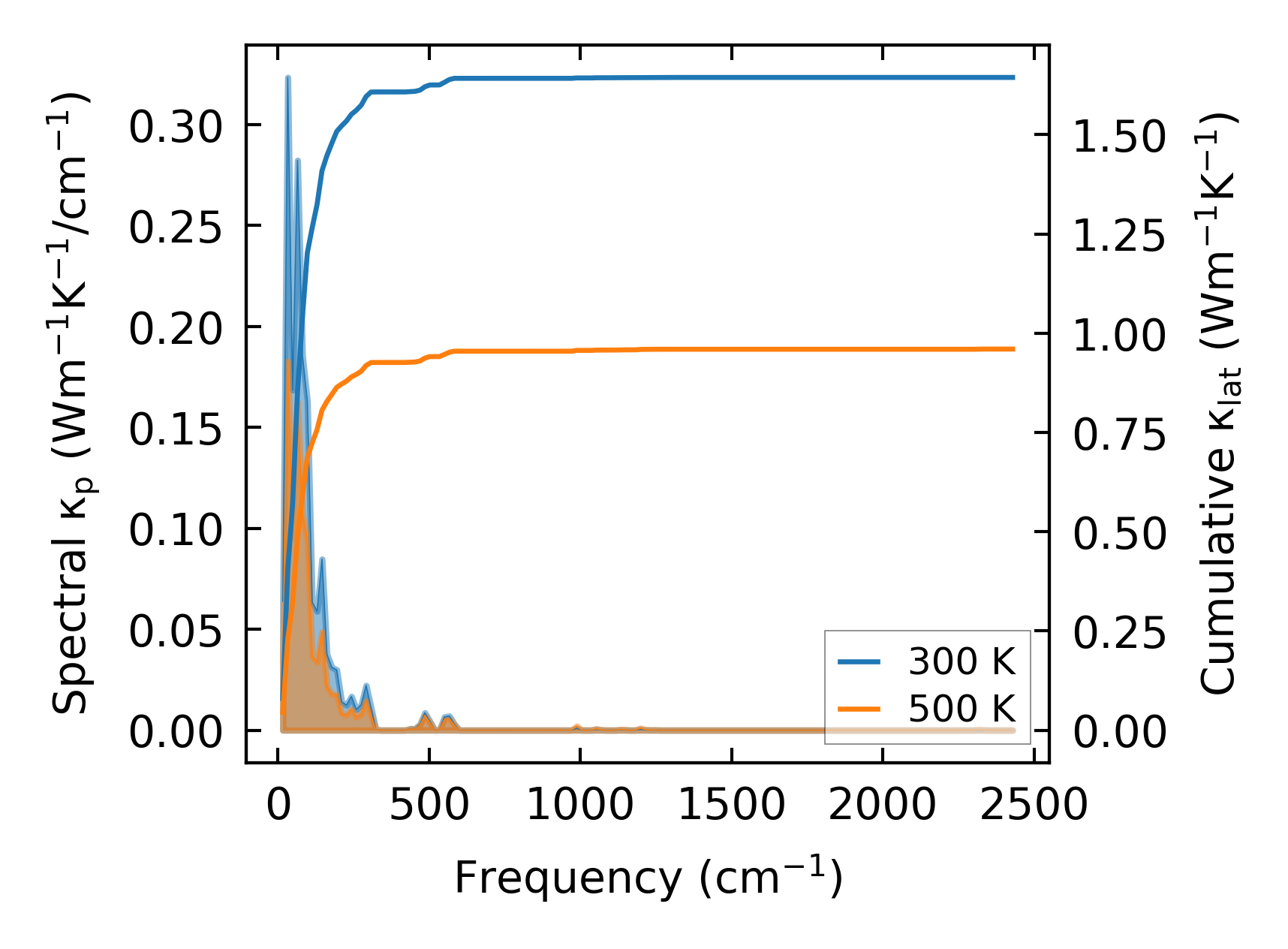

../../_images/fig_cumu_frequency675.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

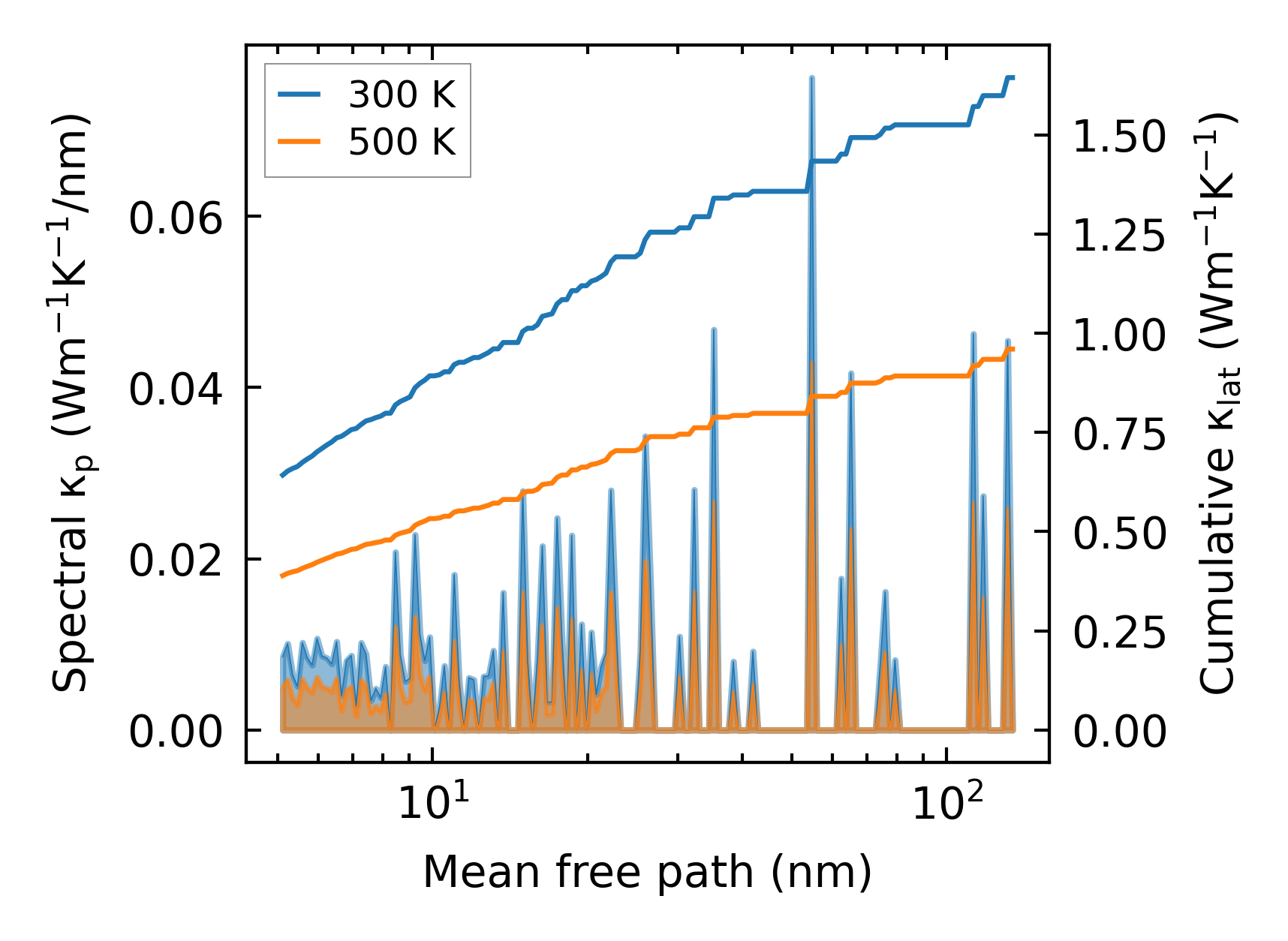

../../_images/fig_cumu_mfp675.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

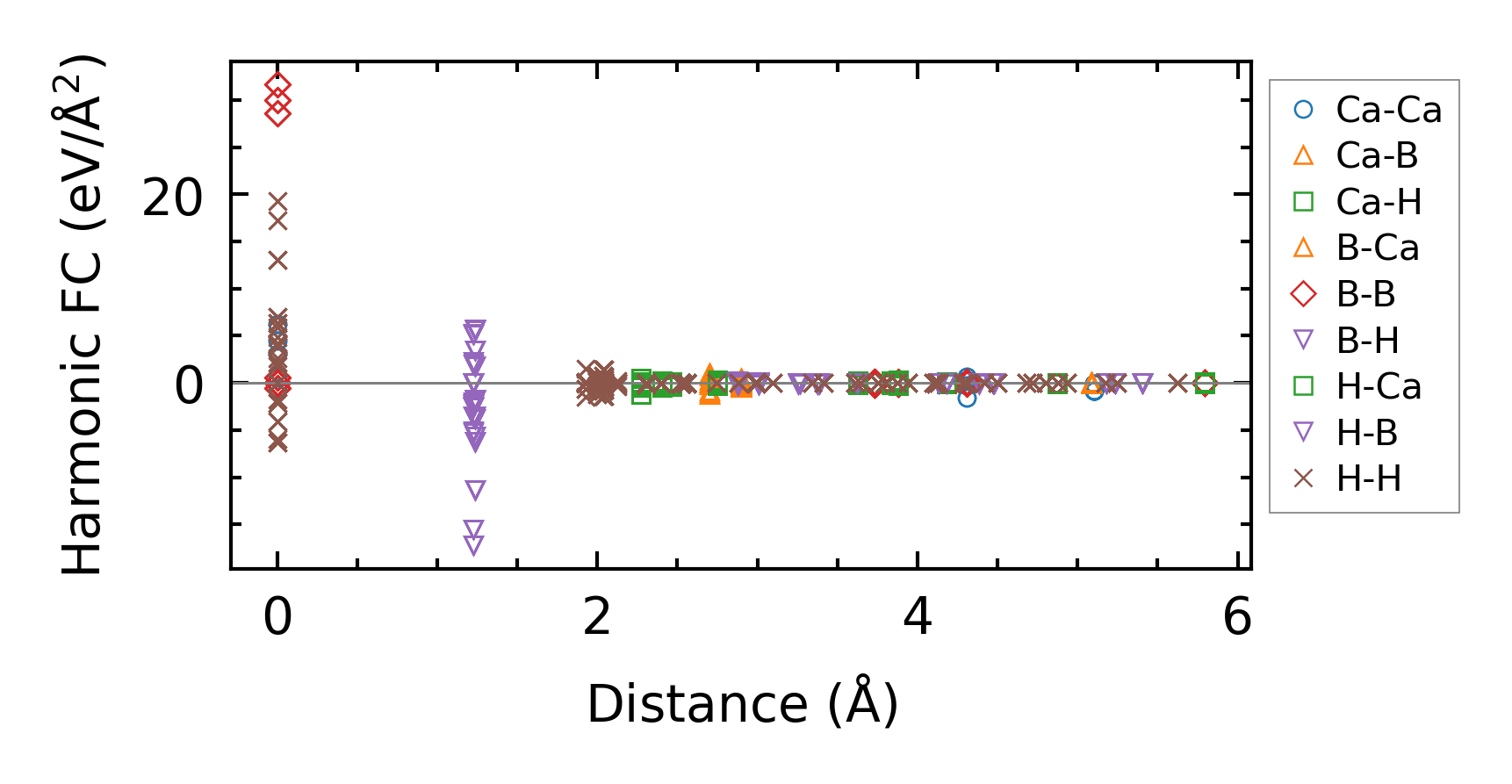

../../_images/fig_fc2965.png — (a) Force constants w.r.t atomic distance

Summary

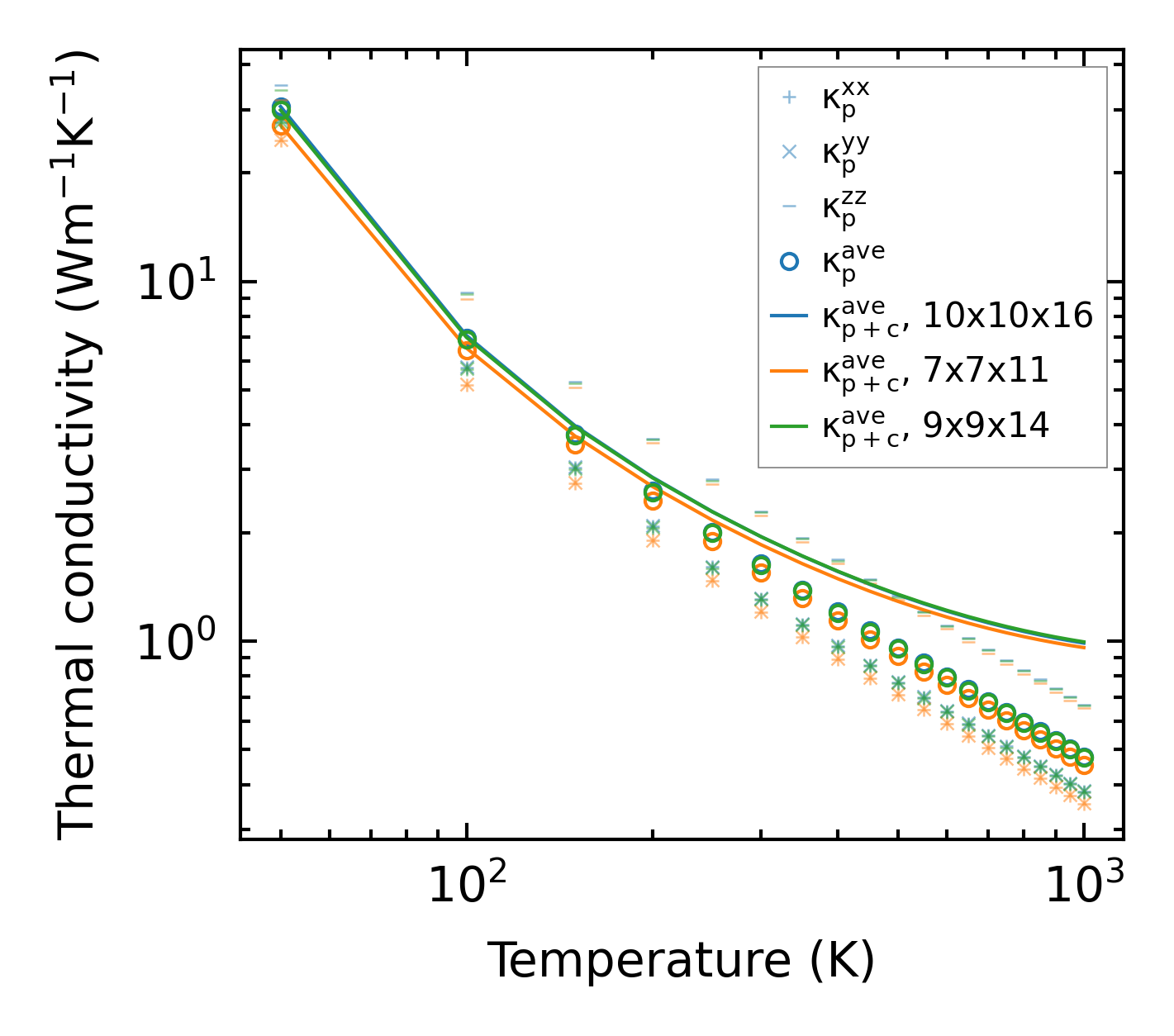

../../_images/fig_kappa1321.png — (a) Temperature-dependent lattice thermal conductivity

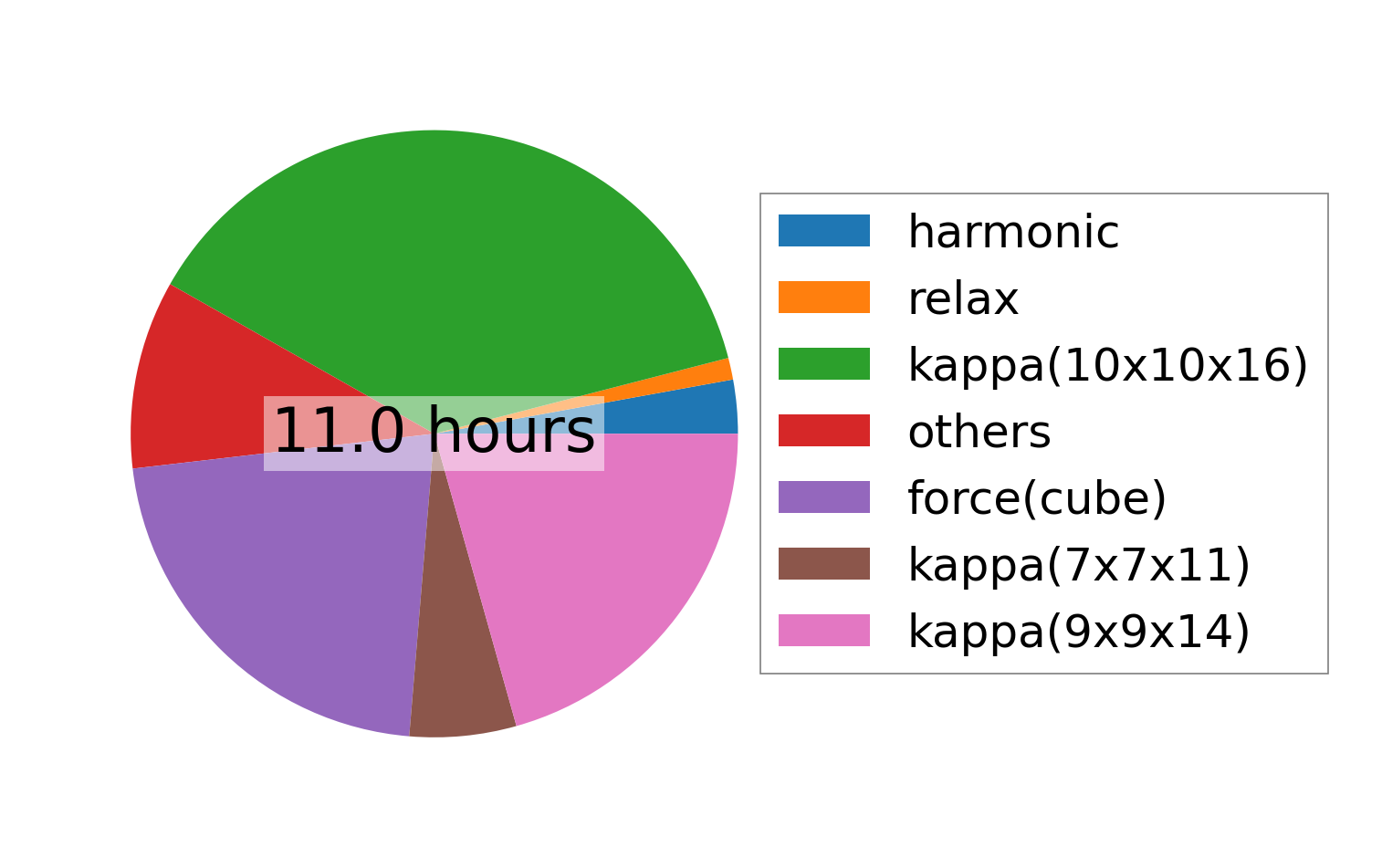

../../_images/fig_times1650.png — (b) Computation time
