mp-984055/Ca7H12Cl2/anharm

Space group: P-6 (174)
Link: Materials Project
Download: mp-984055.tar.gz

Harmonic properties

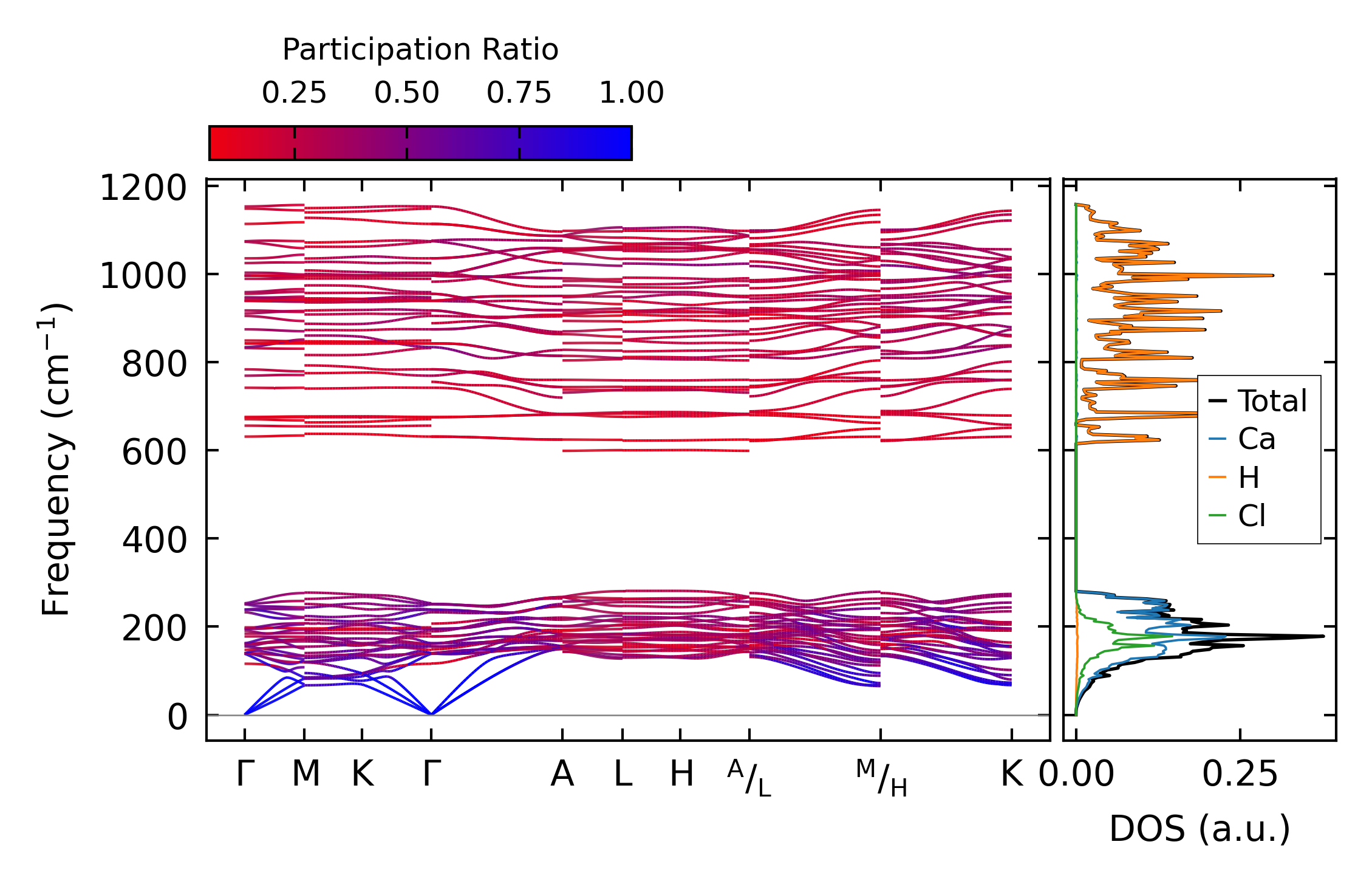

../../_images/fig_bandos_pr1086.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo1086.png — (b) Thermodynamic properties

Grüneisen parameters

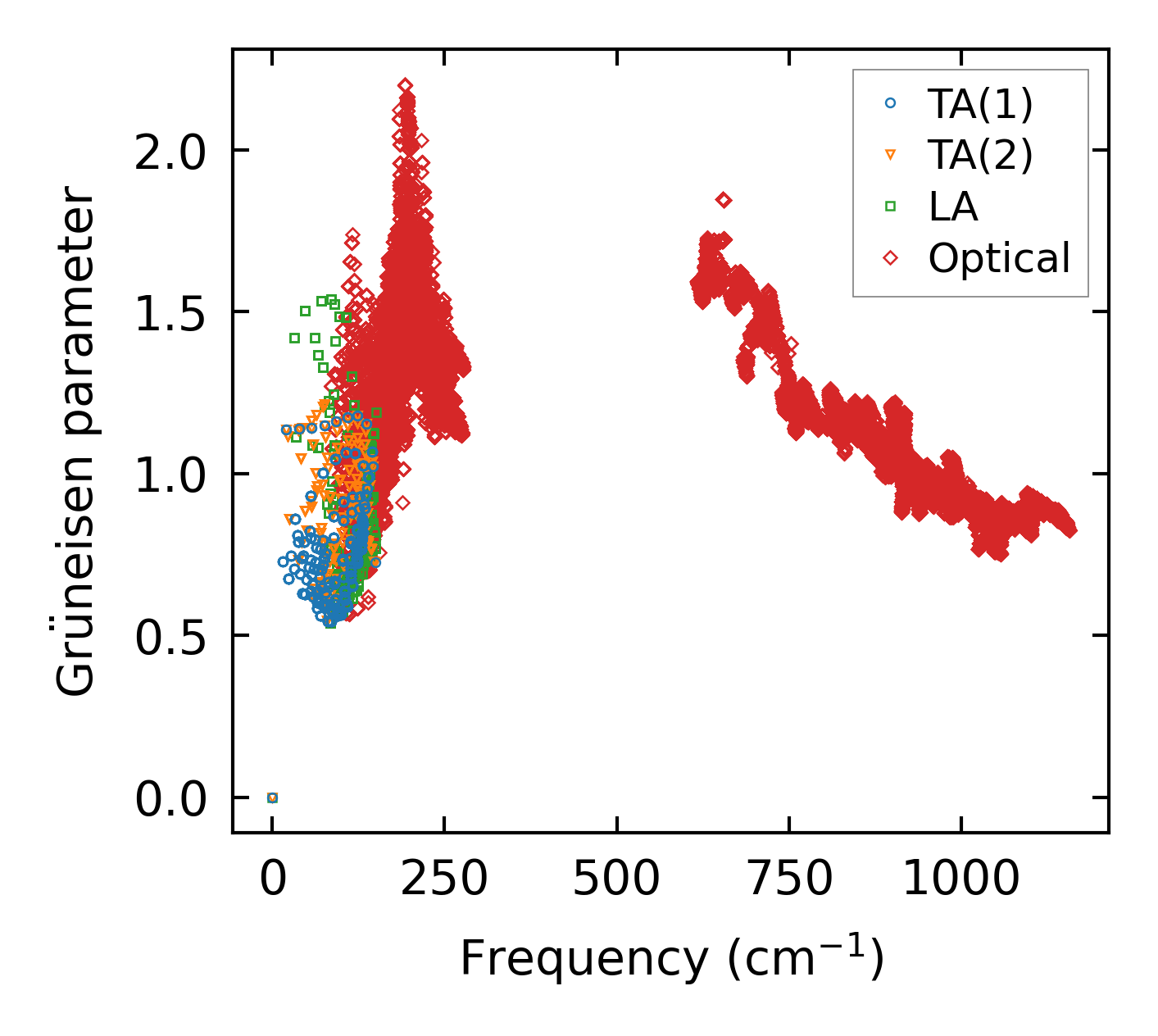

../../_images/fig_gru_all668.png — (a) Grüneisen parameters

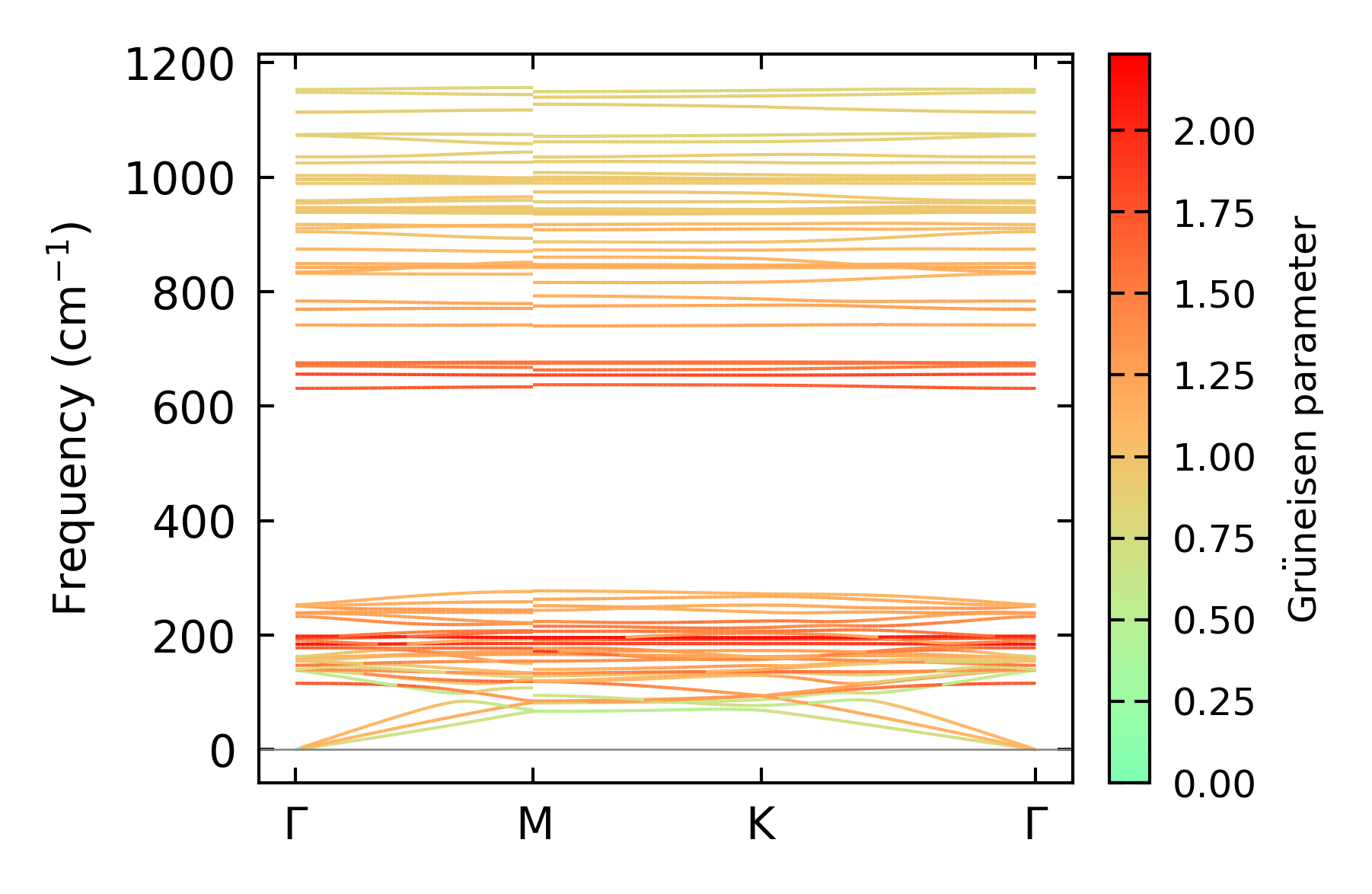

../../_images/fig_gruneisen668.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x8x20, supercell: 1x1x3

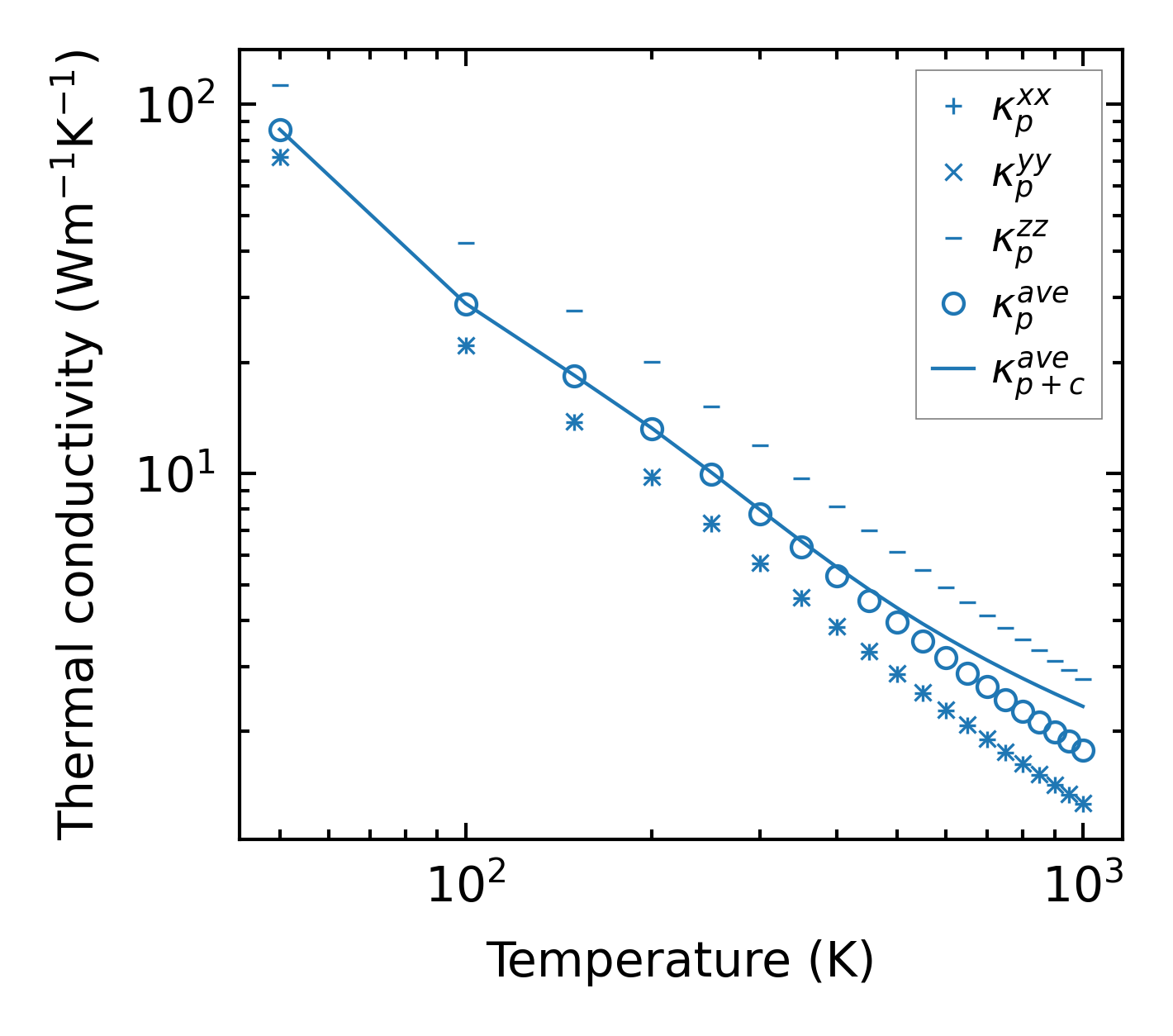

../../_images/fig_kappa1302.png — (a) Temperature-dependent lattice thermal conductivity

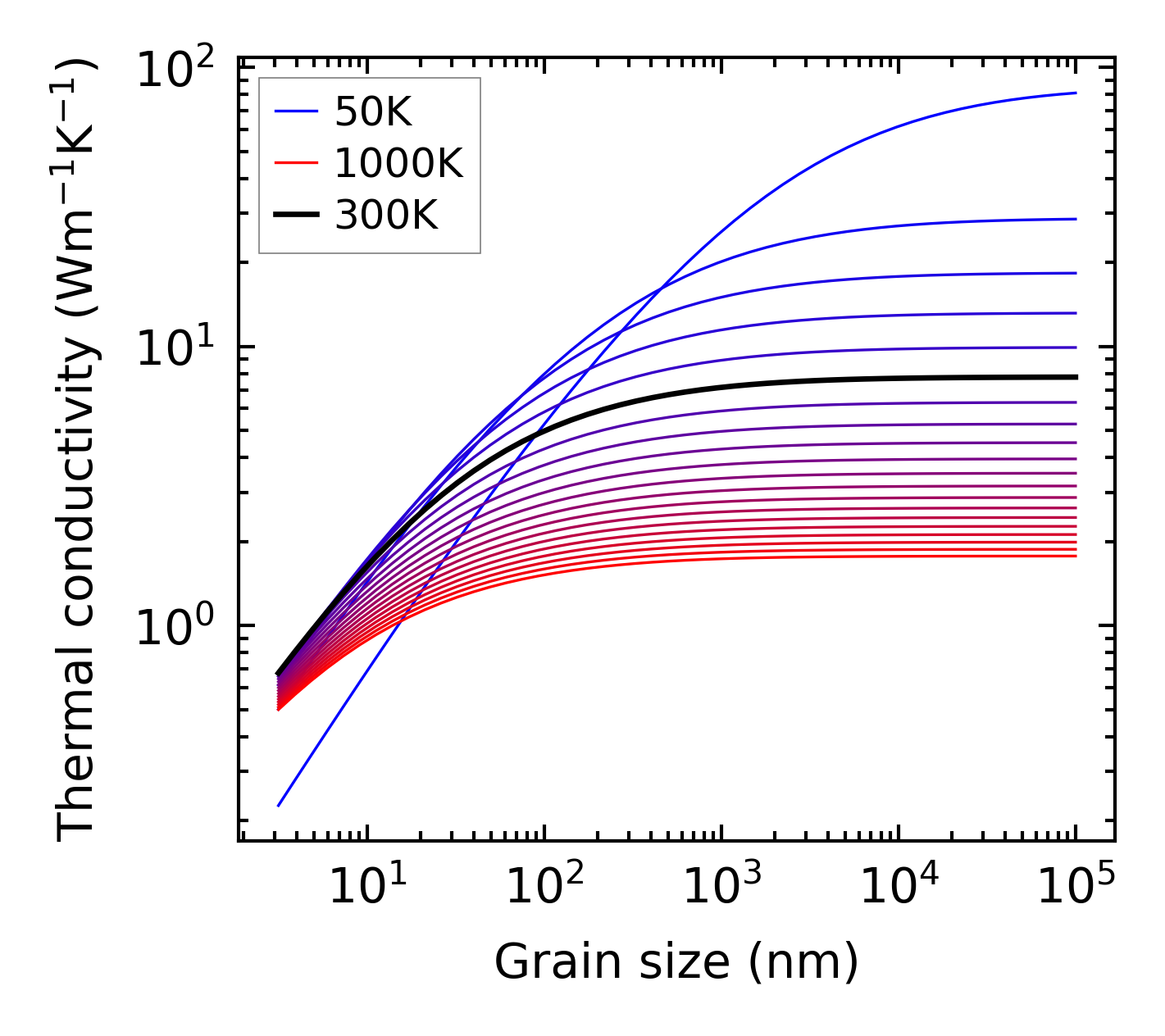

../../_images/fig_kappa_vs_grain_size676.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

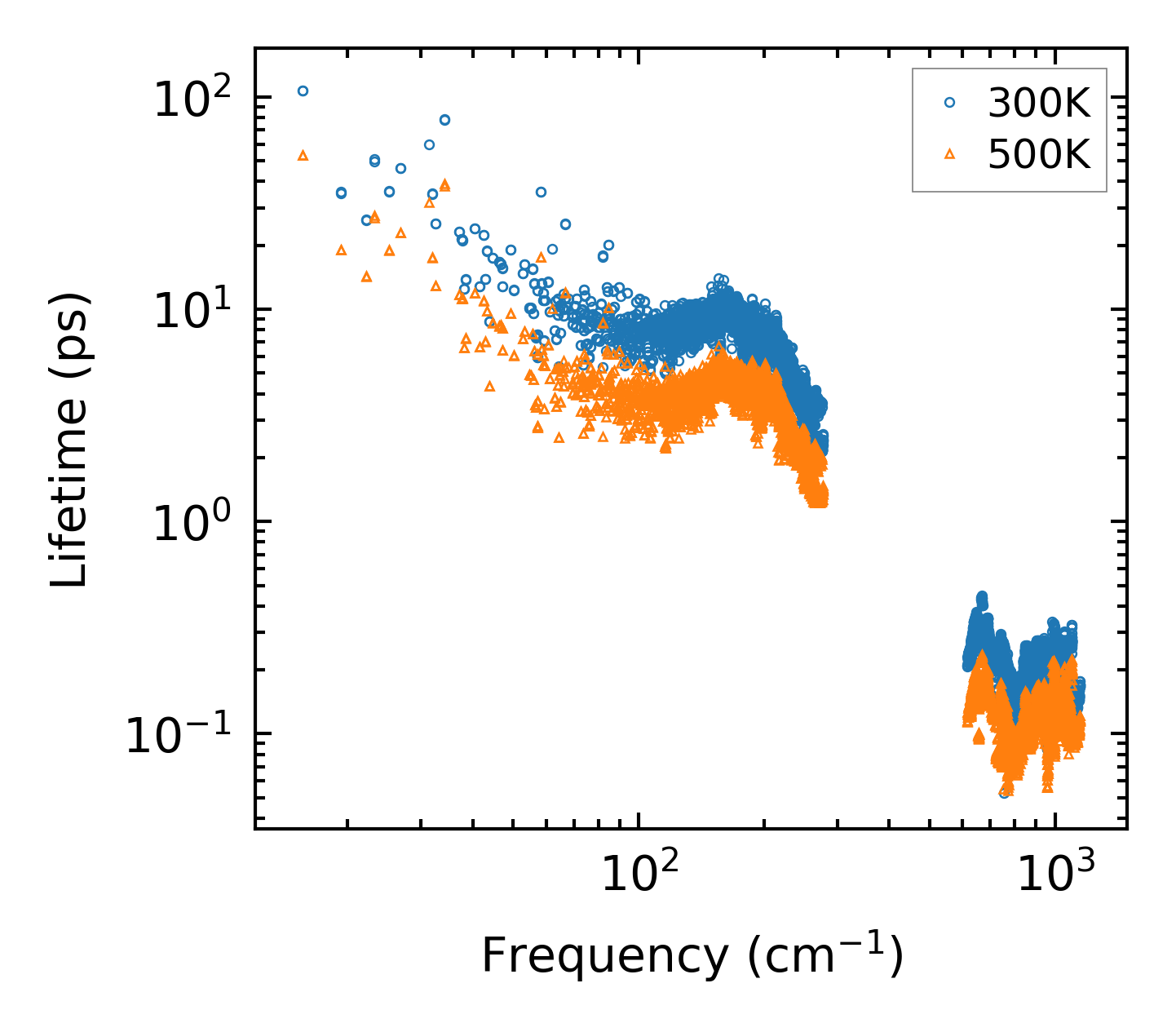

../../_images/fig_lifetime666.png — (a) Phonon lifetime due to phonon-phonon scattering

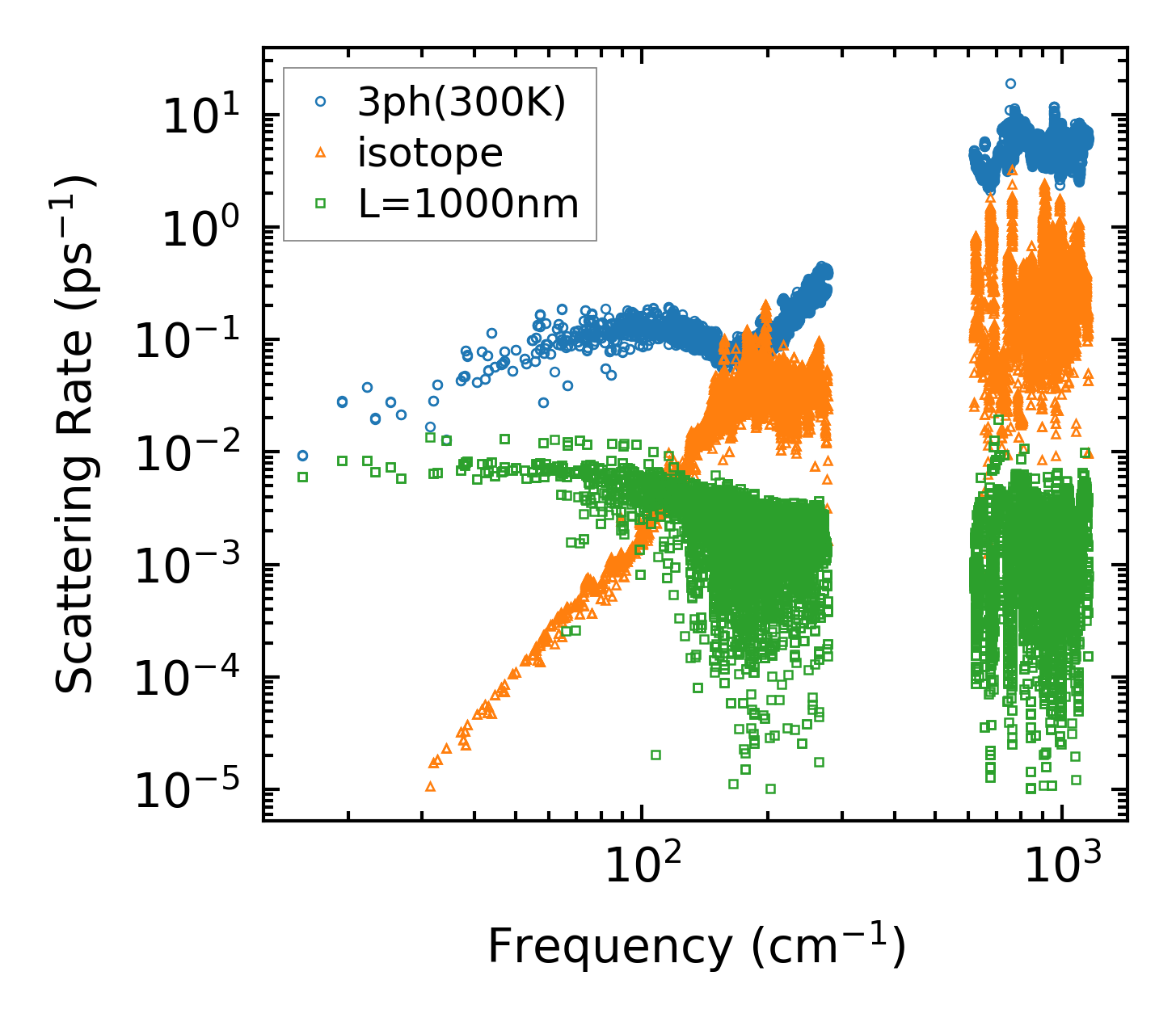

../../_images/fig_scat_rates665.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

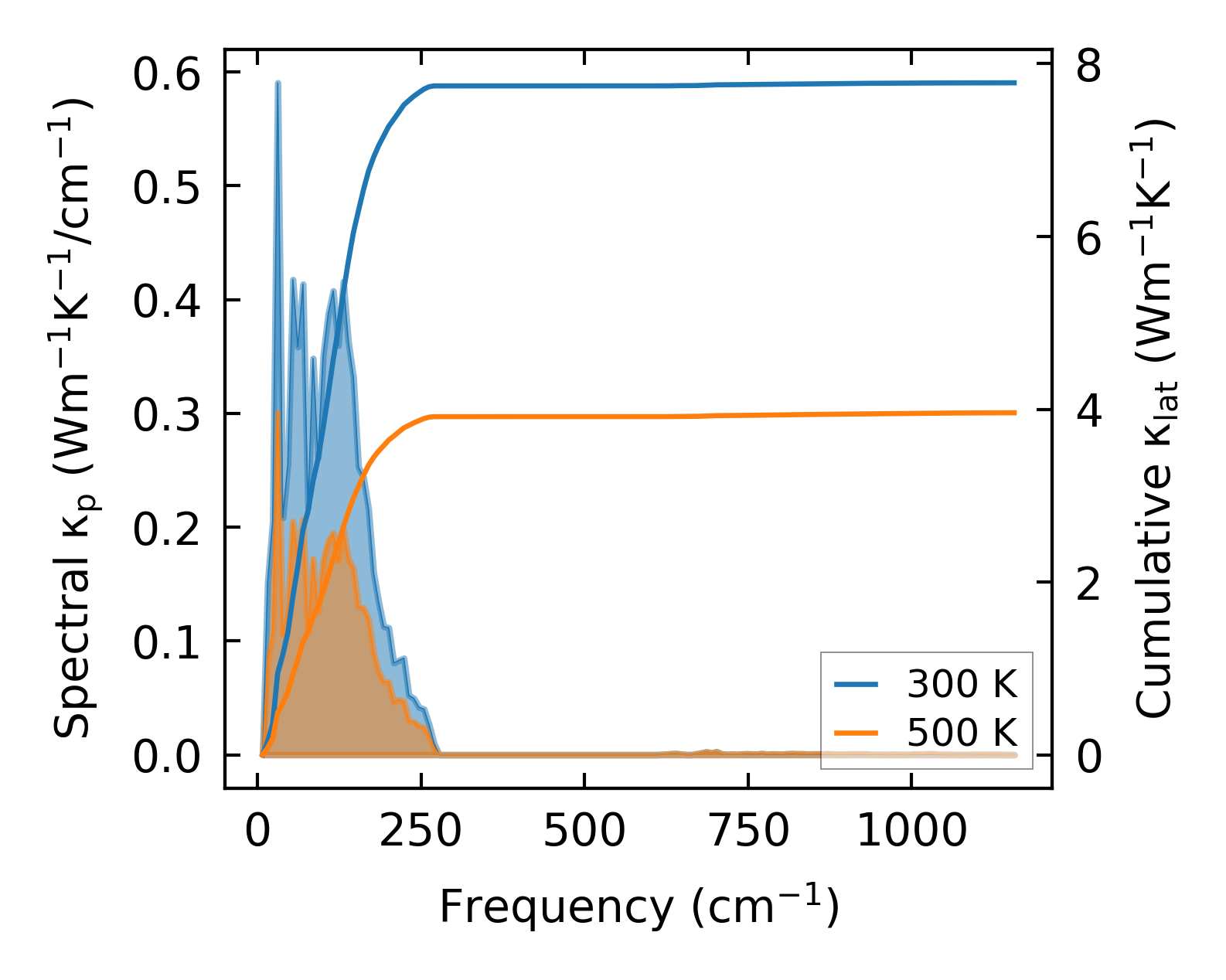

../../_images/fig_cumu_frequency666.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

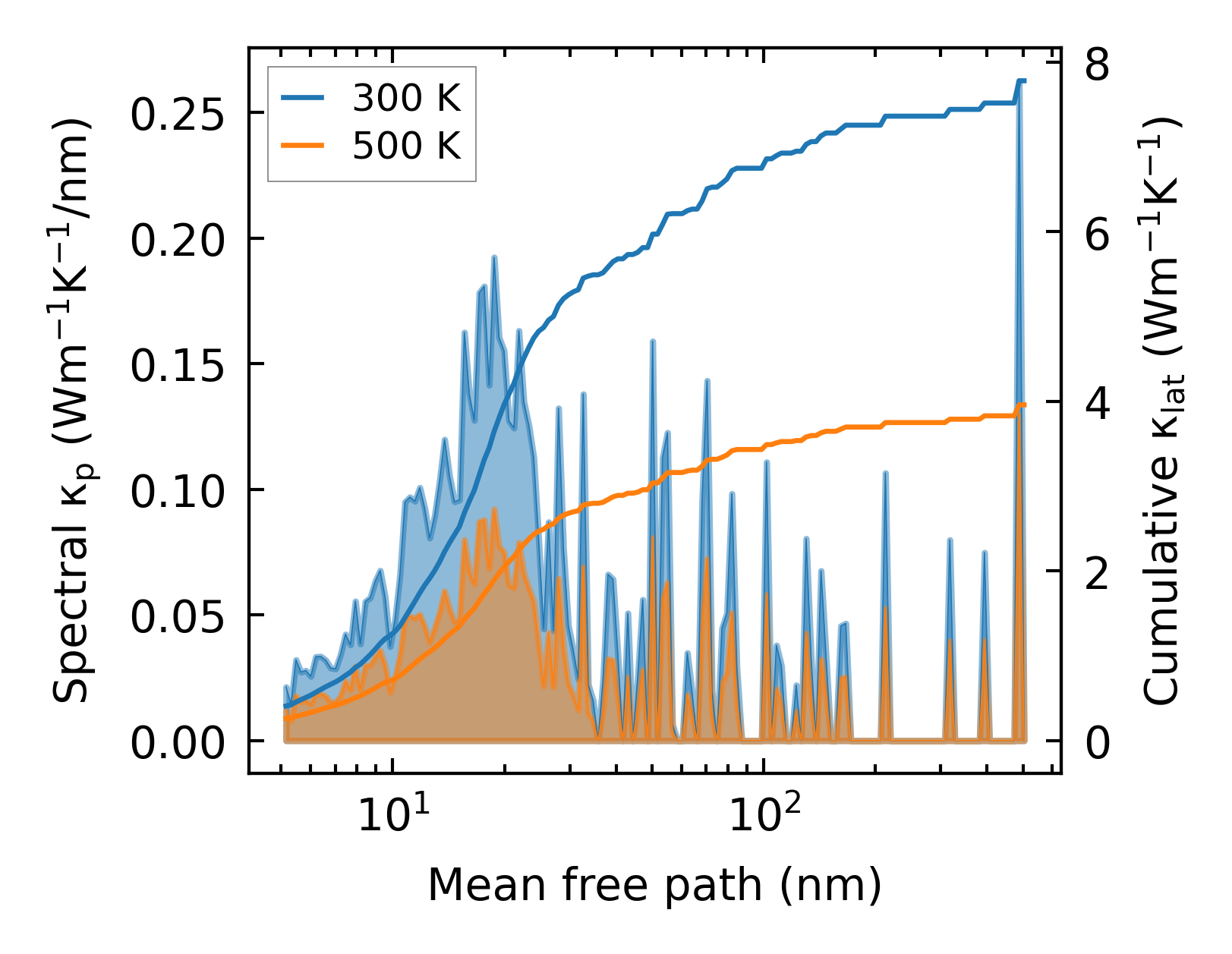

../../_images/fig_cumu_mfp666.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

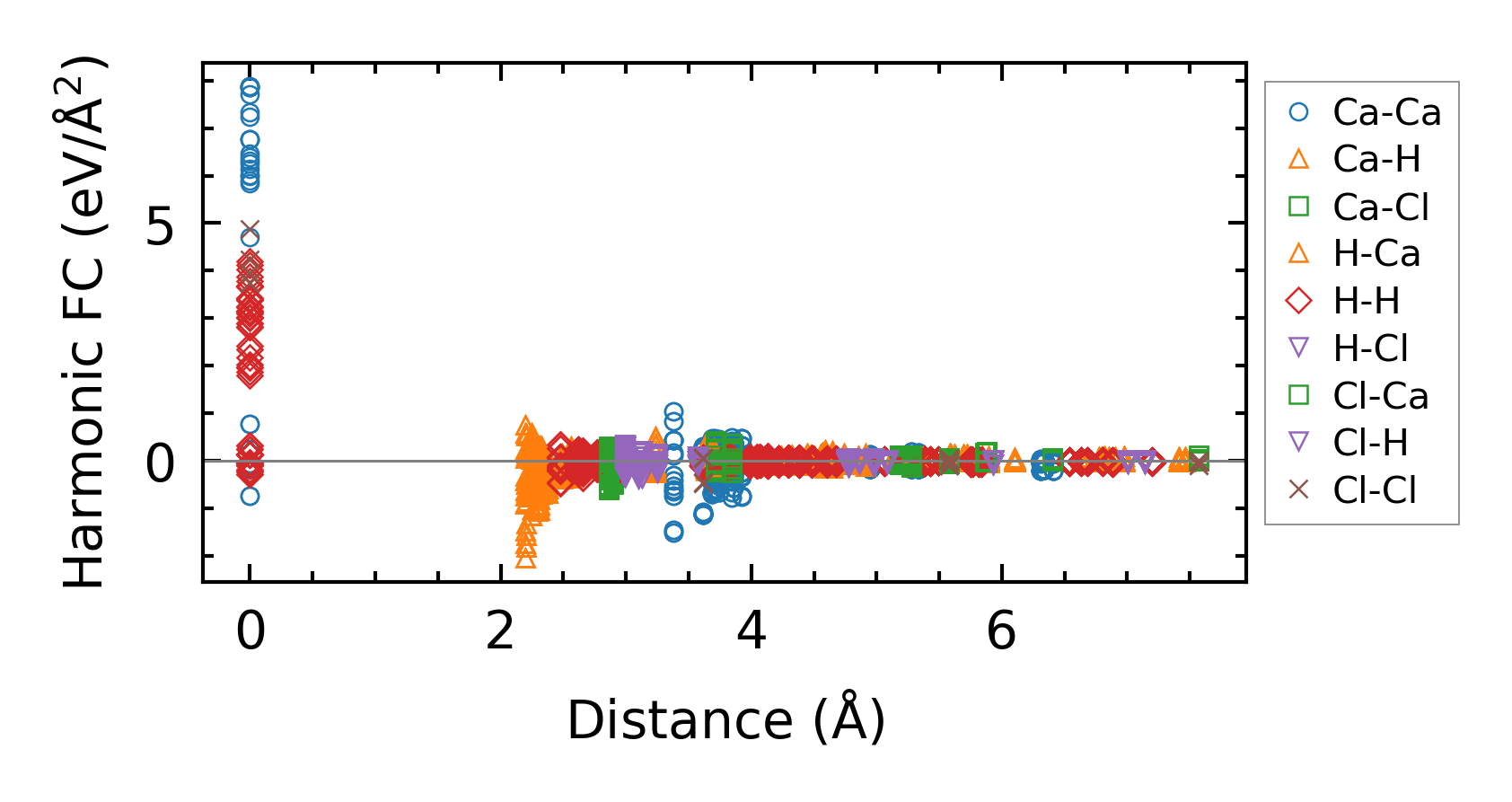

../../_images/fig_fc2954.png — (a) Force constants w.r.t atomic distance

Summary

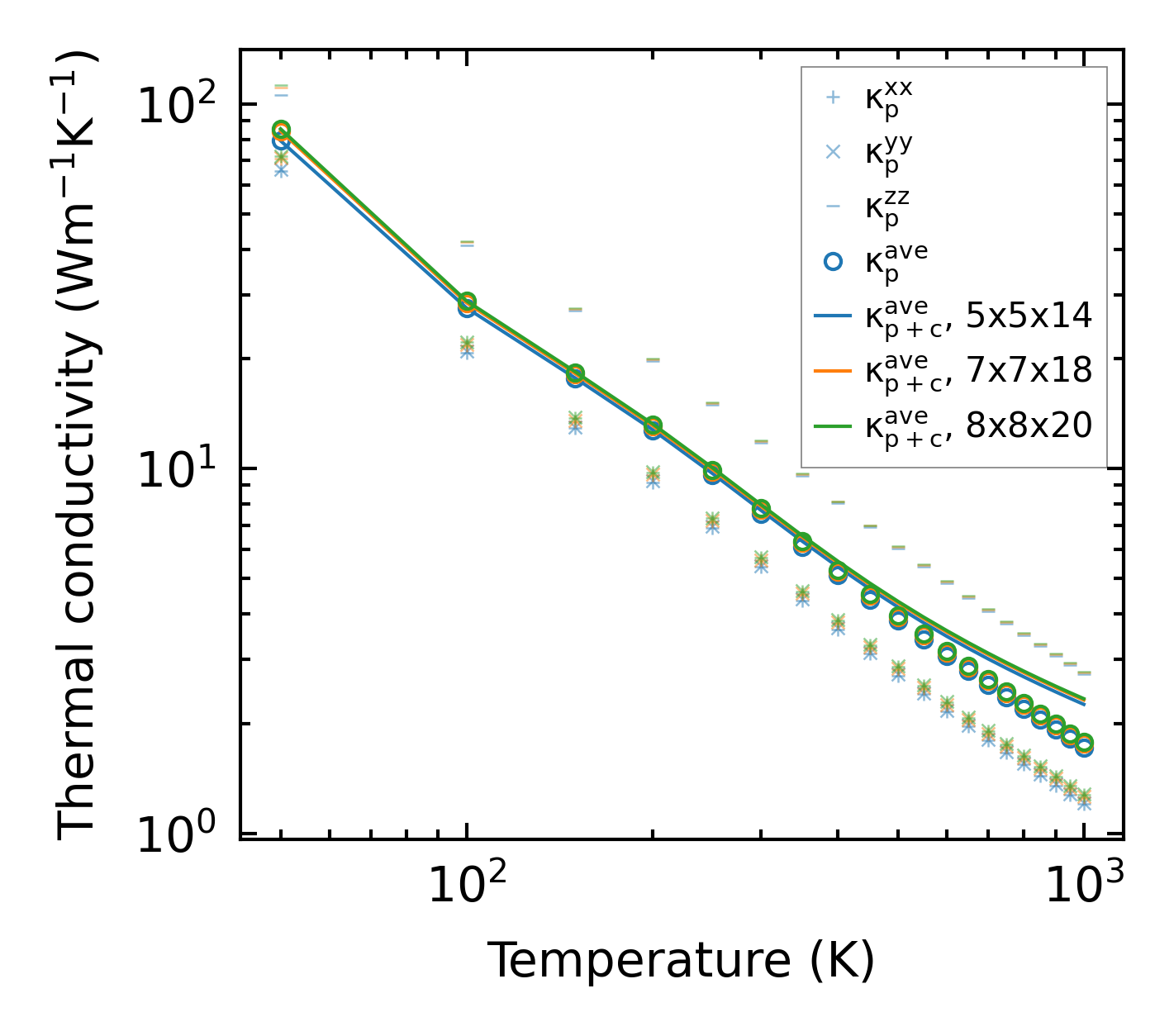

../../_images/fig_kappa1303.png — (a) Temperature-dependent lattice thermal conductivity

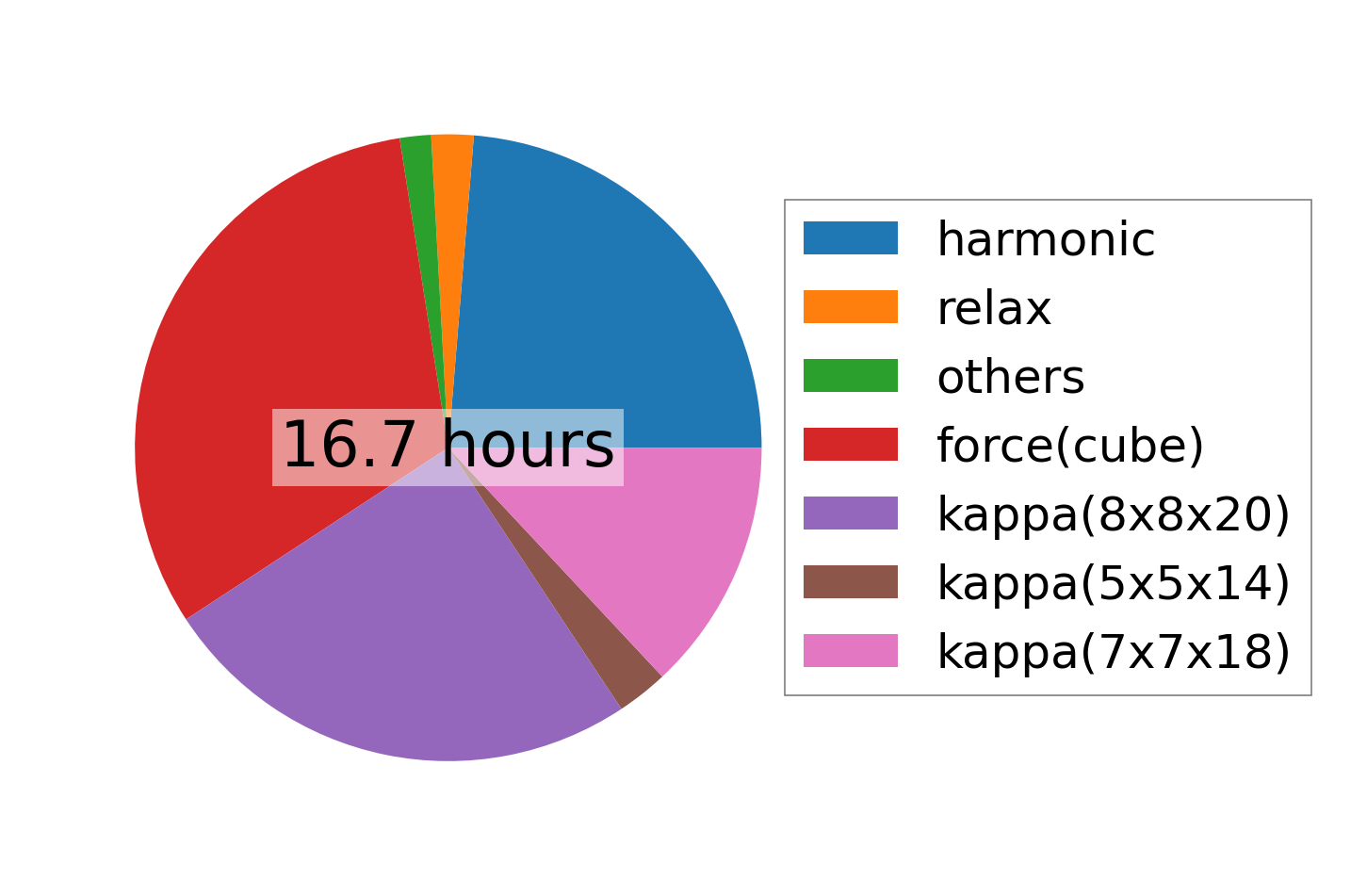

../../_images/fig_times1632.png — (b) Computation time
