mp-984729/BaSr3O4/anharm

Space group: Pm-3m (221)
Link: Materials Project
Download: mp-984729.tar.gz

Harmonic properties

../../_images/fig_bandos_pr1095.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo1095.png — (b) Thermodynamic properties

Grüneisen parameters

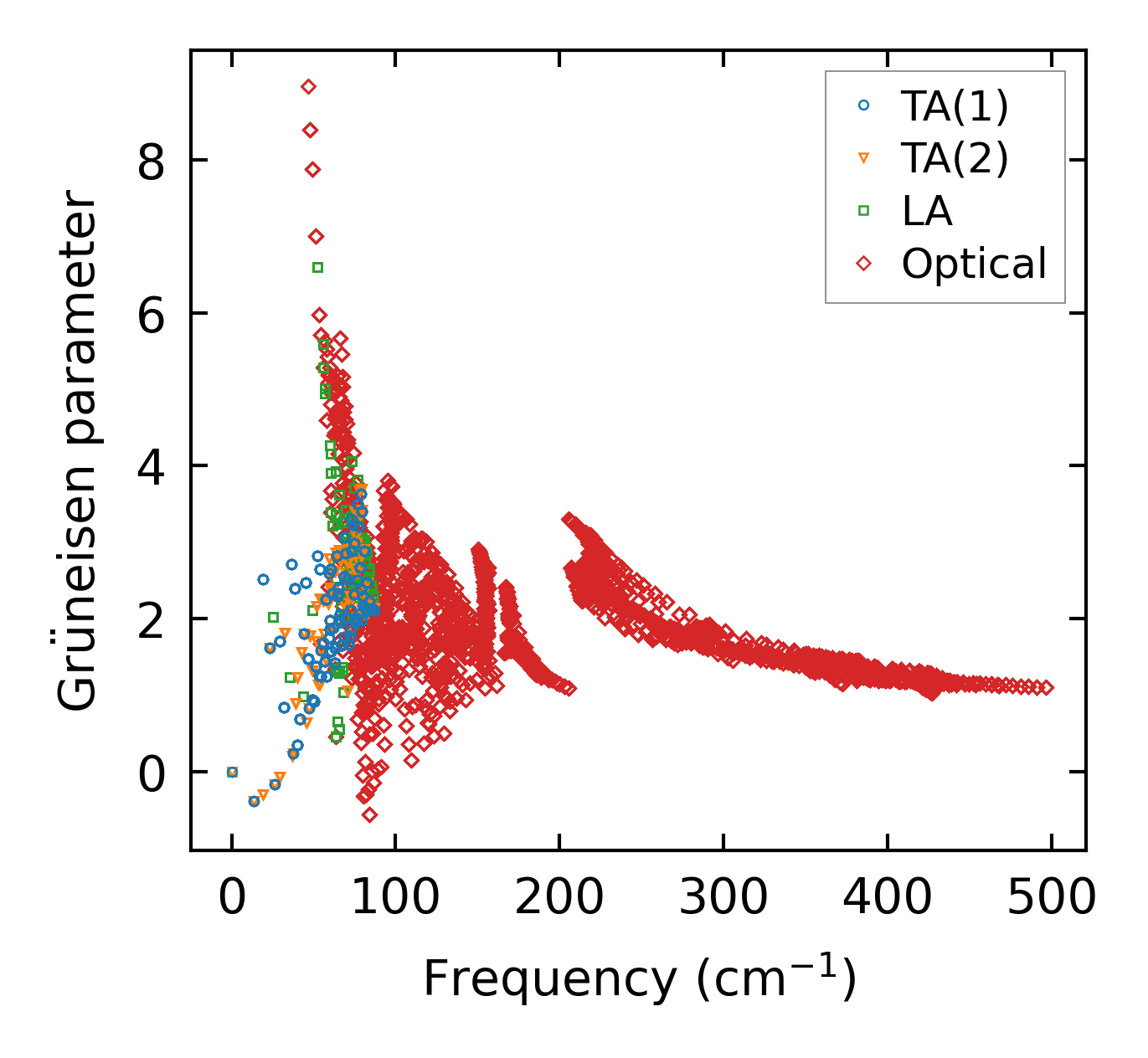

../../_images/fig_gru_all675.png — (a) Grüneisen parameters

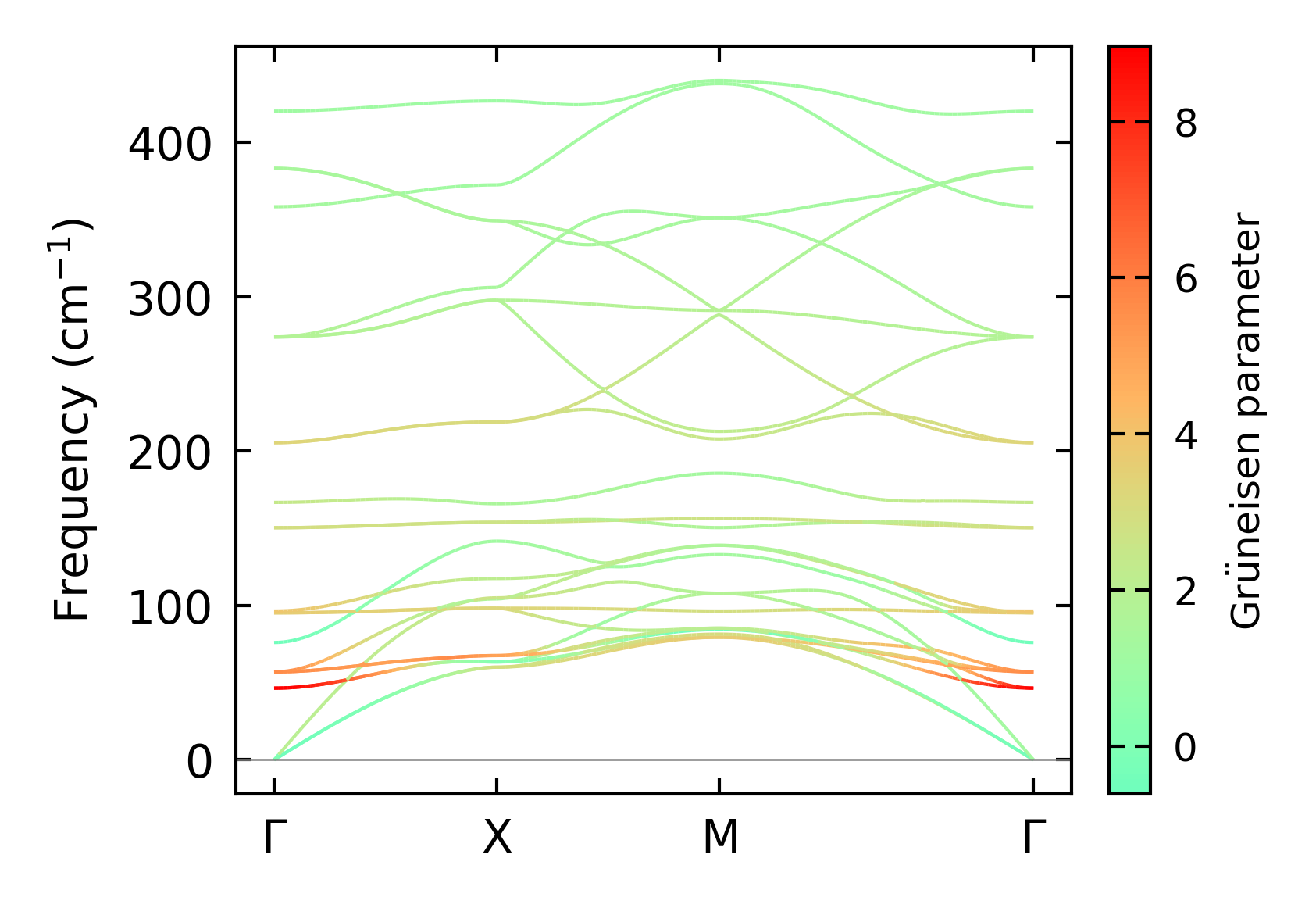

../../_images/fig_gruneisen675.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x13x13, supercell: 2x2x2

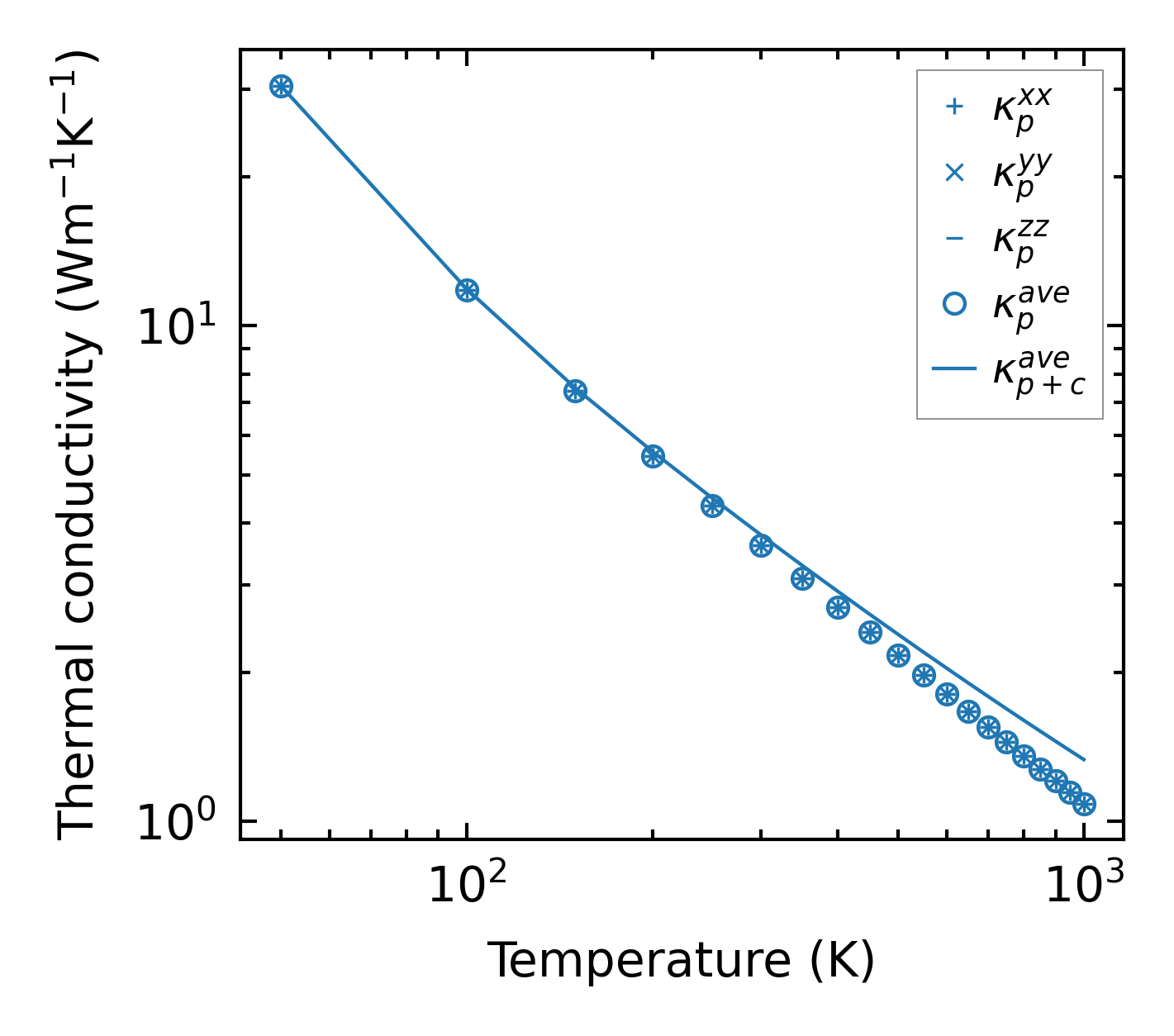

../../_images/fig_kappa1316.png — (a) Temperature-dependent lattice thermal conductivity

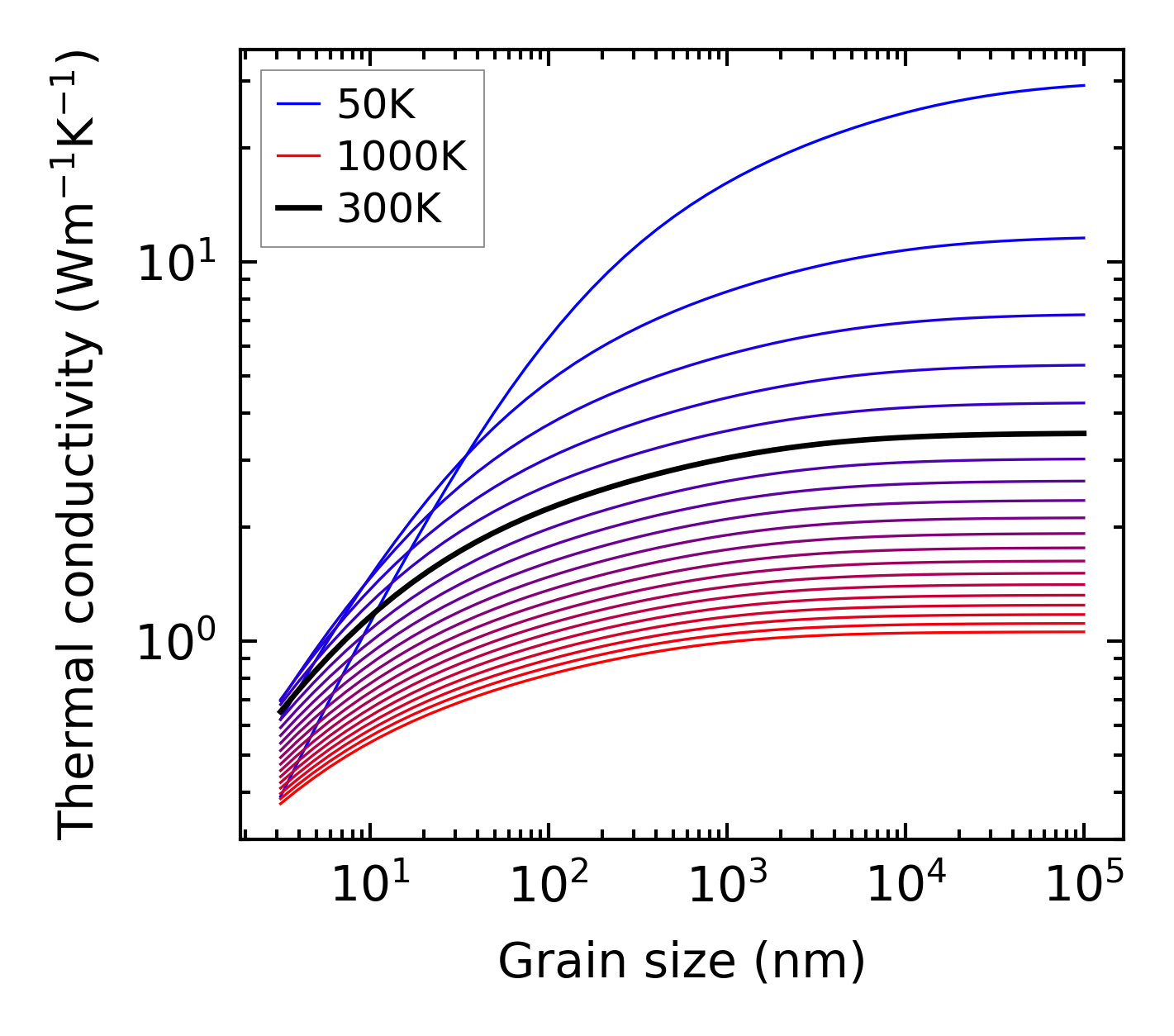

../../_images/fig_kappa_vs_grain_size683.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime673.png — (a) Phonon lifetime due to phonon-phonon scattering

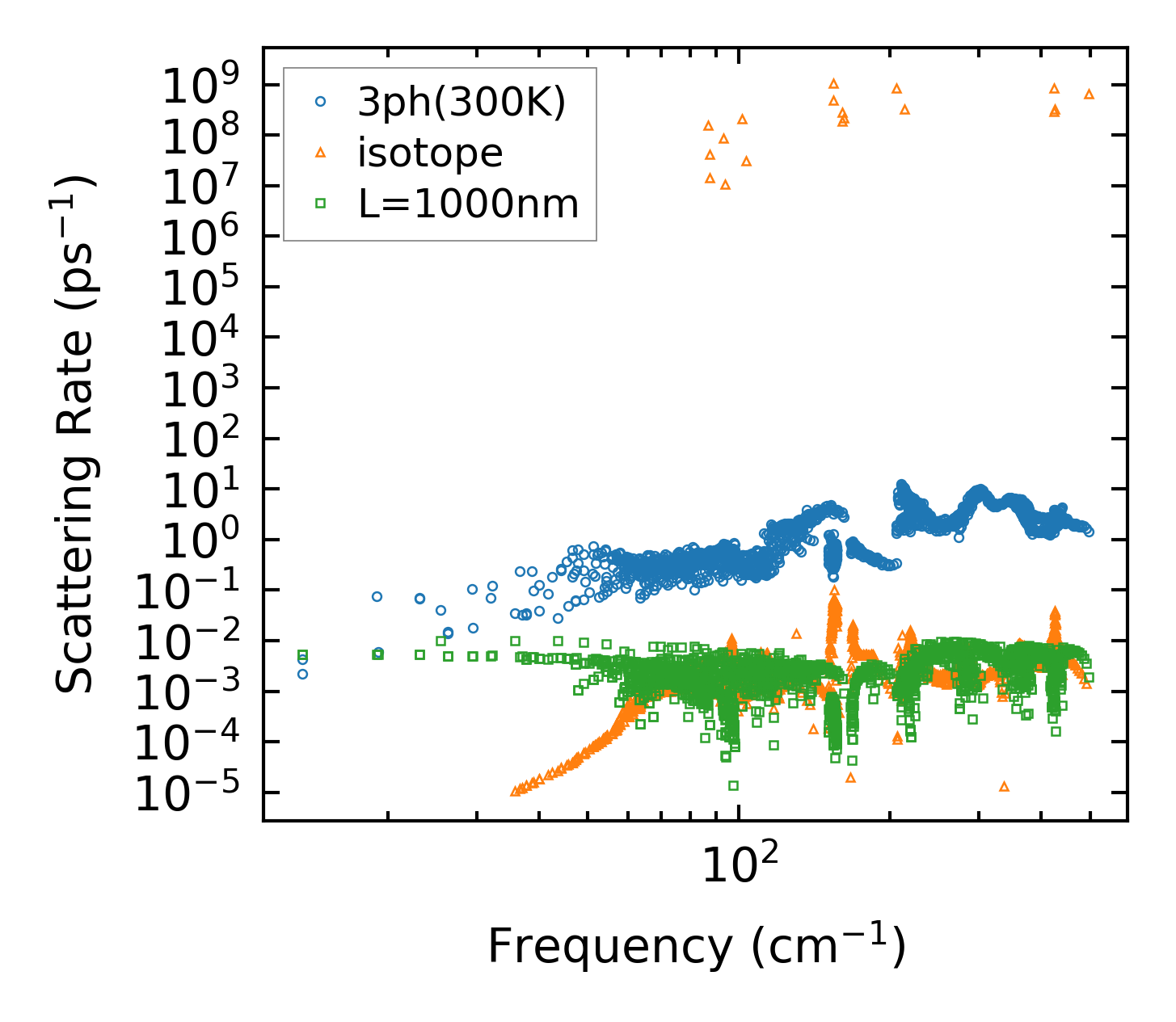

../../_images/fig_scat_rates672.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency673.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp673.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

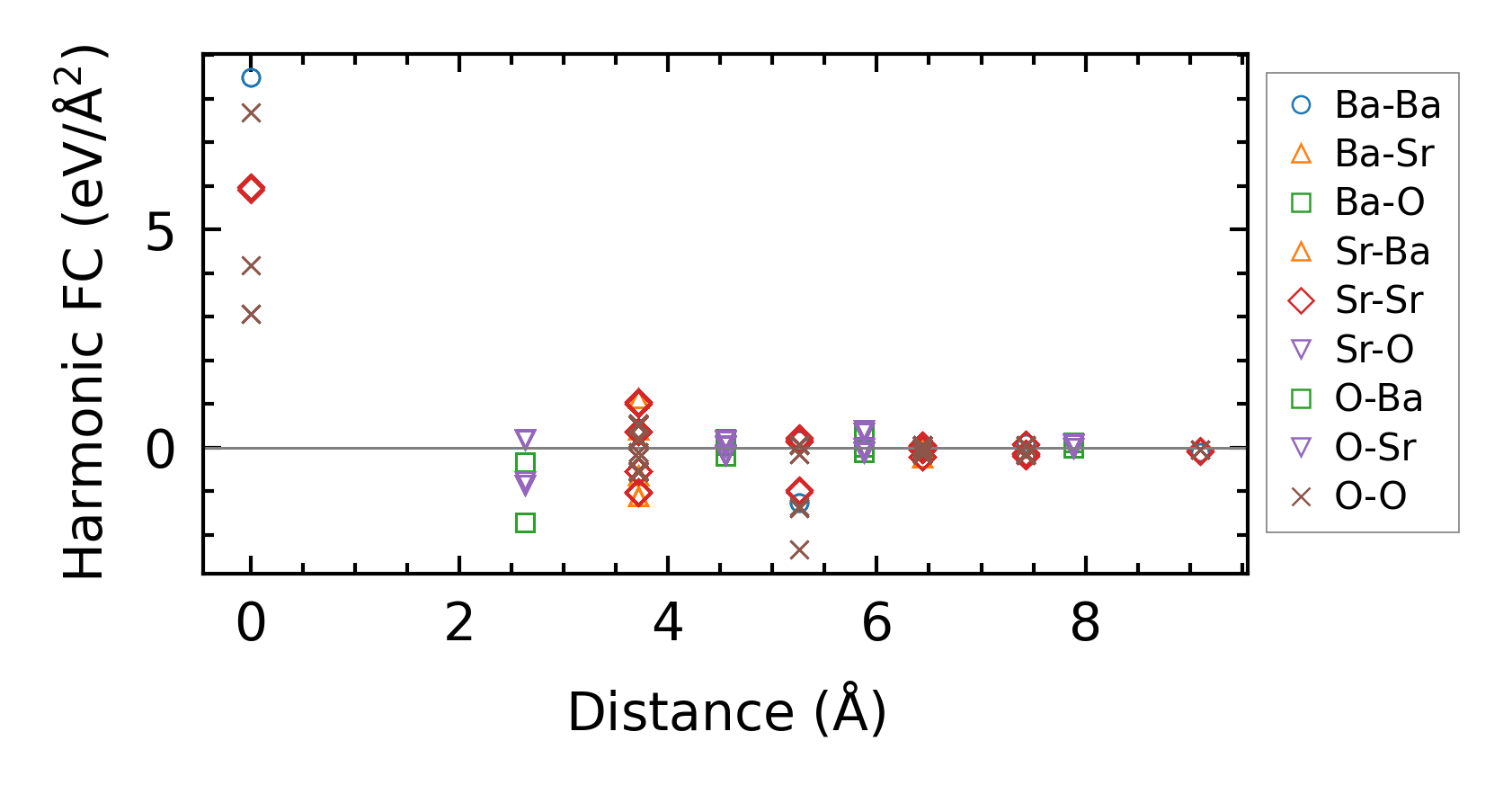

../../_images/fig_fc2962.png — (a) Force constants w.r.t atomic distance

Summary

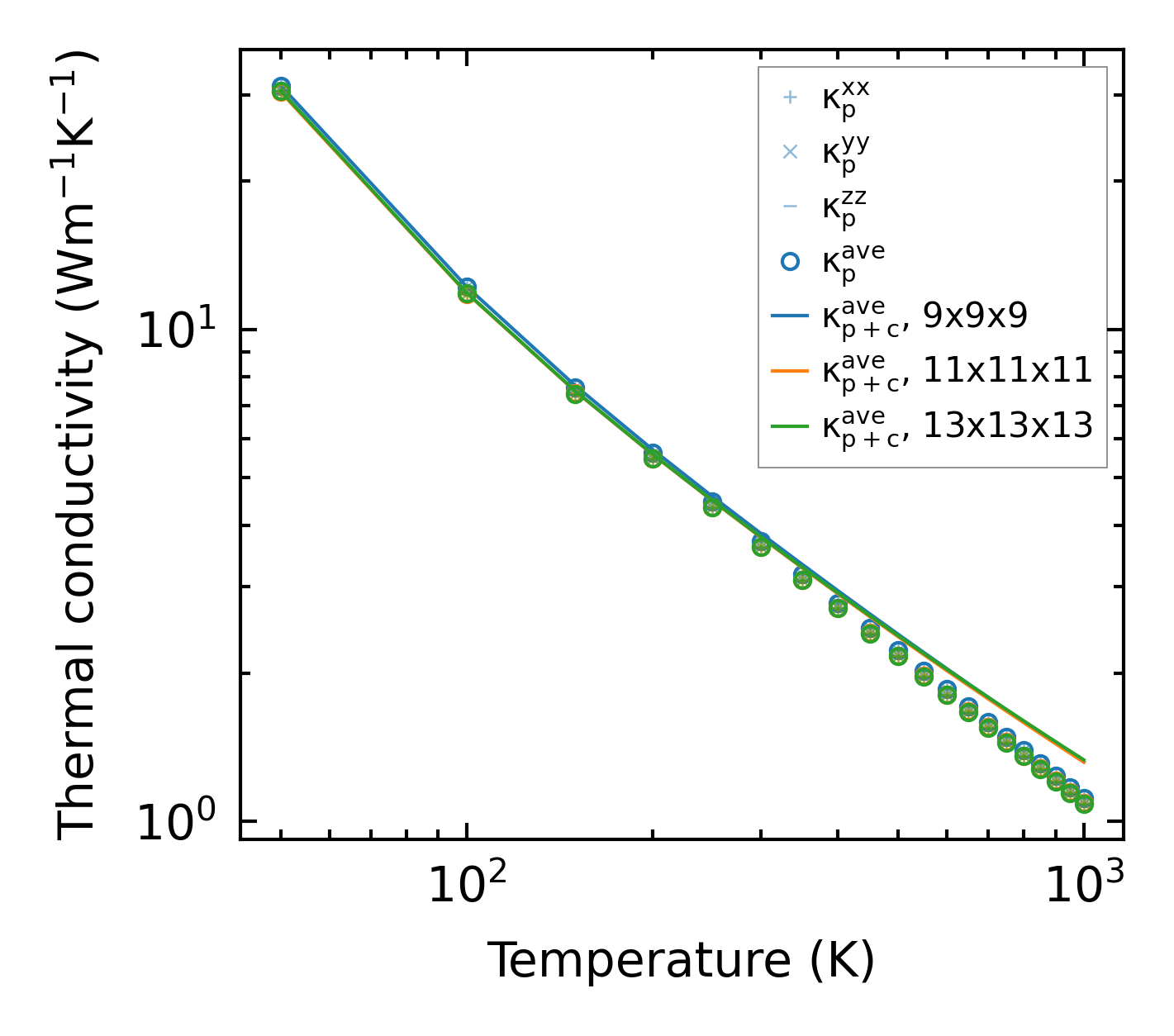

../../_images/fig_kappa1317.png — (a) Temperature-dependent lattice thermal conductivity

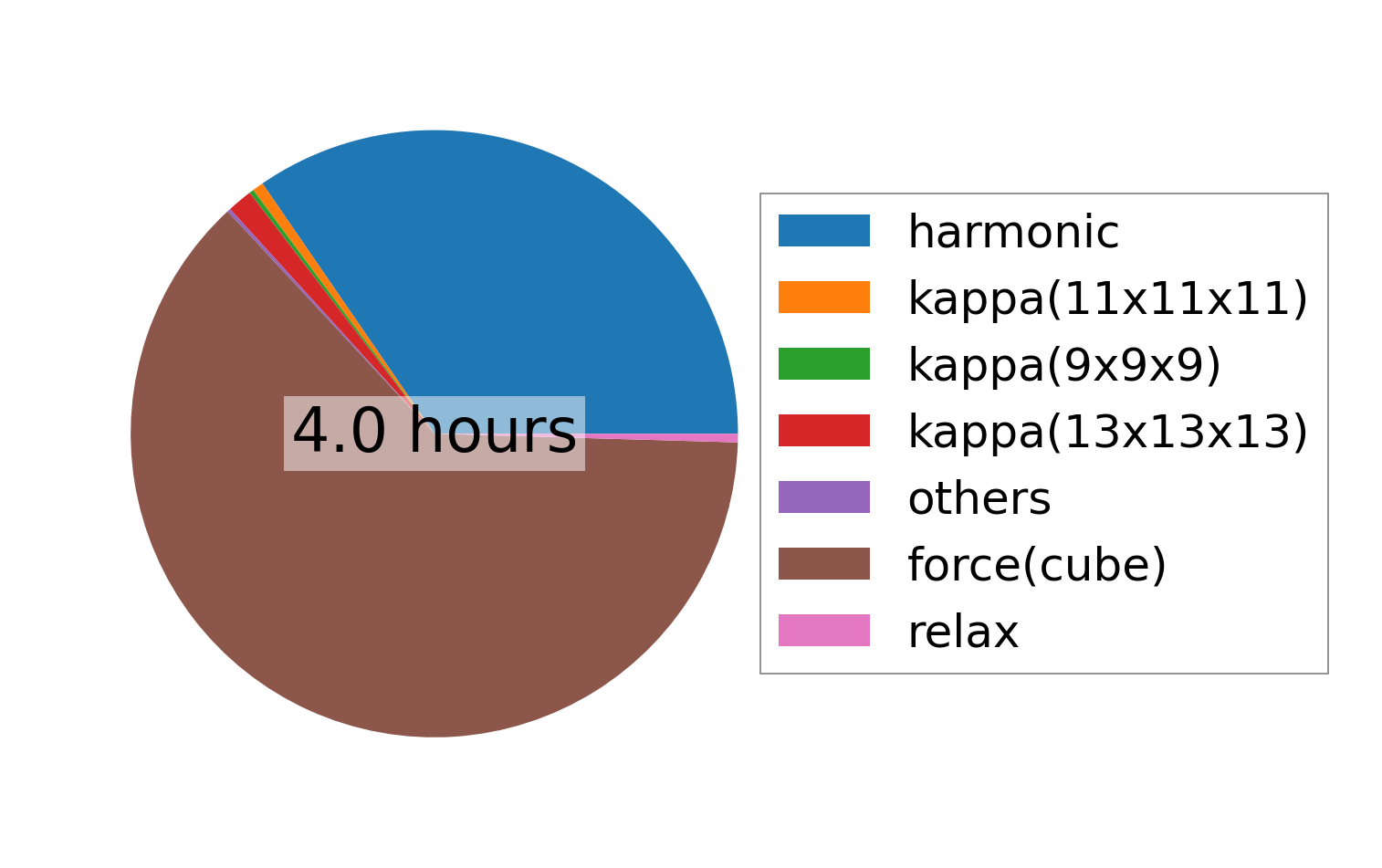

../../_images/fig_times1646.png — (b) Computation time
