mp-770936/Ba2Sc2O5/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-770936.tar.gz

Harmonic properties

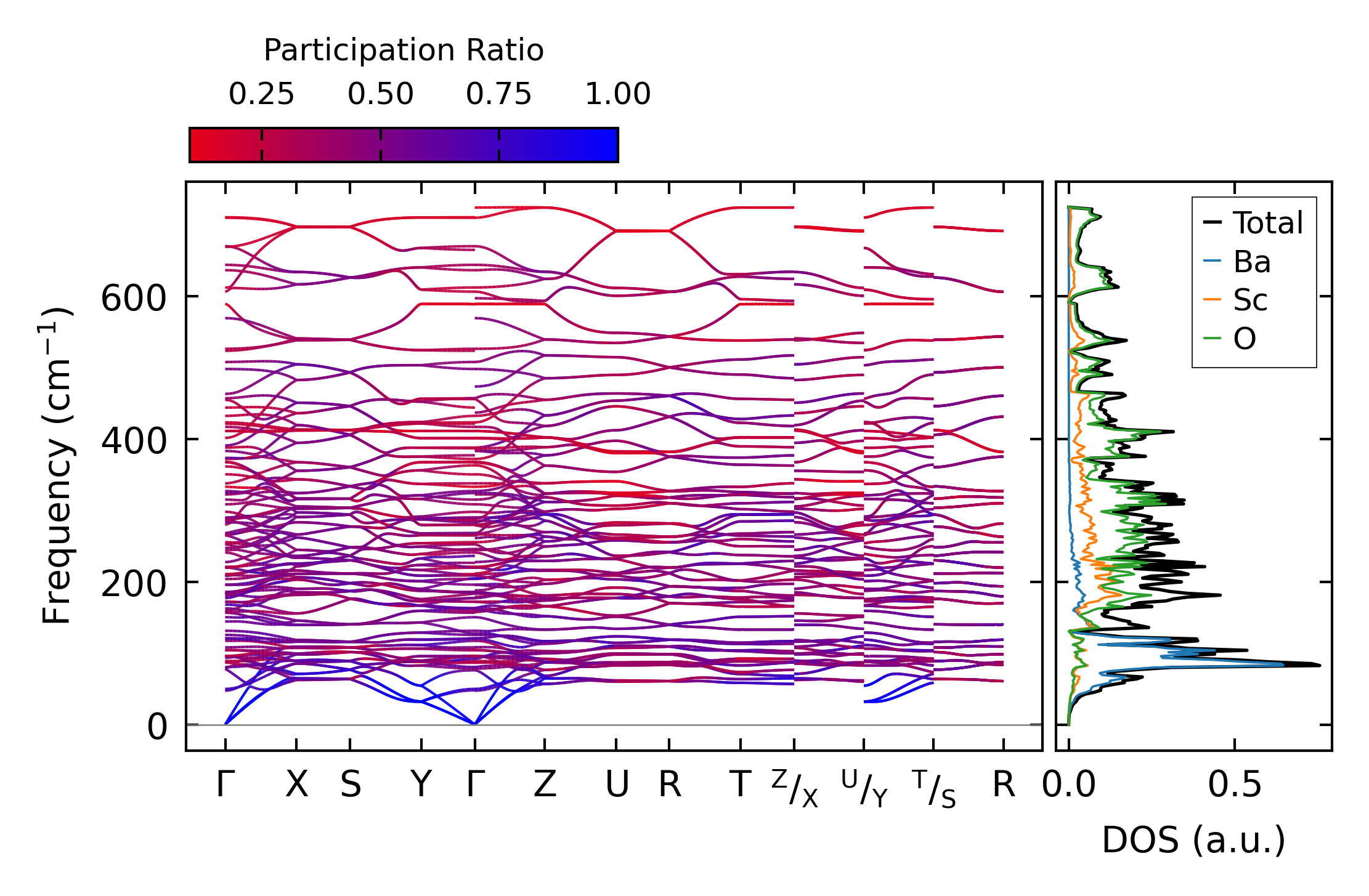

../../_images/fig_bandos_pr2471.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo2471.png — (b) Thermodynamic properties

Grüneisen parameters

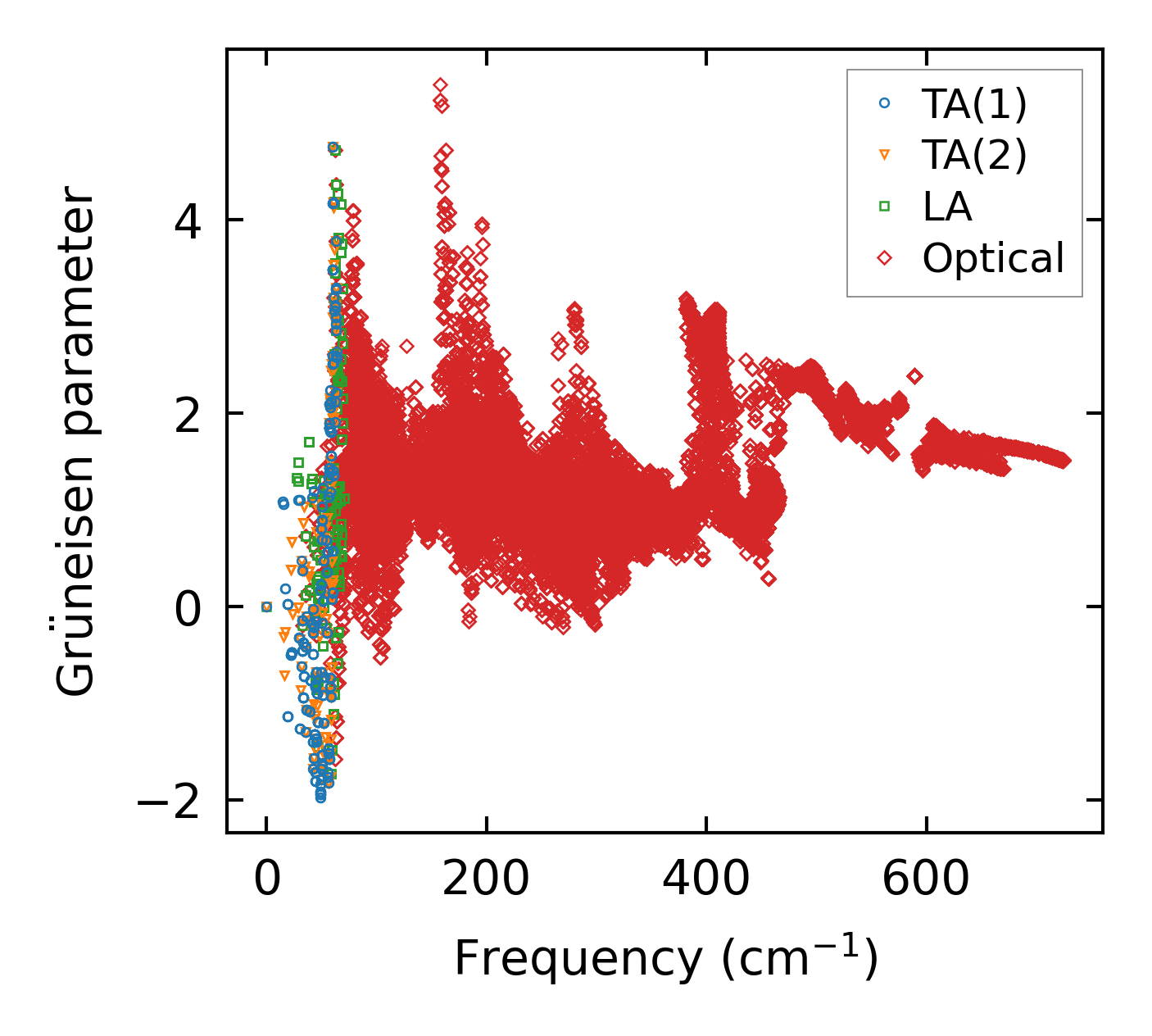

../../_images/fig_gru_all1289.png — (a) Grüneisen parameters

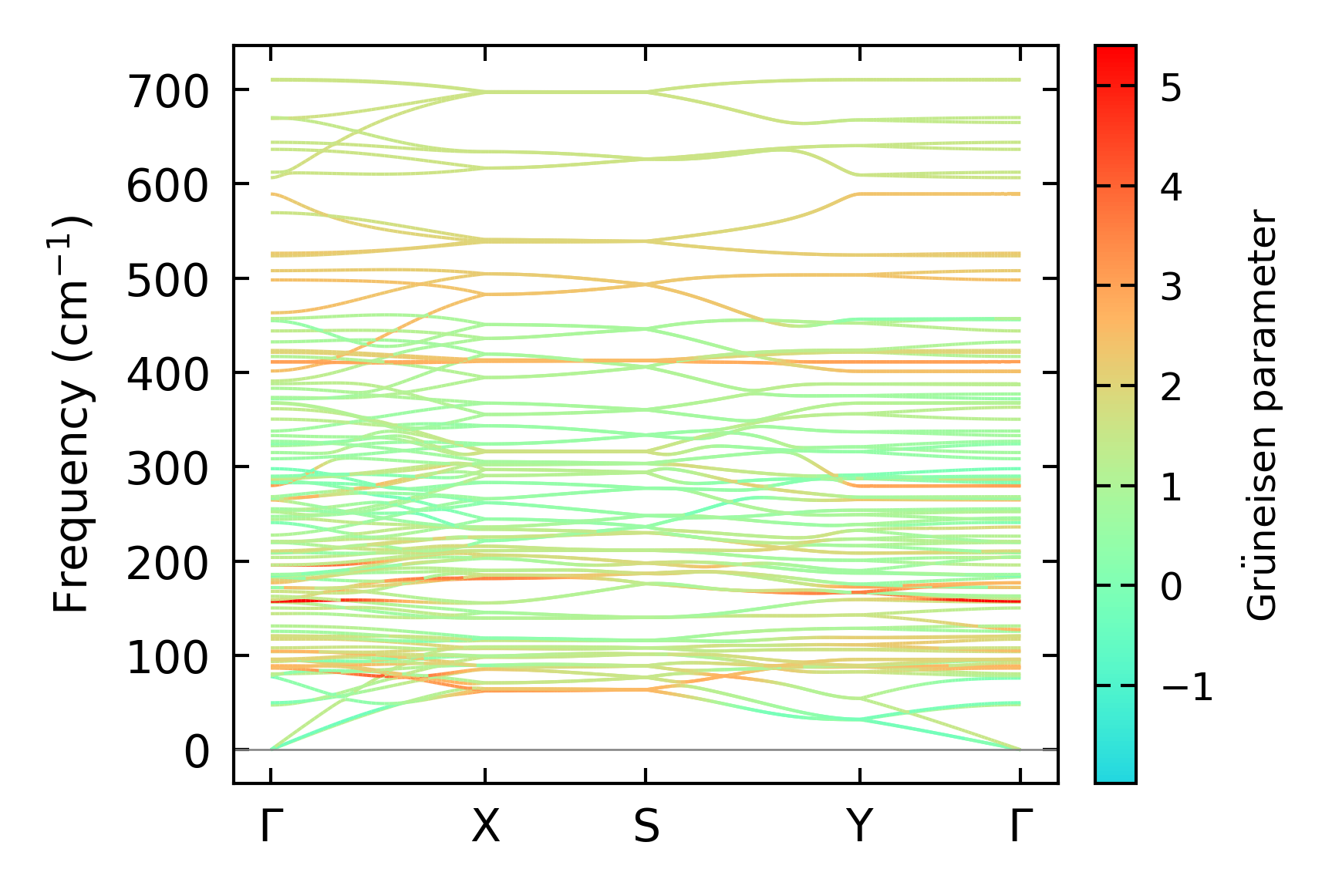

../../_images/fig_gruneisen1289.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x4x11, supercell: 2x1x2

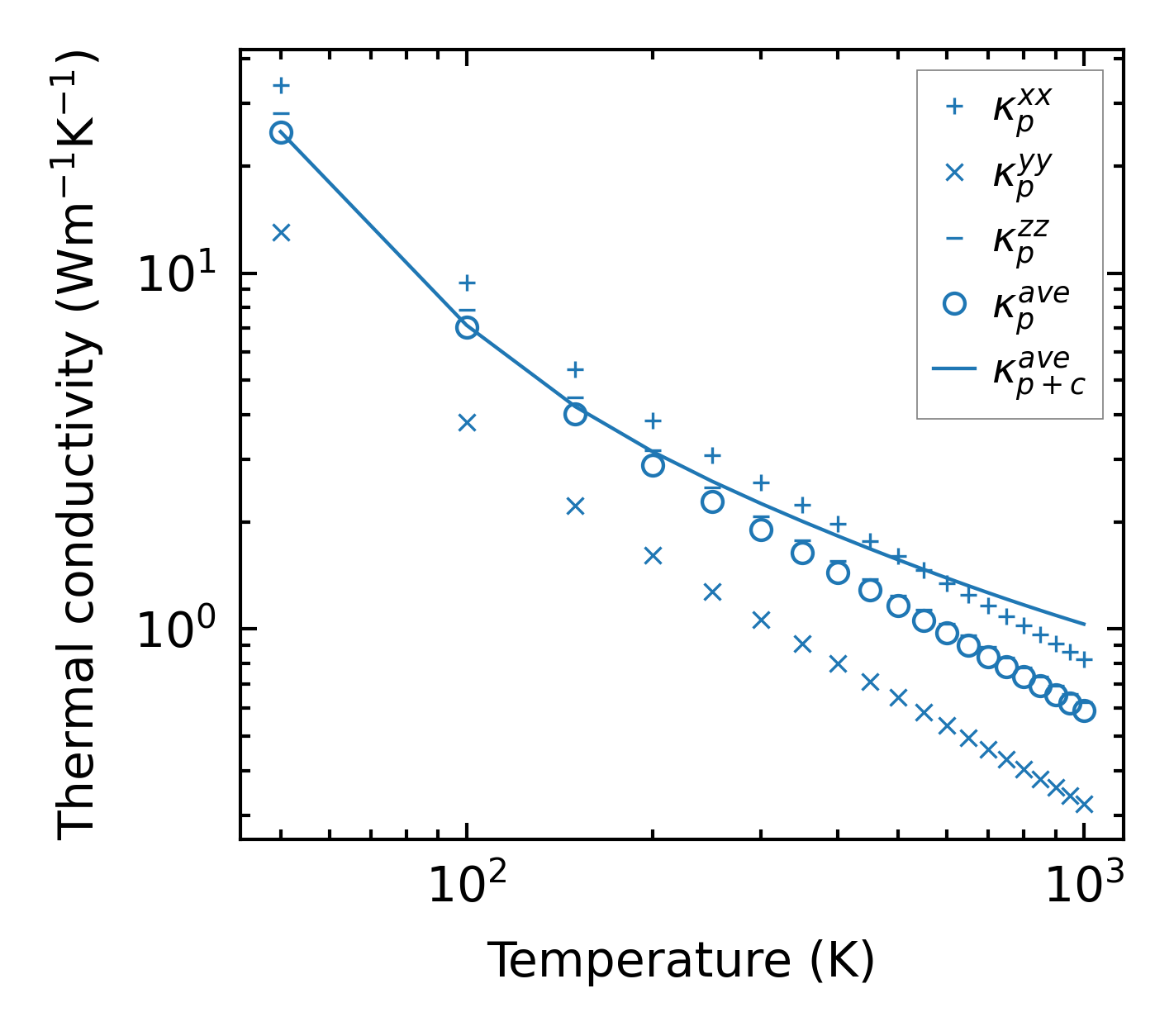

../../_images/fig_kappa2479.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size1305.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

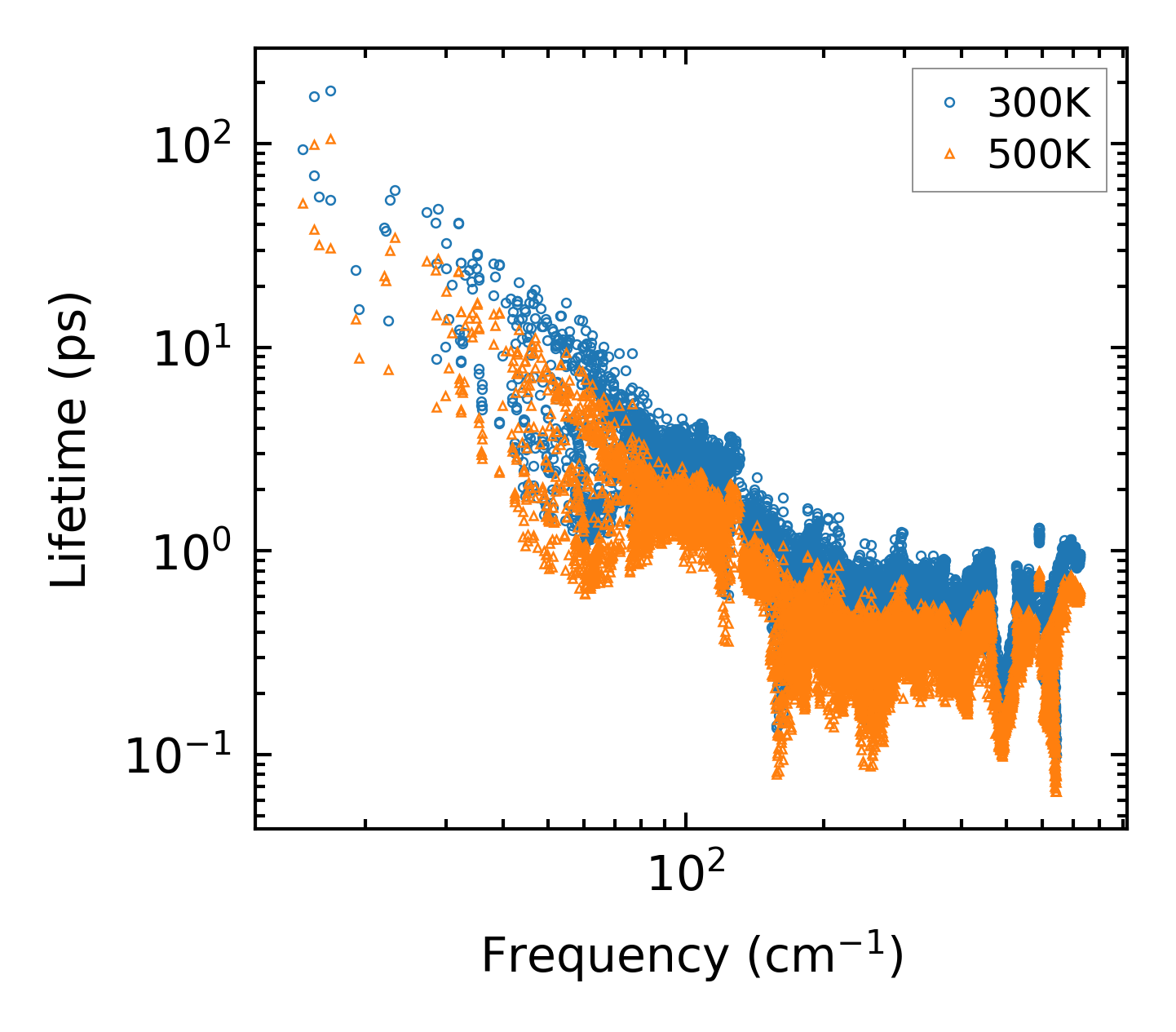

../../_images/fig_lifetime1279.png — (a) Phonon lifetime due to phonon-phonon scattering

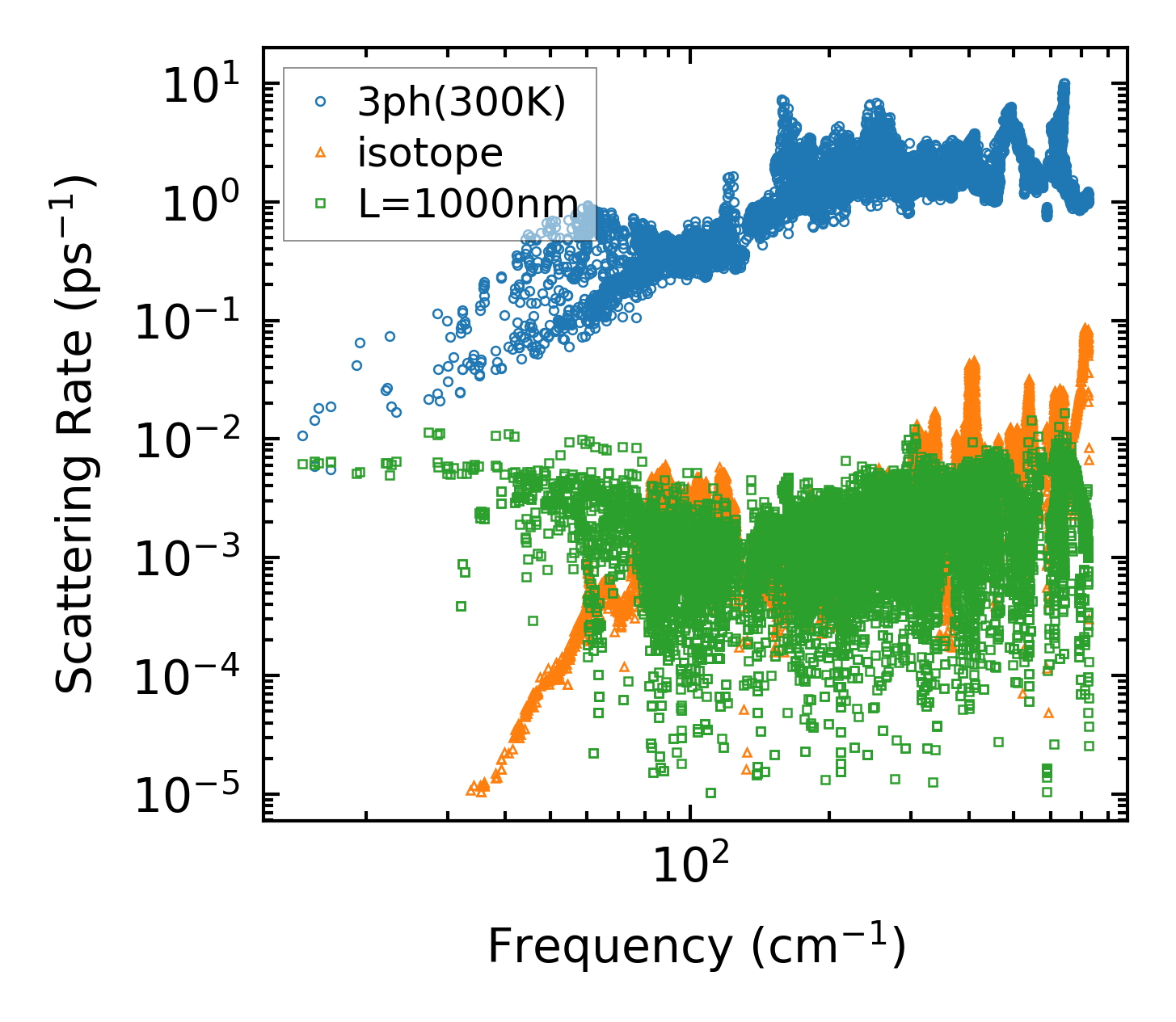

../../_images/fig_scat_rates1278.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

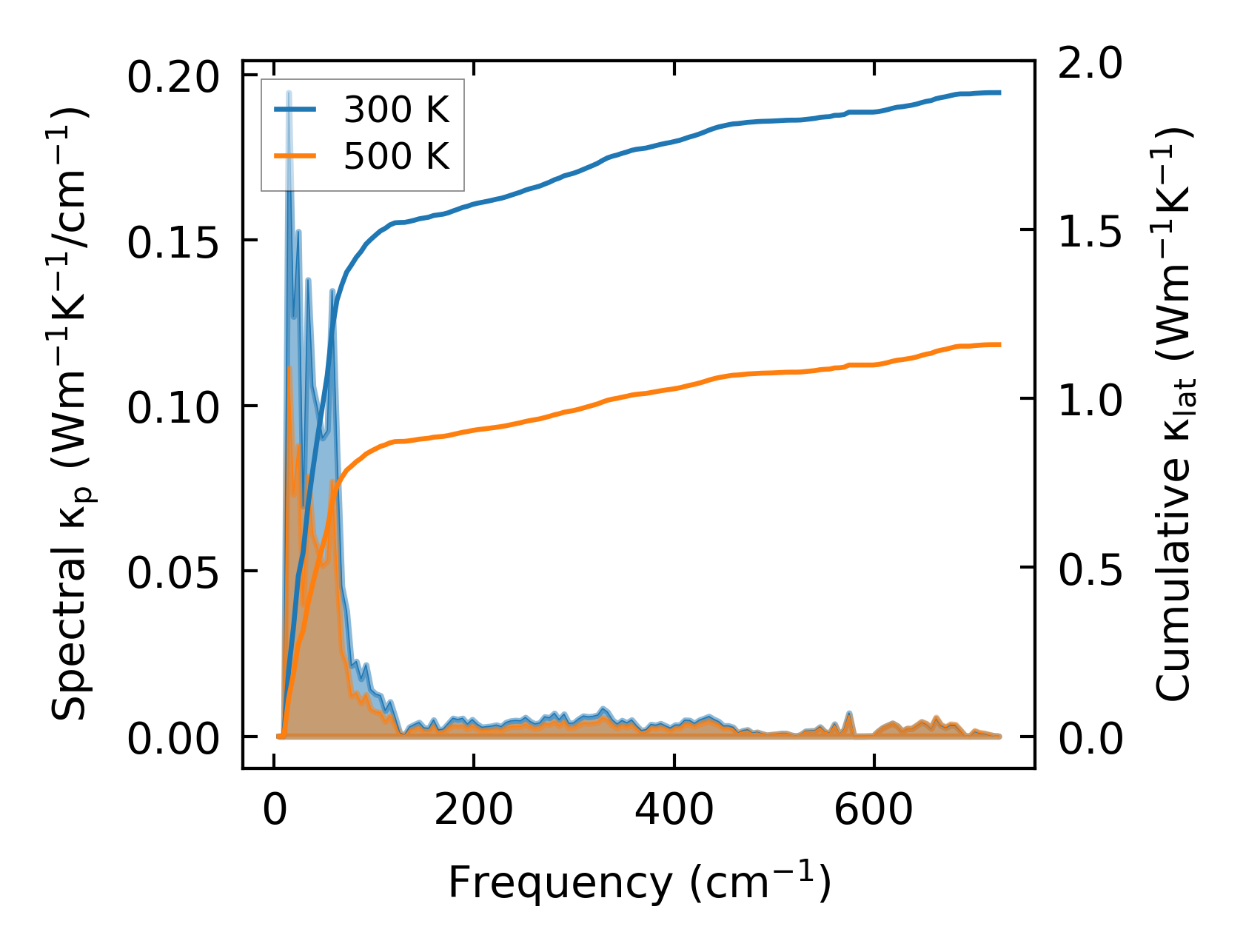

../../_images/fig_cumu_frequency1279.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

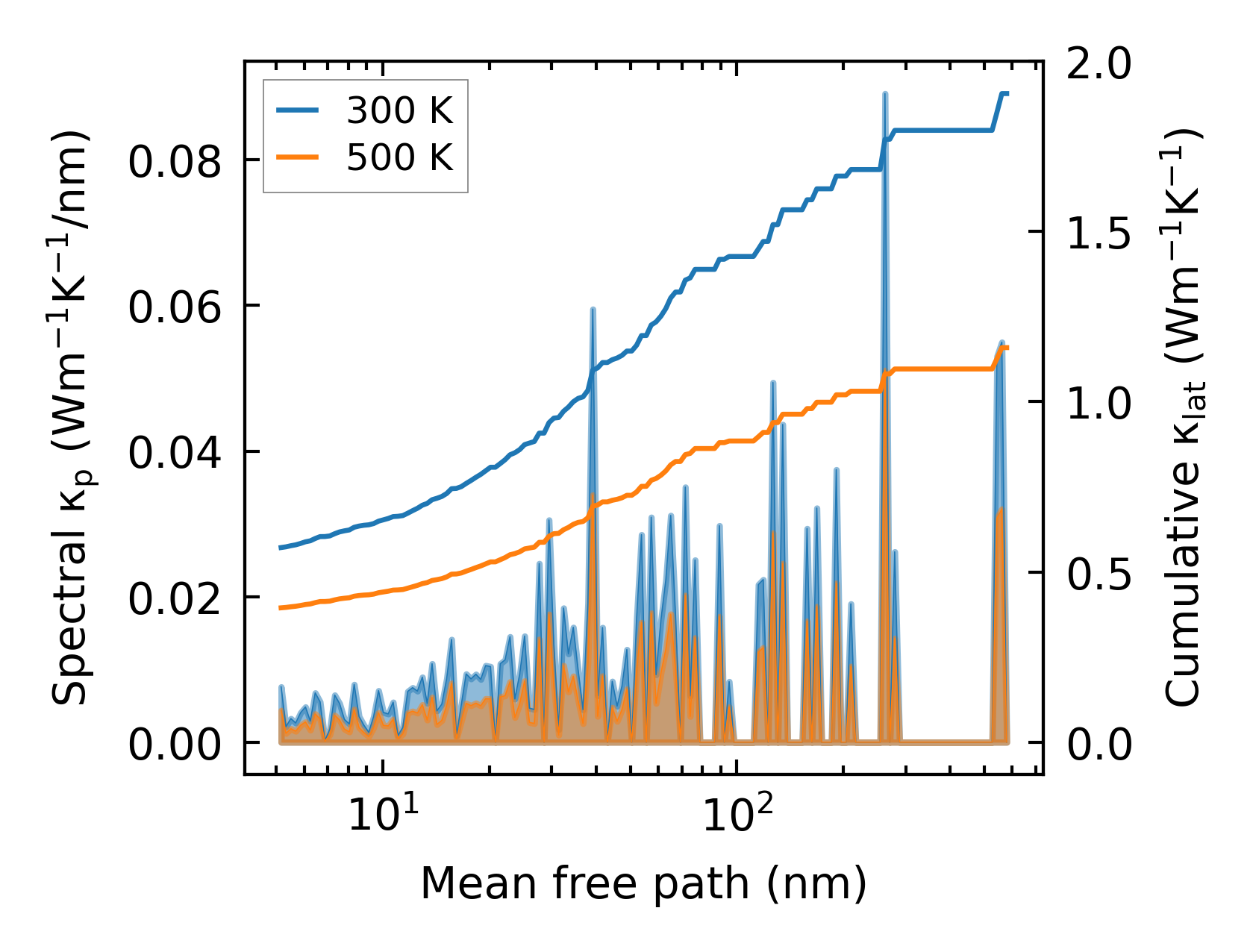

../../_images/fig_cumu_mfp1279.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc22292.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa2480.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times4076.png — (b) Computation time
