mp-674333/Na3PO4/anharm

Space group: Pmn2_1 (31)
Link: Materials Project
Download: mp-674333.tar.gz

Harmonic properties

../../_images/fig_bandos_pr5421.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo5421.png — (b) Thermodynamic properties

Grüneisen parameters

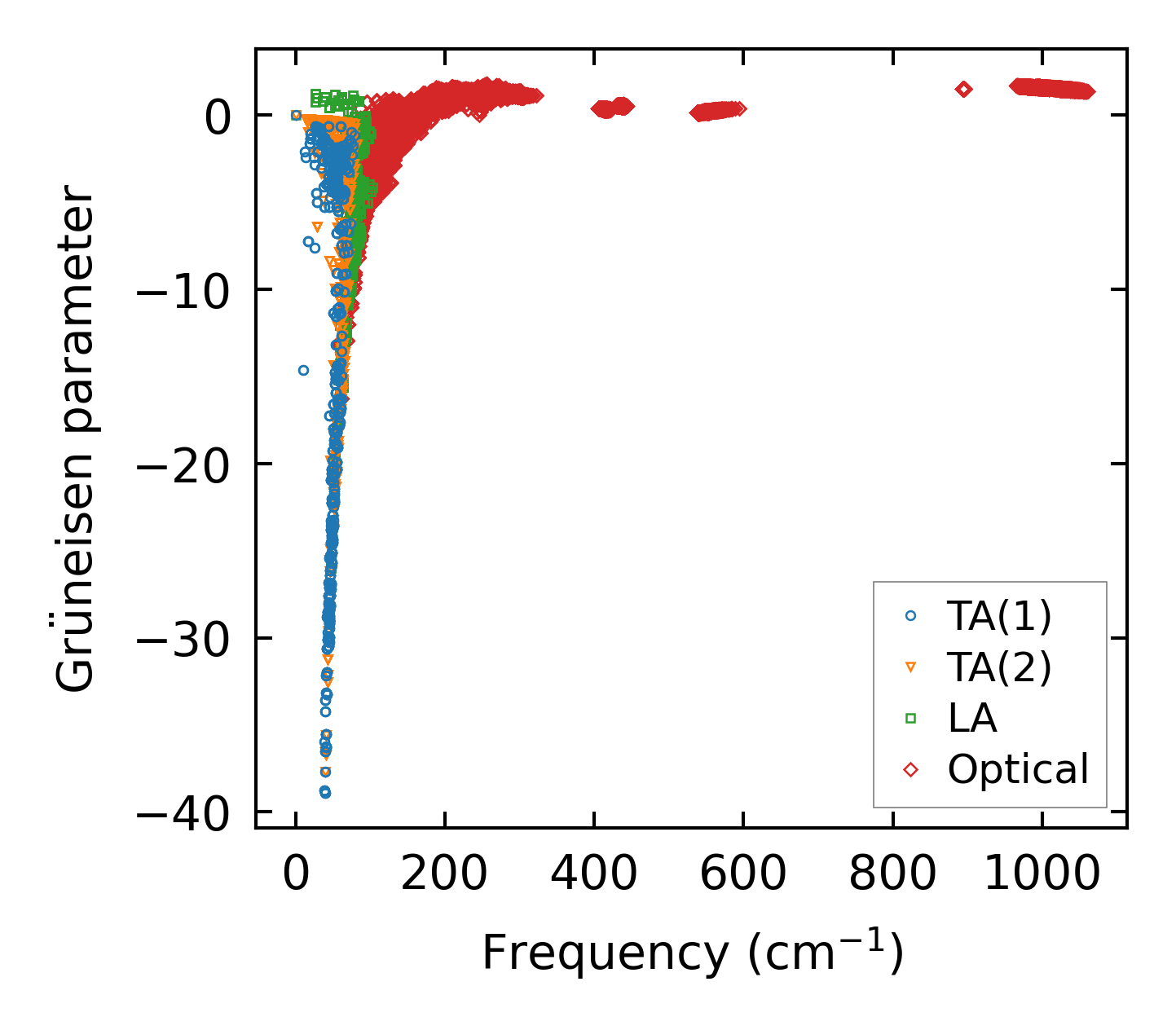

../../_images/fig_gru_all2254.png — (a) Grüneisen parameters

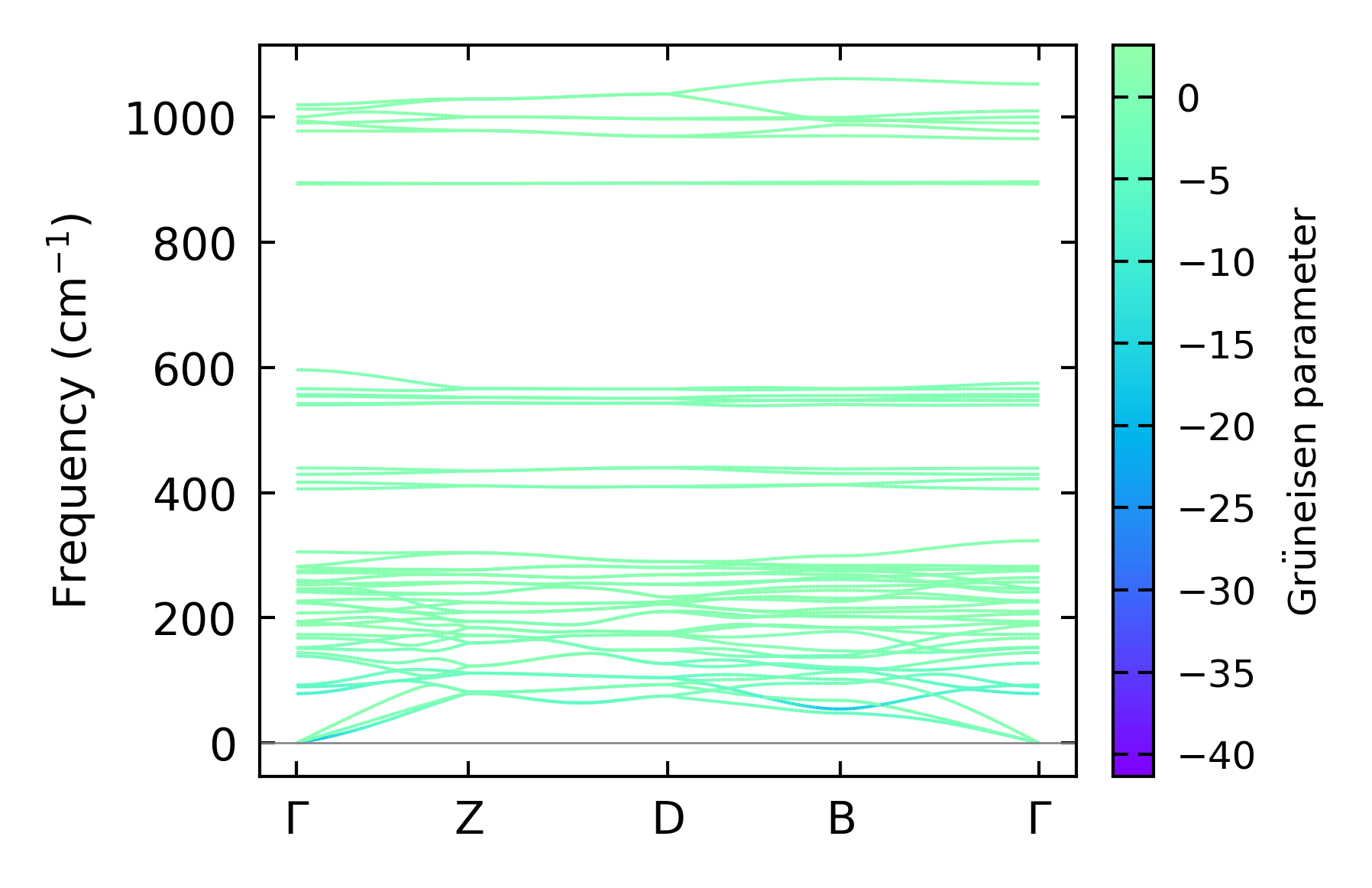

../../_images/fig_gruneisen2254.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x10x12, supercell: 2x2x2

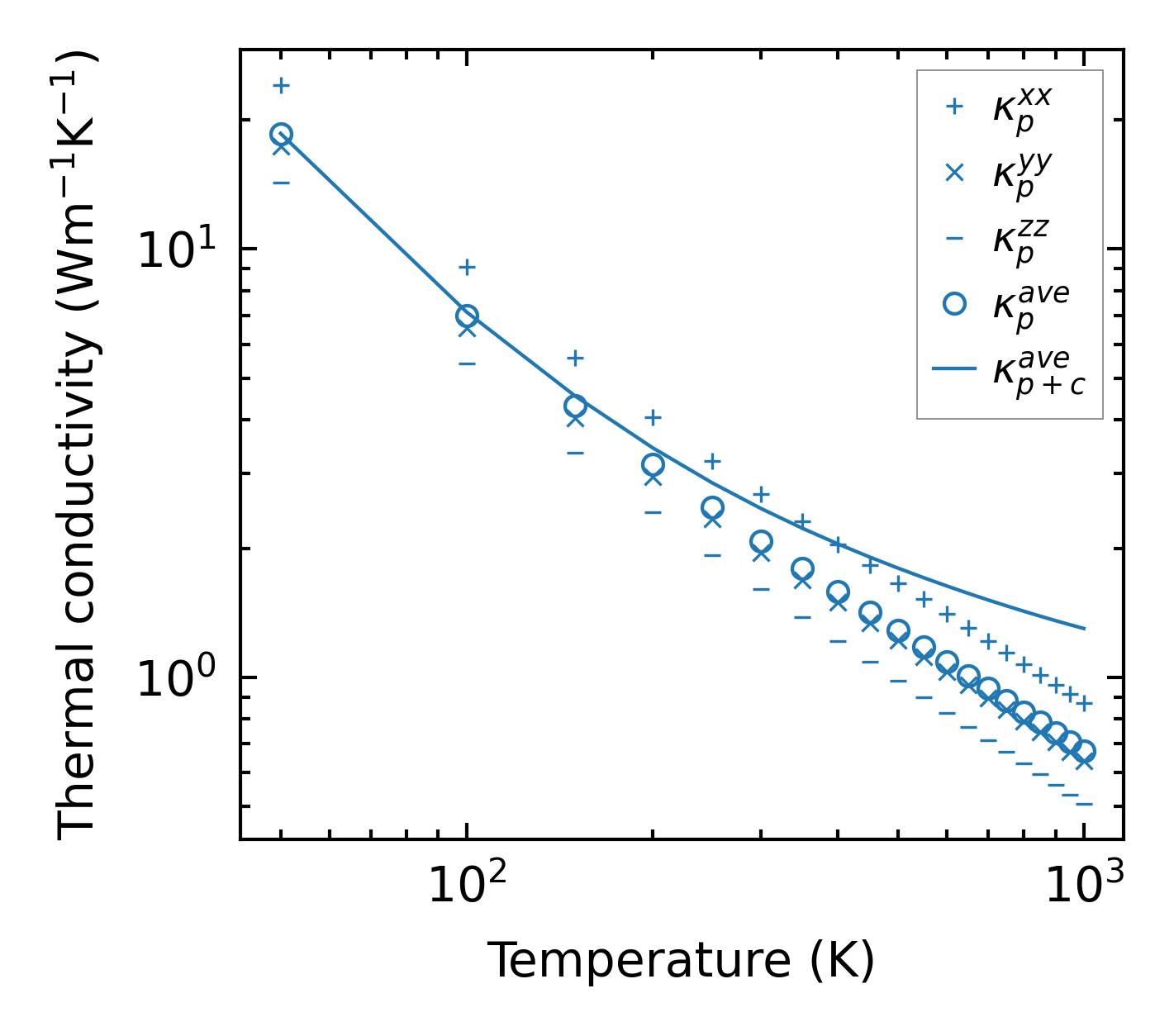

../../_images/fig_kappa4312.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size2285.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime2240.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates2239.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

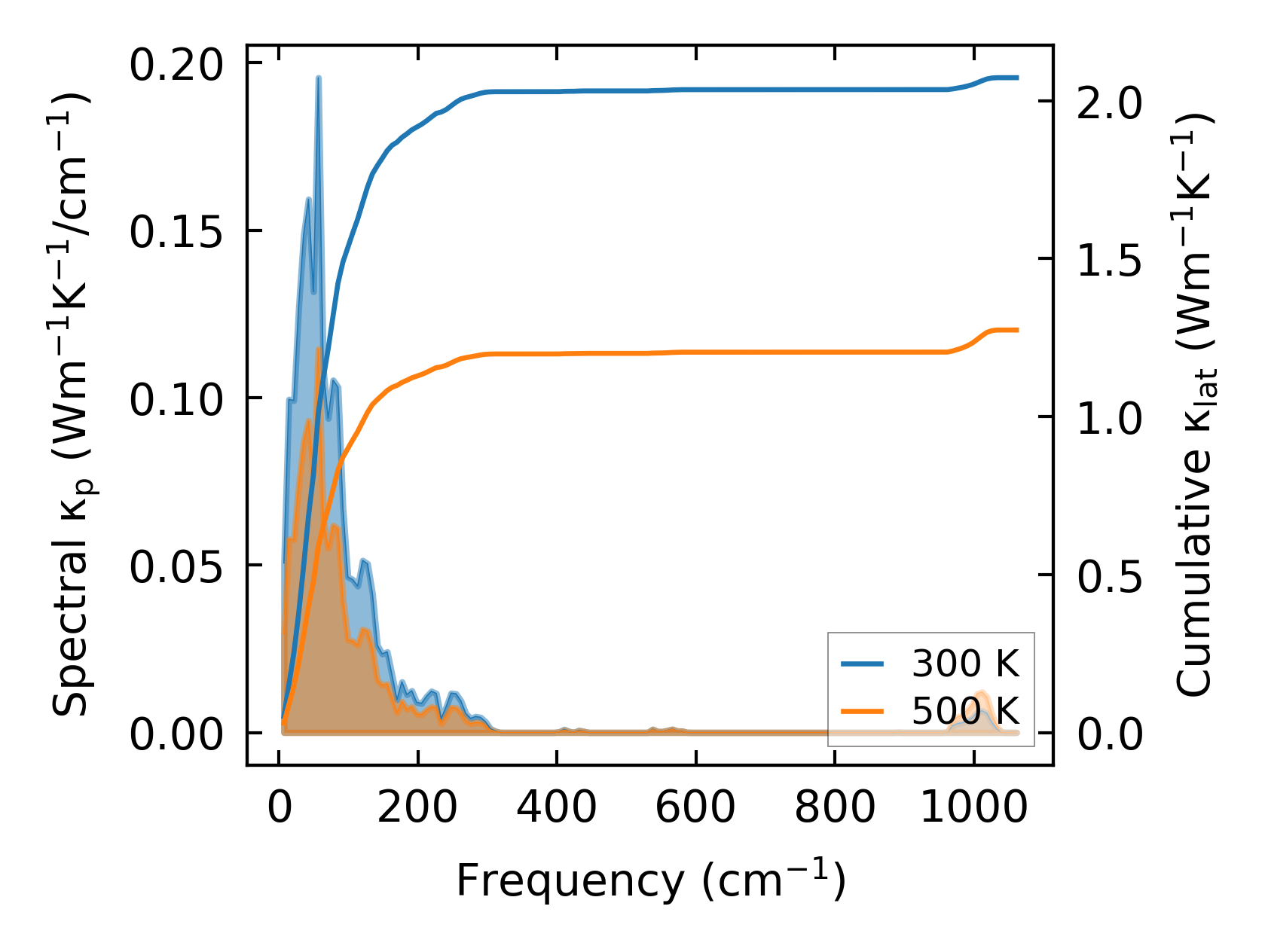

../../_images/fig_cumu_frequency2240.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

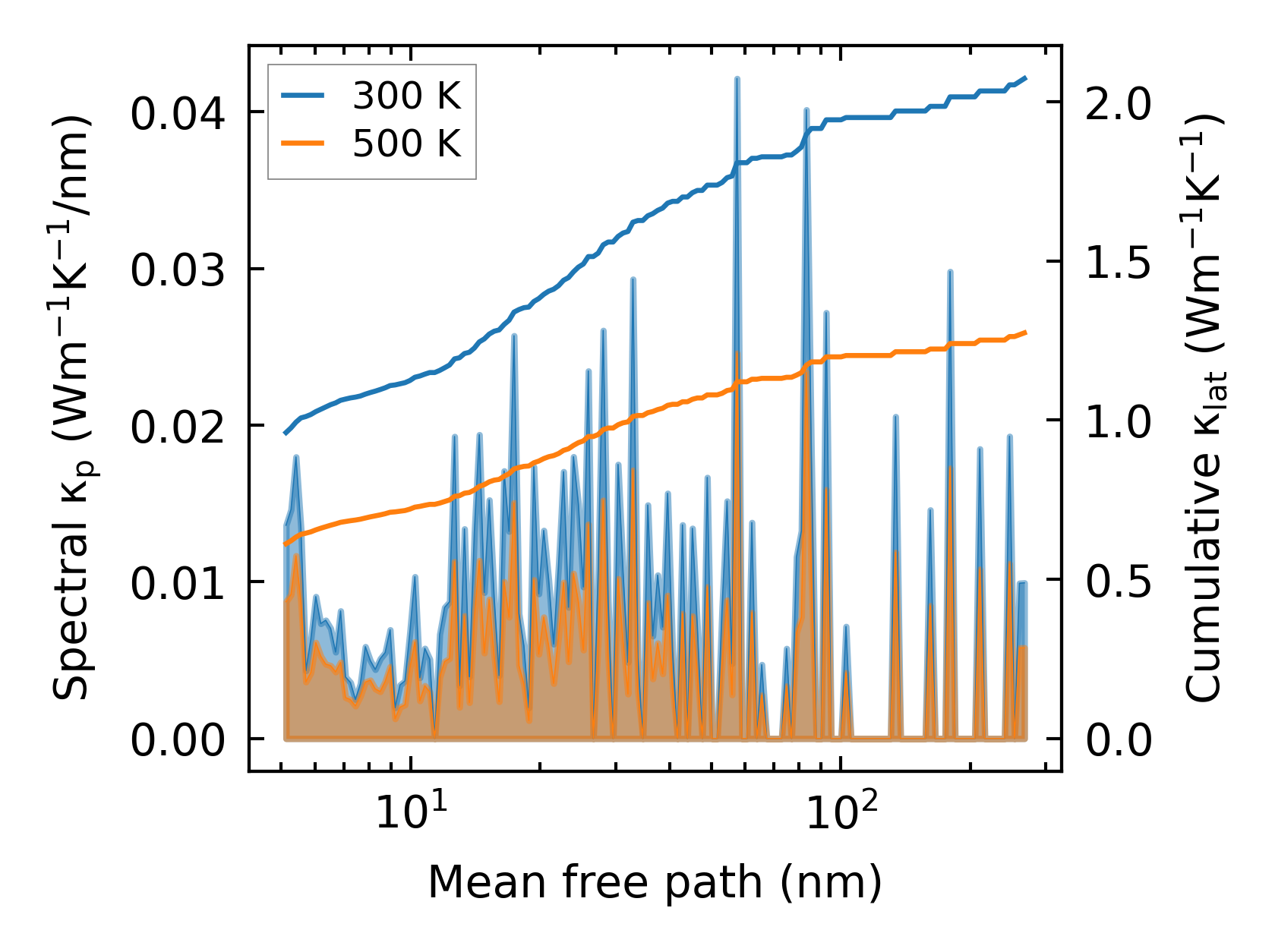

../../_images/fig_cumu_mfp2240.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

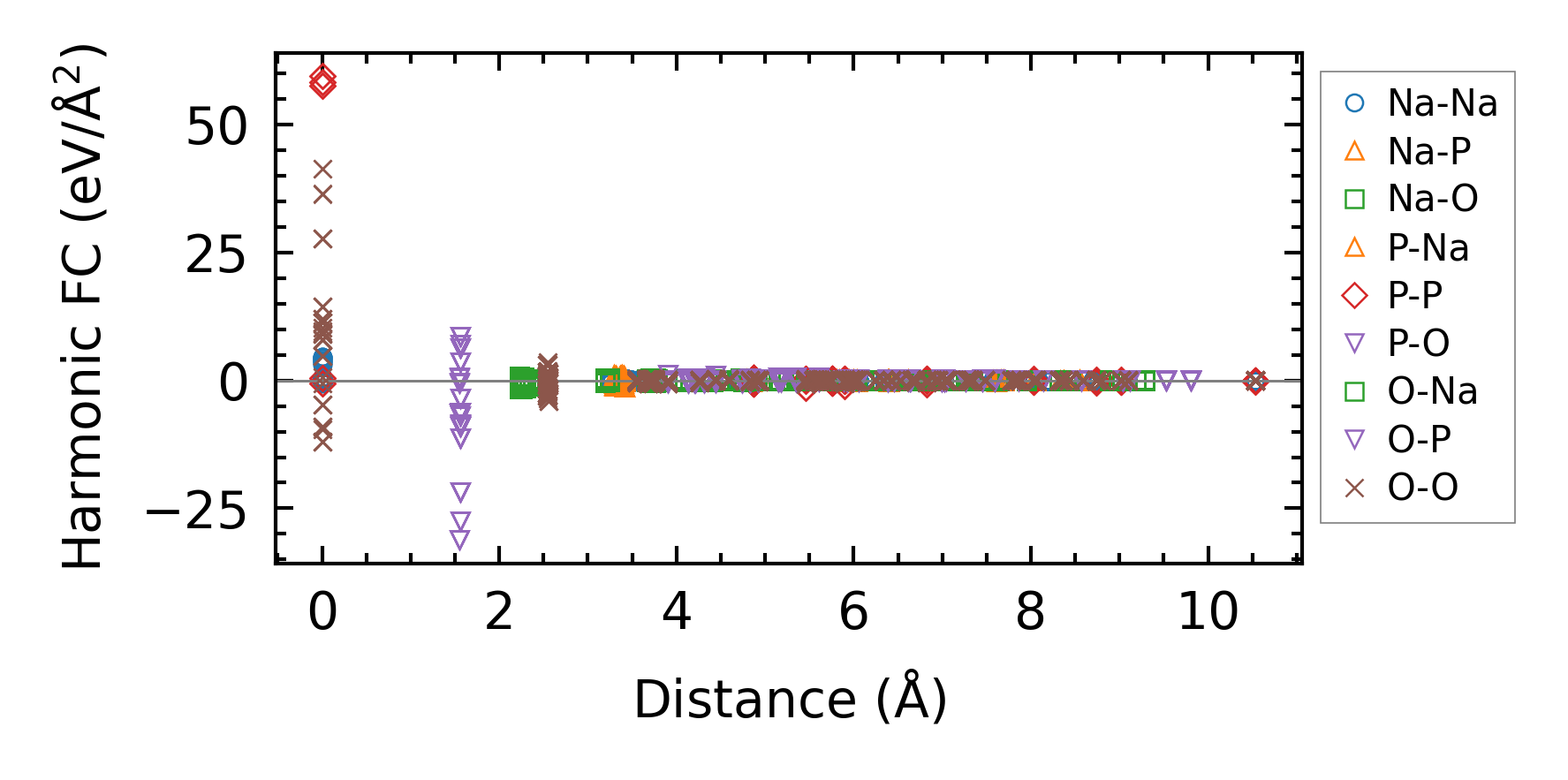

../../_images/fig_fc25226.png — (a) Force constants w.r.t atomic distance

Summary

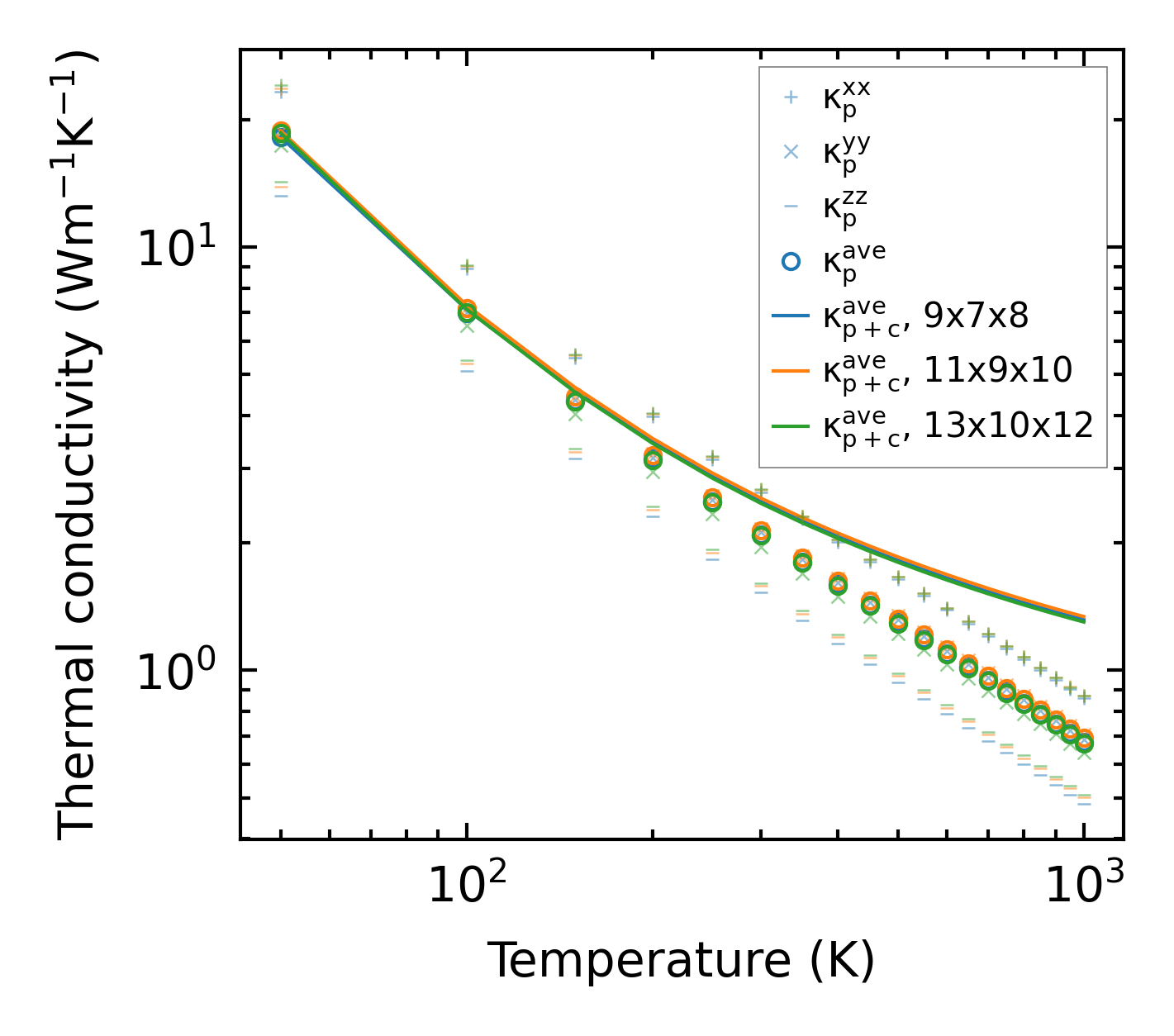

../../_images/fig_kappa4313.png — (a) Temperature-dependent lattice thermal conductivity

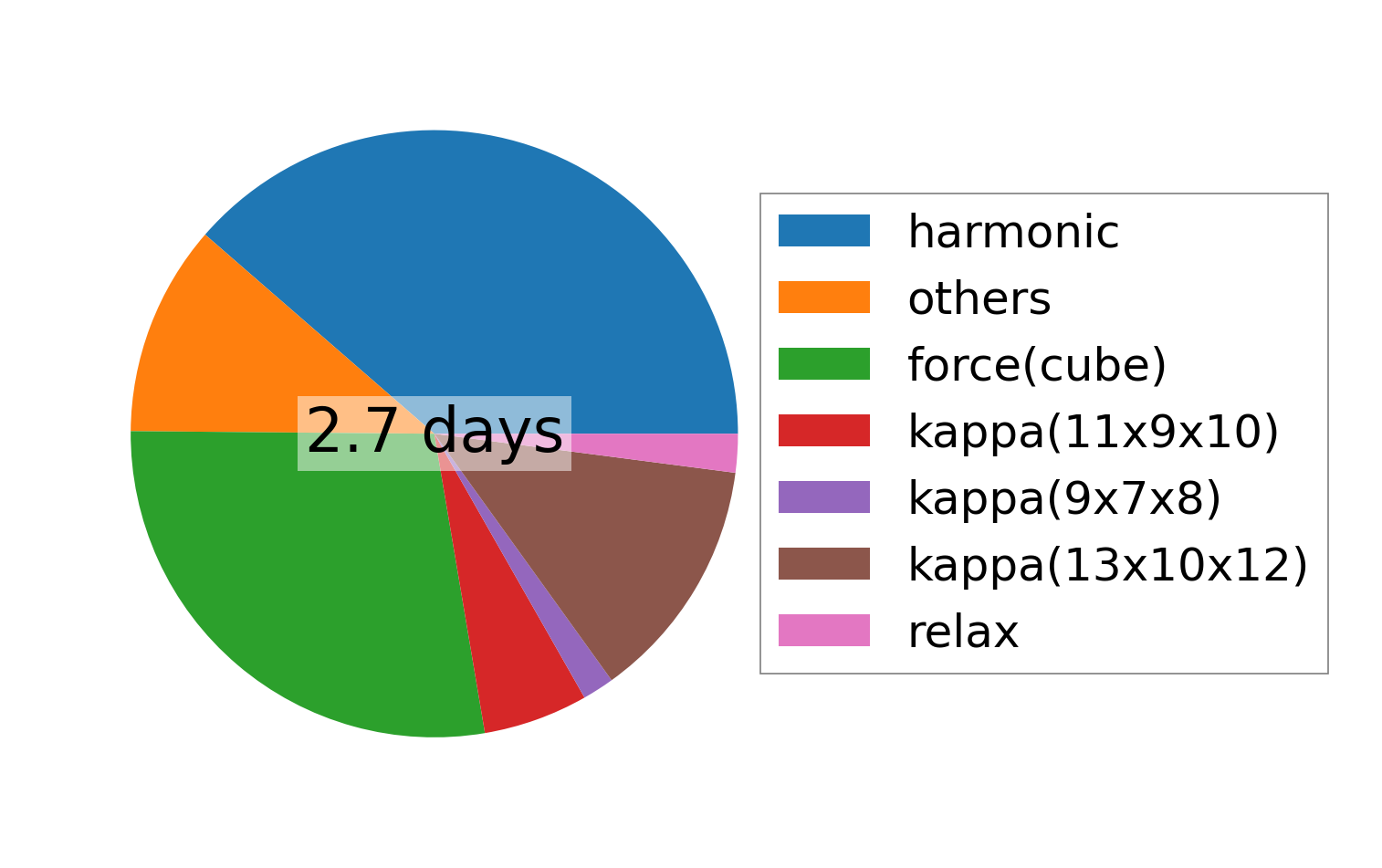

../../_images/fig_times9827.png — (b) Computation time
