mp-674333-3/Na3PO4/anharm

Space group: Pmn2_1 (31)
Link: Materials Project
Download: mp-674333-3.tar.gz

Equation of state

../../_images/fig_bm2647.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr5423.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo5423.png — (b) Thermodynamic properties

Grüneisen parameters

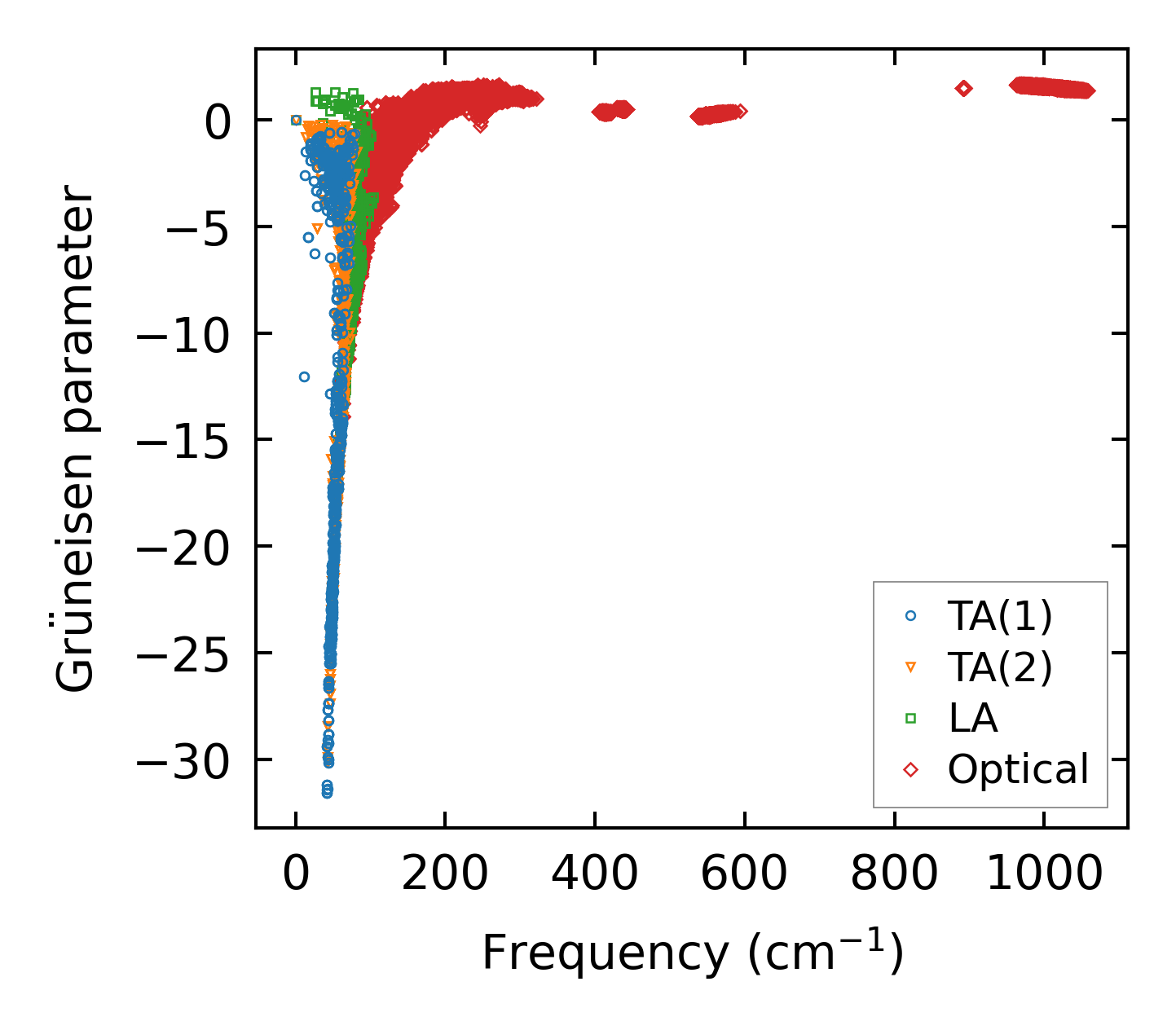

../../_images/fig_gru_all2256.png — (a) Grüneisen parameters

../../_images/fig_gruneisen2256.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x10x12, supercell: 2x2x2

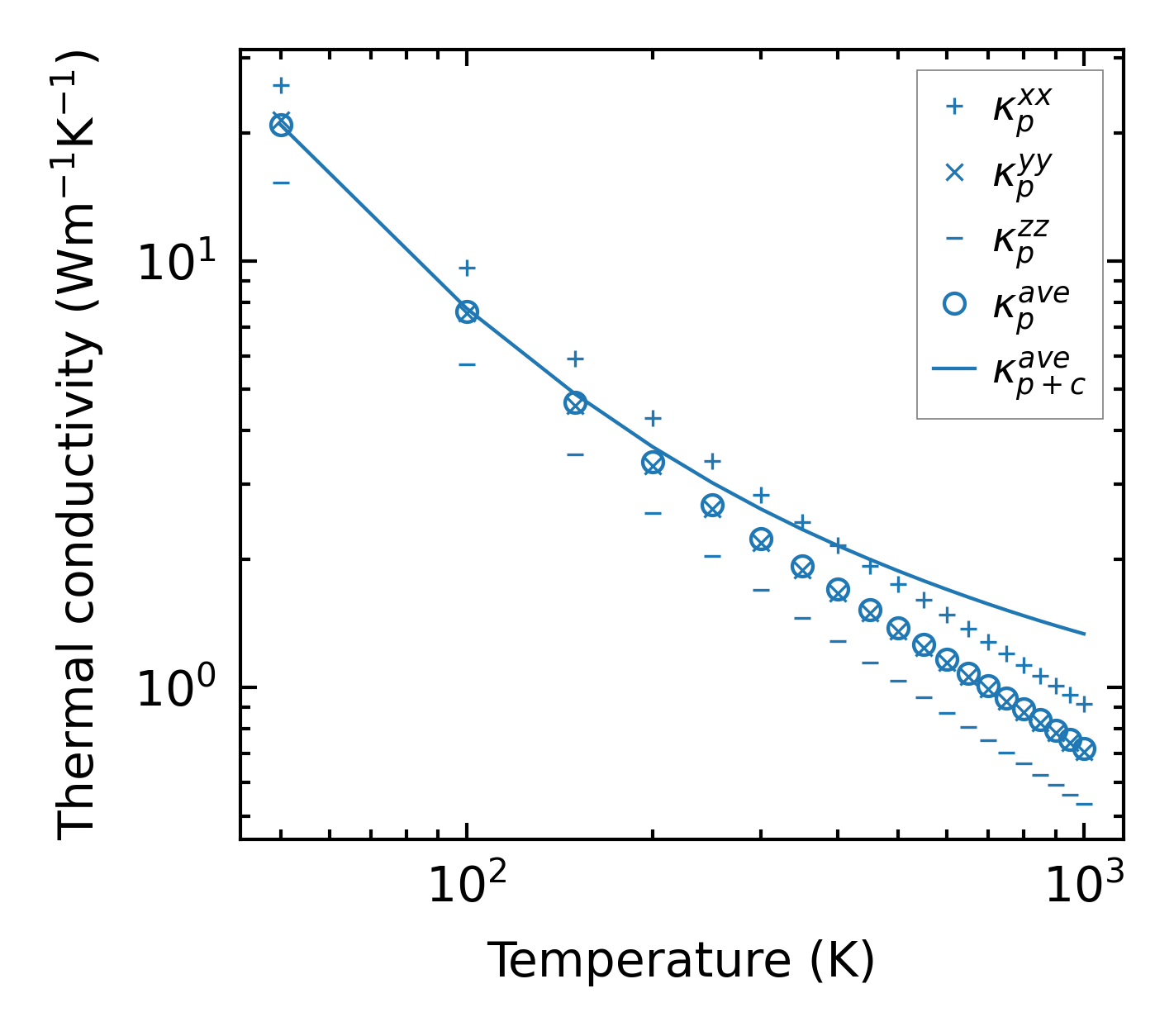

../../_images/fig_kappa4316.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size2287.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

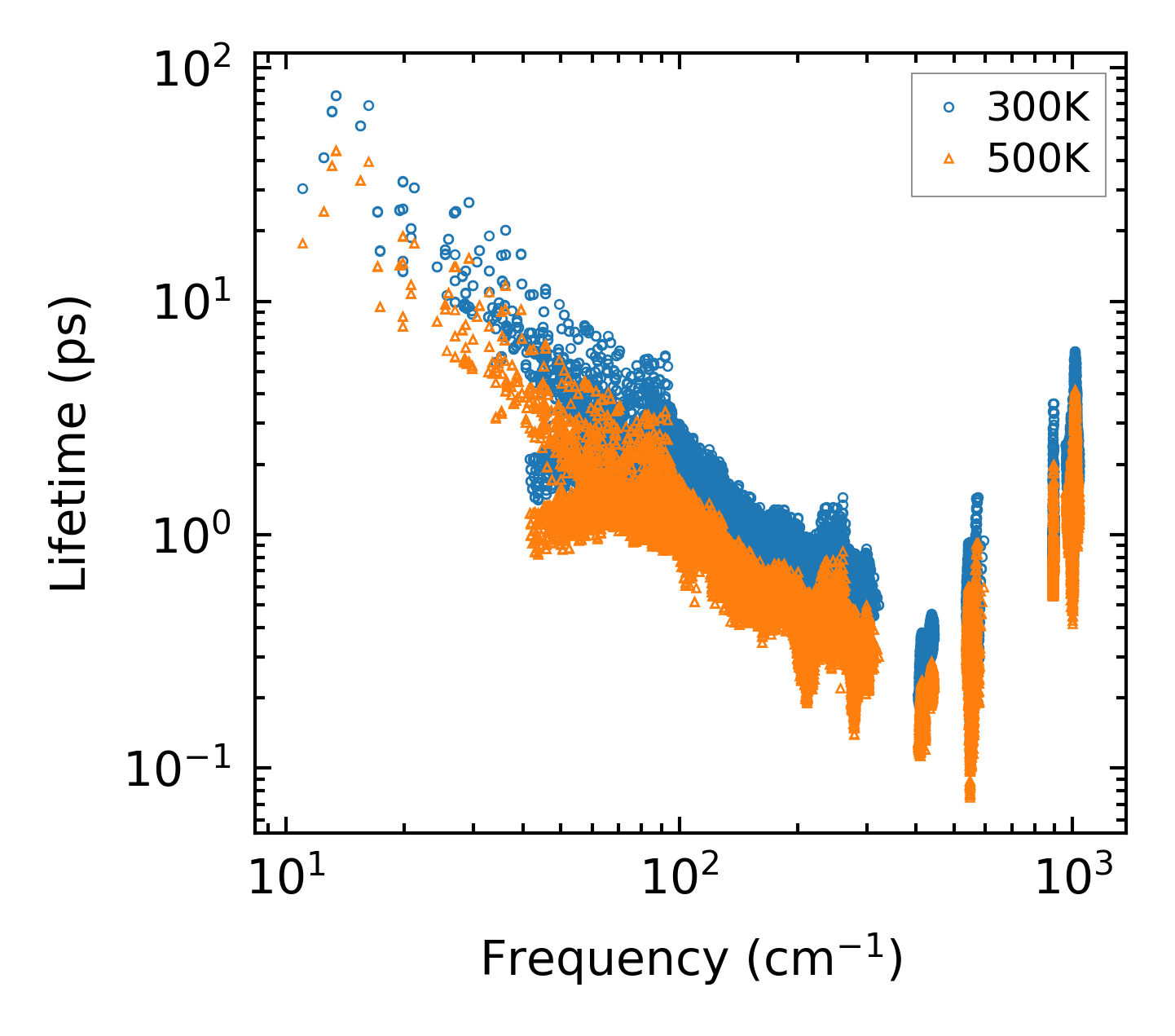

../../_images/fig_lifetime2242.png — (a) Phonon lifetime due to phonon-phonon scattering

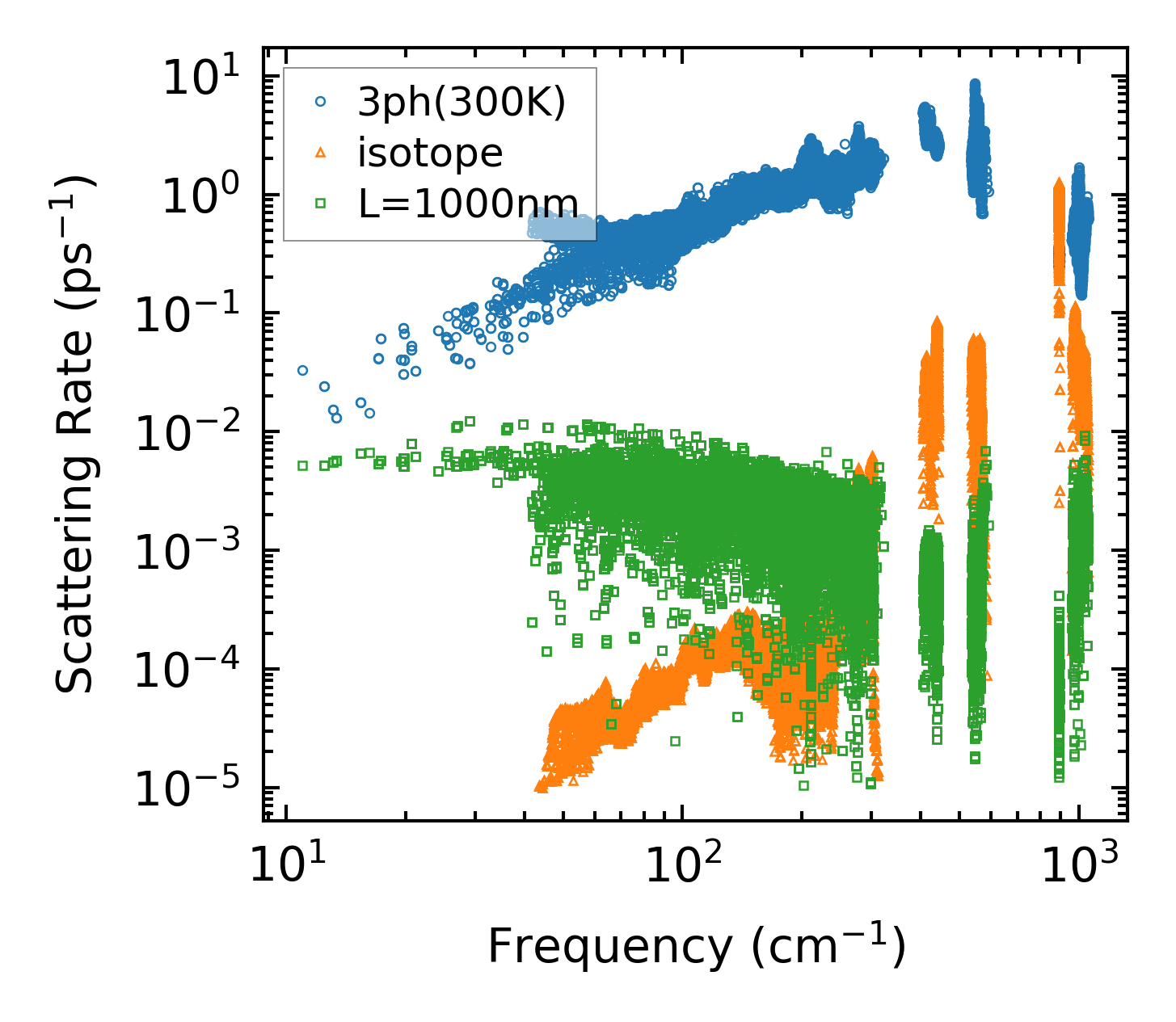

../../_images/fig_scat_rates2241.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

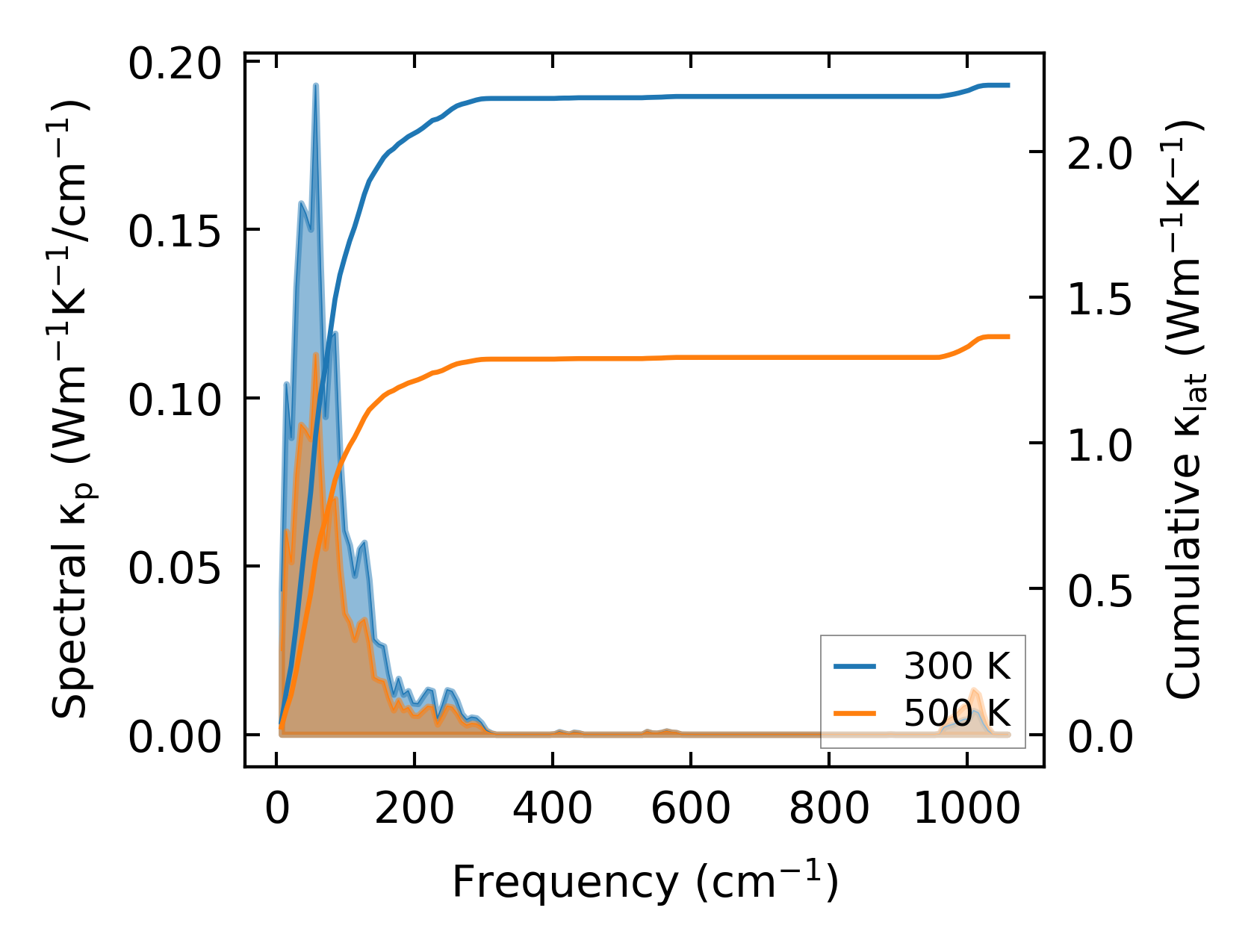

../../_images/fig_cumu_frequency2242.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

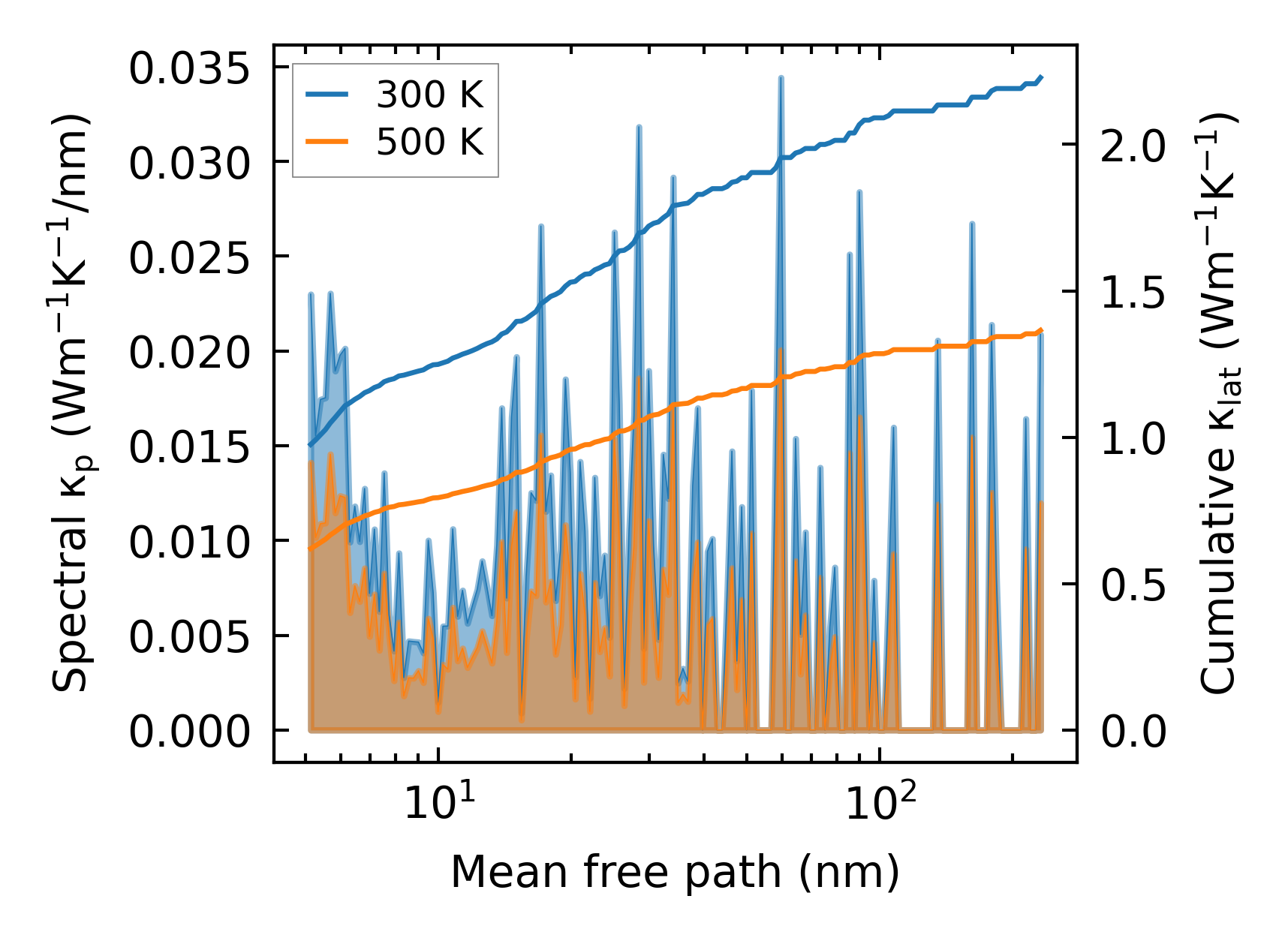

../../_images/fig_cumu_mfp2242.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

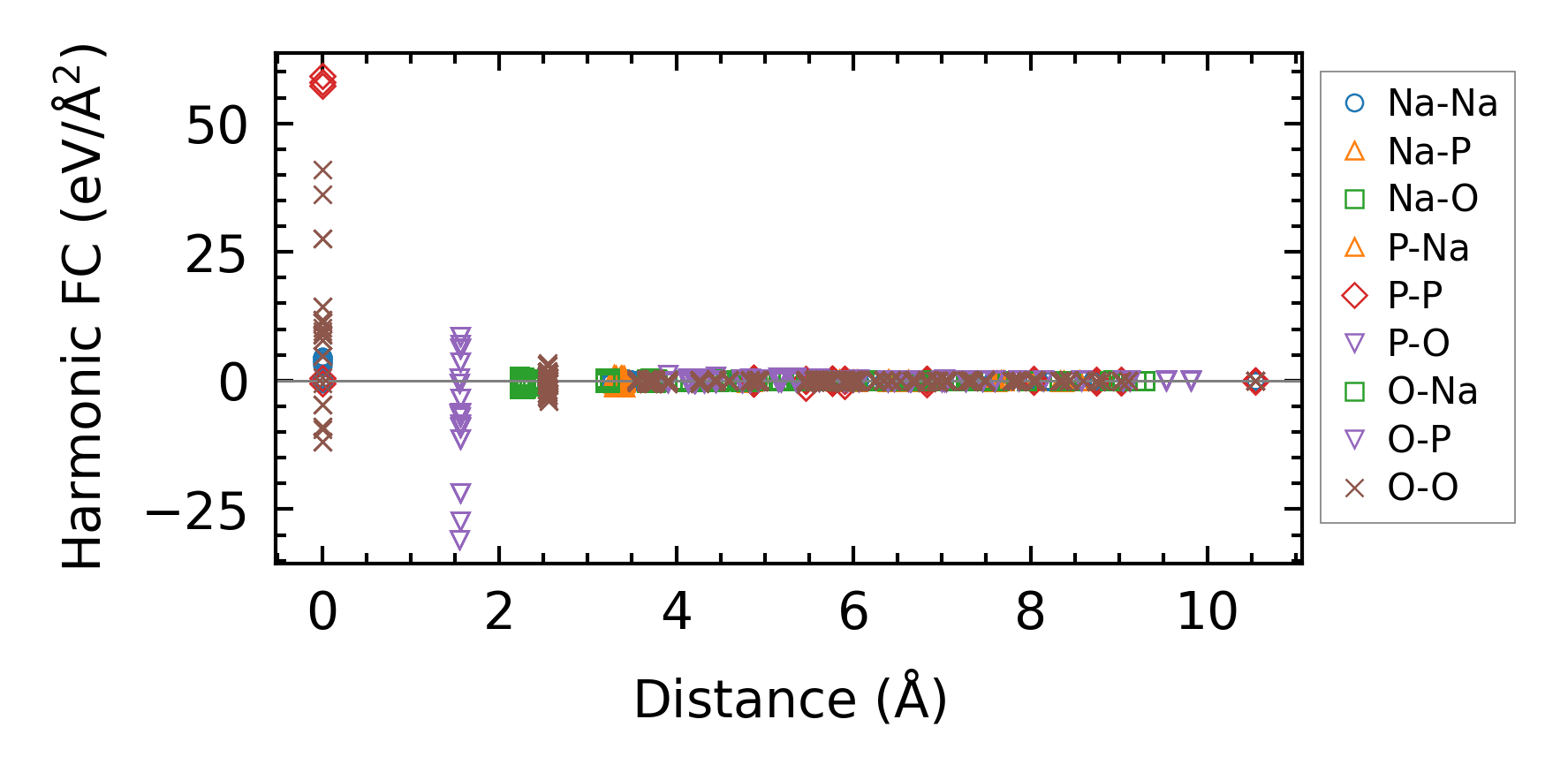

../../_images/fig_fc25228.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa4317.png — (a) Temperature-dependent lattice thermal conductivity

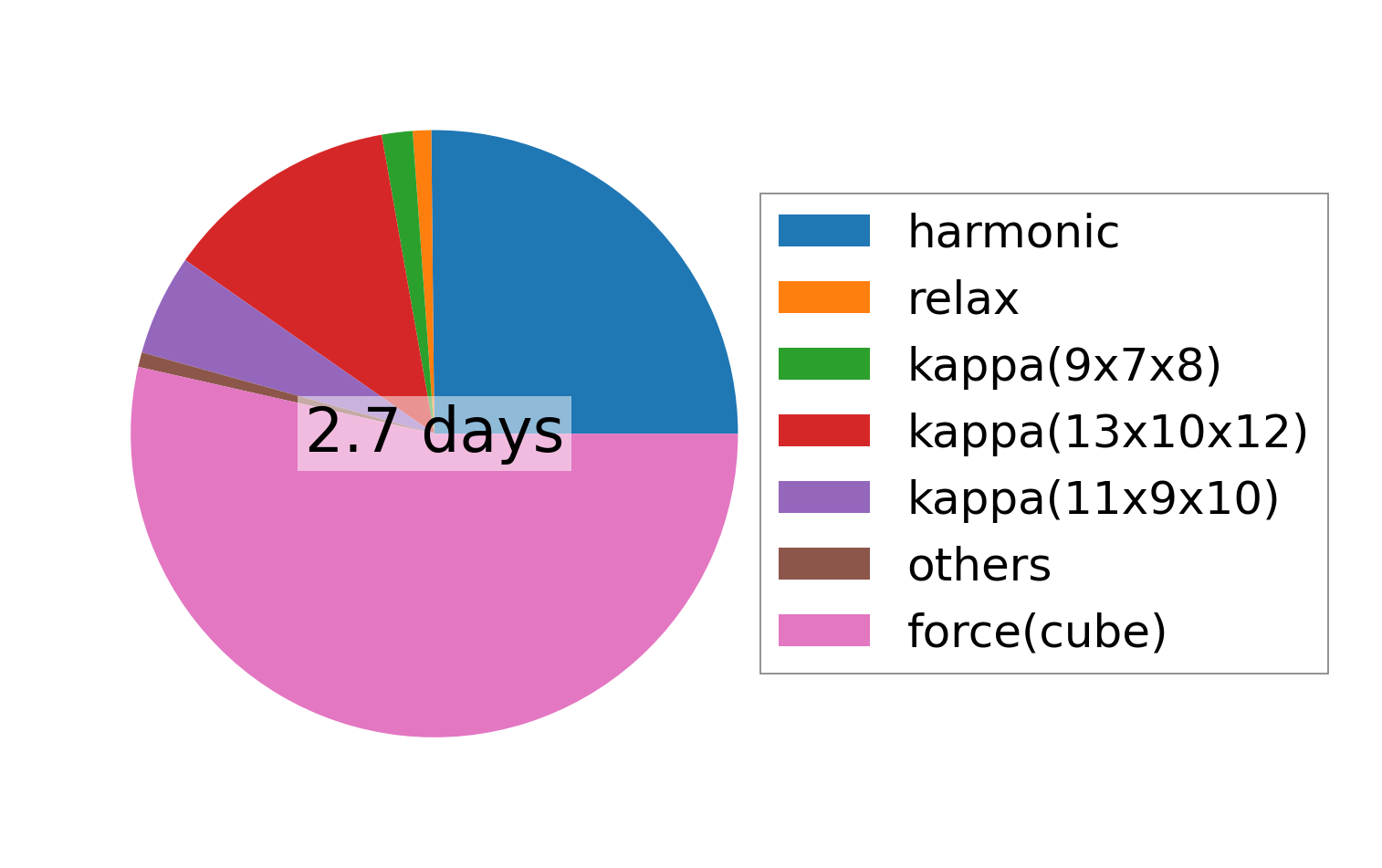

../../_images/fig_times9829.png — (b) Computation time
